EXP694 Dryer Repair Kit - Compatible with Samsung and Kenmore Dryers
Product Description
Restore your dryer’s performance with the Replacement EXP694 Dryer Repair Kit. This comprehensive replacement kit, designed for select Samsung and Kenmore dryers, includes four drum rollers (DC97-16782A), one idler pulley (DC93-00634A), and one drum belt (6602-001655) to ensure smooth, quiet drum rotation. Crafted from durable plastic, rubber, and metal with self-lubricating bushings and ball bearings, this kit fixes common issues like loud squeaking or rumbling noises, drum not tumbling, or marks on clothes due to misalignment.
Note: Includes four rollers (each with shaft and two tri-rings), one idler pulley, and one belt. Replace all four rollers for even wear. Inspect the drum and felt seal (e.g., DC97-07618A) for wear. Clean lint from the drum and cabinet to prevent overheating.
Replaces part numbers:
-
Drum Roller: DC97-16782A, AP5325135, DC97-16782C, DC97-16782D, 2027851, DC97-07523A, DC97-07523B, PS4221885, WPW10177428, AP6016361, W10177428, 35001136, DC97-07523A, PS11749648
-

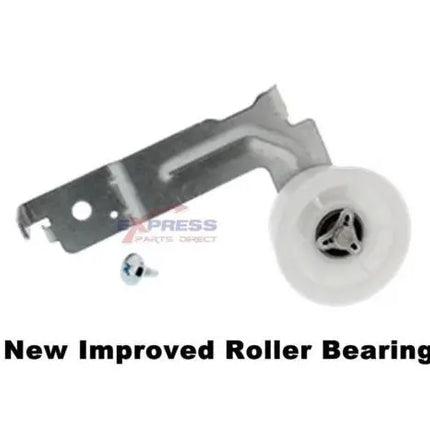

Idler Pulley: DC93-00634A, AP6038887, DC96-00882C, DC61-01230B, DC96-00882B, PS11771601, 12002777, AP4010261, 1401171, 35001083, 35001098, 35001276, AH2004052, DC61-01215A, DC96-00882B, EA2004052, PS2004052
-
Drum Belt: 6602-001655, AP4373659, 1935594, 6602-001314, PS4133825, WPW10205415, AP6017004, W10205415, 35001137, 6602-001314, PS11750299
Compatibility:
Compatible with models including but not limited to:
-
Samsung: DV42H5000EW/A3, DV42H5200EP/A3, DV45H7000EW/A2, DV48H7400EW/A2, DV40J3000EW/A2, DV50K8600EV/A3, DV52J8700EP/A2, DVE60M9900V/A3, DV419AEW/XAA, DV448AGE/XAA, DV316LEW/XAA, DVE50R8500V/A3, DVG45N5300W/A3
-
Kenmore: 402.89032010, 402.99032010, 402.89032011, 402.89032012
Verify your model number or contact Parts-O-Matic support for assistance.
Key Features:
-
✅ Brand and Models Compatibility: Fits select Samsung and Kenmore dryer models.
-
🔥 Specifications: Includes 4 drum rollers (DC97-16782A, ~3-1/4" diameter x 1-1/8" width, blue/black plastic/rubber, metal shaft, self-lubricating bushing with ball bearing, each with shaft and two tri-rings), 1 idler pulley (DC93-00634A, metal/plastic), 1 drum belt (6602-001655, 92" long, 5 ribs, neoprene), kit dimensions ~10"L x 6"W x 4"H.
-
💰 Cost-Effective Alternative: Replacement kit offers OEM-equivalent performance at a lower price.
-
🛠️ Easy Installation: Requires a putty knife, Phillips screwdriver, flat-blade screwdriver, work gloves, optional pliers, optional second person; typically installed in 45–90 minutes.
-
🛡️ Reliable Fixes: Resolves loud noises, drum not tumbling, or marks on clothes.
-
Safety First: Unplug the dryer from the power source and, for gas dryers, shut off the gas valve before installation.
Shop Parts-O-Matic for high-quality replacement appliance parts with a 30-day return policy. Get your dryer back to peak performance today!
Add to cart now for a budget-friendly fix!
