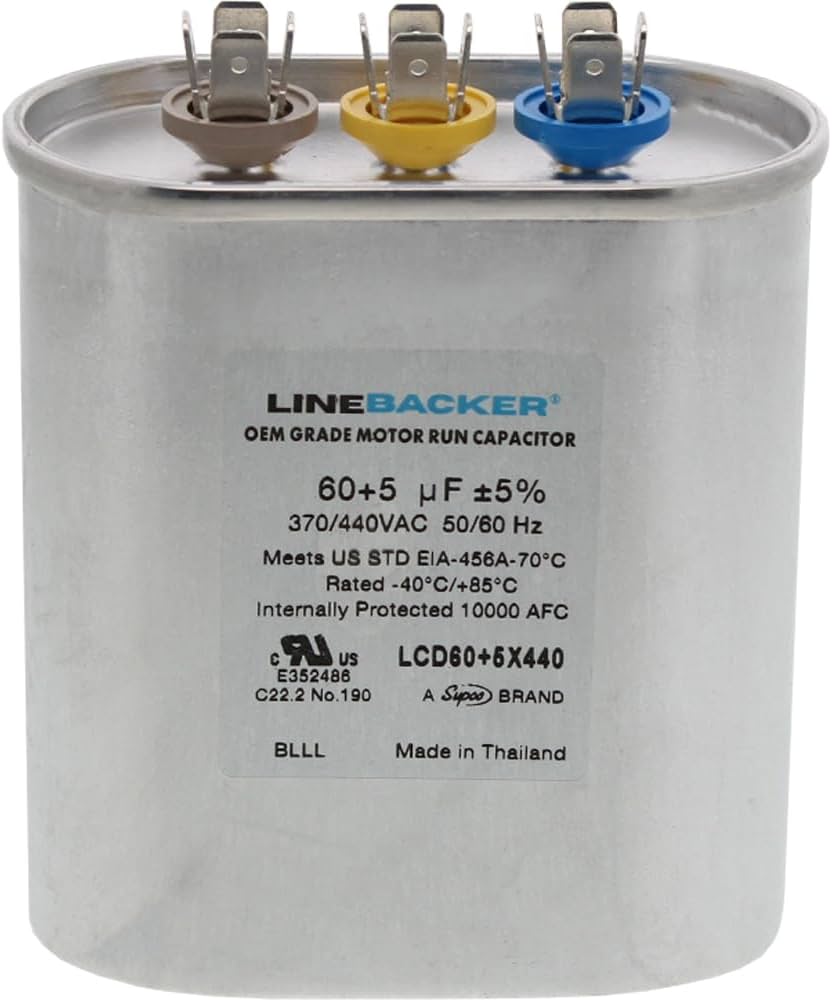

LCD60+5X440 HVAC OVAL DUAL RUN CAPACITOR
Engineered by an ISO manufacturer with over twenty years' experience in OEM capacitor fabrication, Linebacker® capacitors are manufactured by the OEM factory and are 100% in-line production tested to the same rigorous standards.
Features/Benefits
- 10,000 AFC pressure sensitive short circuit interrupting capability
- 3-year warranty from the date of purchase
- Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
- Life tested to 85° C operating temperature for 10,000 cycles
- Manufactured with thick polypropylene foil to handle increased operating temperatures
- Meets EIA-456A accelerated life test at 70° C for 60,000 hours
- PCB-free oil to prevent over-heating
- UL File # E352486
- US and Canada UL approved (C22.2NO.190)
Specification:
| Voltage: |
Up to 440 VAC |
| Operating Temperature: |
-40°F to 185°F (-40°C to 85°C) |
| Foil Thickness: |
6.0 µm +/- 5% |
| Standard Tolerance: |
+/- 5% |
| MFD Value: |
60+5 |
| Style: |
Oval |
| Size: |
3.54x1.89x3.94 |
