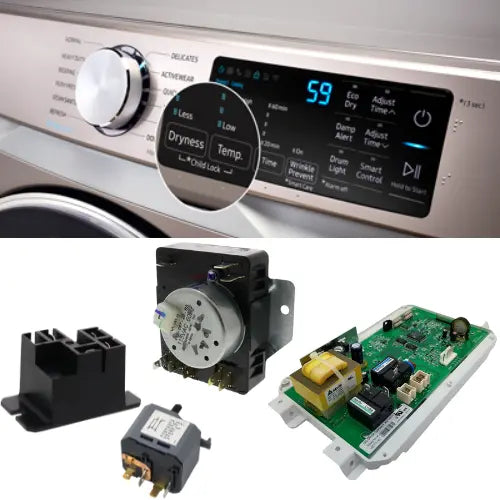

Dryer Timers, Relays & Control Boards

WE04X24550 Dryer Genuine OEM Timer Fits Specific GE Dryer Models Replaces Part Numbers: WE04X24550, WE04X24549, 4546121, AP6031056, PS11763064. Description: This Dryer Timer is a Genuine OEM part for select GE dryer models. This timer controls the length of the drying cycle by regulating the electrical components of the dryer, such as the heating element and motor. It ensures that the appliance runs for the set amount of time and shuts off automatically at the end of the cycle. Key Features: ✅ Genuine OEM Part for GE Dryer 🔁 Also replaces: WE04X24549, 4546121, AP6031056, PS11763064. 🕒 Controls cycle duration and mode selection 🛠️ Compatible with many GE, Hotpoint, and RCA dryers 🧰 Direct-fit, plug-in installation ⚠️ Unplug the dryer before servicing. Contact us to confirm fit for your specific model. 📦 Part Number: WE04X24550

Read more less

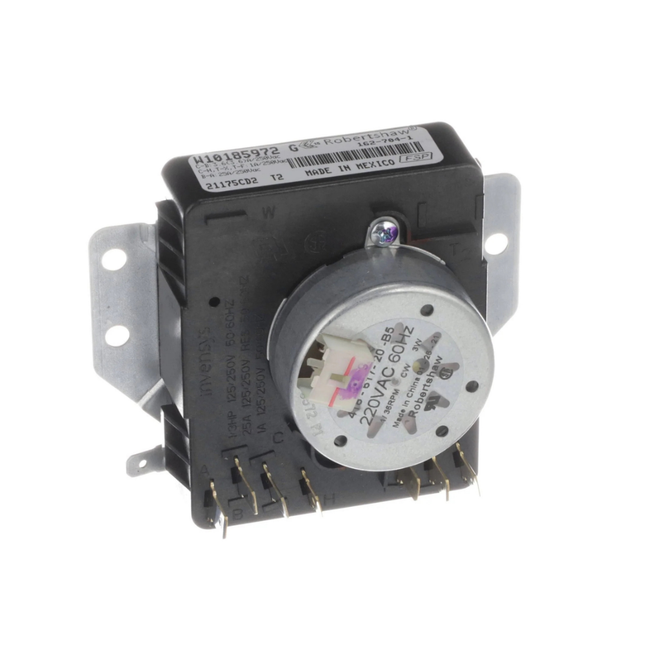

Genuine OEM WPW10185972 Dryer Timer The Genuine OEM Whirlpool WPW10185972 is the dryer timer, the electromechanical control that advances through your dryer's preset cycles. Its internal contacts open and close the circuits that control heat and the drum motor, so the dryer runs for the right amount of time at the right setting. When the timer fails, the dryer may not start, may not advance through the cycle, or may over-dry or under-dry your clothes. This is the original Whirlpool part, also sold under the older number W10185972. It is listed for Whirlpool-built electric dryers sold as Whirlpool, Maytag, Amana, Admiral, Roper, Inglis, and Crosley. Check the part number before ordering, because a similar timer, WPW10185971, is listed for different models. Quick Answer The Genuine OEM WPW10185972 Dryer Timer fixes a Whirlpool-built electric dryer that won't start, won't advance through its cycle, or over-dries or under-dries because the timer has failed. It is also listed as W10185972. Classic symptom: the dial turns but the dryer doesn't run or doesn't engage all the cycle selections. Common Problems This Part Fixes Dryer won't start or won't turn on Dryer doesn't engage all cycle selections Dryer over-dries or under-dries clothes Timer dial doesn't advance through the cycle Heat or motor runs at the wrong time in the cycle Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This dryer timer directly replaces the following part numbers: WPW10185972, W10185972, 1481701, WPW10185972VP, 418-617-20-B5, AP6016537, AWP49431, EAP11749827, PD00002683, PS11749827 W10185972 is the older Whirlpool number. No other cross-reference numbers were confirmed. The similar timer WPW10185971 is a different part and is not listed as interchangeable. Confirm against your dryer's parts diagram, or contact our support team, if your model calls out a different number. Compatibility This timer is listed for Whirlpool, Maytag, Amana, Admiral, Roper, Inglis, and Crosley electric dryers, including these examples: Whirlpool 4KWED4750BQ1, Maytag 4KMEDC100BQ1, Amana 4KNED4400BQ1, Amana NED5100TQ1 Admiral AED4475TQ1, YAED4475TQ1, Crosley CEDX631VQ1 Inglis IED4400VQ1, YIED4400VQ1, Roper RED4400VQ1, RED4440VQ1, YRED4340SQ2 Note: The models above are a sample from one retailer, not a full list. A similar timer, WPW10185971, is listed for different dryer models (such as Admiral AGD4475TQ1 and Amana NGD5100TQ1), so check which number your model calls out. Confirm your model number against your parts diagram, or contact our support team to verify fit before ordering. Key Features Genuine OEM Whirlpool dryer timer Advances through preset cycles and switches heat and motor circuits Also listed under the older number W10185972 Resolves no-start, cycle-advance, and over- or under-drying problems Fits Whirlpool-built electric dryers sold under many brand names Product Specifications Part Number WPW10185972 OEM Part Number WPW10185972 Part Type Dryer Timer Condition Genuine OEM Application Whirlpool-Built Electric Dryers Installation Notes ⚠️ Unplug Power Before Installing Unplug the dryer or switch off its circuit breaker before beginning, and wear work gloves. Remove the control panel as shown in your model's service guide to reach the timer. Before disconnecting anything, photograph the wire connections or note the position of each wire, since the timer has many terminals. Move the wires one at a time to the new timer, mount it, replace the knob, and restore power. Test each cycle selection before closing the dryer. Frequently Asked Questions My dryer won't start. Is this the part I need? A failed timer is a common cause, especially if the dial turns but the dryer doesn't run or doesn't engage every cycle selection. The door switch, start switch, and thermal fuse can cause the same symptom, so check those first. Is WPW10185972 the same as W10185972? Yes. W10185972 is the older Whirlpool number for the same timer, and this part covers both numbers. Can I use WPW10185971 instead? No, don't assume so. WPW10185971 is a separate timer listed for different models. Use the number your model calls out, or contact our support team to confirm before ordering. Will this fit my dryer? It is listed for many Whirlpool-built electric dryers, but the model list above is only a sample. Check your model number against your parts diagram, or contact our support team and we'll verify it before you order. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

ERP W10185982 Dryer Timer Replaces Part Numbers:WPW10185982, W10185982, 1546812, AP6016541, PS11749831, WPW10185982VP.   This is an aftermarket part that can be used as a replacement for the OEM part. California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

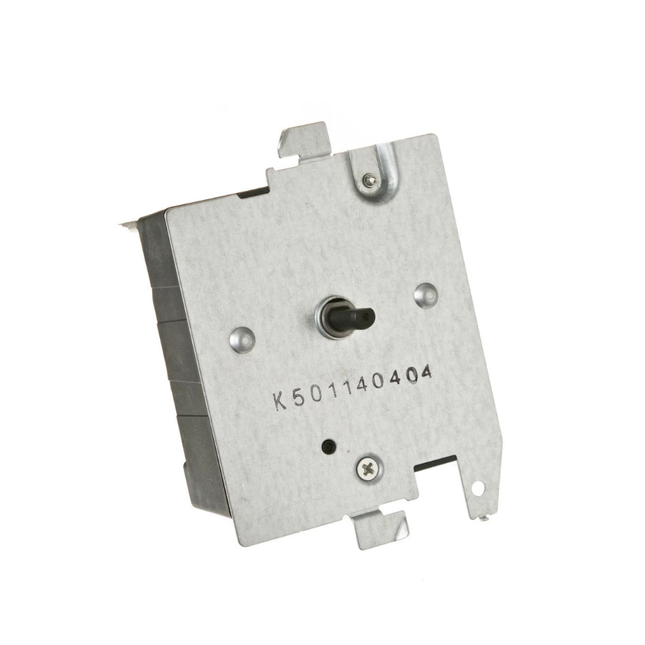

WE04X20416 Dryer Genuine OEM Timer The WE04X20416 is a genuine GE OEM dryer timer with a plastic shaft for GE electric and gas dryers, and also fits select Hotpoint, RCA, and Kenmore models. This timer regulates the flow of electricity to the heating element and the motor, controlling the duration of the drying cycle and ensuring clothes are dried for the correct amount of time based on the selected cycle. Measures approximately 3"H x 2"W x 4.5"D. Common causes of a bad timer include electrical failures, wear and tear from frequent use, or internal mechanical issues. Symptoms of a failing timer include the dryer not starting or stopping at the correct times, running continuously without advancing through the cycle, inconsistent drying results, or no clicking sound heard from the timer during operation. It directly replaces AP5805478, WE4M366, 3276207, and PS9491768. Quick Answer The WE04X20416 Dryer Genuine OEM Timer fixes GE, Hotpoint, RCA, and Kenmore electric and gas dryers that won't start or stop at the correct times, run continuously without advancing, dry inconsistently, or make no clicking sound during operation. Timer with plastic shaft, ~3"H x 2"W x 4.5"D. Replaces AP5805478, WE4M366, 3276207, PS9491768. Not the same as our WE04X20415 listing — these are separate GE timer part numbers used on different models. Common Problems This Part Fixes Dryer not starting or stopping at the correct times Dryer running continuously without advancing through cycles Inconsistent drying results No clicking sound from the timer during operation Timer switch difficult to turn, affecting drying performance Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This dryer timer directly replaces the following OEM and cross-reference part numbers: WE04X20416 replaces WE4M366, 3276207, MODEL TMD14M04, 234D1296P006, AGE25838, AP5805478, EAP9491768, PD00025358, PS9491768 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This dryer timer is compatible with select GE electric and gas dryers, and also fits select Hotpoint, RCA, and Kenmore dryers built on the GE platform. Note — not the same as WE04X20415: Our WE04X20415 listing is a separate GE timer used on different models. GE has used a large number of similarly-numbered timers across its dryer lineup, and these are not interchangeable. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which timer your dryer needs. Key Features Genuine GE OEM part — factory-specified timing mechanism and plastic shaft Regulates electricity flow to the heating element and motor to control cycle duration Resolves "won't start/stop correctly," "runs continuously," and "inconsistent drying" symptoms Approximately 3"H x 2"W x 4.5"D Durable plastic shaft construction Direct drop-in replacement matching the original mounting and terminal layout Replaces AP5805478, WE4M366, 3276207, and PS9491768 Compatible with GE, Hotpoint, RCA, and Kenmore electric and gas dryers Genuine OEM replacement — guaranteed fit, materials, and performance Product Specifications Part Number WE04X20416 Part Type Dryer Timer with Plastic Shaft Condition Genuine OEM Brand GE Dimensions Approx. 3"H x 2"W x 4.5"D Shaft Material Plastic Controls Heating element and motor electricity flow, cycle duration Repair Difficulty Easy to Moderate Quantity 1 dryer timer Compatible Brands GE, Hotpoint, RCA, Kenmore Installation Notes ⚠️ Unplug Dryer Before Starting — Inspect The Plastic Shaft For Wear Unplug your dryer and shut off the power source before beginning. Wear work gloves. Remove the cabinet by removing the screws from the back of the unit. Locate the control timer at the back side of the top panel. Photograph the wiring before disconnecting anything. Disconnect all of the wiring harnesses connected to the old timer. Remove the timer from the top panel by unscrewing its mounting screws. Inspect the plastic shaft for wear or damage before installing the new timer, since a worn shaft can affect how freely the knob turns even after the internal timer mechanism is replaced. Install the new WE04X20416, reconnecting all wiring harnesses fully and making sure every connection is tight and secure before closing the cabinet. Reassemble the cabinet and secure its screws. Restore power and run a short test cycle to confirm the dryer starts, runs, and stops correctly. Tools needed: Phillips screwdriver, work gloves. Frequently Asked Questions My dryer runs continuously and won't advance through the cycle. Is this the part I need? Yes, this is a documented symptom of a failing timer. If the internal mechanism has worn out or jammed, the timer can fail to advance through the cycle stages correctly, leaving the dryer running past when it should stop or stall partway through. The timer knob is hard to turn. Will this new timer fix that? It should help, but check the condition of the plastic shaft as well. One customer replaced this timer after being unable to turn the switch freely, which was affecting their clothes drying properly — the new timer worked well, but they specifically recommended also picking up the matching replacement knob, since a worn shaft or knob can still cause turning difficulty even with a new timer installed. Is this the same as your WE04X20415 listing? No, these are separate GE timer part numbers used on different dryer models, despite the similar numbering. Always confirm your exact part number from your dryer's parts diagram or the sticker on your old timer before ordering. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It matches the original timing mechanism, plastic shaft, and terminal layout of the timer originally installed in your dryer. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

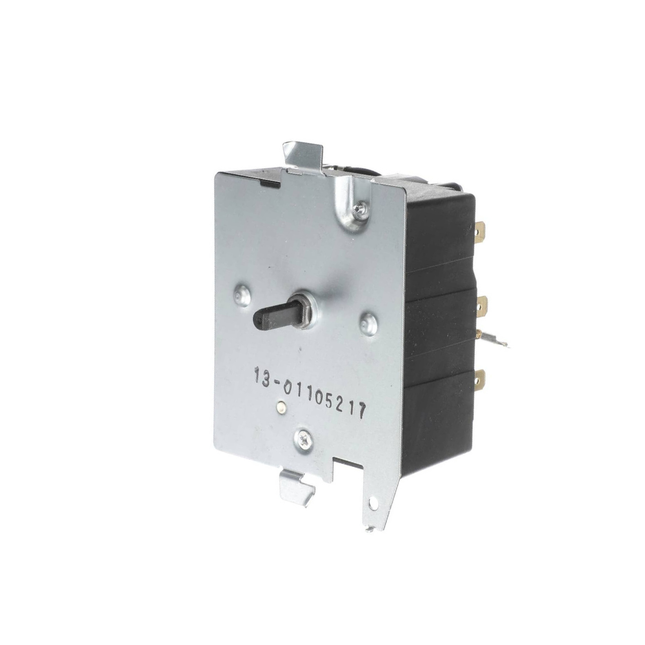

WE04X20415 Dryer Genuine OEM Timer The WE04X20415 is a genuine GE OEM electromechanical timer for GE electric and gas dryers, and also fits select Hotpoint and Kenmore models. This timer manages the duration of the drying cycle, running the dryer for the correct amount of time based on your selected setting and automatically shutting the machine off once the cycle is complete — that automatic shutoff is what prevents over-drying, which can damage fabrics and waste energy. Rated with manufacturer designation 212D1233P005, measuring approximately 2-1/8"H x 3"W x 4-1/4"D. Over time, the timer's internal mechanical components can wear out, be damaged by power surges, or simply age past their reliable service life. A failing timer typically shows up as the dryer not shutting off at the end of a cycle, not running for the correct length of time, or the control knob feeling loose or failing to turn the mechanism properly. It directly replaces 3276788, WE04X20415-20PK, WE4M355, WE4M357, AGE25827, AP5805477, EAP9491767, PS9491767, PD00027041. As a genuine OEM part, the WE04X20415 is manufactured by GE to factory specifications — guaranteed fit, materials, and performance. Quick Answer The WE04X20415 Dryer Genuine OEM Timer fixes GE, Hotpoint, and Kenmore electric and gas dryers that won't shut off at the end of a cycle, don't run for the correct length of time, or have a knob that's stripped or won't turn properly. Replaces 3276788, WE04X20415-20PK, WE4M355, WE4M357, AGE25827, AP5805477, EAP9491767, PS9491767, PD00027041. Photograph the wiring before disconnecting the old timer, and transfer each wire one at a time to the new timer to make sure everything ends up in the correct position. Common Problems This Part Fixes Dryer won't shut off at the end of the cycle Dryer doesn't run for the correct amount of time for the selected setting Control knob feels loose, stripped, or won't turn the timer mechanism Dryer running longer than expected, risking over-drying of fabrics Timer that has stopped advancing through the cycle Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This dryer timer directly replaces the following OEM and cross-reference part numbers: WE04X20415, 3276788, WE04X20415-20PK, WE4M355, WE4M357, AGE25827, AP5805477, EAP9491767, PS9491767, PD00027041 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This dryer timer is compatible with select GE electric and gas dryers, and also fits select Hotpoint and Kenmore dryers built on the GE platform, including model numbers such as DBXR463GG2WW, DBXR300GG7WS, DBXR300GG0WS, DX4500GG4WW, DX4500GG5WW, DX4500GG6WW, DBSR463GG3WW, DLLLR33GJ1WW, DLLLR33GJ2WW, DHDSR46GG4WW, DHDSR46GG6WW, DHDSR46GG9WW, and DBLR333GG4WW. Note: This is a different timer from our WE04X36457 listing and other similarly-numbered GE WE04X-prefix timers, each fitting a different set of models. These are not interchangeable. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure. Key Features Genuine GE OEM part — factory-specified timing mechanism and terminal layout Manages drying duration and automatic shutoff Resolves "won't shut off," "wrong cycle length," and "knob won't turn" symptoms caused by timer failure Manufacturer designation 212D1233P005 Approximately 2-1/8"H x 3"W x 4-1/4"D Direct drop-in replacement matching the original mounting and terminal layout Replaces 3276788, WE04X20415-20PK, WE4M355, WE4M357, AGE25827, AP5805477, EAP9491767, PS9491767, PD00027041 Compatible with GE, Hotpoint, and Kenmore electric and gas dryers Genuine OEM replacement — guaranteed fit, materials, and performance Straightforward repair, typically about 15 minutes Product Specifications Part Number WE04X20415 OEM Part Number WE04X20415 Manufacturer Designation 212D1233P005 Part Type Dryer Timer (Electromechanical) Condition Genuine OEM Dimensions 2-1/8"H x 3"W x 4-1/4"D Function Manages drying duration and automatic shutoff Repair Difficulty Easy — approx. 15 minutes Quantity 1 dryer timer Compatible Brands GE, Hotpoint, Kenmore Installation Notes ⚠️ Unplug Dryer Before Starting — Transfer Wires One At A Time Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Remove the screws from the back panel and set the panel aside. Remove the control knob from the front panel. Pull the old timer out and photograph the wiring connections before disconnecting anything. Transfer each wire one at a time from the old timer to the new WE04X20415, matching each connection exactly as photographed — moving them one at a time rather than all at once helps avoid mixing up positions. Secure the new timer in its mounting position, reconnect the knob to the front panel, and reattach the back panel. Restore power and test the timer by setting it for a few minutes and starting a cycle to confirm the dryer runs for the correct duration and shuts off with the buzzer at the end. Tools needed: Phillips screwdriver, work gloves. Frequently Asked Questions My dryer won't shut off at the end of the cycle. Is this the timer? Yes, this is one of the most direct symptoms of a failing timer. The timer is responsible for automatically shutting the dryer off once the selected cycle duration is complete, so if that mechanism has worn out or jammed, the dryer can continue running well past when it should have stopped. My control knob feels loose and won't turn the timer properly. Is that this same part? It could be related. One customer found the knob stem had worn smooth and would no longer turn the timer mechanism at all — in that case, replacing the timer resolves the issue since the knob attaches directly to the timer's internal shaft. Is this a hard repair to do myself? No, several customers describe this as a straightforward repair. One account details removing the back panel screws, disconnecting the dryer, removing the front knob, photographing the wiring, and transferring each wire one at a time to the new timer — the whole process, including testing, took well under an hour, and even helped one customer celebrate an 80th birthday with a successful father-son repair. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It matches the original timing mechanism, terminal layout, and dimensions of the timer originally installed in your dryer. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

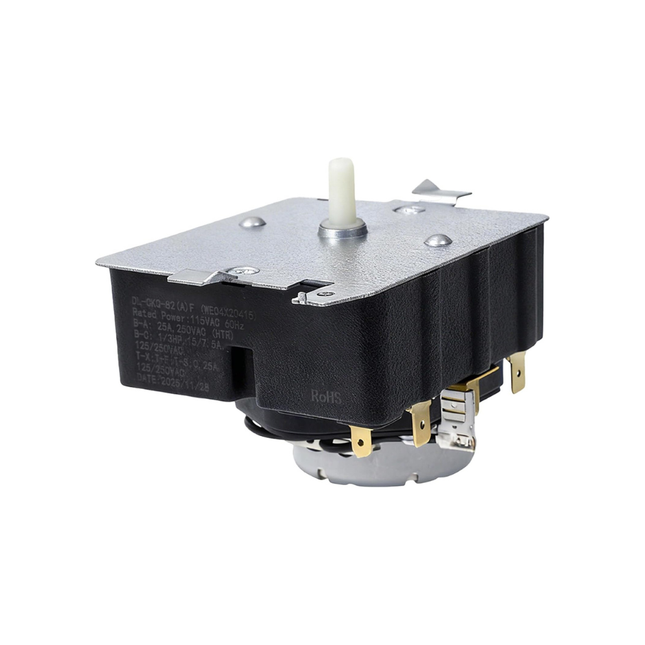

XPARTCO WE04X20415 Dryer Timer The XPARTCO WE04X20415 is an aftermarket replacement electromechanical timer for GE electric and gas dryers, and also fits select Hotpoint and Kenmore models. This timer manages the duration of the drying cycle, running the dryer for the correct amount of time based on your selected setting and automatically shutting the machine off once the cycle is complete — that automatic shutoff is what prevents over-drying, which can damage fabrics and waste energy. Rated with manufacturer designation 212D1233P005, measuring approximately 2-1/8"H x 3"W x 4-1/4"D. Over time, the timer's internal mechanical components can wear out, be damaged by power surges, or simply age past their reliable service life. A failing timer typically shows up as the dryer not shutting off at the end of a cycle, not running for the correct length of time, or the control knob feeling loose or failing to turn the mechanism properly. It directly replaces AP5805477, WE4M357, 3276788, PS9491767, WE04X20415-20PK, and WE4M355. Quick Answer The XPARTCO WE04X20415 Dryer Timer fixes GE, Hotpoint, and Kenmore electric and gas dryers that won't shut off at the end of a cycle, don't run for the correct length of time, or have a knob that's stripped or won't turn properly. Replaces AP5805477, WE4M357, 3276788, PS9491767, WE04X20415-20PK, WE4M355. Photograph the wiring before disconnecting the old timer, and transfer each wire one at a time to the new timer to make sure everything ends up in the correct position. Common Problems This Part Fixes Dryer won't shut off at the end of the cycle Dryer doesn't run for the correct amount of time for the selected setting Control knob feels loose, stripped, or won't turn the timer mechanism Dryer running longer than expected, risking over-drying of fabrics Timer that has stopped advancing through the cycle Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This dryer timer directly replaces the following OEM and cross-reference part numbers: WE04X20415, 3276788, WE04X20415-20PK, WE4M355, WE4M357, AGE25827, AP5805477, EAP9491767, PS9491767, PD00027041 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This dryer timer is compatible with select GE electric and gas dryers, and also fits select Hotpoint and Kenmore dryers built on the GE platform, including model numbers such as DBXR463GG2WW, DBXR300GG7WS, DBXR300GG0WS, DX4500GG4WW, DX4500GG5WW, DX4500GG6WW, DBSR463GG3WW, DLLLR33GJ1WW, DLLLR33GJ2WW, DHDSR46GG4WW, DHDSR46GG6WW, DHDSR46GG9WW, and DBLR333GG4WW. Note: This is a different timer from our WE04X36457 listing and other similarly-numbered GE WE04X-prefix timers, each fitting a different set of models. These are not interchangeable. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure. Key Features Aftermarket replacement electromechanical timer — manages drying duration and automatic shutoff Resolves "won't shut off," "wrong cycle length," and "knob won't turn" symptoms caused by timer failure Manufacturer designation 212D1233P005 Approximately 2-1/8"H x 3"W x 4-1/4"D Direct drop-in replacement matching the original mounting and terminal layout Replaces AP5805477, WE4M357, 3276788, PS9491767, WE04X20415-20PK, and WE4M355 Compatible with GE, Hotpoint, and Kenmore electric and gas dryers Aftermarket replacement built to OEM-equivalent quality standards Straightforward repair, typically about 15 minutes Product Specifications Part Number WE04X20415 OEM Part Number WE04X20415 Manufacturer Designation 212D1233P005 Part Type Dryer Timer (Electromechanical) Condition Aftermarket Replacement Dimensions 2-1/8"H x 3"W x 4-1/4"D Function Manages drying duration and automatic shutoff Repair Difficulty Easy — approx. 15 minutes Quantity 1 dryer timer Compatible Brands GE, Hotpoint, Kenmore Installation Notes ⚠️ Unplug Dryer Before Starting — Transfer Wires One At A Time Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Remove the screws from the back panel and set the panel aside. Remove the control knob from the front panel. Pull the old timer out and photograph the wiring connections before disconnecting anything. Transfer each wire one at a time from the old timer to the new WE04X20415, matching each connection exactly as photographed — moving them one at a time rather than all at once helps avoid mixing up positions. Secure the new timer in its mounting position, reconnect the knob to the front panel, and reattach the back panel. Restore power and test the timer by setting it for a few minutes and starting a cycle to confirm the dryer runs for the correct duration and shuts off with the buzzer at the end. Tools needed: Phillips screwdriver, work gloves. Frequently Asked Questions My dryer won't shut off at the end of the cycle. Is this the timer? Yes, this is one of the most direct symptoms of a failing timer. The timer is responsible for automatically shutting the dryer off once the selected cycle duration is complete, so if that mechanism has worn out or jammed, the dryer can continue running well past when it should have stopped. My control knob feels loose and won't turn the timer properly. Is that this same part? It could be related. One customer found the knob stem had worn smooth and would no longer turn the timer mechanism at all — in that case, replacing the timer resolves the issue since the knob attaches directly to the timer's internal shaft. Is this a hard repair to do myself? No, several customers describe this as a straightforward repair. One account details removing the back panel screws, disconnecting the dryer, removing the front knob, photographing the wiring, and transferring each wire one at a time to the new timer — the whole process, including testing, took well under an hour, and even helped one customer celebrate an 80th birthday with a successful father-son repair. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the timing mechanism, terminal layout, and dimensions of the original WE04X20415 timer used in compatible GE, Hotpoint, and Kenmore electric and gas dryers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

WE04X36457 Genuine OEM GE Dryer Timer The WE04X36457 is a genuine GE OEM electromechanical timer for GE electric and gas dryers. This timer is the sequencing control behind the dryer's operating cycle, using an internal motor-driven mechanism to advance the dryer through each stage — tumbling, heating, and cool-down — at the correct intervals for the selected cycle length. Over time, the timer's internal gears or contacts can wear out or jam. A failing timer produces a range of symptoms depending on which function is affected: the dryer may not advance through the cycle, may not shut off when it should, may not start at all, or may run with no heat if the timer's contacts controlling the heat circuit are affected. This part carries the updated designation EAPX36457X1, which fits both old and new production serials. It directly replaces CKDX36457X, TMD1EM32, 234D2377P006, AP7243859, PS17873930, FIX17873930, E190094, 250426, and 19-50425501. Quick Answer The WE04X36457 Genuine OEM GE Dryer Timer fixes GE electric and gas dryers that won't advance through the cycle, won't shut off, won't start, or run with no heat. Replaces CKDX36457X, TMD1EM32, 234D2377P006, AP7243859, PS17873930, FIX17873930, E190094, 250426, 19-50425501. GE uses many similarly-numbered WE04X-prefix timers across different dryer models — always confirm your exact part number or model before ordering, since these timers are not interchangeable across models. Common Problems This Part Fixes Timer won't advance — dryer stays stuck at one point in the cycle Dryer won't shut off, keeps running after the cycle should have ended Dryer won't start at all Dryer runs with no heat or insufficient heat Unusual noise from the timer area during operation Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This dryer timer directly replaces the following OEM and cross-reference part numbers: WE04X36457, 19-50425501, 234D2377P006, 250426, E190094, FIX17873930, TMD1EM32, AGE143241, AP7243859, PD00092132, PS17873930. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This dryer timer is compatible with select GE electric and gas dryers, including model numbers GTD38EASW0WS, GTD38GASW0WS, GTX38EASW0WS, and GTX38GASW0WS. Note: GE uses a large number of similarly-numbered WE04X-prefix timers across its dryer lineup, including WE04X20089, WE04X24549, WE04X24550, WE04X25280, WE04X25586, and WE04X20415, each fitting a different set of models. These are not interchangeable with this WE04X36457 timer. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure. Key Features Genuine GE OEM part — factory-specified timing mechanism and terminal layout Electromechanical timer sequences tumbling, heating, and cool-down through the cycle Resolves "won't advance," "won't shut off," "won't start," and "no heat" symptoms caused by timer failure Updated designation EAPX36457X1 fits both old and new production serials Direct drop-in replacement matching the original mounting and terminal layout Replaces CKDX36457X, TMD1EM32, 234D2377P006, AP7243859, PS17873930, FIX17873930, E190094, 250426, and 19-50425501 Compatible with GE electric and gas dryers Genuine OEM replacement — guaranteed fit, materials, and performance Product Specifications Part Number WE04X36457 Alternate/Updated Designation EAPX36457X1 Part Type Dryer Timer (Electromechanical) Condition Genuine OEM Brand GE Controls Tumbling, heating, and cool-down sequencing Repair Difficulty Easy to Moderate Quantity 1 dryer timer Compatible Brand GE Installation Notes ⚠️ Unplug Dryer Before Starting — Photograph Wiring Before Disconnecting Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Access the timer through the control console or back panel depending on your model. Photograph each wire's terminal position before disconnecting anything, since a dryer timer typically has multiple wires and mixing them up can cause a malfunction after reinstallation. Remove the mounting screws or clips securing the old timer, then disconnect its wiring. Install the new WE04X36457 in the same position, reconnecting each wire to its original terminal exactly as photographed. Secure the timer in its mounting position and reassemble the console or panel. Restore power and run a full test cycle to confirm the dryer advances properly through tumbling, heating, and shutoff at the correct times. Tools needed: Phillips screwdriver or nut driver (model-dependent), work gloves. Frequently Asked Questions My dryer won't shut off and keeps running. Is this the timer? Yes, this is a well-documented symptom of a failing timer. If the internal gear motor or contacts jam, the timer can fail to advance to the "off" position at the end of the cycle, leaving the dryer running continuously past when it should have stopped. My old part number doesn't say WE04X36457. Is this still the right timer? If your old timer's part number is CKDX36457X, TMD1EM32, or 234D2377P006, or one of the other numbers listed in our cross-reference section, yes — this WE04X36457 timer, also designated EAPX36457X1, is the current replacement and fits both older and newer production serials. There are so many similar-looking GE timer part numbers. How do I make sure I order the right one? GE has released many timers with very similar WE04X-prefix numbers for different dryer models, and they are not interchangeable despite the resemblance. The safest approach is to match your dryer's full model number against this listing's compatibility, or check the exact part number printed on your old timer, rather than relying on how similar the numbers look. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It matches the original timing mechanism and terminal layout of the timer designed for your dryer. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

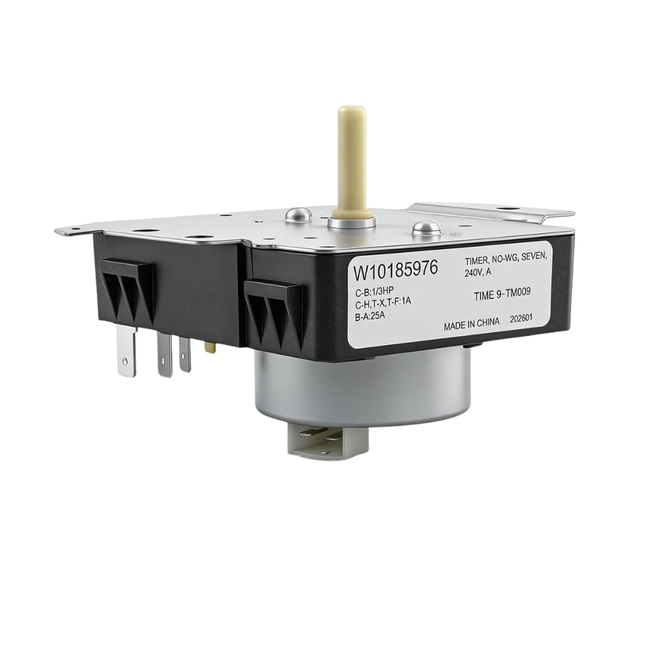

XPARTCO W10185976 Dryer Timer Replaces WPW10185976 The XPARTCO W10185976 is an aftermarket replacement electromechanical timer for Whirlpool electric dryers, and also fits select Kenmore, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper models. This timer is the sequencing brain behind the dryer's operating cycle: an internal gear motor slowly rotates cams that activate each stage of the cycle — tumbling, heating, and cool-down — at the correct intervals, for a maximum runtime of up to 60 minutes. Beyond simple sequencing, this timer also serves a safety function: its built-in maximum runtime is what prevents the dryer from running indefinitely if something else in the system malfunctions, helping guard against overheating hazards. If the timer's internal gears or contacts jam or wear out, that safety limit can be compromised, which is one reason prompt replacement matters once a fault appears. Symptoms of a failing timer include the dryer not advancing through its cycle, running continuously without shutting off, unusual noises during operation, the dryer not starting at all, or no heat or insufficient heat. It directly replaces WPW10185976, 1481703, W10185976, WPW10185976VP, 418-616-20-B5, AP6016539, AWP49433, EAP11749829, PD00004619, PS11749829 Quick Answer The XPARTCO W10185976 Dryer Timer fixes Whirlpool, Kenmore, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper electric dryers that won't advance through the cycle, won't shut off, won't start, or have no heat or insufficient heat. Electromechanical timer, 7-1/4" male terminals marked A, B, C, H, X, T, F. Replaces WPW10185976, 1481703, W10185976, WPW10185976VP, 418-616-20-B5, AP6016539, AWP49433, EAP11749829, PD00004619, PS11749829. Mark or photograph each wire's terminal position before disconnecting the old timer — the terminals are labeled but easy to mix up during reinstallation. Common Problems This Part Fixes Timer won't advance — dryer stays stuck at one point in the cycle Dryer won't shut off, keeps running after the cycle should have ended Dryer won't start at all No heat or insufficient heat during the cycle Unusual noise from the timer area during operation Dryer running continuously without completing a normal cycle Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This dryer timer directly replaces the following OEM and cross-reference part numbers: WPW10185976, 1481703, W10185976, WPW10185976VP, 418-616-20-B5, AP6016539, AWP49433, EAP11749829, PD00004619, PS11749829 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This dryer timer is compatible with select Whirlpool electric dryers, and also fits select Kenmore, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper dryers built on the Whirlpool platform. Note: This is a different timer from the similarly-numbered W10185982 and W10186032, used on other Whirlpool dryer models. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure. Key Features Aftermarket replacement electromechanical timer — sequences tumbling, heating, and cool-down through the cycle Gear motor-driven cam mechanism advances the cycle at correct intervals Resolves "won't advance," "won't shut off," "won't start," and "no heat" symptoms caused by timer failure Maximum runtime up to 60 minutes, supporting the dryer's overheat safety limit 7-1/4" male terminals marked A, B, C, H, X, T, F for a direct wiring match Metal construction for durability Direct drop-in replacement matching the original mounting and terminal layout Replaces WPW10185976, 1481703, W10185976, WPW10185976VP, 418-616-20-B5, AP6016539, AWP49433, EAP11749829, PD00004619, PS11749829. Compatible with Whirlpool, Kenmore, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper electric dryers Aftermarket replacement built to OEM-equivalent quality standards Product Specifications Part Number W10185976 OEM Part Number WPW10185976 Part Type Dryer Timer (Electromechanical) Condition Aftermarket Replacement Frequency 60 Hz Terminals 7-1/4" male terminals: A, B, C, H, X, T, F Maximum Runtime Up to 60 minutes Material Metal Controls Dryer motor, heat circuit, and timer motor Repair Difficulty Easy — approx. 15 to 30 minutes Quantity 1 dryer timer Compatible Brands Whirlpool, Kenmore, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper Installation Notes ⚠️ Unplug Dryer Before Starting — Mark Each Wire's Terminal Before Disconnecting Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Remove the back panel of the dryer using a 5/16" socket set. Locate the timer, typically mounted behind the control console or back panel depending on your model. Before disconnecting anything, mark or photograph each wire's terminal position — the terminals are labeled (A, B, C, H, X, T, F), but with several wires clustered together, it's easy to mix them up during reinstallation. Remove the old timer using the 5/16" socket set. Plug each wire from the harness into the corresponding terminal on the new W10185976, matching your reference marks or photo exactly. Reinstall the timer in its mounting position, then reattach the back panel. Restore power and run a full test cycle to confirm the dryer advances properly through tumbling, heating, and shutoff at the correct times. Tools needed: 5/16" socket set, work gloves. Frequently Asked Questions My dryer won't shut off and keeps running. Is this the timer? Yes, this is a well-documented symptom of a failing timer. If the internal gear motor or contacts jam, the timer can fail to advance to the "off" position at the end of the cycle, leaving the dryer running continuously. Since the timer's maximum runtime is also part of the dryer's overheat protection, a jammed timer is worth addressing promptly rather than letting the dryer keep running unattended. How do I avoid mixing up the wires during installation? Before disconnecting the old timer, take a clear photo of the wiring, or mark each wire with tape and a label matching its terminal letter. One customer specifically noted this step made the swap "very easy to see where they go" — the terminals themselves are labeled A, B, C, H, X, T, F, so matching your reference to those labels on the new timer keeps the process straightforward. My dryer has no heat. Could that really be the timer instead of the heating element? Yes, it's possible. The timer's internal contacts help control the heat circuit alongside the dryer motor and timer motor, so a fault in those contacts can result in no heat or insufficient heat even if the heating element itself is fully functional. If you've already ruled out the thermal fuse and heating element, the timer is a reasonable next component to check. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the terminal layout, gear motor mechanism, and maximum runtime rating of the original WPW10185976 timer used in compatible Whirlpool, Kenmore, Maytag, and related electric dryers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less
