Refrigerator & Freezer Parts

550 products

  • Sale -25% XPARTCO WR60X26866 Refrigerator Evaporator Fan Motor  Parts-O-Matic

    XPARTCO XPARTCO WR60X26866 Refrigerator Evaporator Fan Motor

    XPARTCO WR60X26866 Refrigerator Evaporator Fan Motor The XPARTCO WR60X26866 is an aftermarket replacement axial evaporator fan motor for the fresh food section of select GE French door refrigerators, including the CFE28, CFE29, CWE23, CYE22, CYE23, DFE28, DFE29, GFD28, GFE26, GFE27, GFE28, GFE29, GFS26, GFS28, GNE26, GNE29, GYE22, GYS22, PFD28, PFE28, PFE29, PWE23, PYD22, PYE22, PYE23, and ZWE23 series. The evaporator fan motor pulls air through the evaporator coils to remove heat from the circulating air inside the refrigerator. Without a functioning evaporator fan, the refrigerator compartment cannot maintain its target temperature even when the compressor and condenser are running normally — the cold air generated at the evaporator simply isn't being circulated to the food storage areas. The WR60X26866 is a DC motor rated at 13.6V DC, 0.16A, with a fan housing measuring 3-4/7"L x 2"W x 3-1/8"H, plus a multi-color wire harness and plug approximately 11-1/2" long. It includes the axial fan blade and harness as a complete assembly. It directly replaces WR60X26033, WR60X26030, WR60X24303, WR60X10341, WR60X10356, WR60X10357, WR02X13733, 239D1412P006, V80E14MS2A3-57A611, 8817V-W1, 4546026, AP5985039, AP6278228, EAP12172983, PD00038765, PS11721915, and PS12172983. Important: if your refrigerator was built between May 2014 and March 2015 with serial range FF–HD, the unit's software must be updated before installing this fan motor — see FAQ below. Installs in 20–30 minutes with basic hand tools. Quick Answer The XPARTCO WR60X26866 Refrigerator Evaporator Fan Motor fixes GE French door refrigerators where the fridge isn't cooling but the freezer is cold, the evaporator coils are frosted over, the ice maker isn't working due to insufficient cooling, or there's loud humming or grinding from the freezer area. Axial fan motor, 13.6V DC, 0.16A. Fan housing: 3-4/7"L x 2"W x 3-1/8"H; harness ~11-1/2"L. Replaces WR60X26033, WR60X26030, WR60X24303, WR60X10341, WR60X10356, WR60X10357, WR02X13733, 239D1412P006, V80E14MS2A3-57A611, 8817V-W1, 4546026, AP5985039, AP6278228, EAP12172983, PD00038765, PS11721915, PS12172983. Note: May 2014 – Mar 2015 build refrigerators (serial range FF–HD) require a software update before installation. Common Problems This Part Fixes Refrigerator not cooling properly while the freezer remains cold — classic evaporator fan failure Freezer cold but fridge warm — fresh food compartment air not being circulated Frosty or frozen evaporator coils due to insufficient air circulation Ice maker failure caused by inadequate cooling in the compartment Loud humming, grinding, or buzzing noise from the freezer or fresh food compartment Refrigerator running continuously without reaching set temperature Fan blade not spinning freely or seized when checked by hand Multimeter shows no continuity through the motor windings Replaces Part Numbers This evaporator fan motor directly replaces the following OEM and cross-reference part numbers: WR60X26866, WR02X13733, WR60X10341, WR60X10356, WR60X10357, WR60X24303, WR60X26030, WR60X26033, V80E14MS2A3-57A611, 8817V W1, 239D1412P006, PD00038765, FIX12172983, AGE29673, AP6278228, PS12172983. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This evaporator fan motor is compatible with select GE French door refrigerators, including: GE refrigerators — CFE28, CFE29, CWE23, CYE22, CYE23 series (CFE28TP2MBS1, CFE28USHNSS, CWE23SP2MBS1, CYE22TP2MBS1 and related) GE refrigerators — DFE28, DFE29 series (DFE28JELCDS and related) GE refrigerators — GFD28, GFE26, GFE27, GFE28, GFE29 series (GFD28GBLBTS, GFE26GGHEBB and related) GE refrigerators — GFS26, GFS28, GNE26, GNE29 series GE refrigerators — GYE22, GYS22 series (GYE22HMKEES and related) GE refrigerators — PFD28, PFE28, PFE29 series (PFE28KELFDS and related) GE refrigerators — PWE23 series (PWE23KSKDSS and related) GE refrigerators — PYD22, PYE22, PYE23 series (PYE22KSKBSS and related) GE refrigerators — ZWE23 series and select related Café and Profile French door models Important — Software Update Requirement: If your GE refrigerator was manufactured between May 2014 and March 2015 with a serial number in the range FF–HD, the refrigerator's control software must be updated by GE factory service (or via Software Update Module WR98R882802) before installing this fan motor. Installing the new motor without the software update on these affected units may result in improper performance. Check your refrigerator's serial number plate before ordering. Key Features Axial evaporator fan motor for the fresh food section of GE French door refrigerators Pulls air through the evaporator coils to remove heat and circulate cold air through the refrigerator compartment DC motor — rated 13.6V DC, 0.16A — runs on DC voltage from the refrigerator control board Includes the axial fan blade and pre-attached multi-color wire harness with plug Fan housing dimensions: 3-4/7"L x 2"W x 3-1/8"H; harness and plug approximately 11-1/2" long Quiet operation — engineered to minimize hum and vibration in the refrigerator cabinet Plastic and metal construction, black housing with multi-color harness Replaces an extensive list of GE part numbers including WR60X26033, WR60X26030, WR60X24303, WR60X10341, WR60X10356, WR60X10357, and additional cross-references Compatible with GE, GE Café, and GE Profile French door refrigerators in the CFE, CWE, CYE, DFE, GFD, GFE, GFS, GNE, GYE, GYS, PFD, PFE, PWE, PYD, PYE, and ZWE series Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 20–30 minutes with basic hand tools Product Specifications Part Number WR60X26866 Part Type Refrigerator Evaporator Fan Motor (Fresh Food / Axial) Condition Aftermarket Replacement Application GE French Door Refrigerators Voltage 13.6V DC Amperage 0.16A Fan Type Axial Fan Housing Dimensions 3-4/7"L x 2"W x 3-1/8"H Harness Length Approximately 11-1/2 inches Color Black housing with multi-color harness Material Plastic / Metal Includes Axial fan motor assembly with harness Software Update Required For May 2014 – Mar 2015 builds (serial range FF–HD) — use WR98R882802 Compatible Brands GE, GE Café, GE Profile Installation Notes ⚠️ Unplug Refrigerator and Move Perishable Food Before Starting — Wear Work Gloves Unplug the refrigerator and safely store any food that could spoil while the power is off. Wear work gloves to protect your hands. The evaporator fan motor for the fresh food section is mounted on the back wall of the fresh food (refrigerator) compartment, behind an access panel. Take a photo of the existing fan position and wire harness routing before disconnecting. Remove the shelves and any internal components blocking access to the back wall, then remove the screws holding the rear access panel in place. Disconnect the fan motor's wire harness connector and remove the mounting screws securing the old motor. Note the fan blade orientation on the motor shaft. Install the new WR60X26866 motor assembly in the same position with the blade facing the same direction, reconnect the wiring harness, and reinstall the mounting screws and access panel. Replace the shelves and other internal components, restore power, and confirm the fan spins and the refrigerator cools properly. Allow several hours for the refrigerator to return to its set temperature before reloading with food. Tools needed: Phillips screwdriver, 1/4" nut driver, work gloves. Frequently Asked Questions My fridge is warm but my freezer is cold — is the evaporator fan motor the problem? Yes — this is one of the most recognizable symptoms of evaporator fan motor failure on GE French door refrigerators with a separate fresh food evaporator. The freezer side has its own cooling circuit and remains cold, while the fresh food side relies on this fan to circulate air across its evaporator coils. When the fan fails, the freezer continues working but the fresh food compartment loses its cold air supply, warming up while the freezer stays at temperature. If you also notice frost building up on the evaporator coils behind the back panel of the fresh food compartment, the fan failure is confirmed. What is the software update requirement for May 2014 – March 2015 refrigerators? GE issued a software update for certain refrigerators manufactured between May 2014 and March 2015 (serial range FF–HD) before they could properly support newer revisions of the WR60X26866 evaporator fan motor. If your refrigerator falls in this date and serial range, the control software must be updated before installing this fan motor — either by GE factory service or by using the Software Update Module part WR98R882802. Installing the new fan on an unupdated unit can result in improper performance. Check the serial number plate inside your refrigerator (typically on the left side wall) to confirm whether your unit is affected. Refrigerators built outside this range do not require the update. How do I test if the evaporator fan motor has failed? Unplug the refrigerator, then access the fan behind the rear panel of the fresh food compartment. First, try turning the fan blade by hand — if it doesn't spin freely, is stiff, or seizes, the motor bearing has failed. Next, listen during normal operation — if the motor is unusually noisy or makes a grinding sound, the bearings are worn even if it still spins. Finally, with the unit unplugged and the motor disconnected, use a multimeter on the motor windings to check for continuity. If the windings show no continuity, the motor has failed electrically. Also check for approximately 11–14V DC at the connector when the refrigerator is running — if voltage is present but the motor doesn't spin, the motor has failed. My fridge has two evaporator fans — which one does this replace? Some GE French door refrigerators have separate evaporator fan motors for the freezer and the fresh food sections. The WR60X26866 is the fresh food evaporator fan motor — it's the axial fan located behind the rear panel of the fresh food compartment, not in the freezer. If your symptom is "freezer cold, fridge warm," this is the correct part. If your symptom is "freezer warm" or "ice maker not making ice but fridge is fine," the freezer evaporator fan motor (a different part number) is more likely the cause. Confirm which compartment has the cooling problem before ordering. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the dimensions, fan housing, electrical specifications, and pre-attached wire harness configuration of the original WR60X26866 evaporator fan motor. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

    $42.00 $31.65

  • Sale -34% XPARTCO DA32-10104N Refrigerator Temperature Sensor  Parts-O-Matic

    XPARTCO XPARTCO DA32-10104N Refrigerator Temperature Sensor

    XPARTCO DA32-10104N Refrigerator Temperature Sensor The XPARTCO DA32-10104N is an aftermarket replacement refrigerator temperature sensor (thermistor) compatible with select Samsung French door, side-by-side, and bottom freezer refrigerators. This sensor is mounted on or near the evaporator coil and continuously monitors the internal temperature of the refrigerator compartment, transmitting real-time readings to the electronic control board. Based on the data received from the sensor, the control board regulates the compressor, evaporator fan motor, and defrost system to maintain the set temperature. When this sensor fails or drifts out of calibration, the control board receives inaccurate temperature readings — leading to a refrigerator that runs too cold, too warm, or triggers a 5E/SE error code. Features a 9-inch cord for easy installation and a sensitive thermal element with temperature detection accuracy of ±0.1°C. Quick Answer The XPARTCO DA32-10104N Refrigerator Temperature Sensor fixes refrigerators that are too warm, too cold, display a 5E/SE error code, or have inconsistent temperatures that spoil food. It monitors internal refrigerator temperature and sends data to the control board to regulate cooling. Compatible with select Samsung French door, side-by-side, and bottom freezer refrigerators. Common Problems This Part Fixes Refrigerator running too warm — food spoiling faster than normal Refrigerator running too cold — food or drinks freezing in the fresh food section 5E or SE error code displayed on the control panel Inconsistent or fluctuating temperatures inside the refrigerator Compressor running continuously without reaching set temperature Excessive frost or ice buildup on evaporator coils Replaces Part Numbers This sensor directly replaces the following OEM and cross-reference part numbers: DA32-10104N, DA32-10104V, 2030330, ASM1216617, PD00026468, EAP4138666, AP4979323, PS4138666. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This temperature sensor is compatible with select refrigerators from the following brands: Samsung French door refrigerators Samsung side-by-side refrigerators Samsung bottom freezer refrigerators Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Monitors internal refrigerator temperature and sends real-time data to the electronic control board Fixes 5E/SE error codes caused by a faulty or out-of-calibration temperature sensor Temperature detection accuracy of ±0.1°C for precise cooling control 9-inch cord length for easy installation and connection to the control board Aftermarket replacement built to OEM-equivalent quality standards Direct drop-in replacement — no modification required DIY-friendly repair — installs with basic hand tools in 30–45 minutes Product Specifications Part Number DA32-10104N Part Type Refrigerator Temperature Sensor (Thermistor) Condition Aftermarket Replacement Application Refrigerator Temperature Control System Cord Length 9 inches Detection Accuracy ±0.1°C Resistance at 70°F ~9.3K ohms Resistance at 90°F ~7.7K ohms Resistance at 100°F ~6.2K ohms Resistance at 120°F ~4.3K ohms Compatible Brands Samsung Installation Notes ⚠️ Safety First — Unplug Refrigerator Before Starting Unplug the refrigerator from the power source before beginning any repair. Safely remove and store any food that could deteriorate while the power is off. Wear work gloves to protect your hands. The DA32-10104N sensor is located near the evaporator coil, typically behind the rear panel inside the refrigerator or freezer compartment. Remove the panel, locate the sensor along the yellow wire, disconnect the old sensor from its plug, and connect the new sensor in the same position. Reassemble the panel and restore power. Allow 24 hours for the refrigerator to return to normal operating temperature. Tip: Before replacing, test the old sensor with a multimeter — resistance readings outside the values in the specs table above confirm a faulty sensor. Consult your refrigerator's service manual for model-specific instructions. Frequently Asked Questions Will the DA32-10104N fit my Samsung refrigerator? This sensor is compatible with select Samsung French door, side-by-side, and bottom freezer refrigerators. Use the model search above to verify your model, or contact our support team before ordering. What does the temperature sensor do? The temperature sensor (thermistor) continuously monitors the internal temperature of the refrigerator and sends readings to the electronic control board. The control board uses this data to regulate the compressor, fans, and defrost system to maintain the set temperature. When the sensor fails or drifts out of range, the control board receives inaccurate data and cannot maintain proper cooling. What are signs that my temperature sensor needs replacement? Common signs include: the refrigerator running too warm or too cold, food spoiling faster than normal, a 5E or SE error code on the display, inconsistent temperatures, or the compressor running continuously without reaching the set temperature. How do I test the DA32-10104N sensor before replacing it? Use a multimeter to measure the resistance across the sensor terminals. At 70°F the reading should be approximately 9.3K ohms, at 90°F approximately 7.7K ohms, at 100°F approximately 6.2K ohms, and at 120°F approximately 4.3K ohms. Readings significantly outside these values indicate a faulty sensor that needs replacement. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is designed to deliver reliable, accurate temperature sensing at a more affordable price point. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

    $15.00 $9.95

  • Sale -30%Last stock! XPARTCO WR51X10055 Refrigerator Defrost Heater  Parts-O-Matic

    XPARTCO XPARTCO WR51X10055 Refrigerator Defrost Heater

    XPARTCO WR51X10055 Refrigerator Defrost Heater Assembly The XPARTCO WR51X10055 is an aftermarket replacement refrigerator defrost heater and bracket assembly compatible with a wide range of GE, Hotpoint, Kenmore, Haier, Americana, Monogram, and Café refrigerators. The defrost heater is a glass quartz tube heater mounted on a bracket below the evaporator coils in the freezer compartment. During each automatic defrost cycle, the heater energizes and melts any frost that has accumulated on the evaporator coils — maintaining unobstructed airflow through the coils so the refrigerator can cool efficiently. When the heater fails, frost accumulates on the coils unchecked, blocking airflow and causing both the freezer and fresh food sections to gradually warm up. Rated at 120V, 725W, this single quartz tube heater assembly measures 12-1/8" L x 3-3/8" W x 2-1/8" H and includes the heater element and mounting bracket. It directly replaces WR51X10030, AP3183311, 914088, AH303781, EA303781, PS303781, SH323, and EAP303781. Often replaced together with the defrost thermostat (WR50X10068) and temperature sensor (WR55X10025) for a complete defrost system repair. Installs in 20–30 minutes with basic hand tools. Quick Answer The XPARTCO WR51X10055 Refrigerator Defrost Heater Assembly fixes GE and Hotpoint refrigerators where frost is building up on the evaporator coils, the freezer is too warm, the fresh food section is warming up, or the refrigerator is running continuously without cooling properly. Single quartz tube heater, 120V / 725W. Assembly measures 12-1/8" L x 3-3/8" W x 2-1/8" H. Includes heater and bracket. Replaces WR51X10030, AP3183311, 914088, SH323, and more. Compatible with GE, Hotpoint, Kenmore, Haier, Americana, Monogram, and Café. Common Problems This Part Fixes Frost or ice buildup covering the evaporator coils in the freezer compartment Freezer section warming up or not maintaining set temperature Fresh food section warming up even though the freezer is running Refrigerator running continuously but not cooling properly Visible frost accumulation on the freezer back wall behind the panel Defrost heater element visibly burned out, broken, or dark/charred at the ends Both compartments gradually warming up after working normally for years Replaces Part Numbers This defrost heater assembly directly replaces the following OEM and cross-reference part numbers: WR51X10055, WR51X10030, 914088, AGE29323, AH303781, AP3183311, EA303781, EAP303781, PD00001004, PS303781. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This defrost heater is compatible with select refrigerators from the following brands: GE refrigerators (side-by-side, French door, top-freezer, and bottom-freezer) Hotpoint refrigerators Kenmore / Sears refrigerators (select GE-built models) Haier refrigerators (select GE-platform models) Americana refrigerators Monogram refrigerators Café refrigerators Tip: When replacing the defrost heater, it is highly recommended to also replace the defrost thermostat (WR50X10068) and temperature sensor (WR55X10025) at the same time. These three parts form the defrost system and are commonly replaced together — replacing all three prevents a second disassembly if another component fails soon after. Key Features Single quartz tube glass heater — melts frost from the evaporator coils during each automatic defrost cycle, maintaining airflow and cooling efficiency Rated 120V / 725W — correct electrical specifications for compatible GE refrigerators Assembly dimensions: 12-1/8" L x 3-3/8" W x 2-1/8" H — direct fit into the evaporator coil bracket Includes heater element and mounting bracket — complete assembly ready to install Replaces WR51X10030 and WR51X10055 — both older and current part numbers covered Compatible with GE, Hotpoint, Kenmore, Haier, Americana, Monogram, and Café refrigerators Often replaced together with WR50X10068 defrost thermostat and WR55X10025 temperature sensor Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 20–30 minutes with basic hand tools Product Specifications Part Number WR51X10055 Also Replaces WR51X10030 Part Type Refrigerator Defrost Heater and Bracket Assembly Condition Aftermarket Replacement Heater Type Single quartz tube glass heater Voltage 120V AC Wattage 725W Dimensions 12-1/8" L x 3-3/8" W x 2-1/8" H Includes Heater element and mounting bracket Often Replaced With WR50X10068 Defrost Thermostat, WR55X10025 Temperature Sensor Compatible Brands GE, Hotpoint, Kenmore, Haier, Americana, Monogram, Café Installation Notes ⚠️ Unplug Refrigerator Before Starting — Wear Work Gloves Unplug the refrigerator before beginning. Remove all food and shelving from the freezer compartment. Remove the freezer bottom drawer and the back panel screws (typically 2 hex-head screws). Slide out the back panel to expose the evaporator coils and defrost heater assembly. If the coils are covered in frost or ice, use a hair dryer to melt the ice before removing the heater — do not chip or force the heater free while iced over, as the glass element is fragile and will break. Disconnect the heater wires from the wiring harness — note the orientation before disconnecting. Remove the 2 Phillips screws securing the heater bracket and lift the heater assembly out. Install the new WR51X10055 heater assembly in the same position, reconnect the wires, and reinstall the bracket screws. Reinstall the back panel, shelving, and food. Restore power and verify the defrost cycle operates normally. Wear work gloves throughout — the evaporator area has sharp edges. Tools needed: Phillips screwdriver, 1/4" nut driver, hair dryer (if coils are iced over), work gloves. Frequently Asked Questions What does the refrigerator defrost heater do? Modern refrigerators use an automatic defrost system that periodically runs a defrost cycle — typically once or twice a day — to melt frost that accumulates on the evaporator coils during normal operation. The defrost heater is a glass quartz heating element that energizes during this cycle and melts the frost off the coils. This keeps the coils clear so air can flow freely through them to cool the refrigerator. When the heater fails, frost builds up unchecked on the coils over days or weeks — eventually blocking airflow completely and causing both compartments to warm up, even though the compressor is still running. How do I know if my defrost heater has failed? Remove the freezer back panel to expose the evaporator coils. If the coils are heavily coated in frost or solid ice — especially if both the freezer and refrigerator sections have been warming up — a failed defrost heater is the most likely cause. You can confirm with a multimeter: disconnect the heater and probe both wire ends. A working heater shows continuity (resistance between approximately 10–200 ohms at room temperature depending on wattage). No continuity confirms the heater element has burned out. Also visually inspect the glass tube — a burned, blackened, or broken tube is a clear sign of failure. Should I also replace the defrost thermostat and temperature sensor? Yes — since the freezer must be fully emptied and the back panel removed to replace the heater, it is highly recommended to also replace the defrost thermostat (WR50X10068) and temperature sensor (WR55X10025) at the same time. All three components form the defrost system and wear at similar rates. A failed thermostat or sensor can cause the heater to run too long or not at all — replacing all three in a single repair eliminates that risk and saves you from another complete freezer teardown in the near future. My freezer is warming up but the compressor is running — is it the defrost heater? It often is — but not always. A compressor that is running but not cooling can be caused by a failed defrost heater (frost blocking airflow), a faulty evaporator fan motor (air not circulating), a defrost thermostat or timer failure, or a sealed system problem (refrigerant leak or compressor issue). The easiest way to distinguish a defrost system failure from other causes is to open the freezer and check whether frost has built up on the back panel or coils. If yes, the defrost heater is the most likely culprit. If the coils are clear and the compressor is running, look at the evaporator fan or sealed system next. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured as a single quartz tube glass heater rated at 120V/725W to match the dimensions and performance of the original WR51X10055 defrost heater assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

    $28.50 $19.97

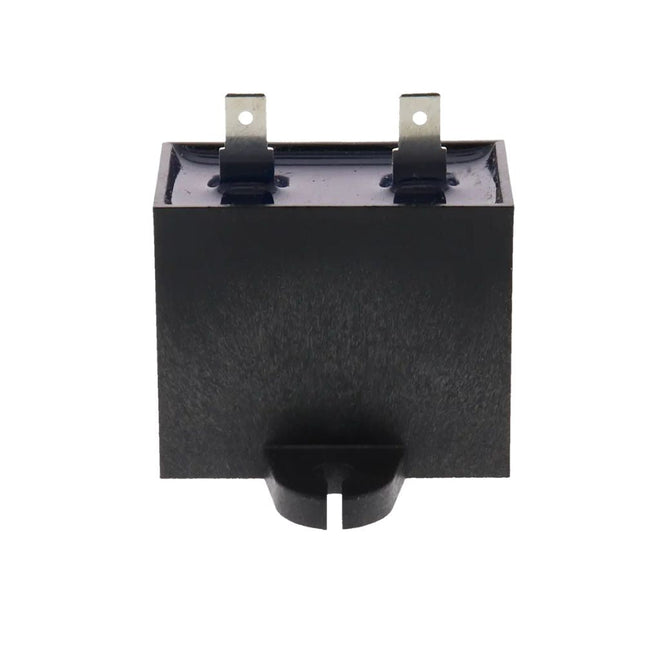

  • Sale -46%Last stock! XPARTCO W10350564 Refrigerator Run Capacitor Replaces WPW10350564  Parts-O-Matic

    XPARTCO XPARTCO W10350564 Refrigerator Run Capacitor Replaces WPW10350564

    XPARTCO W10350564 Refrigerator Run Capacitor Replaces WPW10350564 The XPARTCO W10350564 is an aftermarket replacement compressor run capacitor compatible with a wide range of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Roper, Admiral, Ikea, and Kenmore refrigerators and freezers. The run capacitor is a small but critical electrical component mounted near the compressor at the back of the refrigerator — it delivers a phase-shifted power boost that helps the compressor motor start at the beginning of each cooling cycle, and supports smooth, efficient motor operation while the compressor runs. When the capacitor fails — typically from dielectric breakdown, age, heat, or moisture intrusion — the compressor may fail to start, hum without starting, kick on and off repeatedly, or cause inconsistent cooling throughout the refrigerator. Rated 12 µF (MFD) ±5% capacitance, 180VAC, 50/60Hz. This capacitor works together with the compressor start relay/start device — the two components are frequently replaced together, since a failed capacitor often stresses the relay and vice versa. It directly replaces WPW10350564, W10350564, AP6020176, PS11753490, EAP11753490, and 2683570. This is one of the most cost-effective refrigerator repairs — a failed run capacitor mimics symptoms of a failed compressor (a far more expensive repair), so testing and replacing the capacitor first can save hundreds of dollars. Installs in about 15 minutes with basic hand tools. Quick Answer The XPARTCO W10350564 Refrigerator Run Capacitor fixes Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, and Kenmore refrigerators and freezers where the compressor won't start, hums without starting, kicks on and off, or the fridge/freezer is too warm with inconsistent cooling. 12 µF (MFD) ±5%, 180VAC, 50/60Hz. Replaces WPW10350564, AP6020176, PS11753490, EAP11753490, 2683570. Often replaced together with the compressor start relay. A 15-minute repair that can save you from misdiagnosing a "failed compressor." Common Problems This Part Fixes Compressor won't start — no power boost from the failed capacitor Compressor hums or clicks but doesn't start running Compressor kicks on and off repeatedly (short cycling) Refrigerator and freezer too warm — cooling cycles not completing Fridge too warm while freezer seems okay — weak compressor operation Noticeable humming sounds from the back of the refrigerator Inconsistent cooling and variable temperatures inside the refrigerator Refrigerator will not start at all Capacitor visibly bulged, leaking, or burned Capacitance test reads significantly off from 12 µF Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This run capacitor directly replaces the following OEM and cross-reference part numbers: WPW10350564, W10350564, PD00030179, EAP11753490, AP6020176, AWP50050, PS11753490. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This run capacitor is compatible with select refrigerators and freezers from the following brands: Whirlpool refrigerators — French door, side-by-side, and bottom-mount models (including WRX735SDBM00 and related WRX/WRF series) Maytag refrigerators (select models) KitchenAid refrigerators (select models) Jenn-Air refrigerators (select models) Amana refrigerators (select models) Magic Chef refrigerators (select models) Roper refrigerators (select models) Admiral refrigerators (select models) Ikea refrigerators (select Whirlpool-built models) Kenmore / Sears refrigerators (select Whirlpool-built models) Also fits compatible upright and chest freezers on the Whirlpool platform Note: The run capacitor works together with the compressor start relay/start device. When one fails, the other has typically been stressed by the same electrical events — many repair scenarios call for replacing both at the same time since both are accessible in the same location and the combined parts cost is still far below a service call. Always verify your model number before ordering. Key Features Compressor run capacitor — delivers the phase-shifted power boost that starts the compressor motor and supports smooth operation during cooling cycles Rated 12 µF (MFD) capacitance with ±5% tolerance — precise match to OEM electrical specifications 180VAC, 50/60Hz rating for compatible refrigerator compressor circuits Resolves "compressor won't start," "humming but not starting," "short cycling," and "too warm" symptoms when caused by capacitor failure A cost-effective first repair — failed capacitors commonly mimic the symptoms of a far more expensive failed compressor Replaces WPW10350564, AP6020176, PS11753490, EAP11753490, and 2683570 Compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Roper, Admiral, Ikea, and Kenmore refrigerators and freezers Often replaced together with the compressor start relay/start device as a paired repair Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in about 15 minutes with basic hand tools Product Specifications Part Number W10350564 OEM Part Number WPW10350564 Part Type Refrigerator Compressor Run Capacitor Condition Aftermarket Replacement Application Refrigerators and Freezers (Whirlpool platform) Capacitance 12 µF (MFD) Tolerance ±5% Voltage 180V AC Frequency 50/60 Hz Mounting Location Near compressor, rear of refrigerator Often Paired With Compressor Start Relay / Start Device Compatible Brands Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Roper, Admiral, Ikea, Kenmore Installation Notes ⚠️ Capacitor Safety Warning — Stored Electrical Charge Capacitors store an electrical charge even after the refrigerator is unplugged. Before handling the old capacitor, discharge it safely: with the refrigerator unplugged, touch the blade of an insulated-handle screwdriver across both capacitor terminals simultaneously to short them together (you may see or hear a small spark — that's the stored charge dissipating). Never touch the capacitor terminals with bare hands before discharging. If you're not comfortable with this step, have the repair done by a qualified appliance technician. ⚠️ Unplug Refrigerator Before Starting — Wear Work Gloves Unplug the refrigerator and pull it away from the wall to access the rear. Safely store any food that could spoil if the repair takes longer than expected. Wear work gloves to protect your hands. The run capacitor is located near the compressor at the bottom rear of the refrigerator, typically behind a lower rear access panel. Remove the screws holding the access panel and set it aside. Locate the capacitor — a small rectangular or oval component connected to the compressor's start relay/start device by wire terminals. Photograph the wire connections before disconnecting anything. Discharge the old capacitor before touching the terminals (see the safety warning above). Disconnect the wire terminals from the old capacitor — note which wire goes to which terminal. Release the capacitor from its mounting clip or bracket. Install the new W10350564 capacitor in the same position, secure the mounting clip, and reconnect the wires to the same terminals as photographed. While the panel is open, inspect the start relay/start device on the side of the compressor — if it rattles when shaken, shows burn marks, or has corroded terminals, replace it at the same time. Reinstall the rear access panel, push the refrigerator back into place, plug it in, and listen for the compressor to start smoothly within a few minutes. Allow several hours for the refrigerator to return to its set temperature. Tools needed: Phillips screwdriver, 1/4" nut driver, insulated-handle flathead screwdriver (for discharging), needle-nose pliers, work gloves. Frequently Asked Questions How do I know if the run capacitor has failed and not the compressor? This is the key question — because a failed $15–30 capacitor produces nearly identical symptoms to a failed $300+ compressor. Signs pointing to the capacitor: the compressor hums or clicks but won't start; the compressor tries to start, runs briefly, then shuts off (short cycling); or the refrigerator gradually stopped cooling with humming from the rear. To test: unplug the refrigerator, discharge the capacitor, disconnect it, and measure it with a multimeter that has a capacitance setting — a healthy capacitor reads close to 12 µF (within ±5%). A reading far off, zero, or infinite confirms the capacitor has failed. Visual signs like bulging, leaking, or burn marks also confirm failure. Given the low cost, replacing the capacitor (and start relay) first is the standard diagnostic approach before condemning the compressor. Should I replace the start relay at the same time? Yes, it's strongly recommended. The run capacitor and the compressor start relay/start device work together in the compressor's starting circuit — the relay switches power to the start winding while the capacitor provides the phase-shifted boost. When one fails, the other has typically been stressed by the same electrical events (voltage spikes, overheating, repeated failed start attempts). Both components are inexpensive, mounted in the same location on or near the compressor, and accessible in the same repair session. A quick relay check: with the refrigerator unplugged, remove the relay and shake it — if it rattles, the internal components have failed and it needs replacement. Why does the capacitor need to be discharged before handling? Capacitors store electrical energy — that's their job. Even after the refrigerator is unplugged, the capacitor can hold a charge capable of delivering a painful (and potentially dangerous) shock when you touch both terminals. Before handling, always discharge the capacitor by shorting both terminals together with the blade of an insulated-handle screwdriver — touch the metal blade across both terminals at once and hold for a second or two. You may see a small spark as the charge dissipates; that's normal. After discharging, the capacitor is safe to handle. This takes five seconds and eliminates the shock risk entirely. What's the difference between a run capacitor and a start capacitor? Both assist the compressor motor but in different phases of operation. A start capacitor delivers a large, brief boost only during the initial moment of motor startup, then is switched out of the circuit. A run capacitor — like the W10350564 — stays in the circuit continuously while the motor runs, providing an ongoing phase shift that improves the motor's running efficiency and torque. Household refrigerators on the Whirlpool platform typically use a run capacitor working alongside the start relay/start device. Match the replacement to your original: the W10350564 is a 12 µF, 180VAC run capacitor, and the capacitance rating must match for correct compressor operation. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the electrical specifications (12 µF ±5%, 180VAC, 50/60Hz), terminal configuration, and compressor-support function of the original WPW10350564/W10350564 run capacitor used in compatible Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, and Kenmore refrigerators and freezers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

    $26.00 $13.99

  • Sale -17% W10189190 Refrigerator Overload, Relay and Capacitor Replaces WPW10189190, WPW10662129  Parts-O-Matic

    XPARTCO W10189190 Refrigerator Overload, Relay and Capacitor Replaces WPW10189190, WPW10662129

    XPARTCO W10189190 Refrigerator Compressor Overload, Start Relay and run capacitor – Compatible with Whirlpool, Kenmore, Maytag, and Amana Refrigerators Product Description Fix refrigerator cooling issues with the XPARTCO W10189190 Refrigerator Compressor Overload, Start Relay and run Capacitor. This high-quality replacement helps start the compressor and protects it from overheating. A faulty relay or overload can cause clicking sounds, failure to start, or cooling loss. Replacing it with this reliable and affordable replacement restores proper compressor function and cooling performance. Relay & Overload Replaces Part Numbers WPW10189190, W10189190, 10097201, 14200214, 14203585, 1481748, 18516-3, 2-35154-010, 2255554, 2319793, 4344041, 4357156, 61002047, 61002971, 65529-1, 68001457, 68001622, W10197427, Y0303053, Y0313053, AP6016586, PS11749877, WPW10197428, W10128791, W10128795, W10197428, 1547199, AP6016830, PS11750123, WP2319792, 2319792, 1195945, 2255198, PS11740412, AP6007299, 297237702, 241527803, 2026081, 241527801, 297237800, 5304492394, 7297237800, AH3502347, EA3502347, AP5306469, PS3502347, 241941003, 1512917, 297237701, 7241941003, PD00002938, EAP11749877, AH2358826, EA2358826, AP4393217, PS2358826. Run Capacitor Replaces Part Numbers: WPW10662129, 2169373, W10662129, 09100136, 09100156, 09100173, 1100804, 1114291, 1118576, 1118581, 14201635, 14224144, 2169136, 2169383, 2188516, 2264017, 3281880, 4312484, 4356442, 4356601, 4356995, 4357055, 4357094, 4390503, 4390930, 60001028, 65889-2, 65889-6, 68001280, 69001105, 8199858, 945508, 999532, C8931601, C8931602, C8931607, R0213143, R0213187, R0651012, R0660030, R0950186, R9800532, W10590083, W10658690, WPW10662129VP, Y09100136, Y09100156, Y09100173, PD00004989, EAP11757023, PS11757023, AP6023677. Compatibility This replacement relay and overload kit is compatible with select Whirlpool, Kenmore, Maytag, and Amana refrigerators. Example compatible models include (but are not limited to): Whirlpool WRF560SEYM04, Amana ARS9168AW, and Kenmore 106.56532400. Always verify your refrigerator’s model number before ordering. Contact our support team if you’re unsure. ✅ Key Features 🔄 Aftermarket Replacement – Compatible with Whirlpool-brand refrigerators ❄️ Reliable Performance – Ensures smooth compressor start-up and consistent cooling 💰 Affordable Solution – Quality alternative at a lower cost than OEM parts 🛠️ Easy Installation – Includes both overload protector and start relay 🛡️ Fixes Common Issues – Solves compressor not running, clicking, or no-cool problems 📐 Product Specification Part Number: W10189190 Component Type: Compressor Overload, Start Relay and Capacitor Assembly Material: Heat-resistant plastic housing with copper terminals Mounting: Direct-fit replacement on compressor terminals Operating Conditions: Designed for standard household refrigerator use Compliance: Built to OEM-equivalent quality standards (not OEM) 🛠️ Installation Notes Tools Needed: Flathead screwdriver, needle-nose pliers ⚠️ Safety First: Always unplug the refrigerator before performing repairs to prevent electrical shock. Steps: Unplug the refrigerator and move it away from the wall. Remove the lower rear access panel to access the compressor. Detach the old relay and overload from the compressor terminals. Install the new XPARTCO W10189190 relay and overload assembly. Replace the access panel and restore power. Confirm the compressor starts smoothly and cooling resumes. ⏱️ Time Required: 10–15 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders 🛠️ Trusted Appliance Parts Supplier 🔄 30-Day Return Policy Restore your refrigerator’s cooling system — Add to Cart Now for a reliable, budget-friendly repair!

    $30.00 $24.80

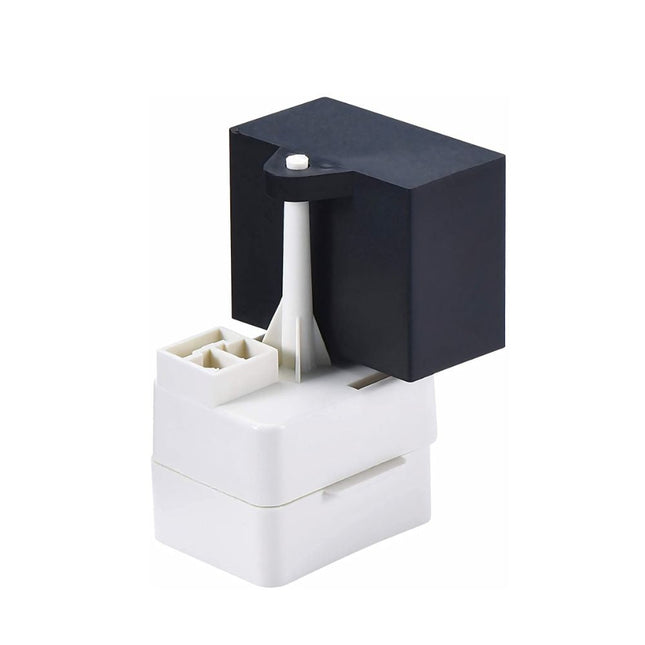

  • Sale -40% XPARTCO W10613606 Refrigerator Compressor Start Relay  Parts-O-Matic

    XPARTCO XPARTCO W10613606 Refrigerator Compressor Start Relay

    XPARTCO W10613606 Refrigerator Compressor Start Relay and Capacitor The XPARTCO W10613606 is an aftermarket replacement compressor start relay and capacitor assembly compatible with a wide range of Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Jenn-Air, Admiral, Crosley, Dacor, Hardwick, Inglis, Litton, and Magic Chef refrigerators. The start relay is a small but critical electrical component that plugs directly onto the compressor terminals and provides the initial power surge needed to start the compressor motor. Once the compressor reaches operating speed, the relay drops out — leaving the compressor to run on its own. The capacitor (rated 15µF ±5%, 250VAC) works alongside the relay to store and release the burst of electrical energy needed on startup. When the start relay fails, the compressor cannot start — causing the refrigerator to stop cooling entirely. A failed relay typically produces a clicking sound every few minutes as the compressor tries and fails to start, followed by a short rest, then another attempt. This kit includes both the start relay and the CBB61 capacitor. It directly replaces W10416065, 8208290, 8208368, C8931605, 67003186, 67005560, 67005561, 67005562, 67003764, 8171210, and several additional cross-reference numbers. Installs in under 15 minutes — no tools required in most cases. Quick Answer The XPARTCO W10613606 Refrigerator Compressor Start Relay and Capacitor fixes refrigerators that are not cooling, are too warm, or are making a repeated clicking sound every few minutes as the compressor tries to start. Plugs directly onto the compressor terminals. Kit includes start relay and 15µF 250VAC CBB61 capacitor. Compatible with Whirlpool, Kenmore, Maytag, KitchenAid, Amana, and more. Replaces W10416065, 8208290, C8931605, 67005560, and more. No tools required — installs in under 15 minutes. Common Problems This Part Fixes Refrigerator not cooling — compressor not running Freezer section too warm or not freezing Both refrigerator and freezer compartments gradually warming up Repeated clicking sound every 2–5 minutes from behind or underneath the refrigerator Compressor hums briefly then shuts off without reaching operating temperature Refrigerator runs but cannot maintain set temperature Shaking the start relay reveals a rattling sound inside — confirms internal failure Replaces Part Numbers This start relay and capacitor kit directly replaces the following OEM and cross-reference part numbers: W10613606, 67005560, 3023300, 67003186, 67003764, 67005561, 67005562, W10416065, 8171210, 8208290, 8208368, W10244032, 302TFBYY, SSP14R302TFR,  AWP41206, C8931605, PD00004905, EAP8746522, AP5787784, PS8746522. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This start relay and capacitor is compatible with select refrigerators from the following brands: Whirlpool refrigerators (side-by-side, French door, bottom-freezer) Kenmore / Sears refrigerators (select Whirlpool-built models) Maytag refrigerators KitchenAid refrigerators Amana refrigerators Jenn-Air refrigerators Admiral refrigerators Crosley refrigerators Dacor refrigerators Hardwick refrigerators Inglis refrigerators Litton refrigerators Magic Chef refrigerators Important: Always verify your refrigerator's model number and compare the old relay's shape and terminal configuration to the new part before installing. Some models may require trimming the wire connector tabs for a proper fit. Contact our support team with your model number if you need confirmation before ordering. Key Features Provides the initial electrical surge needed to start the compressor motor — without it, the compressor cannot run and the refrigerator cannot cool Kit includes both the start relay and the CBB61 run capacitor (15µF ±5%, 250VAC) — everything needed in one package Plugs directly onto the compressor terminals — no wiring or soldering required in most cases Quick rattle test — shake the old relay; if it rattles, the internal contacts have failed and it needs replacement Replaces W10416065, 8208290, C8931605, and over a dozen additional cross-reference part numbers Compatible with 13 major appliance brands on the Whirlpool platform Aftermarket replacement built to OEM-equivalent quality standards Fast DIY repair — installs in under 15 minutes, no tools required in most cases Product Specifications Part Number W10613606 Part Type Refrigerator Compressor Start Relay and Capacitor Kit Condition Aftermarket Replacement Application Refrigerator Compressor (side-by-side, French door, bottom-freezer) Capacitor Type CBB61 Run Capacitor Capacitor Rating 15µF ±5%, 250VAC Kit Includes 1x Start relay, 1x CBB61 capacitor Installation Plug-in — no tools required in most cases Compatible Brands Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Jenn-Air, Admiral, Crosley, Dacor, Hardwick, Inglis, Litton, Magic Chef Installation Notes ⚠️ Unplug Refrigerator Before Starting Unplug the refrigerator from the power outlet before beginning. Move the refrigerator away from the wall to access the rear or lower back panel. Remove the rear access panel by unscrewing the retaining screws to expose the compressor. The compressor is a large black dome-shaped component — the start relay and capacitor assembly plugs onto the side terminals. Grip the old relay firmly and pull it straight off the compressor pins. Shake it — if it rattles, the internal contacts have failed and replacement is confirmed. Compare the old relay to the new W10613606 to confirm the terminal layout matches. Align the new relay with the compressor pins and press it firmly on. Reinstall the access panel, restore power, and listen for the compressor to start and run normally within a few minutes. Note: Some models may require trimming the wire connector tabs or reversing the connector orientation for a proper fit — do not force the connection. Tools needed: Phillips screwdriver (for panel access only). Frequently Asked Questions What does the compressor start relay do? The start relay plugs onto the compressor terminals and provides the brief but powerful surge of electrical current needed to start the compressor motor from a standstill. Once the compressor reaches operating speed — usually within a second or two — the relay drops out and the compressor runs on its own. Without a working start relay, the compressor cannot start at all, and the refrigerator stops cooling. The capacitor works alongside the relay to store and deliver the extra energy needed on startup. How do I know if my start relay has failed? The most reliable quick test is the rattle test: unplug the refrigerator, pull the start relay off the compressor, and shake it near your ear. A working relay is silent. A failed relay will rattle — the internal contacts have broken free and are loose inside the casing. Another sign is a repeated clicking sound every 2–5 minutes from the back of the refrigerator, where the compressor attempts to start, fails, trips the overload protector, rests, and tries again. If the fridge is warm and you hear clicking, check the relay first. What is the difference between the start relay and the capacitor? The start relay is the switching device that connects and disconnects the start winding of the compressor motor during startup. The capacitor stores a charge and releases it during startup to give the motor the additional torque it needs to get moving under load. Together they work as a startup system for the compressor. This kit includes both — replacing both at the same time ensures the complete startup circuit is fresh and reliable. My fridge is still not cooling after replacing the start relay — what else could it be? If replacing the start relay does not restore cooling, other possible causes include a failed compressor (the compressor runs but no longer builds pressure), a refrigerant leak in the sealed system, a failed start capacitor (if not replaced along with the relay), a bad overload protector, or a faulty main control board. Listen carefully after installing the new relay — if the compressor now starts and runs but the fridge still doesn't cool after several hours, a sealed system issue or refrigerant problem is likely and will require a certified technician. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the electrical specifications and terminal configuration of the original W10613606 start relay and capacitor assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

    $24.90 $14.95

  • Sale -26%Last stock! XPARTCO DA82-01415A Refrigerator Water Leak Service Kit  Parts-O-Matic

    XPARTCO XPARTCO DA82-01415A Refrigerator Water Leak Service Kit

    XPARTCO DA82-01415A Refrigerator Water Leak Service Kit The XPARTCO DA82-01415A is an aftermarket replacement water leak service kit, made to replace Samsung part DA82-01415A, for select Samsung bottom-freezer and French door refrigerators. It addresses water leaking from the defrost drain, where a frozen or poorly sealed drain lets ice build up on the evaporator and meltwater overflow under the crisper drawers. The kit includes a replacement drain tube with cap and foam sealing pieces for the evaporator drain plate. This is an aftermarket replacement from XPARTCO, not a genuine Samsung part. It is sold as a kit. Check your model number before ordering. Quick Answer The XPARTCO DA82-01415A Water Leak Service Kit repairs the defrost drain on a compatible Samsung refrigerator that is leaking water. Classic symptoms: water pooling at the bottom of the refrigerator or under the crisper drawers, frost building up on the evaporator, or a frozen drain tube. Common Problems This Kit Fixes Water pooling at the bottom of the refrigerator or under the crisper drawers Condensate leaking around the evaporator Excess frost forming on the evaporator cover Frozen or iced-over defrost drain tube Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This water leak service kit is made to replace the following Samsung part number: DA82-01415A, DA62-03441A, 3436781, AP5957964, ASM31603, EAP10058968, PD00024858, PS10058968 If your old kit shows a different number, contact our support team and we'll check whether it matches. Compatibility This kit is listed for Samsung bottom-freezer and French door refrigerators with dual evaporators. Retailers do not publish a full model list for this kit. Note: Samsung sells similar-looking leak kits and drain parts under different part numbers, and newer refrigerators may already have a factory-installed drain tube. Send us your full model number, or check it against your parts diagram, and we'll verify fit before you order. Key Features Aftermarket replacement for the Samsung DA82-01415A water leak service kit Replacement defrost drain tube with cap Foam sealing pieces for the evaporator drain plate Sold as a kit Product Specifications Part Number XPDA82-01415A OEM Part Number DA82-01415A Part Type Refrigerator Water Leak Service Kit Condition Aftermarket Replacement Quantity 1 Kit Application Select Samsung Bottom-Freezer and French Door Refrigerators Installation Notes ⚠️ Disconnect Power Before Installing Unplug the refrigerator and remove any food that could spoil. Remove the evaporator cover and check that the defrost heater and defrost sensor work, because a failed heater or sensor will cause the drain to freeze again. Take care when moving the evaporator and drain plate, because damage to the evaporator coil can ruin the sealed system. Fit the new drain tube and foam seals, put the cover back, and fully thaw any ice in the drain before you restore power. Reviewers suggest having Phillips and flat-head screwdrivers and pliers on hand and consulting your model's service manual. Frequently Asked Questions My refrigerator is leaking water. Is this kit the fix? It can be, if the leak comes from a frozen or poorly sealed defrost drain. Before buying, check that the defrost heater and defrost sensor work, because a failed heater or sensor can cause the same leak. Is this an OEM or aftermarket part? This is an aftermarket replacement from XPARTCO, made to replace Samsung part DA82-01415A. If you specifically need a genuine Samsung part, contact our support team. What is in the kit? It includes a replacement drain tube with cap and foam sealing pieces for the evaporator drain plate. Retailers describe the full contents differently, so contact our support team if you need to confirm them before ordering. Will this fit my refrigerator? It is listed for Samsung bottom-freezer and French door refrigerators with dual evaporators, but no model list is published. Send us your full model number, or check it against your parts diagram, and we'll verify it before you order. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

    $29.50 $21.75

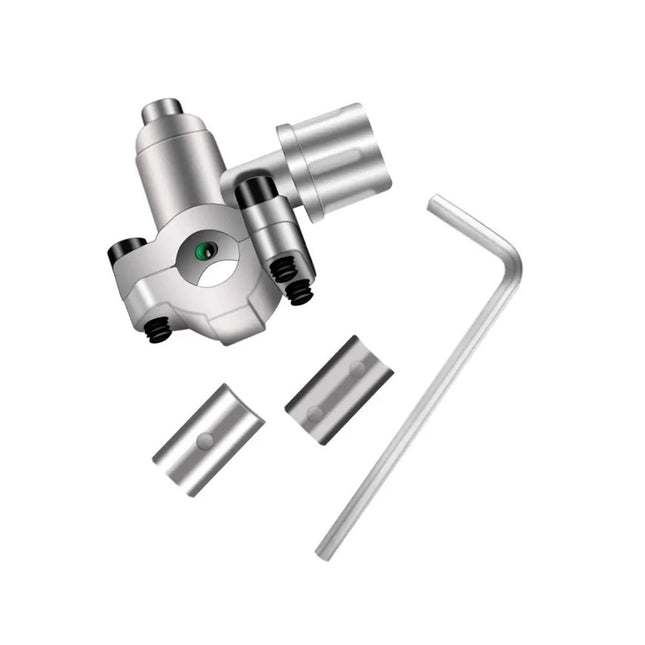

  • Sale -16%Last stock! XPBPV-31 Refrigerator Refrigerant Piercing Valve, Line Tap Valve Kits  Parts-O-Matic

    XPARTCO XPARTCO BPV31 Refrigerator Refrigerant Piercing Valve, Line Tap Valve Kits

    XPARTCO BPV-31 Refrigerator Refrigerant Piercing Valve / Line Tap Valve Kit The XPARTCO BPV-31 is a universal bullet piercing tap valve (line tap valve) used to quickly access a sealed refrigerant line on refrigerators, freezers, window air conditioners, dehumidifiers, and other HVAC systems — without soldering or brazing. The valve clamps around a copper refrigerant line and, when the valve stem is tightened with the included hex key, a hardened piercing needle punctures the tubing to create an access port. This lets a technician connect a charging hose or gauge to check pressure, pull a vacuum, or add refrigerant to a system that has no factory service port. It's a staple tool for appliance service and DIY refrigerator/freezer repair. Fits 1/4", 5/16", and 3/8" outside diameter copper pipes with the included adapters. The access port connection is a 1/4" male flare fitting. Rated to 500 PSI maximum, with a patented permanent gasket providing over 180 inch-lbs of sealing force — around 50 times the sealing area of a standard O-ring type valve — pressure tested at 250°F. Corrosion-resistant metal (zinc alloy) construction with a piercing needle engineered for concentricity and hardness to seat perfectly every time. Non-positional mounting requires no separate adapter valve and only 2" of clearance for installation. Each kit includes the piercing valve, a hex key wrench, and 2 adapters. It replaces AP4502525, BPV31, BPV31D, GPV14, GPV31, GPV38, GPV56, and MPV31. Quick Answer The XPARTCO BPV-31 Refrigerant Piercing Valve Kit taps into a sealed copper refrigerant line to add refrigerant, check pressure, or pull a vacuum — no soldering required. Fits 1/4", 5/16", and 3/8" OD pipes. 1/4" male flare port connection. 500 PSI max, patented gasket (50x the sealing area of an O-ring). Zinc alloy metal. Includes piercing valve, hex key, and 2 adapters; only needs 2" clearance. Replaces AP4502525, BPV31, BPV31D, GPV14, GPV31, GPV38, GPV56, MPV31. Not suitable for R410a systems. Common Uses This Kit Serves Adding refrigerant to a refrigerator or freezer that has no factory service port Checking system pressure on a sealed refrigerant line for diagnostics Pulling a vacuum on a system during service Recharging window air conditioners and dehumidifiers Confirming whether a sealed system has lost its refrigerant charge (leak diagnosis) Providing temporary or service access to copper refrigerant tubing without brazing Reviving a garage/shop refrigerator or freezer that has slowly lost its charge Accessing R-12, R-22, R-134a, and other compatible refrigerant systems (NOT R410a) Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This bullet piercing tap valve directly replaces the following OEM and cross-reference part numbers: BPV-31, BPV31, BPV31D, AP4502525, GPV14, GPV31, GPV38, GPV56, MPV31 The BPV-31 is a universal valve that covers the GPV-series (GPV14, GPV31, GPV38, GPV56) and MPV31 across the pipe sizes they individually served. Contact our support team if you need help confirming the correct valve for your line size. Compatibility This bullet piercing valve is a universal tool compatible with sealed refrigerant systems using copper tubing, including: Refrigerators and freezers — all major brands with 1/4", 5/16", or 3/8" OD copper refrigerant lines Window air conditioners — for recharging and pressure checks Dehumidifiers — sealed refrigerant systems Other HVAC systems with compatible copper line sizes Refrigerant compatibility — works with R-12, R-22, R-134a and other common refrigerants Important — NOT for R410a Systems: This BPV-31 piercing valve is NOT rated for R410a refrigerant systems, which operate at significantly higher pressures than the valve's design allows. Using it on an R410a system is unsafe. Before use, confirm your line's outside diameter (1/4", 5/16", or 3/8") and select the correct included adapter. Verify the pipe size before installation. Key Features Bullet piercing tap valve — taps a sealed copper refrigerant line to create an access port without soldering or brazing Fits 1/4", 5/16", and 3/8" outside diameter copper pipes (with included adapters) 1/4" male flare access port connection for charging hoses and gauges 500 PSI maximum pressure rating Patented permanent gasket — over 180 inch-lbs of sealing force, ~50 times the sealing area of a standard O-ring type valve; pressure tested at 250°F Piercing needle engineered for concentricity and hardness to seat perfectly every time Corrosion-resistant zinc alloy metal construction — won't rust or wear out over time Non-positional mounting — no separate adapter valve required, installs in any orientation Compact design needs only 2" of clearance for installation and use Each kit includes: 1 piercing valve, 1 hex key wrench, 2 adapters Replaces AP4502525, BPV31, BPV31D, GPV14, GPV31, GPV38, GPV56, and MPV31 NOT suitable for R410a refrigerant systems Product Specifications Part Number XPBPV-31 Part Type Bullet Piercing Tap Valve (Line Tap Valve Kit) Condition Aftermarket Replacement Application Refrigerators, Freezers, Window AC, Dehumidifiers, HVAC (sealed copper lines) Compatible Pipe Sizes 1/4", 5/16", 3/8" outside diameter Port Connection 1/4" Male Flare Maximum Pressure 500 PSI Sealing Force 180+ inch-lbs (patented gasket, ~50x O-ring sealing area) Pressure Tested 250°F Material Corrosion-resistant zinc alloy metal Mounting Non-positional, 2" clearance required Kit Includes 1x Piercing Valve, 1x Hex Key, 2x Adapters Not Compatible With R410a refrigerant systems Installation Notes ⚠️ Refrigerant Safety Warning Working with sealed refrigerant systems can expose you to pressurized refrigerant, which can cause frostbite, eye injury, and other harm. Wear safety glasses and protective gloves before piercing any line. Refrigerant handling may be regulated in your area — certain refrigerants require EPA certification (in the US) to purchase and handle. Never vent refrigerant to the atmosphere. This valve is NOT rated for R410a systems (too high pressure). If you're not experienced with refrigerant systems, have this work done by a qualified HVAC or appliance technician. ⚠️ Installation Steps — Clean the Line First Put on safety glasses and protective gloves. Identify the copper line you want to tap and confirm its outside diameter (1/4", 5/16", or 3/8") so you can select the correct included adapter. Clean the section of pipe where the valve will mount to prevent debris from entering the refrigerant line. Ensure the composite seal "O" ring/gasket is properly in place inside the valve. Place the two halves of the valve saddle around the pipe using the appropriate adapter insert for your pipe size. Install and evenly tighten the socket-head screws to clamp the valve body firmly around the pipe. To pierce the line, turn the valve stem clockwise with the included hex key until the needle punctures the tubing, then back the stem out (counterclockwise) to open the port and allow flow. To connect a gauge or charging hose: remove the cap, attach your hose to the 1/4" flare port, and open the valve by turning the stem counterclockwise. When finished, close the valve (turn the stem clockwise) BEFORE disconnecting the hose, then reinstall the protective cap. Note: the compact valve needs only 2" of clearance around the pipe. Tools needed: Included hex key wrench, safety glasses, protective gloves. (Note: to attach a gauge directly to the BPV, a retrofit valve adapter may be required — not included.) Frequently Asked Questions What is a bullet piercing valve used for? A bullet piercing valve (line tap valve) lets you tap into a sealed copper refrigerant line to create an access port — without cutting, soldering, or brazing the line. Most household refrigerators and freezers are sealed systems with no factory service port, so if you need to check the refrigerant pressure, pull a vacuum, or add refrigerant, a piercing valve gives you that access quickly. It clamps around the pipe, and a needle pierces the tubing when you tighten the valve stem. It's commonly used in appliance repair and HVAC service, and by DIYers reviving a garage refrigerator or freezer that has lost its charge. Which pipe sizes does this fit? The BPV-31 fits 1/4", 5/16", and 3/8" outside diameter copper pipes using the included adapters. Before installing, measure or confirm your refrigerant line's outside diameter and select the matching adapter insert. Getting the size right is essential for a proper seal — an incorrectly sized adapter won't clamp tightly and can leak. If you're not sure of your line size, measure the outside diameter of the copper tubing with calipers or a pipe gauge. Can I use this on an R410a system? No — the BPV-31 is NOT rated for R410a refrigerant systems. R410a operates at significantly higher pressures than older refrigerants like R-12, R-22, and R-134a, and exceeds the safe working pressure of this valve (500 PSI max). Using it on an R410a system is unsafe and could result in valve failure or refrigerant release. This valve is appropriate for lower-pressure systems using R-12, R-22, R-134a, and similar refrigerants. For R410a systems, use service equipment specifically rated for R410a pressures. Is a piercing valve a permanent solution? Piercing valves are best thought of as a service-access tool rather than a permanent fixture. They work reliably for tapping into a line to diagnose, vacuum, or charge a system, and the BPV-31's patented gasket provides a much stronger seal than basic O-ring valves. However, for a long-term permanent service port, many technicians prefer to cut the line and braze in a proper Schrader service port. Some technicians have concerns about the very long-term sealing of any piercing valve left permanently on a line. If you leave the valve installed, make sure the stem is closed and the cap is in place, and check periodically for leaks. Do I need EPA certification to add refrigerant? In the United States, handling many refrigerants (and purchasing them) requires EPA Section 608 certification, and it is illegal to intentionally vent refrigerant to the atmosphere. Regulations vary by refrigerant type and jurisdiction. The piercing valve itself is a tool that anyone can install, but the refrigerant handling that follows may be regulated. If you're a DIYer, research the rules that apply to your specific refrigerant and location, or have the refrigerant work done by a certified technician. Always recover refrigerant properly rather than venting it. Is this an OEM or aftermarket part? This is an aftermarket universal service tool built to OEM-equivalent quality standards. The BPV-31 is a universal industry-standard bullet piercing valve design (also sold as Supco BPV31 and equivalent), manufactured from corrosion-resistant zinc alloy to match the fit, 1/4"/5/16"/3/8" pipe compatibility, 1/4" flare port, 500 PSI rating, and patented-style sealing gasket of the standard BPV-31 line tap valve. It replaces AP4502525, BPV31D, GPV14, GPV31, GPV38, GPV56, and MPV31. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

    $12.50 $10.50

  • Sale -25%Last stock! XPHS810 Refrigerator 3 in 1 Hard Start Kit 1/12 to 1/5 HP 120V  Parts-O-Matic

    XPARTCO XPARTCO HS810 Refrigerator 3 in 1 Hard Start Kit 1/12 to 1/5 HP 120V

    XPARTCO HS810 Refrigerator 3-in-1 Hard Start Kit 1/12 to 1/5 HP 120V The XPARTCO XPHS810 is a universal 3-in-1 hard start kit that combines a solid-state starting relay, a start capacitor, and thermal overload protection into a single prewired unit for refrigerator and freezer compressors rated 1/12 to 1/5 HP at 120V (110–125VAC). It's designed as a direct equivalent to the widely used Supco RCO810 and similar kits, giving a struggling compressor extra starting torque to overcome internal friction and gas pressure at startup — commonly used to fix the classic "click-buzz-click" no-start symptom without replacing the entire compressor. The kit is fully prewired with color-coded leads (typically black = Common, white = Start, red = Run) and mounts directly onto the compressor's terminal pins, with instructions printed on the unit itself. It directly replaces Supco RCO810, URCO810, URC0810, RC0810, RC100, TJ90RCO810, AP4503019, ERP810, ERPU810, HS8, HS810, HS81, PCS810, and Mars 32781. Installs in 15–30 minutes with basic hand tools. Quick Answer The XPARTCO HS810 3-in-1 Hard Start Kit fixes refrigerators and freezers whose compressor makes a repeated "click-buzz-click" sound and fails to start, or that shut off on thermal overload during startup. Combines relay, start capacitor, and overload protector in one prewired unit for 1/12 to 1/5 HP compressors, 120V, 3.5A RLA. Replaces Supco RCO810, URCO810, RC0810, RC100, TJ90RCO810, AP4503019, ERP810, HS8, HS810, HS81, PCS810, Mars 32781. Do not install on LG linear/inverter compressors — see Installation Notes. Common Problems This Part Fixes Compressor makes a repeated "click-buzz-click" noise and fails to start Refrigerator or freezer runs warm because the compressor won't stay running Compressor hums but doesn't start, then trips off on overload Refrigerator cycles on and off rapidly without reaching temperature Older or worn compressor that starts hard, especially after a power outage ⚠ Capacitor Hazard — Read Before Servicing This kit contains a start capacitor, which can store a dangerous electrical charge even after the refrigerator is unplugged. Always disconnect power before servicing, and discharge the capacitor safely (using an insulated-handle resistor tool or by briefly shorting the terminals with an insulated screwdriver) before handling it. Never touch capacitor terminals with bare hands. If you are not comfortable working around stored electrical charge, have this repair performed by a qualified technician. Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This 3-in-1 hard start kit directly replaces the following OEM and cross-reference part numbers: XPHS810, RCO810, URCO810, URC0810, RC0810, RC100, TJ90RCO810, AP4503019, ERP810, ERPU810, HS8, HS810, HS81, PCS810, Mars 32781 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This universal hard start kit is compatible with refrigerator and freezer compressors in the following range: Compressors rated 1/12 HP through 1/5 HP 120V (110–125VAC) single-phase compressors Standard PSC (permanent split capacitor) and RSIR compressor types across Whirlpool, GE, Frigidaire, LG, Samsung, and most other major brands Important: Do NOT install this kit on LG linear/inverter compressors, or any compressor using a variable-speed inverter board (often labeled "Inverter," "Linear," "BLDC," or "Digital"). Connecting a standard hard start kit to an inverter-driven compressor can destroy the inverter control board. Check your compressor's label before ordering, or contact our support team with your model number if you're unsure. Key Features 3-in-1 design combines starting relay, start capacitor, and thermal overload protector in one prewired unit Delivers additional starting torque to help a struggling compressor overcome startup friction and gas pressure Resolves "click-buzz-click," "won't start," and "trips on overload" symptoms on eligible compressors Rated for 1/12 to 1/5 HP compressors at 120V, 3.5A RLA Prewired, color-coded leads with instructions printed on the unit for straightforward installation Can operate with or without an existing run capacitor Replaces Supco RCO810, URCO810, RC0810, RC100, TJ90RCO810, AP4503019, ERP810, HS8, HS810, HS81, PCS810, and Mars 32781 Aftermarket replacement built to OEM-equivalent quality and safety standards Product Specifications Part Number XPHS810 Equivalent To Supco RCO810 / RC0810 Part Type 3-in-1 Refrigerator/Freezer Hard Start Kit (Relay, Capacitor, Overload) Condition Aftermarket Replacement HP Range 1/12 to 1/5 HP Voltage 120V (110–125VAC) Current Rating 3.5A RLA Terminal / Wire Color Code Black = Common (C), White = Start (S), Red = Run (R) — typical; confirm against included diagram Not Compatible With LG linear/inverter compressors Installation Notes ⚠️ Unplug Refrigerator Before Starting — Discharge Capacitor Safely Disconnect power before beginning. Before touching any wiring, check your compressor's data label to confirm it is NOT a linear/inverter/BLDC compressor — this kit is not compatible with those and can damage the inverter board if connected. Access the compressor compartment, typically at the rear or bottom of the unit. Remove the existing relay/overload assembly by gently pulling it straight off the compressor terminal pins — do not force or twist. Use a multimeter to confirm which pins are Common (C), Start (S), and Run (R) if not already labeled. Connect the hard start kit's wires to the matching pins. Wire the kit's main power leads into the refrigerator's supply wiring using wire nuts, following the included diagram. Secure the kit with zip ties or its mounting strap to prevent vibration damage during compressor operation. Restore power and confirm the compressor starts smoothly without repeated clicking. Tools needed: nut driver or screwdriver, digital multimeter, wire nuts, insulated screwdriver (for capacitor discharge). Frequently Asked Questions My compressor makes a clicking or buzzing sound and won't start — will this fix it? A hard start kit resolves this in many cases, especially on older or worn compressors that struggle to overcome internal gas pressure at startup. However, "click-buzz-click" can also indicate a failing compressor winding or a compressor nearing end of life. If the hard start kit doesn't resolve the issue, the compressor itself may need replacement — a hard start kit can extend a marginal compressor's life but can't revive one with failed internal windings. Can I use this on any refrigerator? This kit works on standard PSC and RSIR compressors within the 1/12 to 1/5 HP range at 120V. It is NOT compatible with LG linear/inverter compressors or any variable-speed inverter-driven compressor — connecting it to one of those can destroy the inverter control board. Check your compressor's label for "Inverter," "Linear," "BLDC," or "Digital" before ordering. Do I need to remove my existing start capacitor or relay first? Yes — remove the old relay/overload assembly from the compressor terminal pins before installing this kit. The XPHS810 is designed to work with or without an existing separate run capacitor remaining in the circuit, but the old start relay and any old start capacitor should be removed and replaced by this kit, not left in place alongside it. Is this safe to install myself? Many DIYers install hard start kits successfully, but this repair involves a capacitor that can hold a dangerous electrical charge even after the unit is unplugged, plus correctly identifying compressor terminals. If you're not comfortable working around stored electrical charge or don't have a multimeter to confirm terminal identification, we'd recommend having a qualified technician perform this repair. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

    $26.50 $19.97

  • Sale -52%Last stock! XPARTCO 4681JB1029B Refrigerator Condenser Fan Motor Xpartco

    Xpartco XPARTCO 4681JB1029B Refrigerator Condenser Fan Motor

    XPARTCO 4681JB1029B Refrigerator Condenser Fan Motor 13Vdc, 1.55W, 120mA, CCW. Fits specific LG refrigerator models. Replaces Part Numbers: 4681JB1029B, 4681JB1017B, 4681JB1017E, 4681JB1027B, AP4437343, OEM17749374, PS3523329. Description: This Condenser Fan Motor is a replacement part for specific LG, Kenmore refrigerator models. This motor is responsible for powering the fan that cools the condenser coils, which helps dissipate heat from the refrigerator. Proper functioning of the condenser fan motor is crucial for maintaining the efficiency and cooling performance of the refrigerator.   This is an aftermarket part that can be used as a replacement for the OEM part. California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

    $52.00 $24.75

  • Sale -53% ERP W10865826 Refrigerator Water Valve Exact Replacement Parts

    Exact Replacement Parts ERP W10865826 Refrigerator Water Valve

    W10865826 Refrigerator Water Valve - Compatible with Whirlpool, KitchenAid, Maytag, JennAir, Kenmore Product Description Restore your refrigerator’s ice and water dispensing functionality with the replacement W10865826 Refrigerator Water Valve. This replacement part is designed for select Whirlpool, KitchenAid, Maytag, JennAir, and Kenmore refrigerators, ensuring precise water flow control for the ice maker or water dispenser. It resolves issues like no ice production, no water dispensing, or leaks, offering reliable performance and durability. Note: Disconnect power and water supply before installation. Verify model compatibility for proper fit. Replaces part numbers: W10865826, W10394076, WPW10394076, 4459687, W10726788, W10833705, W10872966, PD00041363, EAP11738056, AP6026312, PS11738056.  Compatibility: Compatible with models including but not limited to: Whirlpool: WRF736SDAM, WRF767SDHZ, WRX986SIHZ, KRFF507HPS KitchenAid: KRMF706ESS Maytag: MFI2570FEZ JennAir: JFX2897DRM Kenmore: 10651753710 Verify your model number or contact our support team for assistance. Key Features: ✅ Brand Compatibility: Fits select Whirlpool, KitchenAid, Maytag, JennAir, and Kenmore refrigerators. 🔥 Specifications: Water inlet valve with solenoid, electrical connectors, and water line fittings. 💰 Cost-Effective Alternative: Offers OEM-equivalent performance at a lower price. 🛠️ Easy Installation: Requires screwdriver, wrench, pliers; typically installed in 15–30 minutes. 🛡️ Effective Fixes: Resolves no ice, no water dispensing, or water leaks. Product Specification Part Number: W10865826 Component Type: Refrigerator water inlet valve Material: Plastic housing, metal fittings, electrical connectors Mounting: Secures to refrigerator frame with screws Operating Conditions: Suitable for refrigerator water systems Compliance: UL-listed components, Prop 65 warning for California Installation Notes: Safety First: Disconnect the refrigerator from power and water sources before installation. Follow the owner’s manual for guidance. Use plumber’s tape on threaded connections to prevent leaks. Shop for high-quality replacement appliance parts with a 30-day return policy. Fix your refrigerator today! Add to cart now for a reliable solution!

    $56.90 $26.50

  • Sale -45% XPARTCO WR55X10025 Refrigerator Temperature Sensor

    XPARTCO XPARTCO WR55X10025 Refrigerator Temperature Sensor

    XPARTCO WR55X10025 Refrigerator Temperature Sensor The XPARTCO WR55X10025 is an aftermarket replacement refrigerator temperature sensor (thermistor) compatible with a wide range of GE, Hotpoint, Haier, Café, and Monogram refrigerators. The temperature sensor monitors air temperature inside the fresh food and freezer compartments and sends that data to the main control board, which uses it to regulate cooling cycles and maintain the correct set temperature. When the sensor fails, the refrigerator may run too warm, too cold, or experience erratic defrost behavior. This sensor measures approximately 1-1/4 inches long and includes 18-inch wire leads. It is constructed from white plastic and is used in both fresh food and freezer compartments depending on the model — on some models it also functions as a defrost sensor on the evaporator coil. It directly replaces OEM part numbers WR55X10025 and a large number of earlier GE thermistor part numbers. Sold individually — some models require two sensors. Installs in under 30 minutes with basic hand tools. Quick Answer The XPARTCO WR55X10025 Refrigerator Temperature Sensor fixes GE and Hotpoint refrigerators that are too warm, too cold, not defrosting, or over-defrosting. The thermistor monitors compartment temperature and communicates with the control board. Approx. 1-1/4" long with 18" leads, white plastic. Compatible with GE, Hotpoint, Haier, Café, and Monogram refrigerators. Sold individually. Common Problems This Part Fixes Refrigerator compartment running too warm — food spoiling faster than normal Refrigerator running too cold — food or liquids freezing in the fresh food section Freezer section not maintaining correct temperature Refrigerator not defrosting or defrosting too frequently Excessive frost or ice buildup on evaporator coils Refrigerator and freezer both warming up after extended defrost cycles Erratic cooling — temperatures fluctuating unpredictably Replaces Part Numbers This temperature sensor directly replaces the following OEM and cross-reference part numbers: WR55X10025, 914093, WR50X10027, WR50X10034, WR50X10055, WR50X10067, WR55X10025-50PK, WR55X10025B, WR55X10026, WR55X10027, WR55X10028, WR55X10030, WR55X10087, WR55X10088, WR55X10089, WR55X10367, WR55X10380, WR55X10661, WR55X10711, WR55X10735, WR55X10736, WR55X10737, WR55X10937, WR55X10938, WR55X10939, WR55X11121, WR55X11141, WR55X11151, WR55X11152, AH304103, EA304103, OEM9556230, AP3185407, EAP304103, AGE29661, PD00000992, PS304103 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This temperature sensor is compatible with select refrigerators from the following brands: GE refrigerators (side-by-side, French door, top-freezer, and bottom-freezer) Hotpoint refrigerators Haier refrigerators (select GE-platform models) Café refrigerators Monogram refrigerators Note: Some GE refrigerator models use two or more temperature sensors. This part is sold individually. Check your model's parts diagram or contact our support team to confirm how many sensors your model requires before ordering. Key Features Monitors fresh food and freezer compartment temperatures and communicates readings to the main control board Also functions as a defrost sensor on the evaporator coil on applicable models Fits both fresh food and freezer positions White plastic construction — durable and resistant to refrigerator temperature extremes Direct replacement for WR55X10025 and over 30 earlier GE thermistor part numbers Compatible with GE, Hotpoint, Haier, Café, and Monogram refrigerators Sold individually — verify quantity needed for your model before ordering Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in under 30 minutes with basic hand tools Product Specifications Part Number WR55X10025 Part Type Refrigerator Temperature Sensor (Thermistor) Condition Aftermarket Replacement Application Fresh food compartment, freezer compartment, and evaporator coil (defrost sensor) depending on model Sensor Body Length Approximately 1-1/4 inches Color White Material Plastic Includes Sensor with wire leads Sold As Single sensor (some models require 2 — verify before ordering) Compatible Brands GE, Hotpoint, Haier, Café, Monogram Installation Notes ⚠️ Unplug Refrigerator Before Starting Unplug the refrigerator from the power outlet before beginning any repair. To access the fresh food thermistor, locate the sensor on the left wall of the fresh food compartment — it may be clipped into a housing or bracket. Disconnect the wire connector and pull the old sensor out of its bracket. Slide the new WR55X10025 sensor into the bracket and reconnect the wire connector. To access the freezer or evaporator thermistor, remove the freezer shelves and back panel, then locate the sensor clipped to the evaporator coil bracket. Remove any tie wrap securing the sensor, pull the old sensor from the bracket, insert the new sensor, and reconnect the wire connector. Reinstall the back panel and shelves, restore power, and verify the refrigerator returns to the correct set temperature. Tools needed: Phillips screwdriver, flat pry tool (for panel clips), work gloves. Frequently Asked Questions How many temperature sensors does my GE refrigerator have? The number of sensors varies by model. Many GE French door and side-by-side refrigerators use two or three WR55X10025 sensors — one in the fresh food compartment, one in the freezer, and sometimes one on the evaporator coil. Check your model's parts diagram or contact our support team with your model number to confirm how many you need before ordering. What is a thermistor and how does it work? A thermistor is a type of resistor whose electrical resistance changes with temperature. The main control board sends a small voltage through the thermistor and measures the resistance — a higher resistance means a lower temperature, and a lower resistance means a higher temperature. The board uses this reading to decide when to run the compressor and fans to maintain the set temperature. A failed thermistor sends incorrect readings, causing the refrigerator to over-cool, under-cool, or malfunction during defrost cycles. Can a faulty temperature sensor cause the refrigerator to not defrost? Yes. On models where the WR55X10025 also serves as the defrost sensor on the evaporator coil, a faulty sensor can cause the control board to incorrectly time or skip defrost cycles entirely — leading to excessive frost or ice buildup on the evaporator coils. This frost buildup can eventually block airflow and cause both the refrigerator and freezer sections to warm up. How do I know if my temperature sensor is the cause of my cooling problem? The most reliable way to test the thermistor is with a multimeter. Disconnect the sensor and measure its resistance at room temperature — a working WR55X10025 should read approximately 16,000 ohms at 32°F, dropping as temperature increases. An open circuit (infinite resistance) or short circuit (zero resistance) reading confirms the sensor has failed. If resistance is within the normal range but the refrigerator still has issues, the control board or other components may be at fault. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured from durable plastic to match the dimensions and performance specifications of the original WR55X10025 temperature sensor. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

    $20.00 $10.95

Refrigerator-Freezer-Parts Parts-O-Matic

Refrigerator & Freezer Parts – Keep Your Food Fresh and Your Appliance Running

Is your refrigerator not cooling? Freezer frosting up? Whether you're dealing with a leaky fridge, a noisy compressor, or a broken ice maker, Parts-O-Matic has the parts you need to bring your appliance back to life.

We offer a wide selection of OEM and high-quality replacement parts for all major refrigerator and freezer brands, including: Whirlpool, GE, Frigidaire, LG, Samsung, KitchenAid, Maytag, Bosch, Kenmore, and more.

Common Refrigerator & Freezer Parts We Carry:

  • Thermostats & temperature sensors
  • Water filters
  • Evaporator & condenser fan motors
  • Defrost heaters & timers
  • Ice makers & ice dispenser parts
  • Door seals & gaskets
  • Compressor start relays
  • Shelves, bins & drawers
  • Control boards & user interfaces

Easy Search. Fast Fix.

Just enter your part number in our search bar to get exact matches for your unit. We make it simple to find the right part without the guesswork.


Why Choose Parts-O-Matic?

OEM & aftermarket options for budget flexibility
Fast and Free shipping from U.S.-based warehouses
Fix leaks, flow issues & failed ice cycles quickly
Friendly support from appliance part experts
DIY-friendly parts for homeowners and pros
