XPARTCO WB24X10115 Range Hood Membrane Switch Replaces: WB24X10115, WB24X10004, 1086006, AH953533, EA953533, AP3203483, PS953533. California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

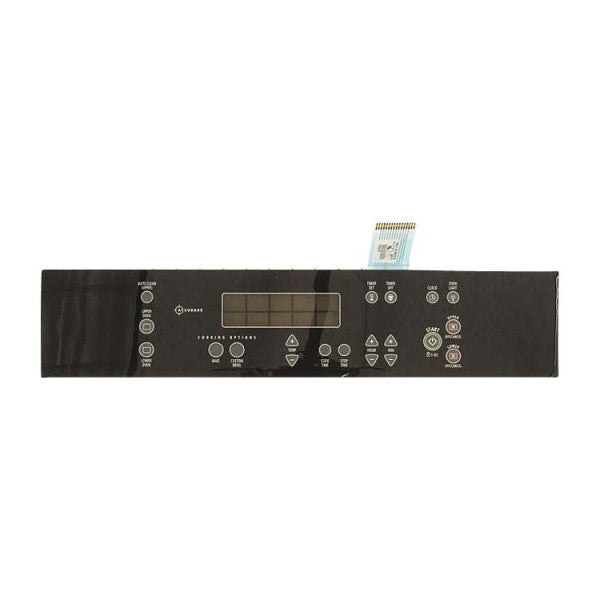

XPARTCO DG34-00025C Range Switch Membrane (Touchpad) The XPARTCO DG34-00025C is an aftermarket replacement membrane switch touchpad for Samsung gas ranges. This is the keypad panel itself — the touch-sensitive overlay you press to select temperature, set the time, and choose oven or cooktop functions. When you press a button, the membrane switch reads that touch and transmits the signal to the range's main control board, which then activates the corresponding function. This touchpad doesn't process or execute anything on its own — it's purely the physical interface between your finger and the electronics behind the panel. Because of that division of labor, a failing membrane switch produces a distinct pattern that's easy to tell apart from a control board failure: individual buttons or specific functions stop responding while the rest of the panel, including the clock and display, keeps working normally. If instead the entire display goes blank or the whole panel becomes unresponsive at once, that points to the range's main control board rather than this touchpad — for example, our DE92-02588G listing, which serves some of the same NX58R4311 models this touchpad fits. It directly replaces 4963022, AP6885265, PS12721647, and EAP12721647. As an aftermarket replacement, the DG34-00025C is built to OEM-equivalent quality standards. Quick Answer The XPARTCO DG34-00025C Range Switch Membrane (Touchpad) fixes Samsung gas ranges where certain buttons don't respond, specific functions can't be selected, or the panel behaves erratically — while the clock, display, and other buttons keep working normally. Replaces 4963022, AP6885265, PS12721647, EAP12721647. If the entire display is blank or completely unresponsive, the problem is more likely the main control board rather than this touchpad. Common Problems This Part Fixes Certain buttons on the control panel don't respond when pressed Specific cooking functions or modes can't be selected Panel behaves erratically — registers presses inconsistently or activates the wrong function Some buttons work fine while others are unresponsive or intermittent Touchpad requires repeated presses to register a command Visible wear, cracking, or bubbling on the touchpad overlay surface Buttons that used to work reliably have become inconsistent over time Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This range switch membrane touchpad directly replaces the following OEM and cross-reference part numbers: DG34-00025C, 4963022, AP6885265, ASM608484, EAP12721647, PD00066594, PS12721647. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This switch membrane touchpad is compatible with select Samsung gas ranges, including model numbers such as: NX58R4311SS/AA, NX58R4311SS/AA-00, NX58R4311SS/AA-01 NX58R4311SG/AA, NX58R4311SG/AA-00, NX58R4311SG/AA-01, NX58R4311SG/AA-02 Note: Samsung uses several similarly-numbered membrane switch touchpads across its range lineup — including DG34-00025A (for NX58F5300SS/NX58F5500SS/NX58F5500SB), DG34-00027B (for NX58H5600SS/NX58J5600SG/NX58F5700WS/NX58M5600SB), DG34-00020A (for NE594R0/NE59J3420/NE59J3421), and DG96-00850E/DG96-00850H (for NX60A6111/NE63A6511) — each for different model groups and not interchangeable with this one. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which touchpad fits your range. Key Features Aftermarket replacement built to match Samsung's factory-specified button layout and overlay material Touch-sensitive keypad interface that transmits button signals to the main control board Resolves "certain buttons unresponsive," "can't select specific functions," and "erratic panel behavior" symptoms caused by a worn or damaged membrane Waterproof overlay construction for durability against spills and cleaning Direct drop-in replacement — matches the original control panel mounting Replaces 4963022, AP6885265, PS12721647, and EAP12721647 Aftermarket replacement built to OEM-equivalent quality standards Straightforward DIY repair with basic tools Product Specifications Part Number DG34-00025C OEM Part Number DG34-00025C Part Type Range Switch Membrane (Touchpad) Condition Aftermarket Replacement Brand Samsung Application Gas Ranges Color Black Construction Waterproof overlay Function Touch-sensitive keypad interface; passes button signals to the main control board Quantity 1 switch membrane touchpad Compatible Brand Samsung Installation Notes ⚠️ Unplug Range Or Shut Off Breaker Before Starting — Small Parts, Keep Away From Children Unplug the range or shut off the house circuit breaker before beginning to avoid electrical hazards. Wear work gloves. This part includes small components — keep them away from young children during installation. Access is typically through the front of the control panel: remove the screws or clips securing the panel trim, then carefully separate the old touchpad overlay from its mounting surface, since some models use an adhesive backing that may require gentle, even pressure to release cleanly without damaging the surrounding panel. Photograph the ribbon cable or connector routing before disconnecting anything. Disconnect the touchpad's ribbon cable or connector from the control board, and remove the old membrane switch fully. Position the new DG34-00025C so its buttons align correctly with the control panel cutout, press it into place evenly to seat any adhesive backing, and reconnect the ribbon cable or connector to the control board. Reinstall the panel trim and its screws or clips. Restore power and test every button on the touchpad to confirm each one now responds correctly. Tools needed: Phillips or flat-blade screwdriver (model-dependent), work gloves. Frequently Asked Questions Some buttons work but others don't. Is this the right part? Yes, this is the classic symptom this touchpad addresses. Because the membrane switch is purely the physical button interface, individual sections of it can wear out or fail independently, leaving some buttons responsive while others stop working. If your clock, display, and some functions still work normally but specific buttons or settings don't respond, this touchpad — not the main control board — is the most likely cause. My whole display is blank and nothing on the panel responds. Do I need this part? Probably not. A completely blank or entirely unresponsive display points to the main control board rather than this touchpad, since the touchpad itself has no display and can't cause a total blackout on its own. This touchpad is the correct part specifically when some buttons or functions fail while the rest of the panel, including the display, continues working. Our DE92-02588G control board listing covers some of the same models this touchpad fits, in case that's the part you actually need. How do I know which specific membrane switch touchpad my range needs? Samsung uses several different touchpads that look similar but serve different model groups — always check your full model number before ordering. This DG34-00025C fits NX58R4311SS and NX58R4311SG specifically; other Samsung ranges use different part numbers such as DG34-00025A, DG34-00027B, DG34-00020A, or DG96-00850E/DG96-00850H. Contact our support team with your model number if you want to confirm before ordering. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured to match the button layout, overlay material, and mounting configuration of the original DG34-00025C switch membrane used in compatible Samsung gas ranges. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO DG34-00027B Range Membrane Switch (Touchpad) The XPARTCO DG34-00027B is an aftermarket replacement membrane switch touchpad for Samsung gas ranges. This is the keypad panel itself — the physical layer of touch-sensitive buttons you press to select temperature, set the time, and choose a cooking mode. Underneath a thin, durable overlay, this membrane switch reads each button press as a distinct signal and passes it along to the range's main control board, which then acts on the command. Unlike the main control board, this component doesn't process or execute anything on its own — it's purely the interface between your finger and the board. Because of that division of labor, a failing membrane switch produces a very specific pattern that's easy to distinguish from a control board failure: certain buttons stop responding, specific functions become impossible to select, or particular settings can no longer be adjusted, while the rest of the panel — including the clock, display, and other buttons — continues working normally. If instead the entire display goes blank or the whole panel stops responding at once, that points to the main control board rather than this touchpad. It directly replaces DG34-00027A, AP5986689, and PS11735749. Quick Answer The XPARTCO DG34-00027B Range Membrane Switch (Touchpad) fixes Samsung gas ranges where certain buttons don't respond, specific functions can't be selected, or particular settings won't adjust — while the rest of the control panel, including the clock and display, still works normally. Replaces DG34-00027A, AP5986689, PS11735749. If the entire display is blank or completely unresponsive, or the clock works but no heating functions operate at all, the problem is more likely the main control board (such as our DE92-02588G listing) rather than this touchpad. Common Problems This Part Fixes Certain buttons on the control panel don't respond when pressed Specific cooking functions or modes can't be selected Particular temperature or time settings can't be adjusted Some buttons work fine while others are unresponsive or intermittent Touchpad feels unresponsive or requires repeated presses to register Visible wear, cracking, or bubbling on the touchpad overlay surface Buttons that used to work reliably have become inconsistent over time Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This range membrane switch touchpad directly replaces the following OEM and cross-reference part numbers: DG34-00027B, DG34-00027A, AP5986689, ASM912846, EAP11735749, PD00027535, PS11735749 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This membrane switch touchpad is compatible with select Samsung gas ranges, including model numbers such as: NX58H5600SS NX58J5600SG NX58F5700WS NX58M5600SB Note: Samsung uses several similarly-numbered membrane switch touchpads across its range lineup — including DG34-00025A (for NX58F5300SS/NX58F5500SS/NX58F5500SB), DG34-00020A (for NE594R0/NE59J3420/NE59J3421), and DG96-00850H (for NE63A6511) — each for different model groups and not interchangeable with this one. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which touchpad fits your range. Key Features Aftermarket replacement membrane switch touchpad — the touch-sensitive keypad interface for the control panel Resolves "certain buttons unresponsive," "can't select specific functions," and "settings won't adjust" symptoms caused by a worn or damaged membrane Durable overlay material designed for long-term wear resistance Smooth surface that's easy to clean and maintain Direct drop-in replacement — matches the original control panel mounting Replaces DG34-00027A, AP5986689, and PS11735749 Aftermarket replacement built to OEM-equivalent quality standards Straightforward DIY repair with basic tools Product Specifications Part Number XPDG34-00027B OEM Part Number DG34-00027B (also DG34-00027A) Part Type Range Membrane Switch (Touchpad) Condition Aftermarket Replacement Application Gas Ranges Color Black Function Touch-sensitive keypad interface; passes button signals to the main control board Quantity 1 membrane switch touchpad Compatible Brand Samsung Installation Notes ⚠️ Unplug Range Or Shut Off Breaker Before Starting — Small Parts, Keep Away From Children Unplug the range or shut off the house circuit breaker before beginning to avoid electrical hazards. Wear work gloves. This part includes small components — keep them away from young children during installation. Access is typically through the front of the control panel: remove the screws or clips securing the panel trim, then carefully separate the old touchpad overlay from its mounting surface, since some models use an adhesive backing that may require gentle, even pressure to release cleanly without damaging the surrounding panel. Photograph the ribbon cable or connector routing before disconnecting anything. Disconnect the touchpad's ribbon cable or connector from the control board, and remove the old membrane switch fully. Position the new DG34-00027B so its buttons align correctly with the control panel cutout, press it into place evenly to seat any adhesive backing, and reconnect the ribbon cable or connector to the control board. Reinstall the panel trim and its screws or clips. Restore power and test every button on the touchpad to confirm each one now responds correctly. Tools needed: Phillips or flat-blade screwdriver (model-dependent), work gloves. Frequently Asked Questions Some buttons work but others don't. Is this the right part? Yes, this is the classic symptom this touchpad addresses. Because the membrane switch is purely the physical button interface, individual sections of it can wear out or fail independently, leaving some buttons responsive while others stop working. If your clock, display, and some functions still work normally but specific buttons or settings don't respond, this touchpad — not the main control board — is the most likely cause. My whole display is blank and nothing on the panel responds. Do I need this part? Probably not. A completely blank or entirely unresponsive display points to the main control board rather than this touchpad, since the touchpad itself has no display and can't cause a total blackout on its own. Similarly, if your clock and timer work but no oven heating functions operate at all, that's also a control board symptom. This touchpad is the correct part specifically when some buttons or functions fail while the rest of the panel, including the display, continues working. How do I know which specific membrane switch touchpad my range needs? Samsung uses several different touchpads that look similar but serve different model groups — always check your full model number before ordering. This DG34-00027B fits NX58H5600SS, NX58J5600SG, NX58F5700WS, and NX58M5600SB specifically; other Samsung ranges use different part numbers such as DG34-00025A, DG34-00020A, or DG96-00850H. Contact our support team with your model number if you want to confirm before ordering. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured to match the button layout, overlay material, and mounting configuration of the original DG34-00027B touchpad used in compatible Samsung gas ranges. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

DE92-02588G Genuine OEM Samsung Range Control Board The DE92-02588G is a genuine Samsung OEM main control board and clock assembly for Samsung gas ranges. This board is the range's central processor for the oven side of the appliance — it monitors oven temperature, drives the heating functions, and includes the digital display that shows the time and temperature settings. Every button press on the control panel is interpreted here, and every heating command the oven executes is issued from this board. Samsung's own service guidance draws a clear line for when this board is the correct part: order it when the range display is completely blank or unresponsive, or when the clock/timer still works but none of the oven's heating functions operate. It is specifically the wrong part when only certain buttons fail to respond or specific functions are missing while the rest of the panel works normally — that pattern points to a failed switch membrane (touchpad) instead, a separate component. Power surges, including lightning strikes near the home's electrical service, are a documented real-world cause of this board failing outright. It directly replaces AP5800586, 3553835, and PS8764724. Quick Answer The DE92-02588G Genuine OEM Samsung Range Control Board fixes Samsung gas ranges with a completely blank or unresponsive display, or a range where the clock/timer works but none of the oven's heating functions operate. Includes the digital clock/display. Replaces AP5800586, 3553835, PS8764724. Do NOT order this board if only certain buttons don't respond or specific functions are missing while everything else works — that points to a failed switch membrane (touchpad), not this board. Common Problems This Part Fixes Range display is completely blank or dead Control panel is entirely unresponsive to any button press Clock and timer function normally, but no oven heating functions work at all Oven won't heat despite the range otherwise appearing to have power SE or similar error code displayed on the control panel Range that stopped working suddenly after a power surge or nearby lightning strike Digital display showing incorrect or scrambled time/temperature readings Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This range control board directly replaces the following OEM and cross-reference part numbers: DE92-02588G, AP5800586, 3553835, EAP8764724, ASM553766, PD00025599, PS8764724 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This control board is compatible with select Samsung gas ranges, including model numbers such as: NX58F5300SS, NX58F5300SW NX58F5500SS, NX58F5500SW, NX58F5500SB NX58R4311SS, NX58R4311SG Note: Before ordering, confirm your symptom matches this board specifically. If the display is blank/dead, or the clock works but heating functions don't, this board is correct. If only some buttons or functions fail while others work fine, the issue is very likely the switch membrane (touchpad) instead — a separate part from this control board. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure. Key Features Genuine Samsung OEM part — factory-specified processor, relay, and display circuitry Monitors oven temperature and drives all oven heating functions Includes the digital clock/display for time and temperature readouts Resolves "blank display," "unresponsive control panel," and "no heating functions" symptoms caused by control board failure Direct drop-in replacement for the original board mounting and harness connectors Replaces AP5800586, 3553835, and PS8764724 Genuine OEM replacement — guaranteed fit, materials, and performance Straightforward repair — typically 15 to 45 minutes with basic tools Product Specifications Part Number DE92-02588G Part Type Range Oven Main Control Board & Clock Condition Genuine OEM Brand Samsung Application Gas Ranges Function Monitors oven temperature, drives heating functions, digital clock/display Repair Difficulty Easy to Moderate — 15 to 45 minutes Quantity 1 control board Compatible Brand Samsung Installation Notes ⚠️ Unplug Range Or Shut Off Breaker Before Starting — Handle The Board By Its Edges Unplug the range or shut off the house circuit breaker before beginning to avoid electrical hazards, and allow the range to cool if recently used. Wear work gloves. Access is typically through the rear of the control panel: remove the screws securing the back cover to reach the board. Photograph all harness connections before disconnecting anything — this board has multiple connectors, and getting one out of place will cause a no-start or miswired symptom. Handle the new board by its edges rather than touching the components directly, and avoid working on a carpeted surface or in conditions with static buildup, since these boards can be sensitive to static discharge. Remove the mounting screws, disconnect each harness connector from the old board, and lift it free. Install the new DE92-02588G in the same orientation, reconnect every harness connector exactly as photographed, and secure the mounting screws. Reinstall the rear cover, restore power, and test the display, clock, and all oven functions to confirm normal operation. Tools needed: Phillips screwdriver, nut driver, work gloves. Frequently Asked Questions Some of my buttons don't respond but others work fine. Do I need this board? Probably not. Samsung's own guidance is specific here: if certain buttons don't respond, specific functions are missing, or you can't adjust particular settings while the rest of the panel works normally, that pattern points to a failed switch membrane (touchpad) rather than this main control board. This board is the correct part when the display is completely blank/dead, or when the clock and timer work but no heating functions operate at all. My range stopped working right after a thunderstorm. Could that be related? Yes, this is a documented real-world cause of this exact board failing. Power surges, including those from a nearby lightning strike, can damage the control board's circuitry outright, leading to a sudden and complete loss of function. If your range died abruptly during or shortly after a storm, this board is a strong candidate for the cause. Should I replace the switch membrane at the same time, just in case? Some people do replace both together, especially if they want to be certain the repair is complete on the first attempt rather than risk needing a second repair shortly after. But if your symptoms clearly match this board (blank display, or clock works with no heat) rather than the switch membrane's symptoms (some buttons unresponsive, others fine), replacing just this board is usually sufficient. Does this board include the digital clock and display? Yes. This is a combined control board and clock assembly — the digital display for time and temperature settings is part of this same board, not a separate component. Is this an OEM or aftermarket part? This is a genuine OEM part, manufactured by Samsung to factory specifications — guaranteed fit, materials, and performance. It includes the same processor, relay switching, and display circuitry as the control board originally installed in your range. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Genuine OEM Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less
