Washer Parts

XPARTCO DC97-16350U Washer Suspension Rod Kit (Set of 4) The XPARTCO DC97-16350U is an aftermarket replacement washer suspension rod kit (set of 4) compatible with a wide range of Samsung top-load washers in the WA40, WA41, WA42, WA44, WA45, WA49, and WA50 series. The suspension rods are spring-loaded shock-absorbing rods that connect the outer washer tub to the top corners of the cabinet frame, suspending the tub and dampening the vibrations generated during agitation and high-speed spin cycles. When one or more rods lose tension, break, or degrade, the tub swings off-center and strikes the cabinet walls — causing violent shaking, loud banging, error code dc (out of balance), UE imbalance errors, and progressive damage to the machine. Each rod measures 26.4–26.5 inches in overall length and 1-1/4 inches in diameter, constructed from spring steel with plastic end caps. The kit includes all 4 suspension rods — always replace all four at the same time since they wear at the same rate. It directly replaces DC97-16350S, DC97-16350T, DC97-16350E, DC97-16350C, DC97-16350D, DC97-16350K, DC97-05280W, 4962798, AP6884450, EAP12720841, PS12720841, and PD00065434. Wear gloves during installation — the rods are coated with grease. Installs in 20–30 minutes — no special tools required. Quick Answer The XPARTCO DC97-16350U Washer Suspension Rod Kit fixes Samsung top-load washers that vibrate violently, bang loudly, walk across the floor, or display dc or UE imbalance error codes during spin. Set of 4 rods, 26.4–26.5" long, 1-1/4" diameter, spring steel with plastic end caps. Replace all 4 at the same time. Wear gloves — rods are greased. Compatible with Samsung WA40–WA50 series. Replaces DC97-16350S, DC97-16350T, DC97-16350E, DC97-16350C, DC97-16350D, AP6884450, PS12720841. Common Problems This Kit Fixes Washer vibrating violently or shaking excessively during the spin cycle Loud banging or thumping — tub striking the cabinet walls during spin Washer "walking" or moving across the floor during high-speed spin Error code dc displayed — Samsung out-of-balance error during spin Error code UE displayed — unbalanced load error the washer cannot self-correct Washer repeatedly stopping and rebalancing the load without completing the spin cycle Visible broken, detached, or sagging suspension rod inside the washer cabinet Rattling or clunking during agitation — tub no longer centered Replaces Part Numbers This suspension rod kit directly replaces the following OEM and cross-reference part numbers: DC97-16350U, DC97-16350S, DC97-16350T, DC97-16350E, DC97-16350C, DC97-16350D, DC97-16350J, DC97-16350K, DC97-16350U, DC97-16350E, DC97-16350S, DC97-16350C, DC97-16350D, DC97-16350T, AP6884450, ASM34747, EAP12720841, PD00065434, PS12720841. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This suspension rod kit is compatible with select top-load washers from the following Samsung series: Samsung WA40 series — WA400PJHDWR, WA40J3000AW, WA40A3005AW, WA44A3205AW and related models Samsung WA41 series — WA41A3000AW and related models Samsung WA42 series — WA422PRHDWR and related models Samsung WA45 series — WA45H7000AW, WA45H7200AW, WA45K7600AW, WA45M7050AW, WA45N3050AW, WA45T3200AW, WA45T3400AW, WA45T3400AP, WA456DRHDSU, WA456DRHDWR and related models Samsung WA49 series — WA49B5105AW, WA49B5205AW and related models Samsung WA50 series — WA50R5200AW, WA50R5400AV, WA50R5400AW, WA50T5300AC and related models Kenmore / Sears top-load washers (select Samsung-built models) Important: The DC97-16350U rod is 26.4–26.5 inches long and is for Samsung WA40–WA50 series washers. Larger-capacity WA48–WA54 series models use the longer DC97-16350V rod (27.5 inches). Always measure your existing rods or verify your model number before ordering — using the wrong length rod can cause the tub to sit at the incorrect height inside the cabinet. Key Features Set of 4 suspension rods — complete replacement covering all four tub mounting points Suspends and centers the outer tub within the cabinet — dampens agitation and spin vibration to prevent tub-to-cabinet contact Resolves Samsung error codes dc (out of balance) and UE (unbalanced load) Rod length: 26.4–26.5 inches overall; diameter: 1-1/4 inches Spring steel construction with plastic end caps — durable and corrosion resistant Rods are pre-coated with grease — wear work gloves during installation Replace all 4 rods at the same time — rods wear together and partial replacement results in uneven tub support No special tools required — installs in 20–30 minutes Replaces DC97-16350S, DC97-16350T, DC97-16350E, DC97-16350C, DC97-16350D, and over 15 additional cross-references Aftermarket replacement built to OEM-equivalent quality standards Product Specifications Part Number DC97-16350U Part Type Washer Suspension Rod and Spring Assembly Condition Aftermarket Replacement Application Samsung Top-Load Washers — WA40, WA41, WA42, WA44, WA45, WA49, WA50 series Quantity Set of 4 (replace all four rods at the same time) Rod Length 26.4–26.5 inches overall Rod Diameter 1-1/4 inches Material Spring steel / Plastic end caps Color Brass / Black / White / Pink Lubrication Pre-coated with grease — wear gloves during installation Error Codes Resolved dc (out of balance), UE (unbalanced load) Compatible Brands Samsung, Kenmore (Samsung-built) Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting — Wear Gloves Disconnect power and turn off the water supply before beginning. Wear work gloves throughout — the suspension rods are coated with grease. Remove the lid and the top panel (typically secured by screws under the lid hinge covers and at the rear corners). With the top panel removed, the four suspension rods are visible at the corners, each running from a mounting point on the tub rim up to a hook or bracket at the top corners of the cabinet frame. Note the orientation and attachment method of each rod before removing. Unhook the top of each rod from the cabinet bracket and lift the bottom cup off the tub mounting pin. Install each new DC97-16350U rod by seating the bottom cup onto the tub mounting pin and hooking the top over the cabinet bracket. Replace all four rods before reassembling. Reinstall the top panel and lid, restore power and water, and run a spin cycle to verify smooth, quiet, centered operation. Tools needed: Phillips screwdriver; no special tools required for the rods themselves. Frequently Asked Questions What is the difference between DC97-16350U and DC97-16350V? Both are Samsung top-load washer suspension rods, but they are different lengths for different washer capacity generations. The DC97-16350U is approximately 26.4–26.5 inches long and is used on mid-capacity Samsung WA40 through WA50 series washers. The DC97-16350V is approximately 27.5 inches long and is used on larger-capacity WA48 through WA54 series washers. Using the wrong length rod causes the tub to sit at the wrong height inside the cabinet, which can cause new imbalance issues. Always measure your existing rods or verify your model number before ordering. Why must I replace all 4 rods instead of just the broken one? All four suspension rods experience the same amount of wear over the same number of wash cycles. When one rod fails, the remaining three have experienced the same stress and fatigue and are likely to fail soon after. Replacing only the broken rod leaves three worn rods supporting the tub unevenly — this can cause continued vibration, accelerate wear on the new rod, and require a second repair shortly after. Replacing all four at the same time ensures even tub support, fully resolves the imbalance, and prevents a repeat repair. Do DC97-16350S, DC97-16350T, and DC97-16350E all cross to the DC97-16350U? Yes — DC97-16350S, DC97-16350T, DC97-16350E, DC97-16350C, and DC97-16350D are all cross-reference part numbers for the same Samsung suspension rod assembly used across different production runs of the same washer series. Samsung updates part number suffixes during production revisions. All of these numbers have the same 26.4–26.5" length and are interchangeable with the DC97-16350U. What do error codes dc and UE mean on Samsung washers? Error code dc on Samsung top-load washers indicates the machine has detected an out-of-balance condition and stopped spinning to prevent damage. Error code UE indicates an unbalanced load that the washer cannot self-correct by redistributing. Both codes can be caused by an overloaded or unevenly distributed laundry load — but if the errors occur consistently even with normal, balanced loads, worn or broken suspension rods are the most common mechanical cause. Replacing the rod kit resolves these errors in most cases. Is this an OEM or aftermarket part? This is an aftermarket replacement kit built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured from spring steel with plastic end caps to match the length and spring tension of the original DC97-16350U suspension rods. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

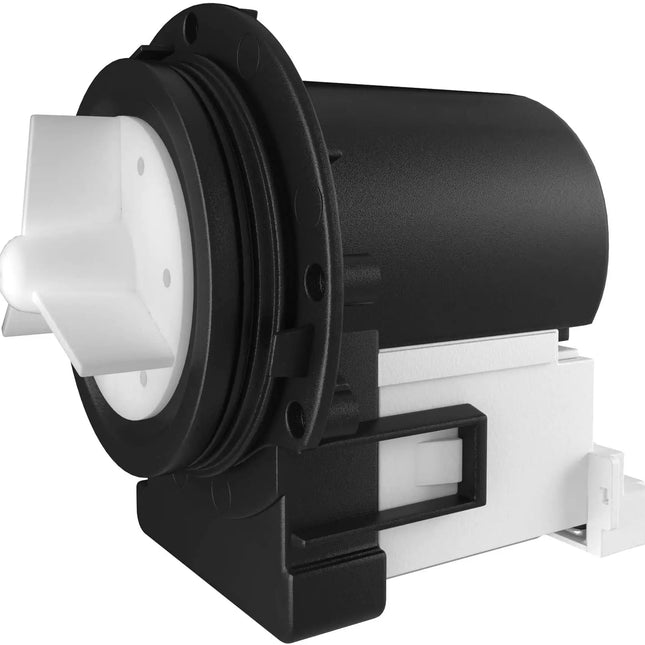

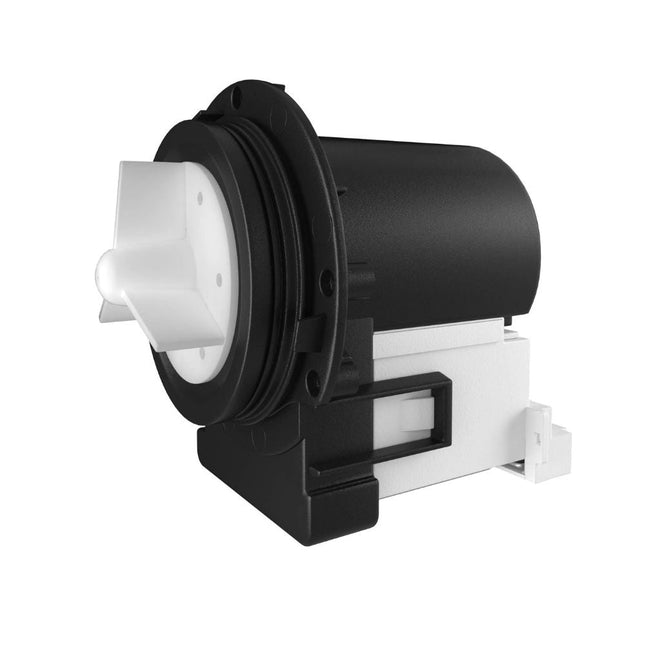

XPARTCO 4681EA2001T Washer Drain Pump Motor The XPARTCO 4681EA2001T is an aftermarket replacement drain pump motor assembly compatible with a wide range of LG and Kenmore front-load washers. The drain pump motor forces water out of the washer drum through the drain hose during and after the wash and spin cycles — when it fails, the washer will not drain, will display an OE error code, leave standing water in the drum, or produce a loud humming or grinding noise during the drain phase. This drain pump motor is rated at 120V–127V, 60Hz, 85W, 1.4A with a flow rate of 45 liters per minute and a spin speed of 1,100–1,200 RPM. It is made from durable metal and ABS plastic and includes the pump impeller and a removable filter housing with sealing ring for quieter, smoother operation. Note: this is the motor assembly only — it reuses the existing pump housing from your washer. It directly replaces 4681EA2001N, 4681EA1007G, 4681EA1007D, AP5328388, and several additional cross-reference numbers. Installs in 30–60 minutes with basic hand tools. Quick Answer The XPARTCO 4681EA2001T Washer Drain Pump Motor fixes LG and Kenmore front-load washers showing OE error codes, not draining, leaving standing water, or making loud humming or grinding sounds during the drain cycle. Rated 120V–127V/60Hz/85W/1.4A, 45L/min, 1,100–1,200 RPM. Includes impeller and removable filter housing. Motor assembly only — reuses existing pump housing. Replaces 4681EA2001N, AP5328388, 4681EA1007G, and more. Common Problems This Part Fixes OE error code displayed — washer cannot drain within the allotted time Washer not draining — standing water remaining in the drum after a cycle Loud humming or buzzing during the drain cycle — motor running but impeller not turning Grinding or rattling noise during draining — physical damage to pump components Washer stopping mid-cycle due to a drain fault Washer draining very slowly — worn pump motor below rated flow Water leaking from the drain pump area Replaces Part Numbers This drain pump motor directly replaces the following OEM and cross-reference part numbers: 4681EA2001T, 4681EA1007G, 2003273, 4681EA1007D, 4681EA2001D, 4681EA2001N, 4681EA2001U, DP040-038, ALG51292, AH3579318, EA3579318, PD00001722, EAP3579318, AP5328388, PS3579318. 4681EA2001T is the current updated part number — it is the manufacturer-approved replacement for the older 4681EA2001N. If your washer or parts diagram shows 4681EA2001N, order 4681EA2001T. Compatibility This drain pump motor is compatible with select front-load washers from the following brands: LG front-load washers — WM2xxx, WM3xxx, WM4xxx, WM5xxx, WM8xxx, WM9xxx series Kenmore / Sears front-load washers (select LG-built models, including 796-series) Important: This is the pump motor assembly only — it installs into your washer's existing pump housing. The pump housing is not included and is reused from your old assembly. Always verify your model number before ordering. Contact our support team if you're unsure. Key Features Forces water out of the drum through the drain hose during wash and spin cycles at 45 liters per minute Rated 120V–127V, 60Hz, 85W, 1.4A — correct electrical specifications for compatible LG and Kenmore models Spin speed: 1,100–1,200 RPM for powerful, efficient drainage Includes pump impeller and removable filter housing with sealing ring Removable filter housing allows easy cleaning without full pump disassembly Sealing ring reduces vibration and noise during operation Durable metal and ABS plastic construction — built to withstand repeated high-volume drainage cycles Motor assembly only — installs into existing pump housing, no housing replacement needed Resolves OE error code on compatible LG and Kenmore front-load washers Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 30–60 minutes with basic hand tools Product Specifications Part Number 4681EA2001T Also Replaces 4681EA2001N (updated current replacement) Part Type Washer Drain Pump Motor Assembly Condition Aftermarket Replacement Application LG and Kenmore Front-Load Washers Voltage 120V – 127V AC Frequency 60 Hz Wattage 85W Amperage 1.4A Flow Rate 45 liters per minute Spin Speed 1,100 – 1,200 RPM Material Metal / ABS Plastic Includes Motor assembly, impeller, removable filter housing, sealing ring Note Motor assembly only — existing pump housing is reused Compatible Brands LG, Kenmore Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off the water supply before beginning any repair. Place towels and a shallow pan at the front of the washer to catch residual water. Open the small access panel at the lower front of the washer and drain any remaining water through the drain hose or filter port. Remove the front panel of the washer by unscrewing the top panel screws, then removing the door gasket retaining wire and door latch screws to free the front panel. With the front panel removed, the drain pump assembly is now visible at the lower front. Use a flat-head screwdriver to release the pump mounting clip, then disconnect the drain hoses using pliers to loosen the clamps. Disconnect the wire harness from the pump motor. Pull the motor assembly out of the pump housing. Install the new 4681EA2001T motor into the existing housing, reconnect the hoses and wire harness, secure the pump clip, and reassemble the front panel. Restore power and water supply, then run a drain/spin cycle to verify proper drainage. Tools needed: Phillips screwdriver, flat-head screwdriver, needle-nose pliers, slip-joint pliers, shallow pan. Frequently Asked Questions What is the difference between 4681EA2001T and 4681EA2001N? These are the same drain pump motor — 4681EA2001T is the updated current part number that replaced the older 4681EA2001N. LG issued the updated number during a production cycle revision. If your washer or its documentation shows 4681EA2001N, 4681EA2001D, or any other older variant, the 4681EA2001T is the correct replacement to order. What does the OE error code mean on an LG washer? OE (or OE error) stands for "Outlet Error" — it means the washer was unable to drain within the expected time. Common causes include a clogged drain filter, a blocked or kinked drain hose, or a failed drain pump motor. Before replacing the motor, check and clean the drain filter and inspect the drain hose for kinks or blockages. If both are clear and the washer still shows OE, the pump motor has likely failed and needs replacement. Does this include the pump housing? No — the 4681EA2001T is the motor assembly only. It installs into your washer's existing pump housing, which is not included and does not need to be replaced in most cases. If your pump housing is cracked or damaged, you will need to source it separately. In most repairs, the housing is reused and only the motor assembly is replaced. Should I check the drain filter before replacing the pump motor? Yes — always check and clean the drain filter first. LG front-load washers have a coin trap and filter at the lower front that should be cleaned regularly. A heavily clogged filter or a foreign object jammed in the impeller can cause OE errors and loud humming without the pump motor being permanently damaged. Remove the filter, clear debris from the impeller area, and test the washer. If the problem persists after cleaning, the motor is the likely culprit. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured from durable metal and ABS plastic to match the electrical specifications and performance of the original 4681EA2001T drain pump motor assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

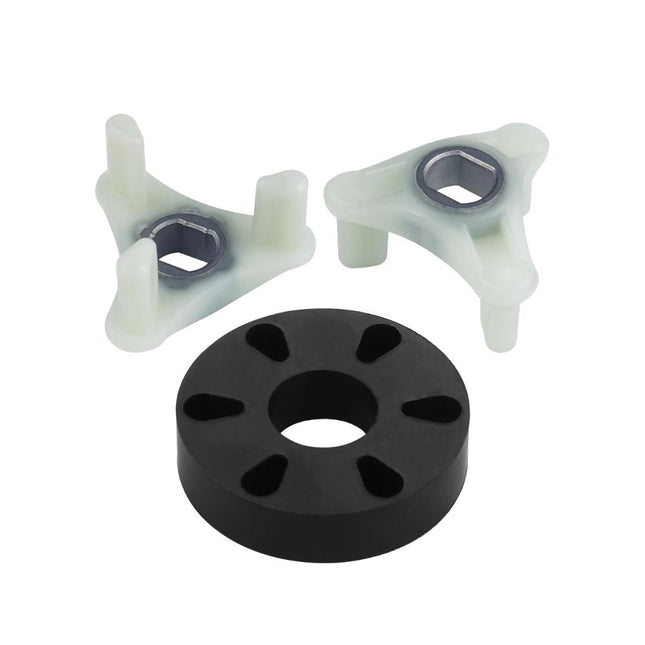

XPARTCO 285753A Washer Direct Drive Motor Coupler The XPARTCO 285753A is an aftermarket replacement direct drive motor coupler (also called a motor coupling or drive coupler) compatible with a wide range of Whirlpool-family top-load washers including Whirlpool, Kenmore, KitchenAid, Maytag, Amana, Roper, Admiral, Estate, Crosley, Inglis, and Magic Chef. The motor coupler connects the drive motor shaft to the transmission — transferring the motor's power to the transmission to drive the agitator and spin the drum during wash and spin cycles. It is a deliberate weak point in the drivetrain: if the washer is overloaded, the coupler breaks apart first, protecting the far more expensive motor and transmission from damage. This is the updated 285753A design with metal sleeves for added strength — it replaces all previous coupler styles and versions including the original 285753, 280152, 285743, and 285140. This kit includes 2 plastic coupling halves and 1 rubber isolation dampener. Dimensions approximately 2" L x 1-1/4" W x 2" H. Fits direct-drive top-load washers only — not compatible with belt-drive machines. Installs in 30–45 minutes with basic hand tools. Quick Answer The XPARTCO 285753A Washer Motor Coupler fixes top-load washers that fill and drain normally but will not agitate or spin. The motor coupler connects the motor to the transmission — when it breaks, the motor runs but neither the agitator nor the drum moves. Kit includes 2 plastic coupling halves and 1 rubber dampener. Updated design with metal sleeves. Replaces all previous coupler versions including 285753, 280152, 285743, 285140. Compatible with Whirlpool, Kenmore, KitchenAid, Maytag, Amana, Roper, Admiral, and more direct-drive top-load washers. Common Problems This Part Fixes Washer fills with water and drains but will not agitate or spin Motor runs (you can hear it) but agitator and drum do not move Washer spins slowly or incompletely — clothes still very wet after spin cycle Loud humming or buzzing from the motor area without agitation or spin Burning rubber or plastic smell during the wash or spin cycle Washer shakes excessively — broken coupler causing uneven power transfer Broken plastic or rubber pieces visible inside the bottom of the washer cabinet Replaces Part Numbers This motor coupler directly replaces the following OEM and cross-reference part numbers: 285753A, 1195967, 21003, 280152, 285140, 285743, 285753, 285753AVP, 3352470, 3363664, 3364002, 3364003, 62672, 62693, 661560, 80008, 8559748, AWP39583, PD00002353, AH1485646, EAP1485646, EA1485646, TJ285753, ER285753, AP3963893, PS1485646. The 285753A replaces all previous motor coupler styles and versions. If your parts diagram shows any of the older numbers above, the 285753A is the correct current replacement. Compatibility This motor coupler is compatible with select direct-drive top-load washers from the following brands: Whirlpool top-load washers (direct drive — no belt) Kenmore / Sears top-load washers — 70 series, 80 series, 90 series, and 110 series (Whirlpool-built) KitchenAid top-load washers Maytag top-load washers (direct drive models) Amana top-load washers Roper top-load washers Admiral top-load washers Estate top-load washers Crosley top-load washers Inglis top-load washers Magic Chef top-load washers Important: The 285753A is for direct-drive top-load washers only — machines where the motor connects directly to the transmission without a belt. It is not compatible with front-load washers or older belt-drive top-load washers. If you can see a drive belt inside your washer cabinet, this is not the correct part. Key Features Connects the drive motor shaft to the transmission — transfers motor power to drive the agitator and spin drum Intentional sacrificial part — designed to break before the motor or transmission during overload, saving far more expensive components Updated 285753A design with metal sleeves — stronger than original all-plastic versions; replaces all previous coupler styles Kit includes 2 plastic coupling halves and 1 rubber isolation dampener — complete assembly Dimensions: approximately 2" L x 1-1/4" W x 2" H Compatible with Whirlpool, Kenmore, KitchenAid, Maytag, Amana, Roper, Admiral, Estate, Crosley, Inglis, and Magic Chef direct-drive washers Replaces all previous coupler versions including 285753, 280152, 285743, and 285140 Aftermarket replacement built to OEM-equivalent quality standards Cost-effective DIY repair — typically under $15 and 30–45 minutes of work Product Specifications Part Number 285753A Part Type Washer Direct Drive Motor Coupler (Motor Coupling Kit) Condition Aftermarket Replacement Application Direct-Drive Top-Load Washers (no belt) Dimensions Approx. 2" L x 1-1/4" W x 2" H Color Black / Off-White Material Rubber / Plastic / Metal (metal sleeve inserts) Kit Includes 2 plastic coupling halves, 1 rubber isolation dampener Compatible Brands Whirlpool, Kenmore, KitchenAid, Maytag, Amana, Roper, Admiral, Estate, Crosley, Inglis, Magic Chef Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off the water supply before beginning. Remove the washer's cabinet by releasing the top panel clips and removing the front panel screws — the motor and transmission are at the bottom of the machine. The motor coupler is a three-piece assembly between the motor shaft and the transmission input shaft. Pull the motor forward to release it from the mounting clips. The broken coupler pieces will likely fall out at this point — inspect the motor shaft and transmission shaft for any remaining plastic debris and clear it. Press the new rubber dampener onto the motor shaft coupling half first, then onto the transmission shaft coupling half, and snap the motor back into the mounting clips. Verify both coupler halves are seated securely and the rubber dampener is centered between them. Reassemble the front panel and top panel. Restore power and run a short cycle to confirm the agitator and spin function normally. Work gloves recommended — sharp sheet metal edges inside the cabinet. Tools needed: Phillips screwdriver, 1/4" nut driver, flat-head screwdriver, work gloves. Frequently Asked Questions What does the motor coupler do? The motor coupler is a three-piece assembly — two plastic coupling halves and a rubber dampener — that connects the drive motor shaft to the transmission input shaft in direct-drive washing machines. The motor spins the coupler, which transfers that rotation to the transmission, which in turn drives the agitator and drum. The rubber dampener absorbs shock and vibration between the rigid motor and transmission shafts during direction changes. The coupler is intentionally designed as the weakest link in the drivetrain — if the washer is overloaded or the transmission seizes, the coupler breaks first to protect the far more expensive motor and transmission from damage. My washer fills and drains but won't agitate or spin — is the motor coupler the cause? Yes — this is the classic symptom of a broken motor coupler. Because the pump is typically driven directly by the motor before the coupler connection, a broken coupler allows the motor to run and the pump to drain normally, but neither the agitator nor the spin drum receives any power. If you can hear the motor running but nothing moves, open the washer cabinet and inspect the coupler — you will likely find broken plastic pieces at the bottom of the cabinet near the motor and transmission. Why does the motor coupler break? The most common cause is overloading — packing too many heavy items into the washer creates enough mechanical resistance that the coupler snaps rather than allowing the motor to be damaged. Other causes include a worn or seized transmission, a worn motor, normal wear over many years of use, or a single sudden jam caused by a foreign object. If your coupler breaks a second time shortly after replacement, inspect the transmission for signs of wear or binding — a stiff or seized transmission will continue to break new couplers. What is the difference between 285753 and 285753A? The 285753A is the updated current version that superseded the original 285753. The A version incorporates metal sleeve inserts in the plastic coupling halves for improved strength and durability compared to the original all-plastic design. The 285753A replaces all previous versions — including 285753, 280152, 285743, and 285140 — and is the correct part to order regardless of which older number is listed in your washer's parts diagram. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured from rubber, plastic, and metal to match the dimensions and performance of the original 285753A motor coupler. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO DC31-00187A Washer Drain Pump Motor The XPARTCO DC31-00187A is an aftermarket replacement washer drain pump motor compatible with select Samsung front-load and top-load washers in the WA4, WA5, WF2, WF3, WF4, and WF5 series, as well as select Kenmore washers built on the Samsung platform. The drain pump motor drives the impeller that expels water from the washer tub during the drain phase of each wash cycle. When the motor fails, the washer will not drain, will leave standing water in the tub, stop mid-cycle, or display error codes 5C, SE, SC, 5E, or SUDS. This motor-only assembly includes the pump motor, impeller, and replacement O-ring. Rated 120V, 60Hz, 80W, 1.1A (CL.F), with a 30-minute on / 30-minute off duty cycle. Dimensions: 4-1/4"L x 3"W x 4-1/4"H in gray/white/black plastic, metal, and rubber housing. The DC31-00187A is the motor component that installs into the existing pump housing on compatible Samsung washers — the pump housing (DC97-20621C assembly) is reused from the old pump, making this a motor-only swap rather than a complete pump replacement. It directly replaces DC31-00187D, DC31-00178A, DC31-00178D, PX3516-01, 03DC3100187A, 4958525, AP6977256, EAP9605762, PD00056512, PS9605762, and PS1274262. Installs in 20–30 minutes with basic hand tools. Quick Answer The XPARTCO DC31-00187A Washer Drain Pump Motor fixes Samsung front-load and top-load washers displaying error codes 5C, SE, SC, 5E, or SUDS, not draining, leaving standing water, or making loud noise during the drain cycle. Motor-only assembly — includes motor, impeller, and O-ring; installs into existing pump housing. 120V/60Hz/80W/1.1A/CL.F. 30 min on/30 min off. 4-1/4"L x 3"W x 4-1/4"H. Replaces DC31-00187D, DC31-00178A, DC31-00178D, PX3516-01, 4958525, AP6977256, PS9605762. Compatible with Samsung WA4/WA5/WF2/WF3/WF4/WF5 series. Common Problems This Part Fixes Washer not draining — standing water remaining in the tub after a cycle Error codes 5C, SE, SC, 5E, or SUDS displayed — drain fault detected Washer stopping mid-cycle due to a drain fault Loud humming during the drain phase — motor energized but impeller not turning Grinding or rattling during drain — damaged impeller or worn motor bearings Clothes excessively wet after a cycle — pump not fully removing water before spin Water draining very slowly — motor weakening below rated performance Replaces Part Numbers This drain pump motor directly replaces the following OEM and cross-reference part numbers: DC31-00187A, DC31-00178A, DC31-00178D, 03DC3100187A, ASM654116, EAP9605762, 4958525, AP6977256, PD00056512, PS12742622, PX3516-01. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This drain pump motor is compatible with select Samsung front-load and top-load washers from the following series: Samsung top-load washers — WA4 series (WA40J3000AW, WA44A3205AW, WA45H7000AW, WA45M7050AW, WA45N3050AW, WA45T3200AW, WA45R6100AC and related models) Samsung top-load washers — WA5 series (WA50F9A6DSW, WA50M7450AW, WA50R5200AW, WA50R5400AV and related models) Samsung front-load washers — WF2 series (select models) Samsung front-load washers — WF3 series (select models) Samsung front-load washers — WF4 series (WF42H5000AW, WF42H5200AW, WF45M5500AW, WF45N5300AW, WF45R6100AC, WF45T6000AW, WF45A6400AV, WF45B6300AP and related models) Samsung front-load washers — WF5 series (select models) Kenmore / Sears washers (select Samsung-built models) Note: The DC31-00187A is the pump motor only — it installs into the existing pump housing (DC97-20621C assembly) which is retained from the old pump. The housing is not replaced. Check and clean the drain filter before replacing the pump motor — a clogged filter is a common cause of drain errors that doesn't require motor replacement. Key Features Pump motor only — includes motor, impeller, and O-ring; installs into the existing DC97-20621C pump housing retained from the old pump Drives the pump impeller to expel water from the washer tub during the drain cycle Resolves Samsung error codes 5C, SE, SC, 5E, and SUDS caused by drain pump motor failure Rated 120V, 60Hz, 80W, 1.1A (CL.F) — correct specifications for compatible Samsung washers Duty cycle: 30 minutes on / 30 minutes off Dimensions: 4-1/4"L x 3"W x 4-1/4"H Replaces DC31-00187D, DC31-00178A, DC31-00178D, PX3516-01, 4958525, AP6977256, PS9605762, and PS1274262 Compatible with Samsung WA4, WA5, WF2, WF3, WF4, WF5 series and Kenmore Samsung-built washers Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 20–30 minutes with basic hand tools Product Specifications Part Number XPDC31-00187A Also Covers DC31-00187D, DC31-00178A, DC31-00178D (variants) Part Type Washer Drain Pump Motor (Motor Only — reuses existing housing) Condition Aftermarket Replacement Application Samsung Front-Load and Top-Load Washers (WA4/WA5/WF2/WF3/WF4/WF5) Voltage 120V AC Frequency 60 Hz Wattage 80W Amperage 1.1A Duty Class CL.F Duty Cycle 30 minutes on / 30 minutes off Dimensions 4-1/4"L x 3"W x 4-1/4"H Color Gray / White / Black Material Plastic / Metal / Rubber Includes Pump motor, impeller, O-ring Error Codes Resolved 5C, SE, SC, 5E, SUDS Compatible Brands Samsung, Kenmore (Samsung-built) Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting — Wear Gloves Disconnect power and turn off the water supply before beginning. Wear work gloves — there are sharp edges inside the washer cabinet. For front-load models: remove the lower front access panel to expose the pump housing and filter. Drain residual water via the filter drain hose (have a shallow pan ready). Disconnect the wire harness from the motor. On most Samsung front-load models, the motor assembly twists out of the pump housing by rotating counter-clockwise — do not force it. Remove the old motor, note the O-ring position, and install the new O-ring from this kit onto the new DC31-00187A motor. Insert the new motor into the housing and twist clockwise to lock. Reconnect the wire harness. Reinstall the lower panel, restore power and water, and run a drain/spin cycle to confirm drainage. For top-load models: access through the lower front panel or by tilting the washer on its side depending on model. Tools needed: Phillips screwdriver, pliers, shallow pan, towels, work gloves. Frequently Asked Questions What is the difference between DC31-00187A and DC97-20621C? The DC31-00187A is the drain pump motor — the electrical component that drives the impeller. The DC97-20621C is the complete drain pump assembly, which includes the motor plus the outer pump housing, hose connection ports, and mounting hardware. When you order the DC31-00187A, you replace only the motor and reuse the existing DC97-20621C pump housing. When you order the DC97-20621C, you replace the entire assembly including the housing. Both resolve the same drain fault — the DC31-00187A is the more targeted repair when the housing is in good condition. What error codes indicate a drain pump motor failure? Error codes 5C, SE, SC, 5E, and SUDS on compatible Samsung washers all indicate a drain fault — the washer was unable to drain within the expected time. Before replacing the motor, clean the drain filter/coin trap at the lower front panel. A clogged filter is one of the most common causes of these error codes and does not require motor replacement. If the filter is clear and the codes persist, or if the pump is making loud noise or is completely silent during the drain phase, the motor needs replacement. What is the difference between DC31-00187A and DC31-00178A? These are cross-references for the same or very similar Samsung drain pump motor used across different Samsung washer generations. The DC31-00178A was used on earlier Samsung models and the DC31-00187A is the current version. Both are commonly listed as interchangeable replacements for each other in Samsung washer drain pump repair. The DC31-00187D and DC31-00178D are also variants of the same motor from different production runs. Should I clean the filter before replacing the pump motor? Yes — always check and clean the drain filter first. On Samsung front-load washers, the filter is accessible behind the lower front kick panel, typically on the right side — remove the cap slowly and drain water into a shallow pan first. Lint, coins, debris, and hair are very common causes of Samsung drain error codes that are completely resolved by cleaning the filter without any parts replacement. If the filter is clear and the error codes persist, the pump motor is the next component to replace. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured to match the electrical specifications and performance of the original DC31-00187A drain pump motor. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO 6501KW2002B Washer Rotor Position Sensor – Compatible with LG and Kenmore Washers Product Description Maintain smooth spin cycles and precise motor control with the XPARTCO 6501KW2002B Washer Rotor Position Sensor. This Sensor Assembly, also known as a hall sensor is a replacement Part and is a vital component in Specific LG, Kenmore washer Models. This part monitors the direction and speed of the spinning rotor. It then communicates this information to the electronic control board. By doing so, it aids in the precise operation of your washer. If your washer pumps but fails to spin or agitate, it may be indicative of a damaged sensor assembly. Replaces Part Numbers 6501KW2002B, 6501KW2002A, AP7015078, PD00073205, EAP16556422, 4962510, PS16556422, EAP16556422. Compatibility This replacement rotor position sensor fits select LG and Kenmore front-load washers. Example compatible models include (but are not limited to): LG WM2487HRM, LG WM0642HW, and Kenmore 796.40272900. Always verify your washer’s model number before ordering. Contact our support team if you’re unsure. Key Features Aftermarket Replacement – Designed to match OEM performance and precision Accurate Rotor Feedback – Helps regulate motor speed and direction for smooth washing Cost-Effective Fix – Delivers OEM-level performance at a fraction of the price Plug-and-Play Installation – No wiring modification required Fixes Common Issues – Resolves LE, UE, SE, and spin cycle errors Product Specification Part Number: 6501KW2002B Component Type: Washer Rotor Position Sensor (Hall Sensor) Material: Durable printed circuit board with reinforced plastic housing Mounting: Direct-fit installation on stator assembly Operating Conditions: Rated for high-humidity, high-vibration washer environments Compliance: Built to OEM-equivalent quality standards (not OEM) Installation Notes Tools Needed: 10 mm socket wrench, Phillips screwdriver ⚠️ Safety First: Always unplug the washer before performing repairs to prevent electrical shock. Steps: Disconnect power and remove the rear access panel. Unscrew the rotor bolt and carefully remove the rotor assembly. Locate and unplug the old sensor from the stator. Install the new XPARTCO 6501KW2002B sensor, aligning mounting tabs. Reconnect the wiring harness, reinstall the rotor, and secure the panel. Restore power and run a spin test to verify correct operation. ⏱️ Time Required: 20–25 minutes Shop With Confidence Trusted Appliance Parts Supplier 30-Day Return Policy Restore precise washer performance — Add to Cart Now for a reliable, budget-friendly repair!

Read more less

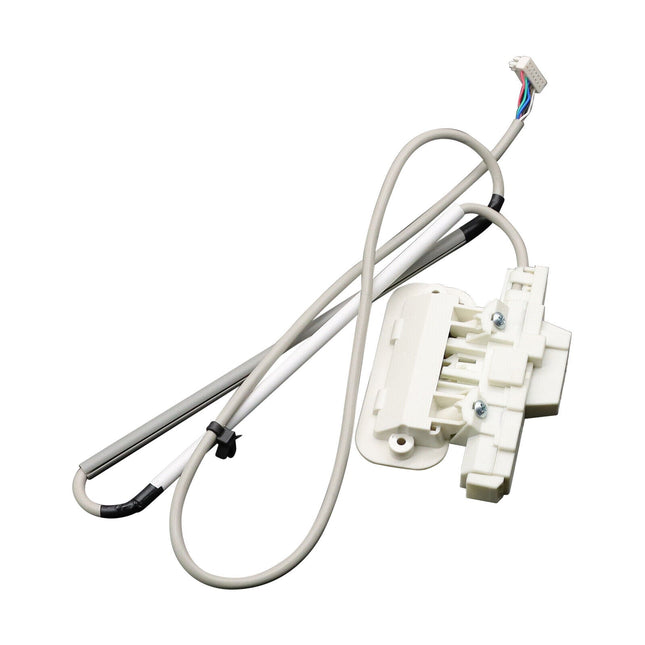

XPARTCO W10810403 Washer Lid Switch Assembly The XPARTCO W10810403 is an aftermarket replacement lid lock assembly for Whirlpool Cabrio and Maytag Bravos XL top-load washers. Positioned on the underside of the washer lid, this assembly detects whether the lid is open or closed and locks it shut during the wash cycle, preventing the washer from spinning or agitating — and preventing the lid from being opened — while the cycle is running. This is a safety mechanism as much as a functional one, keeping users from contacting moving parts or being splashed by water or detergent mid-cycle. This assembly includes the lid lock mechanism and its wiring harness, and ships with a white bezel. Many of these lid locks also contain an internal fuse as part of the switch circuit — if that fuse blows, the symptom isn't limited to lid-related errors; it can prevent the entire control board from powering up at all, since the switch sits in the same circuit path. A failing lid lock typically shows up as the lid not closing or locking properly, the washer failing to start, the cycle stopping mid-way, or in more severe cases, a completely unresponsive control panel with no lights at all. It directly replaces AP5984435, PS11722981, W10648012, W10787878, W10697793, W10787880, AP5999414, and PS11731620. Quick Answer The XPARTCO W10810403 Washer Lid Switch Assembly fixes Whirlpool Cabrio, Maytag Bravos XL, and select Kenmore 600/700 Series top-load washers where the lid won't lock, the washer won't start, the cycle stops mid-way, or the control panel is completely unresponsive with no lights. White bezel. Replaces AP5984435, PS11722981, W10648012, W10787878, W10697793, W10787880, AP5999414, PS11731620. If your original lock has a grey bezel, you need part number W10861642 instead — same mechanism, different bezel color, so match the color of your existing lock before ordering. Common Problems This Part Fixes Lid won't lock or lock reliably during the cycle Lid won't open after a cycle finishes Washer won't start Washer won't agitate or spin because the lid isn't sensed as locked Cycle stops partway through Washer pumps but won't spin Control panel completely unresponsive with no lights, potentially from an internal fuse in the switch circuit Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This washer lid switch assembly directly replaces the following OEM and cross-reference part numbers: W10810403, 4283179, W10632841, W10637463, W10648012, W10787836, W10787878, AP5984435, AWP41491, EAP11722981, PD00028176, PS11722981 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This lid switch assembly is compatible with select Whirlpool Cabrio and Maytag Bravos XL top-load washers, and also fits select Roper, Admiral, Hardwick, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Modern Maid, Amana, Kenmore, KitchenAid, Caloric, and Ikea washers built on the same platform, including model numbers such as MVWB855DW1, MVWB865GW1, MVWB835DW3, and MVWB765FW4. Note — bezel color and lid lock platform both matter: This assembly has a white bezel. If your original lock has a grey bezel, order W10861642 instead — same lock mechanism, different bezel color. Separately, Whirlpool has used several distinct lid lock designs across its Cabrio-era washer lineup, including a different 3-wire electronic lock (our W11670519 listing) used on other Cabrio/MVW models. These are not the same part despite both serving Cabrio-platform washers. Always verify your full model number and match your original lock's exact part number before ordering. Contact our support team with your model number if you're unsure. Key Features Aftermarket replacement lid lock assembly — includes the lock mechanism and wiring harness Resolves "lid won't lock," "washer won't start," "cycle stops mid-way," and "unresponsive control panel" symptoms White bezel finish Safety mechanism that prevents lid opening and drum movement from occurring at the same time Direct drop-in replacement — mounts to the original position on the underside of the lid Replaces W10810403, 4283179, W10632841, W10637463, W10648012, W10787836, W10787878, AP5984435, AWP41491, EAP11722981, PD00028176, PS11722981 Compatible with Whirlpool, Maytag, Roper, Admiral, Hardwick, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Modern Maid, Amana, Kenmore, KitchenAid, Caloric, and Ikea top-load washers Aftermarket replacement built to OEM-equivalent quality standards Product Specifications Part Number XPW10810403 OEM Part Number W10810403 Part Type Washer Lid Lock/Switch Assembly Condition Aftermarket Replacement Application Whirlpool Cabrio / Maytag Bravos XL Top-Load Washers Bezel Color White (grey bezel = W10861642) Included Components Lid lock mechanism + wiring harness Location Underside of the washer lid Repair Difficulty Easy — basic hand tools Quantity 1 lid switch assembly Compatible Brands Whirlpool, Maytag, Roper, Admiral, Hardwick, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Modern Maid, Amana, Kenmore, KitchenAid, Caloric, Ikea Installation Notes ⚠️ Unplug Washer Before Starting Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Open the washer lid and locate the lid lock assembly mounted on its underside, typically secured with a couple of screws. Photograph the wiring harness connection before disconnecting anything. Remove the mounting screws, disconnect the wiring harness connector from the old assembly, and pull it free. Install the new W10810403 in the same position, reconnect the wiring harness connector fully, and secure the mounting screws. Restore power and run a test cycle to confirm the lid locks securely, the washer starts and completes a full cycle, and the lid unlocks normally once finished. Tools needed: multi-screwdriver, work gloves. Frequently Asked Questions My control panel has no lights at all. Could the lid lock really cause that? Yes, and this is a less obvious but documented cause. Some of these lid lock assemblies include an internal fuse as part of the switch circuit. If that fuse blows, it can prevent the control board from powering up entirely, producing a completely dark, unresponsive panel rather than a symptom that's obviously tied to the lid. If your washer has no lights and no response at all, this lock assembly is worth checking alongside the more obvious suspects. My old lock has a grey bezel. Can I still use this part? This specific listing has a white bezel. If your original lock is grey, order part number W10861642 instead — it's the same lock mechanism, just finished with a grey bezel to match certain washer trim colors. Using the wrong bezel color won't affect function, but it will look mismatched against your washer's lid. Is this the same lock used on all Cabrio washers? No — Whirlpool has used more than one lid lock design across its Cabrio-era lineup. This W10810403 is a distinct assembly from other Cabrio/MVW-platform locks, such as our W11670519 listing, which uses a different 3-wire electronic locking design. Always match your exact original part number rather than assuming any "Cabrio lock" will fit, since the mounting and electrical interface can differ between designs. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the locking mechanism, wiring harness, and bezel design of the original W10810403 lid lock assembly used in compatible Whirlpool Cabrio, Maytag Bravos XL, and related top-load washers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

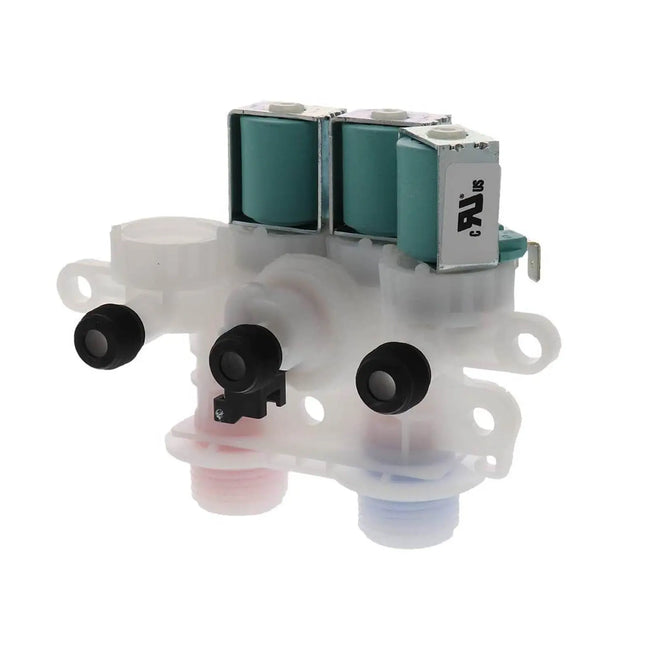

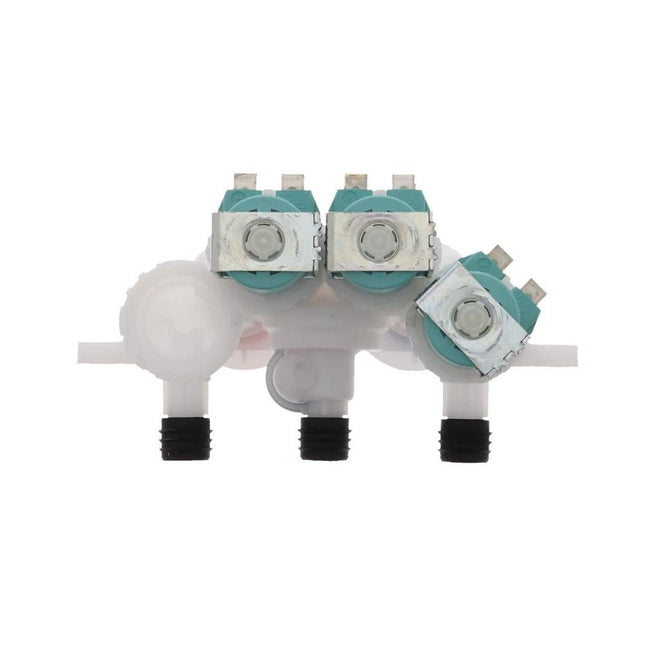

XPARTCO W11220230 Washer Water Inlet Valve The XPARTCO W11220230 is an aftermarket replacement washer water inlet valve designed to control the flow of hot and cold water into your washing machine during each cycle. This Water Inlet Valve is a replacement part compatible with specific Maytag, Whirlpool washing machine models. This valve controls water flow into the tub by opening at predetermined points in the cycle. Proper water regulation is necessary for optimum cleaning performance.. Over time, inlet valves can fail due to mineral buildup, electrical issues, or worn internal seals — leading to slow filling, no fill, or continuous water flow. Replacing the valve restores proper water control and helps prevent leaks or cycle errors. Quick Answer The XPARTCO W11220230 Washer Water Valve fixes washers that won’t fill, fill too slowly, or won’t stop filling with water. It controls incoming water flow and restores proper wash cycle operation. Common Problems This Part Fixes Washer not filling with water Slow water fill during cycles Water continuously flowing into washer Incorrect water temperature Washer stopping due to fill errors Leaking or stuck inlet valve Replaces Part Numbers This water inlet valve replaces the following part numbers: W11220230, W10853296, 4591408, W10632527, W10758829, W11096268, AWP43504, EAP12349461, PD00042661, AP6329544, PS12349461 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This water valve is compatible with select washers from the following brands: Whirlpool washers Maytag washers Amana washers Kenmore / Sears washers (select models) Always verify your washer’s model number before ordering. Contact our support team if you’re unsure. Key Features Three coil hot and cold water valve. OEM-equivalent fit, performance, and durability Restores proper water fill levels and cycle operation Durable construction resists mineral buildup and wear Prevents leaks and overfilling issues Direct replacement for W11220230 valve assembly Product Specifications Part Number W11220230 Part Type three coil hot and cold water inlet valve. Application Top Load / Front Load Washers Condition Aftermarket Replacement Function Controls Water Flow Compatible Brands Whirlpool, Maytag, Amana, Kenmore Installation Notes ⚠️ Safety First — Disconnect Power & Water Supply Unplug the washer and turn off the water supply before servicing. Remove the rear or top panel to access the inlet valve. Disconnect water hoses and electrical connectors, then remove the mounting screws to replace the valve. Reconnect hoses securely to avoid leaks and test for proper operation after installation. Frequently Asked Questions What does a washer water inlet valve do? It controls the flow of hot and cold water into the washer. When the valve fails, the washer may not fill properly or may overfill. Will this fix a washer that won’t fill? Yes, a faulty inlet valve is one of the most common causes of no-fill or slow-fill issues. Is this an OEM part? This is a high-quality aftermarket replacement built to OEM-equivalent standards for performance and durability. Shop With Confidence A U.S.-based appliance parts retailer specializing in high-quality replacement parts. Fast shipping from our U.S. warehouse and expert support available to help verify compatibility. ✓ Fast US Shipping ✓ Quality Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

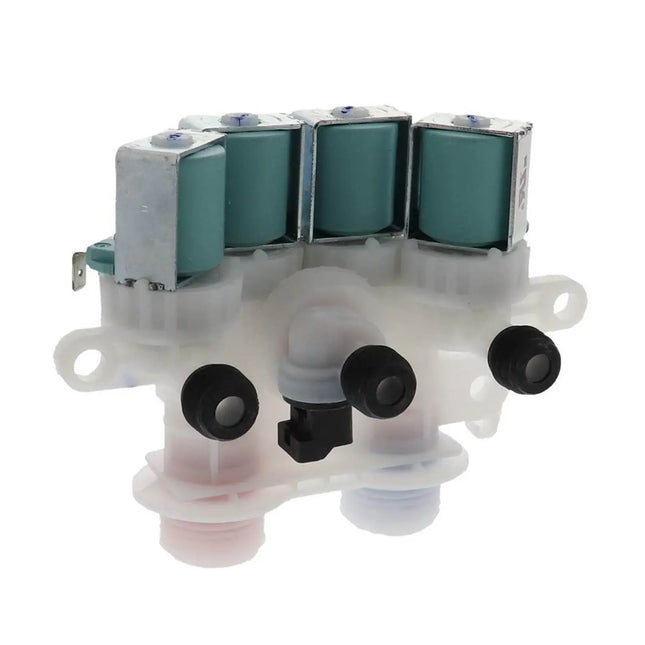

XPARTCO W11165546 Washer Water Inlet Valve The XPARTCO W11165546 is an aftermarket replacement washer water inlet valve assembly compatible with Maytag Bravos XL, Whirlpool Cabrio, Kenmore 700-series, and related Whirlpool-platform HE top-load washers. This 4-solenoid assembly controls the flow of hot and cold water from the household supply lines into the washer tub and dispenser compartments. It includes an integrated thermistor on the center outlet that monitors incoming water temperature and communicates it to the control board so the washer can achieve the correct wash temperature. When the valve fails — or when a single solenoid coil burns out — the washer may not fill, fill too slowly, fill with the wrong temperature, overfill, or display error codes F8E1, LF, or LO FL. Rated 120V, 60Hz, with 2 inlet ports and 3 outlet ports, this assembly measures 5-3/8"L x 4-1/4"W x 3"H. The valve body may be blue or green in color depending on production run — both are functionally identical. It is compatible with 1/2" ID supply hoses. It directly replaces W10599423, W10758828, W10839828, W11096267, W11165546VP, WV5546, 33090105, 4545980, AP6284346, EAP12348013, PD00037668, and PS12348013. Installs in 15–25 minutes with basic hand tools. Quick Answer The XPARTCO W11165546 Washer Water Inlet Valve fixes Maytag Bravos XL and Whirlpool Cabrio/WTW HE top-load washers that won't fill, fill slowly, fill with wrong temperature, overfill, or display error codes F8E1, LF, or LO FL. 4-solenoid valve with thermistor. 120V/60Hz. 2 inlet / 3 outlet ports. 5-3/8"L x 4-1/4"W x 3"H. Compatible with 1/2" ID supply hoses. Replaces W10599423, W10758828, W10839828, W11096267, W11165546VP, 33090105, 4545980, AP6284346, PS12348013. Common Problems This Part Fixes Washer not filling with water — error code F8E1, LF, or LO FL displayed Washer filling very slowly — taking much longer than normal to reach water level Washer filling with only cold water on a warm or hot cycle — hot solenoid failed Washer filling with only hot water on a cold cycle — cold solenoid failed Washer overfilling or filling continuously — valve port stuck open Water temperature incorrect despite correct cycle selection — thermistor failed Water dripping into the tub between cycles — valve not closing completely Water leaking from the back of the washer near the valve Replaces Part Numbers This water inlet valve directly replaces the following OEM and cross-reference part numbers: W10839828, 33090105, 4545980, W10599423, W10758828, W11096267, W11165546VP, AP6284346, AWP43457, EAP12348013, PD00037668, PS12348013. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This water inlet valve is compatible with select HE top-load washers from the following brands and series: Maytag top-load washers — Bravos XL series (MVWB765FW0, MVWB765FW1, MVWB765FW2, MVWB765FW3, MVWB765FC1, MVWB765FC2, MVWB766FW0, MVWB766FW1, MVWB835DW1, MVWB835DW2, MVWB835DW3, MVWB835DW4, MVWB855DC2, MVWB855DC3, MVWB865GC0, MVWB865GW0, MVW6230HW2, MVW7230HW0, MVW7232HW0 and related models) Whirlpool top-load washers — Cabrio / WTW series (WTW7500GC0, WTW7500GW0, WTW8500DC2, WTW8500DC4, WTW8500DC5, WTW8500DR4, WTW8500DR5, WTW8500DW4, WTW8500DW5, WTW8700EC1, 7MWTW8500EC2 and related models) Kenmore / Sears top-load washers — 700 series (11028132410, 11028132411, 11028132412, 11028132413, 11028133410, 11028133411, 11029132411, 11029133410 and related models) Crosley top-load washers (select models) Note: The valve body color may be blue or green depending on production run — both are functionally identical. This valve is for HE top-load washers only. Always verify your model number before ordering. Key Features 4-solenoid valve assembly — controls hot water, cold water, and additional dispenser/recirculation ports to fill the tub with the correct temperature water for each cycle Integrated thermistor on center outlet — monitors incoming water temperature and communicates with the control board to achieve the correct wash temperature Resolves F8E1, LF, and LO FL error codes on compatible Maytag and Whirlpool HE top-load washers Rated 120V, 60Hz — correct electrical specifications for compatible models Dimensions: 5-3/8"L x 4-1/4"W x 3"H 2 inlet ports, 3 outlet ports — compatible with 1/2" ID supply hoses Valve body color (blue or green) varies by production run — functionally identical Replaces W10599423, W10758828, W10839828, W11096267, and W11165546VP Compatible with Maytag Bravos XL MVWB series, Whirlpool WTW7xxx/WTW8xxx, Kenmore 700 series, and Crosley top-load washers Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 15–25 minutes with basic hand tools Product Specifications Part Number W11165546 Part Type Washer Water Inlet Valve Assembly (4-Solenoid with Thermistor) Condition Aftermarket Replacement Application HE Top-Load Washers — Bravos XL, Cabrio, WTW series Solenoids 4-coil (hot, cold, and additional ports) Thermistor Integrated on center outlet — monitors water temperature Voltage 120V AC Frequency 60 Hz Dimensions 5-3/8"L x 4-1/4"W x 3"H Inlet Ports 2 (hot and cold) Outlet Ports 3 Supply Hose ID 1/2 inch Color White / Blue or Green (production run dependent — functionally identical) Error Codes Resolved F8E1, LF, LO FL Compatible Brands Maytag, Whirlpool, Kenmore, Crosley Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off both the hot and cold water supply valves before beginning. Pull the washer away from the wall to access the back panel. The water inlet valve is mounted on the upper rear of the washer. Photograph all wire harness connections and hose routing before disconnecting. Disconnect the two external supply hoses from the valve inlet ports using pliers to loosen any stuck connections. Disconnect the internal outlet hoses by squeezing the retaining clips and pulling free. Disconnect the wiring harness connectors from all solenoid coils and the thermistor. Unscrew the mounting hardware and remove the old valve. Install the new W11165546 valve in the same position, reconnect all internal hoses, wire harnesses, and external supply hoses in the same positions as documented. Restore water supply and power, then run a fill cycle to verify normal filling and check for leaks. Tools needed: Phillips screwdriver, pliers, channel-lock pliers for stubborn hose connections. Frequently Asked Questions What do error codes F8E1, LF, and LO FL mean on Maytag and Whirlpool washers? F8E1 (also displayed as LF or LO FL on some models) indicates a long fill fault — the washer was unable to fill to the required water level within the expected time. The most common causes are a failed water inlet valve (solenoid coil burned out or valve seat clogged), low household water pressure, or kinked supply hoses. Before replacing the valve, confirm both supply valves are fully open, the supply hoses are not kinked, and household water pressure is adequate. If all supply conditions are good and the error persists, the water inlet valve is the most likely cause. What is the difference between W11165546 and W11096267? These are the same water inlet valve assembly. W11096267 was an earlier version, and W11165546 is the current updated part number. The W10599423 and W10758828 are also cross-references to earlier versions of this same valve. The W11165546VP is the Whirlpool factory-packaged version. All of these are covered by this aftermarket replacement. Why does this valve have 4 solenoids? Modern HE top-load washers like the Maytag Bravos XL and Whirlpool Cabrio use multiple water paths for different wash functions — hot water inlet, cold water inlet, a bleach dispenser port, and a fabric softener/recirculation port. Each path is controlled by its own independent solenoid coil on the same valve assembly. This allows the control board to independently open any combination of ports needed for a given cycle phase. When any single solenoid coil fails, only the function controlled by that coil is affected — which is why the washer might fill normally with cold water but not hot, or fail to activate only one dispenser. Does the valve color (blue vs green) matter? No — the blue and green valve body colors are simply the result of different production runs at the factory. Both colors are the same part number (W11165546) with identical electrical specifications, port configuration, thermistor, and dimensions. Either color will function correctly in your washer. There is no functional difference between the two. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured with 4 solenoid coils and an integrated thermistor to match the electrical specifications and port configuration of the original W11165546 water inlet valve assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

285785 Washer Transmission Clutch - Compatible with Whirlpool, Kenmore, KitchenAid, Maytag, Amana, Roper, and Other Washers Product Description Restore your washer’s performance with the replacement 285785 Washer Transmission Clutch. This high-quality replacement clutch assembly, designed for direct-drive (beltless) Whirlpool, Kenmore, KitchenAid, Maytag, Amana, Roper, and other washer models, connects the transmission to the inner tub during the spin cycle and the agitator during the wash cycle. Constructed from durable plastic and metal, this clutch assembly includes a clutch with liner, brake cam driver, retaining clip, blue spring for large capacity (27") washers, and black spring for compact (24") washers. It addresses issues like slow spinning, failure to agitate, burning smells, or excessive shaking. Note: Includes one clutch assembly with hardware. Disconnect power before installation. Replaces part numbers: 285785, 2670, 285331, 285380, 285422, 285540, 285761, 285785VP, 3350015, 3350114, 3350115, 3351342, 3351343, 387888, 388948, 388949, 3946794, 3946847, 3951311, 3951312, 62699, 63174, 63765, 64176, PD00002503, EAP334641, AH334641, EA334641, J27-662, LP326, AP3094537, PS334641. Compatibility: Compatible with models including but not limited to: Whirlpool: WTW5300SQ0, LSR7233EQ0, LSR8433KQ0, LSQ9544KQ0 Kenmore: 110.26902690, 110.28762790, 110.29822800 KitchenAid: KAWS750JQ0, KAWS850JQ0 Maytag: MAV6451AWW, MAV9750AWW Amana: NTW4500XQ0 Roper: RAS8245EQ1, RTW4440XQ0 Inglis: ITW4300SQ0 Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select Whirlpool, Kenmore, KitchenAid, Maytag, Amana, Roper, Inglis, and other direct-drive washer models. 🔥 Specifications: replacement clutch assembly, plastic and metal, 4-1/2"L x 4-1/2"W x 1-1/8"H, includes clutch w/liner, brake cam driver, retaining clip, blue spring (1.24" for large capacity 27" washers), black spring (1.46" for compact 24" washers). 💰 Cost-Effective Alternative: replacement clutch offers OEM-equivalent performance at a lower price. 🛠️ Easy Installation: Requires a socket set, screwdrivers, work gloves; typically installed in 1–2 hours. 🛡️ Reliable Fixes: Resolves slow spinning, failure to agitate, burning smells, excessive shaking, or noisy operation. Installation Notes: Safety First: Disconnect the washer from the power source before installation. Shop Parts-O-Matic for high-quality replacement appliance parts with a 30-day return policy. Keep your washer spinning and agitating smoothly today! Add to cart now for a budget-friendly fix!

Read more less

XPARTCO W11688995 Washer Water Inlet Valve (Cold) The XPARTCO W11688995 is an aftermarket replacement cold water inlet valve designed as a direct fit for select Whirlpool, Maytag, Amana, KitchenAid, Jenn-Air, Magic Chef, Admiral, Norge, Roper, Inglis, and Kenmore front-load washers. The cold water inlet valve is mounted at the back of the washer where the cold water supply hose connects. When the washer's control board calls for cold water during a wash cycle, the valve's internal solenoid opens, letting water flow into the tub or detergent dispenser. The valve closes the instant the control board cuts power, stopping flow precisely as the correct fill level is reached. When this valve fails, the washer may not fill with cold water at all, fill very slowly, fail to dispense fabric softener, continuously drip water into the tub even when off, or display F8E1 or LO FL error codes. Construction is blue and white plastic with metal solenoid coil, ~3"H x 4"W x 3"L, with 1/2" NPT threaded inlet for standard washer supply hose. It directly replaces W11688995, W11036930, W11316256, W11486361, AP7218603, EAP12711564, PD00086086, PS12711564, 4929298, and AP6835737. Often replaced as a pair with the hot water inlet valve (W11688994, sold separately). Installs in 10–15 minutes with basic hand tools. Quick Answer The XPARTCO W11688995 Washer Water Inlet Valve (Cold) fixes Whirlpool, Maytag, Amana, KitchenAid, Jenn-Air, and Kenmore front-load washers displaying F8E1 or LO FL error codes, not filling with cold water, filling slowly, failing to dispense fabric softener, or continuously dripping into the tub. Blue/white plastic with metal coil, 1/2" NPT thread, ~3"H x 4"W x 3"L. Replaces W11036930, W11316256, W11486361, AP7218603, EAP12711564, PD00086086, PS12711564, 4929298, AP6835737. Often paired with the hot water valve (W11688994, sold separately). Common Problems This Part Fixes Washer not filling with cold water — valve solenoid not opening when commanded Washer filling slowly with cold water — valve partially clogged or weak solenoid F8E1 error code displayed — cold water inlet valve fault LO FL (low flow) error code — valve unable to deliver normal water flow Fabric softener not being dispensed — cold water flush to dispenser failing Water continuously dripping into the tub when the washer is off — valve stuck open or not fully closing Water leaks at the valve body — internal seal failure Wash cycles taking much longer than normal due to slow fill Replaces Part Numbers This cold water inlet valve directly replaces the following OEM and cross-reference part numbers: W11688995, W11316256, W11036930, W11486361, 4983050, PD00086086, FIX17216730, EAP17216730, OEM28874414, AP7218603, AWP46809, PS17216730. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This cold water inlet valve is compatible with select front-load washers from the following brands: Whirlpool front-load washers — WFC6810LW0, WFC9820HC0, WFC9820HW0 series Whirlpool front-load washers — WFW560CHW0, WFW560CHW1, WFW560CHW2, WFW560CHW3, WFW560CHW4 series Whirlpool front-load washers — WFW5605MC0, WFW5605MW0 series Whirlpool front-load washers — WFW5620HW0, WFW5620HW1, WFW5620HW2, WFW5620HW3 series Whirlpool front-load washers — WFW6620HC0, WFW6620HC1, WFW6620HC2, WFW6620HW0, WFW6620HW1 series Whirlpool front-load washers — WFW8620HC0, WFW8620HC1, WFW8620HC2, WFW8620HC3, WFW8620HC4, WFW8620HW0, WFW8620HW1, WFW8620HW2, WFW8620HW3, WFW8620HW4 series Whirlpool front-load washers — WFW862CHC0, WFW862CHC1, WFW862CHC2, WFW862CHC3 series Whirlpool front-load washers — WFW9620HBK1, WFW9620HBK2, WFW9620HBK3, WFW9620HC0, WFW9620HC1, WFW9620HC3, WFW9620HW0, WFW9620HW1, WFW9620HW2, WFW9620HW3 series Maytag front-load washers — MHW5630HC0, MHW5630HW1, MHW5630MBK0 series and related Amana front-load washers — NFW5800HW0, NFW5800HW1 and related models Inglis front-load washers — IFW5900HW, IFW5900HW1 and related models KitchenAid, Jenn-Air, Magic Chef, Admiral, Norge, Roper front-load washers — select Whirlpool-built models Kenmore / Sears front-load washers — select Whirlpool-built models Note: This is the cold water inlet valve (typically blue). The matching hot water inlet valve is part number W11688994 (typically red). When you replace one valve, it's a good practice to replace the other at the same time since they're the same age, both are accessible during the same repair, and the second valve will likely fail in the near term. Always verify your model number before ordering. Key Features Aftermarket replacement built to OEM-equivalent quality standards Controls the flow of cold water into the washer during fill cycles Solenoid-actuated — opens precisely when the control board calls for cold water and closes the moment the call is dropped Resolves F8E1 and LO FL error codes when caused by a failed cold inlet valve 1/2" NPT threaded inlet for standard washer supply hose connection Dimensions: approximately 3" H x 4" W x 3" L Blue and white plastic body with metal solenoid coil — designed for long-term reliability against wash cycle pressure and temperature Replaces W11036930, W11316256, W11486361, AP7218603, EAP12711564, PD00086086, PS12711564, 4929298, and AP6835737 Compatible with Whirlpool, Maytag, Amana, KitchenAid, Jenn-Air, Magic Chef, Admiral, Norge, Roper, Inglis, and Kenmore front-load washers Often replaced together with the hot water inlet valve (W11688994, sold separately) as a paired repair Quick DIY repair — installs in 10–15 minutes with basic hand tools Product Specifications Part Number XPW11688995 Part Type Washer Water Inlet Valve (Cold) Condition Aftermarket Replacement Application Front-Load Washers (Whirlpool platform) Water Type Cold (paired hot valve is W11688994) Inlet Thread 1/2" NPT Dimensions Approximately 3" H x 4" W x 3" L Color Blue / White Material Plastic / Metal Error Codes Resolved F8E1, LO FL (when caused by cold valve fault) Often Paired With Hot Water Inlet Valve (W11688994, sold separately) Compatible Brands Whirlpool, Maytag, Amana, KitchenAid, Jenn-Air, Magic Chef, Admiral, Norge, Roper, Inglis, Kenmore Installation Notes ⚠️ Unplug Washer and Shut Off Water Supply Before Starting — Wear Work Gloves Disconnect power and shut off both the hot and cold water supplies at the wall before beginning. Wear work gloves to protect your hands. Have towels ready — residual water remains in the supply hoses and will spill when disconnected. Pull the washer out from the wall to access the back. Remove the three 1/4" screws securing the rear edge of the top cover, push the top cover slightly back, and lift it off. Locate the inlet valves at the back of the washer — the cold valve is typically blue. Disconnect the cold water supply hose from the valve (water will drip — towels). Photograph the wire connections before disconnecting. Unplug the small electrical connector from the valve solenoid. Remove the single 3/16" mounting screw (or similar hardware, model-dependent) holding the valve in place, and disconnect any internal water hoses from the valve outlet (channel-lock pliers may help with hose clamps). Install the new W11688995 valve in the same position with the same orientation, reconnect the internal water hoses and electrical connector, and secure the mounting screw. Reconnect the cold supply hose at the wall, restore water and power, and run a test cycle to confirm normal cold water fill with no leaks. Tip: while the top cover is off, this is the ideal time to also replace the hot water valve (W11688994) — they share the same access and lifespan. Tools needed: 1/4" nut driver, 3/16" nut driver, adjustable wrench or pliers, work gloves. Frequently Asked Questions What do error codes F8E1 and LO FL mean on Whirlpool washers? Both codes indicate a water fill problem. F8E1 appears when the control board doesn't detect normal water flow during a fill cycle — typically caused by a failed inlet valve, a clogged inlet screen, kinked supply hose, or restricted water supply. LO FL (low flow) appears when the washer detects that water is flowing in, but at a rate too low to complete the fill within the expected time window. When the cold water inlet valve has failed or is partially clogged, both codes can appear together. Before replacing the valve, check that the household cold water supply is on and the supply hose isn't kinked, and inspect the inlet screen on the valve for sediment buildup. If those check out, replacing the W11688995 typically resolves the codes. My washer isn't dispensing fabric softener — could this be the cold valve? Yes — this is actually a common symptom that's often misdiagnosed. The cold water inlet valve also feeds the detergent dispenser tray on most Whirlpool front-load washers, including the fabric softener compartment. If the cold valve is clogged or failing to fully open at the right moment in the cycle, water doesn't flow through the fabric softener compartment to flush it into the tub, leaving softener pooled in the tray at the end of the cycle. If you've already cleaned the dispenser tray and water lines and the problem persists, replacing the cold inlet valve (W11688995) often resolves the issue. Should I replace the hot water valve at the same time? Yes, it's strongly recommended. The cold and hot inlet valves are essentially identical components installed side by side at the back of the washer — they're the same age, are exposed to the same wash cycle stress, and have the same expected service life. When one fails, the other is typically not far behind. Since the top cover is already off and both valves are accessible during the same repair, replacing both saves you a second teardown later. The matching hot water valve is part number W11688994 (red, sold separately) and is also available as a paired kit. My washer is dripping water into the tub even when it's off — is this the valve? Yes, that's a classic sign of a failed inlet valve. When the solenoid wears out or debris keeps the valve from sealing fully closed, water leaks past it at low rates and drips into the tub even with the washer powered off — especially noticeable as a slow puddle forming over a day or two. Since both the hot and cold valves feed into the tub, you'll want to identify which one is leaking: shut off the hot water supply at the wall and check if dripping continues. If it stops, the hot valve is at fault; if it continues, this cold valve is the cause. Replacing the W11688995 will resolve a leaking cold valve. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the dimensions, electrical specifications, 1/2" NPT thread, and solenoid function of the original W11688995 cold water inlet valve used in compatible Whirlpool, Maytag, Amana, KitchenAid, and Kenmore front-load washers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less
