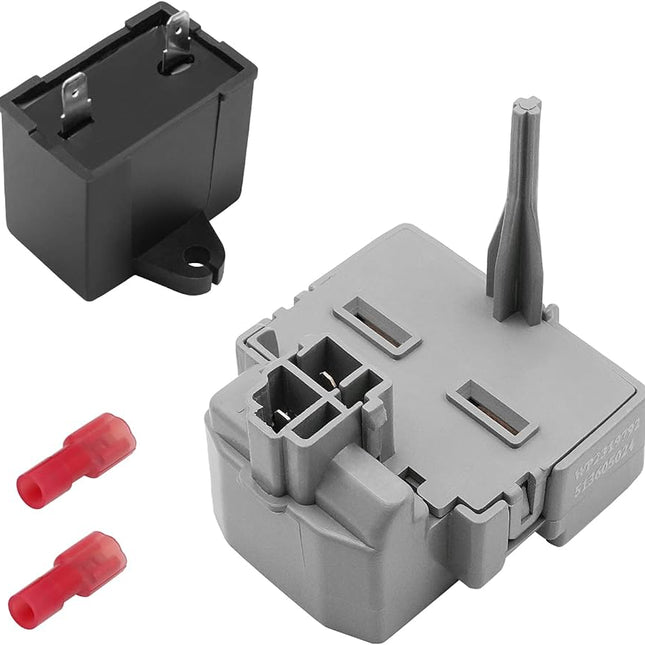

XPARTCO W10613606 Refrigerator Compressor Start Relay and Capacitor The XPARTCO W10613606 is an aftermarket replacement compressor start relay and capacitor assembly compatible with a wide range of Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Jenn-Air, Admiral, Crosley, Dacor, Hardwick, Inglis, Litton, and Magic Chef refrigerators. The start relay is a small but critical electrical component that plugs directly onto the compressor terminals and provides the initial power surge needed to start the compressor motor. Once the compressor reaches operating speed, the relay drops out — leaving the compressor to run on its own. The capacitor (rated 15µF ±5%, 250VAC) works alongside the relay to store and release the burst of electrical energy needed on startup. When the start relay fails, the compressor cannot start — causing the refrigerator to stop cooling entirely. A failed relay typically produces a clicking sound every few minutes as the compressor tries and fails to start, followed by a short rest, then another attempt. This kit includes both the start relay and the CBB61 capacitor. It directly replaces W10416065, 8208290, 8208368, C8931605, 67003186, 67005560, 67005561, 67005562, 67003764, 8171210, and several additional cross-reference numbers. Installs in under 15 minutes — no tools required in most cases. Quick Answer The XPARTCO W10613606 Refrigerator Compressor Start Relay and Capacitor fixes refrigerators that are not cooling, are too warm, or are making a repeated clicking sound every few minutes as the compressor tries to start. Plugs directly onto the compressor terminals. Kit includes start relay and 15µF 250VAC CBB61 capacitor. Compatible with Whirlpool, Kenmore, Maytag, KitchenAid, Amana, and more. Replaces W10416065, 8208290, C8931605, 67005560, and more. No tools required — installs in under 15 minutes. Common Problems This Part Fixes Refrigerator not cooling — compressor not running Freezer section too warm or not freezing Both refrigerator and freezer compartments gradually warming up Repeated clicking sound every 2–5 minutes from behind or underneath the refrigerator Compressor hums briefly then shuts off without reaching operating temperature Refrigerator runs but cannot maintain set temperature Shaking the start relay reveals a rattling sound inside — confirms internal failure Replaces Part Numbers This start relay and capacitor kit directly replaces the following OEM and cross-reference part numbers: W10613606, 67005560, 3023300, 67003186, 67003764, 67005561, 67005562, W10416065, 8171210, 8208290, 8208368, W10244032, 302TFBYY, SSP14R302TFR,  AWP41206, C8931605, PD00004905, EAP8746522, AP5787784, PS8746522. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This start relay and capacitor is compatible with select refrigerators from the following brands: Whirlpool refrigerators (side-by-side, French door, bottom-freezer) Kenmore / Sears refrigerators (select Whirlpool-built models) Maytag refrigerators KitchenAid refrigerators Amana refrigerators Jenn-Air refrigerators Admiral refrigerators Crosley refrigerators Dacor refrigerators Hardwick refrigerators Inglis refrigerators Litton refrigerators Magic Chef refrigerators Important: Always verify your refrigerator's model number and compare the old relay's shape and terminal configuration to the new part before installing. Some models may require trimming the wire connector tabs for a proper fit. Contact our support team with your model number if you need confirmation before ordering. Key Features Provides the initial electrical surge needed to start the compressor motor — without it, the compressor cannot run and the refrigerator cannot cool Kit includes both the start relay and the CBB61 run capacitor (15µF ±5%, 250VAC) — everything needed in one package Plugs directly onto the compressor terminals — no wiring or soldering required in most cases Quick rattle test — shake the old relay; if it rattles, the internal contacts have failed and it needs replacement Replaces W10416065, 8208290, C8931605, and over a dozen additional cross-reference part numbers Compatible with 13 major appliance brands on the Whirlpool platform Aftermarket replacement built to OEM-equivalent quality standards Fast DIY repair — installs in under 15 minutes, no tools required in most cases Product Specifications Part Number W10613606 Part Type Refrigerator Compressor Start Relay and Capacitor Kit Condition Aftermarket Replacement Application Refrigerator Compressor (side-by-side, French door, bottom-freezer) Capacitor Type CBB61 Run Capacitor Capacitor Rating 15µF ±5%, 250VAC Kit Includes 1x Start relay, 1x CBB61 capacitor Installation Plug-in — no tools required in most cases Compatible Brands Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Jenn-Air, Admiral, Crosley, Dacor, Hardwick, Inglis, Litton, Magic Chef Installation Notes ⚠️ Unplug Refrigerator Before Starting Unplug the refrigerator from the power outlet before beginning. Move the refrigerator away from the wall to access the rear or lower back panel. Remove the rear access panel by unscrewing the retaining screws to expose the compressor. The compressor is a large black dome-shaped component — the start relay and capacitor assembly plugs onto the side terminals. Grip the old relay firmly and pull it straight off the compressor pins. Shake it — if it rattles, the internal contacts have failed and replacement is confirmed. Compare the old relay to the new W10613606 to confirm the terminal layout matches. Align the new relay with the compressor pins and press it firmly on. Reinstall the access panel, restore power, and listen for the compressor to start and run normally within a few minutes. Note: Some models may require trimming the wire connector tabs or reversing the connector orientation for a proper fit — do not force the connection. Tools needed: Phillips screwdriver (for panel access only). Frequently Asked Questions What does the compressor start relay do? The start relay plugs onto the compressor terminals and provides the brief but powerful surge of electrical current needed to start the compressor motor from a standstill. Once the compressor reaches operating speed — usually within a second or two — the relay drops out and the compressor runs on its own. Without a working start relay, the compressor cannot start at all, and the refrigerator stops cooling. The capacitor works alongside the relay to store and deliver the extra energy needed on startup. How do I know if my start relay has failed? The most reliable quick test is the rattle test: unplug the refrigerator, pull the start relay off the compressor, and shake it near your ear. A working relay is silent. A failed relay will rattle — the internal contacts have broken free and are loose inside the casing. Another sign is a repeated clicking sound every 2–5 minutes from the back of the refrigerator, where the compressor attempts to start, fails, trips the overload protector, rests, and tries again. If the fridge is warm and you hear clicking, check the relay first. What is the difference between the start relay and the capacitor? The start relay is the switching device that connects and disconnects the start winding of the compressor motor during startup. The capacitor stores a charge and releases it during startup to give the motor the additional torque it needs to get moving under load. Together they work as a startup system for the compressor. This kit includes both — replacing both at the same time ensures the complete startup circuit is fresh and reliable. My fridge is still not cooling after replacing the start relay — what else could it be? If replacing the start relay does not restore cooling, other possible causes include a failed compressor (the compressor runs but no longer builds pressure), a refrigerant leak in the sealed system, a failed start capacitor (if not replaced along with the relay), a bad overload protector, or a faulty main control board. Listen carefully after installing the new relay — if the compressor now starts and runs but the fridge still doesn't cool after several hours, a sealed system issue or refrigerant problem is likely and will require a certified technician. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the electrical specifications and terminal configuration of the original W10613606 start relay and capacitor assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

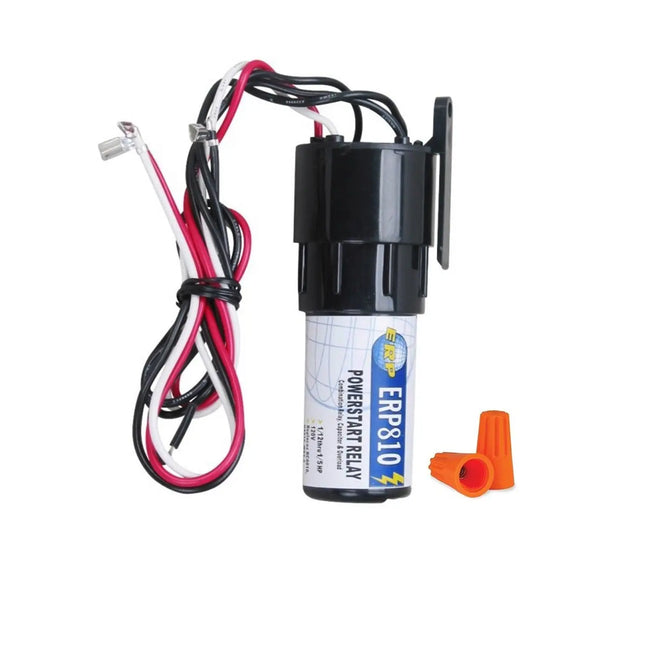

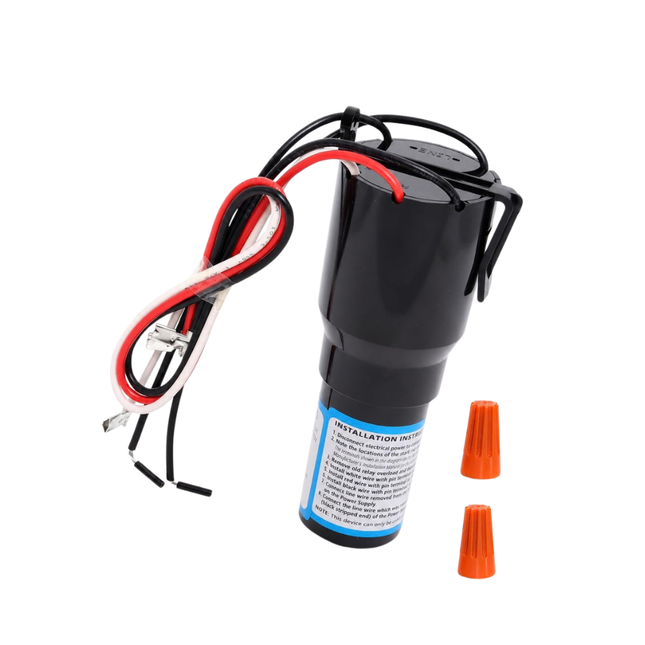

XPARTCO HS810 Refrigerator 3-in-1 Hard Start Kit 1/12 to 1/5 HP 120V The XPARTCO XPHS810 is a universal 3-in-1 hard start kit that combines a solid-state starting relay, a start capacitor, and thermal overload protection into a single prewired unit for refrigerator and freezer compressors rated 1/12 to 1/5 HP at 120V (110–125VAC). It's designed as a direct equivalent to the widely used Supco RCO810 and similar kits, giving a struggling compressor extra starting torque to overcome internal friction and gas pressure at startup — commonly used to fix the classic "click-buzz-click" no-start symptom without replacing the entire compressor. The kit is fully prewired with color-coded leads (typically black = Common, white = Start, red = Run) and mounts directly onto the compressor's terminal pins, with instructions printed on the unit itself. It directly replaces Supco RCO810, URCO810, URC0810, RC0810, RC100, TJ90RCO810, AP4503019, ERP810, ERPU810, HS8, HS810, HS81, PCS810, and Mars 32781. Installs in 15–30 minutes with basic hand tools. Quick Answer The XPARTCO HS810 3-in-1 Hard Start Kit fixes refrigerators and freezers whose compressor makes a repeated "click-buzz-click" sound and fails to start, or that shut off on thermal overload during startup. Combines relay, start capacitor, and overload protector in one prewired unit for 1/12 to 1/5 HP compressors, 120V, 3.5A RLA. Replaces Supco RCO810, URCO810, RC0810, RC100, TJ90RCO810, AP4503019, ERP810, HS8, HS810, HS81, PCS810, Mars 32781. Do not install on LG linear/inverter compressors — see Installation Notes. Common Problems This Part Fixes Compressor makes a repeated "click-buzz-click" noise and fails to start Refrigerator or freezer runs warm because the compressor won't stay running Compressor hums but doesn't start, then trips off on overload Refrigerator cycles on and off rapidly without reaching temperature Older or worn compressor that starts hard, especially after a power outage ⚠ Capacitor Hazard — Read Before Servicing This kit contains a start capacitor, which can store a dangerous electrical charge even after the refrigerator is unplugged. Always disconnect power before servicing, and discharge the capacitor safely (using an insulated-handle resistor tool or by briefly shorting the terminals with an insulated screwdriver) before handling it. Never touch capacitor terminals with bare hands. If you are not comfortable working around stored electrical charge, have this repair performed by a qualified technician. Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This 3-in-1 hard start kit directly replaces the following OEM and cross-reference part numbers: XPHS810, RCO810, URCO810, URC0810, RC0810, RC100, TJ90RCO810, AP4503019, ERP810, ERPU810, HS8, HS810, HS81, PCS810, Mars 32781 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This universal hard start kit is compatible with refrigerator and freezer compressors in the following range: Compressors rated 1/12 HP through 1/5 HP 120V (110–125VAC) single-phase compressors Standard PSC (permanent split capacitor) and RSIR compressor types across Whirlpool, GE, Frigidaire, LG, Samsung, and most other major brands Important: Do NOT install this kit on LG linear/inverter compressors, or any compressor using a variable-speed inverter board (often labeled "Inverter," "Linear," "BLDC," or "Digital"). Connecting a standard hard start kit to an inverter-driven compressor can destroy the inverter control board. Check your compressor's label before ordering, or contact our support team with your model number if you're unsure. Key Features 3-in-1 design combines starting relay, start capacitor, and thermal overload protector in one prewired unit Delivers additional starting torque to help a struggling compressor overcome startup friction and gas pressure Resolves "click-buzz-click," "won't start," and "trips on overload" symptoms on eligible compressors Rated for 1/12 to 1/5 HP compressors at 120V, 3.5A RLA Prewired, color-coded leads with instructions printed on the unit for straightforward installation Can operate with or without an existing run capacitor Replaces Supco RCO810, URCO810, RC0810, RC100, TJ90RCO810, AP4503019, ERP810, HS8, HS810, HS81, PCS810, and Mars 32781 Aftermarket replacement built to OEM-equivalent quality and safety standards Product Specifications Part Number XPHS810 Equivalent To Supco RCO810 / RC0810 Part Type 3-in-1 Refrigerator/Freezer Hard Start Kit (Relay, Capacitor, Overload) Condition Aftermarket Replacement HP Range 1/12 to 1/5 HP Voltage 120V (110–125VAC) Current Rating 3.5A RLA Terminal / Wire Color Code Black = Common (C), White = Start (S), Red = Run (R) — typical; confirm against included diagram Not Compatible With LG linear/inverter compressors Installation Notes ⚠️ Unplug Refrigerator Before Starting — Discharge Capacitor Safely Disconnect power before beginning. Before touching any wiring, check your compressor's data label to confirm it is NOT a linear/inverter/BLDC compressor — this kit is not compatible with those and can damage the inverter board if connected. Access the compressor compartment, typically at the rear or bottom of the unit. Remove the existing relay/overload assembly by gently pulling it straight off the compressor terminal pins — do not force or twist. Use a multimeter to confirm which pins are Common (C), Start (S), and Run (R) if not already labeled. Connect the hard start kit's wires to the matching pins. Wire the kit's main power leads into the refrigerator's supply wiring using wire nuts, following the included diagram. Secure the kit with zip ties or its mounting strap to prevent vibration damage during compressor operation. Restore power and confirm the compressor starts smoothly without repeated clicking. Tools needed: nut driver or screwdriver, digital multimeter, wire nuts, insulated screwdriver (for capacitor discharge). Frequently Asked Questions My compressor makes a clicking or buzzing sound and won't start — will this fix it? A hard start kit resolves this in many cases, especially on older or worn compressors that struggle to overcome internal gas pressure at startup. However, "click-buzz-click" can also indicate a failing compressor winding or a compressor nearing end of life. If the hard start kit doesn't resolve the issue, the compressor itself may need replacement — a hard start kit can extend a marginal compressor's life but can't revive one with failed internal windings. Can I use this on any refrigerator? This kit works on standard PSC and RSIR compressors within the 1/12 to 1/5 HP range at 120V. It is NOT compatible with LG linear/inverter compressors or any variable-speed inverter-driven compressor — connecting it to one of those can destroy the inverter control board. Check your compressor's label for "Inverter," "Linear," "BLDC," or "Digital" before ordering. Do I need to remove my existing start capacitor or relay first? Yes — remove the old relay/overload assembly from the compressor terminal pins before installing this kit. The XPHS810 is designed to work with or without an existing separate run capacitor remaining in the circuit, but the old start relay and any old start capacitor should be removed and replaced by this kit, not left in place alongside it. Is this safe to install myself? Many DIYers install hard start kits successfully, but this repair involves a capacitor that can hold a dangerous electrical charge even after the unit is unplugged, plus correctly identifying compressor terminals. If you're not comfortable working around stored electrical charge or don't have a multimeter to confirm terminal identification, we'd recommend having a qualified technician perform this repair. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

6600JB3001C Refrigerator Dispenser Switch – Replacement for GE, LG and Kenmore Product Overview This Dispenser Switch is a replacement part for specific LG, Kenmore, GE refrigerator models. This switch is crucial for the functionality of the water and ice dispenser, as it activates the dispensing mechanism when the user presses the lever or button. The switch ensures that the refrigerator dispenses water or ice on demand, providing convenience and ease of use. Replaces Part Numbers This dispenser switch replaces part numbers 6600JB3001C, 1268245, 1395586, 6600JB3001B, 6600JB3001H, PD00025340, EAP3529276, AH3529276, EA3529276, AP4441530, PS3529276, WR23X10783, 2695743, WR23X10171, WR23X10224, AP5688654, PS8259956. Engineered to deliver OEM-level performance and compatibility. Compatible Brands Compatible with LG and Kenmore refrigerators manufactured by LG. Fits various French door, side-by-side, and bottom-freezer models with front panel dispensers. Fixes the Following Issues Water or ice dispenser not working Dispenser works only when pressed a certain way No power reaching water or ice components Intermittent or unresponsive dispenser control Why Buy from Parts‑O‑Matic Durable and reliable aftermarket replacement Fast and free U.S. shipping Simple to install with plug-in compatibility Trusted by appliance repair techs and homeowners

Read more less

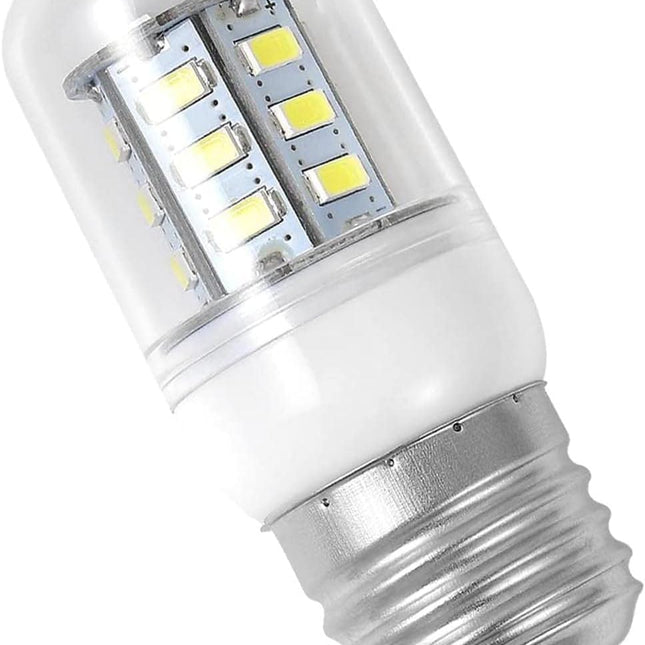

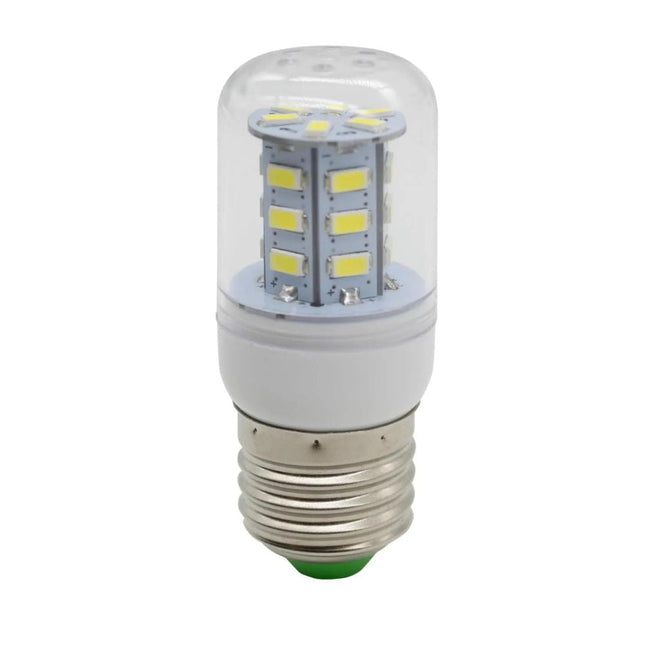

XPARTCO 5304511738 Refrigerator LED Light Bulb The XPARTCO 5304511738 is an aftermarket replacement LED refrigerator light bulb compatible with select Frigidaire, Electrolux, Kenmore, and Crosley refrigerators in the FFSS, LFSS, CRSE, FFHX, and related series. This LED bulb mounts inside the refrigerator or freezer cabinet and provides interior lighting when the door is opened. The 5304511738 uses a standard E26/E27 screw base and is rated at 3.5W, 120V, producing bright white light from 24 individual LED elements. It replaces the older-style incandescent refrigerator bulb with a longer-life, lower-energy LED equivalent that generates less heat inside the refrigerator cabinet. The bulb features a wide voltage design rated 85V–265V, making it compatible with both standard 110V and 220V electrical systems. It directly replaces PS12364857, AP6278388, 4584444, PS11767930, RLB11738, KEI D34L, KEID34L, KEL3418L, and the associated cross-reference numbers. Sold individually. Installs in under 2 minutes — unscrew the old bulb and screw in the new one. Quick Answer The XPARTCO 5304511738 Refrigerator LED Light Bulb replaces a burned out, dim, or flickering interior light in compatible Frigidaire, Electrolux, Kenmore, and Crosley refrigerators. 3.5W, E26/E27 base, 85V–265V, white light, 24 LEDs. Compatible with Frigidaire FFSS, LFSS, CRSE, FFHX series and related models. Replaces PS12364857, AP6278388, 4584444, KEI D34L, KEID34L, KEL3418L, RLB11738. Sold individually. Screws in — no tools required. Common Problems This Part Fixes Refrigerator interior light not working — bulb burned out Refrigerator light dim or flickering — bulb nearing end of life Refrigerator light on but very low brightness — LED elements failing Original incandescent bulb generating too much heat inside the cabinet Upgrading from incandescent to longer-life LED for energy savings Replaces Part Numbers This LED light bulb directly replaces the following OEM and cross-reference part numbers: 5304511738, 241560701, KEI D34L, KEID34L, KEL 3418L, KEL3418L, RLB11738, AFR17812, AP6278388, EAP12364857, PD00045325, PS12364857. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This LED light bulb is compatible with select refrigerators from the following brands and series: Frigidaire refrigerators — FFSS2315, FFSS2615, FFSS2625, LFSS2312, LFSS2612, CRSE233, CRSE263, FFHX2325, FFHT1821 and related series Electrolux refrigerators (select models using the same E26/E27 socket) Kenmore / Sears refrigerators (select Frigidaire/Electrolux-built models) Crosley refrigerators (select models) Note: Before ordering, verify that your refrigerator uses a standard screw-base (E26/E27) bulb socket. Some newer refrigerators use proprietary LED modules or LED assemblies that are not interchangeable with standard screw-base bulbs. Always verify your model number before purchasing. Key Features LED replacement for the standard refrigerator interior light — longer lifespan and lower energy use than incandescent equivalents 3.5W power consumption — significantly more energy-efficient than the original 25W–40W incandescent bulb 24 individual LED elements — bright, even, shadow-free white light illumination inside the cabinet E26/E27 universal screw base — fits the standard refrigerator bulb socket directly Wide voltage design: 85V–265V — compatible with standard 110V household current Less heat generated inside the refrigerator compared to incandescent bulbs — helps maintain consistent internal temperature Replaces PS12364857, AP6278388, 4584444, KEI D34L, KEID34L, KEL3418L, and RLB11738 Sold individually — order 2 if your refrigerator has two light sockets Aftermarket replacement built to OEM-equivalent quality standards Installs in under 2 minutes — no tools required Product Specifications Part Number 5304511738 Part Type Refrigerator LED Interior Light Bulb Condition Aftermarket Replacement Wattage 3.5W Voltage 85V–265V (wide voltage / 120V standard US) Amperage 0.038A (at 120V) LED Count 24 LEDs Light Color White Base Type E26/E27 screw base (universal) Sold As Single bulb Installation Screw-in — no tools required Compatible Brands Frigidaire, Electrolux, Kenmore, Crosley Installation Notes ⚠️ Unplug Refrigerator Before Replacing the Bulb Unplug the refrigerator before replacing the bulb to avoid electric shock. Open the refrigerator door and locate the light bulb socket — it is typically behind a plastic light cover or lens on the interior ceiling or side wall of the fresh food section. Remove the plastic light cover if present (it usually snaps off or slides forward). Turn the old bulb counter-clockwise to unscrew and remove it. Screw the new 5304511738 LED bulb in clockwise until snug — do not overtighten. Replace the light cover, restore power, and open the door to confirm the light works. Frequently Asked Questions Will this LED bulb work as a direct replacement for the original incandescent bulb? Yes — the 5304511738 LED bulb uses the same E26/E27 screw base as the original incandescent refrigerator bulb and draws from the same 120V socket. It screws in exactly like the original and produces bright white light. The LED version uses only 3.5W compared to the typical 25W–40W of an incandescent refrigerator bulb, which means lower energy use and significantly less heat generated inside the refrigerator cabinet — both of which are improvements over the original. My refrigerator has two light sockets — do I need two bulbs? Yes — if your refrigerator has two light sockets (one for the fresh food section and one for the freezer, or two in the fresh food section), you will need two bulbs. This listing is for a single bulb. Order two to replace both sockets at the same time — replacing both ensures even light output and prevents being left without light shortly after when the second older bulb burns out. What are the KEI D34L, KEID34L, and KEL3418L designations? KEI D34L, KEID34L, and KEL3418L are model designations printed on the original Frigidaire refrigerator LED bulb or its housing — they are not traditional part numbers but are used by some parts databases as cross-references for the 5304511738. If you see any of these designations on your old bulb or in your refrigerator's parts list, the 5304511738 is the correct replacement. My refrigerator light doesn't work but the new bulb also doesn't light up — what else could it be? If the new bulb does not light up after installation, the bulb is likely not the cause of the problem. Other possible causes include a failed door switch (the switch that tells the refrigerator the door is open and turns on the light), a wiring issue in the light circuit, or a failed control board relay that supplies power to the light socket. Test the door switch by pressing and releasing it manually — if the light activates when you press it and turns off when you release it, the switch is working and the issue is elsewhere in the circuit. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Frigidaire OEM part, but is manufactured with 24 LED elements in an E26/E27 base to match the light output and fit of the original 5304511738 refrigerator LED bulb. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO WR55X26671 Refrigerator LED Light Board The XPARTCO WR55X26671 is an aftermarket replacement LED light board compatible with select GE and Hotpoint refrigerators, commonly used in side-by-side and French door models. The LED light board sits behind the light lens inside the refrigerator or freezer compartment and provides interior illumination when the door is opened. It features 3 LED light clusters that deliver brighter, more energy-efficient lighting compared to traditional incandescent bulbs. When the light board fails, the refrigerator interior will be dark, making it difficult to see food contents. The board measures approximately 4" L x 3/8" W x 5/8" H with a white, yellow, and taupe plastic and metal construction. The surface is coated with three-proof paint to resist moisture damage from condensation inside the refrigerator. It directly replaces AP6035586, PS11767930, 4468532, EAP11767930, and PD00048392. Sold individually. Installs in under 5 minutes — no tools required in most cases. Quick Answer The XPARTCO WR55X26671 Refrigerator LED Light Board fixes GE and Hotpoint refrigerators where the interior light is out or flickering. LED board with 3 light clusters. Approx. 4" L x 3/8" W x 5/8" H. Moisture-resistant three-proof coating. Sold individually — some models use multiple boards in series. Replaces AP6035586, PS11767930, 4468532, EAP11767930. Compatible with GE side-by-side and French door refrigerators. Common Problems This Part Fixes Refrigerator interior light not working — compartment is dark when door is opened Freezer compartment light not working Interior light flickering or intermittently cutting out Only some LEDs on the light board working — partial illumination Light board visibly damaged, discolored, or burned Interior light stays dim after replacing the door switch (failed board, not switch) Replaces Part Numbers This LED light board directly replaces the following OEM and cross-reference part numbers: WR55X26671, 4468532, 225D9507G001, 57935, OT7849, W5B3Y3, AGE28912, EAP11767930, FIX11767930, PD00048392, AP6035586, PS11767930. Contact our support team with your model number if you need compatibility confirmation before ordering. Compatibility This LED light board is compatible with select refrigerators from the following brands: GE refrigerators — side-by-side models (GSS, GSE, DSE, CZS series and more) GE refrigerators — French door models (select models) Hotpoint refrigerators (select GE-platform models) Important: Some GE refrigerator models use multiple LED light boards wired in series. If your refrigerator has more than one light board, all boards in the series may need to be replaced at the same time — a single failed board in a series circuit can cause all boards on that circuit to go dark. Verify how many boards your model uses before ordering. Always verify your model number before ordering. Key Features 3 LED light clusters — brighter illumination than traditional incandescent bulbs with lower energy consumption Fits behind the light lens inside the refrigerator or freezer compartment — direct replacement for WR55X26671 Operates automatically with the door switch — lights when door opens, turns off when door closes Three-proof coating on the board surface — moisture, dust, and corrosion resistant for long service life inside the refrigerator Dimensions: approx. 4" L x 3/8" W x 5/8" H Sold individually — verify quantity needed for your model before ordering Ships in anti-static bag to protect sensitive electronic components during transit Aftermarket replacement built to OEM-equivalent quality standards Quick installation — under 5 minutes, no tools required in most cases Product Specifications Part Number WR55X26671 Part Type Refrigerator Interior LED Light Board Condition Aftermarket Replacement Application GE and Hotpoint side-by-side and French door refrigerators LED Clusters 3 light clusters per board Dimensions Approx. 4" L x 3/8" W x 5/8" H Color White / Yellow / Taupe Material Plastic / Metal Coating Three-proof paint (moisture, dust, corrosion resistant) Packaging Ships in anti-static bag Sold As Single board (some models require multiple — verify before ordering) Compatible Brands GE, Hotpoint Installation Notes ⚠️ Unplug Refrigerator Before Starting Unplug the refrigerator before beginning. Open the refrigerator door and locate the light lens cover inside the compartment. Gently pry off or unscrew the light lens cover to expose the light board behind it. Carefully disconnect the old light board from its electrical connector. Remove the old board and insert the new WR55X26671 in the same orientation, pressing it into its housing until it seats securely. Reconnect the electrical connector. Reinstall the light lens cover. Restore power and open the door to confirm the new light board illuminates correctly. Tools needed: None in most cases; a small flat-head screwdriver may help with the lens cover on some models. Frequently Asked Questions My refrigerator light is out — how do I know if it's the light board or the door switch? The easiest test is to manually press the door switch (the small button inside the door frame that the door presses when closed) — if pressing it causes the light to turn off and releasing it causes it to come back on, the door switch is functioning and the light board itself has failed. If pressing the door switch has no effect and the light remains off, the door switch may be faulty. You can also inspect the light board visually — if any LED clusters are visibly dark, discolored, or burned, the board has failed. My refrigerator uses multiple light boards — do I need to replace all of them? Possibly yes. Some GE refrigerator models wire their LED light boards in a series circuit, where all boards share the same electrical path. If one board in the series fails, it can break the circuit and cause all boards on that circuit to go dark — even boards that are otherwise still functional. If your refrigerator went completely dark in a compartment that uses multiple boards, it is recommended to replace all boards in that series at the same time rather than trying to identify and replace a single failed board. Is the WR55X26671 used in both the refrigerator and freezer sections? Yes — on compatible GE models, the same WR55X26671 light board is used in both the fresh food compartment and the freezer compartment. If the light is out in only one section, that section's board (or boards) has failed. If both sections are dark simultaneously, the issue may be with the door switch, main control board, or wiring rather than the light boards themselves. Why does the board ship in an anti-static bag? The WR55X26671 contains sensitive electronic components that can be permanently damaged by static electricity discharge during handling. The anti-static bag prevents static buildup during shipping and storage. When installing the board, avoid touching the circuit board traces or components directly — handle it by the edges or plastic frame. Do not open the anti-static bag until you are ready to install. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured with a three-proof moisture-resistant coating and to match the dimensions and performance of the original WR55X26671 LED light board. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

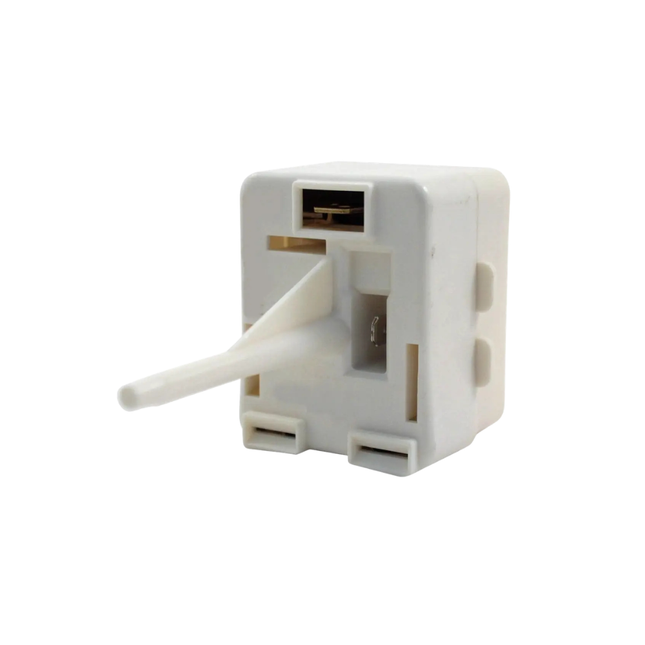

XPARTCO WR07X10131 Refrigerator Compressor Overload Relay The XPARTCO WR07X10131 is an aftermarket replacement compressor start relay and overload, a PTCR combination device, for GE, Hotpoint, Kenmore, and RCA refrigerators. It plugs onto the compressor, helps the compressor start by managing the current it draws at startup, and protects it against overload while it runs. When it fails, the compressor may click but not start, and the refrigerator and freezer stop cooling. This is a direct-fit aftermarket replacement for the original GE part. A failed relay is one of several causes of a compressor that won't run, so confirm the symptoms and test the relay before replacing it. Quick Answer The XPARTCO WR07X10131 Compressor Overload Relay fixes a GE, Hotpoint, Kenmore, or RCA refrigerator whose compressor clicks but won't start, or whose refrigerator and freezer have stopped cooling. Classic symptom: you hear a click from the back of the refrigerator every few minutes, the compressor never runs, and both compartments warm up. Common Problems This Part Fixes Refrigerator and freezer have stopped cooling Compressor clicks but doesn't start Compressor won't start at all Compressor cycles on and off or trips repeatedly Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This relay and overload directly replaces the following part numbers: WR07X10131, WR08X10074, WR08X10089, WR08X10111, 197D6266P001, 5SP14A319NF, WR09X10124, AGE27632, AP4538934, AH2577842, EA2577842, EAP2577842, PD00001415, PS2577842 These numbers span several generations of GE's own part numbering for this relay as refrigerator models were updated. Confirm against your refrigerator's parts diagram, or contact our support team, if your model calls out a different number. Compatibility This relay and overload is listed for GE, Hotpoint, Kenmore, and RCA refrigerators, including these examples: GE CNE22SSEAFSS, GNE22GSEAFSS, PFSF2MIYAWW (bottom-mount) GE CTH17RBT2RWW, GTH18CCEHRWW, GTS18HBSFRWW (top-freezer) GE GSH22JGDBBB, GSL25JFXNLB Note: One retailer lists this part for more than 600 models, so the models above are only a sample. GE's catalog page for the original part carries a warning about use with flammable refrigerants such as R600a, so confirm the part against your refrigerator's model number before installing. Contact our support team to verify fit before ordering. Key Features Direct-fit aftermarket compressor start relay and overload (PTCR combo) Helps the compressor start and protects it against overload Resolves no-cooling and clicking-compressor problems caused by a failed relay Fits many GE, Hotpoint, Kenmore, and RCA refrigerators Easy repair with basic hand tools, typically 15 to 30 minutes Product Specifications Part Number XPWR07X10131 OEM Part Number WR07X10131 Part Type Refrigerator Compressor Start Relay and Overload (PTCR Combo) Condition Aftermarket Replacement Location On the Compressor Application GE, Hotpoint, Kenmore & RCA Refrigerators Installation Notes ⚠️ Unplug Power Before Installing Unplug the refrigerator before beginning, and wear work gloves. Pull the refrigerator out and remove the rear access cover to reach the compressor, then disconnect the wire connector and any retaining clip, and pull the old relay straight off the compressor terminals. Push the new relay on in the same orientation, reattach the clip and connector, and replace the cover. Do not touch or disturb the sealed refrigerant lines. Allow the refrigerator several hours to cool after restoring power. Frequently Asked Questions My refrigerator isn't cooling and the compressor clicks. Is this the part I need? A failed start relay and overload is a common cause of a clicking compressor that won't start. With the refrigerator unplugged, you can test the relay for continuity. A failed compressor or a failed run capacitor can look similar. What does this part do? It helps the compressor start by regulating the current sent to it at startup, and it protects the compressor from overload while it runs. Do I need to open the sealed refrigerant system? No. The relay plugs onto the compressor terminals from the outside, and the refrigerant lines are not touched. Will this fit my refrigerator? It is listed for many GE, Hotpoint, Kenmore, and RCA refrigerators, but the model list above is only a sample. Check your model number against your parts diagram, or contact our support team and we'll verify it before you order. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO W10515057 Refrigerator LED Light & Cover Replaces WPW10515057 The XPARTCO W10515057 is an aftermarket replacement LED light and tapered lens cover assembly for Whirlpool, Kenmore, Maytag, KitchenAid, Inglis, and Ikea refrigerators. This assembly illuminates the interior of the refrigerator or freezer compartment, and includes both the LED light module and its protective tapered lens cover in one unit. Many of these refrigerators use three separate LED light boards — one at the top of the refrigerator compartment, one at the bottom, and one in the freezer — and a failure in any one of them can sometimes cause symptoms that appear elsewhere in the lighting system. Over time, individual LEDs on the board can burn out or begin to flicker. A failing light assembly typically shows up as a light that's dim, flickering, strobing, or not turning on at all, and in some cases, all the lights in the refrigerator strobing together even though only one board has actually failed. It directly replaces WPW10515057, W10398007, AP6022533, and PS11755866. Quick Answer The XPARTCO W10515057 Refrigerator LED Light & Cover fixes Whirlpool, Kenmore, Maytag, KitchenAid, Inglis, and Ikea refrigerators with a dim, flickering, or non-working interior light — including cases where all the lights in the fridge strobe together. Includes LED light module and tapered lens cover. Replaces WPW10515057, W10398007, AP6022533, PS11755866. If your whole refrigerator's lighting strobes when a door opens, the actual failed board may not be the most obvious one — check all three light positions (top and bottom of the fridge, plus the freezer) before assuming which one needs replacing. Common Problems This Part Fixes Interior light dim or flickering Interior light not turning on at all All refrigerator lights strobing together when a door opens Only some LEDs on the board lit, others dark Reduced visibility inside the refrigerator or freezer compartment Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator LED light and cover assembly directly replaces the following OEM and cross-reference part numbers: WPW10515057, W10515057, W10398007, AP6022533, AWP51164, EAP11755866, OEM18067608, PD00031142, PS11755866 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This LED light and cover assembly is compatible with select Whirlpool refrigerators, and also fits select Kenmore, Maytag, KitchenAid, Inglis, and Ikea refrigerators built on the Whirlpool platform, including model numbers such as WRS325FDAT02, WRS325FDAM01, WRS325FDAM02, WRS325FDAM04, WRS331FDDB01, WRS331FDDW01, and WRS331FDDM01. Note: This assembly is a different part from the related W10515058 light board used elsewhere in the same lighting system on some models. If only one section of your refrigerator's lighting is affected, confirm which specific board position (top, bottom, or freezer) has failed before ordering, since a strobing or flickering symptom in one area can actually be caused by a different board. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which light assembly your refrigerator needs. Key Features Aftermarket replacement LED light and tapered lens cover assembly Resolves "dim or flickering light," "won't turn on," and "lights strobing together" symptoms Includes both the LED light module and its tapered lens cover Energy-efficient, long-lasting LED illumination Direct drop-in replacement matching the original mounting Replaces WPW10515057, W10398007, AP6022533, and PS11755866 Compatible with Whirlpool, Kenmore, Maytag, KitchenAid, Inglis, and Ikea refrigerators Aftermarket replacement built to OEM-equivalent quality standards Easy installation — no specialized tools required Product Specifications Part Number W10515057 OEM Part Number WPW10515057 Part Type Refrigerator LED Light & Tapered Lens Cover Assembly Condition Aftermarket Replacement Function Illuminates the interior of the refrigerator or freezer compartment Includes LED light module, tapered lens cover Repair Difficulty Easy — no specialized tools required Quantity 1 LED light and cover assembly Compatible Brands Whirlpool, Kenmore, Maytag, KitchenAid, Inglis, Ikea Installation Notes ⚠️ Unplug Refrigerator Before Starting Disconnect power to the refrigerator before beginning to avoid electrical hazards. Wear work gloves, since some edges around the light housing can be sharp. Locate the light assembly you're replacing — check the top and bottom of the refrigerator compartment as well as the freezer, since your refrigerator may use more than one of these assemblies in different positions. Remove the lens cover from the housing, then disconnect the wiring harness from the LED board. Remove the mounting screws or clips securing the old assembly and take it out. Install the new W10515057 in the same position, reconnect the wiring harness fully, and secure the mounting hardware. Snap the tapered lens cover back into place. Restore power and confirm the light turns on normally with even, steady illumination and no flickering or strobing. Tools needed: Phillips screwdriver (model-dependent), work gloves. Frequently Asked Questions All the lights in my refrigerator strobe when I open a door. Which light do I actually need to replace? This is a well-documented and somewhat counterintuitive symptom. One customer experienced exactly this — all the refrigerator's lights strobing whenever either door opened — and initially assumed the top refrigerator compartment light was at fault. After ordering that part, a notice included in the packaging explained that if either of the other two LED lights (bottom of the refrigerator, or the freezer light) were bad, they could cause the same strobing symptom throughout the whole system. Checking further, they found the freezer light had 3 out of 4 LEDs strobing, and replacing that light — not the one they originally suspected — resolved the issue completely. If you're seeing this symptom, check all three light positions rather than assuming the most visible one is the cause. Does this include the plastic lens cover, or just the LED light? This listing includes both the LED light module and its tapered lens cover as a complete assembly. Some other sellers offer LED-only versions without the cover, so if you're comparing listings elsewhere, double check whether the cover is included. Is this a difficult repair? No, this is considered an easy installation with no specialized tools required, though it's worth taking normal care around the electrical connections and unplugging the refrigerator first to avoid any electrical hazard. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the LED module, tapered lens cover design, and mounting configuration of the original WPW10515057 assembly used in compatible Whirlpool, Kenmore, Maytag, KitchenAid, Inglis, and Ikea refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

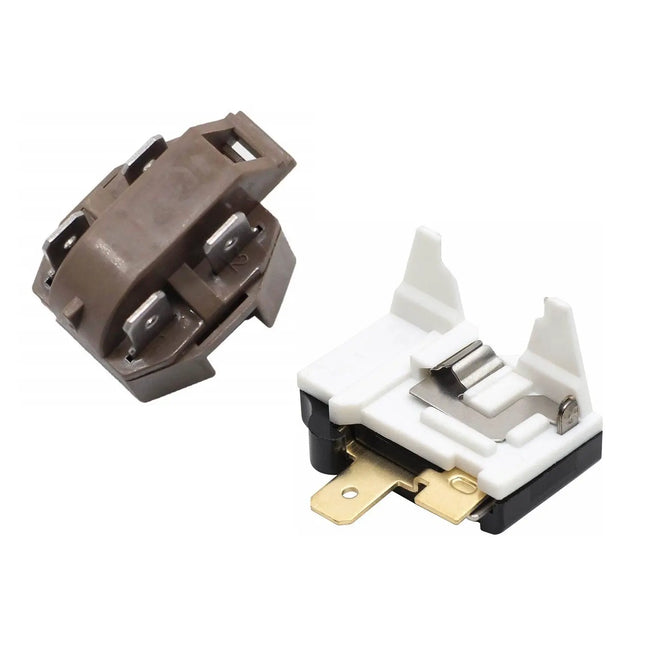

XP61005518 Refrigerator Relay Fits Specific refrigerator Models Replaces Part Numbers: 12002782, 1194680, 61005518, AH2004057, EA2004057, OEM12028982, AP4009659, PS2004057. Description: This is a Replacement compressor overload and relay kit for Specific Whirlpool, Maytag, Kenmore Refrigerator models. Kit was recently redesigned by manufacturer.   This is an aftermarket part that can be used as a replacement for the OEM part. California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

XPARTCO Refrigerator Replacement Part XPARTCO W10515058B Refrigerator LED Light Driver Board for WPW10515058 Aftermarket LED driver/circuit board only for compatible 2-plug WPW10515058-style refrigerator light assemblies. Product Overview The XPARTCO W10515058B Refrigerator LED Light Driver Board is an aftermarket replacement circuit/driver board for select refrigerator light assemblies that use the WPW10515058 / W10515058 2-plug configuration. Board only: the plastic light housing and lens/cover are not included. Quick Answer Use W10515058B when the compatible WPW10515058-style light assembly has a failed electronic board but the existing housing and lens can be reused. Verify your original part number and connector configuration before ordering. Common Problems This Part May Fix Refrigerator interior LED light does not illuminate LED light flickers or operates intermittently Light remains dim despite a good connection Existing light housing and lens are reusable but the electronic board has failed Replaces and Cross-References WPW10515058, W10515058, W10465957, W10522611, AP6022534, AWP993990, EAP11755867, PD00030078, PS11755867 These numbers identify the compatible OEM light assembly family. W10515058B is an XPARTCO aftermarket driver board only, not the complete Whirlpool light housing/lens assembly. Compatibility Designed for refrigerators that use the WPW10515058 2-plug LED light assembly. Compatible model examples include: MSF25D4MDE03 MSF21D4MDH00 MSF25D4MDM02 WRS325FDAB02 WRS325FDAM04 KSF22C4CYY01 106.41122211 106.51139214 106.51799411 106.41152211 106.51722410 106.41159211 Important: Partial model list only. Confirm the complete refrigerator model and original light part number before ordering. WPW10515058 uses a 2-plug configuration; WPW10515057 is a different 1-plug light and should not be substituted by appearance alone. Key Features XPARTCO aftermarket replacement Electronic LED driver/circuit board only For compatible WPW10515058 2-plug light assemblies Allows reuse of the original housing and lens when serviceable Designed for select Whirlpool-built refrigerator platforms Product Specifications XPARTCO Part Number W10515058B Part Type Refrigerator LED Light Driver / Circuit Board Brand XPARTCO Condition New Replacement Type Aftermarket Compatible OEM Assembly WPW10515058 / W10515058 Connector Family 2-Plug WPW10515058 Style Housing Included No Lens / Cover Included No Package Quantity 1 Driver Board Installation Notes Disconnect refrigerator power before service. Remove the existing LED light assembly according to the appliance service procedure. Confirm the original assembly is WPW10515058 / W10515058 or a verified equivalent and uses the 2-plug configuration. Transfer the replacement board into the existing serviceable housing/lens as applicable. Reconnect wiring securely and reinstall the light assembly. Restore power and verify proper lighting operation. Diagnostic note: Multiple dark or flickering refrigerator LEDs can sometimes be caused by another failed module, wiring problem, or control issue. Diagnose the lighting circuit before replacing parts unnecessarily. Frequently Asked Questions Does W10515058B include the plastic light housing and lens? No. This listing is for the LED driver/circuit board only. Reuse your existing housing and lens if they are in serviceable condition. Does it replace WPW10515058? It is designed as a board-only aftermarket repair option for compatible WPW10515058-style 2-plug light assemblies. It is not a complete OEM light assembly. Is this the same as WPW10515057? No. WPW10515057 is the similar 1-plug light family. WPW10515058 is the 2-plug family. Is this Genuine Whirlpool OEM? No. W10515058B is an XPARTCO aftermarket replacement board. Shop With Confidence Verify your refrigerator model, original light part number, and connector configuration before ordering. XPARTCO ReplacementBoard Only2-Plug Light FamilyCompatibility Support
