HVAC Miscellaneous Parts

XPARTCO XPC5-450R Round Motor Run Capacitor (CBB65, 5 MFD, 450V) The XPARTCO XPC5-450R is a universal single run capacitor for single-phase AC motors. Unlike a dual run capacitor, which combines two capacitors into one can to serve both a compressor and a fan motor, this is a single capacitor with two terminals, sized for one motor circuit. Once a motor has started, this capacitor stays in the circuit continuously, correcting the phase of the current feeding the motor's auxiliary winding, which improves torque, efficiency, and running smoothness. This 5 MFD size is a very common rating for condenser fan motors, but the same CBB65-style capacitor is also widely used on pool pumps, small air compressors, washing machines, and other single-phase motor equipment. Rated 5 MFD at 450VAC. Like all run capacitors, this one stores an electrical charge even after power is disconnected, and it should always be treated as energized until properly discharged. Over time, the dielectric material inside breaks down from heat and electrical stress, causing the capacitor to lose capacitance or fail outright. A failing run capacitor produces a recognizable symptom set: the motor hums but won't start, runs weakly, overheats, trips a breaker or overload protector, or the capacitor can itself becomes visibly bulged, domed, or leaks oily residue at the top. Quick Answer The XPARTCO XPC5-450R Round Motor Run Capacitor fixes single-phase motor equipment — condenser fan motors, pool pumps, small compressors, and similar applications — where the motor hums but won't start, runs weakly, overheats, or trips its breaker or overload protector. 5 MFD, 450VAC, round CBB65-style capacitor, 2 terminals. Capacitors store a dangerous electrical charge even after power is disconnected — always discharge before handling. Common Problems This Part Fixes Motor hums but won't start Motor runs, but weakly or with reduced torque Motor runs hot or trips its internal overload protector Fan or pump won't start on its own but will run if given a manual push Equipment trips the circuit breaker shortly after starting Capacitor can visibly bulging, domed on top, or leaking oily residue Motor that used to start slowly and has now stopped starting altogether Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers XPC5-450R This is a universal component rather than a single-manufacturer part, so the specific OEM number your equipment's label references will vary by brand. This capacitor is a correct replacement for any single run capacitor matching the 5 MFD rating with a voltage rating of 450V or lower. If you have your original part number, contact our support team and we will verify compatibility before you order. Compatibility This single run capacitor is a universal replacement compatible with single-phase AC motor equipment across all major brands, wherever the original capacitor is rated: 5 MFD 370V, 440V, or 450V (this capacitor's 450V rating exceeds and safely replaces either lower rating) Round can shape with 2 terminals Common applications include central air conditioner and heat pump condenser fan motors, pool and spa pumps, small single-phase air compressors, and various single-phase motor equipment. Note — single run, not dual: This is a single-motor capacitor with 2 terminals, distinct from our dual run capacitors (such as the XPDC80X5-450R and similar listings), which combine two capacitors and 3 terminals to serve both a compressor and a fan motor from one can. If your equipment's original capacitor has 3 terminals labeled C, Herm, and Fan, you need a dual capacitor instead of this single one. The MFD rating must match your original capacitor exactly; voltage rating can be equal to or higher than the original, but never lower. Always verify your original capacitor's specifications, printed on its can, before ordering. Contact our support team if you'd like help confirming compatibility. Key Features Universal single run capacitor for single-phase AC motors 5 MFD rating in a compact round can — a common size for condenser fan motors and similar equipment 450VAC rating — a safe upgrade replacement for equipment originally speced at 370V or 440V Round CBB65-style can construction Resolves "hums but won't start," "runs weakly," "overheats," and "trips the breaker" symptoms caused by capacitor failure 2 quick-connect terminals for a direct plug-on fit to standard motor wiring 50/60Hz rated Built to meet or exceed industry-standard specifications for this capacitor class Product Specifications Part Number XPC5-450R Part Type Single Run Capacitor Condition New — Universal Replacement Part Capacitance 5 MFD (µF) Voltage Rating 450VAC Shape Round Terminals 2 (quick-connect) Frequency 50/60 Hz Tolerance ±5% Construction Type Polypropylene film capacitor Operating Temperature Range -40°C to 70°C (-40°F to +158°F) Safety Approvals CQC, VDE, TÜV, CL Approval Standard GB/T 3667, EN 60252 Application Single-Phase AC Motors — Condenser Fans, Pool Pumps, Small Compressors Quantity 1 single run capacitor Compatible Brands Universal — all major brands Installation Notes ⚠️ Danger — Capacitors Store A Dangerous Electrical Charge Shut off power to the equipment at the disconnect box and at the breaker before beginning. A capacitor stores an electrical charge even after power has been disconnected, and that charge can deliver a serious or fatal shock. Before touching either terminal, discharge the capacitor by shorting the two terminals together using an insulated-handle screwdriver, or by using a proper capacitor discharge tool with a resistor. Never short the terminals with a bare metal tool held with your bare hand. If you are not fully comfortable performing a capacitor discharge safely, have a qualified technician replace this part instead. ⚠️ Photograph The Wiring Before Disconnecting Wear work gloves and safety glasses. After confirming the capacitor is fully discharged, photograph the wiring on the old capacitor's terminals before disconnecting anything. Note which wire came from which terminal, or label them individually with tape. Remove the mounting strap or bracket holding the old capacitor in its housing, and disconnect each wire from its terminal. Install the new XPC5-450R in the same mounting position, secure it with the strap or bracket, and reconnect each wire to its matching terminal exactly as labeled. Double-check both connections before restoring power. Restore power at the breaker and disconnect box, and confirm the motor starts promptly and runs smoothly. Tools needed: insulated-handle screwdriver or capacitor discharge tool, nut driver, work gloves, safety glasses. Frequently Asked Questions How do I know if I need this single capacitor or a dual run capacitor? Look at your old capacitor's terminals. If it has only 2 terminals serving one motor circuit, this single capacitor is the correct type. If it has 3 terminals labeled C, Herm, and Fan (or similar), it's a dual capacitor serving both a compressor and a fan motor from one can, and you'll need a dual capacitor such as our XPDC-series listings instead. The two types are not interchangeable. Can I use a 450V capacitor to replace my old 370V or 440V one? Yes. Voltage rating is a ceiling, not an exact match requirement — a capacitor rated for a higher voltage than your original will work safely and often lasts longer under the same electrical stress. What you cannot do is go the other direction: never install a capacitor with a lower voltage rating than your original, since that risks premature failure or the capacitor breaking down under normal operating conditions. My fan or pump motor hums but won't start. Is this the capacitor? It's one of the most common causes of exactly that symptom. A run capacitor gives the motor the extra push needed to start turning; without it working correctly, the motor can draw power and hum in place without ever actually starting to spin. If you can see the capacitor can and it looks bulged, domed on top, or is leaking a brown oily residue, that's strong visual confirmation of failure. Is this a genuine OEM part? This is a universal replacement part rather than a brand-specific OEM part. Because run capacitors are a standardized component defined by their electrical specifications rather than their manufacturer, this capacitor is a correct replacement for any equipment's original capacitor that shares the same 5 MFD, 450VAC, round rating — regardless of which brand originally installed it. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Replacement Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO XPDC35X5-450R Dual Run Capacitor (35/5 MFD, 450V, Round) The XPARTCO XPDC35X5-450R is a universal dual run capacitor for central air conditioners, heat pumps, and condensing units. A run capacitor works alongside a single-phase AC motor to keep it running efficiently once it's started, boosting torque and correcting the phase of the current feeding the motor's windings. This is a dual capacitor, meaning it combines two separate capacitors — one for the compressor, one for the condenser fan motor — into a single three-terminal can, which is why nearly every residential outdoor AC unit uses exactly this style of component to run both motors from one part. Rated 35 MFD for the compressor circuit and 5 MFD for the fan motor circuit, at 450VAC, in a round aluminum can housing. Because a capacitor's voltage rating is a ceiling rather than a fixed match, this 450V-rated capacitor can safely replace an original capacitor rated 370V or 440V — going higher on voltage is always safe, going lower is not. Over time, the dielectric material inside a run capacitor breaks down from heat cycling and electrical stress, causing it to lose capacitance or fail outright. A failing dual capacitor produces a very recognizable set of symptoms: the outdoor unit hums but the compressor or fan won't start, the fan spins slowly or needs a manual push to get going, the system trips the breaker, or the capacitor can itself is visibly bulging, domed, or leaking oily residue at the top. Quick Answer The XPARTCO XPDC35X5-450R Dual Run Capacitor fixes central air conditioners and heat pumps where the outdoor unit hums but won't start, the compressor or fan motor won't run, the fan spins slowly or needs a manual push, the breaker trips, or the capacitor can is visibly bulged or leaking. 35 MFD (compressor) + 5 MFD (fan) dual capacitor, 450VAC, round, 3-terminal. Universal fit for equipment originally speced at 370V or 440V, since a higher voltage rating is always a safe upgrade. Capacitors store a dangerous electrical charge even after power is disconnected — always discharge before handling. Common Problems This Part Fixes Outdoor AC unit hums but the compressor won't start Condenser fan won't spin, or spins slowly and needs a manual push to get going System trips the breaker shortly after starting AC blows warm air because the compressor isn't running Repeated clicking sound from the contactor as it tries and fails to start the motor Capacitor can visibly bulging, domed on top, or leaking oily residue System that used to start slowly and has now stopped starting altogether Burning smell from the outdoor unit's electrical compartment Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers XPDC35X5-450R This is a universal component rather than a single-manufacturer part, so the specific OEM number your HVAC system's label references will vary by brand (Goodman, Trane, Carrier, Rheem, York, Lennox, Amana, and others). This capacitor is a correct replacement for any dual run capacitor matching the 35 MFD / 5 MFD rating with a voltage rating of 450V or lower. If you have your original part number, contact our support team and we will verify compatibility before you order. Compatibility This dual run capacitor is a universal replacement compatible with central air conditioners, heat pumps, and condensing units across all major HVAC brands, wherever the original capacitor is rated: 35 MFD (compressor) + 5 MFD (fan motor) 370V, 440V, or 450V (this capacitor's 450V rating exceeds and safely replaces either lower rating) Round can shape with 3 terminals Note: The MFD (microfarad) rating must match your original capacitor exactly on both sides — do not substitute a different MFD value for either the compressor or fan side. Voltage rating, on the other hand, can be equal to or higher than the original (450V safely replaces 370V or 440V), but never lower. Can shape (round vs. oval) affects only physical fit inside your unit's electrical compartment, not performance. If you're unsure of your original capacitor's specifications, they're printed directly on its can — contact our support team if you'd like help confirming compatibility. Key Features Universal dual run capacitor — supports both the compressor and condenser fan motor from one component 35 MFD compressor rating + 5 MFD fan motor rating in a single 3-terminal can 450VAC rating — a safe upgrade replacement for equipment originally speced at 370V or 440V Round aluminum can construction Resolves "hums but won't start," "fan spins slowly," "trips the breaker," and "bulging or leaking can" symptoms caused by capacitor failure 1/4" quick-connect terminals for a direct plug-on fit to standard HVAC wiring 50/60Hz rated Safety approved: CQC, VDE, TÜV, and CL; built to GB/T 3667 and EN 60252 standards Built to meet or exceed industry-standard specifications for this capacitor class Product Specifications Part Number XPDC35X5-450R Part Type Dual Run Capacitor Condition New — Universal Replacement Part Capacitance — Compressor 35 MFD (µF) Capacitance — Fan Motor 5 MFD (µF) Voltage Rating 450VAC Shape Round Terminals 3 (1/4" quick-connect) Frequency 50/60 Hz Tolerance ±5% Construction Type Polypropylene film capacitor Operating Temperature Range -40°C to 70°C (-40°F to +158°F) Safety Approvals CQC, VDE, TÜV, CL Approval Standard GB/T 3667, EN 60252 Application Central Air Conditioners, Heat Pumps, Condensing Units Quantity 1 dual run capacitor Compatible Brands Universal — all major HVAC brands Installation Notes ⚠️ Danger — Capacitors Store A Dangerous Electrical Charge Shut off power to the outdoor unit at the disconnect box and at the breaker before beginning. A capacitor stores an electrical charge even after power has been disconnected, and that charge can deliver a serious or fatal shock. Before touching any terminal, discharge the capacitor by shorting each pair of terminals together (C-to-Fan, C-to-Herm, and Fan-to-Herm) using an insulated-handle screwdriver, or by using a proper capacitor discharge tool with a resistor. Never short the terminals with a bare metal tool held with your bare hand. If you are not fully comfortable performing a capacitor discharge safely, have a qualified HVAC technician replace this part instead. ⚠️ Photograph The Wiring Before Disconnecting — Match Terminals Exactly Wear work gloves and safety glasses. After confirming the capacitor is fully discharged, photograph the wiring on the old capacitor's terminals before disconnecting anything — dual capacitors are labeled C (Common), Herm or Comp (compressor/hermetic), and Fan, and getting a wire on the wrong terminal can damage the new capacitor or the motor it feeds. Note which terminal each wire came from, or label them individually with tape. Remove the mounting strap or bracket holding the old capacitor in its housing, and disconnect each wire from its terminal. Install the new XPDC35X5-450R in the same mounting position, secure it with the strap or bracket, and reconnect each wire to the matching terminal (C, Herm, and Fan) exactly as labeled. Double-check every connection before restoring power. Restore power at the breaker and disconnect box, and confirm the compressor and fan both start promptly and run smoothly. Tools needed: insulated-handle screwdriver or capacitor discharge tool, nut driver, work gloves, safety glasses. Frequently Asked Questions My AC unit hums but won't start. Is this the capacitor? It's one of the most common causes of exactly that symptom. A run capacitor gives the compressor or fan motor the extra push needed to start turning; without it, the motor can draw power and hum in place without ever actually starting to spin. If you can see the capacitor can and it looks bulged, domed on top, or is leaking a brown oily residue, that's strong visual confirmation of failure. Can I use a 450V capacitor to replace my old 370V or 440V one? Yes. Voltage rating is a ceiling, not an exact match requirement — a capacitor rated for a higher voltage than your original will work safely and often lasts longer under the same electrical stress. What you cannot do is go the other direction: never install a capacitor with a lower voltage rating than your original, since that risks premature failure or the capacitor breaking down under normal operating conditions. Does the round vs. oval shape matter? Only for physical fit inside your unit's electrical compartment — it has no effect on electrical performance. If your unit's mounting bracket or available space is sized for a round can, use a round capacitor; if it's sized for an oval can, use an oval one. The MFD and voltage ratings are what matter electrically, not the shape. The fan spins if I give it a push, but won't start on its own. What does that mean? This is a classic sign of a weak or failing capacitor — it may still have enough charge to keep the motor running once it's already spinning, but not enough to provide the initial starting torque. This is a strong signal to replace the capacitor before it fails completely and leaves you with no cooling at all. Is this a genuine OEM part? This is a universal replacement part rather than a brand-specific OEM part. Because dual run capacitors are a standardized component defined by their electrical specifications rather than their manufacturer, this capacitor is a correct replacement for any unit's original capacitor that shares the same 35/5 MFD, 450VAC, round dual run capacitor rating — regardless of which HVAC brand originally installed it. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Replacement Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO XPDC50X5-450R Dual Run Capacitor (50/5 MFD, 450V, Round) The XPARTCO XPDC50X5-450R is a universal dual run capacitor for central air conditioners, heat pumps, and condensing units. A run capacitor works alongside a single-phase AC motor to keep it running efficiently once it's started, boosting torque and correcting the phase of the current feeding the motor's windings. This is a dual capacitor, meaning it combines two separate capacitors — one for the compressor, one for the condenser fan motor — into a single three-terminal can, which is why nearly every residential outdoor AC unit uses exactly this style of component to run both motors from one part. Rated 50 MFD for the compressor circuit and 5 MFD for the fan motor circuit, at 450VAC, in a round aluminum can housing. Because a capacitor's voltage rating is a ceiling rather than a fixed match, this 450V-rated capacitor can safely replace an original capacitor rated 370V or 440V — going higher on voltage is always safe, going lower is not. Over time, the dielectric material inside a run capacitor breaks down from heat cycling and electrical stress, causing it to lose capacitance or fail outright. A failing dual capacitor produces a very recognizable set of symptoms: the outdoor unit hums but the compressor or fan won't start, the fan spins slowly or needs a manual push to get going, the system trips the breaker, or the capacitor can itself is visibly bulging, domed, or leaking oily residue at the top. Quick Answer The XPARTCO XPDC50X5-450R Dual Run Capacitor fixes central air conditioners and heat pumps where the outdoor unit hums but won't start, the compressor or fan motor won't run, the fan spins slowly or needs a manual push, the breaker trips, or the capacitor can is visibly bulged or leaking. 50 MFD (compressor) + 5 MFD (fan) dual capacitor, 450VAC, round, 3-terminal. Universal fit for equipment originally speced at 370V or 440V, since a higher voltage rating is always a safe upgrade. Capacitors store a dangerous electrical charge even after power is disconnected — always discharge before handling. Common Problems This Part Fixes Outdoor AC unit hums but the compressor won't start Condenser fan won't spin, or spins slowly and needs a manual push to get going System trips the breaker shortly after starting AC blows warm air because the compressor isn't running Repeated clicking sound from the contactor as it tries and fails to start the motor Capacitor can visibly bulging, domed on top, or leaking oily residue System that used to start slowly and has now stopped starting altogether Burning smell from the outdoor unit's electrical compartment Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers XPDC50X5-450R This is a universal component rather than a single-manufacturer part, so the specific OEM number your HVAC system's label references will vary by brand (Goodman, Trane, Carrier, Rheem, York, Lennox, Amana, and others). This capacitor is a correct replacement for any dual run capacitor matching the 50 MFD / 5 MFD rating with a voltage rating of 450V or lower. If you have your original part number, contact our support team and we will verify compatibility before you order. Compatibility This dual run capacitor is a universal replacement compatible with central air conditioners, heat pumps, and condensing units across all major HVAC brands, wherever the original capacitor is rated: 50 MFD (compressor) + 5 MFD (fan motor) 370V, 440V, or 450V (this capacitor's 450V rating exceeds and safely replaces either lower rating) Round can shape with 3 terminals Note: The MFD (microfarad) rating must match your original capacitor exactly on both sides — do not substitute a different MFD value for either the compressor or fan side. Voltage rating, on the other hand, can be equal to or higher than the original (450V safely replaces 370V or 440V), but never lower. Can shape (round vs. oval) affects only physical fit inside your unit's electrical compartment, not performance. If you're unsure of your original capacitor's specifications, they're printed directly on its can — contact our support team if you'd like help confirming compatibility. Key Features Universal dual run capacitor — supports both the compressor and condenser fan motor from one component 50 MFD compressor rating + 5 MFD fan motor rating in a single 3-terminal can 450VAC rating — a safe upgrade replacement for equipment originally speced at 370V or 440V Round aluminum can construction Resolves "hums but won't start," "fan spins slowly," "trips the breaker," and "bulging or leaking can" symptoms caused by capacitor failure 1/4" quick-connect terminals for a direct plug-on fit to standard HVAC wiring 50/60Hz rated Safety approved: CQC, VDE, TÜV, and CL; built to GB/T 3667 and EN 60252 standards Built to meet or exceed industry-standard specifications for this capacitor class Product Specifications Part Number XPDC50X5-450R Part Type Dual Run Capacitor Condition New — Universal Replacement Part Capacitance — Compressor 50 MFD (µF) Capacitance — Fan Motor 5 MFD (µF) Voltage Rating 450VAC Shape Round Terminals 3 (1/4" quick-connect) Frequency 50/60 Hz Tolerance ±5% Construction Type Polypropylene film capacitor Operating Temperature Range -40°C to 70°C (-40°F to +158°F) Safety Approvals CQC, VDE, TÜV, CL Approval Standard GB/T 3667, EN 60252 Application Central Air Conditioners, Heat Pumps, Condensing Units Quantity 1 dual run capacitor Compatible Brands Universal — all major HVAC brands Installation Notes ⚠️ Danger — Capacitors Store A Dangerous Electrical Charge Shut off power to the outdoor unit at the disconnect box and at the breaker before beginning. A capacitor stores an electrical charge even after power has been disconnected, and that charge can deliver a serious or fatal shock. Before touching any terminal, discharge the capacitor by shorting each pair of terminals together (C-to-Fan, C-to-Herm, and Fan-to-Herm) using an insulated-handle screwdriver, or by using a proper capacitor discharge tool with a resistor. Never short the terminals with a bare metal tool held with your bare hand. If you are not fully comfortable performing a capacitor discharge safely, have a qualified HVAC technician replace this part instead. ⚠️ Photograph The Wiring Before Disconnecting — Match Terminals Exactly Wear work gloves and safety glasses. After confirming the capacitor is fully discharged, photograph the wiring on the old capacitor's terminals before disconnecting anything — dual capacitors are labeled C (Common), Herm or Comp (compressor/hermetic), and Fan, and getting a wire on the wrong terminal can damage the new capacitor or the motor it feeds. Note which terminal each wire came from, or label them individually with tape. Remove the mounting strap or bracket holding the old capacitor in its housing, and disconnect each wire from its terminal. Install the new XPDC50X5-450R in the same mounting position, secure it with the strap or bracket, and reconnect each wire to the matching terminal (C, Herm, and Fan) exactly as labeled. Double-check every connection before restoring power. Restore power at the breaker and disconnect box, and confirm the compressor and fan both start promptly and run smoothly. Tools needed: insulated-handle screwdriver or capacitor discharge tool, nut driver, work gloves, safety glasses. Frequently Asked Questions My AC unit hums but won't start. Is this the capacitor? It's one of the most common causes of exactly that symptom. A run capacitor gives the compressor or fan motor the extra push needed to start turning; without it, the motor can draw power and hum in place without ever actually starting to spin. If you can see the capacitor can and it looks bulged, domed on top, or is leaking a brown oily residue, that's strong visual confirmation of failure. Can I use a 450V capacitor to replace my old 370V or 440V one? Yes. Voltage rating is a ceiling, not an exact match requirement — a capacitor rated for a higher voltage than your original will work safely and often lasts longer under the same electrical stress. What you cannot do is go the other direction: never install a capacitor with a lower voltage rating than your original, since that risks premature failure or the capacitor breaking down under normal operating conditions. Does the round vs. oval shape matter? Only for physical fit inside your unit's electrical compartment — it has no effect on electrical performance. If your unit's mounting bracket or available space is sized for a round can, use a round capacitor; if it's sized for an oval can, use an oval one. The MFD and voltage ratings are what matter electrically, not the shape. The fan spins if I give it a push, but won't start on its own. What does that mean? This is a classic sign of a weak or failing capacitor — it may still have enough charge to keep the motor running once it's already spinning, but not enough to provide the initial starting torque. This is a strong signal to replace the capacitor before it fails completely and leaves you with no cooling at all. Is this a genuine OEM part? This is a universal replacement part rather than a brand-specific OEM part. Because dual run capacitors are a standardized component defined by their electrical specifications rather than their manufacturer, this capacitor is a correct replacement for any unit's original capacitor that shares the same 50/5 MFD, 450VAC, round dual run capacitor rating — regardless of which HVAC brand originally installed it. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Replacement Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO XPDC70X5-450R Dual Run Capacitor (70/5 MFD, 450V, Round) The XPARTCO XPDC70X5-450R is a universal dual run capacitor for central air conditioners, heat pumps, and condensing units. A run capacitor works alongside a single-phase AC motor to keep it running efficiently once it's started, boosting torque and correcting the phase of the current feeding the motor's windings. This is a dual capacitor, meaning it combines two separate capacitors — one for the compressor, one for the condenser fan motor — into a single three-terminal can, which is why nearly every residential outdoor AC unit uses exactly this style of component to run both motors from one part. Rated 70 MFD for the compressor circuit and 5 MFD for the fan motor circuit, at 450VAC, in a round aluminum can housing. Because a capacitor's voltage rating is a ceiling rather than a fixed match, this 450V-rated capacitor can safely replace an original capacitor rated 370V or 440V — going higher on voltage is always safe, going lower is not. Over time, the dielectric material inside a run capacitor breaks down from heat cycling and electrical stress, causing it to lose capacitance or fail outright. A failing dual capacitor produces a very recognizable set of symptoms: the outdoor unit hums but the compressor or fan won't start, the fan spins slowly or needs a manual push to get going, the system trips the breaker, or the capacitor can itself is visibly bulging, domed, or leaking oily residue at the top. Quick Answer The XPARTCO XPDC70X5-450R Dual Run Capacitor fixes central air conditioners and heat pumps where the outdoor unit hums but won't start, the compressor or fan motor won't run, the fan spins slowly or needs a manual push, the breaker trips, or the capacitor can is visibly bulged or leaking. 70 MFD (compressor) + 5 MFD (fan) dual capacitor, 450VAC, round, 3-terminal. Universal fit for equipment originally speced at 370V or 440V, since a higher voltage rating is always a safe upgrade. Capacitors store a dangerous electrical charge even after power is disconnected — always discharge before handling. Common Problems This Part Fixes Outdoor AC unit hums but the compressor won't start Condenser fan won't spin, or spins slowly and needs a manual push to get going System trips the breaker shortly after starting AC blows warm air because the compressor isn't running Repeated clicking sound from the contactor as it tries and fails to start the motor Capacitor can visibly bulging, domed on top, or leaking oily residue System that used to start slowly and has now stopped starting altogether Burning smell from the outdoor unit's electrical compartment Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers XPDC70X5-450R This is a universal component rather than a single-manufacturer part, so the specific OEM number your HVAC system's label references will vary by brand (Goodman, Trane, Carrier, Rheem, York, Lennox, Amana, and others). This capacitor is a correct replacement for any dual run capacitor matching the 70 MFD / 5 MFD rating with a voltage rating of 450V or lower. If you have your original part number, contact our support team and we will verify compatibility before you order. Compatibility This dual run capacitor is a universal replacement compatible with central air conditioners, heat pumps, and condensing units across all major HVAC brands, wherever the original capacitor is rated: 70 MFD (compressor) + 5 MFD (fan motor) 370V, 440V, or 450V (this capacitor's 450V rating exceeds and safely replaces either lower rating) Round can shape with 3 terminals Note: The MFD (microfarad) rating must match your original capacitor exactly on both sides — do not substitute a different MFD value for either the compressor or fan side. Voltage rating, on the other hand, can be equal to or higher than the original (450V safely replaces 370V or 440V), but never lower. Can shape (round vs. oval) affects only physical fit inside your unit's electrical compartment, not performance. If you're unsure of your original capacitor's specifications, they're printed directly on its can — contact our support team if you'd like help confirming compatibility. Key Features Universal dual run capacitor — supports both the compressor and condenser fan motor from one component 70 MFD compressor rating + 5 MFD fan motor rating in a single 3-terminal can 450VAC rating — a safe upgrade replacement for equipment originally speced at 370V or 440V Round aluminum can construction Resolves "hums but won't start," "fan spins slowly," "trips the breaker," and "bulging or leaking can" symptoms caused by capacitor failure 1/4" quick-connect terminals for a direct plug-on fit to standard HVAC wiring 50/60Hz rated Safety approved: CQC, VDE, TÜV, and CL; built to GB/T 3667 and EN 60252 standards Built to meet or exceed industry-standard specifications for this capacitor class Product Specifications Part Number XPDC70X5-450R Part Type Dual Run Capacitor Condition New — Universal Replacement Part Capacitance — Compressor 70 MFD (µF) Capacitance — Fan Motor 5 MFD (µF) Voltage Rating 450VAC Shape Round Terminals 3 (1/4" quick-connect) Frequency 50/60 Hz Tolerance ±5% Construction Type Polypropylene film capacitor Operating Temperature Range -40°C to 70°C (-40°F to +158°F) Safety Approvals CQC, VDE, TÜV, CL Approval Standard GB/T 3667, EN 60252 Application Central Air Conditioners, Heat Pumps, Condensing Units Quantity 1 dual run capacitor Compatible Brands Universal — all major HVAC brands Installation Notes ⚠️ Danger — Capacitors Store A Dangerous Electrical Charge Shut off power to the outdoor unit at the disconnect box and at the breaker before beginning. A capacitor stores an electrical charge even after power has been disconnected, and that charge can deliver a serious or fatal shock. Before touching any terminal, discharge the capacitor by shorting each pair of terminals together (C-to-Fan, C-to-Herm, and Fan-to-Herm) using an insulated-handle screwdriver, or by using a proper capacitor discharge tool with a resistor. Never short the terminals with a bare metal tool held with your bare hand. If you are not fully comfortable performing a capacitor discharge safely, have a qualified HVAC technician replace this part instead. ⚠️ Photograph The Wiring Before Disconnecting — Match Terminals Exactly Wear work gloves and safety glasses. After confirming the capacitor is fully discharged, photograph the wiring on the old capacitor's terminals before disconnecting anything — dual capacitors are labeled C (Common), Herm or Comp (compressor/hermetic), and Fan, and getting a wire on the wrong terminal can damage the new capacitor or the motor it feeds. Note which terminal each wire came from, or label them individually with tape. Remove the mounting strap or bracket holding the old capacitor in its housing, and disconnect each wire from its terminal. Install the new XPDC70X5-450R in the same mounting position, secure it with the strap or bracket, and reconnect each wire to the matching terminal (C, Herm, and Fan) exactly as labeled. Double-check every connection before restoring power. Restore power at the breaker and disconnect box, and confirm the compressor and fan both start promptly and run smoothly. Tools needed: insulated-handle screwdriver or capacitor discharge tool, nut driver, work gloves, safety glasses. Frequently Asked Questions My AC unit hums but won't start. Is this the capacitor? It's one of the most common causes of exactly that symptom. A run capacitor gives the compressor or fan motor the extra push needed to start turning; without it, the motor can draw power and hum in place without ever actually starting to spin. If you can see the capacitor can and it looks bulged, domed on top, or is leaking a brown oily residue, that's strong visual confirmation of failure. Can I use a 450V capacitor to replace my old 370V or 440V one? Yes. Voltage rating is a ceiling, not an exact match requirement — a capacitor rated for a higher voltage than your original will work safely and often lasts longer under the same electrical stress. What you cannot do is go the other direction: never install a capacitor with a lower voltage rating than your original, since that risks premature failure or the capacitor breaking down under normal operating conditions. Does the round vs. oval shape matter? Only for physical fit inside your unit's electrical compartment — it has no effect on electrical performance. If your unit's mounting bracket or available space is sized for a round can, use a round capacitor; if it's sized for an oval can, use an oval one. The MFD and voltage ratings are what matter electrically, not the shape. The fan spins if I give it a push, but won't start on its own. What does that mean? This is a classic sign of a weak or failing capacitor — it may still have enough charge to keep the motor running once it's already spinning, but not enough to provide the initial starting torque. This is a strong signal to replace the capacitor before it fails completely and leaves you with no cooling at all. Is this a genuine OEM part? This is a universal replacement part rather than a brand-specific OEM part. Because dual run capacitors are a standardized component defined by their electrical specifications rather than their manufacturer, this capacitor is a correct replacement for any unit's original capacitor that shares the same 70/5 MFD, 450VAC, round dual run capacitor rating — regardless of which HVAC brand originally installed it. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Replacement Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO XPDC80X5-450R Dual Run Capacitor (80/5 MFD, 450V, Round) The XPARTCO XPDC80X5-450R is a universal dual run capacitor for central air conditioners, heat pumps, and condensing units. A run capacitor works alongside a single-phase AC motor to keep it running efficiently once it's started, boosting torque and correcting the phase of the current feeding the motor's windings. This is a dual capacitor, meaning it combines two separate capacitors — one for the compressor, one for the condenser fan motor — into a single three-terminal can, which is why nearly every residential outdoor AC unit uses exactly this style of component to run both motors from one part. Rated 80 MFD for the compressor circuit and 5 MFD for the fan motor circuit, at 450VAC, in a round aluminum can housing. Because a capacitor's voltage rating is a ceiling rather than a fixed match, this 450V-rated capacitor can safely replace an original capacitor rated 370V or 440V — going higher on voltage is always safe, going lower is not. Over time, the dielectric material inside a run capacitor breaks down from heat cycling and electrical stress, causing it to lose capacitance or fail outright. A failing dual capacitor produces a very recognizable set of symptoms: the outdoor unit hums but the compressor or fan won't start, the fan spins slowly or needs a manual push to get going, the system trips the breaker, or the capacitor can itself is visibly bulging, domed, or leaking oily residue at the top. Quick Answer The XPARTCO XPDC80X5-450R Dual Run Capacitor fixes central air conditioners and heat pumps where the outdoor unit hums but won't start, the compressor or fan motor won't run, the fan spins slowly or needs a manual push, the breaker trips, or the capacitor can is visibly bulged or leaking. 80 MFD (compressor) + 5 MFD (fan) dual capacitor, 450VAC, round, 3-terminal. Universal fit for equipment originally speced at 370V or 440V, since a higher voltage rating is always a safe upgrade. Capacitors store a dangerous electrical charge even after power is disconnected — always discharge before handling. Common Problems This Part Fixes Outdoor AC unit hums but the compressor won't start Condenser fan won't spin, or spins slowly and needs a manual push to get going System trips the breaker shortly after starting AC blows warm air because the compressor isn't running Repeated clicking sound from the contactor as it tries and fails to start the motor Capacitor can visibly bulging, domed on top, or leaking oily residue System that used to start slowly and has now stopped starting altogether Burning smell from the outdoor unit's electrical compartment Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers XPDC80X5-450R This is a universal component rather than a single-manufacturer part, so the specific OEM number your HVAC system's label references will vary by brand (Goodman, Trane, Carrier, Rheem, York, Lennox, Amana, and others). This capacitor is a correct replacement for any dual run capacitor matching the 80 MFD / 5 MFD rating with a voltage rating of 450V or lower. If you have your original part number, contact our support team and we will verify compatibility before you order. Compatibility This dual run capacitor is a universal replacement compatible with central air conditioners, heat pumps, and condensing units across all major HVAC brands, wherever the original capacitor is rated: 80 MFD (compressor) + 5 MFD (fan motor) 370V, 440V, or 450V (this capacitor's 450V rating exceeds and safely replaces either lower rating) Round can shape with 3 terminals Note: The MFD (microfarad) rating must match your original capacitor exactly on both sides — do not substitute a different MFD value for either the compressor or fan side. Voltage rating, on the other hand, can be equal to or higher than the original (450V safely replaces 370V or 440V), but never lower. Can shape (round vs. oval) affects only physical fit inside your unit's electrical compartment, not performance. If you're unsure of your original capacitor's specifications, they're printed directly on its can — contact our support team if you'd like help confirming compatibility. Key Features Universal dual run capacitor — supports both the compressor and condenser fan motor from one component 80 MFD compressor rating + 5 MFD fan motor rating in a single 3-terminal can 450VAC rating — a safe upgrade replacement for equipment originally speced at 370V or 440V Round aluminum can construction Resolves "hums but won't start," "fan spins slowly," "trips the breaker," and "bulging or leaking can" symptoms caused by capacitor failure 1/4" quick-connect terminals for a direct plug-on fit to standard HVAC wiring 50/60Hz rated Safety approved: CQC, VDE, TÜV, and CL; built to GB/T 3667 and EN 60252 standards Built to meet or exceed industry-standard specifications for this capacitor class Product Specifications Part Number XPDC80X5-450R Part Type Dual Run Capacitor Condition New — Universal Replacement Part Capacitance — Compressor 80 MFD (µF) Capacitance — Fan Motor 5 MFD (µF) Voltage Rating 450VAC Shape Round Terminals 3 (1/4" quick-connect) Frequency 50/60 Hz Tolerance ±5% Construction Type Polypropylene film capacitor Operating Temperature Range -40°C to 70°C (-40°F to +158°F) Safety Approvals CQC, VDE, TÜV, CL Approval Standard GB/T 3667, EN 60252 Application Central Air Conditioners, Heat Pumps, Condensing Units Quantity 1 dual run capacitor Compatible Brands Universal — all major HVAC brands Installation Notes ⚠️ Danger — Capacitors Store A Dangerous Electrical Charge Shut off power to the outdoor unit at the disconnect box and at the breaker before beginning. A capacitor stores an electrical charge even after power has been disconnected, and that charge can deliver a serious or fatal shock. Before touching any terminal, discharge the capacitor by shorting each pair of terminals together (C-to-Fan, C-to-Herm, and Fan-to-Herm) using an insulated-handle screwdriver, or by using a proper capacitor discharge tool with a resistor. Never short the terminals with a bare metal tool held with your bare hand. If you are not fully comfortable performing a capacitor discharge safely, have a qualified HVAC technician replace this part instead. ⚠️ Photograph The Wiring Before Disconnecting — Match Terminals Exactly Wear work gloves and safety glasses. After confirming the capacitor is fully discharged, photograph the wiring on the old capacitor's terminals before disconnecting anything — dual capacitors are labeled C (Common), Herm or Comp (compressor/hermetic), and Fan, and getting a wire on the wrong terminal can damage the new capacitor or the motor it feeds. Note which terminal each wire came from, or label them individually with tape. Remove the mounting strap or bracket holding the old capacitor in its housing, and disconnect each wire from its terminal. Install the new XPDC80X5-450R in the same mounting position, secure it with the strap or bracket, and reconnect each wire to the matching terminal (C, Herm, and Fan) exactly as labeled. Double-check every connection before restoring power. Restore power at the breaker and disconnect box, and confirm the compressor and fan both start promptly and run smoothly. Tools needed: insulated-handle screwdriver or capacitor discharge tool, nut driver, work gloves, safety glasses. Frequently Asked Questions My AC unit hums but won't start. Is this the capacitor? It's one of the most common causes of exactly that symptom. A run capacitor gives the compressor or fan motor the extra push needed to start turning; without it, the motor can draw power and hum in place without ever actually starting to spin. If you can see the capacitor can and it looks bulged, domed on top, or is leaking a brown oily residue, that's strong visual confirmation of failure. Can I use a 450V capacitor to replace my old 370V or 440V one? Yes. Voltage rating is a ceiling, not an exact match requirement — a capacitor rated for a higher voltage than your original will work safely and often lasts longer under the same electrical stress. What you cannot do is go the other direction: never install a capacitor with a lower voltage rating than your original, since that risks premature failure or the capacitor breaking down under normal operating conditions. Does the round vs. oval shape matter? Only for physical fit inside your unit's electrical compartment — it has no effect on electrical performance. If your unit's mounting bracket or available space is sized for a round can, use a round capacitor; if it's sized for an oval can, use an oval one. The MFD and voltage ratings are what matter electrically, not the shape. The fan spins if I give it a push, but won't start on its own. What does that mean? This is a classic sign of a weak or failing capacitor — it may still have enough charge to keep the motor running once it's already spinning, but not enough to provide the initial starting torque. This is a strong signal to replace the capacitor before it fails completely and leaves you with no cooling at all. Is this a genuine OEM part? This is a universal replacement part rather than a brand-specific OEM part. Because dual run capacitors are a standardized component defined by their electrical specifications rather than their manufacturer, this capacitor is a correct replacement for any unit's original capacitor that shares the same 80/5 MFD, 450VAC, round dual run capacitor rating — regardless of which HVAC brand originally installed it. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Replacement Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO H150 Furnace Silicon Nitride Rod Ignitor The H150 universal gas furnace igniter come with a 1.95-inch ceramic nitride heating element, a 1.25-inch ceramic insulator, a 304 stainless steel bracket, and a 15.5-inch high temperature resistant wire(20 AWG). Voltage: 120V±10%-15%, 50/60HZ. Power Rating: 150W. Cold resistance: 9-17Ω. At 120V furnace igniter H150 can reach 1200 degrees in a short time The H150 universal furnace igniter replacement can be used in a wide range of machines and is the perfect replacement for silicon carbide ignitors in water heater boilers and gas forced-air furnaces, replacing more than 180 types of ignitors and covering nearly 90% of all applications. Such as stoves, furnace, warm air motion, gas ignition, hot surface igniter, infrared light source, pool heater, boiler, etc California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

30A Ceramic Line Fuse, Fast Blow, 6.35 x 32 mm Product Description Protect your appliances with the replacement 30A Ceramic Line Fuse, Fast Blow, 6.35 x 32 mm. This high-quality, fast-acting ceramic cartridge fuse is designed to safeguard circuits in appliances like microwaves, dryers, and HVAC systems by interrupting power during over-current events. With a 30A current rating, 250VAC/125VDC voltage rating, and compact 3AB/3AG (6.35 x 32 mm) size, it offers reliable protection for high-power loads. Constructed with a durable ceramic body for high interrupting ratings, this fuse ensures safety and performance. Note: Includes one fast-blow ceramic fuse; disconnect power before installation. Check appliance manual for compatibility. Replaces part numbers: ABC-30, BK/ABC-30, 0ADEC9300-BE, 0314030.MX52LP, BK-AHC-30-R, BK-AHCF-V-30-R Compatibility: Compatible with appliances including but not limited to: Microwaves: Select GE, Samsung, LG models requiring 30A, 250V fast-blow fuses. Dryers: GE Hotpoint models (e.g., compatible with WE1X21975 assemblies). HVAC Systems: Units using 3AB/3AG 6.35 x 32 mm fast-acting fuses. Other Appliances: Power strips, audio amplifiers, and industrial equipment requiring 30A protection. Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select GE, Samsung, LG, and other appliances using 3AB/3AG fuses. 🔥 Specifications: replacement ceramic fuse, 30A, 250VAC/125VDC, fast-blow, 6.35 x 32 mm (1/4" x 1-1/4"), ceramic body, 10kA interrupting rating at 125VAC, 3.7 mOhms resistance, UL Listed, RoHS compliant. 💰 Cost-Effective Alternative: replacement fuse offers OEM-equivalent performance at a lower cost. 🛠️ Easy Installation: Requires fuse holder or clip; typically installed in 5–10 minutes with basic tools. 🛡️ Reliable Fixes: Protects circuits from over-current, preventing appliance damage or failure. Installation Notes: Safety First: Disconnect the appliance from the power source before installation. Shop Parts-O-Matic for high-quality replacement appliance parts with a 30-day return policy. Ensure your appliances run safely and efficiently today! Add to cart now for a budget-friendly fix!

Read more less

30A Ceramic Line Fuse, Fast Blow, 6.35 x 32 mm Product Description Protect your appliances with the replacement 30A Ceramic Line Fuse, Fast Blow, 6.35 x 32 mm. This high-quality, fast-acting ceramic cartridge fuse is designed to safeguard circuits in appliances like microwaves, dryers, and HVAC systems by interrupting power during over-current events. With a 30A current rating, 250VAC/125VDC voltage rating, and compact 3AB/3AG (6.35 x 32 mm) size, it offers reliable protection for high-power loads. Constructed with a durable ceramic body for high interrupting ratings, this fuse ensures safety and performance. Note: Includes one fast-blow ceramic fuse; disconnect power before installation. Check appliance manual for compatibility. Replaces part numbers: ABC-30, BK/ABC-30, 0ADEC9300-BE, 0314030.MX52LP, BK-AHC-30-R, BK-AHCF-V-30-R Compatibility: Compatible with appliances including but not limited to: Microwaves: Select GE, Samsung, LG models requiring 30A, 250V fast-blow fuses. Dryers: GE Hotpoint models (e.g., compatible with WE1X21975 assemblies). HVAC Systems: Units using 3AB/3AG 6.35 x 32 mm fast-acting fuses. Other Appliances: Power strips, audio amplifiers, and industrial equipment requiring 30A protection. Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select GE, Samsung, LG, and other appliances using 3AB/3AG fuses. 🔥 Specifications: replacement ceramic fuse, 30A, 250VAC/125VDC, fast-blow, 6.35 x 32 mm (1/4" x 1-1/4"), ceramic body, 10kA interrupting rating at 125VAC, 3.7 mOhms resistance, UL Listed, RoHS compliant. 💰 Cost-Effective Alternative: replacement fuse offers OEM-equivalent performance at a lower cost. 🛠️ Easy Installation: Requires fuse holder or clip; typically installed in 5–10 minutes with basic tools. 🛡️ Reliable Fixes: Protects circuits from over-current, preventing appliance damage or failure. Installation Notes: Safety First: Disconnect the appliance from the power source before installation. Shop Parts-O-Matic for high-quality replacement appliance parts with a 30-day return policy. Ensure your appliances run safely and efficiently today! Add to cart now for a budget-friendly fix!

Read more less

CON-5-370-R HVAC ROUND MOTOR RUN CAPACITOR Appli Parts Run Capacitor for ac 5 Mfd uF (microfarads) 370 VAC Appli Parts Run Capacitor for ac 5 Mfd uF (microfarads) 370 VAC Round Universal fit for hvac and other applications 2-1/2 in High 1-1/2 in Wide CON-5-370Universal: Replaces any brand with the same capacitance capacity and voltage. Will work for 370V . 1/4 in Male Quick-connectSpecs: Tolerance is +/- 5 % of Capacity, Working temperature environment from -40F (-40C) to +185F (85C). Dimensions 2-5/8 in H, 1-1/2 in WProtection: Protected for 10,000AFC which means this product will not burst if by any reason is short circuitsReplaces: TRCF5 PRCF5A CAP-5-370Confirm that the dimensions and other attributes of the product closely match those of the original item being replaced

Read more less

LCR5X440 HVAC OVAL MOTOR RUN CAPACITOR Engineered by an ISO manufacturer with over twenty years' experience in OEM capacitor fabrication, Linebacker® capacitors are manufactured by the OEM factory and are 100% in-line production tested to the same rigorous standards. Features/Benefits 10,000 AFC pressure sensitive short circuit interrupting capability 3-year warranty from the date of purchase Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness Life tested to 85° C operating temperature for 10,000 cycles Manufactured with thick polypropylene foil to handle increased operating temperatures Meets EIA-456A accelerated life test at 70° C for 60,000 hours PCB-free oil to prevent over-heating UL File # E352486 US and Canada UL approved (C22.2NO.190) Applications       Air conditioning compressors     Refrigeration Compressors     Furnace blower motors     Condenser fan motors Specification: Voltage: Up to 440 VAC Operating Temperature: -40°F to 185°F (-40°C to 85°C) Foil Thickness: 6.0 µm +/- 5% Standard Tolerance: +/- 5% MFD Value: 5 Style: Oval Size: 2.03x1.24x1.57

Read more less

LCD30+5X440 HVAC OVAL DUAL RUN CAPACITOR Engineered by an ISO manufacturer with over twenty years' experience in OEM capacitor fabrication, Linebacker® capacitors are manufactured by the OEM factory and are 100% in-line production tested to the same rigorous standards. Features/Benefits 10,000 AFC pressure sensitive short circuit interrupting capability 3-year warranty from the date of purchase Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness Life tested to 85° C operating temperature for 10,000 cycles Manufactured with thick polypropylene foil to handle increased operating temperatures Meets EIA-456A accelerated life test at 70° C for 60,000 hours PCB-free oil to prevent over-heating UL File # E352486 US and Canada UL approved (C22.2NO.190) Specification: Voltage: Up to 440 VAC Operating Temperature: -40°F to 185°F (-40°C to 85°C) Foil Thickness: 6.0 µm +/- 5% Standard Tolerance: +/- 5% MFD Value: 30+5 Style: Oval Size: 2.8x1.77x3.54

Read more less

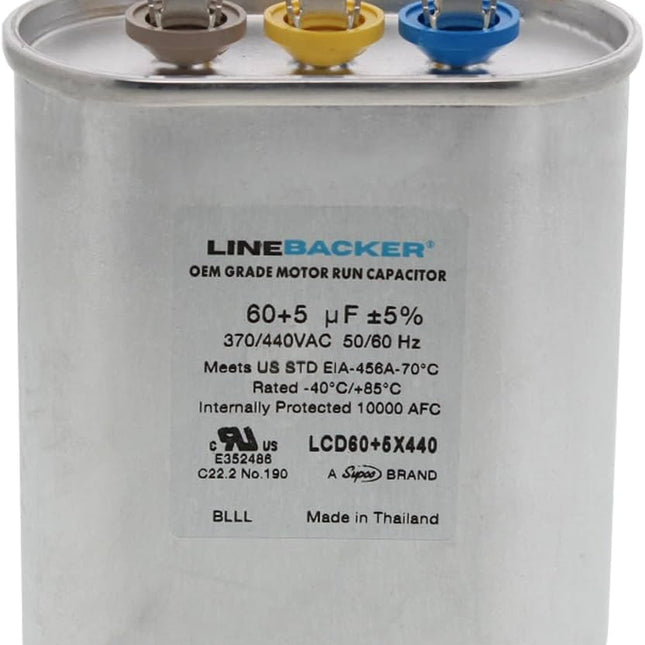

LCD60+5X440 HVAC OVAL DUAL RUN CAPACITOR Engineered by an ISO manufacturer with over twenty years' experience in OEM capacitor fabrication, Linebacker® capacitors are manufactured by the OEM factory and are 100% in-line production tested to the same rigorous standards. Features/Benefits 10,000 AFC pressure sensitive short circuit interrupting capability 3-year warranty from the date of purchase Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness Life tested to 85° C operating temperature for 10,000 cycles Manufactured with thick polypropylene foil to handle increased operating temperatures Meets EIA-456A accelerated life test at 70° C for 60,000 hours PCB-free oil to prevent over-heating UL File # E352486 US and Canada UL approved (C22.2NO.190) Specification: Voltage: Up to 440 VAC Operating Temperature: -40°F to 185°F (-40°C to 85°C) Foil Thickness: 6.0 µm +/- 5% Standard Tolerance: +/- 5% MFD Value: 60+5 Style: Oval Size: 3.54x1.89x3.94
