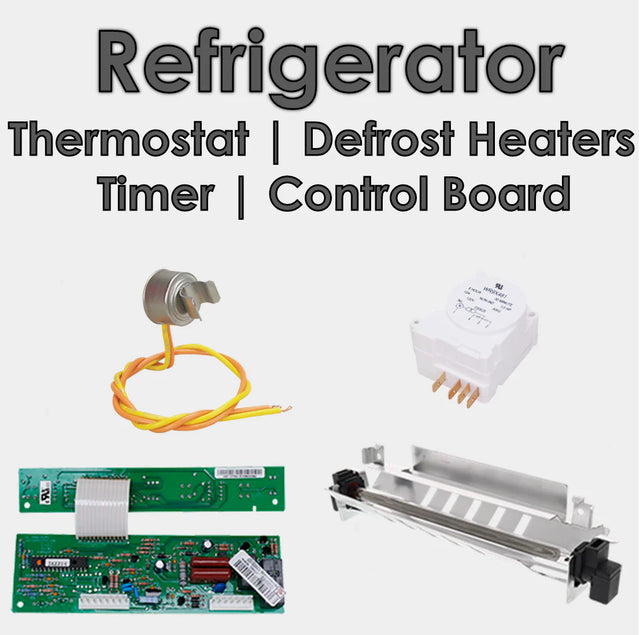

Refrigerator Defrost Parts – Thermostats, Heaters, Timers & Control Boards

XPARTCO DA32-10104N Refrigerator Temperature Sensor The XPARTCO DA32-10104N is an aftermarket replacement refrigerator temperature sensor (thermistor) compatible with select Samsung French door, side-by-side, and bottom freezer refrigerators. This sensor is mounted on or near the evaporator coil and continuously monitors the internal temperature of the refrigerator compartment, transmitting real-time readings to the electronic control board. Based on the data received from the sensor, the control board regulates the compressor, evaporator fan motor, and defrost system to maintain the set temperature. When this sensor fails or drifts out of calibration, the control board receives inaccurate temperature readings — leading to a refrigerator that runs too cold, too warm, or triggers a 5E/SE error code. Features a 9-inch cord for easy installation and a sensitive thermal element with temperature detection accuracy of ±0.1°C. Quick Answer The XPARTCO DA32-10104N Refrigerator Temperature Sensor fixes refrigerators that are too warm, too cold, display a 5E/SE error code, or have inconsistent temperatures that spoil food. It monitors internal refrigerator temperature and sends data to the control board to regulate cooling. Compatible with select Samsung French door, side-by-side, and bottom freezer refrigerators. Common Problems This Part Fixes Refrigerator running too warm — food spoiling faster than normal Refrigerator running too cold — food or drinks freezing in the fresh food section 5E or SE error code displayed on the control panel Inconsistent or fluctuating temperatures inside the refrigerator Compressor running continuously without reaching set temperature Excessive frost or ice buildup on evaporator coils Replaces Part Numbers This sensor directly replaces the following OEM and cross-reference part numbers: DA32-10104N, DA32-10104V, 2030330, ASM1216617, PD00026468, EAP4138666, AP4979323, PS4138666. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This temperature sensor is compatible with select refrigerators from the following brands: Samsung French door refrigerators Samsung side-by-side refrigerators Samsung bottom freezer refrigerators Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Monitors internal refrigerator temperature and sends real-time data to the electronic control board Fixes 5E/SE error codes caused by a faulty or out-of-calibration temperature sensor Temperature detection accuracy of ±0.1°C for precise cooling control 9-inch cord length for easy installation and connection to the control board Aftermarket replacement built to OEM-equivalent quality standards Direct drop-in replacement — no modification required DIY-friendly repair — installs with basic hand tools in 30–45 minutes Product Specifications Part Number DA32-10104N Part Type Refrigerator Temperature Sensor (Thermistor) Condition Aftermarket Replacement Application Refrigerator Temperature Control System Cord Length 9 inches Detection Accuracy ±0.1°C Resistance at 70°F ~9.3K ohms Resistance at 90°F ~7.7K ohms Resistance at 100°F ~6.2K ohms Resistance at 120°F ~4.3K ohms Compatible Brands Samsung Installation Notes ⚠️ Safety First — Unplug Refrigerator Before Starting Unplug the refrigerator from the power source before beginning any repair. Safely remove and store any food that could deteriorate while the power is off. Wear work gloves to protect your hands. The DA32-10104N sensor is located near the evaporator coil, typically behind the rear panel inside the refrigerator or freezer compartment. Remove the panel, locate the sensor along the yellow wire, disconnect the old sensor from its plug, and connect the new sensor in the same position. Reassemble the panel and restore power. Allow 24 hours for the refrigerator to return to normal operating temperature. Tip: Before replacing, test the old sensor with a multimeter — resistance readings outside the values in the specs table above confirm a faulty sensor. Consult your refrigerator's service manual for model-specific instructions. Frequently Asked Questions Will the DA32-10104N fit my Samsung refrigerator? This sensor is compatible with select Samsung French door, side-by-side, and bottom freezer refrigerators. Use the model search above to verify your model, or contact our support team before ordering. What does the temperature sensor do? The temperature sensor (thermistor) continuously monitors the internal temperature of the refrigerator and sends readings to the electronic control board. The control board uses this data to regulate the compressor, fans, and defrost system to maintain the set temperature. When the sensor fails or drifts out of range, the control board receives inaccurate data and cannot maintain proper cooling. What are signs that my temperature sensor needs replacement? Common signs include: the refrigerator running too warm or too cold, food spoiling faster than normal, a 5E or SE error code on the display, inconsistent temperatures, or the compressor running continuously without reaching the set temperature. How do I test the DA32-10104N sensor before replacing it? Use a multimeter to measure the resistance across the sensor terminals. At 70°F the reading should be approximately 9.3K ohms, at 90°F approximately 7.7K ohms, at 100°F approximately 6.2K ohms, and at 120°F approximately 4.3K ohms. Readings significantly outside these values indicate a faulty sensor that needs replacement. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is designed to deliver reliable, accurate temperature sensing at a more affordable price point. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO WR51X10055 Refrigerator Defrost Heater Assembly The XPARTCO WR51X10055 is an aftermarket replacement refrigerator defrost heater and bracket assembly compatible with a wide range of GE, Hotpoint, Kenmore, Haier, Americana, Monogram, and Café refrigerators. The defrost heater is a glass quartz tube heater mounted on a bracket below the evaporator coils in the freezer compartment. During each automatic defrost cycle, the heater energizes and melts any frost that has accumulated on the evaporator coils — maintaining unobstructed airflow through the coils so the refrigerator can cool efficiently. When the heater fails, frost accumulates on the coils unchecked, blocking airflow and causing both the freezer and fresh food sections to gradually warm up. Rated at 120V, 725W, this single quartz tube heater assembly measures 12-1/8" L x 3-3/8" W x 2-1/8" H and includes the heater element and mounting bracket. It directly replaces WR51X10030, AP3183311, 914088, AH303781, EA303781, PS303781, SH323, and EAP303781. Often replaced together with the defrost thermostat (WR50X10068) and temperature sensor (WR55X10025) for a complete defrost system repair. Installs in 20–30 minutes with basic hand tools. Quick Answer The XPARTCO WR51X10055 Refrigerator Defrost Heater Assembly fixes GE and Hotpoint refrigerators where frost is building up on the evaporator coils, the freezer is too warm, the fresh food section is warming up, or the refrigerator is running continuously without cooling properly. Single quartz tube heater, 120V / 725W. Assembly measures 12-1/8" L x 3-3/8" W x 2-1/8" H. Includes heater and bracket. Replaces WR51X10030, AP3183311, 914088, SH323, and more. Compatible with GE, Hotpoint, Kenmore, Haier, Americana, Monogram, and Café. Common Problems This Part Fixes Frost or ice buildup covering the evaporator coils in the freezer compartment Freezer section warming up or not maintaining set temperature Fresh food section warming up even though the freezer is running Refrigerator running continuously but not cooling properly Visible frost accumulation on the freezer back wall behind the panel Defrost heater element visibly burned out, broken, or dark/charred at the ends Both compartments gradually warming up after working normally for years Replaces Part Numbers This defrost heater assembly directly replaces the following OEM and cross-reference part numbers: WR51X10055, WR51X10030, 914088, AGE29323, AH303781, AP3183311, EA303781, EAP303781, PD00001004, PS303781. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This defrost heater is compatible with select refrigerators from the following brands: GE refrigerators (side-by-side, French door, top-freezer, and bottom-freezer) Hotpoint refrigerators Kenmore / Sears refrigerators (select GE-built models) Haier refrigerators (select GE-platform models) Americana refrigerators Monogram refrigerators Café refrigerators Tip: When replacing the defrost heater, it is highly recommended to also replace the defrost thermostat (WR50X10068) and temperature sensor (WR55X10025) at the same time. These three parts form the defrost system and are commonly replaced together — replacing all three prevents a second disassembly if another component fails soon after. Key Features Single quartz tube glass heater — melts frost from the evaporator coils during each automatic defrost cycle, maintaining airflow and cooling efficiency Rated 120V / 725W — correct electrical specifications for compatible GE refrigerators Assembly dimensions: 12-1/8" L x 3-3/8" W x 2-1/8" H — direct fit into the evaporator coil bracket Includes heater element and mounting bracket — complete assembly ready to install Replaces WR51X10030 and WR51X10055 — both older and current part numbers covered Compatible with GE, Hotpoint, Kenmore, Haier, Americana, Monogram, and Café refrigerators Often replaced together with WR50X10068 defrost thermostat and WR55X10025 temperature sensor Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 20–30 minutes with basic hand tools Product Specifications Part Number WR51X10055 Also Replaces WR51X10030 Part Type Refrigerator Defrost Heater and Bracket Assembly Condition Aftermarket Replacement Heater Type Single quartz tube glass heater Voltage 120V AC Wattage 725W Dimensions 12-1/8" L x 3-3/8" W x 2-1/8" H Includes Heater element and mounting bracket Often Replaced With WR50X10068 Defrost Thermostat, WR55X10025 Temperature Sensor Compatible Brands GE, Hotpoint, Kenmore, Haier, Americana, Monogram, Café Installation Notes ⚠️ Unplug Refrigerator Before Starting — Wear Work Gloves Unplug the refrigerator before beginning. Remove all food and shelving from the freezer compartment. Remove the freezer bottom drawer and the back panel screws (typically 2 hex-head screws). Slide out the back panel to expose the evaporator coils and defrost heater assembly. If the coils are covered in frost or ice, use a hair dryer to melt the ice before removing the heater — do not chip or force the heater free while iced over, as the glass element is fragile and will break. Disconnect the heater wires from the wiring harness — note the orientation before disconnecting. Remove the 2 Phillips screws securing the heater bracket and lift the heater assembly out. Install the new WR51X10055 heater assembly in the same position, reconnect the wires, and reinstall the bracket screws. Reinstall the back panel, shelving, and food. Restore power and verify the defrost cycle operates normally. Wear work gloves throughout — the evaporator area has sharp edges. Tools needed: Phillips screwdriver, 1/4" nut driver, hair dryer (if coils are iced over), work gloves. Frequently Asked Questions What does the refrigerator defrost heater do? Modern refrigerators use an automatic defrost system that periodically runs a defrost cycle — typically once or twice a day — to melt frost that accumulates on the evaporator coils during normal operation. The defrost heater is a glass quartz heating element that energizes during this cycle and melts the frost off the coils. This keeps the coils clear so air can flow freely through them to cool the refrigerator. When the heater fails, frost builds up unchecked on the coils over days or weeks — eventually blocking airflow completely and causing both compartments to warm up, even though the compressor is still running. How do I know if my defrost heater has failed? Remove the freezer back panel to expose the evaporator coils. If the coils are heavily coated in frost or solid ice — especially if both the freezer and refrigerator sections have been warming up — a failed defrost heater is the most likely cause. You can confirm with a multimeter: disconnect the heater and probe both wire ends. A working heater shows continuity (resistance between approximately 10–200 ohms at room temperature depending on wattage). No continuity confirms the heater element has burned out. Also visually inspect the glass tube — a burned, blackened, or broken tube is a clear sign of failure. Should I also replace the defrost thermostat and temperature sensor? Yes — since the freezer must be fully emptied and the back panel removed to replace the heater, it is highly recommended to also replace the defrost thermostat (WR50X10068) and temperature sensor (WR55X10025) at the same time. All three components form the defrost system and wear at similar rates. A failed thermostat or sensor can cause the heater to run too long or not at all — replacing all three in a single repair eliminates that risk and saves you from another complete freezer teardown in the near future. My freezer is warming up but the compressor is running — is it the defrost heater? It often is — but not always. A compressor that is running but not cooling can be caused by a failed defrost heater (frost blocking airflow), a faulty evaporator fan motor (air not circulating), a defrost thermostat or timer failure, or a sealed system problem (refrigerant leak or compressor issue). The easiest way to distinguish a defrost system failure from other causes is to open the freezer and check whether frost has built up on the back panel or coils. If yes, the defrost heater is the most likely culprit. If the coils are clear and the compressor is running, look at the evaporator fan or sealed system next. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured as a single quartz tube glass heater rated at 120V/725W to match the dimensions and performance of the original WR51X10055 defrost heater assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO WR55X10025 Refrigerator Temperature Sensor The XPARTCO WR55X10025 is an aftermarket replacement refrigerator temperature sensor (thermistor) compatible with a wide range of GE, Hotpoint, Haier, Café, and Monogram refrigerators. The temperature sensor monitors air temperature inside the fresh food and freezer compartments and sends that data to the main control board, which uses it to regulate cooling cycles and maintain the correct set temperature. When the sensor fails, the refrigerator may run too warm, too cold, or experience erratic defrost behavior. This sensor measures approximately 1-1/4 inches long and includes 18-inch wire leads. It is constructed from white plastic and is used in both fresh food and freezer compartments depending on the model — on some models it also functions as a defrost sensor on the evaporator coil. It directly replaces OEM part numbers WR55X10025 and a large number of earlier GE thermistor part numbers. Sold individually — some models require two sensors. Installs in under 30 minutes with basic hand tools. Quick Answer The XPARTCO WR55X10025 Refrigerator Temperature Sensor fixes GE and Hotpoint refrigerators that are too warm, too cold, not defrosting, or over-defrosting. The thermistor monitors compartment temperature and communicates with the control board. Approx. 1-1/4" long with 18" leads, white plastic. Compatible with GE, Hotpoint, Haier, Café, and Monogram refrigerators. Sold individually. Common Problems This Part Fixes Refrigerator compartment running too warm — food spoiling faster than normal Refrigerator running too cold — food or liquids freezing in the fresh food section Freezer section not maintaining correct temperature Refrigerator not defrosting or defrosting too frequently Excessive frost or ice buildup on evaporator coils Refrigerator and freezer both warming up after extended defrost cycles Erratic cooling — temperatures fluctuating unpredictably Replaces Part Numbers This temperature sensor directly replaces the following OEM and cross-reference part numbers: WR55X10025, 914093, WR50X10027, WR50X10034, WR50X10055, WR50X10067, WR55X10025-50PK, WR55X10025B, WR55X10026, WR55X10027, WR55X10028, WR55X10030, WR55X10087, WR55X10088, WR55X10089, WR55X10367, WR55X10380, WR55X10661, WR55X10711, WR55X10735, WR55X10736, WR55X10737, WR55X10937, WR55X10938, WR55X10939, WR55X11121, WR55X11141, WR55X11151, WR55X11152, AH304103, EA304103, OEM9556230, AP3185407, EAP304103, AGE29661, PD00000992, PS304103 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This temperature sensor is compatible with select refrigerators from the following brands: GE refrigerators (side-by-side, French door, top-freezer, and bottom-freezer) Hotpoint refrigerators Haier refrigerators (select GE-platform models) Café refrigerators Monogram refrigerators Note: Some GE refrigerator models use two or more temperature sensors. This part is sold individually. Check your model's parts diagram or contact our support team to confirm how many sensors your model requires before ordering. Key Features Monitors fresh food and freezer compartment temperatures and communicates readings to the main control board Also functions as a defrost sensor on the evaporator coil on applicable models Fits both fresh food and freezer positions White plastic construction — durable and resistant to refrigerator temperature extremes Direct replacement for WR55X10025 and over 30 earlier GE thermistor part numbers Compatible with GE, Hotpoint, Haier, Café, and Monogram refrigerators Sold individually — verify quantity needed for your model before ordering Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in under 30 minutes with basic hand tools Product Specifications Part Number WR55X10025 Part Type Refrigerator Temperature Sensor (Thermistor) Condition Aftermarket Replacement Application Fresh food compartment, freezer compartment, and evaporator coil (defrost sensor) depending on model Sensor Body Length Approximately 1-1/4 inches Color White Material Plastic Includes Sensor with wire leads Sold As Single sensor (some models require 2 — verify before ordering) Compatible Brands GE, Hotpoint, Haier, Café, Monogram Installation Notes ⚠️ Unplug Refrigerator Before Starting Unplug the refrigerator from the power outlet before beginning any repair. To access the fresh food thermistor, locate the sensor on the left wall of the fresh food compartment — it may be clipped into a housing or bracket. Disconnect the wire connector and pull the old sensor out of its bracket. Slide the new WR55X10025 sensor into the bracket and reconnect the wire connector. To access the freezer or evaporator thermistor, remove the freezer shelves and back panel, then locate the sensor clipped to the evaporator coil bracket. Remove any tie wrap securing the sensor, pull the old sensor from the bracket, insert the new sensor, and reconnect the wire connector. Reinstall the back panel and shelves, restore power, and verify the refrigerator returns to the correct set temperature. Tools needed: Phillips screwdriver, flat pry tool (for panel clips), work gloves. Frequently Asked Questions How many temperature sensors does my GE refrigerator have? The number of sensors varies by model. Many GE French door and side-by-side refrigerators use two or three WR55X10025 sensors — one in the fresh food compartment, one in the freezer, and sometimes one on the evaporator coil. Check your model's parts diagram or contact our support team with your model number to confirm how many you need before ordering. What is a thermistor and how does it work? A thermistor is a type of resistor whose electrical resistance changes with temperature. The main control board sends a small voltage through the thermistor and measures the resistance — a higher resistance means a lower temperature, and a lower resistance means a higher temperature. The board uses this reading to decide when to run the compressor and fans to maintain the set temperature. A failed thermistor sends incorrect readings, causing the refrigerator to over-cool, under-cool, or malfunction during defrost cycles. Can a faulty temperature sensor cause the refrigerator to not defrost? Yes. On models where the WR55X10025 also serves as the defrost sensor on the evaporator coil, a faulty sensor can cause the control board to incorrectly time or skip defrost cycles entirely — leading to excessive frost or ice buildup on the evaporator coils. This frost buildup can eventually block airflow and cause both the refrigerator and freezer sections to warm up. How do I know if my temperature sensor is the cause of my cooling problem? The most reliable way to test the thermistor is with a multimeter. Disconnect the sensor and measure its resistance at room temperature — a working WR55X10025 should read approximately 16,000 ohms at 32°F, dropping as temperature increases. An open circuit (infinite resistance) or short circuit (zero resistance) reading confirms the sensor has failed. If resistance is within the normal range but the refrigerator still has issues, the control board or other components may be at fault. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured from durable plastic to match the dimensions and performance specifications of the original WR55X10025 temperature sensor. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO W10384183 Refrigerator Thermistor Replaces WPW10384183 The XPARTCO W10384183 is an aftermarket replacement thermistor for Whirlpool refrigerators, and also fits select Kenmore, Maytag, Amana, KitchenAid, and Ikea models. This sensor detects the temperature inside the refrigerator or freezer and sends that reading to the electronic control board, which uses it to regulate cooling and manage the defrost cycle. Finished in black and white, made of plastic and metal, this thermistor measures approximately 4-1/2"L x 9/16"W x 1/4"H, with a 1" probe and a 3.5" lead. Includes the thermistor with its probe and wiring harness/plug. Over time, the sensor's electronics can drift or fail from age or moisture exposure. Because this sensor also plays a role in the defrost cycle on many models, a failing thermistor can cause the evaporator coils to overly frost or ice up, blocking airflow and preventing cool air from reaching the refrigerator compartment even though the freezer itself may still seem cold. Symptoms include inconsistent cooling, a refrigerator that isn't cooling despite a cold freezer, or the appliance failing to defrost properly. It directly replaces WPW10384183, W10384183, 2118228, EAP11753996, AP6020677, AWP50093, PD00035299, PS11753996. Quick Answer The XPARTCO W10384183 Refrigerator Thermistor fixes Whirlpool, Kenmore, Maytag, Amana, KitchenAid, and Ikea refrigerators with inconsistent cooling, a refrigerator compartment that isn't cooling despite a cold freezer, or improper defrosting. Black/white, plastic/metal, ~4-1/2"L x 9/16"W x 1/4"H, 1" probe, 3.5" lead. Replaces WPW10384183, W10384183, 2118228, EAP11753996, AP6020677, AWP50093, PD00035299, PS11753996. If your freezer's evaporator coils are heavily frosted or iced over, blocking airflow into the refrigerator, this thermistor is a strong candidate for the cause. Common Problems This Part Fixes Inconsistent cooling in the refrigerator or freezer compartment Refrigerator not cooling despite the freezer feeling cold Evaporator coils overly frosted or iced over, blocking airflow Refrigerator not defrosting properly Temperature fluctuations affecting food freshness Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator thermistor directly replaces the following OEM and cross-reference part numbers: WPW10384183, W10384183, 2118228, EAP11753996, AP6020677, AWP50093, PD00035299, PS11753996 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This thermistor is compatible with select Whirlpool refrigerators, and also fits select Kenmore, Maytag, Amana, KitchenAid, and Ikea refrigerators built on the Whirlpool platform. Note: A related but separate thermistor, W10384184, is used on some of the same or similar models and is sometimes sold as a paired kit alongside this part. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which thermistor your refrigerator needs. Key Features Aftermarket replacement thermistor — senses temperature and reports to the electronic control Resolves "inconsistent cooling," "refrigerator not cooling despite cold freezer," and "improper defrosting" symptoms Includes thermistor with probe and wiring harness/plug Black/white, plastic/metal construction Direct drop-in replacement — no modification required Replaces WPW10384183, W10384183, 2118228, EAP11753996, AP6020677, AWP50093, PD00035299, PS11753996 Compatible with Whirlpool, Kenmore, Maytag, Amana, KitchenAid, and Ikea refrigerators Aftermarket replacement built to OEM-equivalent quality standards Typical repair takes 30 to 60 minutes Product Specifications Part Number W10384183 OEM Part Number WPW10384183 Part Type Refrigerator Thermistor Condition Aftermarket Replacement Color Black / White Compatible Brands Whirlpool, Kenmore, Maytag, Amana, KitchenAid, Ikea Includes Thermistor with probe and harness/plug Function Senses internal temperature and reports to the electronic control Repair Difficulty Easy to Moderate — 30 to 60 minutes Quantity 1 thermistor Installation Notes ⚠️ Unplug Refrigerator Before Starting — Defrost Any Iced-Over Coils First Unplug the refrigerator and safely store any food that could spoil while the power is off. Wear work gloves. Remove the interior panel covering the evaporator coils, typically located in the freezer. If the coils and fins are heavily frosted or iced over, allow them to fully defrost before continuing — you can speed this up with a hair dryer on a low setting, kept a safe distance away, or simply let the unit sit unplugged with the door open for a few hours. With the coils clear, locate the old thermistor and unclip it from its mounting position, noting how it's routed. Unclip the wiring harness from the old thermistor. Clip the new W10384183 thermistor into the same position, and reconnect the wiring harness fully, making sure the probe is positioned exactly as the original was. Reinstall the interior panel. Restore power and monitor the refrigerator's temperature over the next 24 hours to confirm consistent, accurate cooling and normal defrost cycling have returned. Tools needed: sockets, screwdriver, multimeter (for testing the old sensor), work gloves. Frequently Asked Questions My freezer feels cold but the refrigerator side isn't cooling. Is this the part I need? Yes, this is a documented pattern tied to this thermistor. One customer described their evaporator coils and fins as "overly freezing," which blocked cool air from reaching the refrigerator compartment even though the freezer itself was fine. Replacing this thermistor, after first defrosting the iced-over coils, resolved the issue. My refrigerator isn't defrosting properly. Could this be the cause? Yes, this is a documented symptom. One customer specifically described their unit "not defrosting" and resolved it by replacing this sensor, calling the repair "very straightforward." Since this thermistor feeds temperature data into the defrost cycle on many models, a failing sensor can prevent the defrost system from operating correctly. Do I need to defrost the coils before replacing this part? If your evaporator coils are heavily frosted or iced over, yes — clear that ice first so you can properly access and route the new thermistor, and so you can accurately judge whether the repair has resolved the airflow problem once everything is back together. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the sensing function, probe design, and wiring harness configuration of the original WPW10384183 thermistor used in compatible Whirlpool, Kenmore, Maytag, Amana, KitchenAid, and Ikea refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

WR50X10068 Refrigerator Defrost Thermostat – Replacement for GE, Hotpoint, and Kenmore Product Overview This Defrost Thermostat is a replacement part designed for use in select GE refrigerator models. This component acts as a safety device in the refrigerator's defrost system, preventing the freezer from overheating during the defrost cycle. It works by monitoring the temperature of the evaporator coil and turning off the defrost heater when the coil gets warm enough, thus safeguarding the freezer from getting too hot.  Defrost thermostat for refrigerator or freezer L140-30F. 6" long wire, wire connectors not included. Replaces Part Numbers This thermostat replaces WR50X10068, WR50X10015, WR50X10017, WR50X10018, WR50X10028, WR50X10051, WR50X10052, WR50X10053, WR50X10054, WR50X10074, WR50X10075, WR50X10079, L140-30F, AH1017716, EA1017716, AP3884317, PS1017716.  It is designed to match OEM performance and fit in a wide range of GE and GE-built refrigerator models. Compatible Brands Compatible with refrigerators from GE, Hotpoint, and Kenmore models manufactured by GE. Suitable for top-freezer and side-by-side configurations that use a defrost thermostat with this part number. Fixes the Following Issues Frost or ice buildup in freezer Refrigerator not defrosting Poor airflow and cooling performance Defrost cycle not activating Why Buy from Express Parts Direct Cost-effective aftermarket alternative Fast and free shipping across the U.S. Trusted by appliance technicians and DIY users Easy to install and reliable in performance

Read more less

XPARTCO DA47-00243K Refrigerator Defrost Thermostat The XPARTCO DA47-00243K is an aftermarket replacement defrost bi-metal thermostat compatible with select Samsung French door and bottom freezer refrigerators. This thermostat is a critical component in the automatic defrost system, functioning as a thermal safety device that monitors the temperature of the evaporator coils during the defrost cycle. When the evaporator reaches the preset maximum temperature of 140°F (60°C), the bi-metal thermostat opens the circuit and cuts power to the defrost heater — preventing overheating and damage to the evaporator. It resets and closes again at 104°F (40°C), allowing the next defrost cycle to begin normally. When the thermostat fails, it can cause excessive frost buildup on the evaporator coils, poor cooling performance, or a heater that won't shut off — all resulting in the refrigerator failing to maintain proper temperatures. Quick Answer The XPARTCO DA47-00243K Refrigerator Defrost Thermostat fixes refrigerators with excessive frost buildup, a freezer that is too cold while the fridge is too warm, a heater that won't shut off, or a refrigerator that stops cooling. It is compatible with select Samsung French door and bottom freezer refrigerators and opens at 140°F to protect the evaporator from overheating. Common Problems This Part Fixes Excessive frost or ice buildup on evaporator coils Freezer too cold while refrigerator section is too warm Defrost heater not shutting off after defrost cycle Refrigerator not cooling or maintaining temperature Food spoiling faster than normal Unusual humming or running sounds from the back of the fridge Replaces Part Numbers This thermostat directly replaces the following OEM and cross-reference part numbers: DA47-00243K, 2025696, DA47-00243B, DA47-00243C, DA47-00243J, ASM30257, PD00002154, EAP4140510, AP4403832, PS4140510. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This defrost thermostat is compatible with select refrigerators from the following brands: Samsung French door refrigerators Samsung bottom freezer refrigerators Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Bi-metal thermal safety device — opens at 140°F (60°C) to cut power to the defrost heater and prevent evaporator overheating Resets automatically at 104°F (40°C) — allowing the next defrost cycle to begin normally Aftermarket replacement built to OEM-equivalent quality standards 2-terminal design — direct drop-in replacement, no modification required Restores proper frost-free operation and refrigerator cooling performance DIY-friendly repair — installs with basic hand tools in 30–45 minutes Budget-friendly alternative to OEM at a lower cost without sacrificing performance Product Specifications Part Number DA47-00243K Part Type Defrost Bi-Metal Thermostat Condition Aftermarket Replacement Application Refrigerator Defrost System Open Temperature 140°F (60°C) Close Temperature 104°F (40°C) Terminals 2 Compatible Brands Samsung Installation Notes ⚠️ Safety First — Unplug Refrigerator Before Starting Unplug the refrigerator from the power source before beginning any repair. Safely remove and store any food that could deteriorate while the power is off. Wear work gloves to protect your hands. Access the evaporator coils by removing the rear panel inside the freezer compartment. Disconnect the wiring harness from the old thermostat and clip the new DA47-00243K thermostat onto the evaporator coil in the same position. Reconnect the wiring harness and reassemble the freezer panel. Allow 24 hours for the refrigerator to return to normal operating temperature. Consult your refrigerator's service manual for model-specific instructions. Frequently Asked Questions Will the DA47-00243K fit my Samsung refrigerator? This thermostat is compatible with select Samsung French door and bottom freezer refrigerators. Use the model search above to verify your model, or contact our support team before ordering. What does a defrost thermostat do? The defrost bi-metal thermostat monitors the temperature of the evaporator coils during the defrost cycle. It opens the circuit and cuts power to the defrost heater when the evaporator reaches 140°F (60°C), preventing overheating. It automatically resets and closes again at 104°F (40°C) to allow the next cycle. What are signs that my defrost thermostat needs replacement? Common signs include: excessive frost or ice buildup on the evaporator coils, the freezer running too cold while the refrigerator section is too warm, the defrost heater failing to shut off, or the refrigerator not maintaining proper temperatures and food spoiling faster than normal. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is designed to deliver reliable, long-lasting performance at a more affordable price point. At what temperatures does the DA47-00243K open and close? The thermostat opens (cuts power to the heater) at 140°F (60°C) and closes (resets) at 104°F (40°C). Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO 5303918214 Refrigerator Defrost Thermostat The XPARTCO 5303918214 is an aftermarket replacement defrost thermostat kit for Frigidaire, Electrolux, Kenmore, Gibson, Kelvinator, Westinghouse, and Crosley refrigerators — commonly used on side-by-side and French door models equipped with an ice maker. This thermostat monitors the temperature of the evaporator coils: when the coils drop below a set temperature, it allows power to reach the defrost heater so frost can be cleared; once the coils warm back up, it cuts power to the heater again, protecting the evaporator from being overheated during that process. The most common reasons this thermostat gets replaced are a classic pair of symptoms: the freezer stays cold while the fresh food refrigerator section runs warm, or the refrigerator simply isn't defrosting on its normal cycle. Because this thermostat sits behind the rear access panel near the ice maker on many compatible models, replacing it typically involves removing the ice maker and the back panel to reach it — a more involved repair than a thermostat mounted in an easily accessible spot. It directly replaces AP2150145, 892545, AH469522, EA469522, PS469522, and 75303918214. Quick Answer The XPARTCO 5303918214 Refrigerator Defrost Thermostat fixes Frigidaire, Electrolux, Kenmore, Gibson, Kelvinator, Westinghouse, and Crosley refrigerators where the freezer stays cold but the fresh food section runs warm, or the refrigerator isn't defrosting on its normal cycle. Replaces AP2150145, 892545, AH469522, EA469522, PS469522, 75303918214. This is a separate part from our 5303918202 defrost thermostat listing — the two fit different model groups and are not interchangeable. Installation on many compatible models requires removing the ice maker to access the thermostat. Common Problems This Part Fixes Freezer stays cold but the fresh food refrigerator section runs warm Refrigerator not defrosting on its normal cycle Excessive frost or ice buildup on the evaporator coils Refrigerator or freezer not cooling properly overall Water leaking inside the refrigerator from melting ice buildup Refrigerator running constantly as ice-caked coils reduce cooling efficiency Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator defrost thermostat directly replaces the following OEM and cross-reference part numbers: 5303918214, 75303918214, 892545, AH469522, EA469522, AP2150145, 240372703, 39TVE31, EAP469522, PS469522, AFR16819, PD00000354, L47-22F, SL8214, ER5303918214 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This defrost thermostat is compatible with select Frigidaire refrigerators, and also fits select Electrolux, Kenmore, Gibson, Kelvinator, Westinghouse, and Crosley refrigerators built on the same platform, including model numbers such as: FGHS2631PF4A, FGHS2655PF5A FGHC2331PFAA, FGHC2331PFCA FFHS2611PFEA, FFHS2611LBRA, FFHS2611LWMA, FFHS2622MSYA FFSS2614QS6A Note — not the same as 5303918202: This is a separate thermostat from our 5303918202 listing. The two fit different model groups and are not interchangeable, so always verify your full model number rather than assuming based on similar part number prefixes. Contact our support team with your model number if you're unsure which thermostat fits your refrigerator. Key Features Aftermarket replacement defrost thermostat kit for Frigidaire-platform refrigerators with an ice maker Monitors evaporator coil temperature and controls power to the defrost heater Resolves "freezer cold, fridge warm," "not defrosting on schedule," and "icy evaporator coils" symptoms caused by thermostat failure Ships with wiring diagram guidance for a correct connection Direct drop-in replacement — mounts to the original housing location Replaces AP2150145, 892545, AH469522, EA469522, PS469522, and 75303918214 Compatible with Frigidaire, Electrolux, Kenmore, Gibson, Kelvinator, Westinghouse, and Crosley refrigerators Aftermarket replacement built to OEM-equivalent quality standards Product Specifications Part Number 5303918214 OEM Part Number 5303918214 Part Type Refrigerator Defrost Thermostat Kit Condition Aftermarket Replacement Function Monitors evaporator coil temperature and controls power to the defrost heater Typical Location Rear access panel area, near the ice maker on many compatible models Repair Difficulty Moderate — ice maker removal typically required for access Quantity 1 defrost thermostat kit Compatible Brands Frigidaire, Electrolux, Kenmore, Gibson, Kelvinator, Westinghouse, Crosley Installation Notes ⚠️ Unplug Refrigerator And Shut Off Water Supply Before Starting Unplug the refrigerator from the wall outlet and turn off the water supply to the refrigerator before beginning. Wear work gloves. If your model has an ice maker, remove it first using a screwdriver to gain clearance for the next steps. Remove the back panel with a screwdriver to expose the defrost thermostat. Take out the existing thermostat and disconnect its wiring, labeling or photographing each connection first. Install the new 5303918214 thermostat by connecting the wires according to the wiring diagram provided with the kit, then secure the thermostat to the main housing using the small mounting screws. Reinstall the back panel, plug the refrigerator back in, turn the water supply back on, and reinstall the ice maker. Test the refrigerator over the following day to confirm both compartments are cooling evenly and the defrost cycle is running normally. Tools needed: screwdriver, wire cutters/strippers, work gloves. Frequently Asked Questions Do I really need to remove the ice maker for this repair? On many compatible models, yes — the thermostat sits behind the rear access panel in an area that the ice maker partially blocks, so removing it first gives you the clearance needed to reach the panel and the thermostat behind it. It's an extra step compared to some simpler defrost thermostat replacements, but it's a standard part of this particular repair. My freezer is cold but the fridge is warm. Is this the thermostat? Yes, this is the classic symptom of a failed defrost thermostat. When it fails, the defrost heater can't run correctly to clear frost from the evaporator coil, and the resulting ice buildup blocks the airflow that's supposed to carry cold air to the fresh food compartment. The freezer, sitting closer to the coil, often stays reasonably cold, while the fresh food side runs warm since it depends on that circulated air. I replaced the thermostat but my freezer temperature is still fluctuating. What should I check next? Replacing this thermostat resolves the issue for most customers, but if fluctuation continues, it's worth checking the other components in the same defrost circuit — the defrost timer and defrost heater — since a failure in either of those can produce similar temperature instability even with a good thermostat installed. It's also worth confirming the door seals are sealing properly, since a poor seal lets warm air in and can cause temperature swings unrelated to the defrost system. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Frigidaire OEM part, but is manufactured to match the temperature threshold, mounting configuration, and function of the original 5303918214 defrost thermostat used in compatible Frigidaire, Electrolux, Kenmore, Gibson, Kelvinator, Westinghouse, and Crosley refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO WR55X10942C Refrigerator Control Board The XPARTCO WR55X10942C is an aftermarket replacement main control board for GE, Hotpoint, RCA, and select Kenmore refrigerators. This board is the central processor for the refrigeration system — it regulates temperature, manages the defrost cycle, and controls compressor operation, coordinating everything that keeps both the fresh food and freezer compartments at the correct temperature. Electrical surges and ordinary long-term wear are both common causes of this board failing. Manufacturer part number 200D4850G022. A failing control board produces a wide range of symptoms because so many functions run through it: inconsistent or fluctuating temperatures, a refrigerator that runs too warm or too cold, the refrigerator not starting at all, unusual clicking noises as the board misfires relay signals, or ice that melts and refreezes as the defrost cycle malfunctions. It directly replaces WR55X10942, WR55X10942P, WR55X10942CT, WR49X10060, WR55X10024, WR55X10037, WR55X10045, WR55X10056, WR55X10065, WR55X10079, WR55X10083, WR55X10086, WR55X10090, WR55X10097, WR55X10109, WR55X10110, WR55X10151, WR55X10160, WR55X10171, WR55X10174, WR55X10177, WR55X10187, WR55X10188, AP7188100, and PS16729744. Quick Answer The XPARTCO WR55X10942C Refrigerator Control Board fixes GE, Hotpoint, RCA, and select Kenmore refrigerators with inconsistent temperatures, a fridge running too warm or too cold, the unit not starting, clicking noises, or ice that melts and refreezes from a malfunctioning defrost cycle. Manufacturer part number 200D4850G022. Replaces WR55X10942, WR55X10942P, WR55X10942CT, WR49X10060, WR55X10024, WR55X10037, WR55X10045, WR55X10056, WR55X10065, WR55X10079, WR55X10083, WR55X10086, WR55X10090, WR55X10097, WR55X10109, WR55X10110, WR55X10151, WR55X10160, WR55X10171, WR55X10174, WR55X10177, WR55X10187, WR55X10188, AP7188100, PS16729744. GE has released many similar-looking control boards across its refrigerator generations — always confirm your exact model number before ordering, since boards that look alike are not always interchangeable. Common Problems This Part Fixes Refrigerator temperatures fluctuating or running inconsistently Refrigerator running too warm or too cold Refrigerator not starting at all Unusual clicking noises from the refrigerator Ice melting and refreezing due to a malfunctioning defrost cycle Refrigerator or freezer section not cooling properly Symptoms that began suddenly, potentially following an electrical surge Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator control board directly replaces the following OEM and cross-reference part numbers: WR55X10942C, WR55X10942, WR55X10942P, WR49X10060, WR55X10065, WR55X10160, WR55X10187, WR55X10328, WR55X10333, WR55X10335, WR55X10336, WR55X10339, WR55X10358, WR55X10366, WR55X10372, WR55X10379, WR55X10381, WR55X10385, WR55X10396, WR55X10413, WR55X10416, WR55X10426, WR55X10427, WR55X10432, WR55X10436, WR55X10456, WR55X10473, WR55X10474, WR55X10523, WR55X10524, WR55X10526, WR55X10529, WR55X10543, WR55X10552, WR55X10554, WR55X10558, WR55X10589, WR55X10597, WR55X10603, WR55X10606, WR55X10614, WR55X10616, WR55X10626, WR55X10656, WR55X10659, WR55X10699, WR55X10712, WR55X10715, WR55X10722, WR55X10942CT, WR55X11036, AP7188100, AGE29813 PD00074367, 200D2259G017, 200D4850G022, 200D4852G018, 200D4852G024, 200D4854G008, 200D4854G013, 200D6221G013, 200D6221G015, 200D6221G016, WKKT 1304-00-70A. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This control board is compatible with select GE and Hotpoint refrigerators, and also fits select RCA and Kenmore refrigerators built on the GE platform. Note — many similar-looking boards exist: GE has produced numerous refrigerator main control boards across different generations that can look nearly identical to this one, and not all of them are interchangeable despite the resemblance. Always verify your full refrigerator model number before ordering, rather than matching by appearance alone. Contact our support team with your model number and we will confirm fitment before you order. Key Features Aftermarket replacement main control board — regulates temperature, defrost, and compressor operation Resolves "inconsistent temperatures," "won't start," "clicking noises," and "ice melting and refreezing" symptoms caused by control board failure Includes built-in defrost controls Manufacturer part number 200D4850G022 Direct drop-in replacement for the original board mounting and harness connectors Replaces WR55X10942, WR55X10942P, WR55X10942CT, WR49X10060, and a wide range of earlier WR55X-prefix board numbers listed above Compatible with GE, Hotpoint, RCA, and select Kenmore refrigerators Aftermarket replacement built to OEM-equivalent quality standards Moderately difficult repair, typically 15 to 45 minutes Product Specifications Part Number WR55X10942C OEM Part Number WR55X10942C (200D4850G022) Part Type Refrigerator Main Control Board Condition Aftermarket Replacement Brand GE Function Regulates temperature, defrost cycle, and compressor operation Repair Difficulty Moderate — 15 to 45 minutes Quantity 1 control board Compatible Brands GE, Hotpoint, RCA, Kenmore Installation Notes ⚠️ Unplug Refrigerator Before Starting — Handle The Board By Its Edges Unplug the refrigerator or shut off power at the breaker before beginning to avoid electrical hazards. Wear work gloves. Access is typically through a rear cover panel: remove the screws securing the cover to reach the board. Photograph all harness connections before disconnecting anything — this board has multiple connectors, and reconnecting one in the wrong position will cause a malfunction or no-start symptom. Handle the new board by its edges rather than touching the components directly, and avoid working in conditions with static buildup, since these boards can be sensitive to static discharge. Remove the mounting screws, disconnect each harness connector from the old board, and lift it free. Position the replacement WR55X10942C board in the same location, secure it in place, and reconnect all harnesses firmly, matching the original connector locations exactly as photographed. Put the rear cover back on and tighten the screws, then restore power and confirm normal cooling and defrost operation, along with any dispenser or interior lighting behavior your model has. Tools needed: Phillips screwdriver, nut driver, work gloves. Frequently Asked Questions My refrigerator temperature keeps fluctuating for no clear reason. Is this the control board? It's a strong possibility, especially if you've already ruled out simpler causes like a door seal that isn't sealing properly or a condenser coil that needs cleaning. Since this board regulates both temperature and the defrost cycle together, a failing board can cause the refrigerator to swing between too warm and too cold as it struggles to manage the system correctly. Could a power surge have caused this failure? Yes, this is a documented and common cause of control board failure. Electrical surges, including those from storms or grid fluctuations, can damage the board's circuitry outright, leading to sudden symptom onset. If your refrigerator's issues started abruptly, especially after a storm or power event, this board is a reasonable first suspect. There are so many similar GE control board part numbers. How do I make sure I'm ordering the right one? This is a real and common point of confusion, since GE has released many visually similar boards across different refrigerator generations that are not all interchangeable. The safest approach is to match your refrigerator's full model number against this listing's compatibility rather than relying on how similar a board looks to your old one. If you're at all unsure, send us your model number and we'll confirm fitment before you order. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the processor, relay switching, defrost control circuitry, and harness connector configuration of the original WR55X10942C control board used in compatible GE, Hotpoint, RCA, and Kenmore refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

Genuine Whirlpool WPW10392132 Refrigerator Defrost Thermostat - Compatible with Whirlpool, Kenmore, KitchenAid, Maytag, Amana Product Description Maintain optimal cooling with the Genuine Whirlpool WPW10392132 Refrigerator Defrost Thermostat. This OEM defrost thermostat is designed for select Whirlpool, Kenmore, KitchenAid, Maytag, and Amana refrigerators, monitoring evaporator coil temperature to regulate the defrost cycle, preventing frost buildup and ensuring efficient cooling. It addresses issues like frost accumulation, warm refrigerator temperatures, or freezer not cooling properly, delivering reliable performance as an authentic Whirlpool part. Note: Includes one defrost thermostat with two-wire connector. Disconnect power before installation. Check defrost heater and related components for optimal performance. Replaces part numbers: WPW10392132, AP6020798, W10392132, PD00028150, EAP11754118, 2118359, PS11754118. Compatibility: Compatible with models including but not limited to: Whirlpool: ED5FVGXWS00, ED5VHGXMB10, ED5VHGXML10, GD5DHAXVY00, WRS325FDAM02 Kenmore: 106.51132210, 106.51133210, 106.51173310 KitchenAid: KSRJ25FXMS00, KSRL25FXMT00 Maytag: MSD2559XEM01, MFI2569VEM10 Amana: ASD2522WRB02, ASD2522WRW01 Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select Whirlpool, Kenmore, KitchenAid, Maytag, and Amana refrigerators. ❄️ Specifications: OEM defrost thermostat, two-wire connector. 💪 Reliable Performance: Authentic Whirlpool part ensures long-lasting durability. 🛠️ Easy Installation: Requires screwdriver, pliers, work gloves; typically installed in 20–30 minutes. 🛡️ Effective Fixes: Resolves frost buildup, warm refrigerator temperatures, or freezer not cooling properly. Product Specification Part Number: Genuine Whirlpool WPW10392132 Component Type: Refrigerator defrost thermostat Material: Metal and plastic with sealed sensor Electrical Specs: 120V compatible Mounting: Clip-mounted on evaporator coil Operating Conditions: Suitable for low-temperature refrigerator environments Compliance: Prop 65 warning for California Installation Notes: Safety First: Disconnect the refrigerator from the power source before installation. Shop for high-quality Genuine appliance parts with a 30-day return policy. Keep your refrigerator cooling efficiently today! Add to cart now for a reliable fix!

Read more less

XPARTCO W10316760 Refrigerator Thermistor Sensor The XPARTCO W10316760 is an aftermarket replacement temperature thermistor compatible with a wide range of Whirlpool-built refrigerators sold under the Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Inglis, and Magic Chef brands. The thermistor sits inside the fresh food or freezer compartment and continuously reports internal temperature back to the electronic control board, which uses that reading to cycle the compressor, evaporator fan, and damper to keep the compartment in range. When the thermistor drifts out of calibration or fails outright, the control board loses an accurate temperature signal and the refrigerator commonly responds with erratic cooling, a warmer-than-normal compartment, food freezing when it shouldn't, or a flashing/blank temperature display. This XPARTCO version is built with a quick-connect mounting clip, so it plugs in without cutting or splicing wires — unlike the genuine Whirlpool OEM part, which ships as a splice-in kit requiring you to cut the old thermistor's leads and join the new ones with included wire connectors. It directly replaces W10316760, WPW10323459, W10323459, 12791417, 12791417SP, 12791419SP, 1876627, W10280385, W10280386, W10308052, W10316760VP, W10438639, W10438761, W10452402, AH2580944, AP4538142, AWP40532, EA2580944, EAP2580944, PD00006590, PS2580944, and additional cross-reference numbers listed below. Installs in 15–30 minutes with basic hand tools. Quick Answer The XPARTCO W10316760 Refrigerator Thermistor Sensor fixes Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Inglis, and Magic Chef refrigerators that are running warm, running constantly, freezing food unexpectedly, or showing a flashing/blank temperature display. This version uses a quick-connect clip — no wire cutting or splicing like the genuine Whirlpool splice-kit version requires. Replaces W10316760, WPW10323459, W10323459, 12791417, 12791417SP, 12791419SP, 1876627, W10280385, W10280386, W10308052, W10316760VP, W10438639, W10438761, W10452402, AH2580944, AP4538142, AWP40532, EA2580944, EAP2580944, PD00006590, PS2580944. Classic symptom: fridge or freezer running warmer than the setting, or running nonstop. Common Problems This Part Fixes Refrigerator or freezer running noticeably warmer than the temperature setting Fridge running constantly and never cycling off Temperature display flashing, showing dashes, or displaying an error code Food freezing in the fresh food compartment when it shouldn't be Compressor and fans not cycling normally, or running nonstop Inconsistent or swinging temperature readings on the display One compartment (fridge or freezer) running warm while the other stays normal Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This refrigerator thermistor directly replaces the following OEM and cross-reference part numbers: W10316760, WPW10323459, W10323459, 12791417, 12791417SP, 12791419SP, 1876627, W10280385, W10280386, W10308052, W10316760VP, W10438639, W10438761, W10452402, AH2580944, AP4538142, AWP40532, EA2580944, EAP2580944, PD00006590, PS2580944 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This thermistor is used across a wide range of Whirlpool-built refrigerators from the following brands: Whirlpool refrigerators (including WRF535SMBM00, WRX735SDBM00, and related French door / side-by-side models) KitchenAid refrigerators (including KBFS22EWBL1, KBFS22EWMS1, KBFS22EWMS3, KBFS22EWMS5, KBFS22EWMS7, KBFS22EWWH1) Maytag refrigerators (select Whirlpool-built models, including KRFF302ESS) Jenn-Air refrigerators (select Whirlpool-built models, including MFI2269VEM) Amana refrigerators (select models) Inglis refrigerators (select models) Magic Chef refrigerators (select models) Note: Many of these refrigerators use separate thermistors for the fresh food and freezer compartments, so confirm which sensor location your model uses before ordering — appearance can be similar across positions. Always verify your appliance model number before ordering. Contact our support team with your model number if you're unsure. Key Features Direct-fit replacement refrigerator temperature thermistor — reports compartment temperature to the electronic control board Resolves "running warm," "running constantly," "freezing food," and "flashing display" symptoms caused by thermistor failure Quick-connect mounting clip — no wire cutting or splicing required Matches OEM electrical resistance curve for accurate temperature sensing Approximate lead length ~5 inches Replaces W10316760, WPW10323459, W10323459, 12791417, 12791417SP, 12791419SP, 1876627, W10280385, W10280386, W10308052, W10316760VP, W10438639, W10438761, W10452402, AH2580944, AP4538142, AWP40532, EA2580944, EAP2580944, PD00006590, PS2580944, and additional cross-reference numbers Compatible with Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Inglis, and Magic Chef refrigerators Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in 15–30 minutes with basic hand tools Product Specifications Part Number XPW10316760 OEM Part Number W10316760 Part Type Refrigerator Temperature Thermistor / Sensor Condition Aftermarket Replacement Application Whirlpool-Built Refrigerators (Fresh Food / Freezer Compartment) Mounting Quick-connect clip (no splicing) Approx. Lead Length ~5 inches (may vary by model) Compatible Brands Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Inglis, Magic Chef Installation Notes ⚠️ Disconnect Power Before Starting Unplug the refrigerator or shut off power at the breaker before accessing internal panels. Locate the thermistor at its mounting position inside the fresh food or freezer compartment (location varies by model — consult your model's parts diagram if unsure). Photograph the wire routing before disconnecting. On this XPARTCO version, simply unplug the old thermistor's connector from the wiring harness — no cutting or splicing needed. Release the old thermistor from its mounting clip or bracket and remove it. Install the new thermistor in the same position, securing it in its mounting clip. Plug the new thermistor's connector into the wiring harness, matching your photos. Reassemble any panels removed for access. Restore power and allow the refrigerator several hours to stabilize before checking temperatures. Tools needed: nut driver or screwdriver (for panel access), needle-nose pliers (for mounting clip). Frequently Asked Questions Is this the same as the genuine Whirlpool W10316760 thermistor? It's a direct-fit aftermarket equivalent, not the genuine Whirlpool part. The key functional difference is installation: the genuine OEM version ships as a splice-in kit requiring you to cut the old wires and use included splice connectors, while this XPARTCO version has a quick-connect clip that simply plugs in — no splicing tools needed. Will this fit my refrigerator? W10316760 and its cross-reference numbers span a wide range of Whirlpool-built models across several brands. Confirm fit using your refrigerator's exact model number before ordering, since visually similar thermistors are used across different platforms and compartment locations. Contact our support team with your model number if you're unsure. My fridge is warm but the freezer is fine (or vice versa) — could this part be the cause? Yes. Most of these refrigerators use separate thermistors for the fresh food and freezer compartments, so a single failed sensor can cause one section to run warm while the other stays normal. Confirm which sensor location your model uses before ordering. Do I need any tools to install this? Basic hand tools to access the interior panel (typically a nut driver or screwdriver) plus needle-nose pliers to release the old mounting clip. Because this version uses a plug-style connector, no wire strippers, cutters, or splice connectors are needed — unlike the genuine OEM splice-kit version. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the electrical resistance curve, mounting position, and temperature-sensing function of the original W10316760 thermistor used in compatible Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Inglis, and Magic Chef refrigerators. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less
