Oven Sensors, Thermostats & Igniters

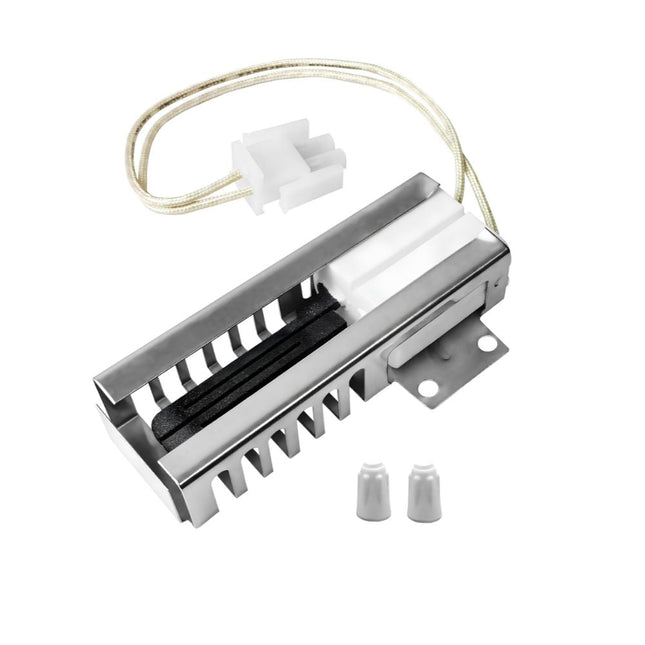

XPARTCO WB13K21 Gas Oven Flat Igniter with Harness The XPARTCO WB13K21 is an aftermarket replacement flat-style gas oven igniter with harness compatible with select GE, Hotpoint, RCA, and Kenmore gas ranges and ovens. The oven igniter is a silicon carbide heating element mounted inside the oven next to the burner. It serves a dual purpose: it draws electrical current through the oven safety valve to hold it open, and it heats to ignition temperature to light the gas burner. The igniter must draw sufficient current — typically 3.2–3.6 amps — to hold the safety valve fully open. A weakened igniter that draws too little current will glow but never fully open the gas valve, preventing the burner from lighting. This flat-style igniter draws 3.4–3.6 amps at 115V. The ceramic block measures 1-1/2" L, with an overall bracket/cage measuring 3-3/4"L x 2-1/8"W x 13/16"H. The harness and plug extend approximately 7-7/8" from the igniter body with female pin connectors and a double wing mounting bracket. It can be used as a bake or broil igniter replacement on compatible models. It directly replaces WB13K21, WB13K12, WB13K13, WB13K14, WB13K0012, WB13K0013, WB13K0014, WB13K0021, WB13K10009, WB13K10026, IG21, 2494, AP2020569, AH231280, EA231280, EAP231280, PS231280, and PD00001023. Note: if the connector does not match your range's harness, cut the connector and splice the wires using porcelain wire nuts — do not use standard plastic wire nuts near the oven burner. Installs in 15–30 minutes with basic hand tools. Quick Answer The XPARTCO WB13K21 Gas Oven Flat Igniter with Harness fixes GE, Hotpoint, RCA, and Kenmore gas ovens that won't heat, where the igniter glows but the burner never lights, or where preheat takes too long. Flat igniter, 3.4–3.6A, 115V. 1-1/2" ceramic block, 3-3/4"L x 2-1/8"W x 13/16"H bracket. 7-7/8" harness with female pins. If connector doesn't match, splice with porcelain wire nuts. Replaces WB13K21, WB13K12, WB13K13, WB13K14, IG21, AP2020569, AH231280, PS231280. Common Problems This Part Fixes Oven not heating — igniter not reaching operating temperature or gas valve not opening Igniter glows orange but the gas burner never lights Oven takes more than 90 seconds to ignite after turning on Oven preheats very slowly — weak igniter no longer drawing enough current to fully open the gas valve Gas smell when oven is turned on but burner does not light Igniter visibly cracked, broken, or burned out Bake or broil function not working on compatible models Replaces Part Numbers This oven igniter directly replaces the following OEM and cross-reference part numbers: WB13K21, WB13K0012, WB13K0013, WB13K0014, WB13K10009, WB13K10026, WB13K12, WB13K13, WB13K14, 2494, AH231280, AP2020569, AGE21391, EA231280, EAP231280, PD00001023, PS231280. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This oven igniter is compatible with select gas ranges and ovens from the following brands: GE gas ranges and ovens (select models) Hotpoint gas ranges and ovens (select models) RCA gas ranges and ovens (select models) Kenmore / Sears gas ranges (select GE-built models) Note: Can be used for both bake and broil igniter replacement on compatible models. If the two-pin connector does not match your range's existing harness connector, cut the connector off the new igniter and splice the wires using porcelain wire nuts — do not use standard plastic wire nuts near the oven burner due to heat. Always verify your model number before ordering. Key Features Flat-style silicon carbide oven igniter — heats to ignition temperature and draws current through the safety valve to open it and allow gas to flow to the burner Draws 3.4–3.6 amps at 115V — correct amperage range to reliably open the GE oven gas safety valve Ceramic block: 1-1/2" L; bracket/cage: 3-3/4"L x 2-1/8"W x 13/16"H Harness and plug extend approximately 7-7/8" from the igniter body Female pin connectors with double wing mounting bracket — quick install on compatible models Can replace bake or broil igniter on compatible models If connector does not match: cut and splice using porcelain wire nuts (included) — never use standard plastic wire nuts near the burner Replaces over 18 older GE oven igniter cross-reference part numbers Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 15–30 minutes with basic hand tools Product Specifications Part Number XPWB13K21 Part Type Gas Oven Flat Igniter with Harness (Hot Surface Igniter) Condition Aftermarket Replacement Application Gas Ranges and Ovens (bake and broil) Igniter Style Flat (cageless silicon carbide element) Amperage Draw 3.4 – 3.6 Amps Voltage 115V AC Ceramic Block Length 1-1/2 inches Bracket / Cage Dimensions 3-3/4"L x 2-1/8"W x 13/16"H Harness / Lead Length Approximately 7-7/8 inches from igniter body Connector Type Female pins, two-pin quick-disconnect (splice with porcelain nuts if needed) Mounting Double wing bracket Material Silicon carbide / Ceramic / Metal / Plastic Compatible Brands GE, Hotpoint, RCA, Kenmore Installation Notes ⚠️ Gas Appliance Safety Warning This part is installed in a gas oven. Always unplug the range and shut off the gas supply at the shutoff valve before beginning any repair. If you smell gas at any point during or after installation, leave the area immediately and contact your gas utility provider. Do not restore power or gas until the repair is fully complete and all connections are secure. If you are not comfortable working on gas appliances, have this part installed by a qualified technician. ⚠️ Handle With Care — Fragile Igniter Element The silicon carbide igniter element is extremely fragile and sensitive to skin oils. Do not touch the igniter element with bare hands — oils from skin will create hot spots that prematurely burn the igniter. Handle only by the bracket, harness, and mounting wings. To install: unplug the range and shut off gas. Remove the oven racks and oven bottom panel. Disconnect the old igniter's wire connector at the connection point inside the oven. Remove the two screws securing the mounting bracket. If the new igniter's connector matches the harness, plug it in directly. If it does not match, cut the connector from the new igniter and use the included porcelain wire nuts to splice the wires to your range's existing harness — do not use plastic wire nuts. Mount the new igniter using the double wing bracket and two screws. Reinstall the oven bottom panel, restore gas and power, and run a bake cycle to confirm the igniter glows and the burner lights within 60–90 seconds. Tools needed: Phillips screwdriver, socket set, work gloves. Frequently Asked Questions My igniter glows but the burner never lights — is it the igniter? Yes, almost certainly. A gas oven igniter that glows orange or red but does not light the burner is a classic sign of a weakened igniter. The igniter must draw enough electrical current — typically 3.2 amps or more — to hold the gas safety valve fully open. As the silicon carbide element ages, its resistance increases and it draws progressively less current. When the current drops below the threshold needed to hold the valve open, the valve never fully opens, even though the igniter appears to glow. If the igniter glows for more than 90 seconds without lighting the burner, it needs to be replaced. Why can't I use plastic wire nuts to splice the igniter wires? The igniter is located inside the oven cavity, directly adjacent to the gas burner, where temperatures during operation can easily exceed what standard plastic wire nuts are rated for. Plastic wire nuts can melt or deform at oven operating temperatures, potentially exposing bare wire connections and creating a short circuit or fire hazard. Porcelain wire nuts are specifically rated for high-temperature applications and are the only safe connector to use when splicing igniter wires near the oven burner. Always use porcelain — never plastic — for any wiring connection inside the oven cavity. Can this igniter be used for both bake and broil? Yes — on compatible GE, Hotpoint, and Kenmore models, the WB13K21 can be used to replace both the bake igniter (lower burner) and the broil igniter (upper burner), as both igniters use the same part number and specifications on these models. Verify your range's parts diagram to confirm that both igniters use the WB13K21 before ordering for the broil position. How do I test if the oven igniter has failed? The most practical test is observation: if the igniter glows for more than 90 seconds without the burner lighting, it has weakened. You can also use a multimeter — disconnect the igniter wires and measure resistance. A working WB13K21-style igniter typically reads between 40 and 90 ohms at room temperature (a lower resistance draws more current; a very high resistance means the element is nearly failed). An open circuit (infinite resistance) means the element has burned through completely. If the igniter does not glow at all when the oven is turned on, it has completely failed electrically. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured from silicon carbide, ceramic, metal, and plastic to match the amperage draw, dimensions, and performance of the original WB13K21 oven igniter. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO MEE61841401 Gas Oven Igniter The XPARTCO MEE61841401 is an aftermarket replacement oven burner igniter compatible with select LG and Kenmore gas ranges in the LDG, LRG, LSG, LSS, LTG, and LSR series. The igniter is a flat glow bar hot surface igniter made from silicon carbide that draws electrical current through the oven safety valve to open it, then heats to ignition temperature to light the gas burner. When the igniter weakens or fails, the oven will not heat, will take too long to preheat, or the igniter will glow without ever lighting the burner. This igniter draws 3.3–3.8 amps at 120V AC and reaches operating temperatures of 1,800°F–3,100°F within approximately 60 seconds. The igniter body measures 3-1/2 inches long x 1-3/4 inches wide x 7/8 inches high, with a lead/plug assembly extending approximately 10-3/4 inches from the igniter. It includes a 2-wire harness/plug, mounting bracket, and 2 porcelain wire connectors to accommodate direct plug-in or spliced installation. Directly replaces OEM part numbers MEE61841401, MEE61841403, and MEE63084901. Quick Answer The XPARTCO MEE61841401 Gas Oven Igniter fixes LG and Kenmore gas ovens that won't heat, take too long to preheat, display error codes F9 or F11, or have an igniter that glows but never lights the burner. Flat glow bar style, silicon carbide. Draws 3.3–3.8A at 120V. Igniter body 3-1/2" L x 1-3/4" W x 7/8" H with 10-3/4" lead. Includes bracket and 2 porcelain wire connectors. Replaces MEE61841403 and MEE63084901. Common Problems This Part Fixes Oven not heating at all — gas is not igniting Oven takes excessively long to preheat Igniter glows orange or red but never lights the gas burner Error codes F9 or F11 displayed on LG gas ranges Gas smell when oven is turned on but burner does not light Oven heats inconsistently or shuts off mid-cycle Igniter burned out or visibly cracked or broken Replaces Part Numbers This oven igniter directly replaces the following OEM and cross-reference part numbers: MEE61841401, MEE63084901, 1599783, MEE61841403, EAP3535362, ALG1385007, PD00001851, 095225468650, AH3535362, EA3535362, AP5214765, PS3535362. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This igniter is compatible with select gas ranges from the following brands and series: LG gas ranges — LRG series (freestanding) LG gas ranges — LDG series (freestanding) LG gas ranges — LSG series (slide-in) LG gas ranges — LSS series LG gas ranges — LTG series LG gas ranges — LSR series Kenmore / Sears gas ranges (select LG-built models) Compatible with both single and double oven models. Always verify your model number before ordering. Contact our support team if you're unsure. Key Features Flat glow bar hot surface igniter — draws current through the oven safety valve to open it, then ignites the gas burner Silicon carbide construction — superior heat resistance, high melting point, corrosion and oxidation resistant Draws 3.3–3.8 amps at 120V AC — correct amperage range to open the LG gas safety valve Operating temperature: 1,800°F – 3,100°F with approximately 60-second heat-up time Igniter body: 3-1/2" L x 1-3/4" W x 7/8" H; lead/plug assembly: approximately 10-3/4" from igniter body Plug-in installation — includes 2-wire harness/plug, mounting bracket, and 2 porcelain wire connectors for splicing if needed Compatible with single and double oven models Directly replaces MEE61841401, MEE61841403, and MEE63084901 — no modification required in most cases Resolves error codes F9 and F11 on compatible LG gas ranges Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in 10–20 minutes with basic hand tools Product Specifications Part Number MEE61841401 Also Replaces MEE61841403, MEE63084901 Part Type Gas Oven Burner Igniter (Flat Glow Bar Hot Surface Igniter) Condition Aftermarket Replacement Application Gas Ranges and Ovens (single and double oven) Igniter Style Flat glow bar, cageless Material Silicon Carbide / Metal / Ceramic / Porcelain / Plastic Colors White / Black / Gray Amperage Draw 3.3 – 3.8 Amps Voltage 120V AC Operating Temperature 1,800°F – 3,100°F Heat-Up Time Approximately 60 seconds Igniter Body Dimensions 3-1/2" L x 1-3/4" W x 7/8" H Lead / Plug Length Approximately 10-3/4 inches from igniter body Includes Igniter, mounting bracket, 2-wire harness/plug, 2 porcelain wire connectors Error Codes Resolved F9, F11 Compatible Brands LG, Kenmore Installation Notes ⚠️ Gas Appliance Safety Warning This part is used in gas ranges. Working with gas appliances carries risk of gas leaks, fire, and explosion if installed incorrectly. Always shut off the gas supply at the shutoff valve and unplug the range before beginning any repair. If you smell gas at any point during or after installation, leave the area immediately and contact your gas utility provider. If you are not confident working on gas appliances, have this part installed by a qualified appliance technician. ⚠️ Handle With Care — Fragile Igniter Element The silicon carbide igniter element is extremely fragile and sensitive to contamination. Do not touch the ceramic bar with bare hands under any circumstances — oils from skin will damage the element and significantly shorten its lifespan. Handle only by the bracket, wires, and plug. To install: unplug the range and shut off the gas. Remove the oven racks and oven bottom panel. Disconnect the old igniter's wire connector. Secure the new MEE61841401 igniter to the burner bracket with the mounting screws. If the plug is a direct match to your range's harness, plug it in. If not, cut the wires and use the included porcelain wire connectors to splice the new igniter to the existing wiring. Reinstall the oven bottom panel, restore gas supply and power, and run a test cycle. Tools needed: Phillips screwdriver, work gloves. Frequently Asked Questions What is the difference between MEE61841401, MEE61841403, and MEE63084901? These are all part numbers for the same LG flat glow bar oven igniter used across different model ranges and production runs. MEE63084901 is the earlier part number; MEE61841401 and MEE61841403 are updated versions. All three are interchangeable, and this aftermarket replacement is compatible with all of them. How do I know if my oven igniter needs to be replaced? The most common signs are the oven not heating at all, taking much longer than normal to preheat, or the igniter glowing orange but never lighting the gas burner. A healthy igniter glows bright orange and ignites the burner within about 60 seconds. If it glows dimly or stays on indefinitely without the burner lighting, the igniter has weakened and is no longer drawing enough current to open the gas safety valve. Error codes F9 or F11 on LG ranges can also indicate a failed igniter. Do I need to splice the wires or does it plug straight in? This igniter includes a 2-wire harness/plug for direct plug-in installation on most compatible LG models. If the connector does not match your range's existing harness, cut the old connector off and use the 2 porcelain wire connectors included in the kit to splice the new igniter to the existing wiring. Do not use standard plastic wire nuts — only porcelain connectors should be used near the oven burner due to the high heat involved. What do error codes F9 and F11 mean on an LG range? On compatible LG gas ranges, error code F9 typically indicates an oven heating failure, and F11 can indicate a shorted or failed igniter circuit. Both codes can be triggered by a weak or failed oven igniter. Replacing the MEE61841401 igniter resolves these error codes in many cases — though other causes such as a failed gas safety valve or control board issue should also be ruled out if the problem persists after replacement. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured from silicon carbide, metal, ceramic, and porcelain to match the electrical specifications and physical dimensions of the original MEE61841401 igniter. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

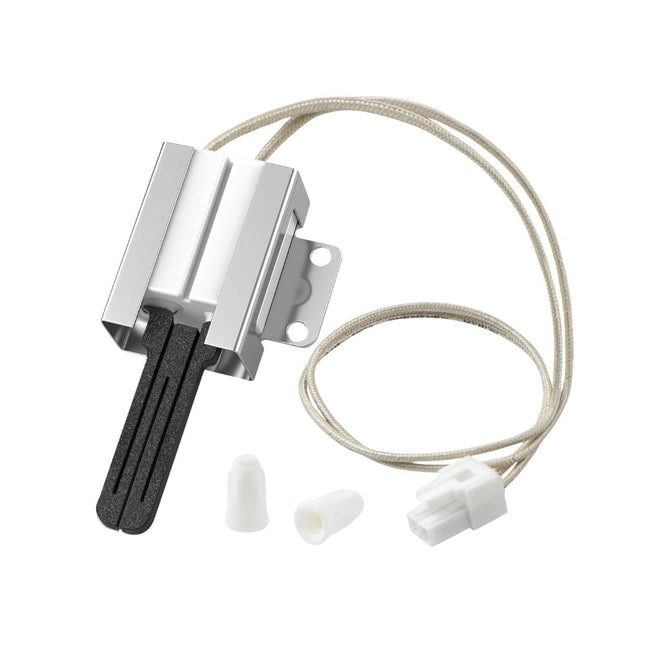

316489403 Gas Oven Igniter 3.2 - 3.6 amp, Fits specific Electrolux, Frigidaire gas oven models. Replaces Part Numbers:316489403, 5304508786, 7316489403, AH2364063, EA2364063, AP4433236, PS2364063.  Description: This Oven Igniter is a replacement part for select Frigidaire gas oven models, designed to ignite the gas in the oven burner to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.   This is an aftermarket part that can be used as a replacement for the OEM part. California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

XPARTCO 5304534663 Gas Oven Bake Igniter Product Overview The XPARTCO 5304534663 Gas Oven Bake Igniter is designed to ignite the gas burner and ensure consistent oven heating performance. This Flat Style Oven Igniter Kit is a high-quality replacement part for specific Electrolux, Frigidaire gas ranges and wall oven models. It functions to ignite the gas to light the oven burner. This does not replace round igniters, or igniters with blue ceramic.  When you turn on the oven, the igniter is activated, and it starts to glow hot. As it heats up, it ignites the gas that is released from the oven's burner. This process continues until the oven reaches the desired temperature. Quick Answer If your gas oven is not heating, takes a long time to preheat, or the burner does not ignite, the 5304534663 bake igniter may be weak or faulty. Replacing it restores proper ignition and heating performance. Replaces Part Numbers Replaces OEM part number: 5304534663, 316489400, 1197384, 316428500, 316428501, 5304462661, 7316489400, PD00085955, EAP17219382, AH1528534, EA1528534, AP3963540, PS1528534, EAP17219382, AP7212939, PS17219382. Compatibility This gas oven bake igniter is compatible with select Frigidaire, Electrolux, Kenmore, and other compatible gas ranges and ovens. Example compatible models include (but are not limited to):Frigidaire FFGF3011LWB, FFGF3054TSElectrolux ECFG3068ASKenmore 790.70402010 Frigidaire Gas Ranges Electrolux Ovens Kenmore Gas Ovens Always verify your appliance model number before ordering. Common Problems This Part Fixes Oven not heating Delayed ignition or long preheat time Gas smell due to ignition failure Burner not lighting Key Features Designed for gas oven bake ignition Provides reliable and consistent ignition High-quality aftermarket replacement Durable construction for long service life Product Specifications Part Number: 5304534663 Part Type: Gas Oven Bake Igniter Brand: XPARTCO Condition: New Amperage: OEM-equivalent (typically 3.2–3.6 amps) Igniter Style: Flat / Rectangular OEM / Aftermarket: Aftermarket Application: Gas Ovens & Ranges Troubleshooting Guide Oven not igniting → Weak or failed igniter Slow preheat → Igniter not drawing enough current Clicking but no flame → Igniter issue likely When Should You Replace This Igniter? Replace this igniter if your oven fails to heat, takes too long to preheat, or does not ignite the gas burner properly. Installation Notes ⚠️ Disconnect power and shut off gas before installation. Remove mounting screws, disconnect wiring, and install the new igniter carefully. Avoid touching the igniter surface with bare hands. Related Parts Gas Oven Safety Valve Oven Control Board Temperature Sensor Frequently Asked Questions Will this igniter fit my oven?This igniter fits many Frigidaire and compatible gas ovens. Always verify your model number. What does a bake igniter do?It ignites the gas burner and allows the oven to heat properly. What are signs of a bad igniter?Oven not heating, delayed ignition, or no flame during operation. Is this OEM or aftermarket?This is a high-quality aftermarket replacement part. Shop With Confidence Parts-O-Matic is a U.S.-based appliance parts retailer specializing in OEM and high-quality replacement parts. We offer fast shipping, reliable products, and expert support. Fast Shipping Quality Tested Parts Compatibility Support

Read more less

XPARTCO DG94-00520A Oven Igniter The XPARTCO DG94-00520A is an aftermarket replacement oven burner igniter compatible with select Samsung gas ranges and ovens. The igniter is a hot surface igniter that draws electrical current through the oven safety valve to open it, then heats to ignition temperature to light the gas burner. When the igniter weakens or fails, the oven will not heat, will take too long to preheat, or will emit a gas smell without lighting. This complete assembly includes the igniter with bracket and lead/plug. It features 8-inch leads with female pins, draws 3.4–3.6 amps, and can be used as either a bake or broil igniter depending on the model. The bracket measures 3-3/4" L x 1-3/4" W x 13/16" H and the harness and plug extend 7-7/8" from the igniter body. Verify that the electrical plug matches your existing igniter before ordering. Installs in 20–30 minutes with basic hand tools. Quick Answer The XPARTCO DG94-00520A Oven Igniter fixes Samsung gas ovens that won't heat, take too long to preheat, or have an igniter that glows but never lights the burner. Draws 3.4–3.6A. Includes bracket and lead/plug with 8" leads. Can be used as bake or broil igniter depending on model. Always verify plug type matches before ordering. Common Problems This Part Fixes Oven not heating at all — gas is not igniting Oven takes excessively long to preheat (weak igniter not reaching ignition temperature) Igniter glows orange or red but never lights the gas burner Smell of gas when oven is turned on but burner does not light Oven heats inconsistently or shuts off mid-cycle Broiler not lighting on applicable models Clicking sounds from the oven without ignition Replaces Part Numbers This oven igniter directly replaces the following OEM and cross-reference part numbers: DG94-00520A, 2692271, EAP4241428, ASM38124, PD00027453, AP5577941, PS4241428. Always verify the electrical plug type matches your existing igniter before ordering. Contact our support team if you're unsure. Compatibility This igniter is compatible with select gas ranges and ovens from the following brands: Samsung gas ranges (freestanding and slide-in) Important: Some Samsung models use two igniters — one for bake and one for broil. This part can serve as either depending on your model. Verify which igniter position you are replacing and confirm the plug type matches before ordering. Key Features Hot surface igniter — draws current through the oven safety valve to open it, then ignites the gas burner Draws 3.4–3.6 amps — correct amperage range to open the Samsung gas valve and reach ignition temperature Can be used as bake or broil igniter depending on the model Complete assembly — includes igniter, bracket, and lead/plug with 8" leads and female pins Bracket dimensions: 3-3/4" L x 1-3/4" W x 13/16" H; block measures 1-1/2" L Harness and plug extend 7-7/8" from the igniter body Metal, ceramic, and plastic construction — built to withstand high oven temperatures Aftermarket replacement built to OEM-equivalent quality standards DIY-friendly repair — installs in 20–30 minutes with basic hand tools Product Specifications Part Number DG94-00520A Part Type Oven Burner Igniter (Hot Surface Igniter) Condition Aftermarket Replacement Application Gas Ranges and Ovens (Bake or Broil) Amperage Draw 3.4 – 3.6 Amps Bracket Dimensions 3-3/4" L x 1-3/4" W x 13/16" H Block Length 1-1/2 inches Lead Length 8 inches (female pins) Harness / Plug Reach 7-7/8 inches from igniter body Material Metal / Ceramic / Plastic Includes Igniter, bracket, and lead/plug assembly Compatible Brands Samsung Installation Notes ⚠️ Shut Off Gas and Unplug Before Starting Shut off the gas supply at the shutoff valve and unplug the range from the power outlet before beginning any repair. Open the oven door and remove the oven racks. Remove the oven bottom panel by unscrewing the retaining screws, then lift and remove the heat shield beneath it to expose the burner assembly. Unscrew the igniter from the burner bracket — typically one or two screws. Carefully disconnect the wiring harness connector. Connect the new DG94-00520A igniter to the wiring harness, secure it to the burner bracket with the screws, then reinstall the heat shield and bottom panel. Restore gas supply and power, then run a test cycle to verify the oven lights properly. Note: Do not touch the ceramic igniter element with bare hands — oils from skin can reduce its lifespan. Tools needed: Phillips screwdriver, nut driver, work gloves. Frequently Asked Questions How do I know if my oven igniter is bad? The most common signs are the oven not heating at all, taking much longer than usual to preheat, or the igniter glowing orange or red but never lighting the burner. A healthy igniter glows bright orange and ignites the gas within 30–90 seconds. If it glows dimly or stays on without lighting the burner, it is drawing insufficient current to open the gas safety valve and needs to be replaced. Why does my oven igniter glow but the oven still doesn't heat? A glowing igniter that never lights the burner is the classic sign of a weak igniter. The igniter must draw enough current — typically 3.2 amps or more — to open the gas safety valve. As igniters age, their resistance increases and amperage draw drops below the threshold needed to open the valve. The igniter glows because it still has some current, but not enough to let gas through. Does my Samsung oven use one igniter or two? Many Samsung gas ranges have two igniters — one for the bake burner (bottom of oven) and one for the broil burner (top of oven). The DG94-00520A can serve as either depending on the model. Check which position is failing before ordering, and verify that the plug type on this igniter matches your existing part. Do I need to verify the plug type before ordering? Yes — this is important. Some Samsung models use a plug that is a direct match for this igniter, while others may require cutting the old plug and using wire nuts or crimp connectors. Inspect the connector on your existing igniter and compare it to the 8" female pin connector included with this part before ordering. Contact our support team if you need help confirming compatibility. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured from metal, ceramic, and plastic to match the dimensions and electrical specifications of the original DG94-00520A igniter. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

9758079 Gas Range Oven Spark Electrode Igniter - Compatible with Whirlpool, Kenmore, Maytag Ranges Product Description Restore your gas range’s baking performance with the Aftermarket 9758079 Gas Range Oven Spark Electrode Igniter from Parts-O-Matic. This high-quality aftermarket igniter replaces the original 9758079, designed for select Whirlpool, Kenmore, Maytag, Amana, and other range ovens with Direct Spark Ignition (DSI) systems. Featuring a durable ceramic and metal construction with a .110" male terminal end, it provides reliable sparking to ignite the oven burner. It’s a cost-effective fix for ovens that won’t start, fail to ignite, or produce little to no heat. Handle with care to avoid damaging the ceramic insulator. Enjoy fast and free shipping on all orders at Parts-O-Matic! Compatibility: Compatible with models including but not limited to: Whirlpool: WFG524SLAB0, SF1/2/3, TGP, VSF, WFG, YSF series Kenmore: 66475272502, 6657213301, 66575162301 Maytag, Amana, Jenn-Air, Roper, Estate, Inglis models Replaces part numbers: WP9758079, 9758079, WP9758079VP, AP6013984, PS11747217 Verify your model number or contact Parts-O-Matic support for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select Whirlpool, Kenmore, Maytag, Amana, Jenn-Air, Roper, Estate, and Inglis gas range models. 🔥 Specifications: Spark electrode igniter with mounting bracket, .110" male terminal end, designed for DSI systems to ignite the oven burner efficiently. 💰 Cost-Effective Alternative: Aftermarket part offers OEM-equivalent performance at a lower price. 🛠️ Easy Installation: Requires a Phillips screwdriver and basic tools; typically installed in 10–20 minutes. 🛡️ Reliable Fixes: Resolves common issues like no ignition, no heat, or gas smell without ignition. Installation Notes: Tools Needed: Phillips screwdriver, small socket set or nut driver, needle-nose pliers. Safety First: Disconnect power and shut off the gas valve before installation. Handle with Care: Avoid damaging the ceramic insulator, as it may crack and affect performance. Installation Steps: Remove oven racks and base plate (2 screws), unscrew the burner (1 screw), disconnect the old igniter’s wire, and remove the igniter (2 screws). Install the new igniter in reverse order. Note: Some users report slight bracket misalignment; minor bending may be required. Shop Parts-O-Matic for high-quality aftermarket appliance parts with fast and free shipping on all orders and a 30-day return policy. Get your gas range back to perfect performance today! Add to cart now for a budget-friendly fix with fast and free shipping on your entire order!

Read more less

W10918546CM Gas Oven Igniter Replaces Part Numbers: W10918546, W10140611, 98005652, W10918546VP, WPW10140611, AP6037202, PS11770066. 3.4 - 3.6 Amp, 1.5" block, 3.75" cage, 10" leads w/male pins. Bake igniter for specific single burner Whirlpool range models. Description: This Oven Igniter is a replacement part for select Maytag, Kenmore, Whirlpool gas oven models, responsible for igniting the gas burner that heats the oven. It works by drawing electrical current through the igniter filament, heating it to a high temperature until it glows and ignites the gas to start the cooking process. This is an aftermarket part that can be used as a replacement for the OEM part.

Read more less

ERP 316011200 Range Top Burner Spark Igniter Electrode The 316011200 is an aftermarket replacement gas range surface burner spark igniter electrode compatible with select Frigidaire, Tappan, Electrolux, Gibson, Kelvinator, White-Westinghouse, Kenmore, and Danby gas ranges and cooktops. The spark igniter electrode is the ceramic-and-metal tip mounted next to each surface burner that generates the electrical spark needed to ignite the gas when a burner knob is turned. When the electrode cracks, corrodes, or its internal wiring degrades, it will produce a weak or absent spark — causing the burner to not light, to require a long hold of the ignition button, or to click repeatedly without igniting. Made from porcelain and metal, each electrode measures 3/4"L x 1/2"W x 1-3/8"H and is sold individually. One electrode is used per surface burner — most gas ranges have 4 or 6 surface burners, each with its own electrode. It directly replaces AP2123862, 5303311262, 464, AH436633, EA436633, EAP436633, PS436633, LP11343, and PD00000522. Installs in 15–30 minutes depending on model disassembly required. Note: While this part is involved in a gas appliance, the electrode itself is not a gas component — it carries only a low-voltage electrical signal from the ignition module. Always unplug the range and shut off the gas before beginning any repair. Quick Answer The 316011200 Range Top Burner Spark Igniter Electrode fixes Frigidaire-platform gas ranges where a surface burner won't light, requires a long hold to ignite, sparks continuously without lighting, or produces a weak clicking sound. Porcelain/metal, 3/4"L x 1/2"W x 1-3/8"H. Sold individually — one per burner. Compatible with Frigidaire, Tappan, Electrolux, Gibson, Kelvinator, White-Westinghouse, Kenmore, and Danby gas ranges. Replaces AP2123862, 5303311262, 464, EA436633, PS436633, LP11343. Common Problems This Part Fixes Surface burner will not light — electrode not producing a spark Burner requires holding the ignition knob for an extended time before the gas lights Burner sparks repeatedly (rapid clicking) without ever lighting the gas One burner does not spark while all others work normally — that burner's electrode has failed Weak or intermittent spark at a specific burner Electrode visibly cracked, chipped, or tip broken off Corrosion or moisture damage to the electrode tip or wiring from a cooking spill Replaces Part Numbers This spark igniter electrode directly replaces the following OEM and cross-reference part numbers: 316011200, 5303311262, AFR16248, AH436633, AP2123862, EA436633, EAP436633, LP11343, PD00000522, PS436633. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This spark igniter electrode is compatible with select gas ranges and cooktops from the following brands: Frigidaire gas ranges and cooktops Tappan gas ranges and cooktops Electrolux gas ranges (select models) Gibson gas ranges Kelvinator gas ranges White-Westinghouse gas ranges Kenmore / Sears gas ranges (Frigidaire/Electrolux-built models) Danby gas ranges (select models) Note: This electrode is sold individually — one electrode per burner. Most gas ranges have 4 or 6 surface burners, each with its own electrode. If multiple burners are not lighting, you may need to order multiple electrodes. Always verify your model number before ordering to confirm this electrode fits the specific burner assembly on your range. Key Features Generates the electrical spark that ignites the gas at each surface burner when the ignition knob is turned Porcelain insulator body with metal electrode tip — designed to withstand continuous thermal cycling near the burner flame Dimensions: 3/4"L x 1/2"W x 1-3/8"H — matches original electrode dimensions for compatible Frigidaire-platform models Sold individually — one electrode per surface burner; order one per failed burner Replaces AP2123862, 5303311262, 464, EA436633, PS436633, LP11343, and EAP436633 Compatible with Frigidaire, Tappan, Electrolux, Gibson, Kelvinator, White-Westinghouse, Kenmore, and Danby gas ranges Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 15–30 minutes with basic hand tools Product Specifications Part Number 316011200 Part Type Gas Range Surface Burner Spark Igniter Electrode Condition Aftermarket Replacement Application Gas Ranges and Cooktops Material Porcelain / Metal Color White / Gray Dimensions 3/4"L x 1/2"W x 1-3/8"H Sold As Single electrode (one per burner) Compatible Brands Frigidaire, Tappan, Electrolux, Gibson, Kelvinator, White-Westinghouse, Kenmore, Danby Installation Notes ⚠️ Gas Appliance Safety — Unplug and Shut Off Gas Before Starting This part is installed on a gas range. Always unplug the range from the power outlet and shut off the gas supply at the shutoff valve before beginning any repair. If you smell gas at any point during or after installation, leave the area immediately and contact your gas utility provider. Do not restore gas or power until the repair is complete and you have confirmed there are no gas connections disturbed during the repair. ⚠️ Range Top Access May Require Lifting the Cooktop On most Frigidaire-platform gas ranges, the spark igniter electrodes are mounted beneath the cooktop surface and accessed by lifting the top panel — this requires removing all grates and burner caps, then lifting the top from the front. The electrode is secured by a single screw and connected to the ignition module by an insulated wire. Disconnect the wire, unscrew the mounting screw, and remove the old electrode. Install the new 316011200 electrode in the same position, tighten the mounting screw, and reconnect the wire. Important: inspect the insulated wire carefully for damage — if the wire is cracked or bare in any section, it may arc to the stove body and should be repaired with heat-resistant tape or replaced before installing the new electrode. Restore gas and power and test the burner. Tools needed: Phillips screwdriver, possibly a nut driver for some models. Frequently Asked Questions What does the spark igniter electrode do? The spark igniter electrode is the small ceramic-and-metal tip mounted next to each surface burner on a gas range. When you turn a burner knob to the "light" or "ignite" position, the ignition module sends a high-voltage electrical pulse through the wire to the electrode tip. This creates a visible electrical spark that jumps between the electrode tip and the metal burner cap, igniting the gas. The electrode itself carries only a brief electrical pulse — it does not directly handle gas — but it must be in good condition with an intact porcelain body and clean metal tip to produce a reliable, consistent spark. One burner won't light but all the others work — is it the electrode? Almost certainly yes. When all other burners spark normally but one does not, the fault is almost always isolated to that burner's electrode or its connecting wire — not the ignition module (which powers all burners) or the gas supply (which feeds all burners). Inspect the electrode on the non-lighting burner: look for cracks, chips, or a broken tip on the porcelain body. Also check the connecting wire for corrosion at the connection point or damage to the insulation. Replacing the 316011200 electrode on that burner will restore normal ignition in most cases. My burner clicks continuously even when not trying to ignite — what causes this? Continuous clicking when no burner is being lit is typically caused by moisture or food residue on the electrode tip or in the burner cap area creating an unintended electrical path — the ignition module detects a spark condition and keeps firing. Clean the electrode tip, burner cap, and burner head thoroughly with a dry cloth or soft toothbrush, and allow them to dry completely. If cleaning stops the clicking, a cracked or degraded electrode that is allowing moisture to reach the internal wiring is the likely underlying cause — replace the electrode to prevent recurrence. If the clicking persists after the burner area is completely clean and dry, the ignition module may be faulty. How many electrodes does my gas range need? Each surface burner on a gas range has its own dedicated spark igniter electrode — one electrode per burner. A standard 4-burner gas range uses 4 electrodes; a 5- or 6-burner range uses 5 or 6. This listing is for a single electrode. If multiple burners are not lighting, order one electrode for each affected burner. When replacing one electrode, it is a good opportunity to inspect all other electrodes for cracks or corrosion and replace any that show visible wear at the same time. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Frigidaire OEM part, but is manufactured from porcelain and metal to match the dimensions and performance of the original 316011200 surface burner spark igniter electrode. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
