Microwave Parts

EXP480 Microwave Door Switch (NC - NO) Normally Closed / Open Replaces Part Numbers: 28QBP0496, W10211972, 4375346, W10330566, WPW10330566, 1472224, 4393442, 4393498, 4393570, 4393697, 4393881, 461967848881, 8206345, W10131248, W10217468, AH2338920, EA2338920, AP4357880, PS2338920, W10727360, W10269457, 3379124, AP5950105, PS10057151. Quick Details               Model Number:  EXP480             Max. Current:  16A             Max. Voltage: 250VAC             Operating Temperature:  -25℃ to +85℃             Protection Level:  IP40             Approvals: CCC CE UL VDE             Protection Degree: IP40             Contact form: SPDT     Terminal Size: 6.3mm (approx 1/4") Color:  Gray Operating Force:  25g(0.245N)-400g(3.92N)             Material:  Plastic        California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

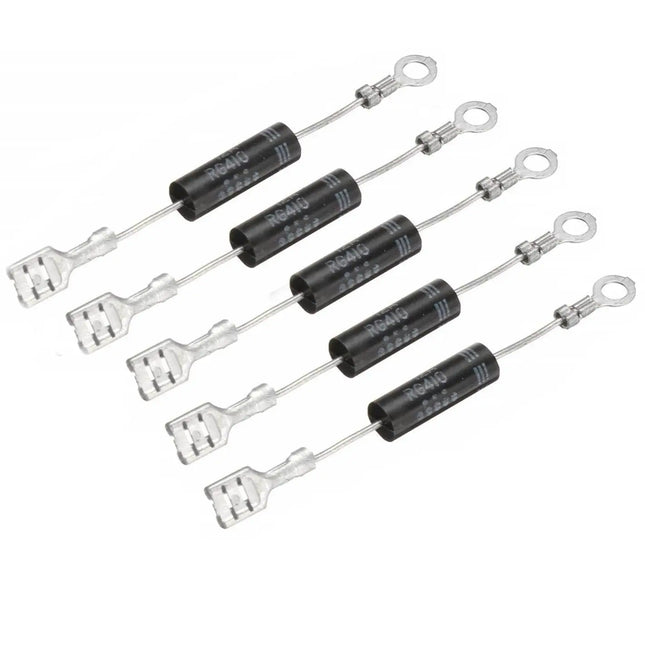

(5 Pack) EXPHV11 Microwave High Voltage Diode (Rectifier) Replaces:GE, LG, AMANA, ELECTROLUX, GE, KENMORE, MAYTAG, WHIRLPOOL, Frigidaire T3512, 3512, T4512, H, CL01-12, HVM12, 512 H, 12Kv, 350mA.    Replaces Part Numbers: 11QBP0236, AP5633254, PS4085133, AP3192533, PS239740 EA239740, WB27X10597, 13091701, AP6005641 PS11738693, WP13091701, 417726, 00188507 AP3382376 PS8712310, 00417726, PS11745270, AP6012063, 8205489, AP4357534, PS2339491, EA2339491, 5304467670, AP4564925, 3518400400, PS11745270, AP6012063, WP8205489, PS3654932, AP5631218, W10245187, W10492278. Description: This Diode Assembly is a replacement part for specific microwave models. It plays a crucial role in converting alternating current (AC) to direct current (DC), which is essential for the microwave’s high-voltage functions, including powering the magnetron to generate microwave energy. Over time, diodes can fail due to electrical surges, excessive heat, or wear and tear. A faulty diode assembly can lead to inefficient or non-functional microwave operation, impacting its ability to heat food properly. Microwave High Voltage Diode – Universal Replacement Restore your microwave’s heating function with this high-quality high voltage diode. Built to handle up to 12,000V / 500mA, it’s a reliable replacement for worn or damaged diodes in many major brands. Features: Direct replacement for most microwave models Durable and rated for high-voltage performance Fixes common issues like no heat or humming Fits brands: GE, Whirlpool, LG, Samsung, Panasonic, Frigidaire, and more. ⚠️ Installation should be done with power disconnected. Not sure if it fits? Contact us to confirm compatibility.

Read more less

EXP499 Microwave Door Switch (Normally Closed)  Restore reliable door safety and control with the EXP499 aftermarket door switch, designed for normally closed (NC) operation. Rated for 16 A at 125/250 VAC, it meets OEM performance standards and is compatible with many major appliance brands. 🔁 Replaces OEM Part Numbers: WB24X830, AH237422, EA237422, WB24X0800, WB24X0830, WB24X10075, WB24X800, AP2024338, PS237422, WB24X25397, WB24X817, WB24X10112, WB24X0817, AP6037282, PS11766871, 00606695, 1386420, 606695, AH3477007, EA3477007, AP4067354, PS3477007, PS8726632, 5304408937, 5304509459, 5304464098, 4583655, AP6230614, PS12071302, ANE61784L0AG, AP7040623, WB24X10205, WB24X10147, 251201600930, 3025959, AP5790849, PS8754455, W10269458, W10211973, 1550016, 4393598, 8206347, AH2361111, EA2361111, AP4429884, PS2361111, 6600W1K001C, AP4650823, PS3529293, WB24X824, 253814, WB24X0824, AH237416, EA237416, AP2024332, PS237416, 5304456101, 1198245, 75304456101, AH1532505, EA1532505, AP3960662, PS1532505, 6600W1K001R, 1583495, AH3598700, EA3598700, AP5254801, PS3598700, 3405-001033, DE34-20019A, WP3405-001033, 2028596, 3405-000176, AP4044665, PS4131191, WB24X804 253795, WB24X0422, WB24X0804, WB24X422, AH237397, EA237397, AP2024313, PS237397, WB24X10189, 1810588, AH3486597, EA3486597, AP4980349, PS3486597, 3B73361E, 1325767, 3B73361D, 6600W1K003C, 6600W1K004B, AH3522736, EA3522736, AP4629337, PS3522736, 4415A66600, 1206671, 4415A66610, GSM-V1602A2, AP5322919. ✅ Key Features Normally Closed (NC) micro-switch 16 A rating at both 125 VAC and 250 VAC Durable design for reliable, long-lasting performance 🔧 Fixes These Common Issues: Microwave won’t start or stops mid-cycle No heat even though power is on Door latch doesn't trigger the switch 🧰 Compatibility: Works with Whirlpool, GE, Kenmore, Samsung, LG, and many other microwaves — check your old switch’s part numbers above to confirm fit. 🚚 Why Shop at Parts-O-Matic? Trusted XPARTCO quality Parts Shipped Fast and Free anywhere in the U.S. Easy DIY replacement suitable for homeowners and pros Reliable support — contact us with your model number if you're unsure 🛒 Restore your microwave’s safety and function — order the EXP499 NC Door Switch today and get it shipped fast and free.

Read more less

(5 Pack) EXP15A Ceramic Microwave Fuse Fast Blow 15A, 250V Replaces Part Numbers: WB27X7, 14QBP15CFB, AP2626454, PS240270, M0805102, AP6014670, WPM0805102, 3601-001197, PS4131368, AP4046099, PS239596, AP3189379, WB08T10027, WB2X8151, WB27X10454. This is an aftermarket part that can be used as a replacement for the OEM part. California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less

XP5KV09A Microwave Line Fuse 0.9A, 5.0KV - Compatible with LG, Samsung, Whirlpool, Sharp, Panasonic, Bosch, Siemens, Daewoo, Fagor, Brandt, Candy, Hitachi, De Dietrich, Proline, Scholtes, Midea, Galanz Microwaves Product Description Protect your microwave’s electrical system with the replacement XP5KV09A Microwave Line Fuse from Parts-O-Matic. This high-quality fuse, designed for LG, Samsung, Whirlpool, Sharp, Panasonic, Bosch, Siemens, Daewoo, Fagor, Brandt, Candy, Hitachi, De Dietrich, Proline, Scholtes, Midea, and Galanz microwaves, safeguards against power surges and electrical faults by breaking the circuit when current exceeds 0.9A at 5.0KV. Constructed as a fast-blow glass tube (6x40mm), this fuse ensures reliable operation and resolves issues like a non-working microwave, blown fuses, or power failures. Note: Includes one fuse. Disconnect power before installation. Handle with care to avoid glass breakage. Replacement Fuse for Part Numbers: XP5KV09A, F900mAL5KV, EAF36358314, DE91-70071A, DE91-70060B, F900mAL5KV, EAF36358314, AP5957954, PS10067115, WB26X35519, AP6997696. PS16542134, WB02X35377, AP6989400, PD00084692, PS16216933, WB27X35672, PD00078809, EAP16219548, AP6994733, PS16219548, EAF36358316, PD00051271, EAP10066444, AP5957955, PS10066444. Compatibility: Compatible with models including but not limited to: LG: Select models requiring XP5KV09A or compatible 0.9A, 5.0KV fuses (e.g., LMHM2237ST, LMV2031ST, LMC1575ST) Samsung: Select models requiring XP5KV09A or compatible 0.9A, 5.0KV fuses Whirlpool: Select models requiring XP5KV09A or compatible 0.9A, 5.0KV fuses Sharp, Panasonic, Bosch, Siemens, Daewoo, Fagor, Brandt, Candy, Hitachi, De Dietrich, Proline, Scholtes, Midea, Galanz: Select models requiring XP5KV09A or compatible 0.9A, 5.0KV fuses Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select LG, Samsung, Whirlpool, Sharp, Panasonic, Bosch, Siemens, Daewoo, Fagor, Brandt, Candy, Hitachi, De Dietrich, Proline, Scholtes, Midea, and Galanz microwave models. 🔥 Specifications: replacement microwave line fuse, 0.9A, 5.0KV, fast-blow, glass tube, 6x40mm (1/4" x 1-5/8"), high-voltage protection, heat-resistant. 💰 Cost-Effective Alternative: replacement fuse offers OEM-equivalent performance at a lower price. 🛠️ Easy Installation: Requires needle-nose pliers, Phillips screwdriver, work gloves; typically installed in 10–20 minutes. 🛡️ Reliable Fixes: Resolves microwave not powering on, blown fuse issues, or intermittent power failures. Installation Notes: Safety First: Disconnect the microwave from the power source before installation. Shop Parts-O-Matic for high-quality replacement appliance parts with a 30-day return policy. Restore your microwave’s functionality today! Add to cart now for a budget-friendly fix!

Read more less

20A Ceramic Fuse 6.35 x 32 mm, 20A 250V - Compatible with GE, Whirlpool, Kenmore, Maytag, Frigidaire, LG, Samsung and Other Appliances Product Description Protect your appliances with the replacement 20A Slow-Blow Ceramic Fuse 6.35 x 32 mm, 20A 250V. This high-quality time-delay (slow-blow) ceramic cartridge fuse is designed for GE, Whirlpool, Kenmore, and other appliances like microwaves, washers, dryers, and spa control systems. With a ceramic body for durability and heat resistance, this fuse (6.35 x 32 mm, 20A, 250V AC) safeguards circuits from over current and short circuits while tolerating brief surges. It addresses issues like appliance failure, power loss, or blown fuses.  Note: Includes one ceramic fuse. Disconnect power before installation. Verify fuse size and rating match your appliance’s requirements. Replaces part numbers: EXP20A, MDA-20, 0326020.HXP, 0326020.MXDP, BK1-MDP-20-R, BK-MDP-V-20-R, GSA20, 8020.0605, 8020.0605.G, WB27X10388, AP3094537, AH334641, EA334641, EAP334641, PS334641, WP4375321, W11305892, W11305905, AP6009296, PS11742452, 3601-001198, AP4046006, PS4131369, 5F1CD2031S, AP4565040, 1206681, 4922155, WB27X11151, AP4980434, PS3486702, WB27X11151, AP4980434, PS3486702, WB2X3910, PS242167, AP2010811, WB2X3910, WB27X995, WB27X945, B27X10388, PS239525, AP2631556, WP8183507, 8183507, PS11745084, AP6011884, M0805101, AP6014669, PS11747931, WPM0805101, 5304423383, PS472662, AP2151673, EA472662, WB27X10928, AP3994062, WB27X10388, AH1481237, EA1481237, PS1481237, W11707984, W10138793, AP7225218, PS17629444, 3B74133Q, AP4440371, PS3522743, 5F1CD0202S, 5F1CD2031S, 3B74133K. AH3522741, EA3522741, AP4438152, PS3522741. Compatibility: Compatible with appliances including but not limited to: GE Microwaves: JE1860SH04, JVM1540SM5SS, JVM1440WH04 Whirlpool Microwaves: MH1150XMQ0, MH2175XSB0 Kenmore Microwaves: 721.62649200, 665.68612800 Whirlpool Washers: WTW5300SQ0, LSQ9544KQ0 Whirlpool Dryers: WED5300SQ0 Balboa Spa Control Systems: 30123 Other Brands: KitchenAid, Maytag, Amana, Hotpoint, and other appliances requiring 6.35 x 32 mm, 20A 250V slow-blow fuses Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select GE, Whirlpool, Kenmore, KitchenAid, Maytag, Amana, Hotpoint, LG, Samsung and other appliances requiring 6.35 x 32 mm, 20A 250V fuses. 🔥 Specifications: replacement slow-blow ceramic fuse, 6.35 x 32 mm (1/4" x 1-1/4"), 20A, 250V AC, ceramic body, time-delay, 3.35–3.5 mOhms resistance, cylindrical, holder/clip mount. 💰 Cost-Effective Alternative: replacement fuse offers OEM-equivalent performance at a lower price. 🛠️ Easy Installation: Requires insulated gloves, needle-nose pliers; typically installed in 5–15 minutes. 🛡️ Reliable Fixes: Resolves appliance failure, power loss, or blown fuse issues in microwaves, washers, dryers, and spa systems. Installation Notes: Safety First: Disconnect the appliance from the power source before installation. Shop Parts-O-Matic for high-quality replacement appliance parts with a 30-day return policy. Keep your appliances running safely and efficiently today! Add to cart now for a budget-friendly fix!

Read more less

XP5KV09A Microwave Line Fuse 900mA (0.9A), 5Kv - Compatible with LG, Samsung, Whirlpool Microwaves Product Description Protect your microwave’s electrical system with the replacement XP5KV09A Microwave Line Fuse from Parts-O-Matic. This high-quality fuse, designed for LG, Samsung, Whirlpool, microwaves, safeguards against power surges and electrical faults by breaking the circuit when current exceeds 0.9A at 5.0KV. Constructed as a fast-blow glass tube (6x40mm), this fuse ensures reliable operation and resolves issues like a non-working microwave, blown fuses, or power failures. Note: Includes one fuse. Disconnect power before installation. Handle with care to avoid glass breakage. Replacement Fuse for Part Numbers: XP5KV09A, F900mAL5KV, EAF36358314, DE91-70071A, DE91-70060B, F900mAL5KV, EAF36358314, AP5957954, PS10067115, WB26X35519, AP6997696. PS16542134, WB02X35377, AP6989400, PD00084692, PS16216933, WB27X35672, PD00078809, EAP16219548, AP6994733, PS16219548, EAF36358316, PD00051271, EAP10066444, AP5957955, PS10066444. Compatibility: Compatible with models including but not limited to: LG: Select models requiring XP5KV09A or compatible 0.9A, 5.0KV fuses (e.g., LMHM2237ST, LMV2031ST, LMC1575ST) Samsung: Select models requiring XP5KV09A or compatible 0.9A, 5.0KV fuses Whirlpool: Select models requiring XP5KV09A or compatible 0.9A, 5.0KV fuses Select models requiring XP5KV09A or compatible 0.9A, 5.0KV fuses Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select LG, Samsung, Whirlpool, microwave models. 🔥 Specifications: replacement microwave line fuse, 0.9A, 5.0KV, fast-blow, glass tube, 6x40mm (1/4" x 1-5/8"), high-voltage protection, heat-resistant. 💰 Cost-Effective Alternative: replacement fuse offers OEM-equivalent performance at a lower price. 🛠️ Easy Installation: Requires needle-nose pliers, Phillips screwdriver, work gloves; typically installed in 10–20 minutes. 🛡️ Reliable Fixes: Resolves microwave not powering on, blown fuse issues, or intermittent power failures. Installation Notes: Safety First: Disconnect the microwave from the power source before installation. Shop Parts-O-Matic for high-quality replacement appliance parts with a 30-day return policy. Restore your microwave’s functionality today! Add to cart now for a budget-friendly fix!

Read more less

XPARTCO W10915651 Microwave Waveguide Cover The XPARTCO W10915651 is an aftermarket replacement microwave waveguide cover compatible with select Whirlpool, KitchenAid, Jenn-Air, Maytag, Amana, Kenmore, Roper, Admiral, Magic Chef, Norge, Estate, and Ikea over-the-range and built-in microwave/oven combo models. The waveguide cover is a flat mica plate mounted on the interior right wall of the microwave cavity. It protects the waveguide — the channel through which microwave energy is directed into the cooking cavity — from food splatter, grease, and moisture. Without the cover, food particles can reach the waveguide and cause arcing, sparking, burning, and permanent damage to the magnetron or waveguide assembly. Made from mica (a heat-resistant mineral material), this cover measures approximately 5-3/8" L x 1-3/4" W and clips or slides into the mounting slot on the interior wall of the microwave. It directly replaces W10687366, W10120230, WPW10120230, and 461967451001. Replacing a damaged or burned waveguide cover promptly is the single most important step in preventing more expensive microwave damage. Installs in under 5 minutes with no tools. Quick Answer The XPARTCO W10915651 Microwave Waveguide Cover fixes microwaves that are sparking, arcing, burning smells, or have a scorched or missing cover on the interior right wall. Mica plate, approx. 5-3/8" L x 1-3/4" W. — installs in under 5 minutes. Compatible with Whirlpool, KitchenAid, Jenn-Air, Maytag, Amana, Kenmore, and more. Replaces W10687366, W10120230, WPW10120230, and 461967451001. Common Problems This Part Fixes Sparking or arcing inside the microwave during operation Burning smell coming from the microwave while in use Visible scorch marks, burn spots, or a hole in the existing waveguide cover Microwave stopping mid-cycle due to arcing or sparking Waveguide cover is cracked, warped, or missing entirely Uneven heating or microwave not heating food properly Microwave making popping or crackling sounds during operation Replaces Part Numbers This waveguide cover directly replaces the following OEM and cross-reference part numbers: W10915651, W10120230, WPW10120230, W10687366, 461967451001, AWP42398, PD00039892, EAP11769950, AP6038160, PS11769950.  If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This waveguide cover is compatible with select over-the-range and built-in microwave/oven combo models from the following brands: Whirlpool microwaves and microwave/oven combos (WOC, WOCA, WOEC series and more) KitchenAid microwaves and built-in combos Jenn-Air microwaves and built-in combos Maytag microwaves Amana microwaves Kenmore / Sears microwaves (Whirlpool-built models) Roper microwaves Admiral microwaves Magic Chef microwaves Norge microwaves Estate microwaves Ikea microwaves (select models) Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Protects the waveguide from food splatter and moisture — prevents arcing, sparking, and magnetron damage Made from mica — a heat-resistant mineral material rated for continuous high-temperature microwave exposure Dimensions: approximately 5-3/8" L x 1-3/4" W — fits the mounting slot on the interior right wall of compatible models Clips or slides into the existing mounting slot — no tools required, installs in under 5 minutes Replaces W10687366, W10120230, WPW10120230, and 461967451001 Compatible with Whirlpool, KitchenAid, Jenn-Air, Maytag, Amana, Kenmore, and more Replacing a burned or damaged cover immediately prevents far more expensive repairs to the magnetron or waveguide assembly Aftermarket replacement built to OEM-equivalent quality standards Product Specifications Part Number W10915651 Part Type Microwave Waveguide Cover (Mica Plate) Condition Aftermarket Replacement Material Mica (heat-resistant mineral) Dimensions Approximately 5-3/8" L x 1-3/4" W Location Interior right wall of the microwave cavity Installation Clips or slides into mounting slot — no tools required Compatible Brands Whirlpool, KitchenAid, Jenn-Air, Maytag, Amana, Kenmore, Roper, Admiral, Magic Chef, Norge, Estate, Ikea Installation Notes ⚠️ Unplug Microwave Before Starting Unplug the microwave before beginning. Open the microwave door and locate the waveguide cover on the interior right wall of the cavity — it is a flat rectangular plate, typically tan or off-white in color. If the old cover is burned, it may be stuck to the wall or disintegrating — carefully remove any remaining pieces and wipe the mounting area clean. Slide or clip the new W10915651 cover into the mounting slot on the right wall of the cavity — it should seat flat against the wall with no gaps. Ensure the cover is fully seated before use. Do not operate the microwave with a missing, cracked, or burned waveguide cover — even a small burn hole can cause arcing and progressive damage. Restore power and run a brief test cycle to confirm normal operation. Tools needed: None. A damp cloth may be needed to clean the mounting area. Frequently Asked Questions What does the waveguide cover do and why does it need to be replaced? The waveguide cover is a thin mica plate that covers the opening of the waveguide — the channel through which microwave energy travels from the magnetron into the cooking cavity. Its job is to prevent food particles, grease, and steam from entering and contaminating the waveguide. When food splatter builds up on the cover and burns, the cover develops scorch marks or burn-through holes. These damaged spots absorb microwave energy and cause arcing — sparks and electrical discharges that can quickly damage the magnetron, which is the most expensive component in the microwave. Replacing the waveguide cover promptly when it shows damage is the least expensive and most important preventive maintenance you can do for a microwave. Can I use the microwave without the waveguide cover? No — never operate a microwave with a missing, cracked, or burned waveguide cover. Without the cover, food particles and moisture can enter the waveguide directly, causing immediate arcing and sparking. Even a small hole in the cover can cause arcing. Operating the microwave in this condition risks damaging the magnetron (a $100–$200 or more repair), burning the waveguide channel, or creating a fire hazard. The waveguide cover is inexpensive and installs in minutes — always replace it before using the microwave again. My microwave is sparking — will replacing the waveguide cover fix it? Sparking is almost always caused by a burned or damaged waveguide cover, and replacing the cover resolves the sparking in the vast majority of cases. However, if the waveguide itself (the metal channel behind the cover) has been damaged from prolonged arcing, or if metal debris from a burned cover has entered the waveguide, additional cleaning or component repair may be needed. Inspect the area behind the old cover after removing it — if the wall or channel shows deep burn damage, contact our support team or a technician before operating the microwave again. How do I prevent the waveguide cover from burning again? The most effective prevention is to keep the interior of the microwave clean — specifically the waveguide cover itself and the walls near it. Wipe down the cover and interior walls with a damp cloth after each use, especially after heating anything that splashes or spatters. Use a microwave-safe cover or lid over food when heating. Never operate the microwave when empty, as this directs all microwave energy at the waveguide cover without any food to absorb it. With regular cleaning, a mica waveguide cover can last for years without needing replacement. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured from heat-resistant mica to match the dimensions and fit of the original W10915651 waveguide cover. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO WB39X10034 Microwave Waveguide Cover – Compatible with GE Microwaves Product Description Protect your microwave’s internal components from grease, steam, and food splatter with the XPARTCO WB39X10034 Microwave Waveguide Cover. This high-quality aftermarket replacement shields the magnetron and waveguide channel, preventing damage and reducing the risk of sparking or arcing. A burned, cracked, or missing waveguide cover can cause uneven heating or loud popping sounds. Replacing it with this XPARTCO cover restores safe and efficient microwave performance. Replaces Part Numbers WB39X10034, 1810876, 262100100006, EAP3486812, PD00057680, AH3486812, EA3486812, AP4980541, PS3486812. Compatibility This replacement waveguide cover fits select GE microwaves, including countertop, over-the-range, and built-in units. Example compatible models include (but are not limited to):GE JVM1340WW002, JVM1660WB004, JVM1540DN1WW, and many additional models. Always verify your microwave’s model number before ordering. Contact our support team if you’re unsure. ✅ Key Features 🔄 Aftermarket Replacement – Designed to match OEM fit, thickness, and heat resistance 🔥 High-Temperature Mica Material – Safely withstands microwave energy and heat 🛡️ Protects Waveguide Channel – Prevents grease and food particles from reaching the magnetron 💰 Budget-Friendly Solution – Reliable alternative to OEM waveguide covers 🛠️ Quick Installation – Easily installs with clips or screws depending on model ⚡ Fixes Common Issues – Solves sparking, arcing, burning smells, and uneven heating 📐 Product Specification Part Number: WB39X10034 Component Type: Microwave Waveguide Cover Material: Mica sheet (heat-resistant composite) Color: Light gray Mounting: Clip-in or screw-in (varies by microwave model) Compliance: Built to OEM-equivalent quality standards (not OEM) 🛠️ Installation Notes Tools Needed: Phillips screwdriver (if screw-mounted) ⚠️ Safety First: Always unplug the microwave before servicing.Microwave repairs involve high voltage even when unplugged — avoid internal access unless qualified. Steps: Disconnect microwave power. Locate the old or damaged waveguide cover inside the cavity. Remove clips or screws holding the cover. Install the new XPARTCO WB39X10034 cover securely in place. Ensure there are no gaps around the edges. Restore power and test for normal heating. ⏱️ Time Required: 1–3 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Trusted Appliance Parts Supplier 🔄 30-Day Return Policy Stop microwave sparking and protect internal components — Add to Cart Now for a fast, reliable fix!

Read more less

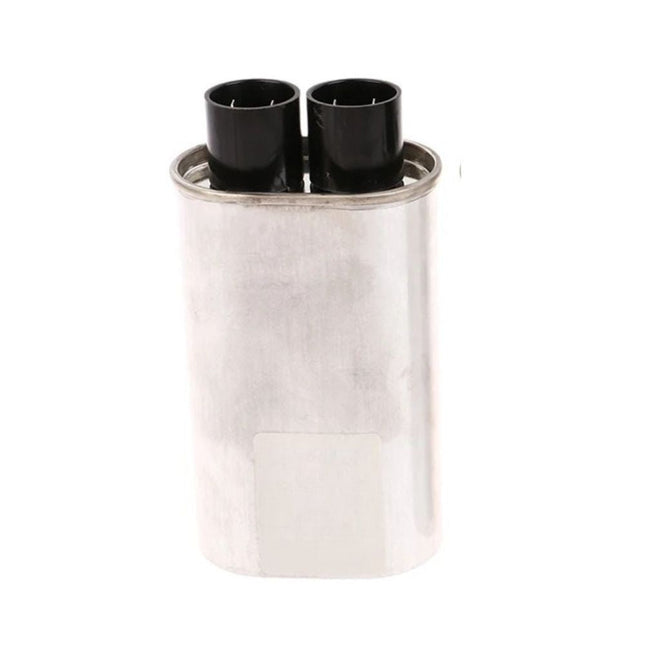

MWCDF-095-2Kit Microwave Capacitor, Diode & Fuse Kit – Universal High-Voltage Repair Kit Product Description Restore proper microwave heating and electrical safety with the MWCDF-095-Kit Microwave Capacitor, Diode & Fuse Kit. This high-quality aftermarket repair kit includes the three most common high-voltage components required to fix no-heat and power-related microwave issues: a high-voltage capacitor, high-voltage diode, and high-voltage fuse. Failed components in the HV circuit can cause the microwave to run without heating, blow fuses, or shut down completely. Replacing the full kit helps ensure reliable heating and safe operation. This Kit Includes Following Parts: 1 Capacitor 2 universal Diode (EXPHV10)  2 Ceramic Fuse (20 amp) 6.35 x 32 mm 2 5Kv Fuse (0.9A) 6x40mm Replaces Part Numbers Capacitor Replaces Part Numbers: TJ13QBP21095, 13QBP0300, 13QBP21095, AP5633423, RC-QZA234WRE0, RC-QZB011MRE0, RCQZA331WRZZ, 5304513458, PD00065299, EAP12365444, 4584979, AP6301645, PS12365444, 00631397, 631397, PD00044249, EAP10057840, 4161979, AP5950362, PS10057840, WB27X11031, PD00040188, EAP2339855, 1474116, AP4362390, PS2339855, WB27X10073, PD00045875, EAP239187, 769853, AP2025984, PS239187, WB27X11011, PD00087136, EAP2345628, 1474103, AP4368101, PS2345628, 2501-001016, 2028385, AP4033712, PS4130923, 8206562, PD00074258, EAP1486840, 1200936, AP3890709, PS1486840, 5304528930, 5304464253, AP7017693, PS2203382, WB27X10009, 254534, AH239117, EA239117, AP2025928, PS239117, WP815073, AP6011690, PS11744888, 2501-000260, AP4033659, PS4130923 and more Compatibility This universal microwave high-voltage repair kit is compatible with many GE, Whirlpool, Samsung, LG, Frigidaire, Panasonic, Sharp, and Kenmore microwave ovens that use a 0.95 µF high-voltage capacitor, standard microwave HV diode, and HV fuse. Commonly used in countertop, over-the-range, and built-in microwave models. Always verify capacitor rating and fuse specifications before ordering.Contact our support team if you’re unsure. ✅ Key Features 🔄 Aftermarket Replacement Kit – Built to OEM-equivalent electrical specifications ⚡ Complete HV Circuit Repair – Includes capacitor, diode, and fuse 🔥 Fixes No-Heat Issues – Restores proper magnetron power delivery 🛡️ Improves Electrical Safety – Protects microwave from overload and failure 💰 Cost-Effective Solution – Avoids expensive magnetron replacement 📐 Product Specification Kit Name: MWC-095-Kit Component Type: Microwave High-Voltage Repair Kit Capacitor Rating: 2100 VAC, 0.95 µF Diode Type: Microwave high-voltage diode Fuse Type: Microwave high-voltage fuse Application: Magnetron high-voltage power circuit Quality Level: Aftermarket replacement (not OEM) 🛠️ Installation Notes Tools Needed: Phillips screwdriver, insulated pliers ⚠️ Safety First:Microwaves contain EXTREMELY HIGH VOLTAGE, even when unplugged. Always discharge the high-voltage capacitor before servicing. Professional installation is strongly recommended. Basic Steps: Unplug the microwave and remove the outer cabinet. Safely discharge the existing high-voltage capacitor. Remove the old capacitor, diode, and fuse. Install the new components from the MWCDF-095-Kit. Reassemble the cabinet and restore power. Test microwave heating operation. ⏱️ Time Required: 25–35 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Trusted Aftermarket Appliance Parts 🔄 30-Day Return Policy Restore microwave heating safely and efficiently — Add to Cart Now for a complete, budget-friendly repair solution!
