Oven Sensors, Thermostats & Igniters

XPARTCO 9759242 Oven Thermal Fuse – Replaces WP9759242 – Compatible with Whirlpool, KitchenAid, and Maytag Ovens Product Description Protect your oven from overheating with the XPARTCO 9759242 Oven Thermal Fuse. This Thermal Fuse is a replacement part for specific KitchenAid, Kenmore, Whirlpool oven models. It acts as a safety device that cuts off power to the oven if it overheats, preventing potential damage or fire hazards. Common causes of a bad thermal fuse can include prolonged exposure to high temperatures, electrical surges, or faulty oven components that cause overheating. When the fuse blows, it disrupts the electrical circuit, rendering the oven inoperative until the fuse is replaced. This non resettable oven thermal cut out fuse acts as a safety cutting power to the oven if it becomes over heated. Replaces Part Numbers WP9759242, 9759242, 4452223, WP9759242VP, PD00002614, AP6014015, PS11747248. Compatibility This replacement thermal fuse fits select Whirlpool, KitchenAid, and Maytag wall ovens and ranges. Example compatible models include (but are not limited to): Whirlpool GBS307PDB10, KitchenAid KEBS107SSS02, and Maytag MEW5530DAB. Always verify your oven’s model number before ordering. Contact our support team if you’re unsure. ✅ Key Features 🔄 Aftermarket Replacement – Designed to match OEM safety and performance standards 🔥 Overheat Protection – Automatically shuts off power if the oven exceeds safe temperatures 💰 Affordable Solution – Reliable performance at a lower cost than OEM versions 🛠️ DIY Installation – Simple, direct-fit design for quick replacement 🛡️ Fixes Common Issues – Solves ovens not powering on, no heat, or overheating problems 📐 Product Specification Part Number: 9759242 (Replaces WP9759242) Component Type: Oven Thermal Fuse Material: Heat-resistant ceramic and metal construction Mounting: Direct-fit on back panel or control area (varies by model) Operating Conditions: Opens circuit when temperature exceeds factory safety limit Compliance: Built to OEM-equivalent quality standards (not OEM) 🛠️ Installation Notes Tools Needed: Nut driver, Phillips screwdriver ⚠️ Safety First: Always disconnect power at the circuit breaker before servicing to prevent electrical shock. Steps: Turn off oven power at the breaker. Remove the oven from the wall (for wall ovens) or access the rear panel (for ranges). Locate the thermal fuse on the back of the control panel or rear cover. Disconnect wires and remove mounting screws. Install the new XPARTCO 9759242 fuse, reconnect wires, and reassemble panels. Restore power and test oven operation. ⏱️ Time Required: 15–25 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Trusted Appliance Parts Supplier 🔄 30-Day Return Policy Protect your oven from overheating — Add to Cart Now for a safe, cost-effective repair!

Read more less

XPARTCO W11176454 Gas Range Oven Igniter The XPARTCO W11176454 is an aftermarket replacement oven burner igniter compatible with select Whirlpool, Maytag, and Amana gas ranges. The igniter is a hot surface igniter made from silicon carbide that draws electrical current through the oven safety valve to open it, then heats to ignition temperature to light the gas burner. When the igniter weakens or fails, the oven will not heat, will take too long to preheat, or the igniter will glow without lighting the burner. This igniter draws 3.3–3.6 amps at 120V AC and reaches operating temperatures of 1,800°F–3,100°F with a heating time of approximately 17 seconds. The igniter body measures 3-7/10 inches (Length A) with 9-1/2 inch leads and two separate connectors. It directly replaces OEM part numbers W11176454 and W10914411, and is compatible with Whirlpool WFG and WFG505 series, Amana AGR and AGG series, and select Maytag gas range models. Installs in 10–20 minutes with basic hand tools. Quick Answer The XPARTCO W11176454 Gas Range Oven Igniter fixes Whirlpool, Maytag, and Amana gas ovens that won't heat, take too long to preheat, or have an igniter that glows but never lights the burner. Silicon carbide construction. Draws 3.3–3.6A at 120V. Igniter body 3-7/10" with 9-1/2" leads and 2 separate connectors. Replaces W10914411. Common Problems This Part Fixes Oven not heating at all — gas is not igniting Oven takes excessively long to preheat (weak igniter not reaching ignition temperature) Igniter glows orange or red but never lights the gas burner Smell of gas when oven is turned on but burner does not light Oven heats inconsistently or shuts off mid-cycle Clicking sounds from the oven without successful ignition Oven element will not heat despite other components functioning normally Replaces Part Numbers This oven igniter directly replaces the following OEM and cross-reference part numbers: W11176454, 4547416, W10914411, EAP12348439, AWP43029, PD00044759, AP6327293, PS12348439. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This igniter is compatible with select gas ranges from the following brands: Whirlpool gas ranges — WFG320 and WFG505 series (freestanding) Amana gas ranges — AGR and AGG series Maytag gas ranges — select AGR series models Always verify your model number before ordering. Contact our support team if you're unsure. Key Features Hot surface igniter — draws current through the oven safety valve to open it, then ignites the gas burner Silicon carbide construction — superior heat resistance vs. standard ceramic igniters Draws 3.3–3.6 amps at 120V AC — correct range to open the Whirlpool gas safety valve Operating temperature: 1,800°F – 3,100°F with approximately 17-second heat-up time Igniter body length: 3-7/10 inches; lead length: 9-1/2 inches Two separate connectors for easy plug-in installation Directly replaces W11176454 and W10914411 — no modification required Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in 10–20 minutes with a screwdriver Product Specifications Part Number W11176454 Also Replaces W10914411 Part Type Oven Burner Igniter (Hot Surface Igniter) Condition Aftermarket Replacement Application Gas Ranges and Ovens Material Silicon Carbide Amperage Draw 3.3 – 3.6 Amps Voltage 120V AC Resistance 40 – 800 Ohms Operating Temperature 1,800°F – 3,100°F Heat-Up Time Approximately 17 seconds Igniter Body Length (A) 3-7/10 inches Lead Length 9-1/2 inches Connectors 2 separate connectors Compatible Brands Whirlpool, Amana, Maytag Installation Notes ⚠️ Gas Appliance Safety Warning This part is used in gas ranges. Working with gas appliances carries risk of gas leaks, fire, and explosion if installed incorrectly. Always shut off the gas supply at the shutoff valve and unplug the range before beginning any repair. If you smell gas at any point during or after installation, leave the area immediately and contact your gas utility provider. If you are not confident working on gas appliances, have this part installed by a qualified appliance technician. ⚠️ Installation Instructions Unplug the range and shut off the gas supply before beginning. Open the oven door and remove the oven racks. Lift and remove the oven bottom panel by unscrewing the retaining screws. Remove the heat shield (if present) to expose the burner and igniter assembly. Unscrew the igniter mounting screws — typically one or two — and carefully disconnect the wire connector. Connect the new W11176454 igniter to the wire harness using the two separate connectors, secure it to the burner bracket with the mounting screws, then reinstall the heat shield and oven bottom panel. Restore gas supply and power and run a test cycle to confirm the oven lights correctly. Important: Do not touch the silicon carbide igniter element with bare hands — oils from skin reduce its lifespan. Handle only by the bracket and leads. Tools needed: Phillips screwdriver, work gloves. Frequently Asked Questions What is the difference between W11176454 and W10914411? The W11176454 is the updated part number that directly supersedes the older W10914411. Both are the same hot surface igniter for compatible Whirlpool, Amana, and Maytag gas ranges. This aftermarket replacement is compatible with both part numbers. How do I know if my oven igniter needs to be replaced? The most common signs are the oven not heating at all, taking much longer than usual to preheat, or the igniter glowing orange but never lighting the burner. A working igniter reaches ignition temperature within about 30–90 seconds and glows bright orange. If it glows dimly or stays on indefinitely without the burner lighting, the igniter has weakened and is no longer drawing enough current to open the gas safety valve. Why does my igniter glow but the oven still won't heat? This is the classic symptom of a weak igniter. The gas safety valve requires a minimum amperage draw — typically around 3.2 amps — to open and allow gas to flow to the burner. As the igniter ages, its resistance increases and amperage drops below this threshold. The igniter still glows because it has some current, but not enough to open the valve. Replacing the igniter resolves this in nearly all cases. Is the W11176454 compatible with my Amana or Maytag range? Yes — the W11176454 is compatible with select Amana AGR and AGG series gas ranges and select Maytag AGR series models in addition to Whirlpool WFG320 and WFG505 series ranges. Always verify your specific model number before ordering to confirm compatibility. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is made from silicon carbide to match the electrical specifications and performance of the original W11176454 igniter. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO W10209656 Range Surface Igniter – Compatible with Whirlpool, Maytag, KitchenAid, and Kenmore Gas Ranges Product Description Restore reliable burner ignition with the XPARTCO W10209656 Range Surface Igniter. This high-quality aftermarket replacement provides the heat needed to ignite gas burners on your cooktop. A weak or failed igniter can cause burners not to light or take too long to ignite. Replacing it with this durable XPARTCO igniter restores instant ignition and safe cooking performance. Replaces Part Numbers WPW10209656, W10209656, 1468965, 98008959, 98012193, 98014514, 98014515, 98017561, 98017562, 98017917, W10112313, W10127479, AP6017135, PS11750430. Compatibility This replacement surface igniter is compatible with select Whirlpool, Maytag, KitchenAid, and Kenmore gas ranges. Example compatible models include (but are not limited to): Whirlpool WFG320M0BS3, Maytag MGR6600FZ0, and Kenmore 665.75002100. Always verify your range’s model number before ordering. Contact our support team if you’re unsure. ✅ Key Features 🔄 Aftermarket Replacement – Compatible with Whirlpool-brand gas ranges 🔥 Reliable Ignition – Provides consistent spark for fast burner lighting 💰 Affordable Solution – Quality alternative to OEM parts at lower cost 🛠️ DIY Friendly – Installs easily with basic hand tools 🛡️ Fixes Common Issues – Solves burners not igniting or clicking without flame 📐 Product Specification Part Number: W10209656 Component Type: Gas Range Surface Igniter Material: High-temperature ceramic base and metal electrode Mounting: Direct-fit replacement for surface burner assembly Operating Conditions: Designed for standard household gas ranges Compliance: Built to OEM-equivalent standards (not OEM) 🛠️ Installation Notes Tools Needed: Phillips screwdriver, nut driver ⚠️ Safety First: Always unplug the range and shut off the gas supply before starting repairs. Steps: Disconnect power and shut off gas supply. Remove burner grates and top panel to access the igniter. Detach the wire connector and mounting screw from the old igniter. Install the new XPARTCO W10209656 igniter and reconnect wires. Reassemble burner components, restore power and gas, and test ignition. ⏱️ Time Required: 15–25 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders 🛠️ Trusted Appliance Parts Supplier 🔄 30-Day Return Policy Enjoy quick, reliable ignition every time — Add to Cart Now for a dependable, budget-friendly repair!

Read more less

DG32-00002B Range Oven Genuine Temperature Sensor Replaces Part Numbers: DG32-00002B, 2087461, DG32-00002A, AP4343210, PS4240743. Description: This Range Oven Temperature Sensor ensures precise temperature control for your cooking needs. This genuine OEM part is designed specifically for Samsung ranges, guaranteeing a perfect fit and reliable performance. By accurately monitoring oven temperatures, it helps maintain consistent cooking results, preventing under-cooked or burnt meals. Installing this sensor is straightforward, allowing you to restore your oven's functionality without hassle. Its durable construction ensures long-lasting use, providing peace of mind and enhancing your appliance's efficiency. Whether you're baking, roasting, or broiling, the Range Oven Temperature Sensor delivers the accuracy you expect from a high-quality component.

Read more less

XPARTCO 5304509706 Gas Oven Igniter Product Overview The XPARTCO 5304509706 Gas Oven Igniter is designed to ignite the gas burner and ensure consistent oven heating performance. This Oven Igniter is a replacement part for select Frigidaire, Kenmore, GE gas oven models, designed to ignite the gas in the oven burner to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating. Quick Answer If your gas oven is not heating, takes too long to preheat, or the burner does not ignite, the 5304509706 igniter may be weak or faulty. Replacing this igniter restores proper ignition and consistent oven performance. Replaces Part Numbers Replaces OEM part number: 5304509706, 316489402, 316489408, 316119301, 4545981, 012505482182, EAP12071409, AFR18015, PD00035904, AP6230715, PS12071409, WB2X10016, WB02X10016, 1704, EAP241804, AGE826644, PD00042950, AH241804, EA241804, AP2009619, PS241804. Compatibility This gas oven igniter is compatible with select Frigidaire, Electrolux, Kenmore, and other compatible gas ranges and ovens. Frigidaire Gas Ranges Electrolux Ovens GE Gas Ranges Kenmore Gas Ovens Always verify your appliance model number before ordering. Common Problems This Part Fixes Oven not heating Slow or delayed ignition Burner not lighting Gas smell due to ignition failure Key Features Designed for gas oven ignition Provides fast and reliable burner ignition High-quality aftermarket replacement Durable construction for long-lasting performance Product Specifications Part Number: XP5304509706 Part Type: Gas Oven Igniter Brand: XPARTCO Condition: New OEM / Aftermarket: Aftermarket Application: Gas Ovens & Ranges Troubleshooting Guide Oven not igniting → Faulty igniter Long preheat time → Weak igniter No flame despite gas flow → Igniter failure When Should You Replace This Igniter? Replace this igniter if your oven fails to heat, takes too long to preheat, or does not ignite the gas burner properly. Installation Notes ⚠️ Disconnect power and shut off gas before installation. Remove mounting screws, disconnect wiring, and install the new igniter carefully. Avoid touching the igniter surface with bare hands. Related Parts Gas Oven Safety Valve Oven Temperature Sensor Control Board Frequently Asked Questions Will this igniter fit my oven?This igniter fits many Frigidaire and compatible gas ovens. Always verify your model number. What does an oven igniter do?It ignites the gas burner and allows the oven to heat properly. What are signs of a bad igniter?Oven not heating, delayed ignition, or no flame during operation. Is this OEM or aftermarket?This is a high-quality aftermarket replacement part. Shop With Confidence Parts-O-Matic is a U.S.-based appliance parts retailer specializing in OEM and high-quality replacement parts. We offer fast shipping, reliable products, and expert support. Fast Shipping Quality Tested Parts Compatibility Support

Read more less

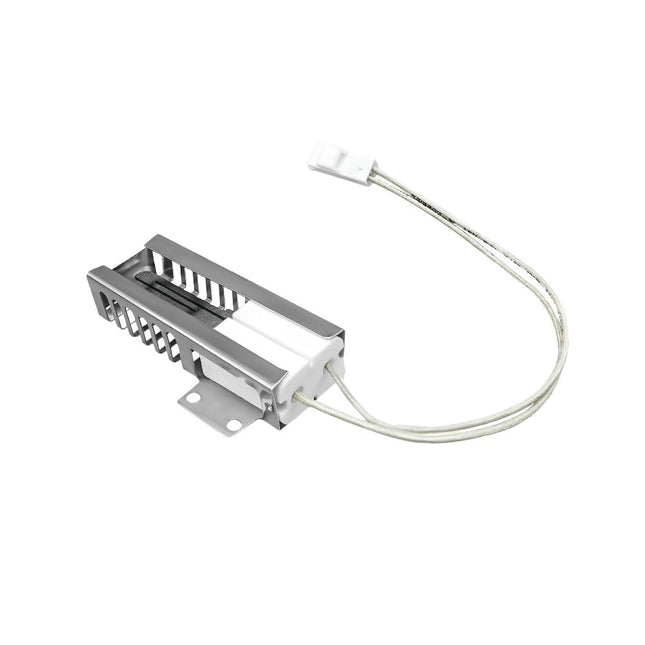

XPARTCO W11590294 Gas Oven Igniter The XPARTCO W11590294 is an aftermarket replacement flat-style silicon carbide gas oven igniter compatible with select Whirlpool, Amana, Maytag, KitchenAid, Crosley, Jenn-Air, Magic Chef, Admiral, Norge, Roper, and Kenmore gas ranges in the WFG, AGR, VRGW, and related series. The oven igniter is a silicon carbide heating element mounted next to the oven burner tube. When a bake or broil cycle is started, the igniter draws electrical current through the gas safety valve, which holds the valve open — and simultaneously heats to ignition temperature to light the gas. The igniter must draw at least 3.2 amps to hold the gas valve fully open; as the silicon carbide element ages and weakens, it draws progressively less current, causing the oven to take too long to light, not light at all, or glow without ever opening the gas valve. This flat-style igniter is rated 3.3–3.6 amps at 120V and measures approximately 4" wide x 1" high. It features a silicon carbide element, high-temperature ceramic housing, and metal bracket. The current part number W11590294 directly supersedes W11208965, W11613927, and W11506321 — all four are the same igniter across successive production revisions. It also replaces 4977065, AP7193166, PS16744629, and EAP16744629. Pre-attached wire connectors included. Note: do not touch the silicon carbide element with bare hands — skin oils cause premature burnout. Installs in 15–30 minutes with basic hand tools. Quick Answer The XPARTCO W11590294 Gas Oven Igniter fixes Whirlpool-family gas ovens that won't heat, where the igniter glows but the burner never lights, or where preheat takes too long. Flat silicon carbide igniter, 3.3–3.6A, 120V, approx. 4"W x 1"H. Do not touch element with bare hands. Replaces W11208965, W11613927, W11506321, 4977065, AP7193166, PS16744629. Compatible with Whirlpool WFG320/WFG505, Amana AGR4203/AGR6303, Crosley VRGW, Maytag, KitchenAid, and more. Common Problems This Part Fixes Oven not heating — igniter not reaching operating temperature or gas valve not opening Igniter glows orange or red but the oven burner never lights Oven takes more than 90 seconds to ignite — igniter too weak to fully open the gas valve Oven preheats very slowly — weakened igniter limiting gas valve opening Gas smell when oven is turned on but burner does not light Igniter visibly cracked, broken, or burned out Bake or broil function not working on compatible models Replaces Part Numbers This oven igniter directly replaces the following OEM and cross-reference part numbers: W11590294, W11208965, W11506321, W11613927, AP7193166, AWP45526, EAP16744629, PD00083398, PS16744629. W11590294 is the current production part number superseding W11208965, W11613927, and W11506321 — all four are the same igniter. If your parts diagram shows any of these numbers, this replacement is correct. Contact our support team with your model number if you need confirmation before ordering. Compatibility This oven igniter is compatible with select gas ranges and ovens from the following brands and series: Whirlpool gas ranges — WFG320 series (WFG320M0MB0, WFG320M0MS0, WFG320M0MW0 and related models) Whirlpool gas ranges — WFG505 series (WFG505M0BS4, WFG505M0BW3, WFG505M0MB0, WFG505M0MS0, WFG505M0MW0 and related models) Amana gas ranges — AGR4203 series (AGR4203MNB0, AGR4203MNW0 and related models) Amana gas ranges — AGR6303 series (AGR6303MMB0, AGR6303MMW0 and related models) Crosley gas ranges — VRGW series (VRGW3150RB0, VRGW3150RW0, VRGW3162RB0, VRGW3162RS0, VRGW3162RW0 and related models) Maytag gas ranges (select models) KitchenAid gas ranges (select models) Jenn-Air gas ranges (select models) Magic Chef, Admiral, Norge, Roper, and Kenmore gas ranges (select models) Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Flat-style silicon carbide oven igniter — heats to ignition temperature and draws current through the gas safety valve to hold it open so gas can flow to the burner Draws 3.3–3.6 amps at 120V — correct amperage range to reliably open the oven gas safety valve on compatible models Dimensions: approximately 4" wide x 1" high Silicon carbide element, high-temperature ceramic housing, metal mounting bracket Pre-attached wire connectors included — direct plug-in installation on compatible models Current production part superseding W11208965, W11613927, and W11506321 Do not touch the silicon carbide element with bare hands — skin oils cause premature burnout Compatible with Whirlpool WFG320/WFG505, Amana AGR4203/AGR6303, Crosley VRGW, Maytag, KitchenAid, and related brands Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 15–30 minutes with basic hand tools Product Specifications Part Number XPW11590294 Supersedes W11208965, W11613927, W11506321 Part Type Gas Oven Flat Igniter (Hot Surface Igniter) Condition Aftermarket Replacement Application Gas Ranges and Ovens Igniter Style Flat silicon carbide element Amperage Draw 3.3 – 3.6 Amps Voltage 120V AC Dimensions Approximately 4" W x 1" H Material Silicon carbide / Ceramic / Metal / Plastic Color White / Silver Connector Pre-attached wire connectors Handling Note Do not touch element — skin oils cause premature burnout Compatible Brands Whirlpool, Amana, Maytag, KitchenAid, Crosley, Jenn-Air, Magic Chef, Admiral, Norge, Roper, Kenmore Installation Notes ⚠️ Gas Appliance Safety Warning This part is installed in a gas range. Always unplug the range and shut off the gas supply at the shutoff valve before beginning any repair. If you smell gas at any point during or after installation, leave the area immediately and contact your gas utility provider. Do not restore power or gas until the repair is fully complete and all connections are confirmed secure. ⚠️ Handle With Care — Do Not Touch the Igniter Element The silicon carbide igniter element is fragile and sensitive to skin oils. Handle only by the bracket and wiring — never touch the silicon carbide element itself. To install: unplug the range and shut off gas. Remove the oven racks and oven bottom panel to expose the burner assembly. Locate the old igniter mounted next to the oven burner tube. Disconnect the igniter's wire connectors and remove the two mounting screws securing the bracket. Note the wire routing inside the range cavity before removing — be careful not to let the burner wires fall back into the range body. Connect the new W11590294 igniter's pre-attached connectors to the matching wires from the range. Mount the new igniter in the same position with the two bracket screws. Reinstall the oven bottom panel and racks. Restore gas and power, then run a bake cycle and confirm the igniter glows and the burner lights within 60–90 seconds. Tools needed: Phillips screwdriver, work gloves. Frequently Asked Questions What is the relationship between W11590294, W11208965, W11613927, and W11506321? These are all part numbers for the same gas oven igniter across successive production revisions by Whirlpool. W11506321 was an earlier version, W11613927 and W11208965 were subsequent updates, and W11590294 is the current production number. All four are the same flat silicon carbide igniter with the same specifications, dimensions, and function. If your range's parts diagram or old igniter shows any of these numbers, this replacement covers all of them. My oven igniter glows but the burner never lights — is this the right part? Yes — an igniter that glows but fails to light the burner is the most common symptom of a weakened igniter. The gas safety valve requires at least 3.2 amps of current draw through the igniter to hold it open. As the silicon carbide element ages, it draws less current — eventually reaching a point where it glows visibly but no longer draws enough current to fully open the gas valve. If the igniter glows for more than 90 seconds without the burner lighting, it needs replacement. The W11590294 is rated 3.3–3.6 amps, which is the correct range to reliably activate the safety valve on compatible models. What is the difference between W11590294 and W11176454? Both are flat silicon carbide oven igniters for Whirlpool-family gas ranges, but for different model series. The W11590294 is used on the WFG320, WFG505, and related entry-level Whirlpool and Amana gas ranges. The W11176454 (which replaces W10914411) is used on higher-end Whirlpool, Amana, and Maytag models across a broader range of WFG, MGR, and related series. They have the same amperage rating and igniter style but are not always interchangeable — always verify your model number before ordering to confirm which igniter is correct for your range. How do I test if the oven igniter has failed? The most practical test is observation: if the igniter glows for more than 90 seconds without the burner lighting, the igniter is too weak. For a more precise test, use a multimeter in resistance mode — disconnect the igniter and measure resistance across the element. A working W11590294-style igniter typically reads between 40–100 ohms at room temperature. An open circuit (infinite resistance) means the element has burned through completely. You can also test in operation by measuring current draw at the igniter circuit — a reading below 3.2 amps indicates the igniter is too weak to reliably open the gas valve. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured from silicon carbide, ceramic, metal, and plastic to match the amperage draw, dimensions, and performance of the original W11590294 gas oven igniter. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO PB04001 Oven Bake Igniter for Viking Replaces 065650-000 The XPARTCO PB04001 is an aftermarket replacement oven bake igniter compatible with select Viking gas ranges with hot surface ignition systems, including the CVDSC, EVGIC, EVGRT, VDSC, VGIC, VGRT, VGSC, VGSS, and VGGT series. The oven bake igniter is a flat glow bar hot surface igniter — it draws electrical current through the oven's gas safety valve to open it, then heats to ignition temperature to light the gas burner. When the igniter weakens or fails, the oven will not heat, will take too long to reach temperature, or the igniter will glow but the burner will never light. This is a silicon carbide flat-style igniter with a 2.25-inch white ceramic body and 4.5-inch overall length. Wire leads extend approximately 12.5 inches from the igniter body with female insulated terminals for plug-in installation. Ceramic wire nuts for spliced installation are included. Rated 3.2–3.6 amps at 120V AC — the correct amperage range to open the Viking oven gas safety valve. It directly replaces 065650-000, PB040001, 792263, AP5315579, AP7180264, SGR4001, SGR40001, GR40001, RP712, and AR402. Sold individually. Installs in 15–25 minutes with basic hand tools. Quick Answer The XPARTCO PB04001 Oven Bake Igniter fixes Viking gas ranges where the oven won't heat, takes too long to preheat, or the igniter glows but the burner never lights. Flat silicon carbide glow bar, 3.2–3.6A, 120V AC. Ceramic body 2.25", overall 4.5", leads 12.5" with female terminals. Ceramic wire nuts included. Sold individually. Compatible with Viking CVDSC, EVGIC, EVGRT, VDSC, VGIC, VGRT, VGSC, VGSS, VGGT series. Replaces 065650-000, PB040001, 792263, AP5315579, AP7180264, SGR4001. Common Problems This Part Fixes Oven not heating at all — igniter has failed or burned out Oven takes much longer than normal to preheat Igniter glows orange but the gas burner never lights Gas smell when oven is turned on but burner does not light Oven heats on first use but fails to relight during subsequent heat cycles Igniter visibly cracked, broken, or dark/charred at the ends Oven baking inconsistently or shutting off heat mid-cycle Replaces Part Numbers This oven igniter directly replaces the following OEM and cross-reference part numbers: 065650-000, AP7180264, PB040001, PB04001, 792263, SGR40001, GR40001, RP712, AR402 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This oven igniter is compatible with select Viking gas ranges with hot surface ignition (glow bar) systems, including the following series: Viking CVDSC series — CVDSC365-4G, CVDSC485-6G and related models Viking EVGIC series — EVGIC305, EVGIC365, EVGIC485 and related models Viking EVGRT series — EVGRT360, EVGRT480, EVGRT600 and related models Viking VDSC series — VDSC365, VDSC367, VDSC485, VDSC487 and related models Viking VGIC series — VGIC245, VGIC245G, VGIC245K, VGIC245Q, VGIC305, VGIC367 and related models Viking VGSC series — VGSC300, VGSC305 and related models Viking VGSS series — VGSS300, VGSS480 and related models Viking VGRT and VGGT series — VGRT360, VGGT240 and related models Note: This igniter is for Viking ranges with hot surface (glow bar) ignition systems only. Not all Viking ranges use this style of igniter — verify your model number before ordering. Always verify compatibility before purchasing. Key Features Flat glow bar hot surface igniter — draws current through the oven gas safety valve to open it, then heats to ignition temperature to light the oven burner Silicon carbide construction — superior heat resistance, reaches 1,800°F–3,100°F operating temperature in approximately 60 seconds Draws 3.2–3.6 amps at 120V AC — correct amperage range to open the Viking oven gas safety valve Ceramic body: 2.25 inches; overall length: 4.5 inches; wire leads: approximately 12.5 inches with female insulated terminals Plug-in installation with female terminals; ceramic wire nuts included for spliced installation if needed Sold individually — one igniter per order Replaces 065650-000, PB040001, 792263, AP5315579, AP7180264, SGR4001, and more Fragile silicon carbide element — handle only by the bracket and wires; never touch the ceramic body with bare hands Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 15–25 minutes with basic hand tools Product Specifications Part Number PB04001 Also Known As PB040001 Part Type Gas Oven Bake Igniter (Flat Glow Bar Hot Surface Igniter) Condition Aftermarket Replacement Application Viking Gas Ranges with Hot Surface Ignition Igniter Style Flat glow bar, silicon carbide Amperage Draw 3.2 – 3.6 Amps Voltage 120V AC Operating Temperature 1,800°F – 3,100°F (approximately 60-second heat-up) Ceramic Body Length 2.25 inches Overall Length 4.5 inches Lead Length Approximately 12.5 inches (female insulated terminals) Includes Igniter and ceramic wire nuts Sold As Single igniter Compatible Brands Viking Installation Notes ⚠️ Gas Appliance Safety Warning This part is used in gas ranges. Always shut off the gas supply at the shutoff valve and unplug the range from the electrical outlet before beginning any repair. If you smell gas at any point during or after installation, leave the area immediately and contact your gas utility provider. If you are not confident working on gas appliances, have this part installed by a qualified appliance technician. ⚠️ Handle With Extreme Care — Fragile Silicon Carbide Element The silicon carbide igniter element is extremely fragile and will crack or break with minimal force. Never touch the ceramic bar with bare hands — oils from skin will damage the element and cause premature failure. Handle only by the bracket, wires, and ceramic wire nut connectors. To install: unplug the range and shut off gas. Remove the oven racks and oven bottom panel. Disconnect the old igniter's wire connector (or cut wires if splicing). Unscrew the mounting bracket from the burner assembly and remove the old igniter. Position the new PB04001 igniter on the burner bracket and secure with the mounting screws. If the female terminals plug directly into the existing wiring, connect them. If wires need to be spliced, use the included ceramic wire nuts — never use standard plastic wire nuts near the oven burner. Reinstall the oven bottom panel and racks. Restore gas and power, then run a test cycle to confirm the igniter heats and the burner lights within 60 seconds. Tools needed: Phillips screwdriver, work gloves. Frequently Asked Questions How does a hot surface igniter work on a Viking gas oven? The hot surface igniter is wired in series with the oven's gas safety valve. When the oven is turned on, electrical current flows through the igniter, heating the silicon carbide element until it reaches ignition temperature — typically glowing bright orange. As the element heats, its electrical resistance changes and the current draw increases to 3.2–3.6 amps. At that amperage level, the gas safety valve opens and gas flows to the burner, where the glowing igniter ignites it. If the igniter weakens and can no longer draw enough current to open the safety valve, the oven will glow but the burner will never fire — this is the most common cause of a Viking oven not heating. What is the difference between PB04001 and PB040001? PB04001 and PB040001 are the same oven igniter — PB04001 is the shortened version of the PB040001 part number. Both refer to the same flat silicon carbide glow bar igniter used on compatible Viking gas ranges. This listing covers both designations and the part functions identically regardless of which number is referenced. How do I know if my oven igniter has failed? The most common sign is an oven that glows orange but the burner never lights. A healthy igniter glows bright orange and ignites the burner within about 60 seconds. If it glows dimly, stays on indefinitely without the burner lighting, or does not glow at all when the oven is turned on, the igniter has failed. You can also test with a multimeter — with the oven cold and unplugged, a working igniter shows resistance of approximately 40–90 ohms; an open circuit confirms failure. Visually inspect the element for cracks, dark spots, or a broken ceramic bar. Why must I use ceramic wire nuts instead of standard plastic ones? Standard plastic wire nuts are not rated for the temperatures inside an oven cavity — they will melt or degrade near the burner, exposing bare wires and creating a safety hazard. Ceramic wire nuts (included with this igniter) are heat-rated for oven burner temperatures and provide a safe, permanent connection when splicing is required. Always use only ceramic wire nuts for any wiring connections near the oven burner. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Viking OEM part, but is manufactured from silicon carbide and high-temperature materials to match the electrical specifications and dimensions of the original 065650-000 oven bake igniter. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO S99527471 Hood Fuse – Compatible with Broan, Nutone, and Kenmore Range Hoods Product Description Protect your vent hood’s electrical system with the XPARTCO S99527471 Hood Fuse. This high-quality aftermarket replacement safeguards your range hood’s control board, fan motor, and lights from electrical surges and overheating. A blown fuse can cause the fan or light to stop working. Replacing it with this reliable XPARTCO fuse restores safe, efficient operation at a fraction of the OEM cost. Replaces Part Numbers S99527471, AP5611426, 1931293, PS10281737, 99527471. Compatibility This replacement hood line fuse fits select Broan, Nutone, and Kenmore range hoods. Example compatible models include (but are not limited to): Broan QP230SS, Nutone RL6200 Series, and Kenmore 233.52343310. Always verify your range hood’s model number before ordering. Contact our support team if you’re unsure. ✅ Key Features 🔄 Aftermarket Replacement – Designed to meet OEM safety and performance standards ⚡ Electrical Protection – Prevents power surges from damaging internal components 💰 Cost-Effective Solution – High-quality fuse at a lower price than OEM parts 🛠️ Quick Installation – Direct-fit design for easy DIY replacement 🛡️ Fixes Common Issues – Restores power to hood lights or fan after fuse failure 📐 Product Specification Part Number: S99527471 Component Type: Range Hood Line Fuse Material: Ceramic fuse with insulated metal terminals Mounting: Inline wiring harness or fuse holder on control board Operating Conditions: Rated for high-temperature kitchen environments Compliance: Built to OEM-equivalent quality and safety standards (not OEM) 🛠️ Installation Notes Tools Needed: Phillips screwdriver, needle-nose pliers ⚠️ Safety First: Always unplug the range hood or turn off power at the circuit breaker before servicing to prevent electrical shock. Steps: Disconnect power and remove the control panel or cover. Locate the fuse on the wiring harness or control board. Gently remove the blown fuse using pliers. Install the new XPARTCO S99527471 fuse securely in place. Reassemble the cover, restore power, and test operation. ⏱️ Time Required: 10–15 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Trusted Appliance Parts Supplier 🔄 30-Day Return Policy Restore your range hood’s safety and performance — Add to Cart Now for a reliable, affordable replacement!

Read more less

XPARTCO W10711017 Range Vent Hood Thermal Fuse The replacement W10711017 Range Vent Hood Thermal Fuse is designed for Jenn-Air range hood models. This replacement fuse protects the range hood’s electrical system (e.g., fan or motor circuits) from overheating or power surges. Ideal for restoring functionality to Jenn-Air range hoods experiencing issues like no power, fan failure, or intermittent operation. This fuse is located on hood control board. Note: Disconnect power before installation. Verify voltage and amperage compatibility with your appliance model. Replaces part numbers: W10711017, AP5949884, PS10057091. Compatibility (W10711017): Compatible with select Jenn-Air range hood models, including but not limited to: Jenn-Air: JXI8736DS00, JXI8742DS00, JXI8936DS00, JXW8736DS00, JXW8936DS00. Verify your model number or contact our support team for assistance. Key Features (W10711017): ✅ Brand Compatibility: Fits select Jenn-Air range hood models. 🔥 Specifications: Replacement thermal fuse, specifications vary by model (typically 125V–250V, verify amperage), heat-resistant, single-use. 💰 Cost-Effective Alternative: Offers OEM-equivalent performance at a lower price. 🛠️ Easy Installation: Requires basic tools (e.g., screwdriver, pliers); typically installed in 10–15 minutes. 🛡️ Reliable Fixes: Addresses range hood issues like no power, fan failure, or intermittent operation. Installation Notes (W10711017): Safety First: Disconnect the appliance from the power source before installation. Location: Typically found on the control board; consult your model’s manual for exact placement. Tools: Use a screwdriver to access the fuse compartment and pliers to remove and install the fuse. Shop Parts-O-Matic for high-quality replacement appliance parts with a 30-day return policy. Get your microwave or range hood running today! Add to cart now for a budget-friendly fix!

Read more less

8053720 Range Genuine Surface Burner Igniter Replaces: W11032529, 8053720, W10850843, W10896683, 3186479, 3186480, 3186482, 3186486, 4455849, AP6038814, PS11770331. 8053720 Range Surface Burner Igniter – Genuine OEM Replacement Ensure reliable burner ignition on your gas range with the 8053720 Surface Burner Igniter. This Genuine OEM part provides the spark needed to ignite the burner quickly and safely. Key Features: ✅ Replaces: W11032529, 8053720, W10850843, W10896683, 3186479, 3186480, 3186482, 3186486, 4455849, AP6038814, PS11770331. ✅ Compatible with Whirlpool, KitchenAid, Maytag, and more ⚡ Supplies consistent spark to surface burner 🛠️ Durable ceramic construction for long-lasting use 🧰 Easy to install – OEM fit and function ⚠️ Disconnect power and gas before installation. Need help confirming compatibility? Contact us! 📦 Part Number: 8053720

Read more less

ERP IG5068 Gas Oven Igniter Replaces Part Numbers: 5303935068, 316119302, 08067970, 12874, 316T023P03, 316T023P07, 316T023P10, 316T023P12, 316T023S01, 41-201, 5303912567, 5308067970, 54099H07, AH470131, EA470131, F17-034, GR401, gr407, IGN-1, IGN-7, N316T023P10, AP2150414, PS470131, WP9751123, 9751123, 747868, 816624, AP6013893, PS11747123. Description: This Flat Style Oven Igniter Kit is a high-quality replacement part for specific Frigidaire, Whirlpool gas ranges and wall oven models. It functions to ignite the gas to light the oven burner. This does not replace round igniters, or igniters with blue ceramic.  When you turn on the oven, the igniter is activated, and it starts to glow hot. As it heats up, it ignites the gas that is released from the oven's burner. This process continues until the oven reaches the desired temperature. This is an aftermarket part that can be used as a replacement for the OEM part.

Read more less

WPW10545291 Genuine Range / Oven Thermal Fuse Replaces Part Numbers: WPW10545291, W10545291, 3021646, W10436435, AP6022803, PS11756140. Description: This Oven Thermal Fuse is a Genuine part for specific Maytag, Kenmore, Whirlpool Range / Oven models. It is a critical safety device designed to prevent the Appliance from overheating.    California Residents only WARNING: Cancer and/or Reproductive Harm - www.p65warnings.ca.gov

Read more less
