00640476 Dishwasher Genuine Terminal Box

Description

Genuine Bosch OEM

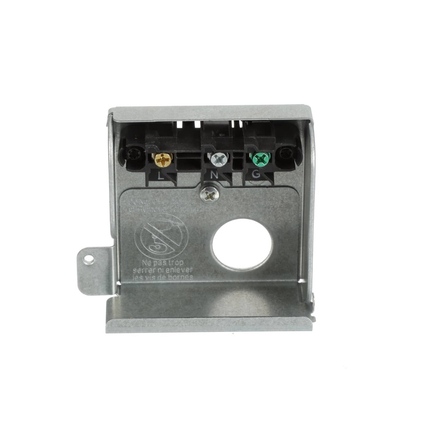

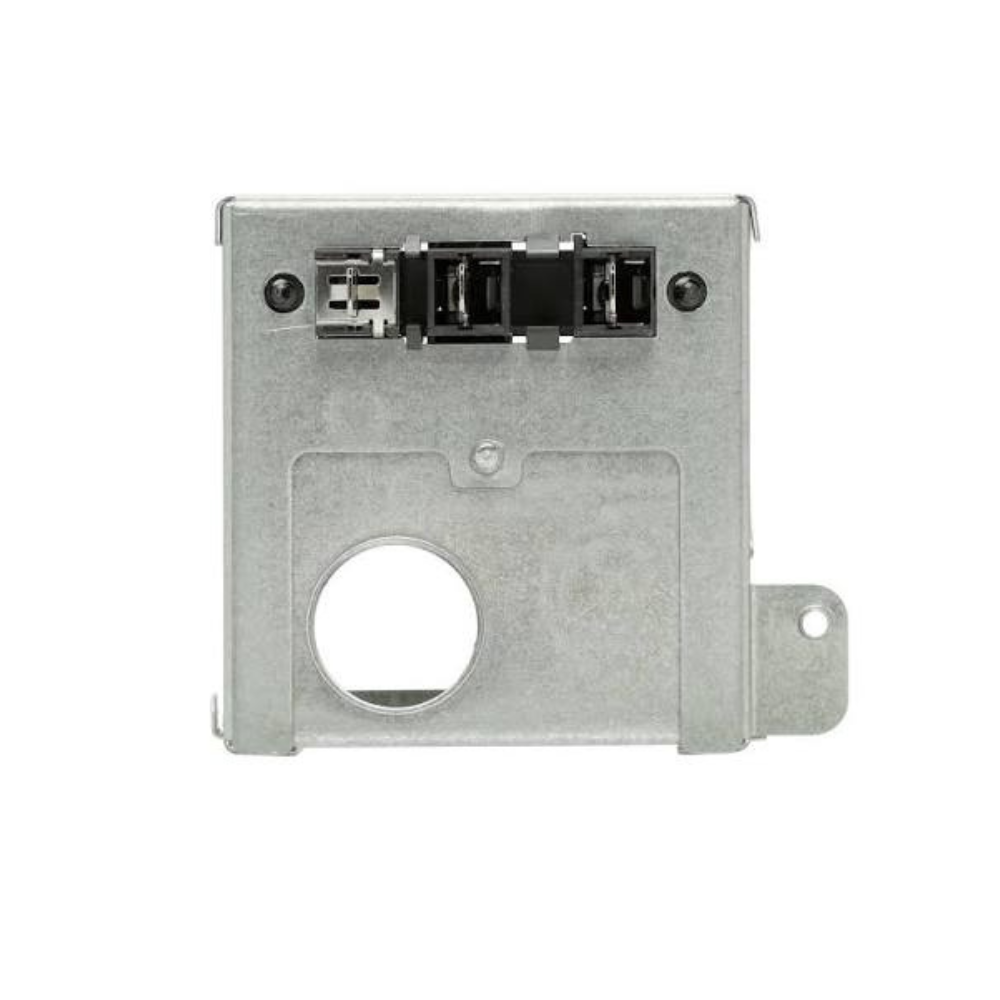

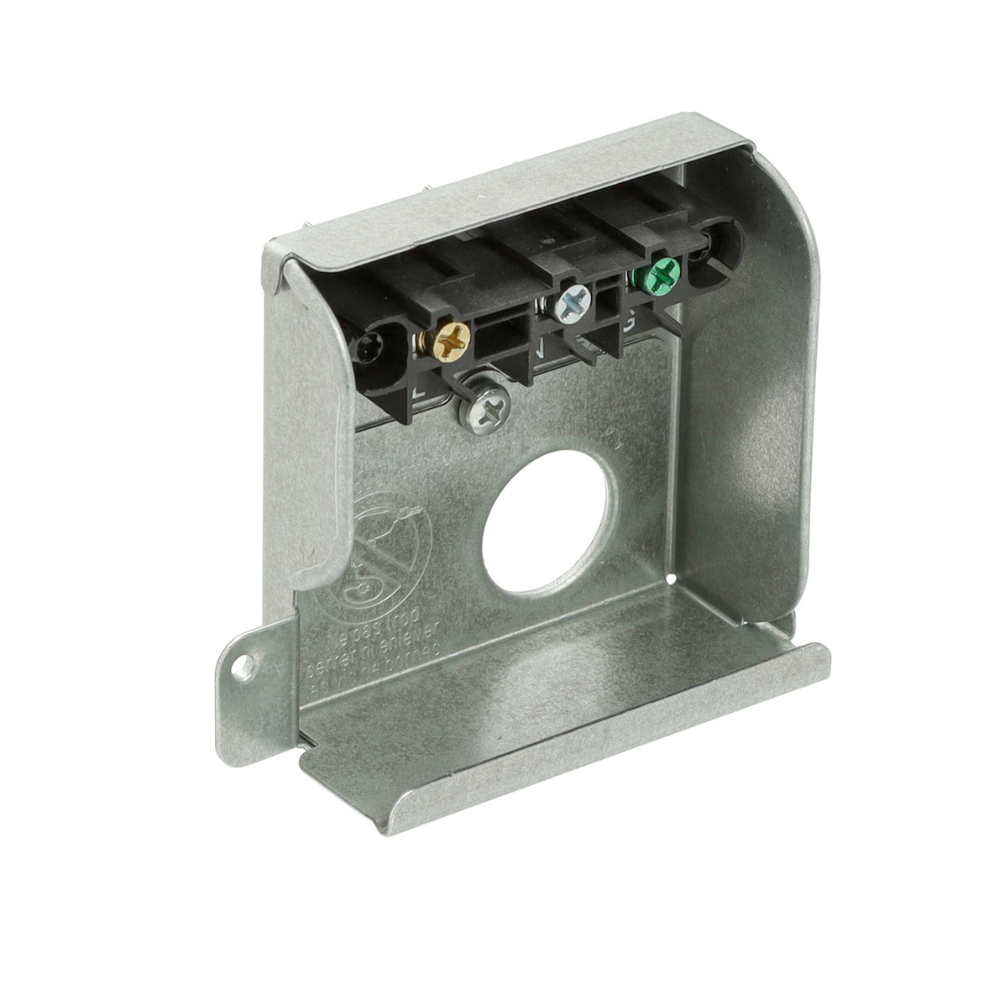

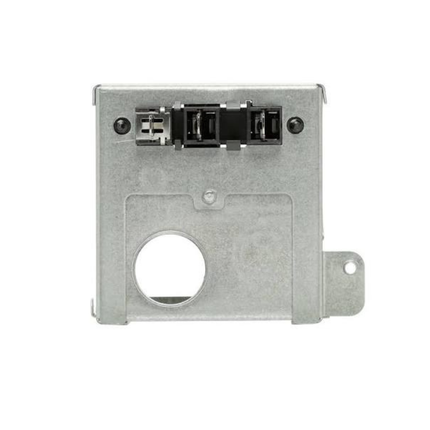

Bosch 00640476 Dishwasher Genuine OEM Terminal Box

Original Bosch dishwasher terminal box with terminal block for select Bosch, Thermador, Gaggenau, and Kenmore dishwashers.

Product Overview

The Bosch 00640476 Dishwasher Terminal Box is a genuine OEM electrical connection enclosure used on compatible dishwashers. It houses the terminal block where household electrical power connects to the dishwasher wiring harness.

This assembly is supplied with the terminal block. The separate wiring/terminal-box cover is not included; Bosch identifies the matching cover as part 00640477.

Quick Answer

00640476 is a Genuine Bosch OEM dishwasher terminal box with terminal block. It replaces earlier part 640476. The cover is sold separately as 00640477.

Common Problems This Part May Fix

  • Dishwasher will not start because of a damaged power connection
  • Burned, overheated, or melted terminal connections
  • Loose or damaged line-voltage wiring connection
  • Damaged terminal block or terminal-box housing
  • Intermittent power caused by compromised terminal connections

Replaces and Cross-References

00640476, 1378543, 640476, ABS11577, AP3962500, EAP8729475, PD00023793, PS8729475

Cross-reference numbers are provided for identification. Bosch 00640476 is the Genuine OEM part.

Compatibility

Used on select Bosch-built dishwashers sold under Bosch, Thermador, Gaggenau, and Kenmore brands. Verified model examples include:

SHE55C05UC/58
SHE43F15UC/61
SHE4AM16UC/02
SHX3AM06UC/01
SHX3AR56UC/07
S36KMK15UC/05
DWHD410HPR/60
63013903010
63013909012

Important: This is only a partial compatibility list. Bosch uses E-Nr./model revisions, so verify the complete model number including the suffix before ordering.

Key Features

  • Genuine Bosch OEM replacement part
  • Includes terminal box and terminal block
  • Connects household electrical power to dishwasher wiring
  • Replaces Bosch part 640476
  • For select Bosch-built dishwasher platforms
  • Cover 00640477 is sold separately

Product Specifications

Manufacturer Part Number 00640476
Manufacturer Bosch
Part Type Dishwasher Terminal Box / Terminal Block Assembly
Condition New
Part Quality Genuine OEM
Terminal Block Included Yes
Cover Included No
Matching Cover 00640477, sold separately
Application Select Bosch-built dishwashers

Installation Notes

  1. Shut off the dishwasher circuit breaker and verify power is off before beginning service.
  2. Remove the lower access panel as required for the model.
  3. Photograph and label existing wire connections before disconnecting them.
  4. Inspect supply wiring and the dishwasher harness for heat damage, burned insulation, or loose conductors.
  5. Transfer wiring to the new terminal block according to the dishwasher wiring diagram and installation instructions.
  6. Secure strain relief and wiring so no bare conductor is exposed.
  7. Install the proper terminal-box cover before restoring power.

Electrical safety: This part carries household line voltage. If wiring is burned, melted, or damaged, correct the underlying connection problem and replace damaged wiring as required. Installation should be performed by a qualified person when local electrical codes or conditions require it.

Frequently Asked Questions

Is 00640476 a Genuine Bosch OEM part?

Yes. It is manufactured by Bosch as an original equipment replacement terminal box.

Does this include the terminal block?

Yes. Bosch describes 00640476 as a terminal box with terminal block.

Is the cover included?

No. The matching wiring/terminal-box cover is Bosch part 00640477 and is sold separately.

Does 00640476 replace 640476?

Yes. 640476 is the earlier Bosch part number superseded by 00640476.

Will it fit every Bosch dishwasher?

No. Compatibility depends on the full Bosch E-Nr./model and revision. Verify the complete model number before purchase.

Shop With Confidence

Use the complete dishwasher model or E-Nr. to confirm fitment before ordering. Genuine Bosch OEM construction helps ensure the correct electrical connection design for compatible models.

Genuine Bosch OEMTerminal Block IncludedCompatibility SupportNew Part
Product form

00640476 Dishwasher Genuine Terminal Box

Free Pickup in In Stock Parts-O-Matic - WB Store 1820 Featherstone Road Woodbridge, VA 22191 Usually ready in 1 hour
Online Shipped Price$33.80Delivered to your address
Store Walk-In
Discounted Price $25.75Walk-In Savings: $8.05In-store purchase only — not valid for online checkout
✓ IN STOCK
Ships Today if ordered within --:--:--
Free Pickup in our Store • Usually ready in 1 hour
Pickup Store: Parts-O-Matic — Woodbridge, VA

    Description

    Genuine Bosch OEM

    Bosch 00640476 Dishwasher Genuine OEM Terminal Box

    Original Bosch dishwasher terminal box with terminal block for select Bosch, Thermador, Gaggenau, and Kenmore dishwashers.

    Product Overview

    The Bosch 00640476 Dishwasher Terminal Box is a genuine OEM electrical connection enclosure used on compatible dishwashers. It houses the terminal block where household electrical power connects to the dishwasher wiring harness.

    This assembly is supplied with the terminal block. The separate wiring/terminal-box cover is not included; Bosch identifies the matching cover as part 00640477.

    Quick Answer

    00640476 is a Genuine Bosch OEM dishwasher terminal box with terminal block. It replaces earlier part 640476. The cover is sold separately as 00640477.

    Common Problems This Part May Fix

    • Dishwasher will not start because of a damaged power connection
    • Burned, overheated, or melted terminal connections
    • Loose or damaged line-voltage wiring connection
    • Damaged terminal block or terminal-box housing
    • Intermittent power caused by compromised terminal connections

    Replaces and Cross-References

    00640476, 1378543, 640476, ABS11577, AP3962500, EAP8729475, PD00023793, PS8729475

    Cross-reference numbers are provided for identification. Bosch 00640476 is the Genuine OEM part.

    Compatibility

    Used on select Bosch-built dishwashers sold under Bosch, Thermador, Gaggenau, and Kenmore brands. Verified model examples include:

    SHE55C05UC/58
    SHE43F15UC/61
    SHE4AM16UC/02
    SHX3AM06UC/01
    SHX3AR56UC/07
    S36KMK15UC/05
    DWHD410HPR/60
    63013903010
    63013909012

    Important: This is only a partial compatibility list. Bosch uses E-Nr./model revisions, so verify the complete model number including the suffix before ordering.

    Key Features

    • Genuine Bosch OEM replacement part
    • Includes terminal box and terminal block
    • Connects household electrical power to dishwasher wiring
    • Replaces Bosch part 640476
    • For select Bosch-built dishwasher platforms
    • Cover 00640477 is sold separately

    Product Specifications

    Manufacturer Part Number 00640476
    Manufacturer Bosch
    Part Type Dishwasher Terminal Box / Terminal Block Assembly
    Condition New
    Part Quality Genuine OEM
    Terminal Block Included Yes
    Cover Included No
    Matching Cover 00640477, sold separately
    Application Select Bosch-built dishwashers

    Installation Notes

    1. Shut off the dishwasher circuit breaker and verify power is off before beginning service.
    2. Remove the lower access panel as required for the model.
    3. Photograph and label existing wire connections before disconnecting them.
    4. Inspect supply wiring and the dishwasher harness for heat damage, burned insulation, or loose conductors.
    5. Transfer wiring to the new terminal block according to the dishwasher wiring diagram and installation instructions.
    6. Secure strain relief and wiring so no bare conductor is exposed.
    7. Install the proper terminal-box cover before restoring power.

    Electrical safety: This part carries household line voltage. If wiring is burned, melted, or damaged, correct the underlying connection problem and replace damaged wiring as required. Installation should be performed by a qualified person when local electrical codes or conditions require it.

    Frequently Asked Questions

    Is 00640476 a Genuine Bosch OEM part?

    Yes. It is manufactured by Bosch as an original equipment replacement terminal box.

    Does this include the terminal block?

    Yes. Bosch describes 00640476 as a terminal box with terminal block.

    Is the cover included?

    No. The matching wiring/terminal-box cover is Bosch part 00640477 and is sold separately.

    Does 00640476 replace 640476?

    Yes. 640476 is the earlier Bosch part number superseded by 00640476.

    Will it fit every Bosch dishwasher?

    No. Compatibility depends on the full Bosch E-Nr./model and revision. Verify the complete model number before purchase.

    Shop With Confidence

    Use the complete dishwasher model or E-Nr. to confirm fitment before ordering. Genuine Bosch OEM construction helps ensure the correct electrical connection design for compatible models.

    Genuine Bosch OEMTerminal Block IncludedCompatibility SupportNew Part
