Product Overview

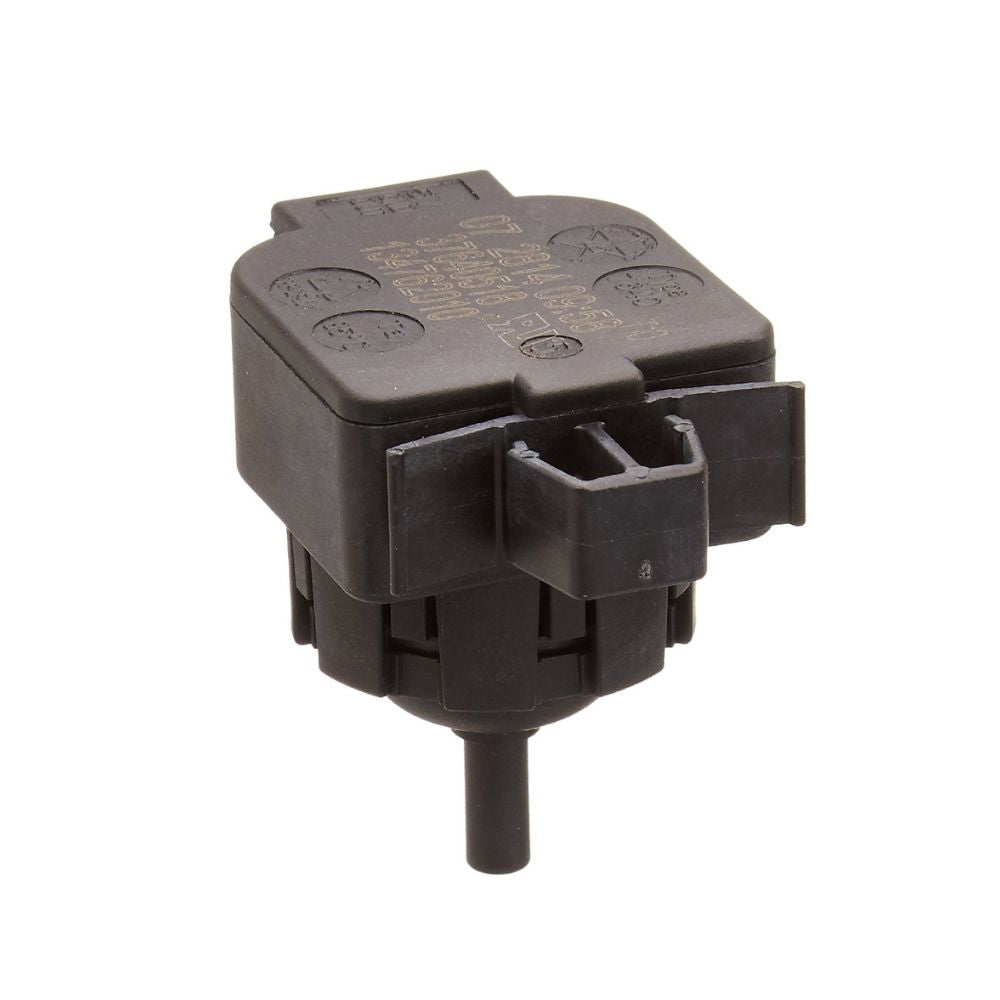

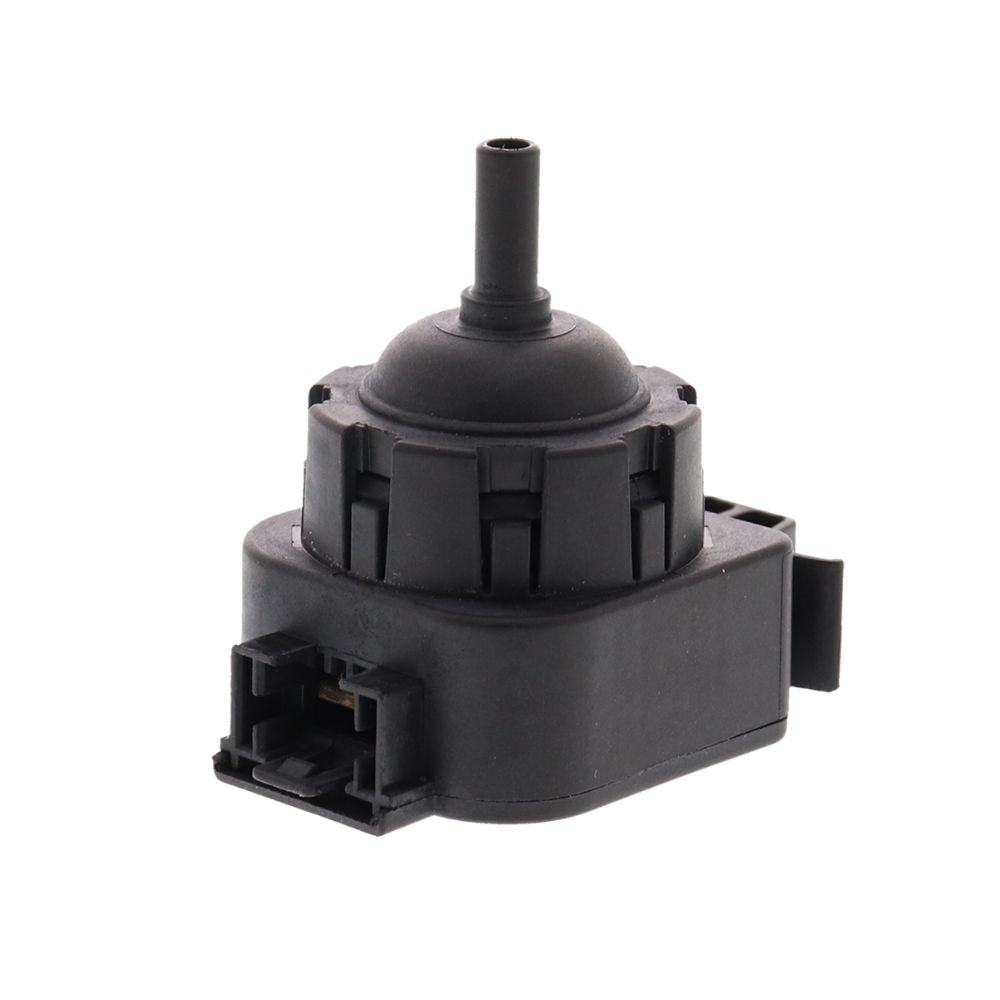

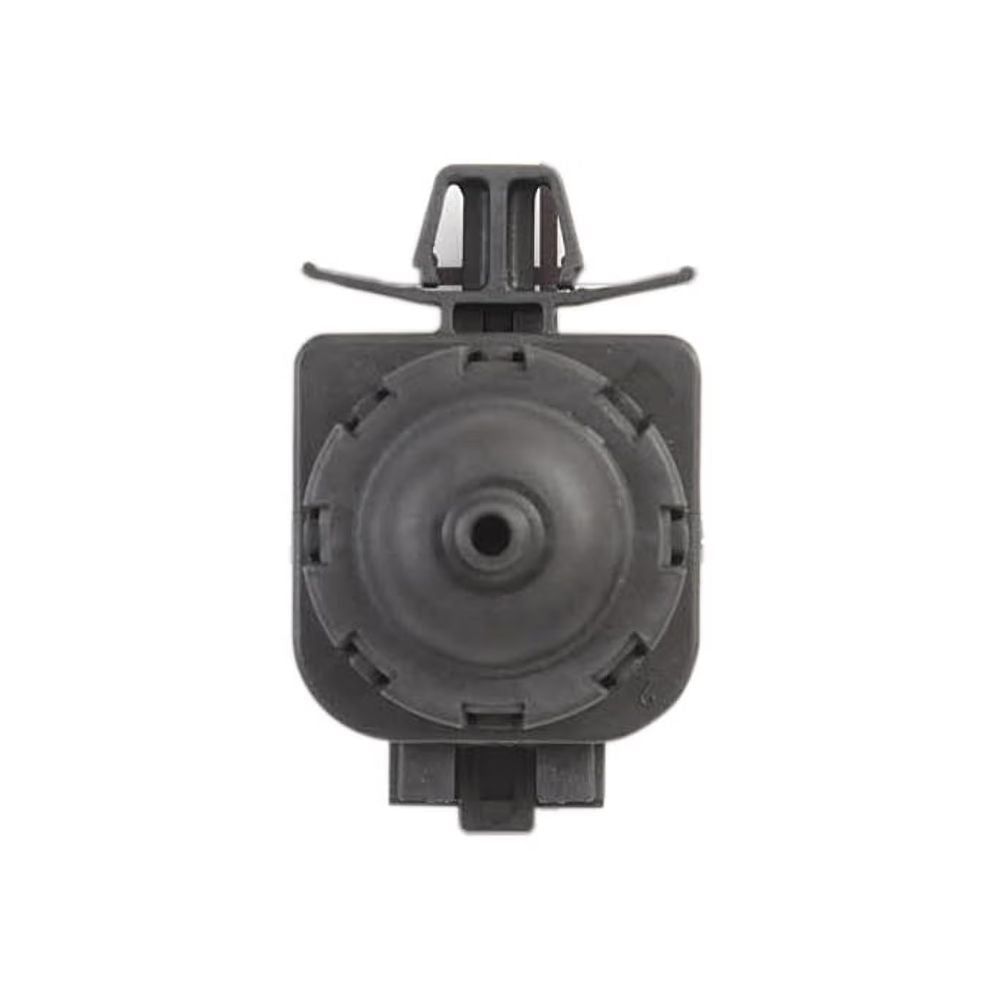

The Frigidaire 134762010 Washer Water Level Pressure Switch senses changes in air pressure through the washer pressure hose to monitor the amount of water inside the tub. It signals the washer control system when the correct water level has been reached so the appliance can fill, wash, drain, and advance through the cycle correctly.
This is a new Genuine OEM Frigidaire / Electrolux replacement part manufactured to the original equipment specifications for proper fit, electrical connection, and operation in compatible washers.
Quick Answer
134762010 is a Genuine OEM water-level pressure switch for select Frigidaire, Electrolux, Kenmore, and Crosley front-load washers. It replaces 7134762010. This listing is for the pressure switch only; the pressure hose, clamp, wiring harness, and mounting hardware are not included unless specifically shown.
Common Problems This Part May Fix
- Washer overfills with water
- Washer does not fill or underfills
- Incorrect or inconsistent water level
- Cycle stops or will not advance
- Washer does not drain or complete the cycle correctly
- E35 or another water-level-related error on applicable models
Replaces and Cross-References
134762010, 1482962, 7134762010, AH2349296, AP4368525, AFR14413, EA2349296, PD00007813, PS2349296.
134762010 is the current manufacturer part number. Other numbers are previous manufacturer or retailer cross-references.
Compatibility
Designed for select front-load washers manufactured by Electrolux and sold under Frigidaire, Electrolux, Kenmore, and Crosley brand names. Confirmed model examples include:
41741100000
41744130000
EIFLS55IRR0
EIFLS60JIW1
FAFS4473LN0
FAFW3921NW0
FFFW5000QW0
CFW4700LW0
CFW7400QW0
Important: This is a partial compatibility list. Pressure switches can look alike while using different settings, terminals, mounting tabs, or control calibration. Verify the complete washer model number before ordering.
Key Features
- Genuine OEM Frigidaire / Electrolux replacement part
- Monitors the water level inside the washer tub
- Signals the control system when the correct fill level is reached
- Supports proper filling, washing, draining, and cycle operation
- Snap-tab mounting design on compatible models
- Designed for original fit and electrical connection
Product Specifications
| Manufacturer Part Number |
134762010 |
| Brand |
Frigidaire / Electrolux |
| Part Type |
Washer Water Level Pressure Switch |
| Condition |
New |
| Quality |
Genuine OEM |
| Application |
Front-Load Washing Machine |
| Primary Function |
Senses and controls the washer water level |
| Included |
One Water Level Pressure Switch |
Installation Notes
- Unplug the washer and shut off both water-supply valves.
- Remove the washer top panel as required for your model.
- Photograph the wire connector and pressure-hose connection before disconnecting them.
- Disconnect the electrical connector without pulling on the wires.
- Release the clamp and carefully remove the pressure hose.
- Remove the old switch and install the replacement in the same position.
- Reconnect the hose, clamp, and electrical connector, then reinstall the top panel.
Diagnostic tip: Inspect the pressure hose for cracks, pinholes, blockage, moisture, loose connections, or trapped debris. A damaged or obstructed hose can cause the same symptoms as a failed pressure switch.
Frequently Asked Questions
Is 134762010 a genuine OEM part?
Yes. It is a Genuine OEM Frigidaire / Electrolux washer water-level pressure switch.
What does the pressure switch do?
It monitors air pressure from the washer tub and signals the control system when the correct water level has been reached.
Which part number does it replace?
It replaces previous manufacturer part number 7134762010.
Does this include the pressure hose?
No. The listing is for the pressure switch only unless additional components are specifically shown and stated as included.
Will it fit every Frigidaire or Electrolux washer?
No. Verify the complete appliance model number and required manufacturer part number before purchasing.
Shop With Confidence
Purchase the correct Genuine OEM replacement part for dependable fit and operation. Verify your washer model number before ordering, and contact our parts team when compatibility assistance is needed.
