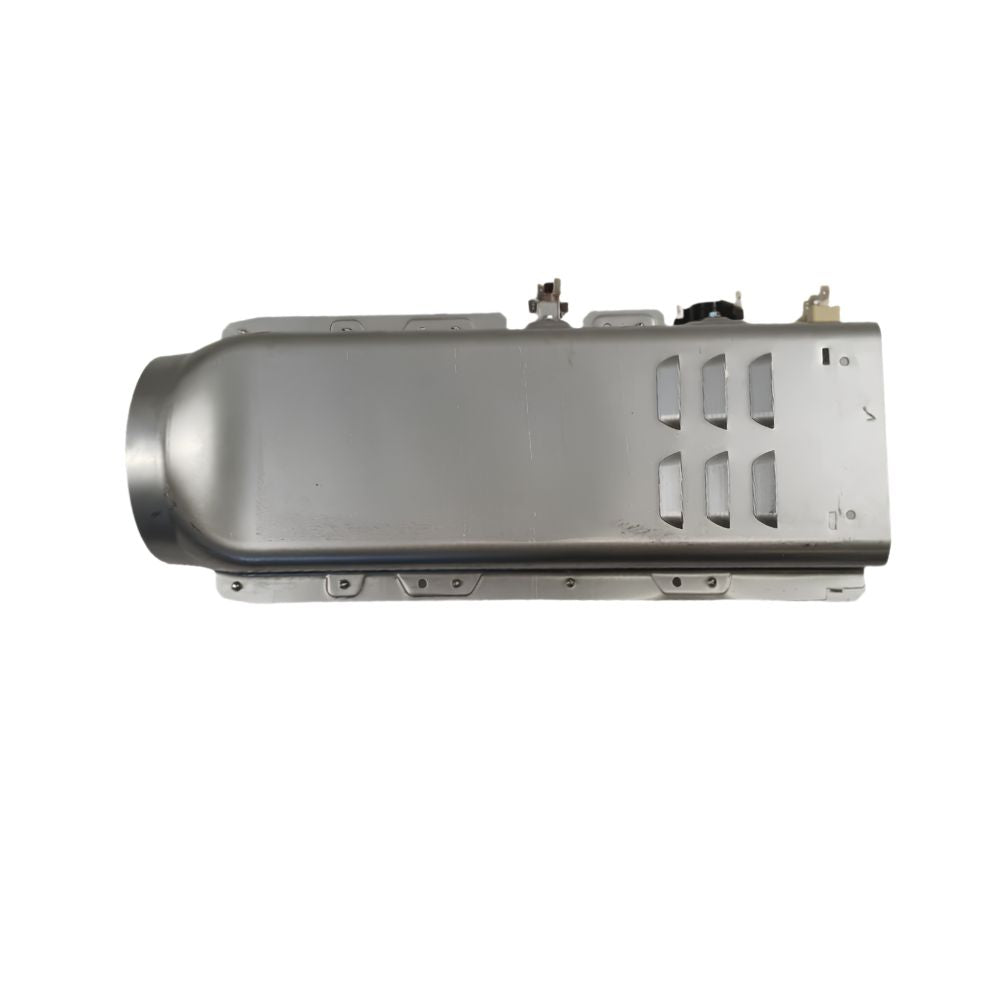

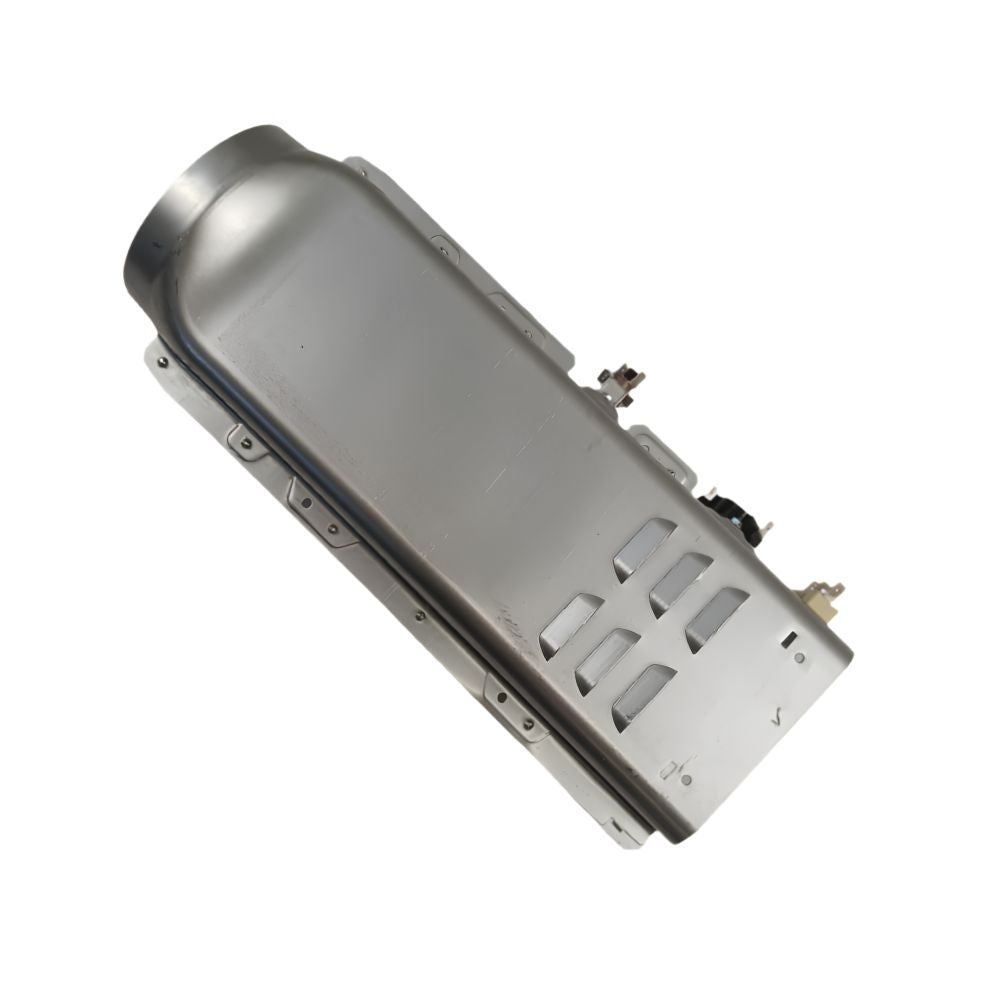

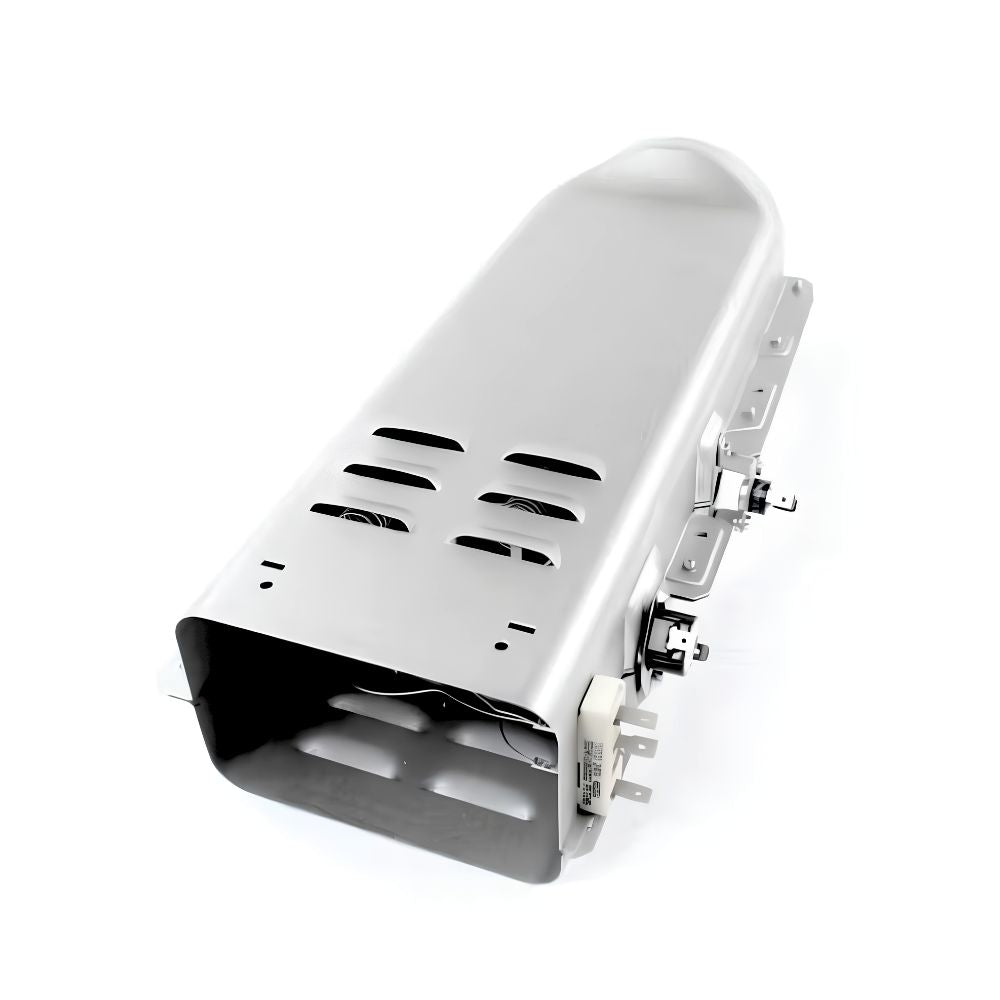

17438200000109 Genuine OEM Midea Dryer Heating Element Assembly
The 17438200000109 is a Genuine OEM Midea replacement dryer heating element assembly compatible with a wide range of Midea and Insignia electric dryers, including the MLE41N1AWW, MLE43A3AWW, MLE47A3AGG, MLE47C3AWW, MLE47C4AWW, MLE47R5BWW, MLTE37N1BWW, CDE41N1AW, CLADE67W, LE43A3AWW, MDD160A2301E1305, and Insignia NS-FDRE67WH8A-C series. The heating element uses electrical resistance to generate the heat that warms air as it circulates through the dryer drum, evaporating moisture from wet clothes. Without a functioning heating element, the dryer will tumble and run normally but produce no heat, leaving clothes damp at the end of a cycle.
As a Genuine OEM part manufactured by Midea to factory specifications, the 17438200000109 is the complete heater assembly housing. It directly replaces 302461060002 and MDA17438200000109 (alternate catalog references for the same assembly). Note: when an electric dryer heating element fails due to overheating, the paired high-limit thermostat (Midea 17400513000460) is often stressed as well — inspecting or replacing it at the same time is recommended. Installs in 30–45 minutes with basic hand tools.
Quick Answer
The 17438200000109 Genuine OEM Midea Dryer Heating Element Assembly fixes Midea and Insignia electric dryers that tumble normally but produce no heat, dry unevenly, or take much longer than usual to dry a load. Complete heater assembly housing. Genuine OEM. Replaces 302461060002, MDA17438200000109. Compatible with Midea MLE41N1AWW, MLE43A3AWW, MLE47A3AGG, MLE47C3AWW, MLE47C4AWW, MLE47R5BWW, MLTE37N1BWW, CDE41N1AW, CLADE67W, LE43A3AWW, MDD160A2301E1305, and Insignia NS-FDRE67WH8A-C electric dryers. Often paired with thermostat replacement (Midea 17400513000460).
Common Problems This Part Fixes
- Dryer tumbles normally but produces no heat
- Dryer takes significantly longer than usual to dry a full load
- Clothes coming out damp or only partially dried at the end of a cycle
- Uneven heat distribution — some loads dry while others don't
- Heating element visibly burned through, broken, or showing signs of arcing
- Dryer trips the circuit breaker when the heat setting is selected — shorted element
- Burning smell during operation — element arcing at a weak point in the coil
Replaces Part Numbers
This heating element assembly directly replaces the following OEM and cross-reference part numbers:
17438200000109, AP7157535, PS18188573, MDA17438200000109
Contact our support team with your model number if you need confirmation before ordering.
Compatibility
This heating element assembly is compatible with select Midea and Insignia electric dryers, including:
- Midea MLE41N1AWW, MLE41N1AWWC electric dryers
- Midea MLE43A3AWW, LE43A3AWW, LE43A3AWWFR electric dryers
- Midea MLE47A3AGG electric dryer
- Midea MLE47C3AWW, MLE47C4AWW electric dryers
- Midea MLE47R5BWW electric dryer
- Midea MLTE37N1BWW electric dryer
- Midea CDE41N1AW electric dryer
- Midea CLADE67W electric dryer
- Midea MDD160A2301E1305 electric dryer
- Insignia NS-FDRE67WH8A-C electric dryer (6.7 cu. ft., Midea-built)
- Insignia NS-TDRE67W1 electric dryer (Midea-built)
Always verify your appliance model number before ordering. Contact our support team if you're unsure.
Key Features
- Genuine OEM part manufactured by Midea to factory specifications — guaranteed fit and performance
- Complete heater assembly housing — generates the heat needed for the drying cycle
- Delivers consistent, even heat distribution to reduce drying time and energy consumption
- Durable construction designed to withstand frequent daily drying cycles
- Replaces 302461060002 and MDA17438200000109
- Compatible with Midea MLE, LE, CDE, CLADE, MLTE, and MDD series electric dryers, plus Insignia Midea-built models
- Installs in 30–45 minutes with basic hand tools
Product Specifications
| Part Number |
17438200000109 |
| Part Type |
Dryer Heating Element Assembly |
| Condition |
Genuine OEM |
| Application |
Electric Dryers (Midea platform) |
| Often Replaced With |
High-Limit Thermostat (Midea 17400513000460) |
| Compatible Brands |
Midea, Insignia (Midea-built) |
Installation Notes
⚠️ Unplug Dryer Before Starting Disconnect power before beginning. Pull the dryer away from the wall and remove the rear service panel to expose the heating element housing. Take a photo of the wiring before disconnecting anything — this is important since the high-limit thermostat and thermal cut-off wiring are both in the same area as the element leads and it's easy to mix up terminals. Disconnect the high-limit thermostat/thermal cut-off wiring and the element leads from the old heating element assembly. Remove the mounting screws securing the element housing and slide the old assembly out. Install the new 17438200000109 assembly in the same orientation, reconnect all wires snugly to the correct terminals as documented in your photo, and reinstall the mounting screws. Reassemble the rear service panel, restore power, and run a test heat cycle to confirm the dryer is heating properly. Tip: while the rear panel is open, inspect the high-limit thermostat (Midea 17400513000460) — if the original element failed due to overheating, the thermostat may also need replacement. Tools needed: Phillips screwdriver, nut driver.
Frequently Asked Questions
How do I know if my dryer's heating element has failed?
The clearest sign is a dryer that tumbles and runs through a complete cycle normally but produces little or no heat, leaving clothes damp or only partially dried. You may also notice the dryer taking significantly longer than usual to dry a load as it tries to compensate with extended tumbling time. Visually inspecting the element after removing the rear panel can reveal burn marks, breaks in the coil, or visible arcing damage. A multimeter continuity test on the disconnected element will also confirm failure — a working element shows continuity, while a failed element reads an open circuit.
Should I replace the thermostat at the same time as the heating element?
It's a good idea to inspect it. When a heating element fails due to overheating — rather than simple end-of-life wear — the paired high-limit thermostat (Midea 17400513000460) located in the same area can also be stressed by the same heat event. Since the rear panel must already be open to replace the element, checking the thermostat's continuity at the same time is a quick step that can prevent a repeat repair if the thermostat is also on the verge of failing.
What is the difference between 17438200000109 and 302461060002?
These are the same heating element assembly. 302461060002 and MDA17438200000109 are alternate catalog reference numbers used by some parts suppliers for the identical Midea heater assembly. If your dryer's parts diagram or supplier listing shows either of these numbers, the 17438200000109 is the correct part and this listing covers all three references.
Does this element fit my Insignia dryer?
Yes — Insignia is a Best Buy house brand, and several Insignia electric dryer models (including the NS-FDRE67WH8A-C and NS-TDRE67W1) are manufactured by Midea and use the same internal components, including this heating element assembly. Always verify your specific Insignia model number before ordering to confirm compatibility.
Is this a Genuine OEM or aftermarket part?
This is a Genuine OEM part manufactured by Midea to factory specifications. It is the exact same heating element assembly installed in compatible Midea and Insignia electric dryers from the factory — guaranteed fit, materials, and performance.
