2 Pack - XPARTCO 303373K Dryer Drum Roller Replaces 12001541, WP6-3129480
The XPARTCO 303373K is an aftermarket replacement drum roller support wheel kit for Maytag dryers, and also fits select Whirlpool, Jenn-Air, Crosley, Kenmore, Amana, and Admiral models. This roller supports the rear of the dryer drum and allows it to spin smoothly against the rear bulkhead throughout the drying cycle, working together with the front drum supports to keep everything rotating evenly.

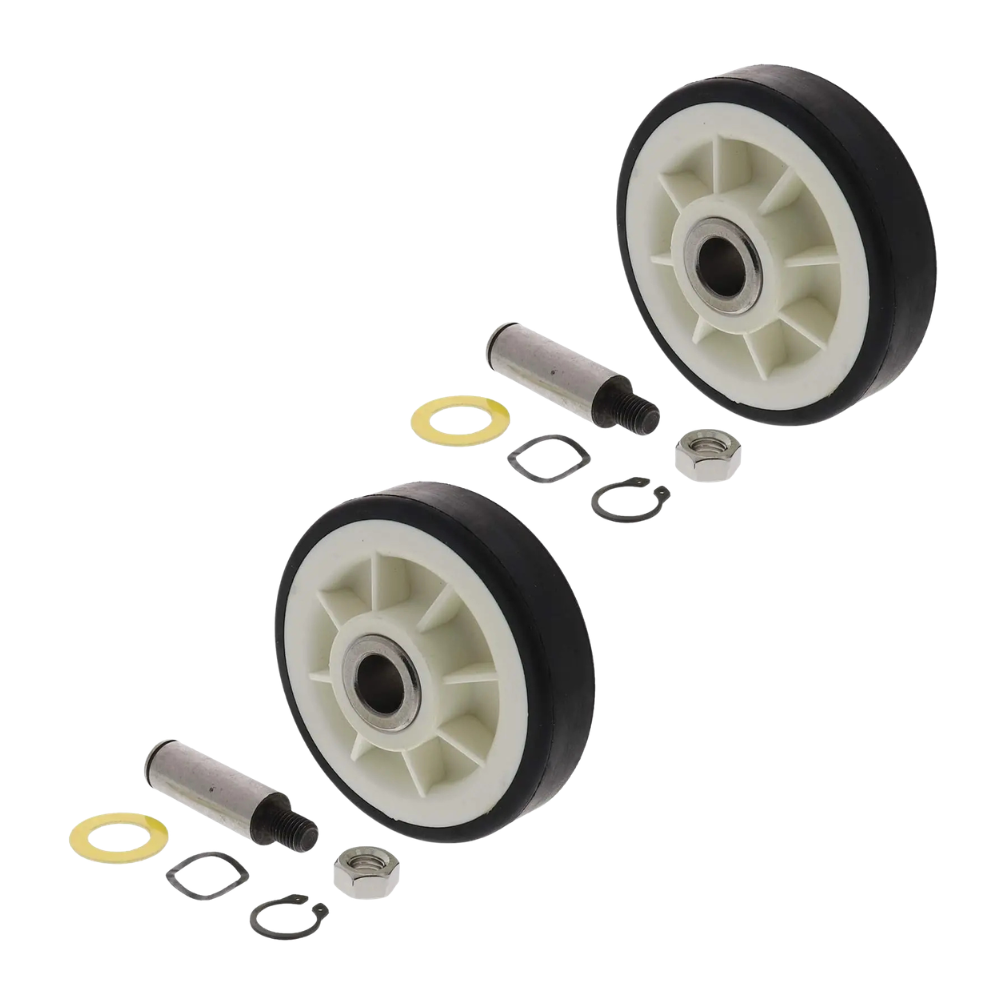

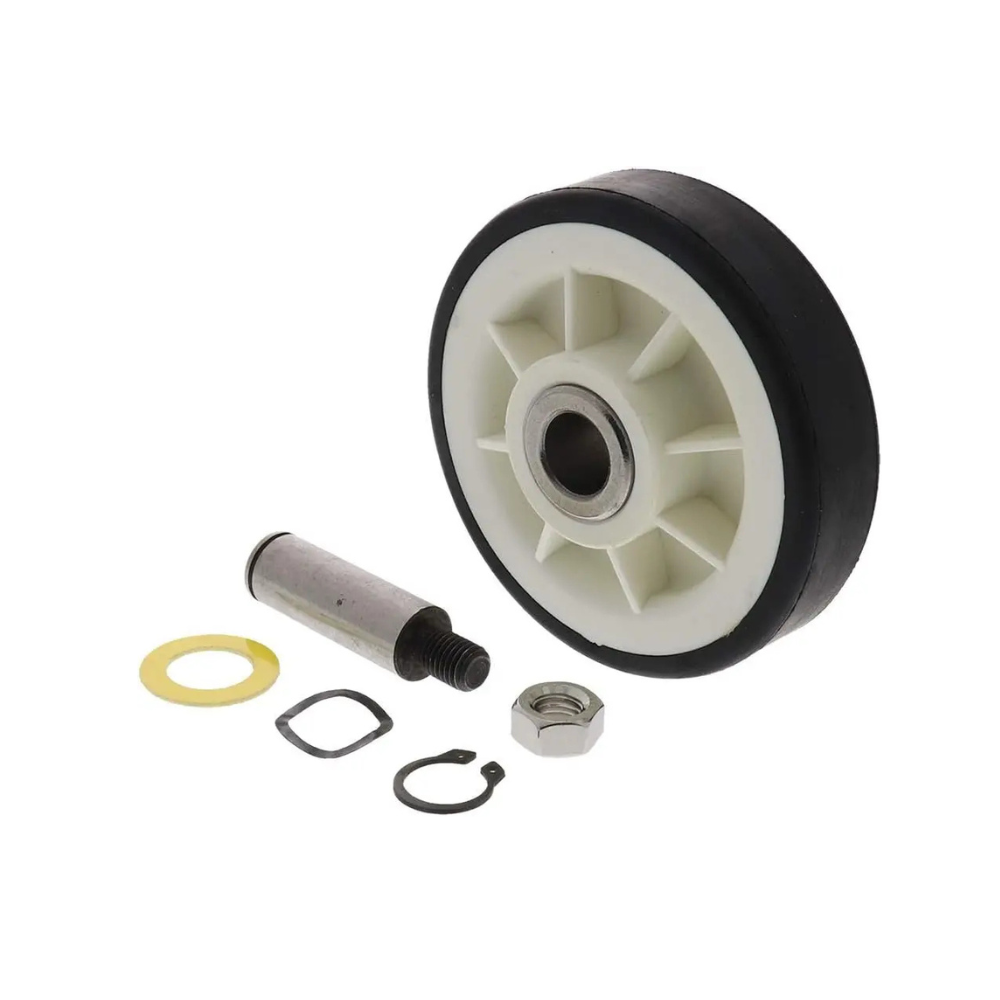

This kit includes 2 roller, 2 shaft (axle), 2 fiber washer, 2 nut, and 2 C-clip/retainer clip. The roller measures approximately 3" in diameter and 1-1/8" wide, fits a 1/2" shaft, and does not require lubrication. Finished in white or black, made of rubber, plastic, and metal. Over time, the roller's bearing wears out or the wheel develops flat spots from age and use. Symptoms of worn rollers include the dryer being noisy, failing to tumble, leaving marks on clothes, or failing to start. It directly replaces 12001541, WP6-3129480, 12001541VP, 3-3373, 303373, 400518, AH1570070, DE693, DE693K, EA1570070, K35-248, PS1570070, EAP1570070, W10116741, Y303373, AP4008534, and 312948.
Quick Answer
The XPARTCO 303373K Dryer Drum Roller fixes Maytag, Whirlpool, Jenn-Air, Crosley, Kenmore, Amana, and Admiral dryers that are noisy, won't tumble, leave marks on clothes, or won't start. Single roller and shaft, 3" diameter, 1-1/8" wide, fits 1/2" shaft, no lubrication needed. Replaces 12001541, WP6-3129480, 12001541VP, 3-3373, 303373, 400518, AH1570070, DE693, DE693K, EA1570070, K35-248, PS1570070, EAP1570070, W10116741, Y303373, AP4008534, 312948. For even wear, it's recommended to replace both rear drum rollers at the same time — you'll need two of this kit if your dryer uses two rear rollers.
Common Problems This Kit Fixes
- Dryer noisy during operation
- Drum won't tumble
- Marks left on clothes
- Dryer won't start
- Squeaking noise during the drying cycle
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dryer drum roller kit directly replaces the following OEM and cross-reference part numbers:
12001541, 12001541VP, 3-3373, 303373, 400518, W10116741, DE693, W10116741, Y303373, AH1570070, EA1570070, K35-248, AP4008534, AWP38865, EAP1570070, PD00004911, PS1570070, WP6-3129480, 6-3129480, 1480353, 3-12948, 312948, W10912638, WP6-3129480VP, Y312948, AP6009858, AWP48110, EAP2347258, PD00002609, PS11743031
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drum roller kit is compatible with select Maytag dryers, and also fits select Whirlpool, Jenn-Air, Crosley, Kenmore, Amana, and Admiral dryers built on the Maytag platform, including model numbers such as:
- MDE5500AYW, MDE2600AYW, MDE4000AYW, MDE6800AYW, MDE7400AYW, MDE7500AYW, MDE8600AYW, MDE9606AYW
- LDE4916ACE, LDE4916ACM, LDE4916ADE, LDE5916ACE, LDE5916ACM, LDE5916ADE
- LDE7600ACL, LDE8426GGE, LDE8624ACE, LDE9206ACE, LDE9206ACM, LDE9206ADE, LDE9334ACE, LDE9806GGE, LDE512
- LDG4916AAE, LDG4916AAM, LDG5916AAE, LDG5916AAM
- LSE7806ACE, MDG9520BWW, DE303, DG7500
Note: Always verify your full model number before ordering, since Maytag uses several different drum roller designs across its dryer lineup. Contact our support team with your model number if you're unsure.
Key Features
- Aftermarket replacement drum roller support wheel kit — single roller and shaft
- Resolves "noisy," "won't tumble," "marks on clothes," and "won't start" symptoms caused by worn rollers
- Kit includes 2 roller, 2 shaft, 2 fiber washer, 2 nut, and 2 C-clip
- 3" diameter, 1-1/8" wide, fits a 1/2" shaft
- Self-lubricating bearing — no lubrication required
- White or black finish, rubber/plastic/metal construction
- Direct drop-in replacement matching the original mounting
- Replaces 12001541, WP6-3129480, 12001541VP, 3-3373, 303373, 400518, AH1570070, DE693, DE693K, EA1570070, K35-248, PS1570070, EAP1570070, W10116741, Y303373, AP4008534, and 312948
- Compatible with Maytag, Whirlpool, Jenn-Air, Crosley, Kenmore, Amana, and Admiral dryers
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Part Number |
303373K |
| OEM Part Number |
12001541 |
| Part Type |
Dryer Drum Roller Support Wheel Kit |
| Condition |
Aftermarket Replacement |
| Kit Contents |
1x Roller, 1x Shaft, 1x Fiber Washer, 1x Nut, 1x C-Clip |
| Roller Diameter |
3" |
| Roller Width |
1-1/8" |
| Shaft Fit |
1/2" |
| Lubrication |
Not required — self-lubricating bearing |
| Color |
White / Black |
| Material |
Rubber / Plastic / Metal |
| Repair Difficulty |
Easy to Moderate |
| Quantity |
2 drum roller (single kit) |
| Compatible Brands |
Maytag, Whirlpool, Jenn-Air, Crosley, Kenmore, Amana, Admiral |
Installation Notes
⚠️ Unplug Dryer Before Starting — Install The Snap Ring Before Assembling The Roller Onto The Shaft Disconnect power at the outlet before beginning. Wear work gloves. Remove the back panel of the dryer, then remove the drum to access the rear drum roller(s). Remove the old roller by taking off the retainer clip, sliding the roller off its shaft, and removing the shaft itself if it's also being replaced. One customer found it much easier to install the C-clip/snap ring onto the new shaft before assembling the rest of the roller, rather than after. Once assembled this way, you're only dealing with tightening a nut at the back, which can be finger-tightened and then given about a half turn with a 1/2" wrench — useful since one side of the mounting area can be tight to access. Install the new roller, shaft, fiber washer, and nut in the same position, following this assembly order. If your dryer uses two rear rollers and you've ordered a second kit to replace both, repeat this process for the other side. Reinstall the drum, making sure it seats correctly on the new roller(s). While the dryer is fully open, this is also a good opportunity to clean out any accumulated lint from inside the cabinet, since lint buildup here is a genuine fire hazard that isn't addressed by simply cleaning the lint trap. Reassemble the back panel. Restore power and run a test cycle to confirm quiet, smooth tumbling with no marks transferring to clothes. Tools needed: nut driver, 1/2" wrench, work gloves.
Frequently Asked Questions
My dryer squeaks. Is this the part I need?
Yes, squeaking is one of the most common symptoms of worn drum rollers. As the roller's bearing wears down, it can no longer support the drum's rotation smoothly, producing a squeaking or squealing noise that typically gets more noticeable over time.
Should I replace both rollers, or just the one that's obviously worn?
It's recommended to replace both rear drum support rollers at the same time for even wear, even if only one appears visibly worse than the other. This kit includes a single roller and shaft, so if your dryer uses two rear rollers, you'll want to order two of this kit to replace both together.
Do I need to lubricate these rollers?
No, these rollers use a self-lubricating bearing and do not require any additional lubrication during installation or afterward.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Maytag OEM part, but is manufactured to match the diameter, width, and shaft fit of the original 12001541 drum roller kit used in compatible Maytag, Whirlpool, Jenn-Air, Crosley, Kenmore, Amana, and Admiral dryers.
