330031 Whirlpool Genuine OEM Burner Element Receptacle Kit

Description

Genuine OEM Whirlpool 330031 Burner Element Receptacle Kit

The Genuine OEM Whirlpool 330031 is a surface burner receptacle kit, also called a surface element receptacle or terminal block kit, for Whirlpool-built electric ranges and cooktops. The receptacle is the plug-in block that connects the range's wire harness to the surface element. When it burns, loosens, or corrodes, the element can heat poorly, heat intermittently, or stop heating entirely, even though the element itself is good.

This is the original Whirlpool kit, and it replaces many older numbers. If a burner has stopped working, test the element in another burner socket first. If the element works there, the receptacle is the likely cause.

Quick Answer

The Genuine OEM Whirlpool 330031 Receptacle Kit fixes an electric range or cooktop whose surface element won't heat, heats intermittently, or has a burned or damaged socket. Classic symptom: a known-good element works in another burner socket but not in this one.

Common Problems This Part Fixes

  • Surface element will not heat
  • Element heats intermittently
  • Burned, melted, or corroded receptacle block
  • Loose element that doesn't seat firmly in the socket

Cross Reference Information

Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.

Replaces Part Numbers

This receptacle kit directly replaces the following part numbers:

330031, AP3075808, W10841094, 14200040, 14200233, 14203070, 14205001, 14205727, 14209631, 14210007, 14254131, 3374, 42147, 42153, 4335480, 5303935058, 550226, 71930, 74-06-132, 74-06-190, 766339, 99989649, 9E28000199, AH340571, EA340571, FSP330031, PS340571, R0157526, R0167091, R300, TS300, W10116799, W10116803, WB17X210, Y0042147, Y0042153, Y0045536, Y0045546, Y0051088, Y0054794, Y0067069, Y0071930, Y0071931, Y0075054, Y0086726, Y0088866, Y0089227, Y0089291, Y0089336, Y0090094, Y0300678, Y0308306, Y89336, YC2711501, YC2716501, YR0181149, 5303935058, 5301167733, 08002879, 08002916, 08002917, 08002918, 08002919, 08008697, 08011962, 08012830, 08012865, 09957075, 12871, 318112500, 318366400, 42822, 53-003, 709T026P01, 709T026S01, 709T026S02, 709T034P01, 709T045P01, 868464, 9175, A1505240, A1505979, G54972, G55667, K001167470, K001315483, K001319226, K1167204, K1167205, K1167470, K1310415, K1311332, K1312169, K1312179, K1312800, K1315200, K1315483, K1319226, K1323982, K5043104, K5043105, K5137801, PS470125, R201A, RR104, RR109, RR110, RR117, S5303310284, AP2591744, WB17X5091, AP2021538, 245919, AH232634, EA232634, PS232634, R117

These are the main numbers that appear across retailer cross-reference lists. Retailers list many more older numbers for this kit. Confirm against your range's parts diagram, or contact our support team, if your range calls out a different number.

Compatibility

This receptacle kit is listed for electric Whirlpool, Amana, Roper, and Kenmore ranges and cooktops, including these Kenmore examples:

  • Kenmore 101936630, 101936634, 101938630, 101938635
  • Kenmore 119647811, 119648811, 119900871, 119901871

Note: The models above are a small sample of a longer list, not a full list. Receptacle styles differ between ranges, and some buyers report terminals that differ from their original. Compare this kit to your old receptacle, and contact our support team with your model number to verify fit before ordering.

Key Features

  • Genuine OEM Whirlpool surface element receptacle kit
  • Connects the range's wire harness to the surface element

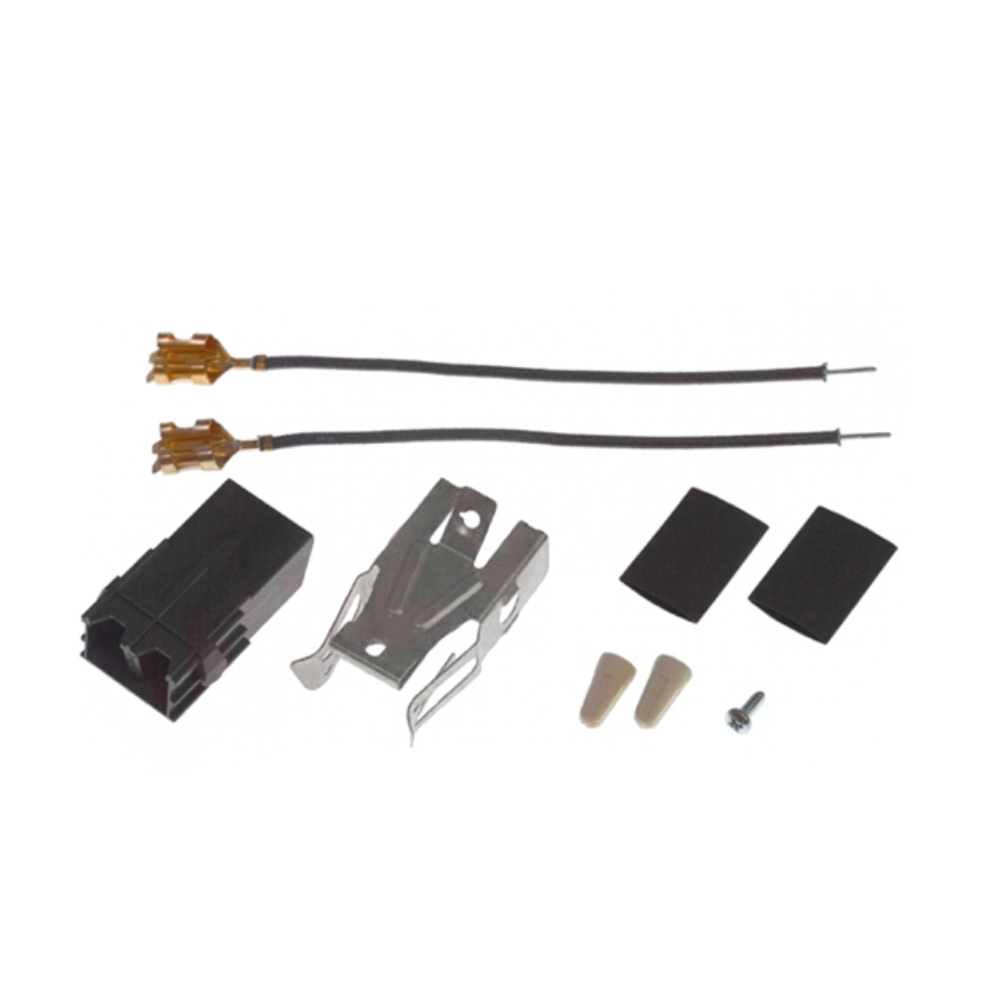

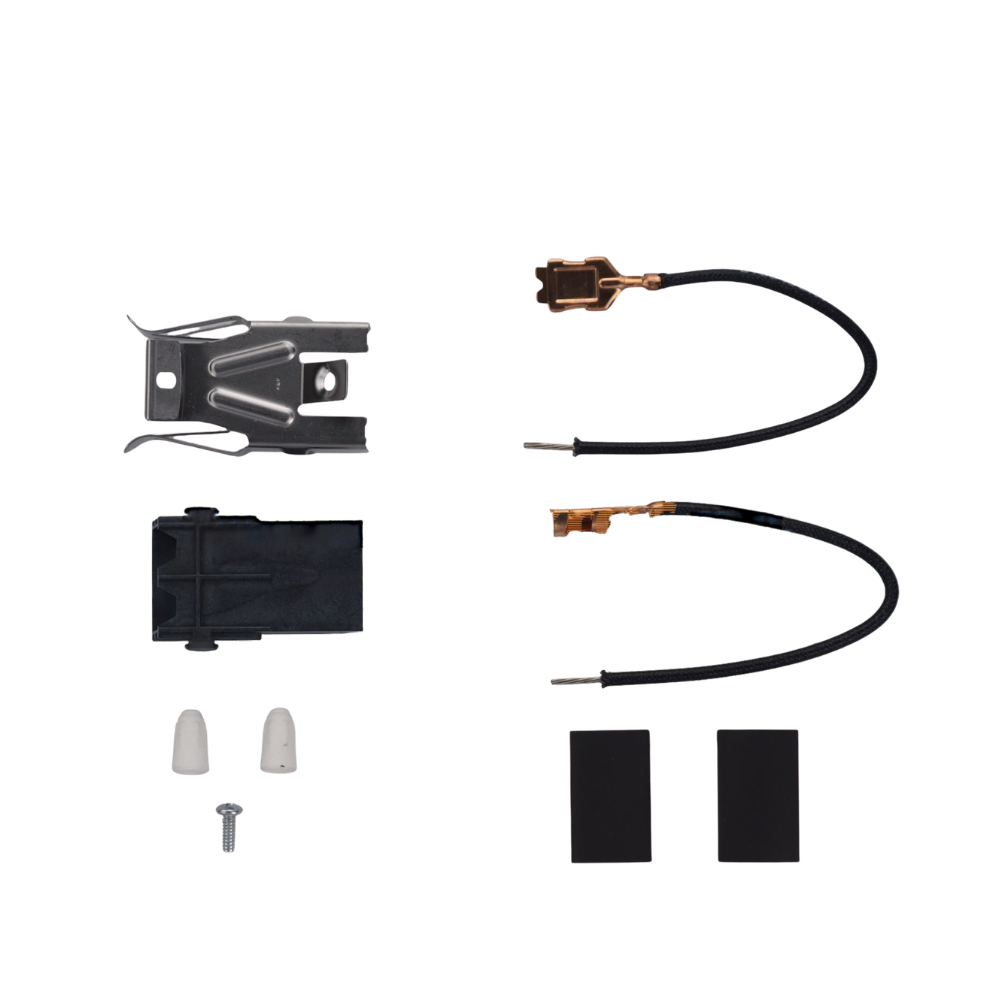

  • Kit includes the receptacle block, mounting brackets, high-temperature wire leads, and heat-shrink insulation
  • Resolves no-heat and intermittent-heat problems caused by a burned receptacle
  • Typically a 15 to 30 minute repair

Product Specifications

Part Number 330031
OEM Part Number 330031
Part Type Surface Burner (Element) Receptacle Kit
Condition Genuine OEM
Quantity 1 kit
Application Electric Ranges & Cooktops

Installation Notes

⚠️ Unplug Power Before Installing Unplug the range or switch off its circuit breaker before beginning, and wear work gloves. Remove the surface element and drip pan, lift the range top, and note which wire goes to which terminal before disconnecting them. Unscrew the old receptacle, fit the new one with the bracket that matches your receptacle, and attach the wires to the same terminals. Insulate the connections with the heat-shrink supplied, then reassemble and test.

Frequently Asked Questions

One burner won't heat. Is this the part I need?

Try the element in another burner socket first. If it heats there, the receptacle or its wiring is the likely cause, and this kit is the repair. If it doesn't heat in the other socket, the element is the problem.

The kit comes with two brackets. Which one do I use?

Use only the bracket that matches your receptacle, as shown in the parts diagram or on your old receptacle.

Is this a plug-in part for any electric range?

No. It is listed for Whirlpool, Amana, Roper, and Kenmore ranges and cooktops, and receptacle styles differ between models. We have not confirmed fit for GE, Hotpoint, or other brands. Compare it to your old receptacle, or contact our support team with your model number.

Will this fit my range?

It is listed for many Whirlpool-built ranges and cooktops, but the model list above is only a sample. Check your model number against your parts diagram, or contact our support team and we'll verify it before you order.

Shop With Confidence

A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.

✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout
