341241 Dryer Genuine OEM Drum Belt

Description

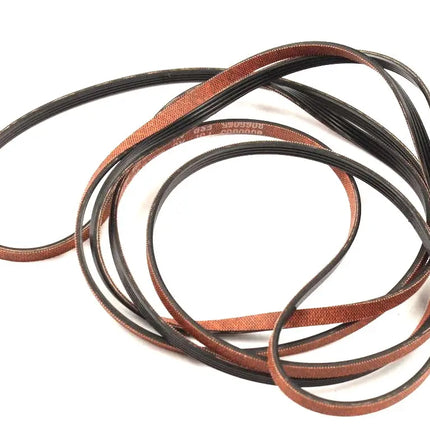

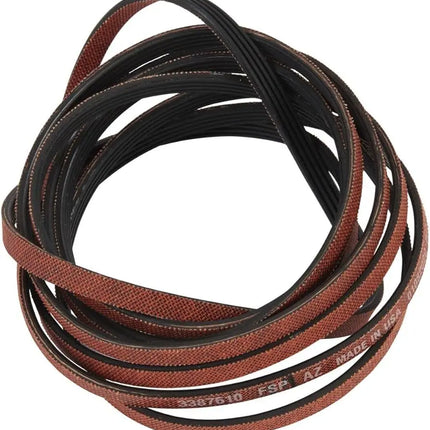

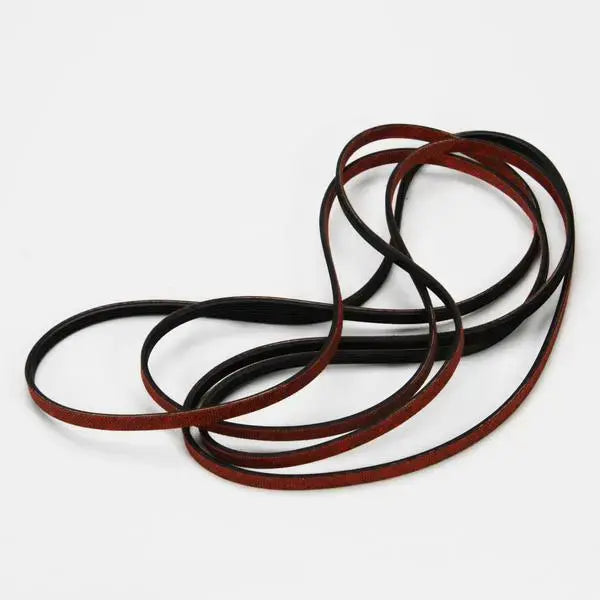

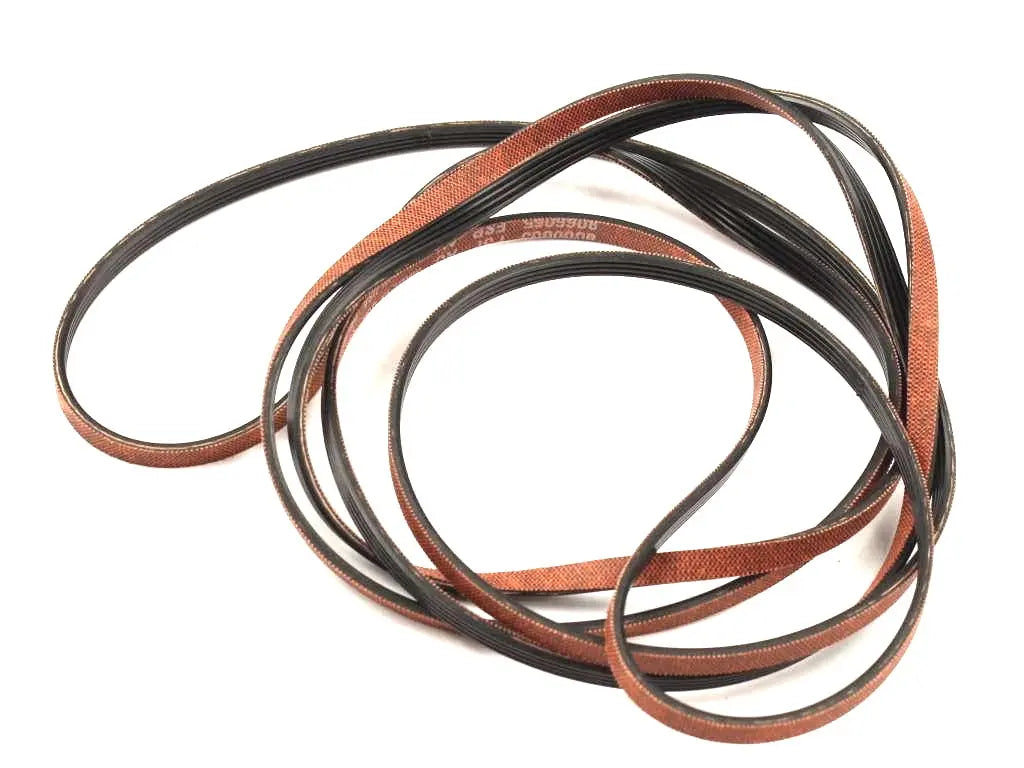

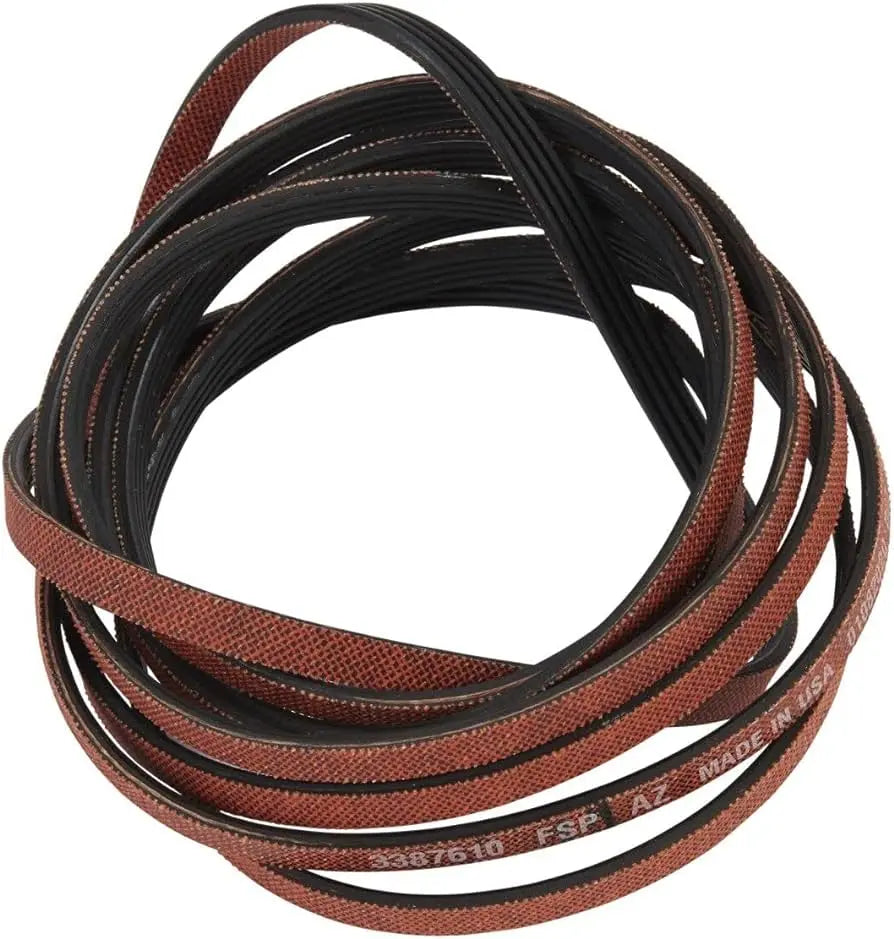

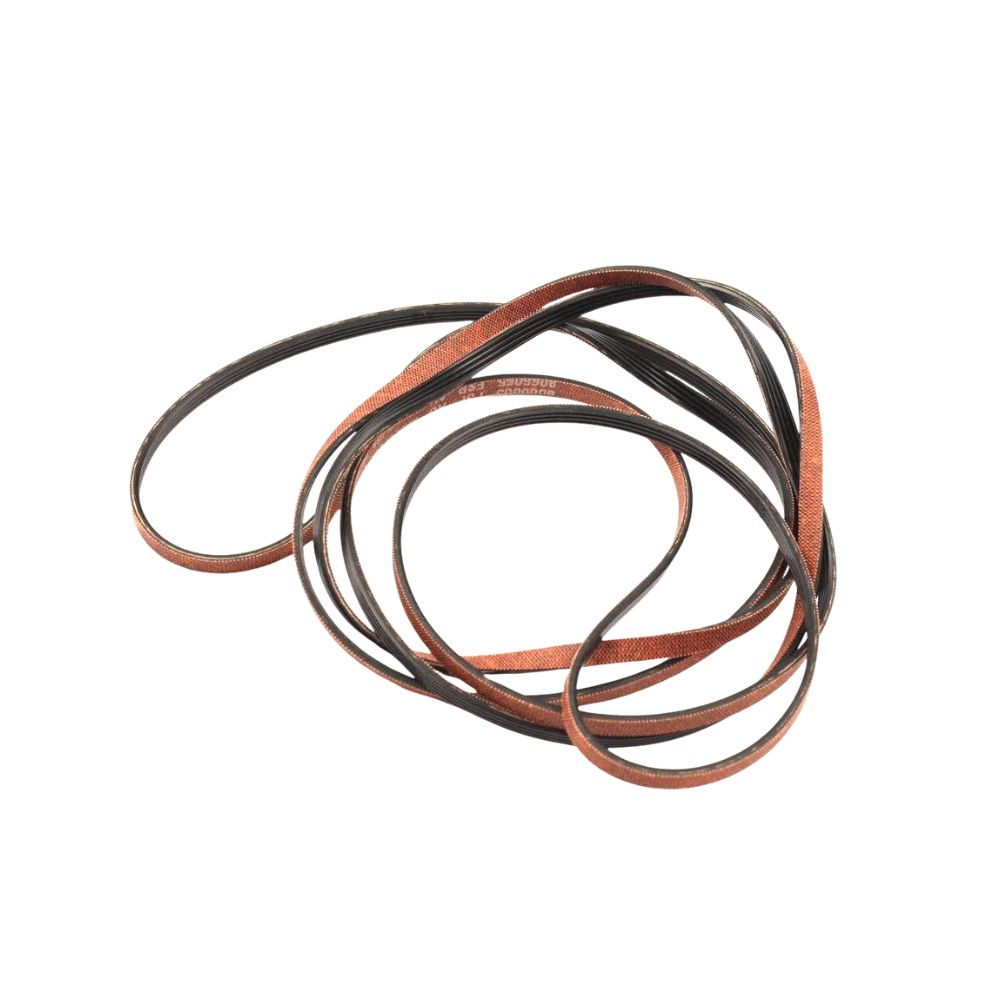

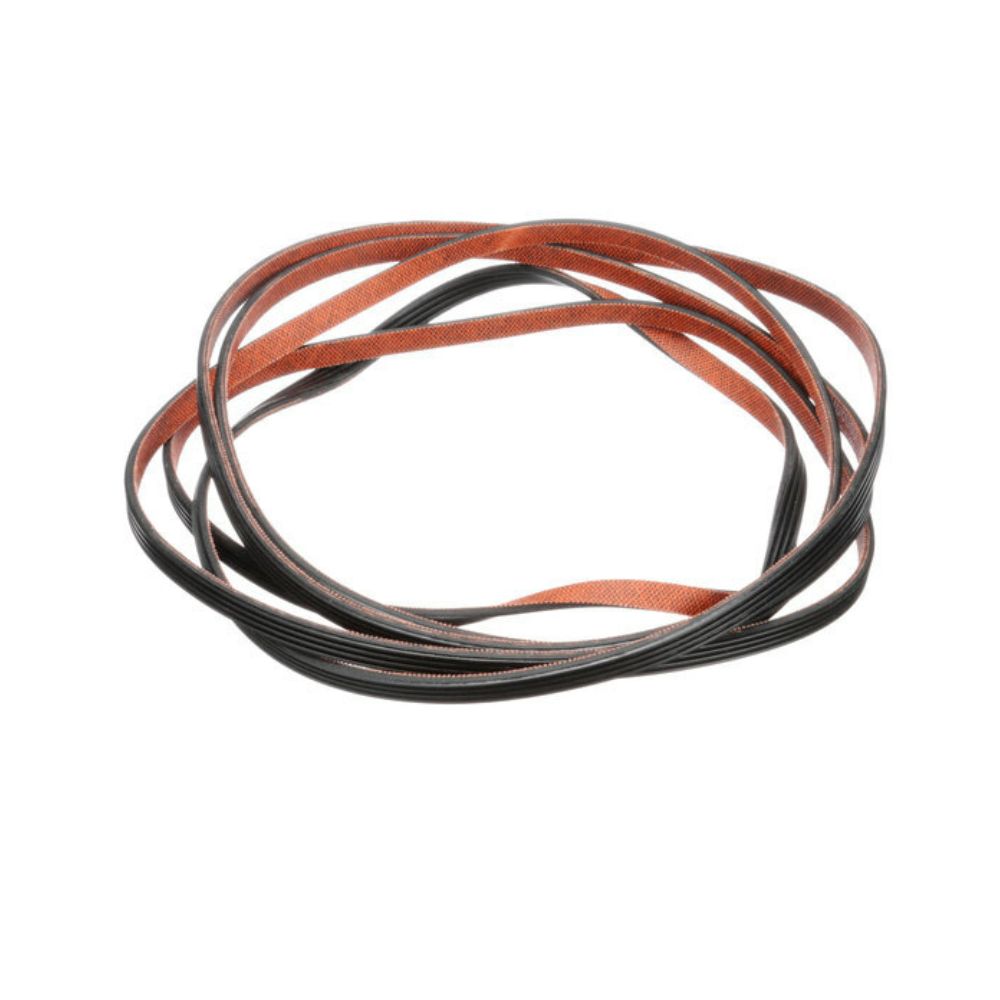

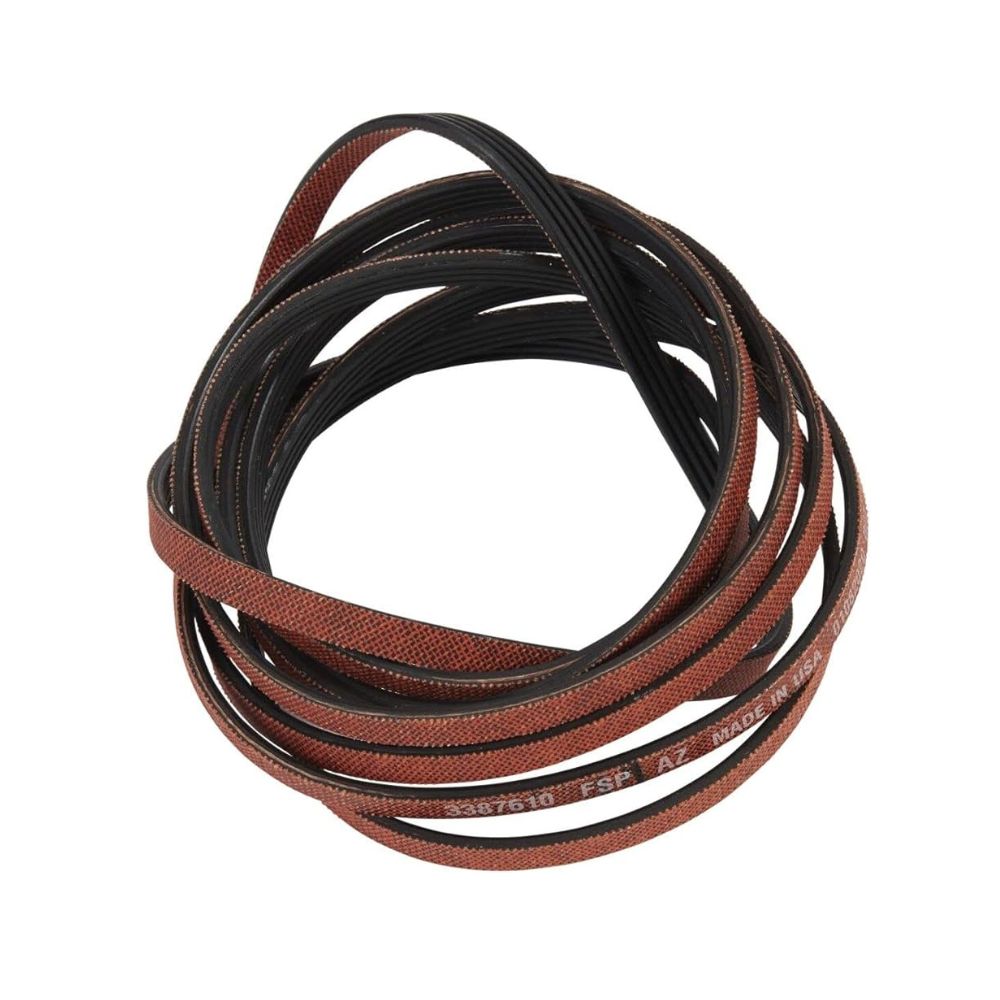

341241 Dryer Genuine OEM Drum Belt

The 341241 is a Genuine OEM dryer drum belt compatible with a wide range of Whirlpool-family dryers including Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Roper, Admiral, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Modern Maid, Hardwick, Caloric, and Ikea. The drum belt wraps around the outside of the dryer drum, loops around the motor pulley and idler pulley, and drives the drum to rotate during every drying cycle. Without a functioning belt, the drum cannot spin and clothes will not tumble or dry.

Made from high-strength rubber with reinforced ribs, this belt measures 92-1/4 inches long x 1/4 inch wide and features 4 ribs and 3 grooves. It is flat on one side and ribbed on the other, and is built to resist cracking, stretching, and wear under the high heat and repeated tension cycles of daily dryer use. It also replaces some 5-rib, 4-groove belts. Installs in 30–45 minutes with basic hand tools.

Quick Answer

The 341241 Dryer Genuine OEM Drum Belt fixes dryers where the drum is not spinning, clothes are not tumbling, or a thumping/squealing noise is coming from the dryer. Compatible with Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Roper, Admiral, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, and more. Measures 92-1/4" L x 1/4" W with 4 ribs and 3 grooves.

Common Problems This Part Fixes

  • Dryer drum not spinning — motor runs but drum stays still
  • Clothes not tumbling during the drying cycle
  • Thumping, squealing, or slapping noise during operation
  • Dryer runs but produces no heat because drum is stationary
  • Burning rubber smell coming from the dryer
  • Visible broken or frayed belt pieces found inside the dryer cabinet
  • Clothes taking too long to dry due to drum not rotating at correct speed

Replaces Part Numbers

This drum belt directly replaces the following OEM and cross-reference part numbers:

341241, 14210003, 2008, 26000341241, 26000349533, 31001026, 31531589, 3389628, 3392665, 3394651, 3399844, 341241VP, 345473, 349533, 529597, 53-0186, 53-1080, 53-1086, 53-1528, 53-1589, 53-2671, 53-2910, 660996, 660997, 661561, 693306, 694088, 694416, 694868, 695055, 697388, 8066065, 8206, 8210, 920H4, 920H5, 99906951, 99989673, 99989674, FSP341241, LB276, LB279, P46-037, P46-149, W10127457, W10131364, AH346995, AP32, EA346995, ER341241, AWP39161, PD00002263, EAP346995, AP2946843, PS346995, TJ341241.

If your part number is not listed above, contact our support team before ordering and we will verify compatibility.

Compatibility

This drum belt is compatible with select dryers from the following brands:

  • Whirlpool dryers (gas and electric)
  • Kenmore / Sears dryers (select models)
  • Maytag dryers
  • KitchenAid dryers
  • Amana dryers
  • Roper dryers
  • Admiral dryers
  • Jenn-Air dryers
  • Estate dryers
  • Magic Chef dryers
  • Crosley dryers
  • Inglis dryers
  • Norge, Modern Maid, Hardwick, Caloric, and Ikea dryers

Always verify your appliance model number before ordering. Contact our support team if you're unsure.

Key Features

  • Drives the dryer drum via the motor pulley and idler pulley for smooth, consistent tumbling every cycle
  • 92-1/4" length x 1/4" width — 4-rib, 3-groove design; flat on one side, ribbed on the other
  • Also replaces some 5-rib, 4-groove belts — wide cross-compatibility across Whirlpool-family models
  • Made from high-strength rubber with reinforced ribs — resists cracking, stretching, and heat damage
  • Direct replacement for OEM part numbers 341241 and 8066065 — no modification required
  • Compatible with over a dozen major appliance brands built on the Whirlpool platform
  • Genuine OEM part — factory-exact fit, materials, and dimensions
  • DIY-friendly repair — installs in 30–45 minutes with basic hand tools
  • Often replaced together with the idler pulley (691366) and drum rollers (349241T) for a complete drum drive repair

Product Specifications

Part Number 341241
Part Type Dryer Drum Drive Belt
Condition Genuine OEM
Application Gas and Electric Dryers
Length 92-1/4 inches
Width 1/4 inch
Ribs 4 ribs, 3 grooves
Profile Flat on one side, ribbed on the other
Material High-strength rubber with reinforced ribs
Color Black
Compatible Brands Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Roper, Admiral, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Modern Maid, Hardwick, Caloric, Ikea
Often Replaced With 691366 Idler Pulley, 349241T Drum Rollers

Installation Notes

⚠️ Safety First — Unplug Dryer Before Starting Unplug the dryer from the power source (and shut off the gas supply for gas dryers) before beginning any repair. Remove the lint screen, then unscrew the two Phillips screws inside the lint filter housing. Use a putty knife 2 inches from each front corner to release the top panel clips and lift the top panel. Remove the front panel to access the drum. Release belt tension at the idler pulley, lift the drum slightly, and slide the old belt off. Loop the new 341241 belt around the drum with the ribbed side facing down (toward the drum). Route the belt around the idler pulley and motor pulley — consult your model's service manual or a model-specific video for the correct belt path. Reassemble and run a test cycle. Tip: While the drum is out, inspect and replace the idler pulley (691366) and drum rollers (349241T) if worn. Tools needed: Phillips screwdriver, putty knife or flat pry tool.

Frequently Asked Questions

How does the 341241 differ from the W10205415 and 6602-001655 belts?

All three are 92-inch dryer drum belts, but they differ in width and rib count. The 341241 is 1/4" wide with 4 ribs and 3 grooves. The W10205415 is 3/8" wide with 5 ribs and 4 grooves. The 6602-001655 is 5/16" wide with 5 ribs and 4 grooves designed for Samsung dryers. Always match the part number to your specific model — do not substitute based on appearance alone.

Will this belt fit my Kenmore dryer?

Many Kenmore dryers — especially the popular 110-series — are manufactured by Whirlpool and use the 341241 belt. Check your model number against the compatibility list and contact our support team if you need help confirming the fit before ordering.

How do I know if my drum belt needs to be replaced?

The most obvious sign is that the dryer motor hums but the drum does not spin. You may also notice a thumping or slapping sound during operation, a burning rubber smell, or clothes that are damp after a full cycle. Open the dryer cabinet to visually confirm if the belt is broken, frayed, or stretched.

Should I also replace the idler pulley and drum rollers?

Yes — since the dryer is already disassembled, it is highly recommended to inspect and replace the idler pulley (691366) and drum support rollers (349241T) at the same time. These parts wear at a similar rate and replacing all three together — often sold as a repair kit — prevents having to disassemble the dryer again in the near future.

Is this an OEM or aftermarket part?

This is a Genuine OEM part manufactured by Whirlpool to factory specifications. It is the exact same belt that came installed in your dryer from the factory — same materials, dimensions, and performance.

Shop With Confidence

A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.

✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout



Product form

341241 Dryer Genuine OEM Drum Belt

Free Pickup in In Stock Parts-O-Matic - WB Store 1820 Featherstone Road Woodbridge, VA 22191 Usually ready in 1 hour
Online Shipped Price $19.20 List Price $14.96You Save: $4.24Delivered to your address
Store Walk-In
Discounted Price $9.89Walk-In Savings: $5.07In-store purchase only — not valid for online checkout
✓ IN STOCK
Ships Today if ordered within --:--:--
Free Pickup in our Store • Usually ready in 1 hour
Pickup Store: Parts-O-Matic — Woodbridge, VA
🔍 CHECK YOUR MODEL COMPATIBILITY

Enter your appliance model number to check compatibility.

View Full Compatibility List ↓

    Description

    341241 Dryer Genuine OEM Drum Belt

    The 341241 is a Genuine OEM dryer drum belt compatible with a wide range of Whirlpool-family dryers including Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Roper, Admiral, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Modern Maid, Hardwick, Caloric, and Ikea. The drum belt wraps around the outside of the dryer drum, loops around the motor pulley and idler pulley, and drives the drum to rotate during every drying cycle. Without a functioning belt, the drum cannot spin and clothes will not tumble or dry.

    Made from high-strength rubber with reinforced ribs, this belt measures 92-1/4 inches long x 1/4 inch wide and features 4 ribs and 3 grooves. It is flat on one side and ribbed on the other, and is built to resist cracking, stretching, and wear under the high heat and repeated tension cycles of daily dryer use. It also replaces some 5-rib, 4-groove belts. Installs in 30–45 minutes with basic hand tools.

    Quick Answer

    The 341241 Dryer Genuine OEM Drum Belt fixes dryers where the drum is not spinning, clothes are not tumbling, or a thumping/squealing noise is coming from the dryer. Compatible with Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Roper, Admiral, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, and more. Measures 92-1/4" L x 1/4" W with 4 ribs and 3 grooves.

    Common Problems This Part Fixes

    • Dryer drum not spinning — motor runs but drum stays still
    • Clothes not tumbling during the drying cycle
    • Thumping, squealing, or slapping noise during operation
    • Dryer runs but produces no heat because drum is stationary
    • Burning rubber smell coming from the dryer
    • Visible broken or frayed belt pieces found inside the dryer cabinet
    • Clothes taking too long to dry due to drum not rotating at correct speed

    Replaces Part Numbers

    This drum belt directly replaces the following OEM and cross-reference part numbers:

    341241, 14210003, 2008, 26000341241, 26000349533, 31001026, 31531589, 3389628, 3392665, 3394651, 3399844, 341241VP, 345473, 349533, 529597, 53-0186, 53-1080, 53-1086, 53-1528, 53-1589, 53-2671, 53-2910, 660996, 660997, 661561, 693306, 694088, 694416, 694868, 695055, 697388, 8066065, 8206, 8210, 920H4, 920H5, 99906951, 99989673, 99989674, FSP341241, LB276, LB279, P46-037, P46-149, W10127457, W10131364, AH346995, AP32, EA346995, ER341241, AWP39161, PD00002263, EAP346995, AP2946843, PS346995, TJ341241.

    If your part number is not listed above, contact our support team before ordering and we will verify compatibility.

    Compatibility

    This drum belt is compatible with select dryers from the following brands:

    • Whirlpool dryers (gas and electric)
    • Kenmore / Sears dryers (select models)
    • Maytag dryers
    • KitchenAid dryers
    • Amana dryers
    • Roper dryers
    • Admiral dryers
    • Jenn-Air dryers
    • Estate dryers
    • Magic Chef dryers
    • Crosley dryers
    • Inglis dryers
    • Norge, Modern Maid, Hardwick, Caloric, and Ikea dryers

    Always verify your appliance model number before ordering. Contact our support team if you're unsure.

    Key Features

    • Drives the dryer drum via the motor pulley and idler pulley for smooth, consistent tumbling every cycle
    • 92-1/4" length x 1/4" width — 4-rib, 3-groove design; flat on one side, ribbed on the other
    • Also replaces some 5-rib, 4-groove belts — wide cross-compatibility across Whirlpool-family models
    • Made from high-strength rubber with reinforced ribs — resists cracking, stretching, and heat damage
    • Direct replacement for OEM part numbers 341241 and 8066065 — no modification required
    • Compatible with over a dozen major appliance brands built on the Whirlpool platform
    • Genuine OEM part — factory-exact fit, materials, and dimensions
    • DIY-friendly repair — installs in 30–45 minutes with basic hand tools
    • Often replaced together with the idler pulley (691366) and drum rollers (349241T) for a complete drum drive repair

    Product Specifications

    Part Number 341241
    Part Type Dryer Drum Drive Belt
    Condition Genuine OEM
    Application Gas and Electric Dryers
    Length 92-1/4 inches
    Width 1/4 inch
    Ribs 4 ribs, 3 grooves
    Profile Flat on one side, ribbed on the other
    Material High-strength rubber with reinforced ribs
    Color Black
    Compatible Brands Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Roper, Admiral, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Modern Maid, Hardwick, Caloric, Ikea
    Often Replaced With 691366 Idler Pulley, 349241T Drum Rollers

    Installation Notes

    ⚠️ Safety First — Unplug Dryer Before Starting Unplug the dryer from the power source (and shut off the gas supply for gas dryers) before beginning any repair. Remove the lint screen, then unscrew the two Phillips screws inside the lint filter housing. Use a putty knife 2 inches from each front corner to release the top panel clips and lift the top panel. Remove the front panel to access the drum. Release belt tension at the idler pulley, lift the drum slightly, and slide the old belt off. Loop the new 341241 belt around the drum with the ribbed side facing down (toward the drum). Route the belt around the idler pulley and motor pulley — consult your model's service manual or a model-specific video for the correct belt path. Reassemble and run a test cycle. Tip: While the drum is out, inspect and replace the idler pulley (691366) and drum rollers (349241T) if worn. Tools needed: Phillips screwdriver, putty knife or flat pry tool.

    Frequently Asked Questions

    How does the 341241 differ from the W10205415 and 6602-001655 belts?

    All three are 92-inch dryer drum belts, but they differ in width and rib count. The 341241 is 1/4" wide with 4 ribs and 3 grooves. The W10205415 is 3/8" wide with 5 ribs and 4 grooves. The 6602-001655 is 5/16" wide with 5 ribs and 4 grooves designed for Samsung dryers. Always match the part number to your specific model — do not substitute based on appearance alone.

    Will this belt fit my Kenmore dryer?

    Many Kenmore dryers — especially the popular 110-series — are manufactured by Whirlpool and use the 341241 belt. Check your model number against the compatibility list and contact our support team if you need help confirming the fit before ordering.

    How do I know if my drum belt needs to be replaced?

    The most obvious sign is that the dryer motor hums but the drum does not spin. You may also notice a thumping or slapping sound during operation, a burning rubber smell, or clothes that are damp after a full cycle. Open the dryer cabinet to visually confirm if the belt is broken, frayed, or stretched.

    Should I also replace the idler pulley and drum rollers?

    Yes — since the dryer is already disassembled, it is highly recommended to inspect and replace the idler pulley (691366) and drum support rollers (349241T) at the same time. These parts wear at a similar rate and replacing all three together — often sold as a repair kit — prevents having to disassemble the dryer again in the near future.

    Is this an OEM or aftermarket part?

    This is a Genuine OEM part manufactured by Whirlpool to factory specifications. It is the exact same belt that came installed in your dryer from the factory — same materials, dimensions, and performance.

    Shop With Confidence

    A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.

    ✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout
