349241T Genuine OEM Dryer Drum Roller Kit - Compatible with Whirlpool, Kenmore, Maytag
Restore smooth and quiet operation to your dryer with the 349241T Genuine OEM Dryer Drum Roller Kit. This Whirlpool-manufactured kit includes two drum rollers, four tri-rings, and one retaining washer, designed to support the drum in select Whirlpool, Kenmore, Maytag, and other compatible dryers. It addresses issues like excessive noise, vibration, or drum not tumbling, ensuring efficient drying performance. Recommended to replace both rollers at once for optimal results.

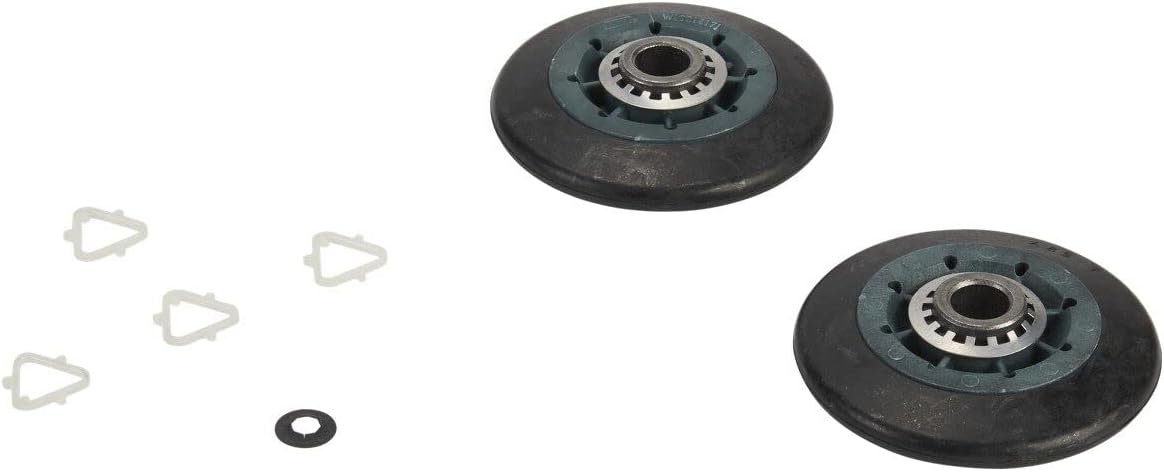

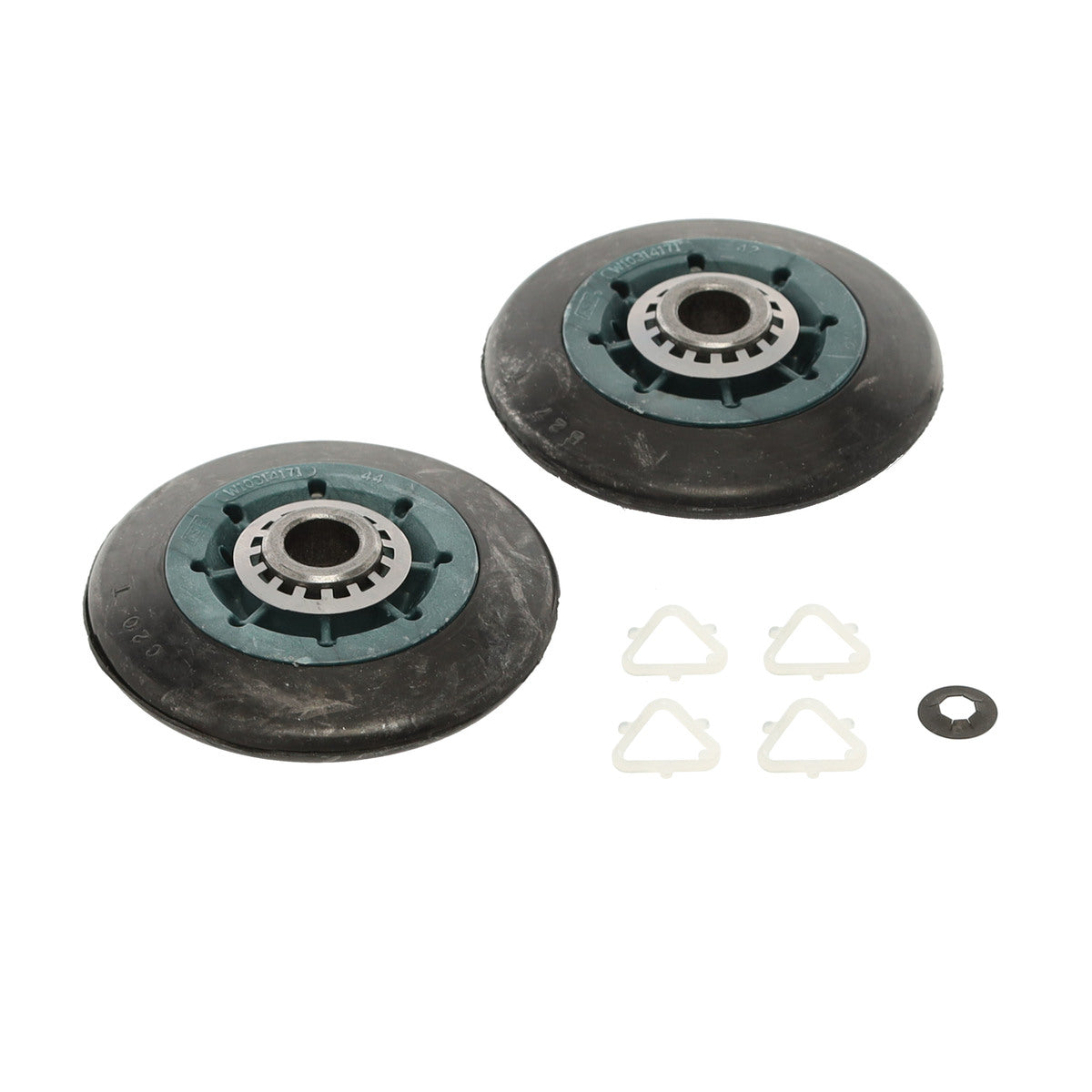

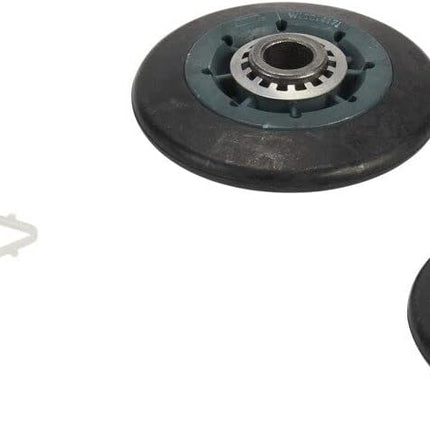

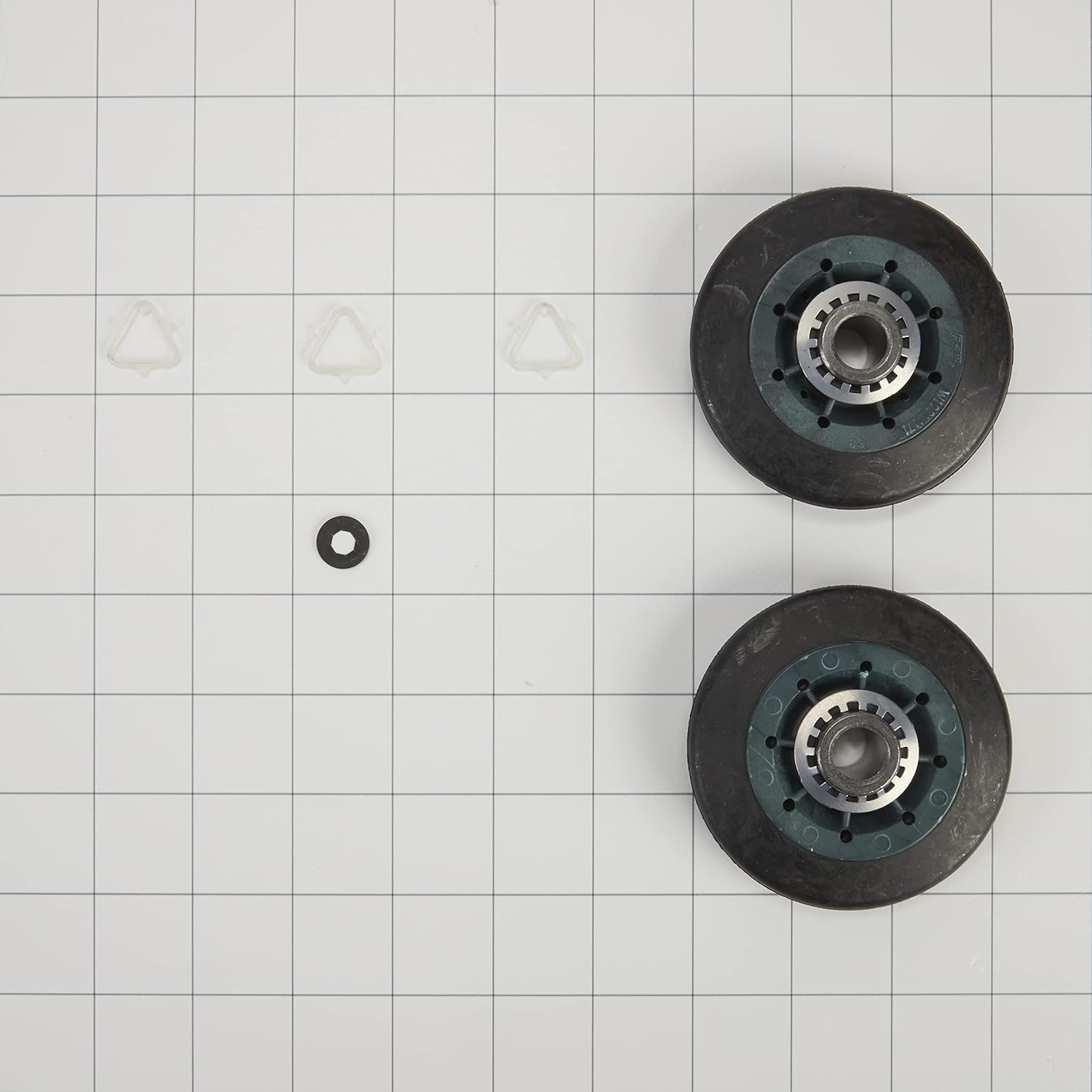

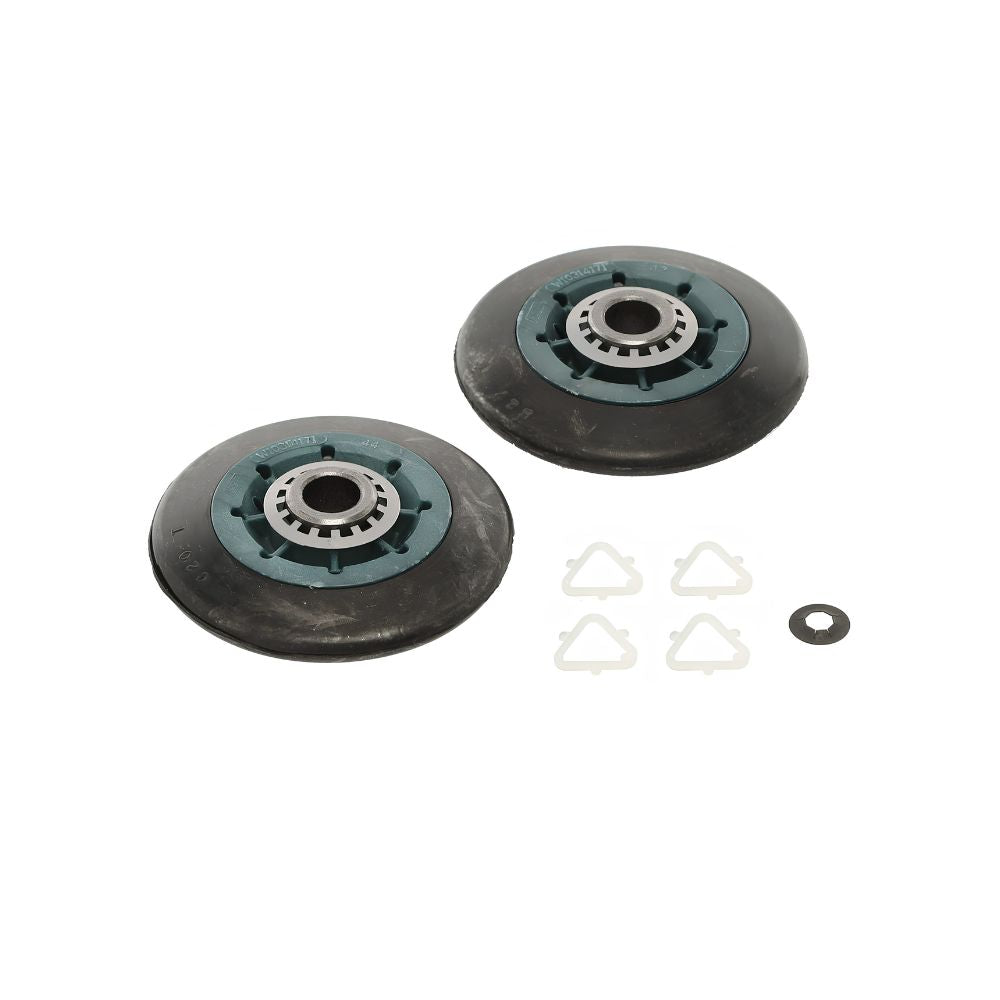

This set includes 2 drum rollers, 4 tri-ring retaining clips, and 2 retaining washers — everything needed for a complete rear roller replacement. Each roller measures 3-1/4"L x 1"W x 3-1/4"H and is constructed from rubber over a metal bearing hub with a plastic axle support. Both rollers must always be replaced at the same time. The set directly replaces 349241, 349241TVP, 8170, 8205, 337089, 340352, 661562, 3389901, 3397588, 3397590, AP3098345, PS347627, and several additional cross-reference numbers. Often replaced together with the drum belt (341241) and idler pulley (691366 or 279640) for a complete drum drive repair. Installs in 30–60 minutes with basic hand tools.
Quick Answer
349241T Genuine OEM Dryer Drum Roller Kit. This Whirlpool-manufactured kit includes two drum rollers, four tri-rings, and one retaining washer, designed to support the drum in select Whirlpool, Kenmore, Maytag, and other compatible dryers. It addresses issues like excessive noise, vibration, or drum not tumbling, ensuring efficient drying performance. Recommended to replace both rollers at once for optimal results. Replaces 349241, 8170, 8205, 337089, 3389901, AP3098345, PS347627.
Common Problems This Part Fixes
- Loud thumping, rumbling, or squealing noise during the drying cycle
- Grinding or scraping sound when the drum is turning
- Drum turning unevenly or wobbling during operation
- Drum not spinning — rollers so worn they can no longer support the drum
- Squealing or squeaking that gets worse over time as roller bearings degrade
- Marks or scuff lines on clothes — drum dragging against the dryer cabinet
- Excessive vibration during the drying cycle
Replaces Part Numbers
This drum roller set directly replaces the following OEM and cross-reference part numbers:
349241T, 26000349241, 337089, 3389901, 3397588, 3397590, 340352, 3436, 349241, 349241TVP, 661562, 8170, 8205, 99989678, 99989679, AH347627, EA347627, K34-895, AWP39168, PD00002257, EAP347627, AP3098345, PS347627.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drum roller set is compatible with select 29-inch gas and electric dryers from the following brands:
- Whirlpool dryers (gas and electric — 29" models)
- Kenmore / Sears dryers (Whirlpool-built models)
- Maytag dryers
- KitchenAid dryers
- Amana dryers
- Roper dryers
- Crosley dryers
- Estate dryers
- Inglis dryers
- Admiral dryers
- Magic Chef dryers
Note: The 349241T rollers are for 29-inch Whirlpool-family dryers. Newer Whirlpool Duet front-load dryers and larger-capacity models use different roller part numbers (such as WPW10314173 / 8536974). Always verify your model number before ordering.
Key Features
- Set of 2 rear drum support rollers — supports and cradles the drum as it rotates for smooth, quiet operation
- Includes all hardware: 2 rollers, 4 tri-ring retaining clips, 2 retaining washers — everything needed for a complete installation
- Dimensions: 3-1/4"L x 1"W x 3-1/4"H per roller
- Rubber wheel over metal bearing hub with plastic axle support — designed to resist wear and heat under continuous drum load
- Both rollers must be replaced at the same time — replacing only one results in uneven drum support and accelerated wear on the new roller
- Often replaced together with the drum belt (341241) and idler pulley (691366 or 279640) for a complete drum drive repair
- Compatible with 11 major appliance brands on the Whirlpool 29-inch platform
- Dryer Genuine OEM Part.
- DIY repair — installs in 30–60 minutes with basic hand tools
Product Specifications
| Part Number |
349241T |
| Part Type |
Dryer Rear Drum Support Roller Set |
| Condition |
Genuine Whirlpool OEM |
| Application |
29-inch Gas and Electric Dryers |
| Quantity |
Set of 2 rollers (replace both at the same time) |
| Roller Dimensions |
3-1/4"L x 1"W x 3-1/4"H (per roller) |
| Material |
Rubber wheel / Metal bearing hub / Plastic axle support |
| Color |
Black / White |
| Kit Includes |
2 drum rollers, 4 tri-ring retaining clips, 2 retaining washers |
| Often Replaced With |
341241 Drum Belt, 691366 or 279640 Idler Pulley |
| Compatible Brands |
Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Roper, Crosley, Estate, Inglis, Admiral, Magic Chef |
Installation Notes
⚠️ Unplug Dryer Before Starting Disconnect power (and shut off gas for gas dryers) before beginning. Remove the lint screen and unscrew the screws inside the lint screen housing. Use a putty knife to release the top panel spring clips and lift the top panel. Remove the front panel to access the drum. Release the drive belt from the idler pulley, lift the drum forward, and set it aside. The rear drum support rollers are mounted on shafts on the rear bulkhead — each roller is secured with a tri-ring clip and a retaining washer. Use needle-nose pliers to remove the old tri-ring clips, then slide the old rollers off the shafts. Install the new rollers, new retaining washers, and new tri-ring clips on the shafts. Reinstall the drum, re-route the belt around the motor and idler pulley, and reassemble the front and top panels. Restore power and run a test cycle to verify quiet, smooth drum operation. Tip: while the dryer is open, inspect and replace the drum belt (341241) and idler pulley (691366 or 279640) if worn. Tools needed: Phillips screwdriver, 1/4" or 5/16" nut driver, putty knife, needle-nose pliers.
Frequently Asked Questions
What do the drum support rollers do?
The rear drum support rollers are cylindrical wheels mounted on fixed shafts at the back of the dryer cabinet. As the drum rotates, its rear outer rim rests on these rollers, which carry the drum's weight and allow it to spin smoothly and quietly. When the rubber wheels wear down or the bearing hubs corrode, the drum no longer rides smoothly on the rollers — causing thumping, rumbling, or squealing noises that get progressively worse. In severe cases, worn rollers allow the drum to sag and drag against the cabinet rear panel.
Why must I replace both rollers at the same time?
Both rear drum support rollers carry the same load and experience the same wear through every drying cycle. When one roller fails, the other has been under the same stress for the same number of cycles and is almost certainly near the end of its useful life. Replacing only the failed roller leaves one worn roller supporting the drum unevenly, which puts extra stress on the new roller and causes it to wear out much faster. Replace both rollers at the same time to ensure even drum support and get the full service life from the new parts.
Should I also replace the belt and idler pulley at the same time?
Yes — this is the ideal time. Since the dryer must be fully disassembled to access the rear drum rollers, replacing the drum belt (341241) and idler pulley (691366 or 279640) at the same time is strongly recommended. All three parts wear at similar rates, and a worn belt or idler pulley is often what caused the rollers to wear prematurely. Doing all three in one repair eliminates the most common drum drive failure points and saves you from repeating the teardown in the near future. The 4392065 maintenance kit includes all three parts together.
What causes dryer drum rollers to wear out?
Drum rollers wear naturally over time from the continuous load of supporting the rotating drum. The most common accelerating factors are operating the dryer with a worn or broken belt (which allows the drum to sag and puts extra weight on the rollers), running very large or heavy loads frequently, and allowing lint to accumulate around the roller shafts, which causes the bearings to run dry and wear faster. Regular dryer maintenance — including cleaning lint from around the drum and periodically checking the belt — helps extend roller life.
Is this an OEM or aftermarket part?
It is a genuine Whirlpool OEM part.
