(4 Pack) XPARTCO 330031 Surface Burner Receptacle Kit

Description

(4 Pack) XPARTCO 330031 Surface Burner Receptacle Kit

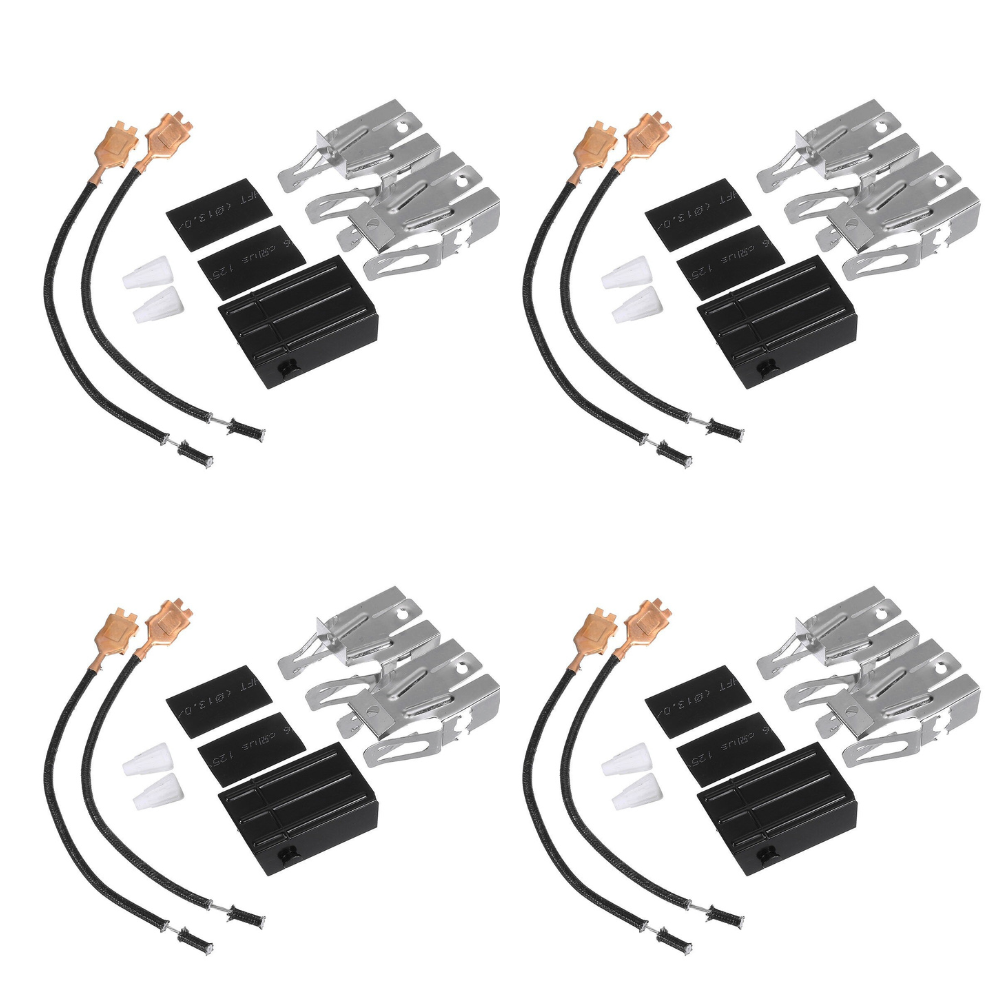

The XPARTCO 330031 is a pack of 4 aftermarket replacement surface burner receptacle kits, also called surface element receptacles or terminal block kits, for Whirlpool-built electric ranges and cooktops. Each receptacle is the plug-in block that connects the range's wire harness to the surface element. When it burns, loosens, or corrodes, the element can heat poorly, heat intermittently, or stop heating entirely, even though the element itself is good.

These kits are direct-fit aftermarket replacements for the Whirlpool 330031 and the many older numbers that it replaces. A 4-pack covers every burner on a standard four-burner range. If a burner has stopped working, test the element in another burner socket first. If the element works there, the receptacle is the likely cause.

Quick Answer

The (4 Pack) XPARTCO 330031 Receptacle Kit fixes an electric range or cooktop whose surface element won't heat, heats intermittently, or has a burned or damaged socket. Classic symptom: a known-good element works in another burner socket but not in this one.

Common Problems This Part Fixes

  • Surface element will not heat
  • Element heats intermittently
  • Burned, melted, or corroded receptacle block
  • Loose element that doesn't seat firmly in the socket

Cross Reference Information

Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.

Replaces Part Numbers

These receptacle kits directly replace the following part numbers:

330031, 330031A, 12001673, 0089336, B5015402, C2711501, C2716501, M5D117, M5D71, R0157519, R0157526, R0157932, R0167091, R0167117, W10116799, W10116803, WB17X210, RR110

These are the main numbers that appear across retailer cross-reference lists. Retailers list many more older numbers for this kit. Confirm against your range's parts diagram, or contact our support team, if your range calls out a different number.

Compatibility

These receptacle kits are listed for electric Whirlpool, Amana, Roper, and Kenmore ranges and cooktops, including these Kenmore examples:

  • Kenmore 101936630, 101936634, 101938630, 101938635
  • Kenmore 119647811, 119648811, 119900871, 119901871

Note: The models above are a small sample of a longer list, not a full list. Receptacle styles differ between ranges, and some buyers report terminals that differ from their original. Compare the kit to your old receptacle, and contact our support team with your model number to verify fit before ordering.

Key Features

  • Pack of 4 direct-fit aftermarket receptacle kits for the 330031 surface element receptacle
  • Connects the range's wire harness to the surface element

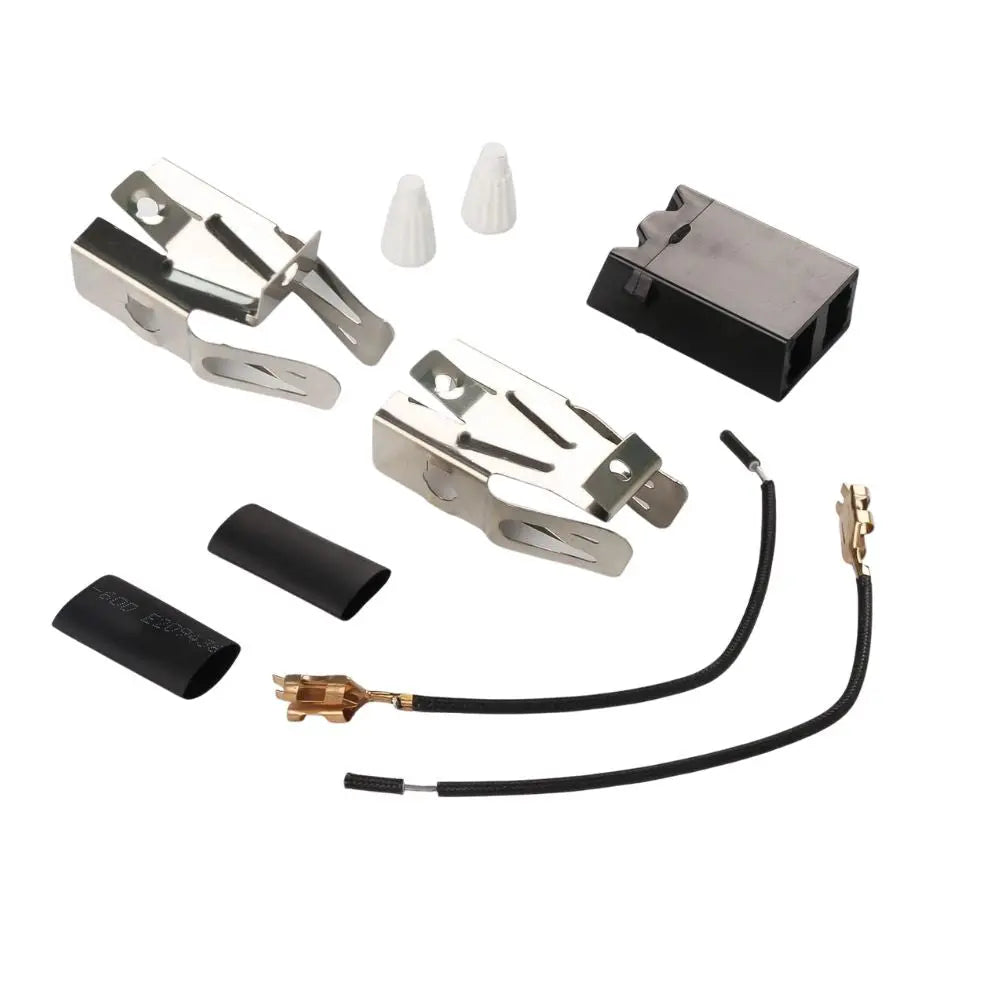

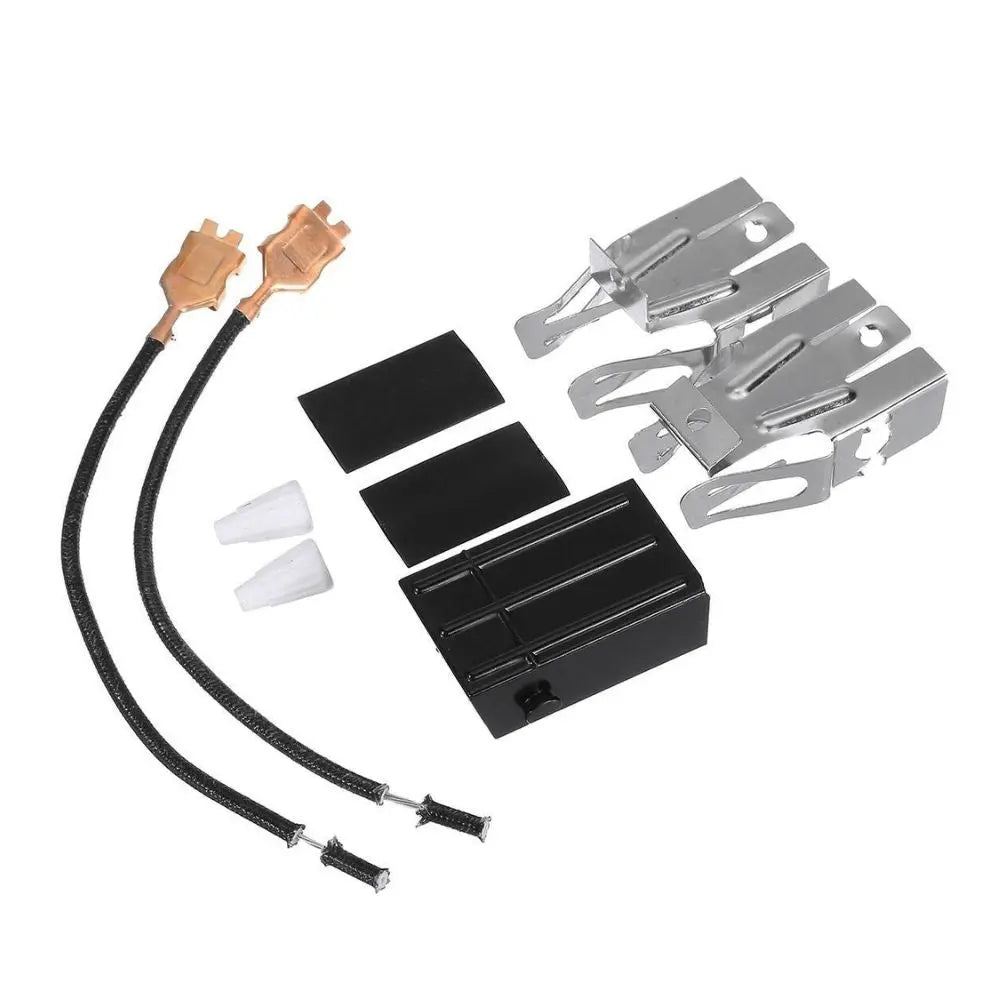

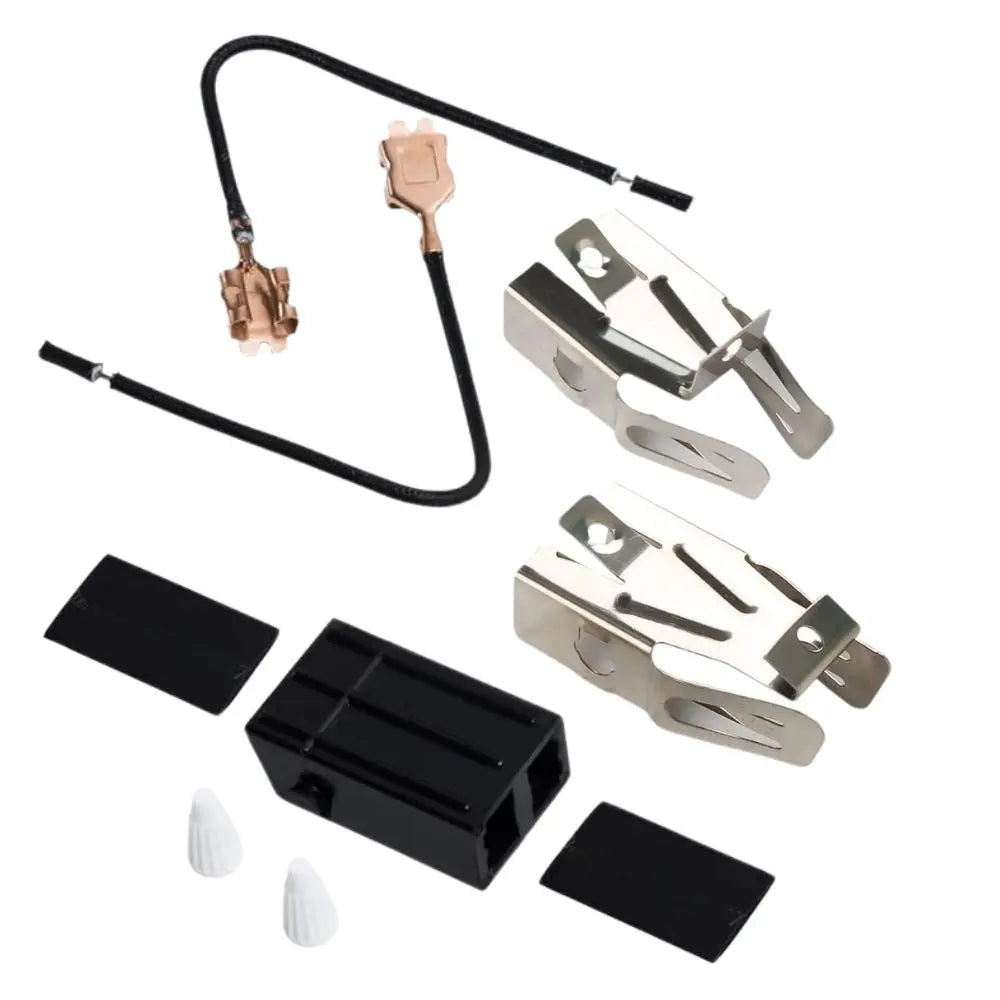

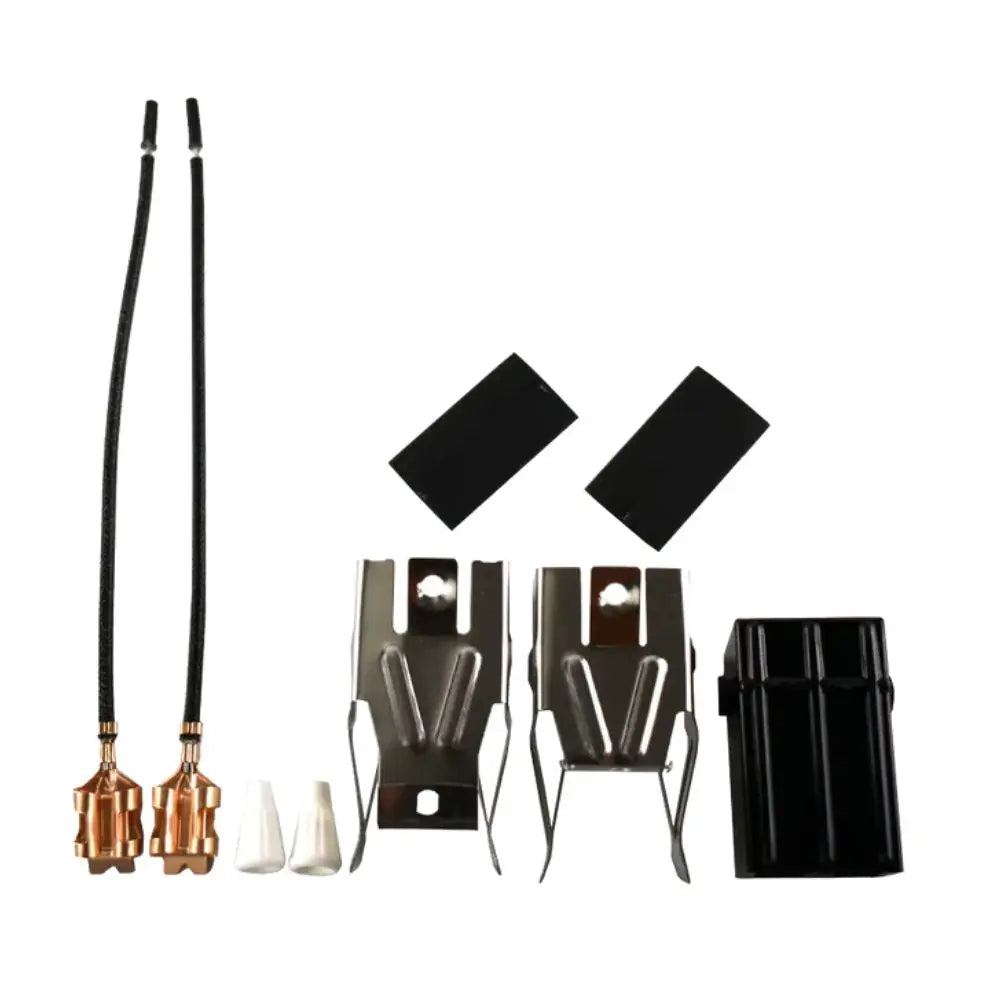

  • Each kit includes the receptacle block, mounting brackets, high-temperature wire leads, and heat-shrink insulation
  • Resolves no-heat and intermittent-heat problems caused by a burned receptacle
  • Typically a 15 to 30 minute repair per burner

Product Specifications

Part Number XP330031
OEM Part Number 330031
Part Type Surface Burner (Element) Receptacle Kit
Condition Aftermarket Replacement
Quantity 4 Kits
Application Electric Ranges & Cooktops

Installation Notes

⚠️ Unplug Power Before Installing Unplug the range or switch off its circuit breaker before beginning, and wear work gloves. Remove the surface element and drip pan, lift the range top, and note which wire goes to which terminal before disconnecting them. Unscrew the old receptacle, fit the new one with the bracket that matches your receptacle, and attach the wires to the same terminals. Insulate the connections with the heat-shrink supplied, then reassemble and test.

Frequently Asked Questions

One burner won't heat. Is this the part I need?

Try the element in another burner socket first. If it heats there, the receptacle or its wiring is the likely cause, and this kit is the repair. If it doesn't heat in the other socket, the element is the problem.

The kit comes with two brackets. Which one do I use?

Use only the bracket that matches your receptacle, as shown in the parts diagram or on your old receptacle.

Is this a plug-in part for any electric range?

No. It is listed for Whirlpool, Amana, Roper, and Kenmore ranges and cooktops, and receptacle styles differ between models. We have not confirmed fit for GE, Hotpoint, or other brands. Compare it to your old receptacle, or contact our support team with your model number.

How many kits come in this order?

Each order includes 4 receptacle kits.

Will this fit my range?

It is listed for many Whirlpool-built ranges and cooktops, but the model list above is only a sample. Check your model number against your parts diagram, or contact our support team and we'll verify it before you order.

Shop With Confidence

A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.

✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
Product form

(4 Pack) XPARTCO 330031 Surface Burner Receptacle Kit

Free Pickup in In Stock Parts-O-Matic - WB Store 1820 Featherstone Road Woodbridge, VA 22191 Usually ready in 1 hour
Online Shipped Price $29.50 List Price $20.00You Save: $9.50Delivered to your address
Store Walk-In
Discounted Price $16.25Walk-In Savings: $3.75In-store purchase only — not valid for online checkout
✓ IN STOCK
Ships Today if ordered within --:--:--
Free Pickup in our Store • Usually ready in 1 hour
Pickup Store: Parts-O-Matic — Woodbridge, VA
  • Shipped today? Order within: Oct 17, 2026 14:00:00 -0400
