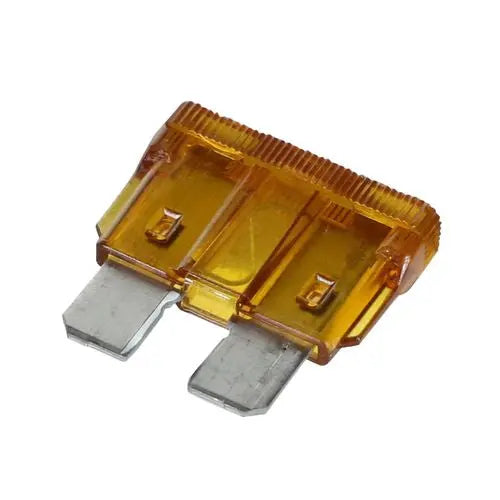

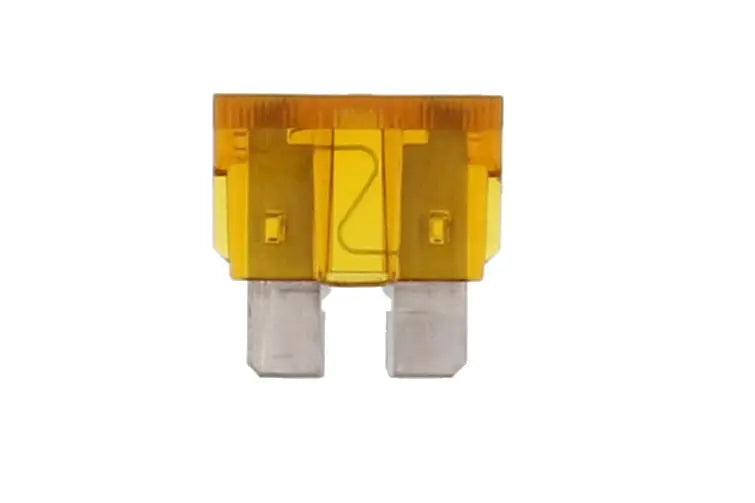

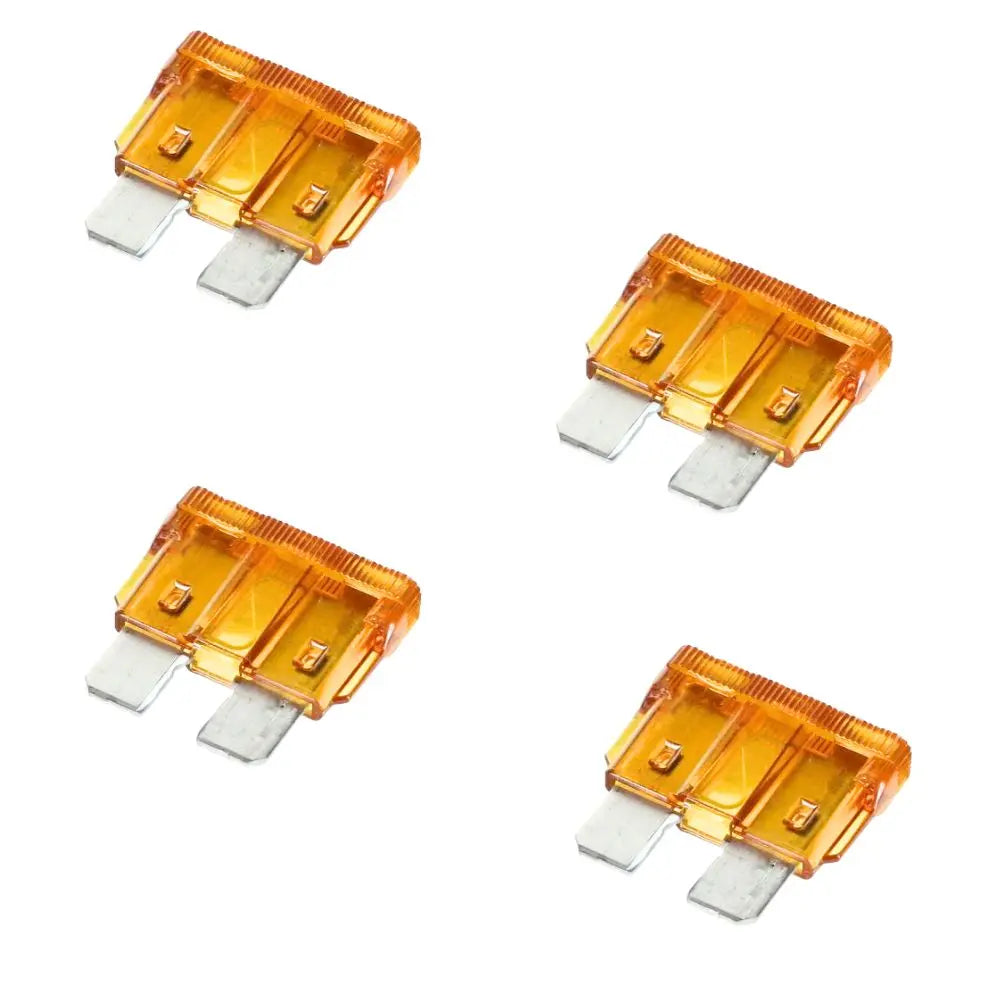

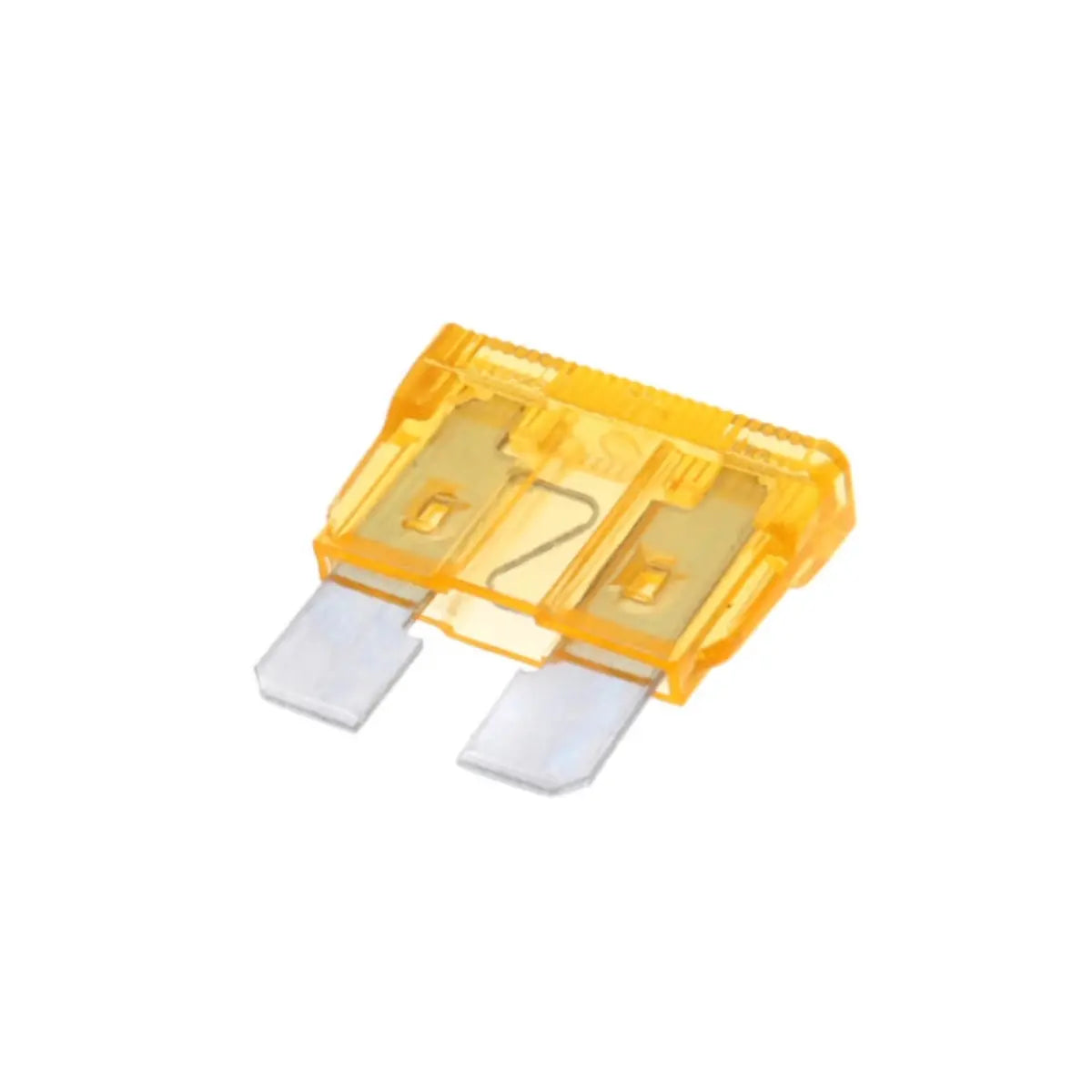

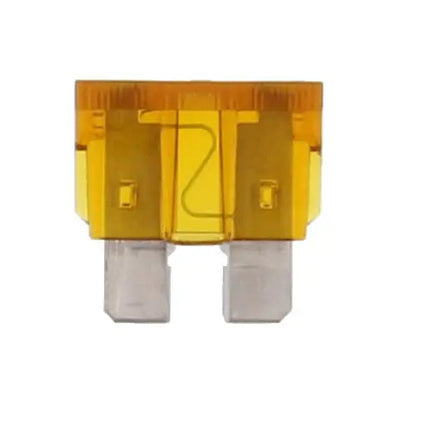

(4 Pack) XPATC5 Furnace & Air Conditioner Control Circuit Board 5 Amp Fuse – Universal HVAC Replacement
Product Description
Protect your HVAC system’s control board with the XPATC5 Furnace & Air Conditioner Control Circuit Board 5 Amp Fuse (4 Pack). These high-quality aftermarket blade fuses are designed to safeguard furnace and air conditioner control boards from electrical overloads and short circuits. A blown 5-amp fuse can cause the HVAC system to stop working entirely. Replacing it with reliable XPATC5 fuses helps restore operation while protecting sensitive electronic components.
XPATC5 fuses are commonly used in residential HVAC systems and are ideal to keep on hand for quick repairs.
Replaces Part Numbers
ATC-5, ATO-5, 5 Amp HVAC Control Fuse, Furnace Control Board Fuse, Air Conditioner 5A Fuse
Compatibility
This 5 amp HVAC control board fuse is compatible with many furnace and air conditioner systems from manufacturers including Carrier, Trane, Lennox, Goodman, Rheem, York, and others that use standard ATC/ATO 5-amp blade fuses.
Always verify fuse amperage and type before ordering.
Contact our support team if you’re unsure.
✅ Key Features
-
🔄 Aftermarket Replacement – Built to OEM-equivalent electrical specifications
-
⚡ 5 Amp Rating – Protects HVAC control boards from overloads
-
🧯 Critical Safety Component – Helps prevent damage to circuit boards
-
📦 Convenient 4-Pack – Keep spares on hand for future service
-
💰 Cost-Effective Solution – Affordable alternative to OEM HVAC fuses
📐 Product Specification
-
Part Number: XPATC5
-
Component Type: HVAC Control Board Fuse
-
Amperage Rating: 5 Amp
-
Voltage Rating: 32V
-
Fuse Style: ATC / ATO Blade Fuse
-
Quantity: 4-Pack
-
Application: Furnace & air conditioner control boards
-
Quality Level: Aftermarket replacement (not OEM)
🛠️ Installation Notes
Tools Needed: Needle-nose pliers or fuse puller
⚠️ Safety First: Always turn off power to the HVAC system before replacing fuses to avoid electrical shock or equipment damage.
Basic Steps:
-
Shut off power to the furnace or air conditioner.
-
Open the control board access panel.
-
Locate the blown 5-amp fuse.
-
Remove and replace it with a new XPATC5 fuse.
-
Restore power and test system operation.
⏱️ Time Required: 5 minutes
