XPARTCO 4392065 Dryer Maintenance Kit Replaces 349241T, 341241, WP691366
The XPARTCO 4392065 is an aftermarket dryer maintenance and repair kit containing the three most commonly replaced drum drive components for Whirlpool-family 29-inch dryers including Whirlpool, Kenmore, Maytag, Amana, KitchenAid, Roper, Admiral, Estate, Crosley, Inglis, and Magic Chef. The kit includes the drum belt (341241), idler pulley (691366), and rear drum support roller kit (349241T) — the three parts that work together to drive and support the dryer drum, and that most frequently cause squealing, thumping, no heat, and drum-not-spinning issues when worn.

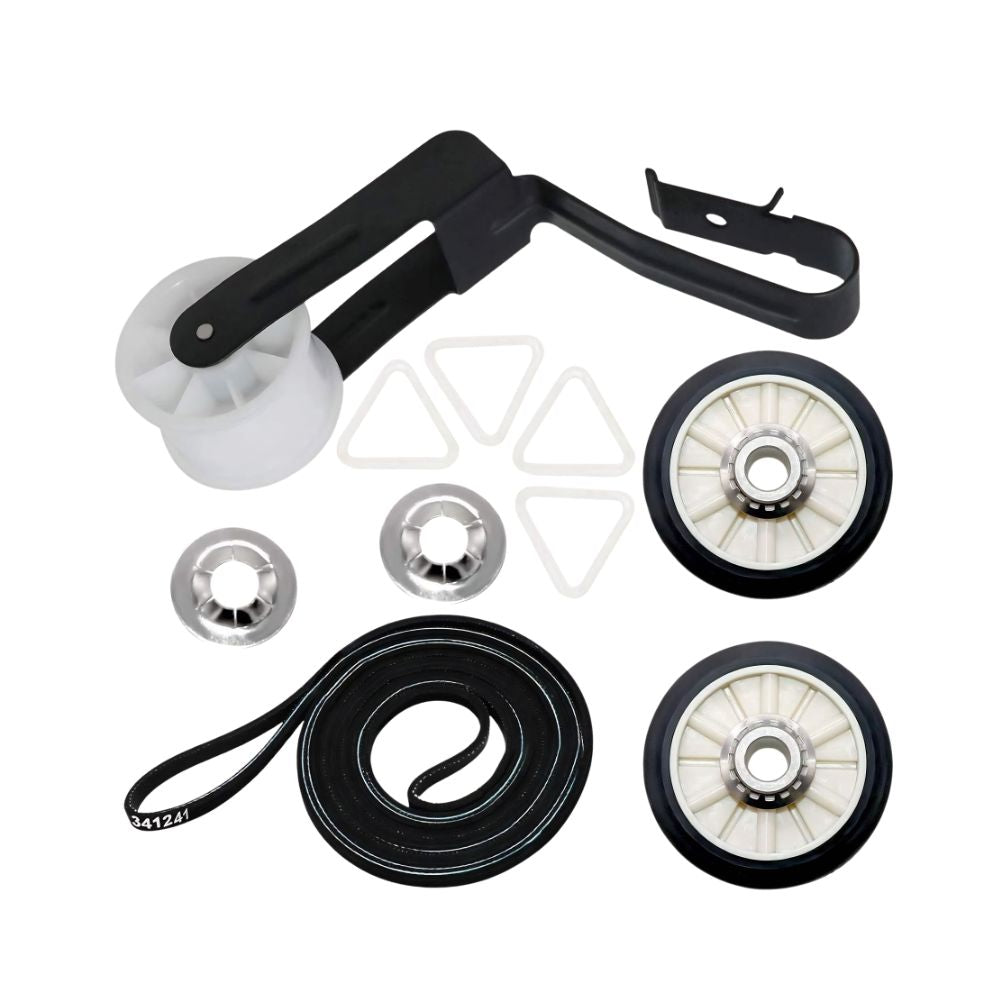

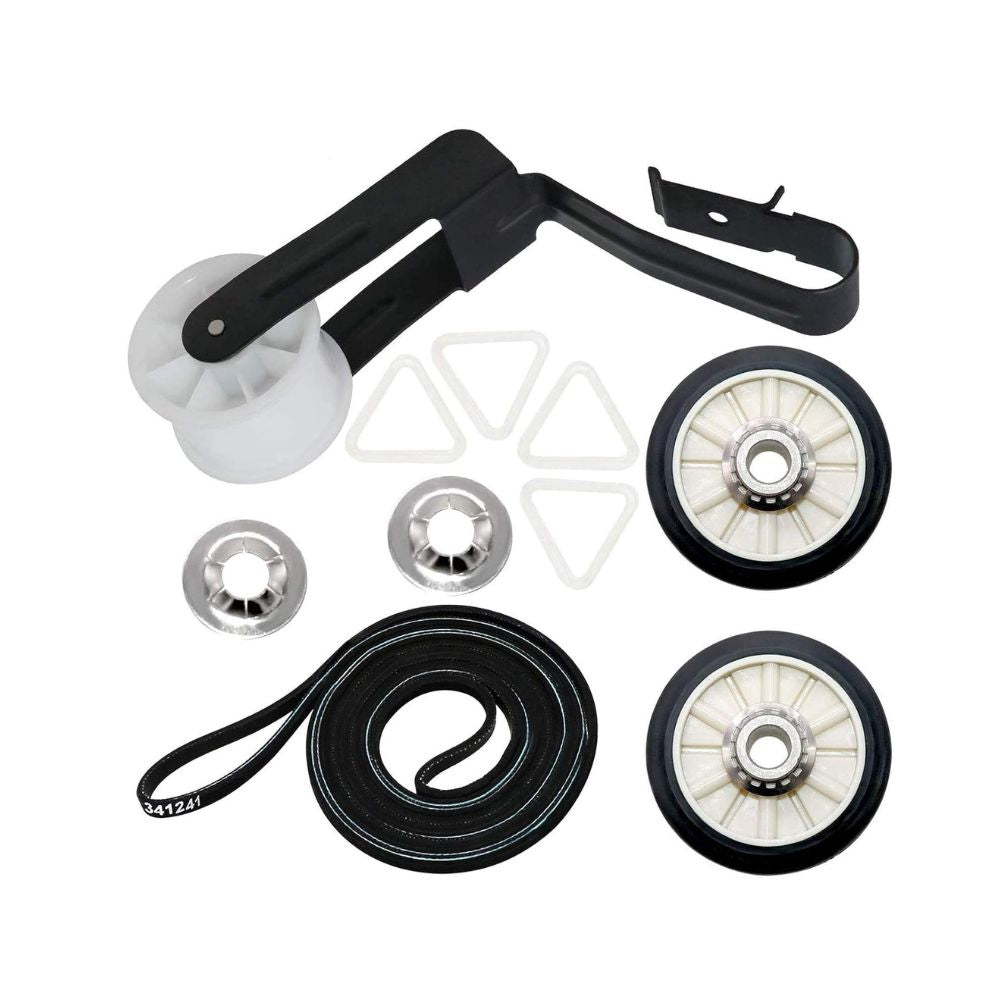

Replacing all three parts together in a single repair is the recommended approach — since these components wear at similar rates and the dryer must be fully disassembled to access any one of them, doing all three at once saves significant time and cost compared to replacing them individually. The kit contains everything needed: 1 drum belt, 1 idler pulley, 2 drum support rollers, 4 tri-rings, and 2 retaining washers. Installs in 45–60 minutes with basic hand tools.
Replaces Part Numbers
Kit (4392065) cross-references:
4392065, 2014, 26000279435, 26000279436, 279435, 279436, 279708, 279708MS, 279709, 279709MS, 279860, 279948, 4392065VP, 587636, 80046, 8106, 8237, 8238, AWP39348, PD00002464, AH373087, EA373087, AP3131942, PS373087.
341241 Belt cross-references:
341241, 14210003, 2008, 26000341241, 26000349533, 31001026, 31531589, 3389628, 3392665, 3394651, 3399844, 341241VP, 345473, 349533, 529597, 53-0186, 53-1080, 53-1086, 53-1528, 53-1589, 53-2671, 53-2910, 660996, 660997, 661561, 693306, 694088, 694416, 694868, 695055, 697388, 8066065, 8206, 8210, 920H4, 920H5, 99906951, 99989673, 99989674, FSP341241, LB276, LB279, P46-037, P46-149, W10127457, W10131364, AH346995, AP32, EA346995, ER341241, AP2946843, PS346995, TJ341241.
691366 Idler Pulley cross-references:
WP691366, 691366, 239477, 26000691366, 3346, 337116, 337407, 337510, 3388345, 338946, 3394332, 347034, 347226, 347277, 4319391, 688166, 691366BULK, 8207, 99989677, DE412, K35-163, W10612905, AP6010582, PS11743765.
349241T Drum Roller cross-references:
349241T, 26000349241, 337089, 3389901, 3397588, 3397590, 340352, 3436, 349241, 349241TVP, 661562, 8170, 8205, 99989678, 99989679, AH347627, EA347627, K34-895, AP3098345, PS347627.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Frequently Asked Questions
Why should I replace all three parts at the same time?
The drum belt, idler pulley, and drum support rollers all work together as a system and wear at similar rates under the same conditions. Since the dryer must be fully disassembled to access any one of these parts, replacing all three in a single repair is far more cost-effective than replacing them one at a time — which would require three separate teardowns. This is the same reason the 4392065 maintenance kit was designed: one repair, all three parts, done.
What does each part in this kit do?
The 341241 drum belt wraps around the outside of the drum and connects to the idler pulley and motor pulley — the motor drives the belt, which spins the drum. The 691366 idler pulley maintains tension on the belt so it grips the drum and motor pulley properly. The 349241T drum rollers are support wheels mounted on the rear of the dryer that cradle and support the back edge of the drum as it rotates. All three are essential to smooth, quiet drum operation.
How is this kit different from the 4392067 repair kit?
The 4392065 and 4392067 kits are designed for different Whirlpool-family dryer generations. The 4392065 uses the 341241 belt (92-1/4" x 1/4", 4 ribs) and the 691366 idler pulley, and is for older 29-inch Whirlpool-family dryers. The 4392067 uses the 661570V belt (93-1/2" x 1/4", 4 ribs) and the W10837240 idler arm assembly, and is for newer Whirlpool-family dryers (those with the lint screen inside the door). Use your model number to confirm which kit fits your specific dryer before ordering.
Do I need to lubricate the drum rollers after installing?
No — the 349241T drum rollers include self-lubricating bearings and do not require any additional grease or oil after installation. Applying grease to self-lubricating rollers is not recommended and can actually attract lint and debris, causing the rollers to wear faster.
Is this an OEM or aftermarket kit?
This is an aftermarket replacement kit built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM kit, but all three included components are manufactured from premium neoprene rubber, durable plastic, and metal to match the dimensions and performance of the original 4392065 kit parts.
