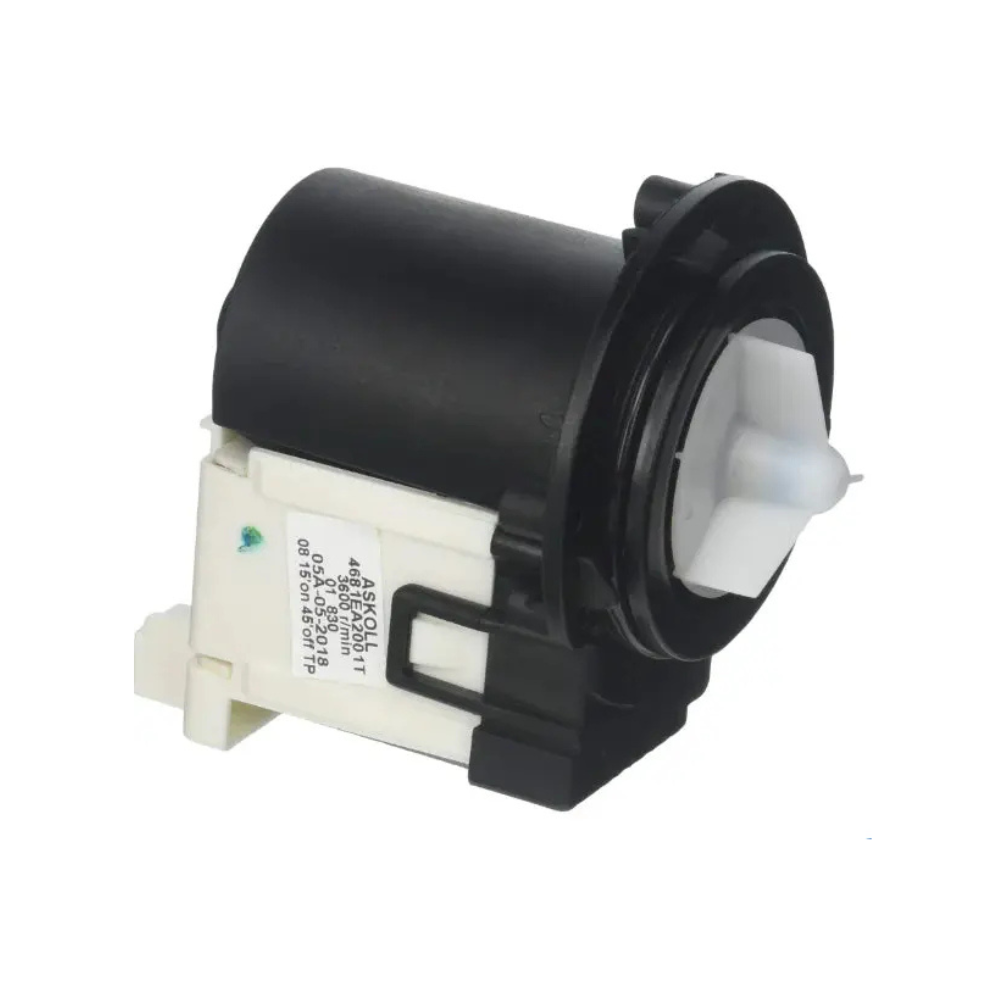

4681EA2001T (OE) Washer Drain Pump Motor
The 4681EA2001T is an OE (Original Equipment) drain pump motor for LG and select Kenmore Elite front-load and top-load washers. At the end of each wash and rinse cycle, this pump is what forces water out of the tub and through the drain hose, clearing the way for the next fill and letting clothes come out free of excess water so the drying process can move faster. An internal impeller does the actual pumping work as the motor spins it.
Rated 120–127V, 60Hz, 85W, 1.4A, with a flow rate of approximately 45L/min. This part is the motor and pump assembly only — it's designed to reuse your original pump housing rather than replace it, and it includes the pump impeller as part of the assembly. The design was updated in April 2025 to use a gray pump motor housing in place of the earlier black housing; either version installs and functions the same way. A failing drain pump typically shows up as the washer not draining, unusual or excessive noise during the drain portion of the cycle, an error code indicating a drain pump fault, or water leaking from the pump area and potentially damaging the surrounding floor. It directly replaces 1468049, 2003273, 4681EA1007D, 4681EA1007G, 4681EA2001D, 4681EA2001N, 4681EA2001U, AP4437652, AP5328388, DP040-038, EAP3523278, EAP3579318, LP2001T, and 5214FR4006L.
Quick Answer
The 4681EA2001T (OE) Washer Drain Pump Motor fixes LG and select Kenmore Elite front-load and top-load washers that won't drain, make unusual or loud noise during the drain cycle, show a drain-related error code, or leak water near the pump. 120–127V, 60Hz, 85W, 1.4A, 45L/min. Reuses your original pump housing; includes the impeller. Replaces 1468049, 2003273, 4681EA1007D, 4681EA1007G, 4681EA2001D, 4681EA2001N, 4681EA2001U, AP4437652, AP5328388, DP040-038, EAP3523278, EAP3579318, LP2001T, 5214FR4006L. Before replacing, clear any clogs in the drain path and check the pump filter and coin trap — these are common causes of "won't drain" symptoms that don't require a new motor.
Common Problems This Part Fixes
- Washer not draining at the end of the cycle
- Unusual or excessive noise during the drain portion of the cycle
- Drain-related error code (such as OE) displayed on the control panel
- Water leaking from around the pump, potentially damaging the surrounding floor
- Washer failing or stalling mid-cycle due to a drain fault
- Longer-than-normal drain times
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer drain pump motor directly replaces the following OEM and cross-reference part numbers:
4681EA2001T, 4681EA1007G, 2003273, 4681EA1007D, 4681EA2001D, 4681EA2001N, 4681EA2001U, DP040-038, ALG51292, AH3579318, EA3579318, PD00001722, EAP3579318, AP5328388, PS3579318.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drain pump motor is compatible with select LG front-load and top-load washers, and also fits select Kenmore Elite washers built on the LG platform, including model numbers such as:
- WM2101HW, WM2250CW, WM2277HB, WM2350HRC, WM2350HWC, WM2450HRA, WM2455HG, WM2487HRMA
- WM2550HRCA, WM2550HWCA, WM2650HRA, WM2650HWA, WM2655HVA
- WM3001HWA, WM3070HRA, WM3070HWA, WM3150HVC, WM3150HWC, WM3270CW
- WM3360HRCA, WM3360HVCA, WM3360HWCA, WM3431HS, WM3470HVA, WM3470HWA
- WM3550HVCA, WM3550HWCA, WM3770HVA, WM3885HCCA, WM3885HWCA, WM3987HW
- WM4070HVA, WM8000HVA, WM8000HWA
- GCW1069CS, GCW1069QS, LSWF388HVS, CW2079CWD, CW2079CWN, F1201FD, F1201FD1, F1201FDP, F1201FDP1, F1216
- Kenmore Elite 79641072310
Note: This part reuses your original pump housing — it is not a complete pump-and-housing assembly. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
- OE (Original Equipment) part — same design and performance standards as the original factory part
- Pump motor and impeller assembly — designed to reuse your original pump housing
- Resolves "won't drain," "unusual noise during drain," "drain error code," and "leaking near the pump" symptoms
- Rated 120–127V, 60Hz, 85W, 1.4A, approximately 45L/min flow rate
- Updated design (April 2025) uses a gray motor housing in place of the earlier black housing — both function identically
- Direct drop-in replacement for the original motor and impeller
- Replaces 1468049, 2003273, 4681EA1007D, 4681EA1007G, 4681EA2001D, 4681EA2001N, 4681EA2001U, AP4437652, AP5328388, DP040-038, EAP3523278, EAP3579318, LP2001T, and 5214FR4006L
- Compatible with LG and select Kenmore Elite front-load and top-load washers
Product Specifications
| Part Number |
4681EA2001T |
| Designation |
OE (Original Equipment) |
| Part Type |
Washer Drain Pump Motor |
| Brand |
LG |
| Application |
Front-Load and Top-Load Washers |
| Voltage |
120–127V |
| Frequency |
60 Hz |
| Wattage |
85 W |
| Amperage |
1.4 A |
| Flow Rate |
Approx. 45 L/min |
| Housing |
Reuses original pump housing; motor housing color varies by production date (black or gray) |
| Included Components |
Motor, pump impeller |
| Repair Difficulty |
Medium — 30 to 60 minutes |
| Quantity |
1 drain pump motor |
| Compatible Brands |
LG, Kenmore Elite |
Installation Notes
⚠️ Unplug Washer And Shut Off Water Before Starting — Check For A Simple Clog First Before replacing the motor, clear any clogs in the drain path and check the pump filter and coin trap (if your model has one) — these are common, simple causes of "won't drain" symptoms that don't require a new motor. Once you've confirmed the motor needs replacing, disconnect power at the outlet and shut off the water supply. Lay towels or rags down in front of the washer. Wear work gloves. On front-load models, remove the detergent drawer, then remove the retaining wire and spring around the door gasket using a spring expansion tool or vise grips, and pull the gasket out of its groove at the front of the washer to access the pump area. Photograph the wiring and hose connections before disconnecting anything. Disconnect the wire connector from the old motor, remove the mounting screws or clips securing it to the pump housing, and separate the motor from the housing — this part is designed to reuse your original housing, so keep it intact for the new motor. Attach the new 4681EA2001T motor and impeller to your original housing, reconnect the wire connector, and secure the mounting hardware. Reinstall the door gasket into its groove, then reinstall the retaining wire and spring, and reattach the detergent drawer. Restore the water supply and power, then run a test cycle to confirm the washer drains normally with no leaks or unusual noise. Tools needed: Phillips screwdriver, locking pliers, needle-nose pliers, small flathead screwdriver, spring expansion tool (front-load models), towels, work gloves.
Frequently Asked Questions
Does this include a new pump housing, or just the motor?
Just the motor and impeller — this part is designed to reuse your original pump housing rather than replace it. When you remove the old motor, keep the housing intact and attach the new motor to it. If your housing itself is cracked or damaged, that's a separate part.
My washer isn't draining. Do I need to replace the motor, or could it be something simpler?
Check for a simpler cause first. Clear any clogs in the drain path, and inspect the pump filter and coin trap if your model has one — foreign objects and debris commonly cause a washer to stop draining without the motor itself having failed. If the drain path and filter are clear and the washer still won't drain, or the motor makes unusual noise or won't run, replacement is the correct next step.
The new pump I received has a gray housing but my old one was black. Is that correct?
Yes. LG updated the design in April 2025 to use a gray motor housing in place of the earlier black housing. Both versions install the same way and function identically — the color change doesn't affect fit or performance.
Is this a genuine OEM part?
This is an OE (Original Equipment) part. OE (Original Equipment) parts are produced to the same design and performance standards as the original factory part, but they are not sold under the appliance brand's OEM label. They provide the same fit and function as the OEM part at a more affordable price.
