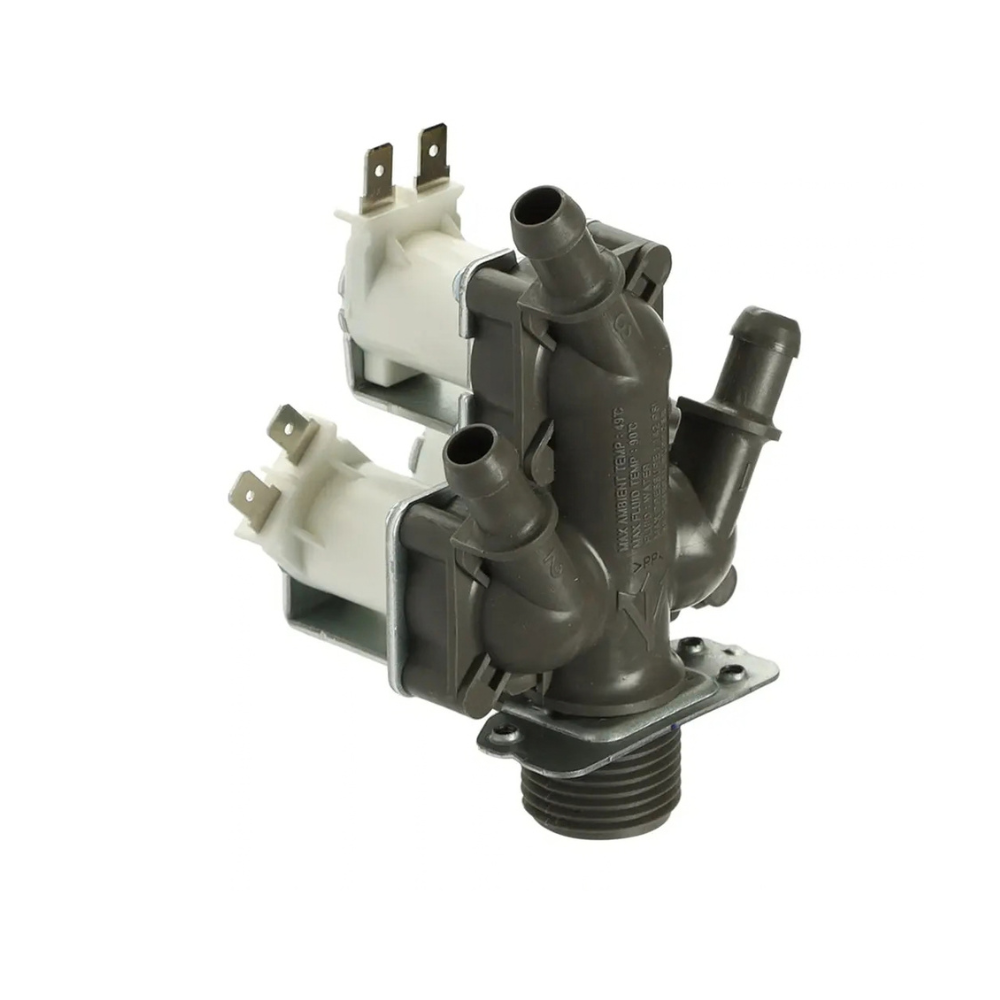

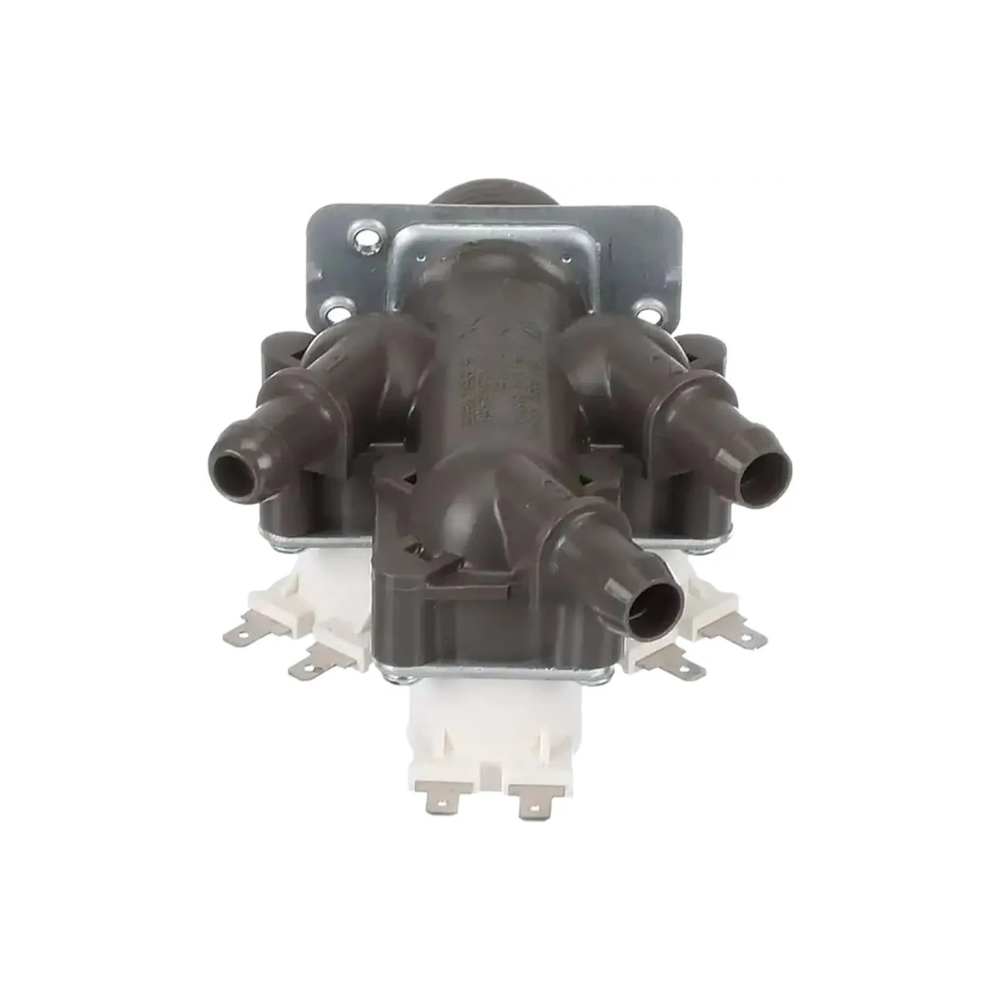

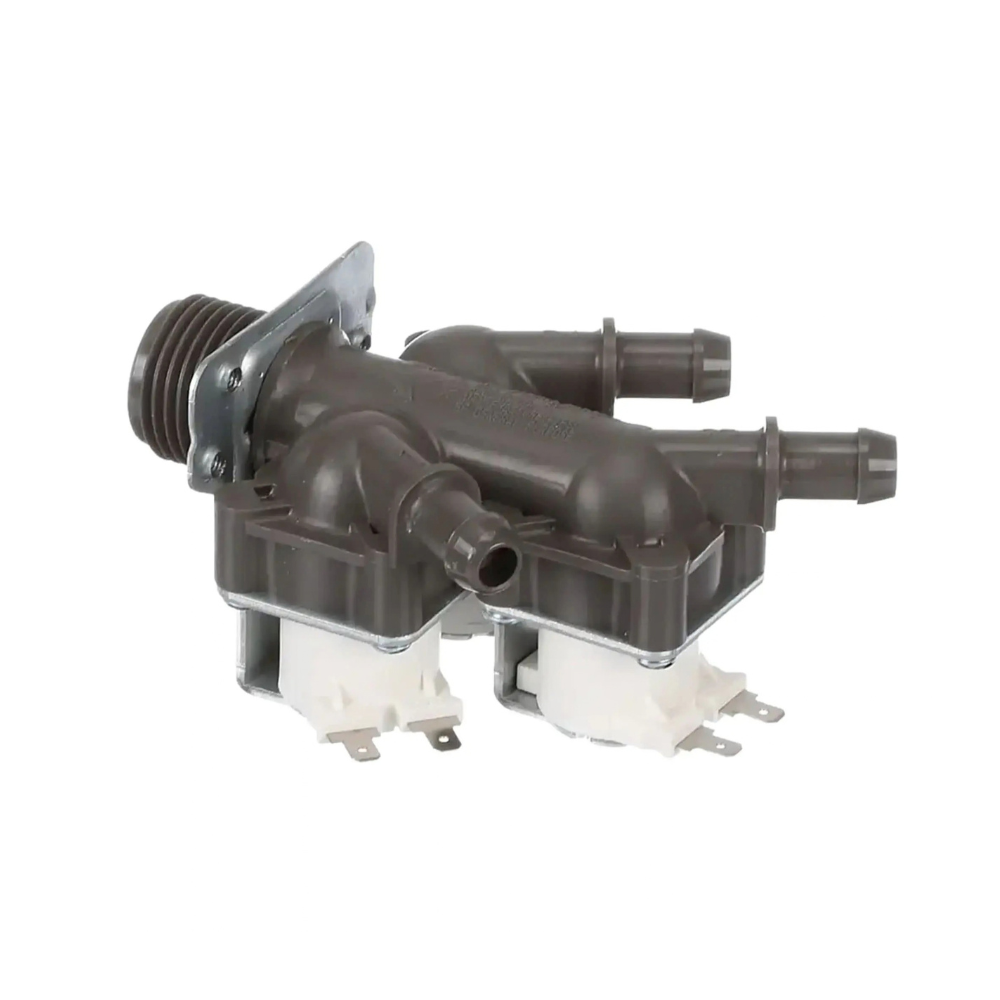

Genuine OEM 5220FR2075V Washer Water Valve
The Genuine OEM LG 5220FR2075V is the water inlet valve assembly for select LG and Kenmore front-load washers. The valve connects your home's water supply to the washer and opens and closes under control of the washer's control board, letting water into the tub and the detergent dispenser during each cycle. When it fails, the washer may fill slowly, fill with the wrong water, fill continuously, or not fill at all.
This is the original LG part. LG lists 5221ER1003M as an alternate number for this valve. Because LG makes several look-alike inlet valves that differ in coil count and connections, check your model number before ordering.
Quick Answer
The Genuine OEM 5220FR2075V Water Inlet Valve fixes an LG or Kenmore front-load washer that won't fill, fills slowly, fills with the wrong water temperature, or leaks or keeps filling at the valve. LG also lists it as 5221ER1003M. Classic symptom: the washer starts the cycle but stays empty or fills very slowly, and the water supply and hoses are fine.
Common Problems This Part Fixes
- Washer won't fill with water
- Slow filling, or a low water level
- Detergent or bleach dispenser doesn't flush
- Washer keeps filling or leaks at the valve
- Water too hot or too cold because one inlet isn't opening
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This water inlet valve directly replaces the following part numbers:
5220FR2075V, ALG312873, AP7003066, PD00074485, 5221ER1003M, 4869495, ALG51888, AP6334246, EAP12579227, PD00050119, PS12579227
LG's Canadian parts catalog lists 5221ER1003M as an alternate to 5220FR2075V. This is a single-source cross-reference, so confirm against your washer's parts diagram, or contact our support team, if your model calls out a different number. Similar-looking valves such as 5220FR2075L and 5221ER1003A are different parts and are not interchangeable with this one.
Compatibility
This valve is listed for LG and Kenmore front-load washers, including these examples:
- LG WM3400CW, WM3500CW, WM3600HVA, WM3600HWA
- LG WM3700HRA, WM3700HVA, WM3700HWA
- LG F3L2CYV5T.ASSEVUS, F3P1CYV5T.ASSEVUS
Note: The models above are a sample from retailer listings, not an official full list. LG makes several inlet valves that look alike but differ in coil count and connections, so a wrong match is easy to make. Enter your model number at checkout or contact our support team to verify fit before ordering.
Key Features
- Genuine OEM LG water inlet valve assembly
- Controls water flow from the supply into the tub and dispenser
- Also listed under LG alternate number 5221ER1003M
- Resolves no-fill, slow-fill, and continuous-fill problems
- Fits select LG and Kenmore front-load washers
Product Specifications
| Part Number |
5220FR2075V |
| OEM Part Number |
5220FR2075V |
| Part Type |
Washer Water Inlet Valve Assembly |
| Condition |
Genuine OEM |
| Application |
LG & Kenmore Front-Load Washers |
Installation Notes
⚠️ Unplug Power and Shut Off the Water Unplug the washer and turn off both water supply valves before beginning. Wear work gloves, and have a towel and shallow pan ready for water left in the hoses. Pull the washer out and remove the rear or top panel as shown in your model's service guide. Disconnect the supply hoses, the wire connectors, and the dispenser hoses from the old valve, noting where each goes. Install the new valve in the same position, reconnect everything, and check for leaks with the water on before pushing the washer back.
Frequently Asked Questions
My washer won't fill. Is this the part I need?
A failed inlet valve is a common cause, but first check that both water supply valves are open and that the inlet screens at the hose connections aren't clogged. If those are fine and the washer still won't fill, the valve is a likely cause.
Is 5220FR2075V the same as 5221ER1003M?
LG's Canadian catalog lists 5221ER1003M as an alternate to 5220FR2075V. This is a single-source cross-reference, so check your model's parts diagram or ask our support team to confirm.
Can I use 5220FR2075L or 5221ER1003A instead?
No. They are different valves, and LG sells several that look alike. Use the number your model calls out, or contact our support team to confirm before ordering.
Will this fit my washer?
It is listed for select LG and Kenmore front-load washers, but the model list above is only a sample. Check your model number against your parts diagram, or contact our support team and we'll verify it before you order.
