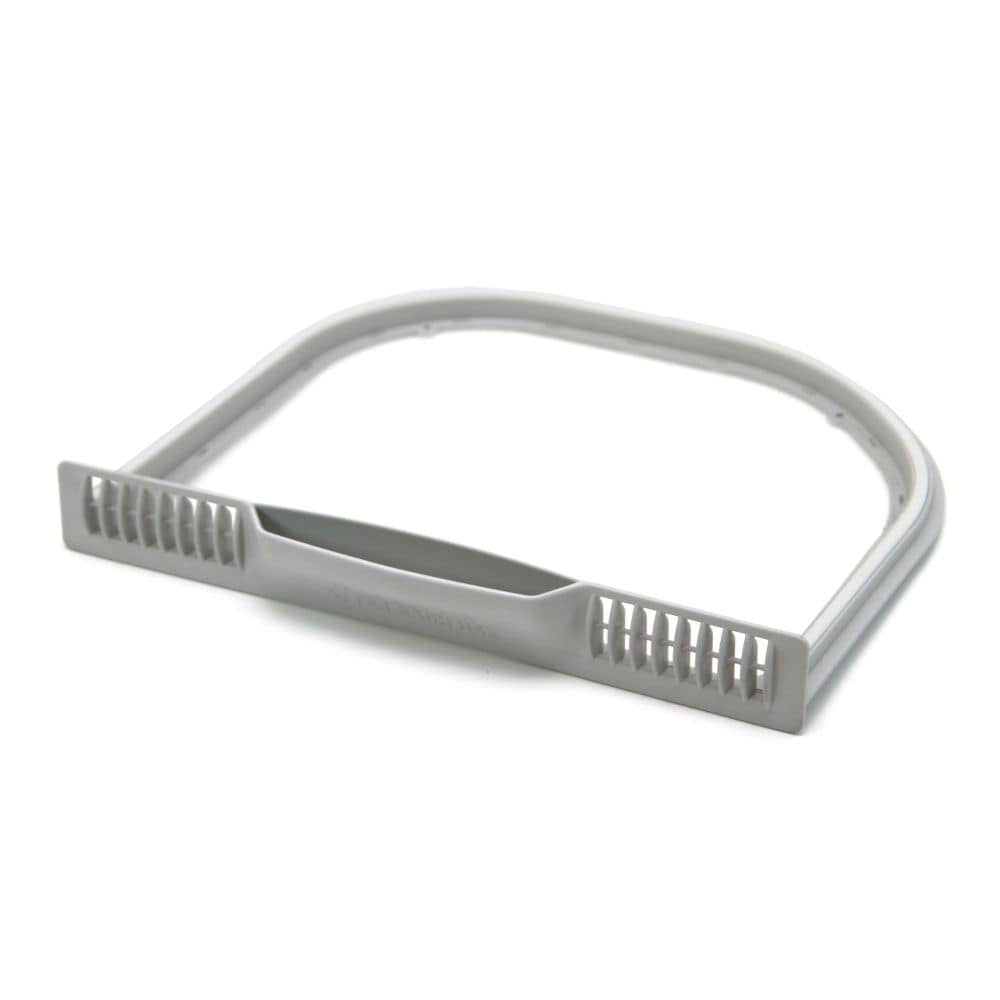

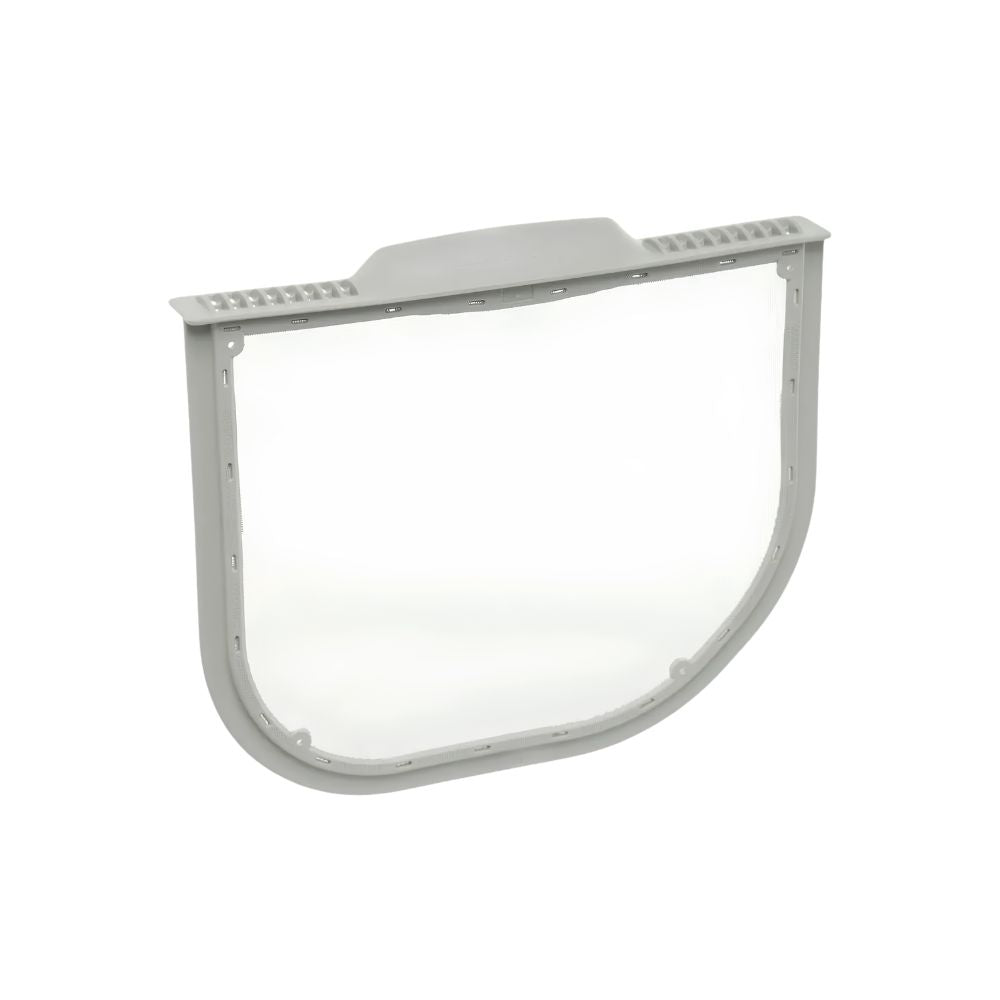

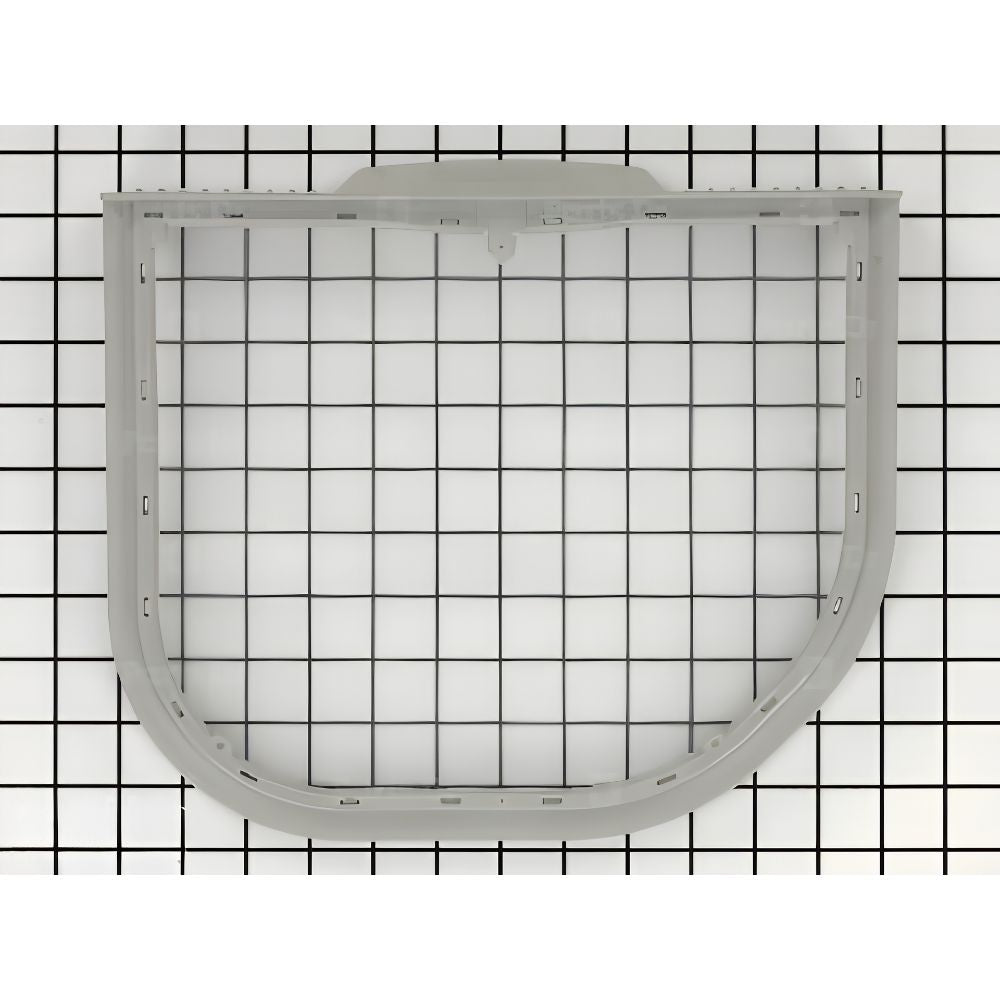

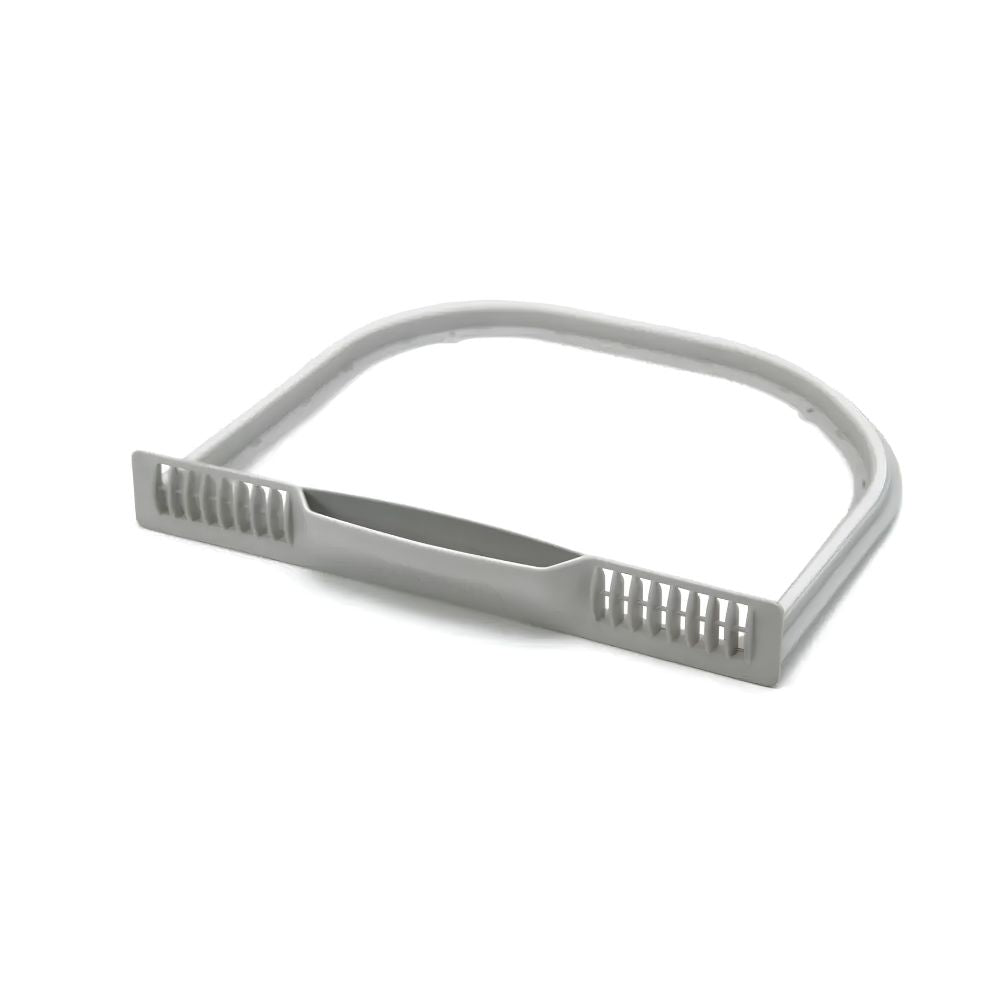

5231EL1001C Genuine OEM LG Dryer Lint Filter Screen
The 5231EL1001C is a genuine LG OEM lint filter screen for LG and select Kenmore dryers, including True Steam models. Positioned inside the dryer drum, this filter captures loose lint and debris from the exhaust air as clothes tumble and dry, which is essential both for maintaining strong airflow and drying efficiency and for reducing the fire risk that comes with lint buildup inside the dryer.
Constructed with a white plastic frame, a fine mesh screen, and a felt rim seal, this filter is sold individually. Over time, the screen can tear, crack, or become permanently clogged despite regular cleaning, and it can also be lost or damaged during cleaning attempts. A worn or damaged filter typically shows up as drying taking longer than it used to, clothes not drying properly, unusual smells during the cycle, or lint escaping past the screen into the vent system. It directly replaces 1668214, , AP5248138, ALG52094, AH3527575, EA3527575, OEM15744423, PD00001829, PS3527575
Quick Answer
The 5231EL1001C Genuine OEM LG Dryer Lint Filter Screen fixes LG and select Kenmore dryers where drying takes too long, clothes aren't drying properly, there's an unusual smell during the cycle, or the filter itself is cracked, torn, or missing. Replaces 1668214, , AP5248138, ALG52094, AH3527575, EA3527575, OEM15744423, PD00001829, PS3527575. Not replacing a torn or damaged lint filter can lead to dryer damage and increases fire risk from lint buildup — replace promptly if damaged.
Common Problems This Part Fixes
- Drying taking noticeably longer than it used to
- Clothes not drying properly at the end of a cycle
- Unusual smell during the drying cycle
- Cracked, torn, or damaged lint filter screen
- Missing lint filter
- Reduced airflow and drying efficiency
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dryer lint filter screen directly replaces the following OEM and cross-reference part numbers:
5231EL1001C, 1668214, , AP5248138, ALG52094, AH3527575, EA3527575, OEM15744423, PD00001829, PS3527575
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This lint filter is compatible with select LG dryers, and also fits select Kenmore dryers built on the LG platform, including model numbers such as:
- DLGX5102V, DLGX5102W, DLEX5101V, DLEX5101W
- RN1317AS, RV1317AS, RN1317TS, RV1317TS
- DLE4801W, DLE4870W, DLE4970W, DLEX5170W
- DLE1001W, DLE1101W, DLE1501W
- DLEX7800WE, DLE7100W, DLE7200WE, DLE7300VE, DLEY1201V
Note: This screen is a different part from our ADQ56656401 and ADQ56656403 LG lint screens, which fit a different LG dryer platform and are physically different sizes. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which lint filter your dryer needs.
Key Features
- Genuine LG OEM part — factory-specified frame and mesh design
- Captures loose lint and debris from exhaust air during drying
- Resolves "takes too long to dry," "clothes not drying properly," and "unusual smell" symptoms
- White plastic frame with fine mesh screen and felt rim seal
- Direct drop-in replacement — no tools required
- Sold individually
- Replaces 1668214, , AP5248138, ALG52094, AH3527575, EA3527575, OEM15744423, PD00001829, PS3527575
- Compatible with LG and select Kenmore dryers
- Genuine OEM replacement — guaranteed fit, materials, and performance
Product Specifications
| Part Number |
5231EL1001C |
| Part Type |
Dryer Lint Filter Screen |
| Condition |
Genuine OEM |
| Brand |
LG |
| Location |
Inside the dryer drum |
| Frame Material |
White plastic |
| Screen Material |
Fine mesh, with felt rim seal |
|
|
| Repair Difficulty |
Very Easy — no tools required |
| Quantity |
1 lint filter (sold individually) |
| Compatible Brands |
LG, Kenmore |
Installation Notes
⚠️ Disconnect Power Before Starting Disconnect all utilities from the dryer before beginning this repair. Locate the lint filter slot inside the dryer drum. Remove the old lint filter by pulling it up and out of its designated slot. Insert the new 5231EL1001C into the same slot, seating it fully so it sits flush and secure. No tools are required for this replacement. While the dryer is open, it's a good opportunity to vacuum out any accumulated lint from inside the filter housing using a vacuum hose extension, since buildup here can accumulate over the life of the dryer even with regular filter cleaning. Restore power and run a test cycle to confirm normal airflow and drying performance.
Frequently Asked Questions
My lint filter is cracked. Do I really need to replace it right away?
Yes, promptly. Not replacing a torn or damaged lint filter can allow lint to bypass the screen and build up further downstream in the dryer or venting system, which can lead to dryer damage and increases the risk of overheating or fire. This is a low-cost, simple part to replace, so it's not worth delaying once damage is noticed.
How often should I clean or replace this filter?
Clean the filter after every load for best performance. As a general guideline, replacing the filter every 6 to 12 months, or sooner if it becomes damaged, helps maintain proper airflow and reduces fire risk from lint buildup, even with regular cleaning between replacements.
Do I need any tools to replace this filter?
No. This lint filter simply lifts out of its slot and the new one presses back into place — no tools or disassembly required beyond disconnecting power to the dryer first.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by LG to factory specifications — guaranteed fit, materials, and performance. It matches the original frame design, mesh screen, and seal of the lint filter originally installed in your dryer.
