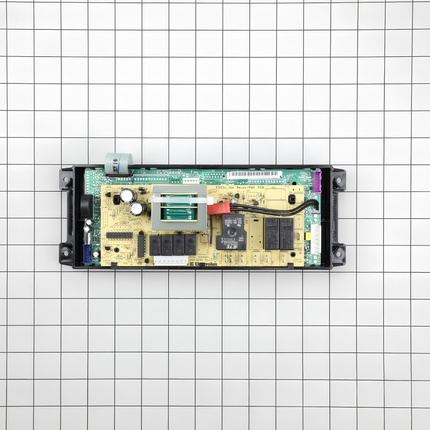

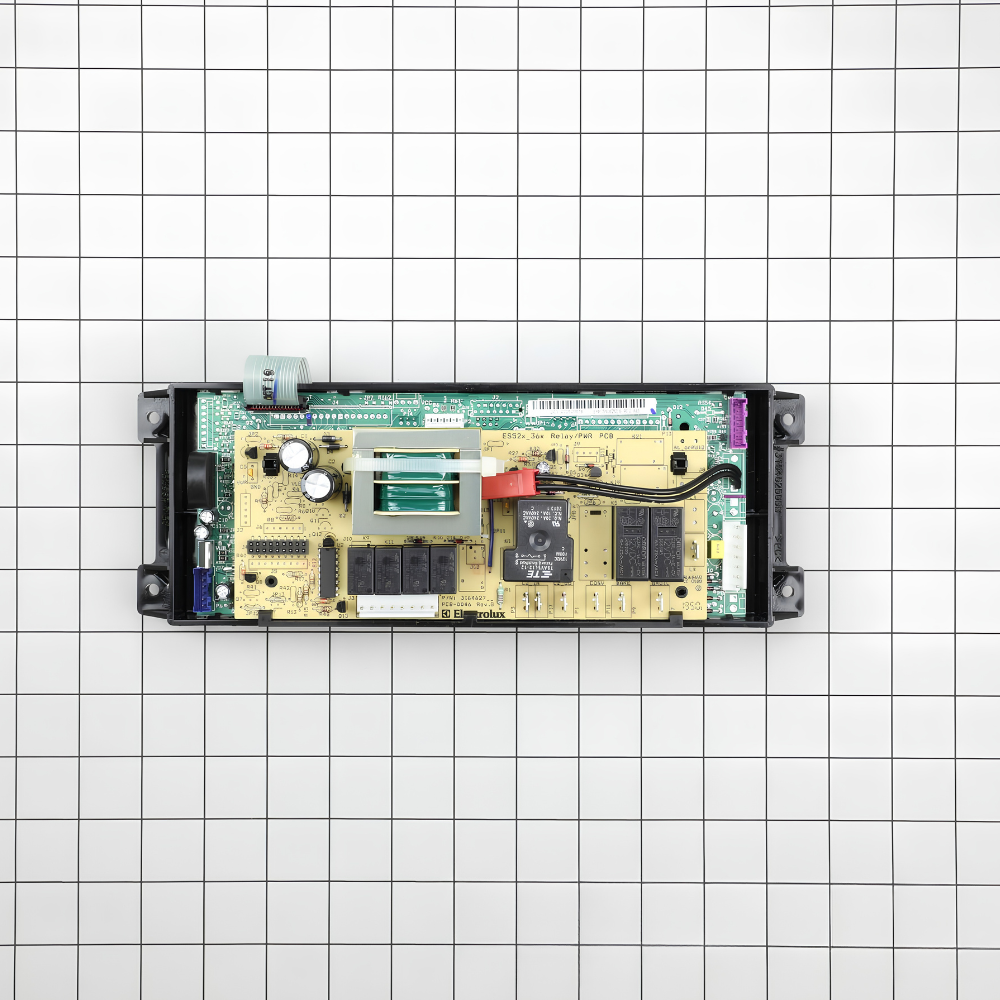

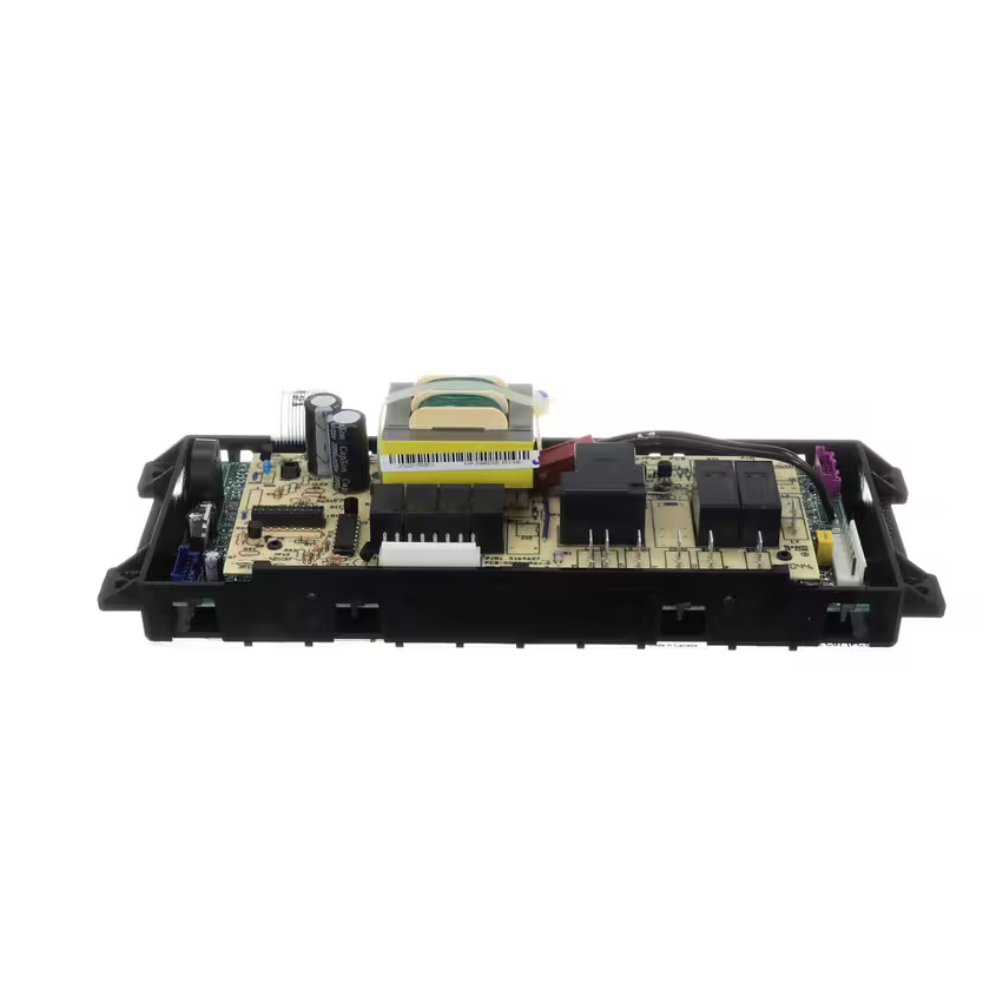

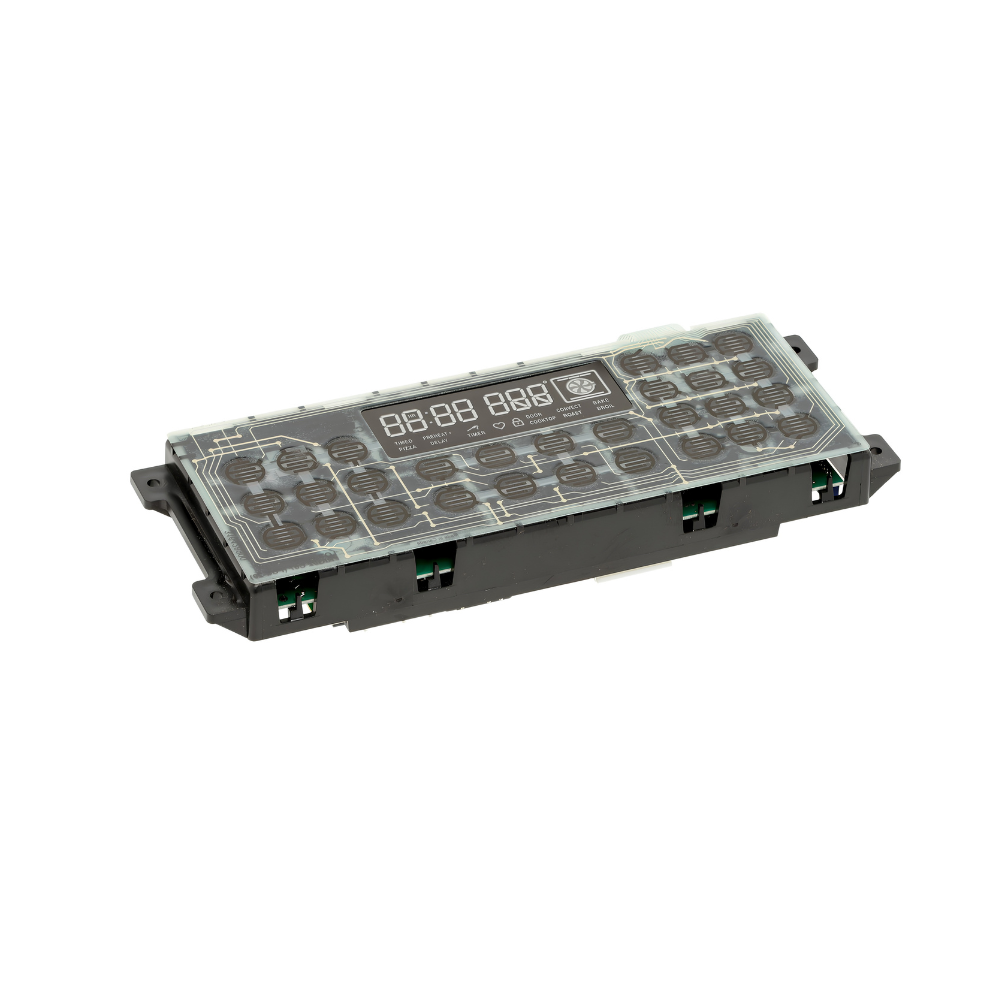

Genuine OEM 5304509229 Range Oven Control Board
The Genuine OEM Frigidaire 5304509229 is the electronic oven control board for select Frigidaire electric ranges. The board controls oven temperature, cooking modes and time by sending signals to other parts of the range, such as the heating elements and the fan. When it fails, the oven may heat unevenly or not at all, or the display may stop responding.
This is the original Frigidaire part, not an aftermarket equivalent. Frigidaire sells several similar-looking control boards under different part numbers, so check your model number before ordering.
Quick Answer
The Genuine OEM 5304509229 Oven Control Board replaces the electronic control board on a compatible Frigidaire electric range when the board has failed. Classic symptoms: oven not heating, inaccurate oven temperature, or a display that won't update. Test the temperature sensor and other components first, since they can cause the same symptoms.
Common Problems This Part Fixes
- Oven not heating or temperature inaccurate
- Oven temperature fluctuating unexpectedly
- Cooking modes stopping during operation
- Display not working or not updating correctly
- Oven fan not working
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This control board is listed under the following part number:
5304509229, 4583506, AFR18167, AP6327555, PD00046836, PS12364539
We have not found any superseded or alternate manufacturer numbers for this board. Frigidaire uses similar numbers for different boards (for example 5304509230, 5304509231 and 5304509493), and they are not interchangeable by number alone. If your old board shows a different number, contact our support team and we'll check whether it matches.
Compatibility
This control board is listed for Frigidaire electric ranges, including these examples:
- Frigidaire CGEF3059TDA, CGEF3059TDB
- Frigidaire CGEF3059 and CGEF3062 series
- Frigidaire FGEF3059 series
- Frigidaire LGEF3046 series
Note: The models above are a sample of the 56 listed by one retailer, not a full list. Check your full model number against your parts diagram, or contact our support team to verify fit before ordering.
Key Features
- Genuine OEM Frigidaire part, not an aftermarket equivalent
- Controls oven temperature, cooking modes and time
- Sends signals to the heating elements and fan
- Direct replacement for a failed control board
Product Specifications
| Part Number |
5304509229 |
| OEM Part Number |
5304509229 |
| Part Type |
Range Oven Control Board |
| Condition |
Genuine OEM |
| Manufacturer |
Frigidaire |
| Application |
Select Frigidaire Electric Ranges |
Installation Notes
⚠️ Unplug Power Before Installing Unplug the range before you begin. Remove the control panel to reach the board, then note where each wiring harness connects and disconnect them. Unscrew the old board, mount the new one, reconnect the harnesses, and secure the screws. Reattach the panel, restore power, and test all oven functions. Handle the board by its edges and keep the connectors seated and dry.
Frequently Asked Questions
My oven isn't heating correctly. Is this the part I need?
It can be, but the temperature sensor and other components can cause the same symptoms. Test those first. If they check out, inspect the board for damage or a shorted component before replacing it.
Is this an OEM or aftermarket part?
This is a genuine OEM part from Frigidaire, not an aftermarket equivalent.
Can I use a board with a similar part number?
Not by number alone. Frigidaire sells several control boards with similar numbers for different ranges. Match the part number and your model number, or contact our support team and we'll check for you.
Will this fit my range?
It is listed for select Frigidaire electric ranges, but the model list above is only a sample. Check your full model number against your parts diagram, or contact our support team and we'll verify it before you order.
