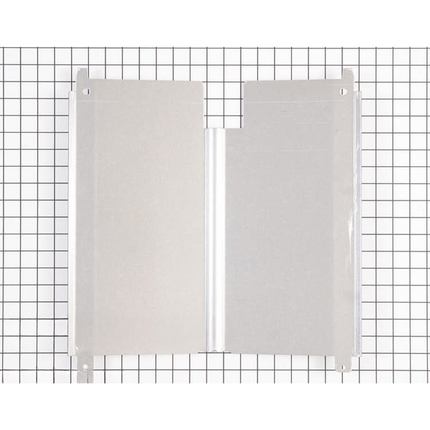

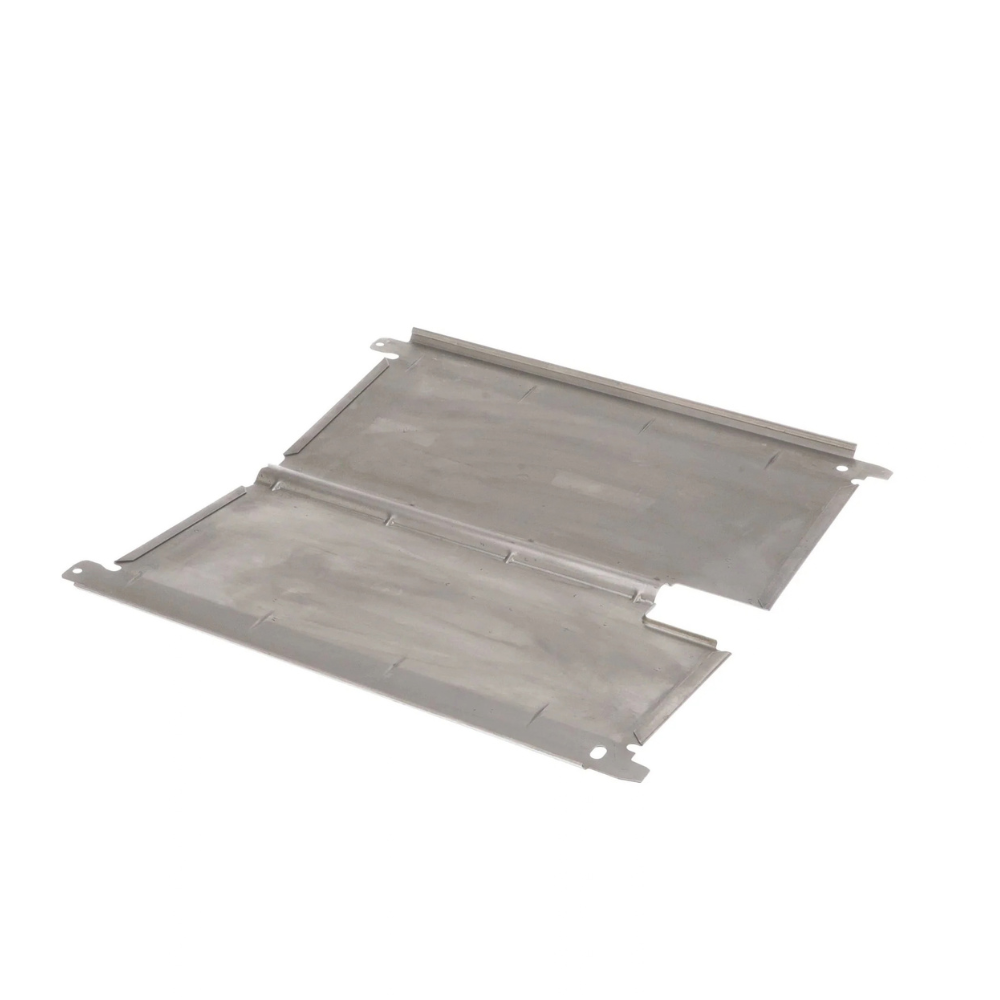

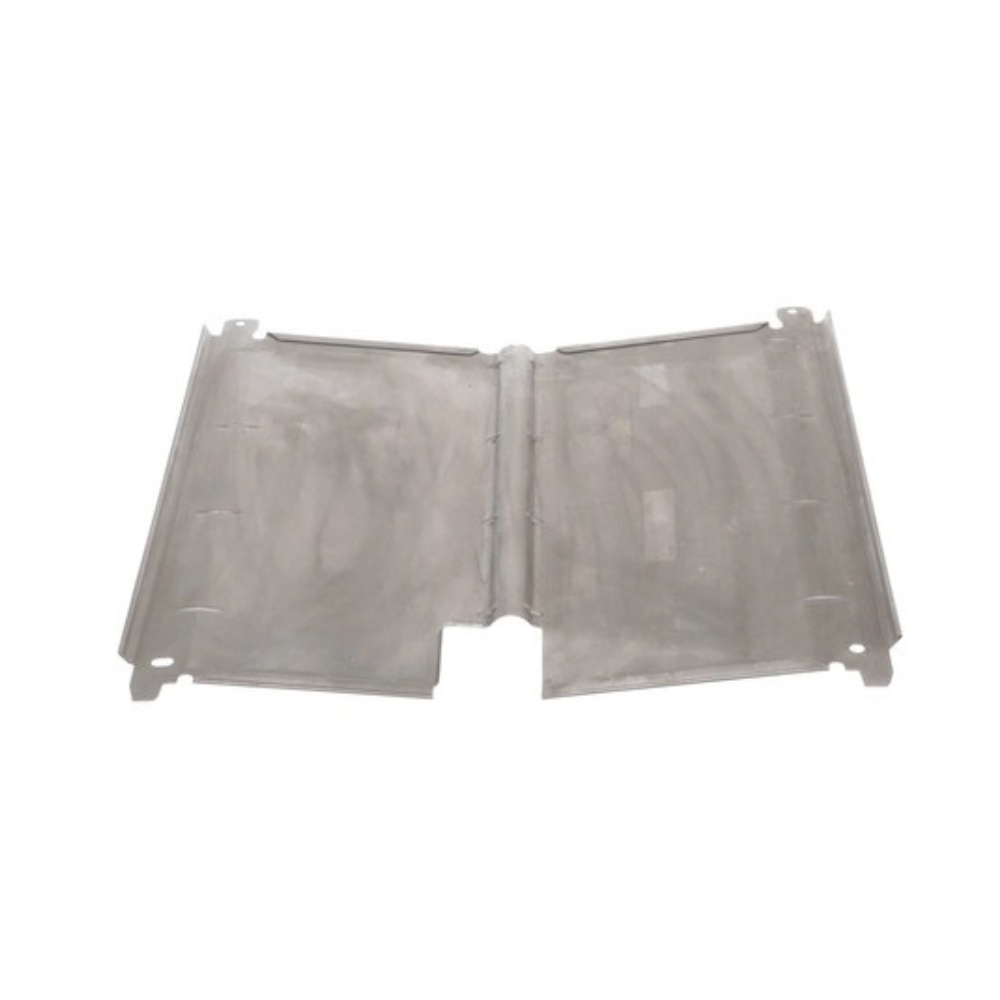

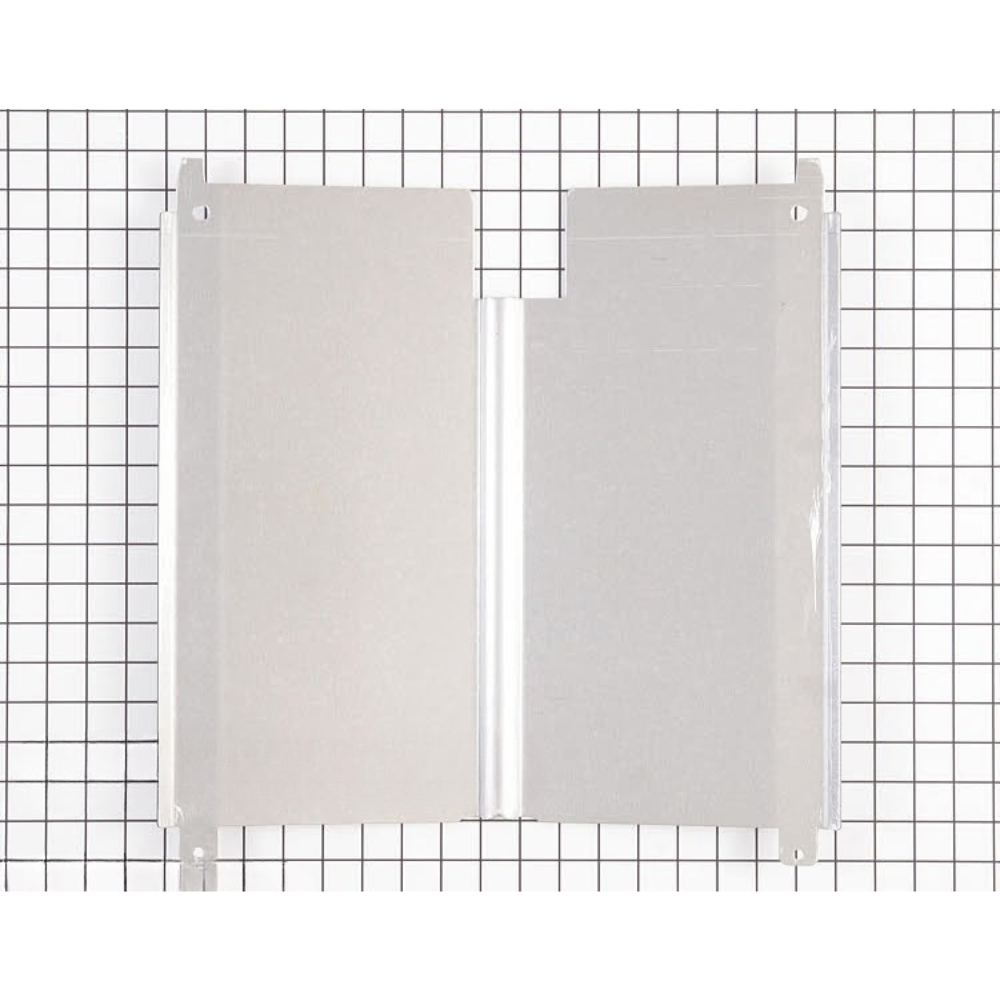

5304519024 Gas Range Genuine Oven Burner Baffle

Description

Genuine Gas Range Replacement Part

5304519024 Gas Range Genuine Oven Burner Baffle

Genuine oven burner baffle for select gas range applications.

Product Overview

The 5304519024 Gas Range Oven Burner Baffle is a genuine replacement part designed for compatible gas ranges. The baffle helps direct and distribute heat around the oven burner area while shielding nearby components from direct flame exposure.

Use this part when the original burner baffle is damaged, warped, corroded, loose, or missing.

Quick Answer

5304519024 is a genuine gas range oven burner baffle used on compatible models. Replace it when the original baffle is damaged or no longer directs heat properly around the burner area.

Common Problems This Part May Fix

  • Burner baffle is warped or damaged
  • Uneven heat distribution around the burner area
  • Excessive direct heat reaching nearby components
  • Baffle is loose or no longer mounts securely
  • Original baffle is corroded or missing

Replaces and Cross-References

5304519024, 316401401, 4922255, 7316401401, AFR18396, AP6838014, EAP977599, EAP12712293, PD00058356, PS12712293

Part number is provided for identification. This listing is for a genuine replacement part.

Compatibility

Fits select gas ranges that specify oven burner baffle part number 5304519024.

Important: Verify the complete appliance model number and the original burner baffle part number before ordering. Similar-looking oven baffles can differ in shape, mounting points, and burner configuration.

Key Features

  • Genuine replacement part
  • Designed for compatible gas range burner assemblies
  • Helps direct heat around the burner area
  • Helps shield nearby components from direct flame exposure
  • Direct replacement for applications calling for 5304519024

Product Specifications

Part Number 5304519024
Part Type Gas Range Oven Burner Baffle
Application Compatible Gas Ranges
Function Heat direction and burner-area shielding
Condition New
Part Quality Genuine Replacement Part
Package Quantity 1 Burner Baffle

Installation & Troubleshooting Notes

  1. Shut off the gas supply and disconnect electrical power before service.
  2. Allow the range and oven burner area to cool completely.
  3. Inspect the original baffle for warping, corrosion, cracks, or missing sections.
  4. Check mounting points and surrounding burner components for damage.
  5. Install the replacement baffle in the same position and orientation as the original.
  6. Restore power and gas only after confirming the part is securely installed.

Safety note: Gas appliance service should be performed by a qualified technician if you are not experienced with gas systems and burner components.

Frequently Asked Questions

What does part 5304519024 do?

It helps direct heat around the oven burner area and shields nearby components from direct flame exposure.

Is 5304519024 a genuine part?

Yes. This listing is for a genuine replacement oven burner baffle.

When should the burner baffle be replaced?

Replace it if it is warped, cracked, badly corroded, loose, missing, or no longer directing heat as intended.

Will this fit every gas range?

No. Match the complete appliance model number and original part number before ordering.

Shop With Confidence

Verify your complete gas range model number before purchasing. Our compatibility team can help confirm whether part 5304519024 is correct for your appliance.

Genuine ReplacementGas Range PartModel Fitment SupportFast U.S. Shipping
Product form

5304519024 Gas Range Genuine Oven Burner Baffle

Online Shipped Price $77.00 List Price $69.88You Save: $7.12Delivered to your address
Store Walk-In
Discounted Price
$59.80Walk-In Savings: $10.08In-store purchase only — not valid for online checkout
! OUT OF STOCK
Currently unavailable Shipping is not available for this item right now.
