5304532245 Dishwasher Genuine PCB Switch Assembly
Description
Genuine Frigidaire OEM

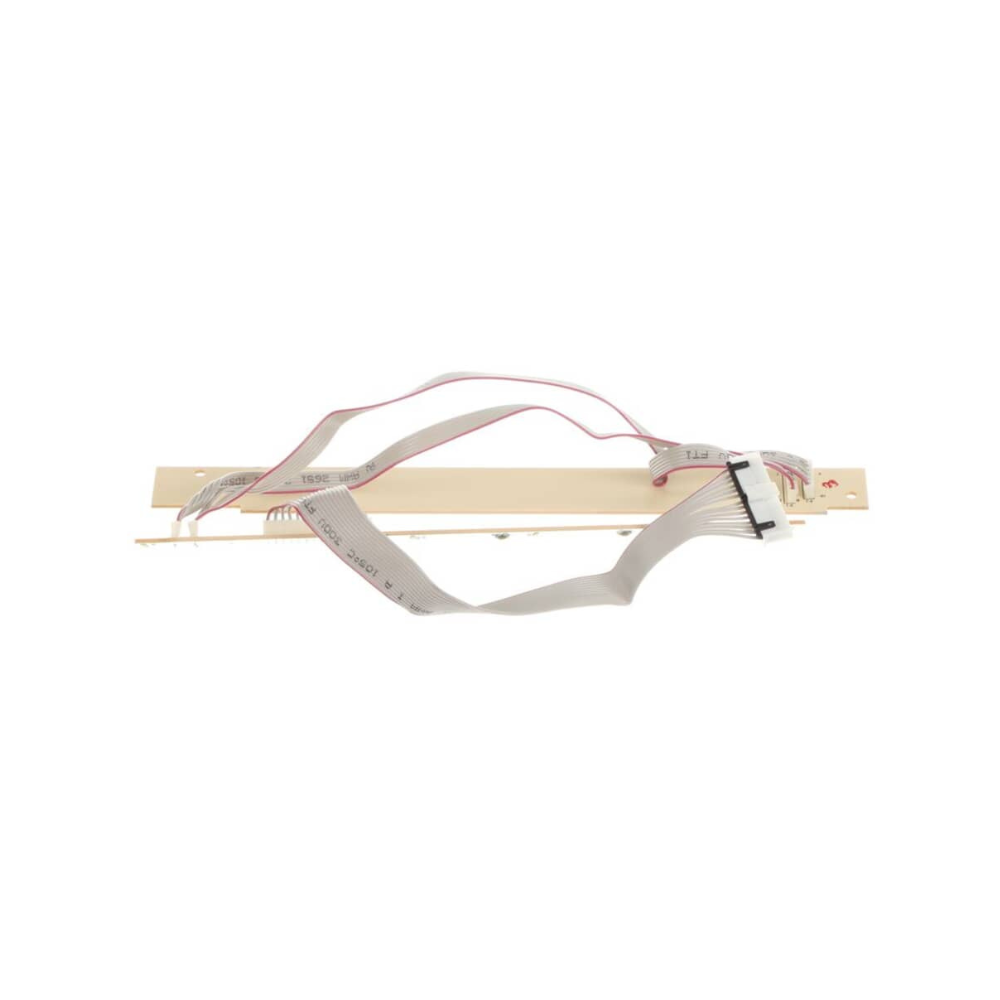

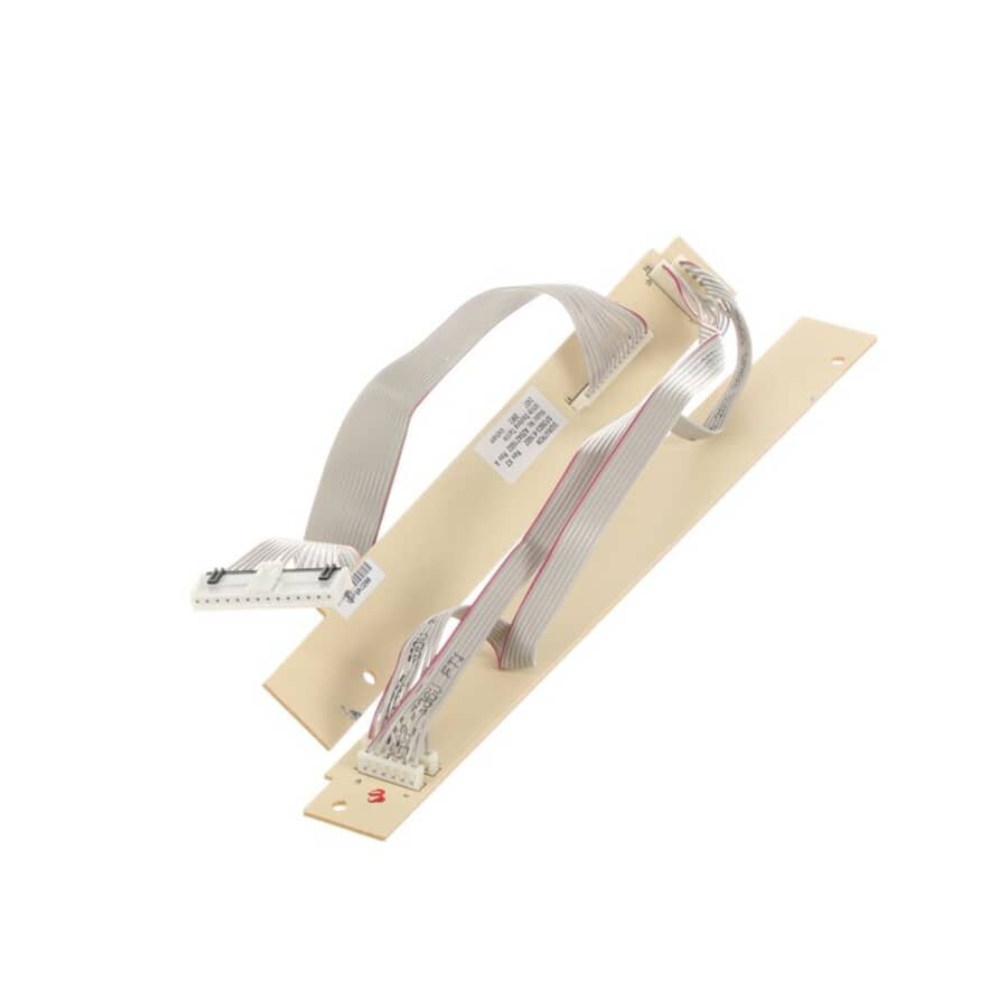

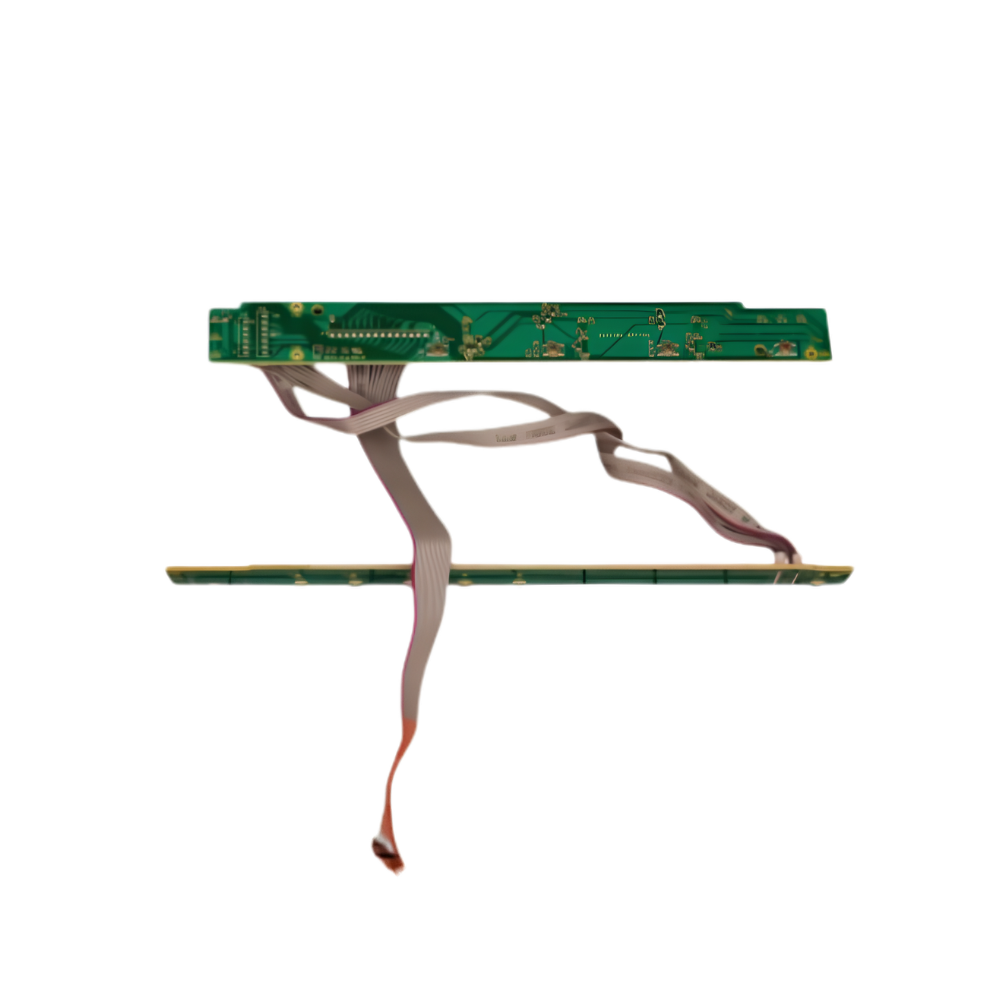

Frigidaire 5304532245 Dishwasher PCB Switch Assembly
Genuine OEM user-control and display switch assembly with tactile PCB and wiring harness for select Frigidaire and Electrolux-built dishwashers.
Product Overview
The Frigidaire 5304532245 Dishwasher PCB Switch Assembly is a Genuine OEM user-interface component that allows the dishwasher to receive button selections and communicate those inputs through the control system.
This assembly is described by Frigidaire parts sources as a switch assembly / tactile PCB with wiring harness and as a user control and display board .
Quick Answer
5304532245 is the Genuine Frigidaire OEM electronic switch/PCB assembly used behind the dishwasher console on compatible models. It includes the tactile switch PCB and harness. The separate console housing/overlay is part 5304533992 and is not included with this electronic assembly unless specifically shown or stated in the listing.
Common Problems This Part May Fix
Dishwasher buttons do not respond
Control-panel lights flash or behave erratically
Dishwasher will not start after selections are made
Dishwasher starts or stops unexpectedly due to a failed user interface
Individual tactile switches on the control panel fail to register
Replaces and Cross-References
5304532245, AP7195069, EAP16745486, PS16745486, OEM21585216, AFR20205, PD00083820
Cross-reference numbers are provided for identification. Always verify the complete dishwasher model number before ordering.
Compatibility
Confirmed compatible applications include select Frigidaire and Electrolux-built 24-inch dishwashers such as:
GDPH4515AD0A
GDPH4515AD1B
GDPH4515AF0A
GDPH4515AF1B
GDPP4515AF0A
GDPP4515AF1B
605222850A
605222851B
905222840A
Important: This is only a partial fitment list. Verify the full model number from the dishwasher rating label before purchase.
Key Features
Genuine Frigidaire OEM replacement part
Tactile PCB switch assembly
Includes wiring harness
Functions as the dishwasher user-control/display interface
Designed for direct fit on compatible models
Product Specifications
Manufacturer Part Number
5304532245
Brand
Frigidaire
Part Type
Dishwasher PCB Switch / User Control Assembly
OEM Status
Genuine OEM
Assembly Description
Tactile PCB with Wiring Harness
Appliance Type
Dishwasher
Condition
New
Console Housing Included?
No — 5304533992 is separate
Installation Notes
Disconnect electrical power to the dishwasher at the breaker before service.
Shut off the water supply if the service procedure requires moving the dishwasher.
Open the inner door panel according to the model-specific service procedure.
Photograph connector locations before disconnecting the original switch assembly.
Transfer the new assembly into the existing console housing if the housing is being reused.
Reconnect each harness plug fully and secure the door panels before restoring power.
Important: Electronic control parts should be handled using appropriate electrostatic-discharge precautions. Do not order this part when only the cosmetic console housing is damaged; the separate housing/overlay assembly is 5304533992.
Frequently Asked Questions
Is 5304532245 a Genuine OEM part?
Yes. It is a Genuine Frigidaire OEM dishwasher switch/user-control assembly.
Does it include the PCB and wiring harness?
Yes. Parts catalogs describe it as a tactile PCB switch assembly with harness.
Does this include the plastic console housing?
No. The separate console housing/overlay used on compatible models is 5304533992.
What symptoms can a failed switch assembly cause?
Possible symptoms include nonresponsive buttons, flashing controls, failure to start, or erratic user-interface behavior. Confirm the diagnosis before replacing electronic parts.
Shop With Confidence
Verify the dishwasher model number before ordering. This is the Genuine OEM electronic switch/PCB assembly, not the separate cosmetic console housing.
Genuine Frigidaire OEM PCB + Harness Compatibility Support Fast U.S. Shipping
Product form
5304532245 Dishwasher Genuine PCB Switch Assembly
Online Shipped Price
$80.00
List Price
$68.50 You Save: $11.50 Delivered to your address
Store Walk-In
$59.83 Walk-In Savings: $8.67 In-store purchase only — not valid for online checkout
!
OUT OF STOCK
Currently unavailable
Shipping is not available for this item right now.
