5304533220 Washer Genuine Water Fill Hose Assembly

Description

Genuine Frigidaire OEM

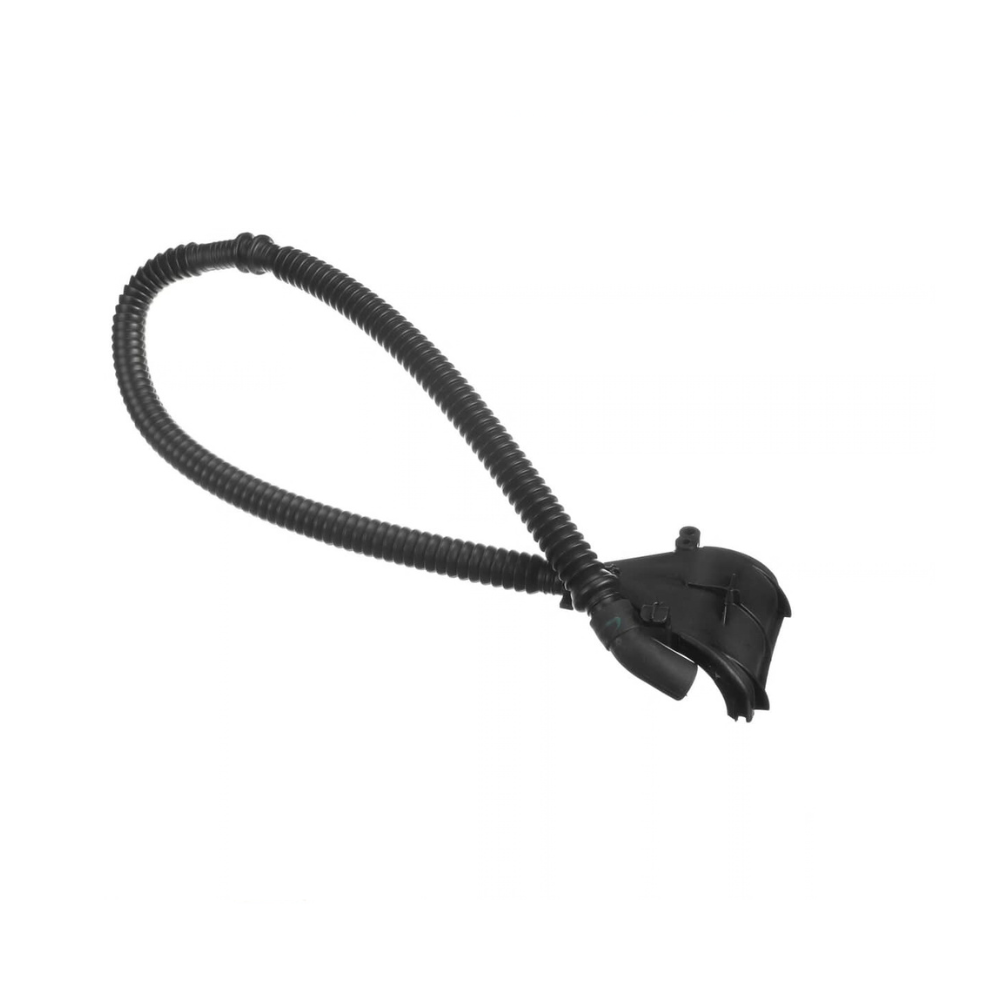

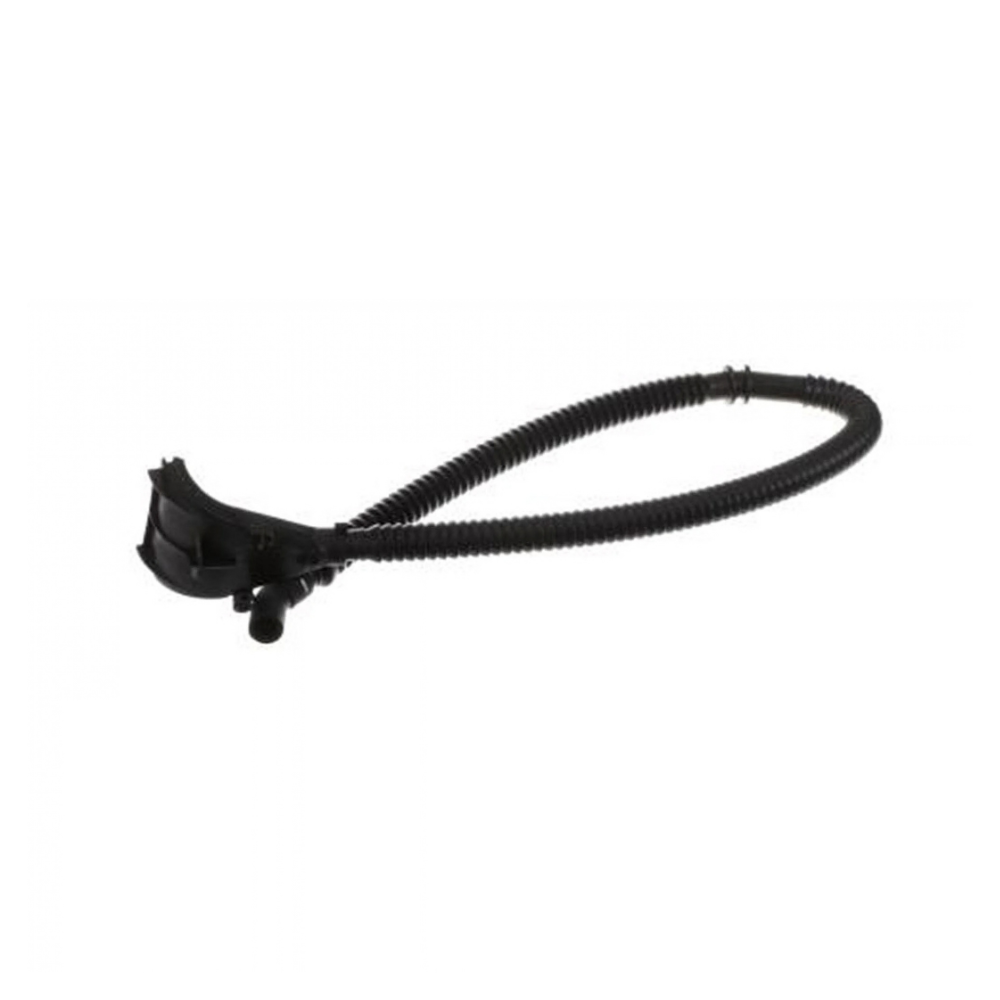

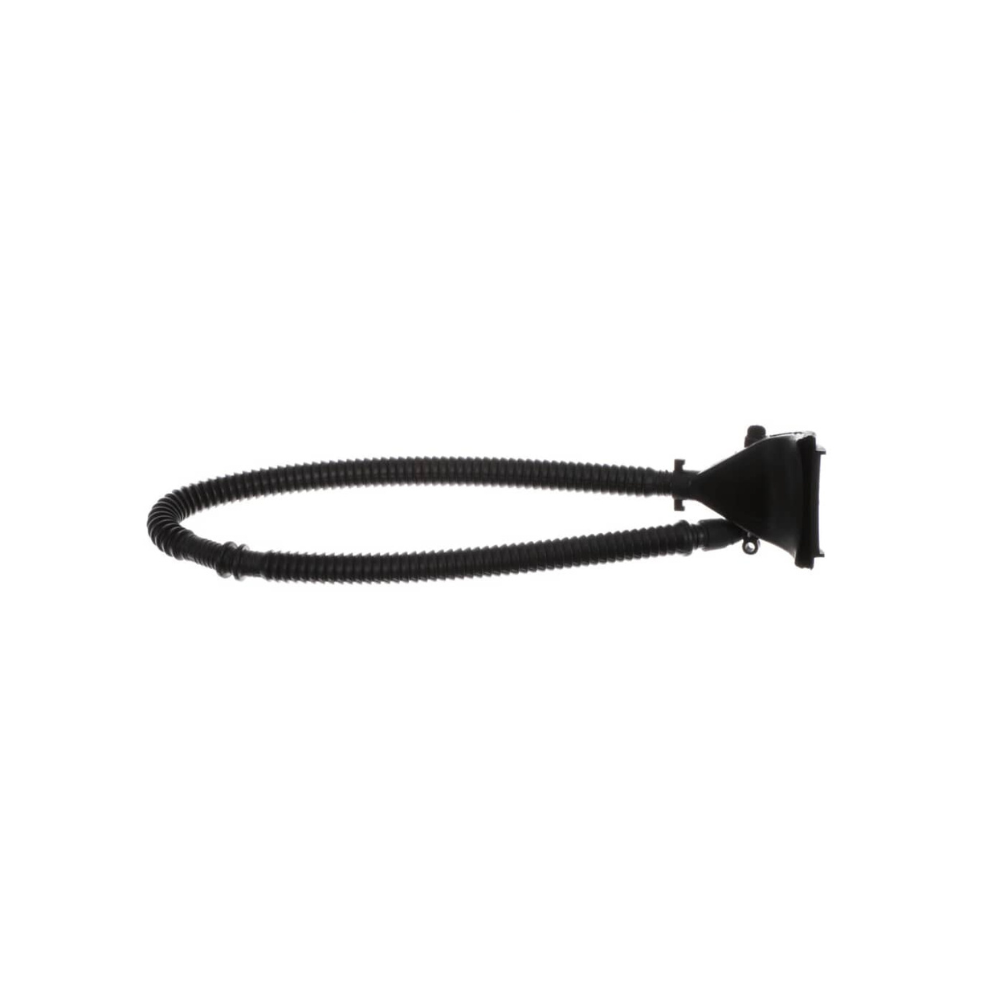

Frigidaire 5304533220 Washer Water Fill Hose Assembly

Genuine OEM internal valve-to-tub fill hose for select Frigidaire-built laundry centers and washer/dryer combination units.

Product Overview

The Frigidaire 5304533220 Washer Water Fill Hose Assembly is a Genuine OEM internal fill hose used to route incoming water from the washer water inlet valve to the wash tub on compatible laundry-center models.

This is the valve-to-tub hose inside the appliance. It is not the external hot/cold household water-supply hose that connects the appliance to the wall faucets.

Quick Answer

5304533220 is the Genuine Frigidaire OEM valve-to-tub washer fill hose. It replaces earlier Frigidaire numbers 5304508358 and 809191901 and is used on select Frigidaire, Kenmore, Crosley, and other Electrolux-manufactured laundry centers.

Common Problems This Part May Fix

  • Water leaking inside the washer cabinet during fill
  • Cracked, split, hardened, or deteriorated fill hose
  • Leak between the inlet-valve outlet and wash tub
  • Loose or damaged internal water-fill connection
  • Water dripping from the valve-to-tub hose during operation

Replaces and Cross-References

5304533220, 5304508358, 809191901, AFR20016, AP7194866, EAP11775692, PD00076846, PS16745853

Cross-reference numbers are provided for identification. Always verify the full appliance model number before ordering.

Compatibility

Confirmed applications include select Frigidaire-built laundry centers and washer/dryer combinations such as:

FLCE7523AW0
FLCE7523AW1
FLCE7522AW1
FLCE7522AW4
FFLE3900UW0
FFLE3900UW1
FFLG3900UW0
FFLE3911QW1
CFLE3900UW0
41761712511
41761732810
41771732810

Important: This is only a partial compatibility list. Confirm the complete model number from the appliance rating label before purchase.

Key Features

  • Genuine Frigidaire OEM replacement part
  • Internal valve-to-tub fill hose
  • Routes fill water from the inlet valve to the washer tub
  • Direct replacement for 5304508358 and 809191901
  • Factory-style fit for compatible laundry centers
  • Used on select Frigidaire, Kenmore, and related Electrolux-built models

Product Specifications

Manufacturer Part Number 5304533220
Brand Frigidaire
Part Type Washer Internal Water Fill Hose
Hose Location Water Inlet Valve to Wash Tub
OEM Status Genuine OEM
Appliance Type Laundry Center / Washer-Dryer Combo
Condition New
External Supply Hose? No — this is an internal appliance hose

Installation Notes

  1. Disconnect electrical power to the appliance before service.
  2. Shut off both household water-supply valves.
  3. Access the washer inlet-valve and tub-fill connection according to the model-specific service procedure.
  4. Place towels or a shallow pan below the hose connections to catch residual water.
  5. Release the clamps and remove the old hose without damaging the valve outlet or tub fitting.
  6. Install the new hose fully onto both fittings and reinstall the clamps in their original positions.
  7. Restore water and inspect carefully for leaks before returning the appliance to service.

Diagnostic tip: If water is leaking during fill, inspect the hose, clamps, inlet valve, and tub connection before replacing parts. A leak from the external household supply hose requires a different part.

Frequently Asked Questions

Is 5304533220 a Genuine OEM part?

Yes. It is a Genuine Frigidaire OEM fill hose.

Does 5304533220 replace 5304508358?

Yes. 5304533220 supersedes 5304508358 and 809191901.

Is this the hose that connects the washer to the wall faucet?

No. This is an internal valve-to-tub fill hose located inside the laundry center.

Can this part correct a washer leak?

Yes, if the leak is caused by a cracked or damaged valve-to-tub fill hose or its connection. Inspect all nearby fittings and clamps before ordering.

Shop With Confidence

Verify your complete laundry-center model number before ordering. This listing is for the Genuine Frigidaire OEM internal valve-to-tub fill hose.

Genuine Frigidaire OEMValve-to-Tub Fill HoseCompatibility SupportFast U.S. Shipping
Product form

5304533220 Washer Genuine Water Fill Hose Assembly

Free Pickup in In Stock Parts-O-Matic - WB Store 1820 Featherstone Road Woodbridge, VA 22191 Usually ready in 1 hour
Online Shipped Price $32.00 List Price $22.30You Save: $9.70Delivered to your address
Store Walk-In
Discounted Price $14.75Walk-In Savings: $7.55In-store purchase only — not valid for online checkout
✓ IN STOCK
Ships Today if ordered within --:--:--
Free Pickup in our Store • Usually ready in 1 hour
Pickup Store: Parts-O-Matic — Woodbridge, VA

    Description

    Genuine Frigidaire OEM

    Frigidaire 5304533220 Washer Water Fill Hose Assembly

    Genuine OEM internal valve-to-tub fill hose for select Frigidaire-built laundry centers and washer/dryer combination units.

    Product Overview

    The Frigidaire 5304533220 Washer Water Fill Hose Assembly is a Genuine OEM internal fill hose used to route incoming water from the washer water inlet valve to the wash tub on compatible laundry-center models.

    This is the valve-to-tub hose inside the appliance. It is not the external hot/cold household water-supply hose that connects the appliance to the wall faucets.

    Quick Answer

    5304533220 is the Genuine Frigidaire OEM valve-to-tub washer fill hose. It replaces earlier Frigidaire numbers 5304508358 and 809191901 and is used on select Frigidaire, Kenmore, Crosley, and other Electrolux-manufactured laundry centers.

    Common Problems This Part May Fix

    • Water leaking inside the washer cabinet during fill
    • Cracked, split, hardened, or deteriorated fill hose
    • Leak between the inlet-valve outlet and wash tub
    • Loose or damaged internal water-fill connection
    • Water dripping from the valve-to-tub hose during operation

    Replaces and Cross-References

    5304533220, 5304508358, 809191901, AFR20016, AP7194866, EAP11775692, PD00076846, PS16745853

    Cross-reference numbers are provided for identification. Always verify the full appliance model number before ordering.

    Compatibility

    Confirmed applications include select Frigidaire-built laundry centers and washer/dryer combinations such as:

    FLCE7523AW0
    FLCE7523AW1
    FLCE7522AW1
    FLCE7522AW4
    FFLE3900UW0
    FFLE3900UW1
    FFLG3900UW0
    FFLE3911QW1
    CFLE3900UW0
    41761712511
    41761732810
    41771732810

    Important: This is only a partial compatibility list. Confirm the complete model number from the appliance rating label before purchase.

    Key Features

    • Genuine Frigidaire OEM replacement part
    • Internal valve-to-tub fill hose
    • Routes fill water from the inlet valve to the washer tub
    • Direct replacement for 5304508358 and 809191901
    • Factory-style fit for compatible laundry centers
    • Used on select Frigidaire, Kenmore, and related Electrolux-built models

    Product Specifications

    Manufacturer Part Number 5304533220
    Brand Frigidaire
    Part Type Washer Internal Water Fill Hose
    Hose Location Water Inlet Valve to Wash Tub
    OEM Status Genuine OEM
    Appliance Type Laundry Center / Washer-Dryer Combo
    Condition New
    External Supply Hose? No — this is an internal appliance hose

    Installation Notes

    1. Disconnect electrical power to the appliance before service.
    2. Shut off both household water-supply valves.
    3. Access the washer inlet-valve and tub-fill connection according to the model-specific service procedure.
    4. Place towels or a shallow pan below the hose connections to catch residual water.
    5. Release the clamps and remove the old hose without damaging the valve outlet or tub fitting.
    6. Install the new hose fully onto both fittings and reinstall the clamps in their original positions.
    7. Restore water and inspect carefully for leaks before returning the appliance to service.

    Diagnostic tip: If water is leaking during fill, inspect the hose, clamps, inlet valve, and tub connection before replacing parts. A leak from the external household supply hose requires a different part.

    Frequently Asked Questions

    Is 5304533220 a Genuine OEM part?

    Yes. It is a Genuine Frigidaire OEM fill hose.

    Does 5304533220 replace 5304508358?

    Yes. 5304533220 supersedes 5304508358 and 809191901.

    Is this the hose that connects the washer to the wall faucet?

    No. This is an internal valve-to-tub fill hose located inside the laundry center.

    Can this part correct a washer leak?

    Yes, if the leak is caused by a cracked or damaged valve-to-tub fill hose or its connection. Inspect all nearby fittings and clamps before ordering.

    Shop With Confidence

    Verify your complete laundry-center model number before ordering. This listing is for the Genuine Frigidaire OEM internal valve-to-tub fill hose.

    Genuine Frigidaire OEMValve-to-Tub Fill HoseCompatibility SupportFast U.S. Shipping
    5304533220, 5304508358, 809191901, AFR20016, AP7194866, EAP11775692, PD00076846, PS16745853
