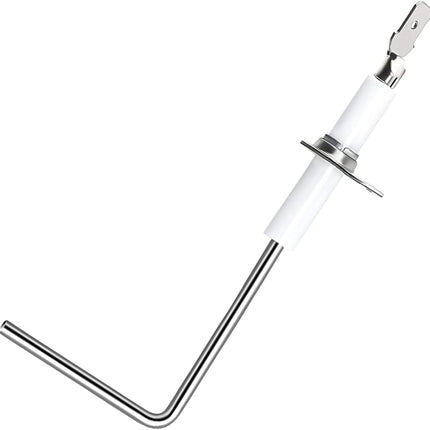

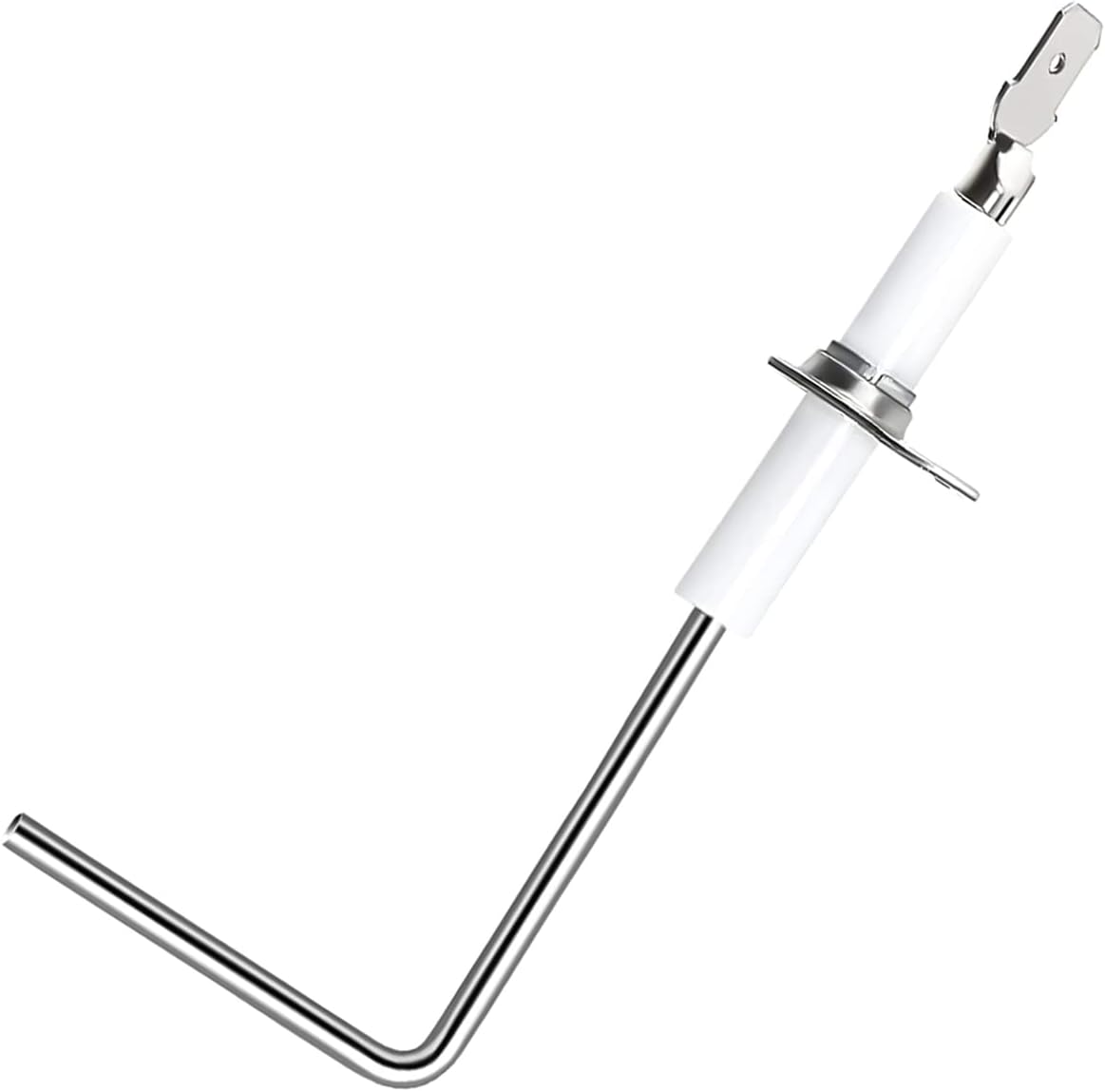

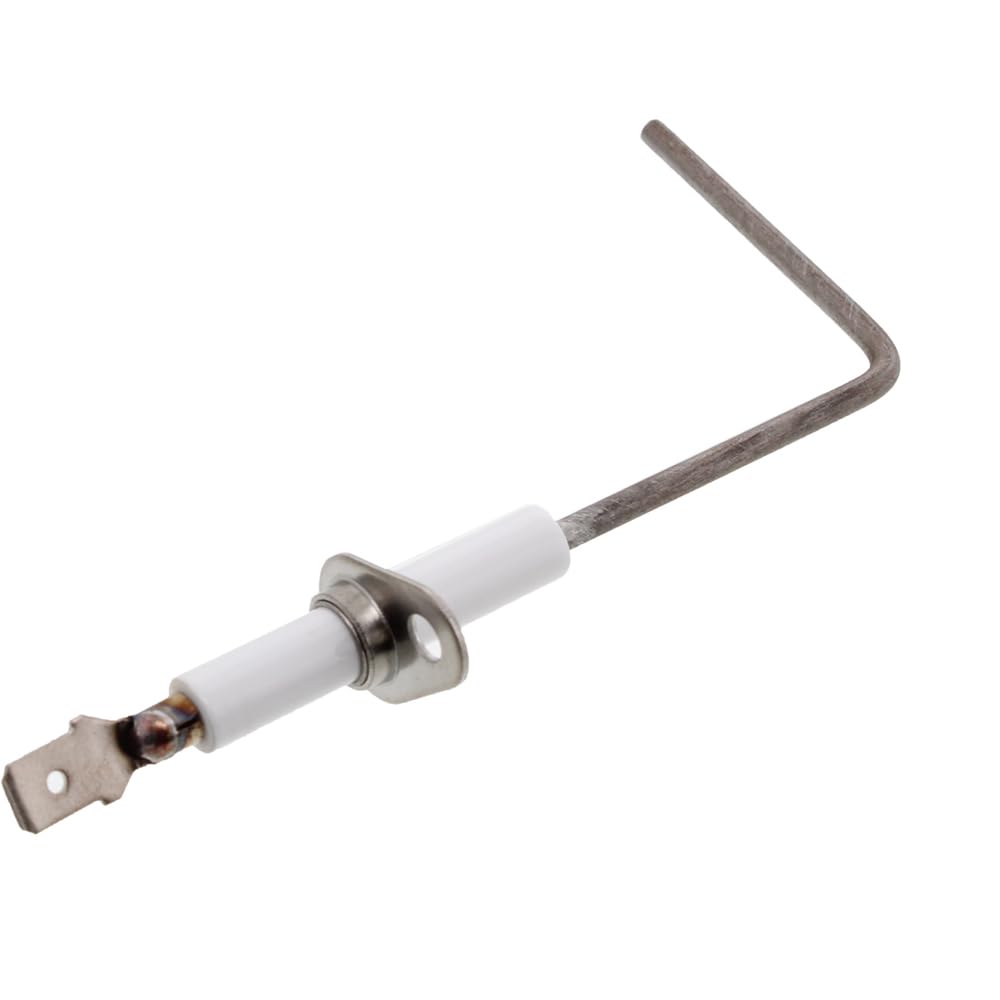

XPARTCO 62-23543-01 Gas Furnace Flame Sensor – Compatible with Rheem, Ruud, and WeatherKing Furnaces
Product Description
Restore safe and reliable furnace operation with the XPARTCO 62-23543-01 Gas Furnace Flame Sensor. This high-quality aftermarket replacement detects the presence of a burner flame and signals the control board to keep the gas valve open. A dirty or failed flame sensor can cause short cycling, ignition failure, or a furnace that won’t stay lit. Replacing it with this durable XPARTCO sensor ensures proper flame detection and dependable heating performance.
Specification :
- The furnace flame sensor is designed to detect the flame.
- 1/4”male quick connect, Angle - sensor offset: 90 degree.
Replaces Part Numbers
62-23543-01,62-23543-02, 62-23543-03, 62-23543-04
Compatibility
This replacement flame sensor fits select Rheem, Ruud, and WeatherKing gas furnaces.
Example compatible models include (but are not limited to):
Rheem RGRJ series, Ruud UGDG series, WeatherKing RGRA series.
Always verify your furnace’s model number before ordering.
Contact our support team if you’re unsure.
✅ Key Features
-
🔄 Aftermarket Replacement – Designed to match OEM flame-sensing performance
-
🔥 Accurate Flame Detection – Ensures gas valve remains open only when flame is present
-
💰 Cost-Effective Repair – Reliable alternative to expensive OEM sensors
-
🛠️ Simple Installation – Direct-fit design with single mounting screw
-
🛡️ Fixes Common Issues – Solves furnace short cycling, ignition failure, or burner shutdown
📐 Product Specification
-
Part Number: 62-23543-01
-
Component Type: Gas Furnace Flame Sensor
-
Material: Stainless steel sensor rod with ceramic insulator
-
Mounting: Single-screw bracket mount
-
Electrical Connection: Spade terminal
-
Compliance: Built to OEM-equivalent quality standards (not OEM)
🛠️ Installation Notes
Tools Needed: Phillips screwdriver, fine abrasive pad (optional for cleaning)
⚠️ Safety First: Turn off power and gas supply to the furnace before servicing.
Steps:
-
Shut off furnace power and gas supply.
-
Locate the flame sensor near the burner assembly.
-
Disconnect the wire and remove the mounting screw.
-
Install the new XPARTCO 62-23543-01 flame sensor.
-
Reconnect the wire, restore power and gas, and test furnace operation.
⏱️ Time Required: 5–10 minutes
