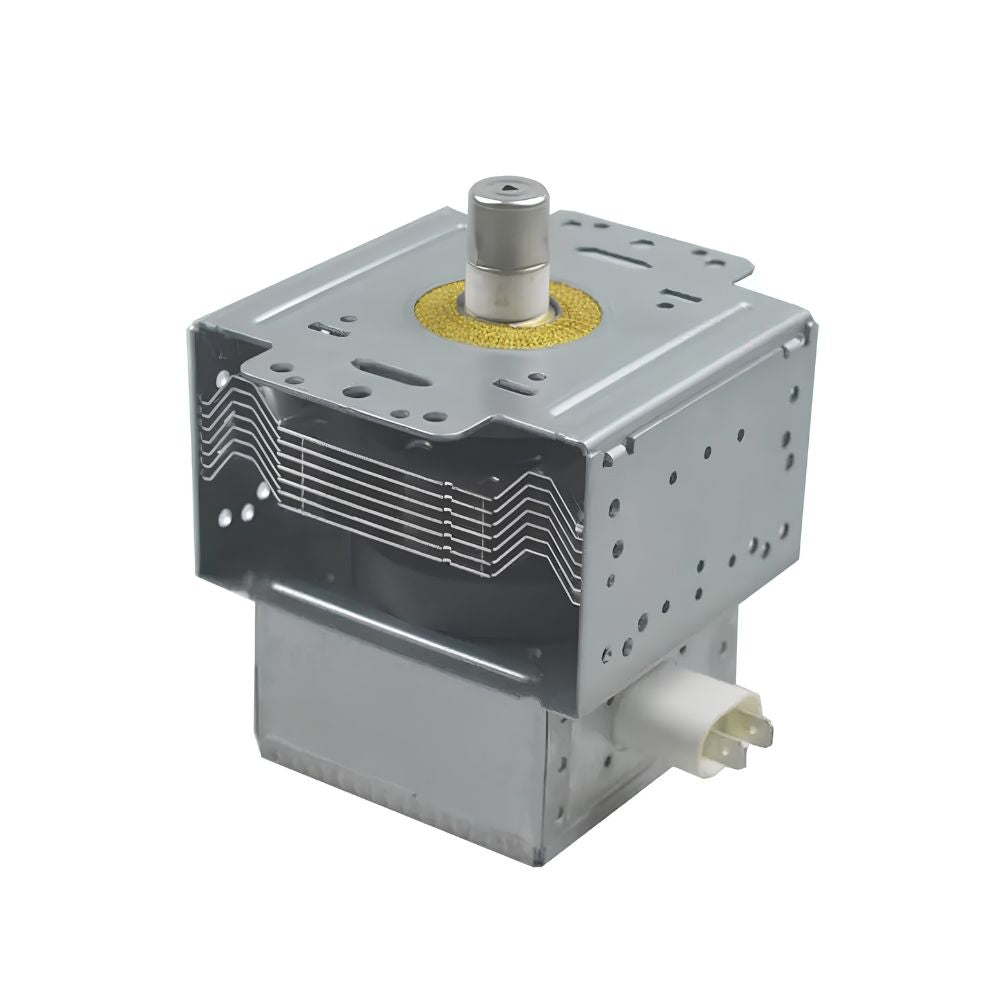

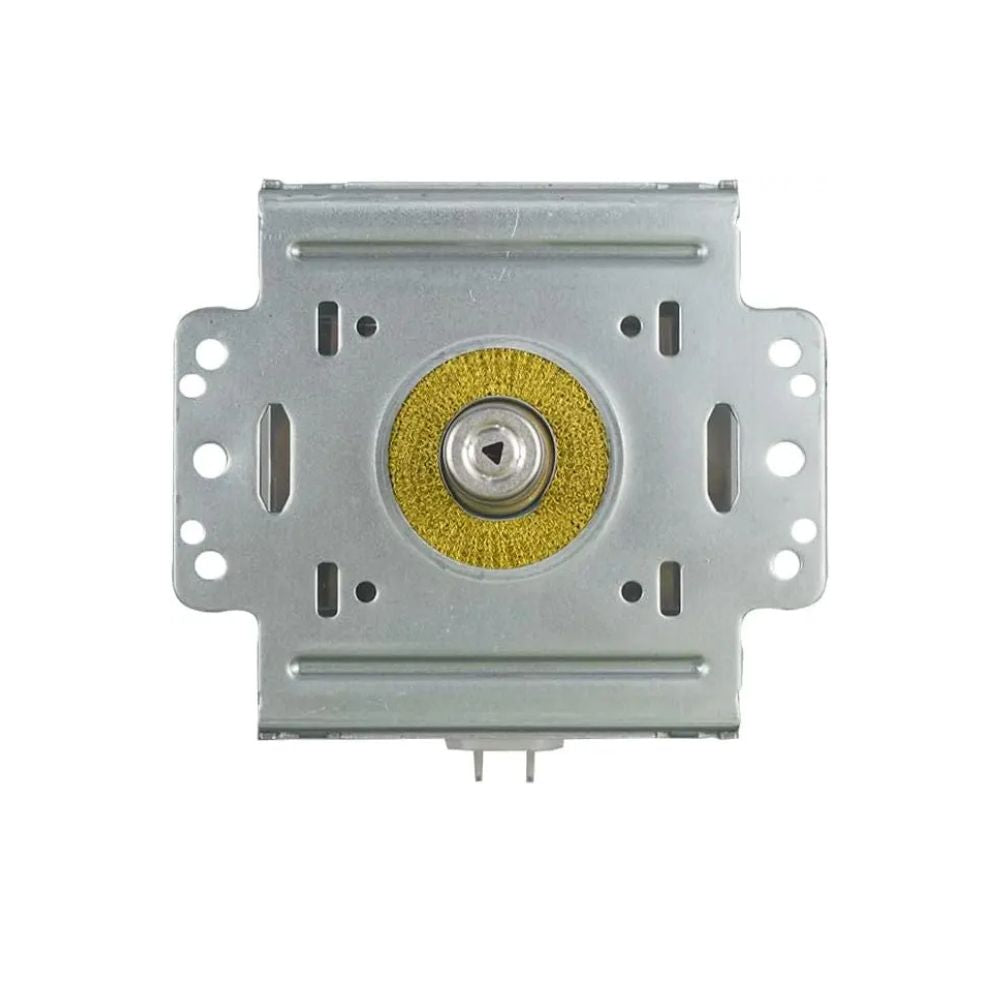

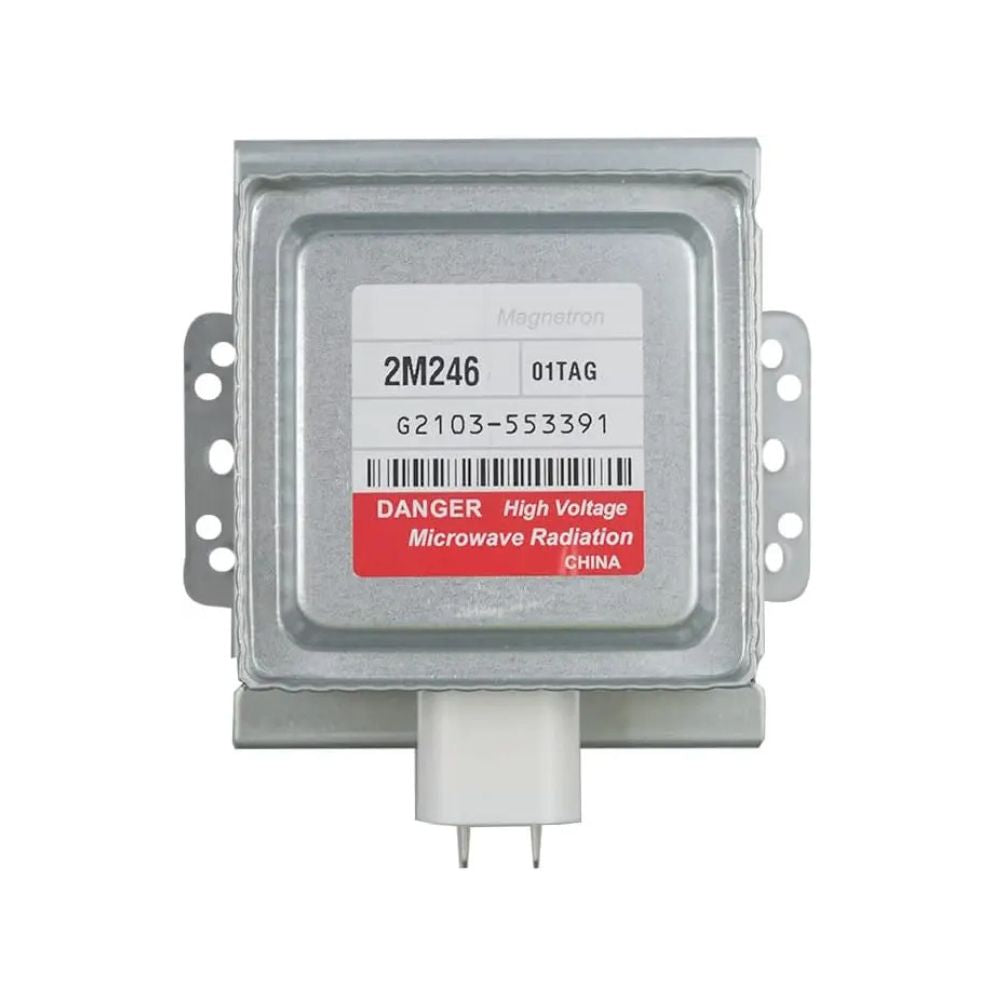

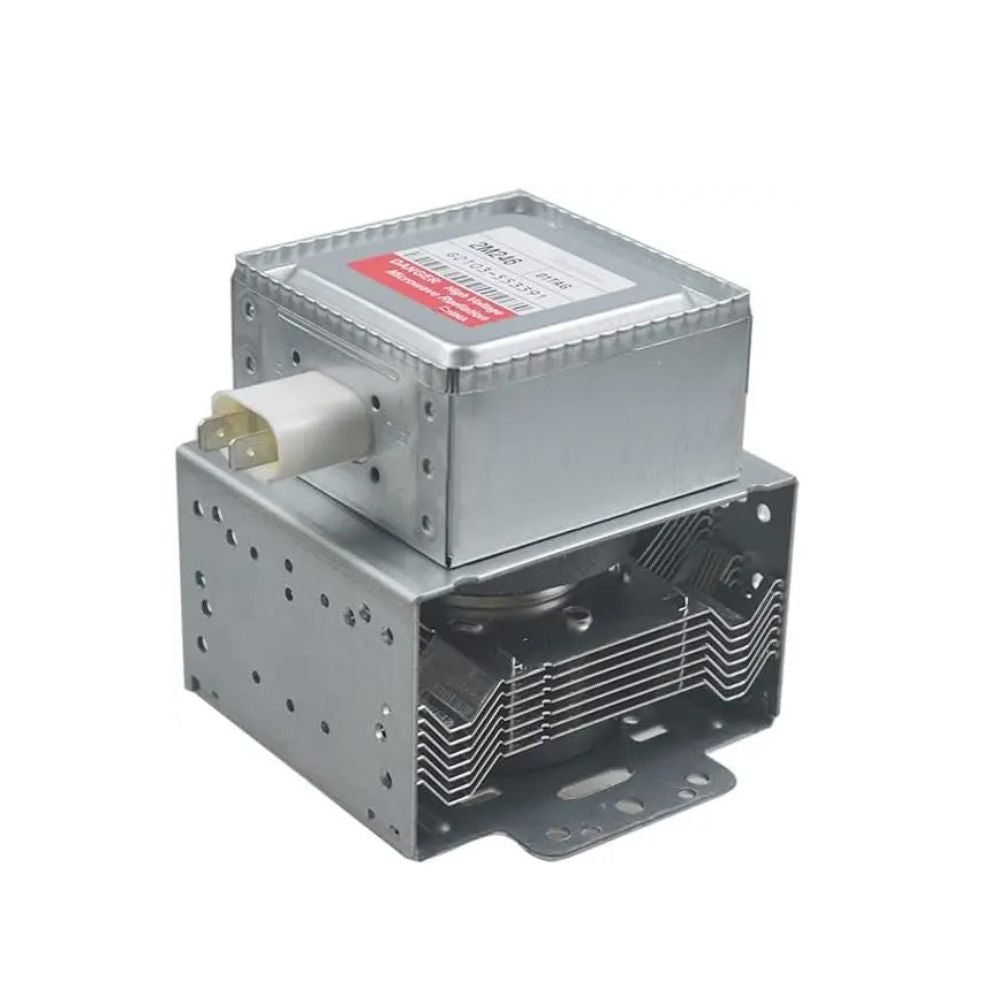

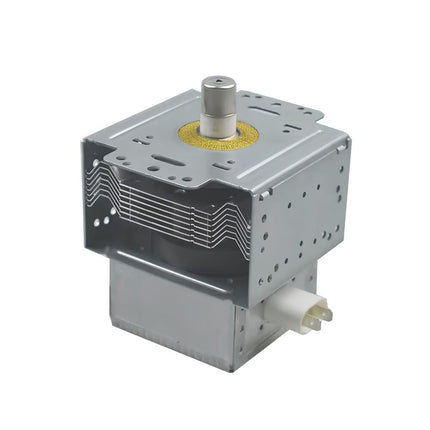

6324W1A001L Genuine LG OEM Microwave Magnetron
The 6324W1A001L is a genuine LG OEM magnetron for microwave ovens and microwave/oven combination units. The magnetron is the component that actually generates the microwave energy used to cook and heat food — it converts high-voltage electrical power into microwave-frequency radiation, which is then directed into the oven cavity by the waveguide to agitate water molecules in your food and produce heat. Without a functioning magnetron, every other part of the microwave can work perfectly — the turntable spins, the display counts down, the fan runs — while the food inside never actually heats up.
This is a genuine LG-manufactured magnetron used not only in LG microwaves but also, under LG's role as a shared component supplier, in microwaves sold under Frigidaire, Whirlpool, Kenmore, GE, Jenn-Air, Thermador, KitchenAid, Panasonic, Goldstar, Crosley, Gaggenau, Amana, and Bosch branding. Measuring approximately 4.5"L x 4.25"W x 5"H. A failed magnetron produces a distinct symptom: the microwave runs normally in every other respect — it powers on, the turntable turns, the timer counts down — but the food inside stays cold. Sparking or arcing behind the waveguide cover, visible burn marks on the magnetron, or a burning smell are also signs of magnetron failure or damage. It directly replaces 6324W1A001A, 6324W1A001B, 6324W1A001E, 6324W1A001H, 6324W1A001Y, AGF76878403, AP4457332, EAS42812905, EAS42812906, EAS42812937, PS3529034, and 1268208.
Quick Answer
The 6324W1A001L Genuine LG OEM Microwave Magnetron fixes microwaves and microwave/oven combos that run normally — turntable spins, display works, timer counts down — but the food never actually heats up. Also fixes sparking or arcing behind the waveguide cover. Approximately 4.5"L x 4.25"W x 5"H. Replaces 6324W1A001A, 6324W1A001B, 6324W1A001E, 6324W1A001H, 6324W1A001Y, AGF76878403, AP4457332, EAS42812905, EAS42812906, EAS42812937, PS3529034, 1268208. Microwaves contain a high-voltage capacitor that stores a dangerous charge even after unplugging — always discharge it before accessing the magnetron.
Common Problems This Part Fixes
- Microwave runs normally — turntable spins, display works, timer counts down — but food doesn't heat up
- Microwave heats very weakly or inconsistently
- Sparking or arcing visible behind the waveguide cover in the oven cavity
- Burning smell coming from the microwave during or after use
- Visible smoke from inside the cavity
- Burn marks or visible damage on the magnetron itself
- Loud humming with no heating effect on food
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This microwave magnetron directly replaces the following OEM and cross-reference part numbers:
6324W1A001L, 6324W1A001A, 6324W1A001B, 6324W1A001E, 6324W1A001H, 6324W1A001Y, AGF76878403, AP4457332, EAS42812905, EAS42812906, EAS42812937, PS3529034, WB26X32629, AP6888676, WB27X26081, WB27X10305, 4930994, WB27X10876.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This magnetron is compatible with select microwaves and microwave/oven combos from a wide range of brands, since LG manufactures this component for use across multiple appliance brands, including:
- LG (including LRM2060ST and LMV2031ST models)
- Kenmore, GE, Frigidaire, Whirlpool, and Amana
- Jenn-Air, KitchenAid, Thermador, Gaggenau, and Bosch
- Panasonic, Goldstar, and Crosley
Note: Even though this magnetron is used across many brands, magnetrons that look similar can have small but important variations in size and shape between models. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
- Genuine LG OEM part — factory-specified microwave frequency output and mounting configuration
- Generates the microwave energy that cooks and heats food
- Resolves "runs but doesn't heat," "weak or inconsistent heating," "sparking behind the waveguide," and "burning smell" symptoms caused by magnetron failure
- Approximately 4.5"L x 4.25"W x 5"H
- Direct drop-in replacement — matches the original mounting bracket and waveguide alignment
- Replaces 6324W1A001A, 6324W1A001B, 6324W1A001E, 6324W1A001H, 6324W1A001Y, AGF76878403, AP4457332, EAS42812905, EAS42812906, EAS42812937, PS3529034, and 1268208
- Widely compatible across LG, Kenmore, GE, Frigidaire, Whirlpool, Jenn-Air, KitchenAid, Thermador, Panasonic, Goldstar, Crosley, Gaggenau, Amana, and Bosch microwaves
- Genuine OEM replacement — guaranteed fit, materials, and performance
- Moderate DIY repair for those comfortable with microwave high-voltage safety procedures
Product Specifications
| Part Number |
6324W1A001L |
| Part Type |
Microwave Magnetron |
| Condition |
Genuine OEM |
| Brand |
LG |
| Application |
Microwave Ovens / Microwave-Oven Combos |
| Function |
Generates the microwave energy used to heat and cook food |
| Dimensions |
Approx. 4.5"L x 4.25"W x 5"H |
| Repair Difficulty |
Moderate — high-voltage discharge required |
| Quantity |
1 magnetron |
| Compatible Brands |
LG, Kenmore, GE, Frigidaire, Whirlpool, Amana, Jenn-Air, KitchenAid, Thermador, Gaggenau, Bosch, Panasonic, Goldstar, Crosley |
Installation Notes
⚠️ Danger — Microwave High-Voltage Capacitor Unplug the microwave before beginning any work. Microwaves contain a high-voltage capacitor that can store a dangerous, potentially lethal electrical charge even after the unit has been unplugged. Before opening the cabinet or touching any internal component, discharge the capacitor using an insulated screwdriver shorted across its terminals — never touch the capacitor or its terminals directly, and never work on a microwave's internals without performing this step first. If you are not fully comfortable and experienced with high-voltage discharge procedures, have a qualified appliance technician perform this repair instead.
⚠️ Test Other High-Voltage Components Before Assuming It's The Magnetron Wear work gloves. After confirming the capacitor is fully discharged, remove the outer cabinet to access the internal components. Before replacing the magnetron, it's worth testing the other high-voltage components — the transformer, diode, and capacitor — since a fault in any of these can produce similar "runs but doesn't heat" symptoms, and replacing the magnetron alone won't fix the problem if one of these other parts has actually failed. Photograph the magnetron's mounting and waveguide connection before removing anything. Disconnect the magnetron's electrical leads, remove the mounting screws securing it to the waveguide assembly, and carefully lift the old magnetron free. Install the new 6324W1A001L in the same orientation, aligning it correctly with the waveguide opening, and secure the mounting screws. Reconnect the electrical leads exactly as they were before removal. Reinstall the outer cabinet, restore power, and test with a cup of water to confirm normal heating without unusual sounds, sparking, or smoke. Tools needed: nut driver or socket set, Phillips screwdriver, insulated screwdriver for capacitor discharge, multimeter (for testing other components), work gloves.
Frequently Asked Questions
My microwave runs but doesn't heat anything. Is this the right part?
It's the most common cause of exactly that symptom. When the turntable spins, the display works, and the timer counts down normally, but food comes out just as cold as it went in, the magnetron has very likely failed. Other high-voltage components (the transformer, diode, or capacitor) can sometimes cause the same symptom, so if you're comfortable testing with a multimeter, it's worth ruling those out first — but a failed magnetron is the single most frequent cause reported for this exact complaint.
Why does the same part fit so many different brands?
LG manufactures magnetrons and other core components that get used across microwaves sold under many different brand names, since several appliance companies share manufacturing platforms or source key parts from the same suppliers rather than building everything in-house. This is a normal and well-documented part of how microwave manufacturing works — it doesn't mean the part is generic or lower quality, just that LG's magnetron design is used broadly across the industry.
I see sparking behind the cover inside the microwave. Is that the magnetron?
It can be. Sparking or arcing behind the waveguide cover, especially with visible smoke or a burning smell, points to damage in the magnetron or the waveguide area. Inspect the magnetron for burn marks once you've safely discharged the capacitor and opened the cabinet — if you see charring or damage, replacement is the correct fix. Stop using the microwave immediately if you notice sparking, smoke, or burning smells.
Do I need any special skills to replace this part?
This is a moderate DIY repair, and the key skill required isn't mechanical — it's safely discharging the microwave's high-voltage capacitor before doing anything else. If you're not fully confident performing that step correctly, this is a good repair to leave to a qualified appliance technician, since the capacitor can hold a dangerous charge even with the unit unplugged.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by LG to factory specifications — guaranteed fit, materials, and performance. It matches the original microwave frequency output, mounting configuration, and dimensions of the magnetron originally installed in your microwave.
