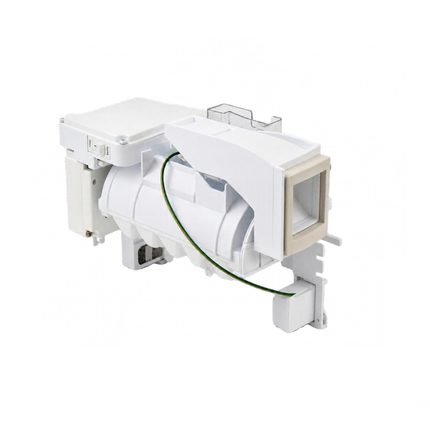

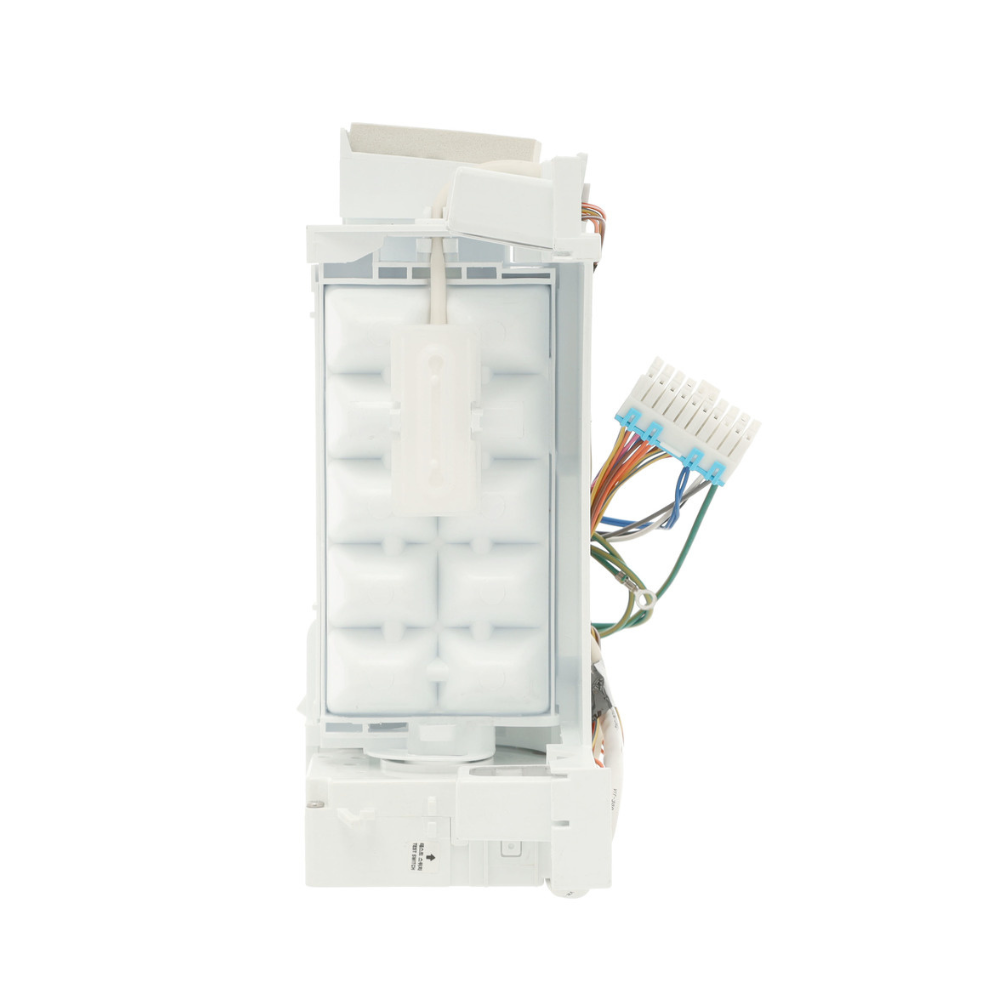

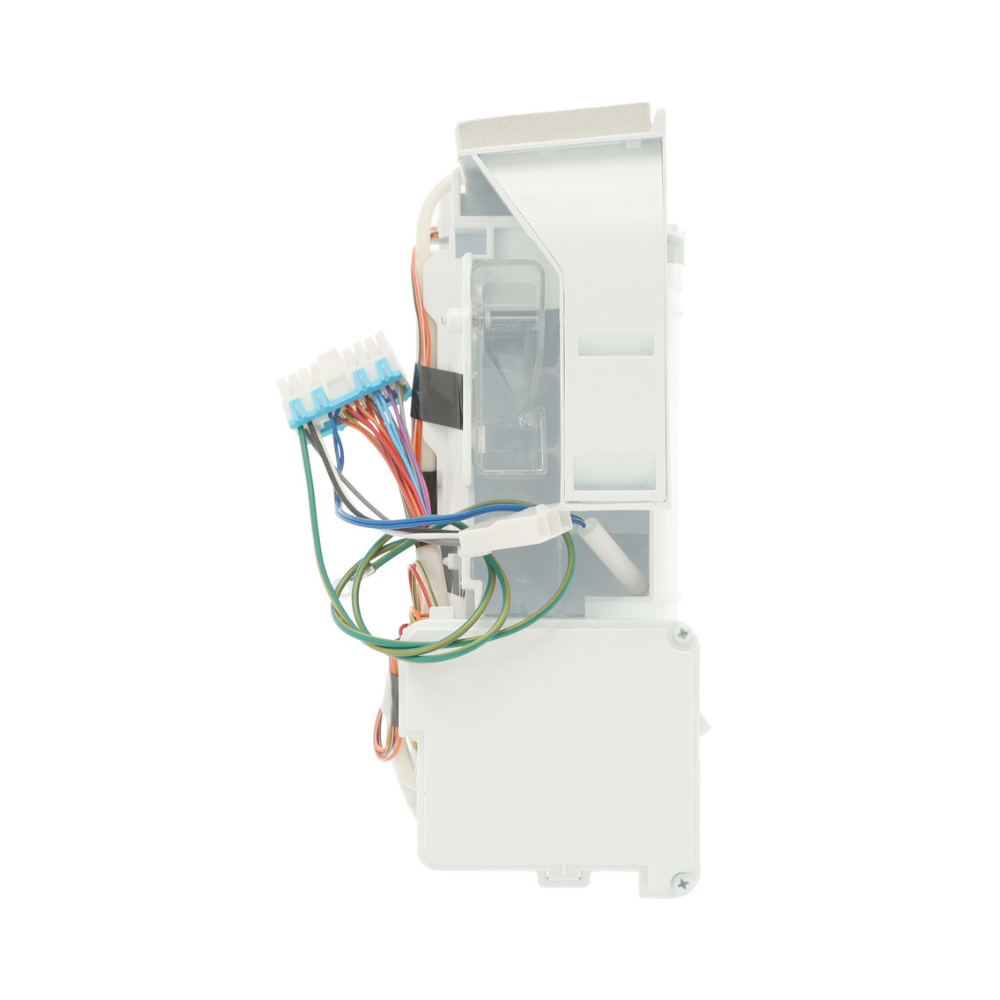

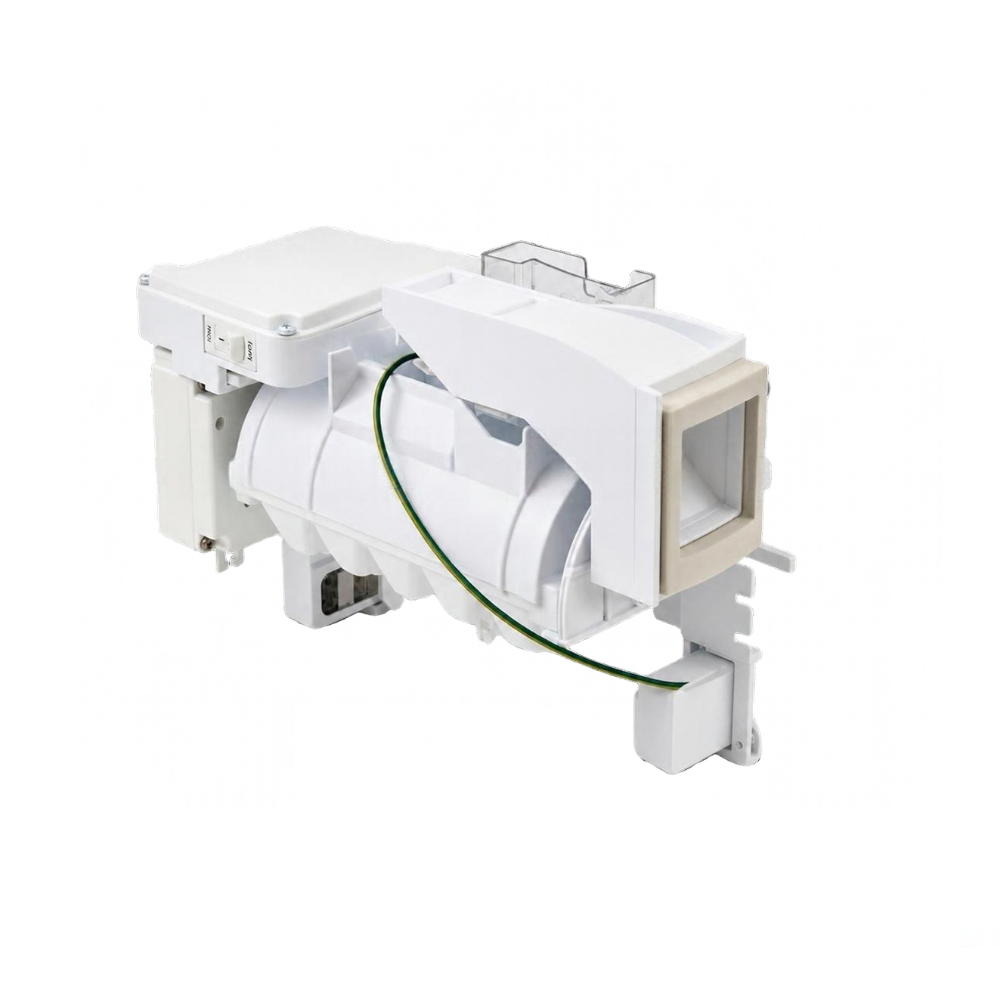

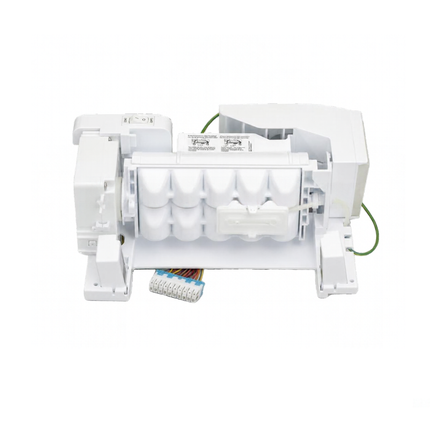

Genuine OEM AEQ72910413 Refrigerator Ice Maker Assembly
The Genuine OEM LG AEQ72910413 is the 10-cube ice maker assembly kit for select LG and Kenmore bottom-mount refrigerators. The ice maker fills a mold with water and freezes it, then a heater warms the mold slightly so the cubes release and are scooped into the storage bin. When it fails, the refrigerator may stop making ice or make small, misshapen cubes.
This is the original LG part, not an aftermarket equivalent. It is sold as an assembly kit. Check your model number before ordering, because LG uses several similar ice makers with different part numbers.
Quick Answer
The Genuine OEM AEQ72910413 10-Cube Ice Maker Assembly replaces the ice maker on a compatible LG or Kenmore bottom-mount refrigerator when it has failed. Classic symptoms: no ice production, the ice maker not filling with water, or small or misshapen cubes.
Common Problems This Part Fixes
- Ice maker not producing ice
- Ice maker not filling with water
- Small or misshapen ice cubes
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This ice maker assembly is listed under the following part number:
AEQ72910413, 2657855, ALG1040192, AP5675950, EAP7788170, PD00039397, PS7788170
If your old ice maker shows a different number, contact our support team and we'll check whether it matches.
Compatibility
This ice maker assembly is listed for LG and Kenmore bottom-mount refrigerators, including these examples:
- LG LFX25974ST, LFXS24623B, LFXS24623D, LFXS24623S, LFXS24623W, LFXS24663S
- Kenmore 79573132410, 79573133410, 79573133411
Note: The models above are a sample, not a full list. LG sells similar-looking ice makers under other part numbers, such as AEQ72910411 and AEQ72910412, and they are not always interchangeable, including the connector. Check your full model number and your old ice maker's number (including that it is a 10-cube ice maker), or contact our support team to verify fit before ordering.
Key Features
- Genuine OEM LG part, not an aftermarket equivalent
- Complete 10-cube ice maker assembly kit
- Fills, freezes and releases the cubes into the storage bin automatically
- Sold as a kit
Product Specifications
| Part Number |
AEQ72910413 |
| OEM Part Number |
AEQ72910413 |
| Part Type |
Refrigerator Ice Maker Assembly Kit |
| Condition |
Genuine OEM |
| Manufacturer |
LG |
| Ice Maker Type |
10-Cube |
| Quantity |
1 Kit |
| Application |
Select LG and Kenmore Bottom-Mount Refrigerators |
Installation Notes
⚠️ Disconnect Power And Water Before Installing Unplug the refrigerator and shut off the water supply before you begin, and wear work gloves. Move any food that could spoil. Remove the ice bucket, then the screws holding the old ice maker, and disconnect its wire connector. Connect the new assembly, secure it with the screws, replace the bucket, restore power and water, and check that it fills and makes ice.
Frequently Asked Questions
My refrigerator isn't making ice. Is this the part I need?
It can be. Check the water supply, the fill line and the water filter first, since a clogged filter can cause small cubes or low ice. If those are fine, the ice maker may have failed.
Is this an OEM or aftermarket part?
This is a genuine OEM part from LG, not an aftermarket equivalent.
Does this replace AEQ72910412 or AEQ72910411?
No. It does not replace AEQ72910412 or AEQ72910411, which are separate LG ice makers. Match the part number on your old ice maker or contact our support team and we'll check it.
Will this fit my refrigerator?
It is listed for select LG and Kenmore bottom-mount models, but the model list above is only a sample. Check your full model number against your parts diagram, or contact our support team and we'll verify it before you order.
