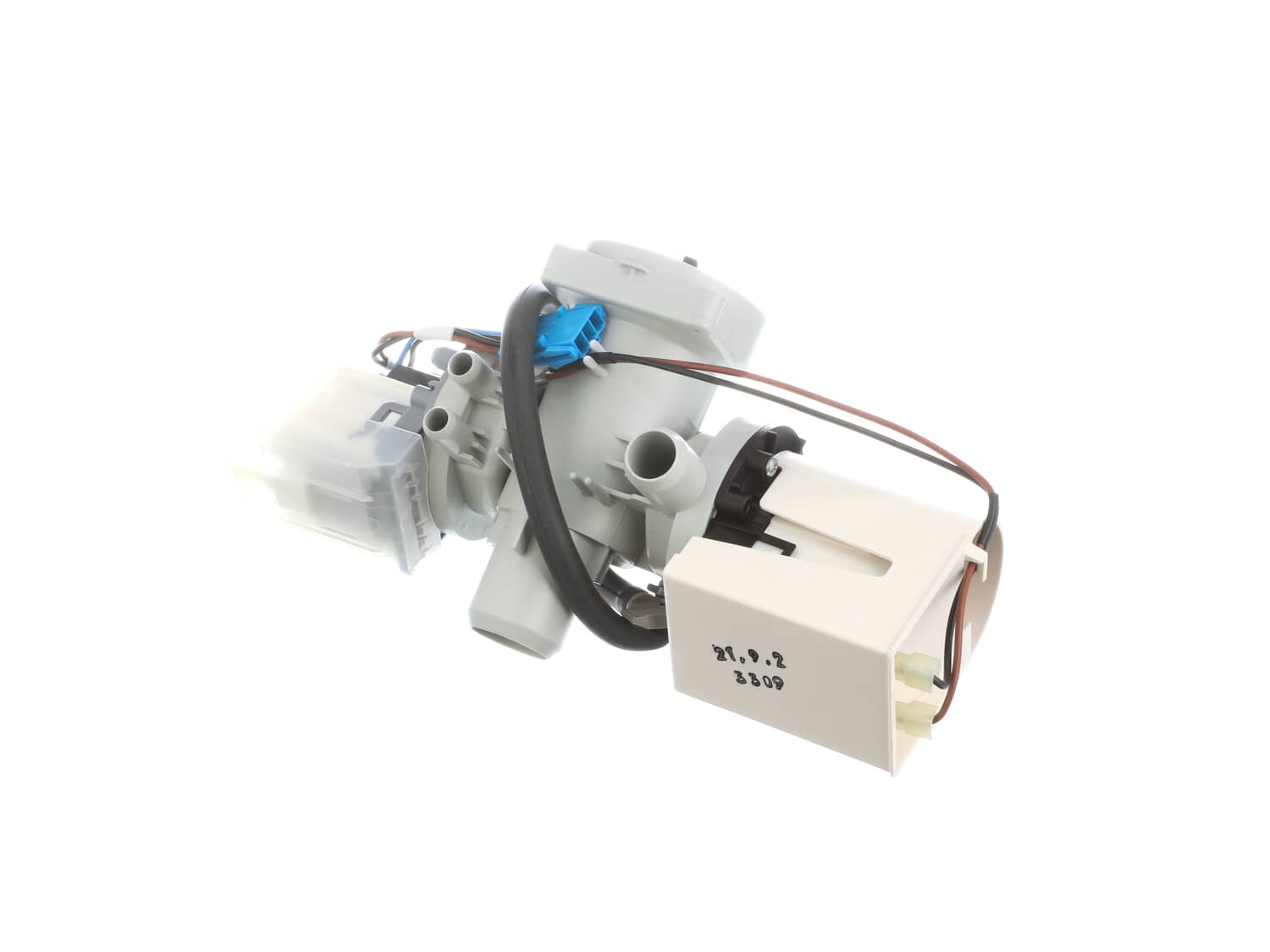

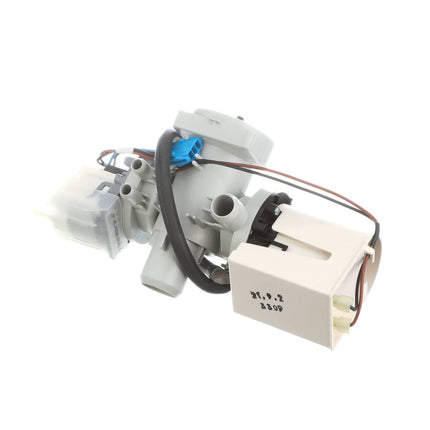

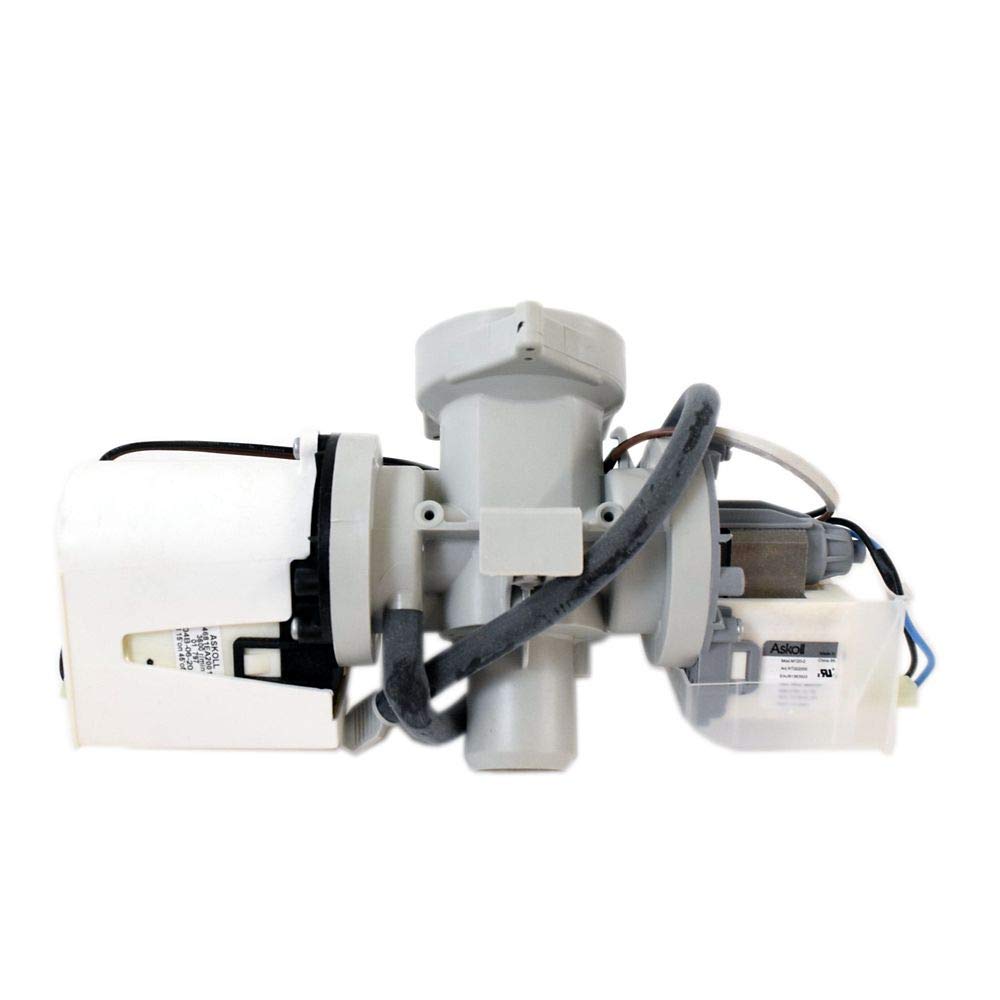

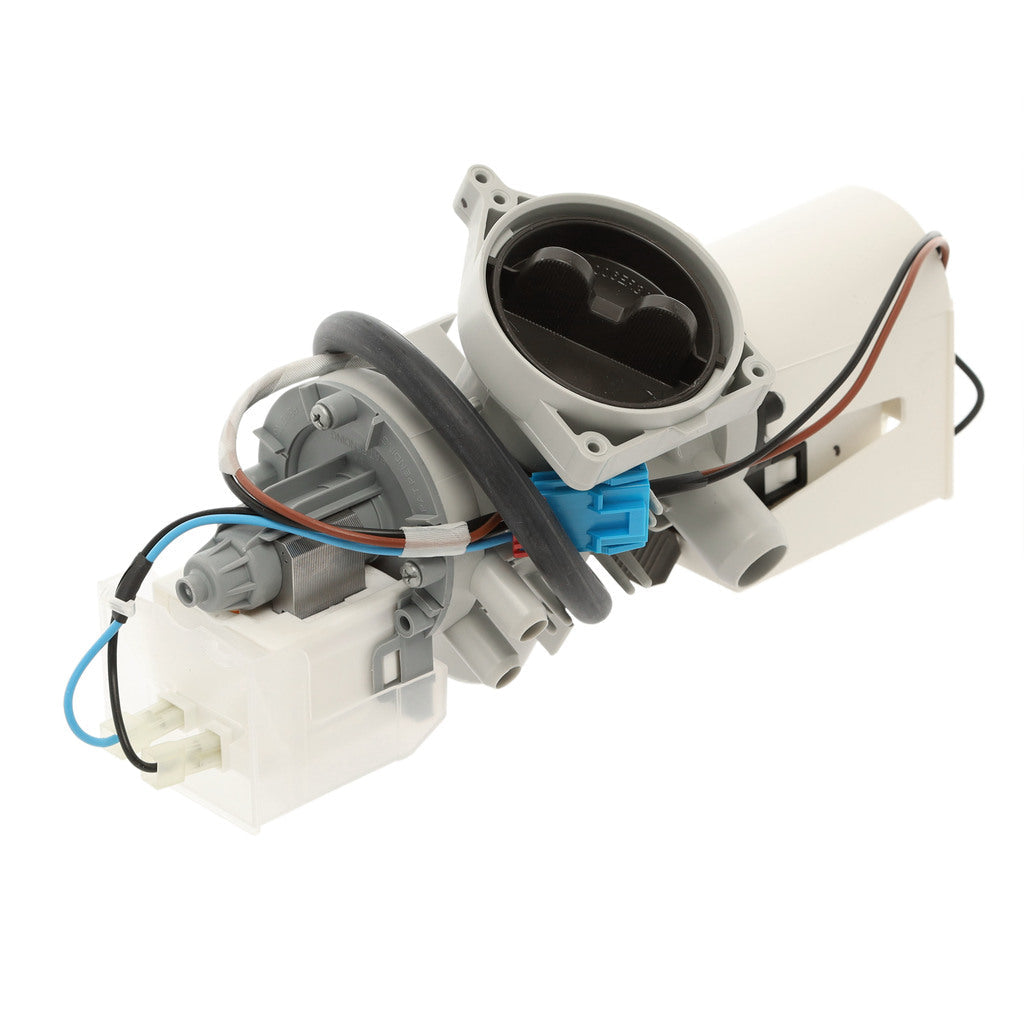

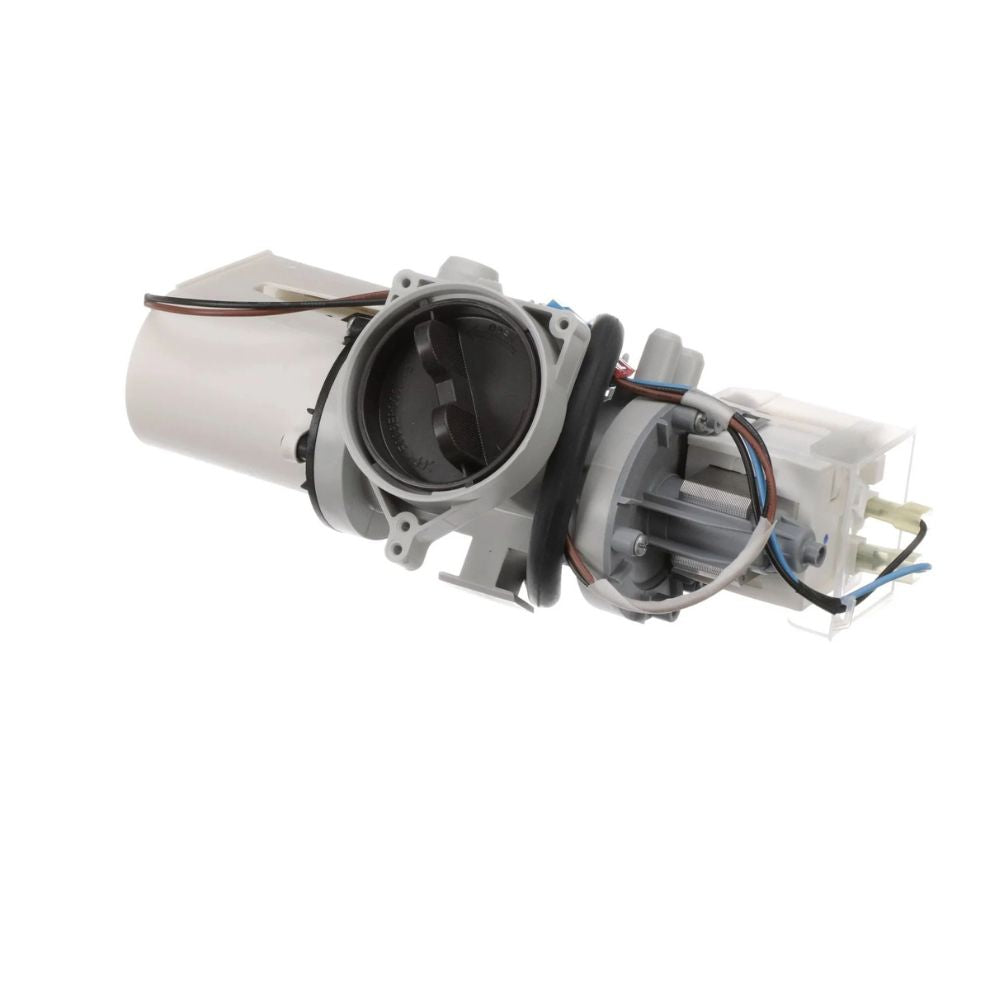

AHA72973309 Genuine OEM LG Washer Drain & Circulation Pump Assembly
The AHA72973309 is a genuine LG OEM drain and circulation pump assembly for LG and select Kenmore front-load washers. This is a dual-purpose pump — an Askoll M120-2 unit — that handles two separate jobs from one motor and housing. During the drain portion of the cycle, it pumps wastewater out of the tub and out through the drain hose. During the wash and rinse portions, it switches roles and recirculates water from the bottom of the tub back up through the dispenser and spray nozzle, showering it back over the load. That recirculation spray is what lets LG's front-load washers clean effectively with less water than an older top-load design would need.
Because this single assembly performs both functions, a failure here can show up in more than one way: standing water left in the tub after a cycle, a washer that won't complete its drain step, unusual grinding or humming noise, or reduced wash performance if the recirculation spray isn't working even though draining still seems fine. Common causes include debris such as coins, buttons, or lint lodged in the impeller, general wear and tear on the motor bearings, or an electrical failure in the pump motor itself. It directly replaces AP5676608, 2659237, AHA72973304, and PS7788830. As a genuine OEM part, the AHA72973309 is manufactured by LG to factory specifications — guaranteed fit, materials, and performance.
Quick Answer
The AHA72973309 Genuine OEM LG Washer Drain & Circulation Pump Assembly fixes LG and select Kenmore front-load washers with standing water left in the tub after a cycle, a washer that won't drain, unusual grinding or humming noise, or reduced wash performance from a weak recirculation spray. Askoll M120-2 dual-purpose pump — handles both draining and mid-cycle water recirculation. Replaces AP5676608, 2659237, AHA72973304, PS7788830. Installation is average difficulty, 30 to 60 minutes — and on many models it's accessible through the front panel without needing to tip the washer over.
Common Problems This Part Fixes
- Standing water left in the tub after a cycle finishes
- Washer won't drain, or drains very slowly
- Drainage-related error code displayed on the control panel
- Unusual grinding, humming, or rattling noise during the drain or wash portion of the cycle
- Reduced wash performance — clothes not getting as clean, possibly from a weak recirculation spray
- Washer stalling mid-cycle at the drain step
- Water leaking from underneath the washer near the pump housing
- Pump that hums but doesn't seem to move water — possible clog or seized impeller
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer drain and circulation pump assembly directly replaces the following OEM and cross-reference part numbers:
AHA72973309, AHA72973304, AP5676608, 2659237, ALG53336, PD00024680, PS7788830
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drain and circulation pump assembly is compatible with select LG front-load washers, and also fits select Kenmore and Kenmore Elite front-load washers built on the LG platform.
Note: This is a dual-function drain-and-circulation assembly specific to LG's front-load platform, built around the Askoll M120-2 pump. It is not a drain-only pump, and it is not intended for top-load washers, which use a different pump design. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
- Genuine LG OEM part — factory-specified motor, impeller, and housing design
- Dual-purpose Askoll M120-2 pump — drains the tub and recirculates wash water through the dispenser spray nozzle
- Resolves "standing water in the tub," "won't drain," "grinding or humming noise," and "reduced wash performance" symptoms caused by pump failure
- Includes all necessary wiring and mounting hardware for a complete replacement
- Direct drop-in replacement — no modification required
- Replaces AP5676608, 2659237, AHA72973304, and PS7788830
- Compatible with LG and select Kenmore/Kenmore Elite front-load washers
- Genuine OEM replacement — guaranteed fit, materials, and performance
- Average installation difficulty — typically 30 to 60 minutes
Product Specifications
| Part Number |
AHA72973309 |
| Part Type |
Washer Drain & Circulation Pump Assembly |
| Condition |
Genuine OEM |
| Brand |
LG |
| Pump Model |
Askoll M120-2 |
| Function |
Drains tub water and recirculates wash water through the dispenser spray |
| Kit Contents |
Pump assembly with wiring and mounting hardware |
| Application |
Front-Load Washers (LG-Built) |
| Repair Difficulty |
Average — 30 to 60 minutes |
| Quantity |
1 pump assembly |
| Compatible Brands |
LG, select Kenmore, Kenmore Elite |
Installation Notes
⚠️ Unplug Washer And Shut Off Water Before Starting — Drain Residual Water First Disconnect power at the outlet or shut off the circuit breaker, and close the water supply valves before beginning. Wear work gloves. Place towels down and have a shallow pan ready, since the pump housing will hold residual water even after a completed cycle — draining this into a pan before disconnecting hoses will save you a mess. On many models, this pump is fully accessible by removing the front lower access panel or kick plate, without needing to tip the washer onto its back — check this first, since it can save significant time and effort compared to some online guides that recommend tipping the unit. Photograph the hose routing and wiring connections before disconnecting anything. Disconnect the two hose clamps connecting the pump to the tub and drain hose, and unplug the electrical connector from the pump motor. Remove the mounting screws or clips securing the pump assembly and lift it free, checking the impeller area for coins, buttons, or debris while it's out — clearing a clog here may have been the actual cause of the original symptom. Install the new AHA72973309 in the same orientation, reconnect both hoses with their clamps, and reconnect the electrical connector fully. Reinstall the front access panel, restore water and power, and run a short cycle to confirm normal draining, recirculation spray, and no leaks around the pump housing. Tools needed: Phillips screwdriver, hose clamp pliers, shallow pan or towels, work gloves.
Frequently Asked Questions
Do I really need to tip the washer over to replace this pump?
Not necessarily — check your model first. While a lot of general online guidance recommends tipping the washer onto its back to access the pump from underneath, many LG and Kenmore Elite front-load models make this pump fully accessible through the front lower access panel or kick plate instead, without any tipping required. It's worth removing that panel first and seeing what you find before committing to the more involved tip-over approach.
Why does this one pump handle both draining and something during the wash cycle?
LG's front-load washers use this same Askoll pump for two different jobs at different points in the cycle: pumping wastewater out during the drain step, and recirculating water from the bottom of the tub back up through the dispenser and spray nozzle during wash and rinse to shower it over the load. That recirculation spray is part of how these washers clean effectively while using less water than an older top-load design. Because one pump does both jobs, a failure can affect draining, wash performance, or both, depending on what's actually gone wrong inside it.
There's water left in the tub after every cycle. Is this definitely the pump?
It's one of the most common causes, but check the easy things first. A clogged drain filter or a kinked drain hose can produce the same "won't drain" symptom and cost nothing to fix. If the filter and hose are clear and water is still standing in the tub, or if the pump hums but doesn't seem to move any water, the pump assembly itself has likely failed.
My washer drains fine but clothes aren't coming out as clean. Could this pump be the cause?
Possibly. Since this same assembly also handles the recirculation spray during wash, a partial failure can leave draining intact while weakening or eliminating that spray function, which reduces how effectively detergent and water reach the load. If drainage is normal but wash performance has noticeably declined, it's worth having this pump checked as one possible cause alongside things like detergent dosing and water hardness.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by LG to factory specifications — guaranteed fit, materials, and performance. It includes the same Askoll M120-2 dual-function pump design, wiring, and mounting configuration as the drain and circulation pump assembly originally installed in your front-load washer.
