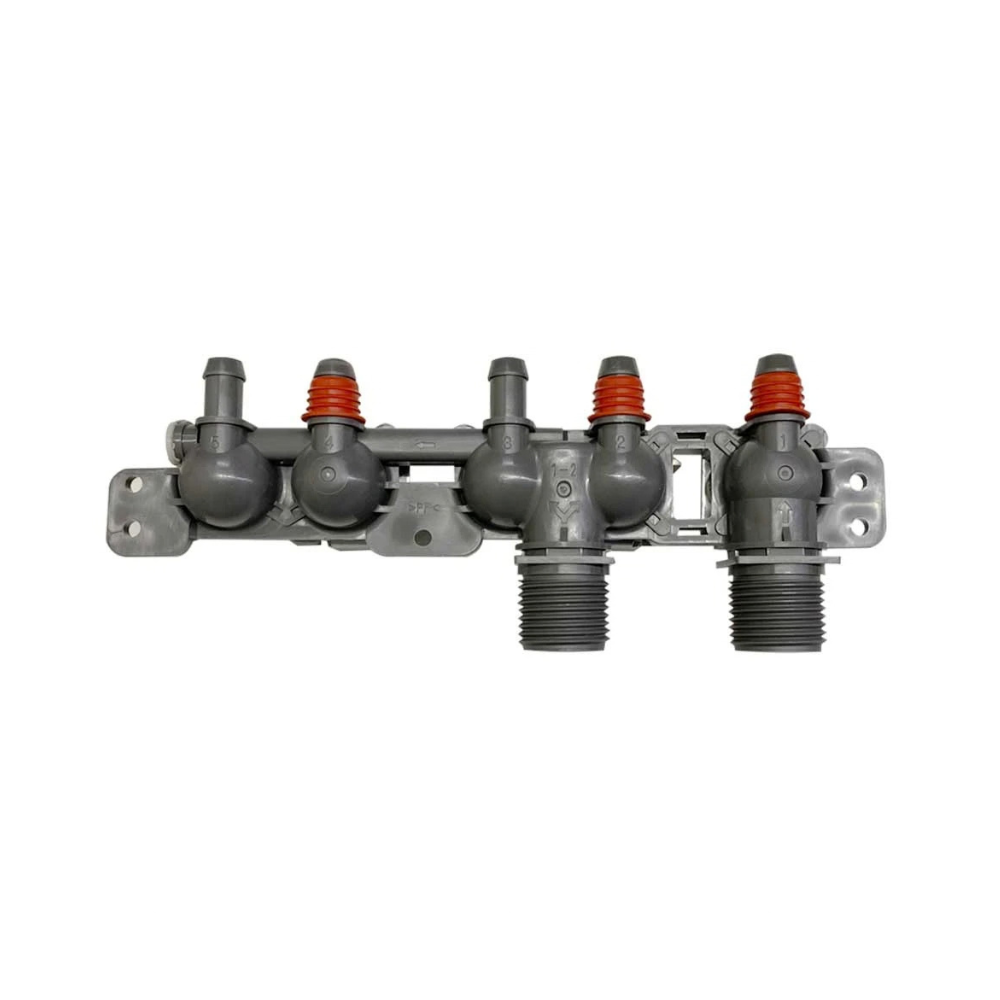

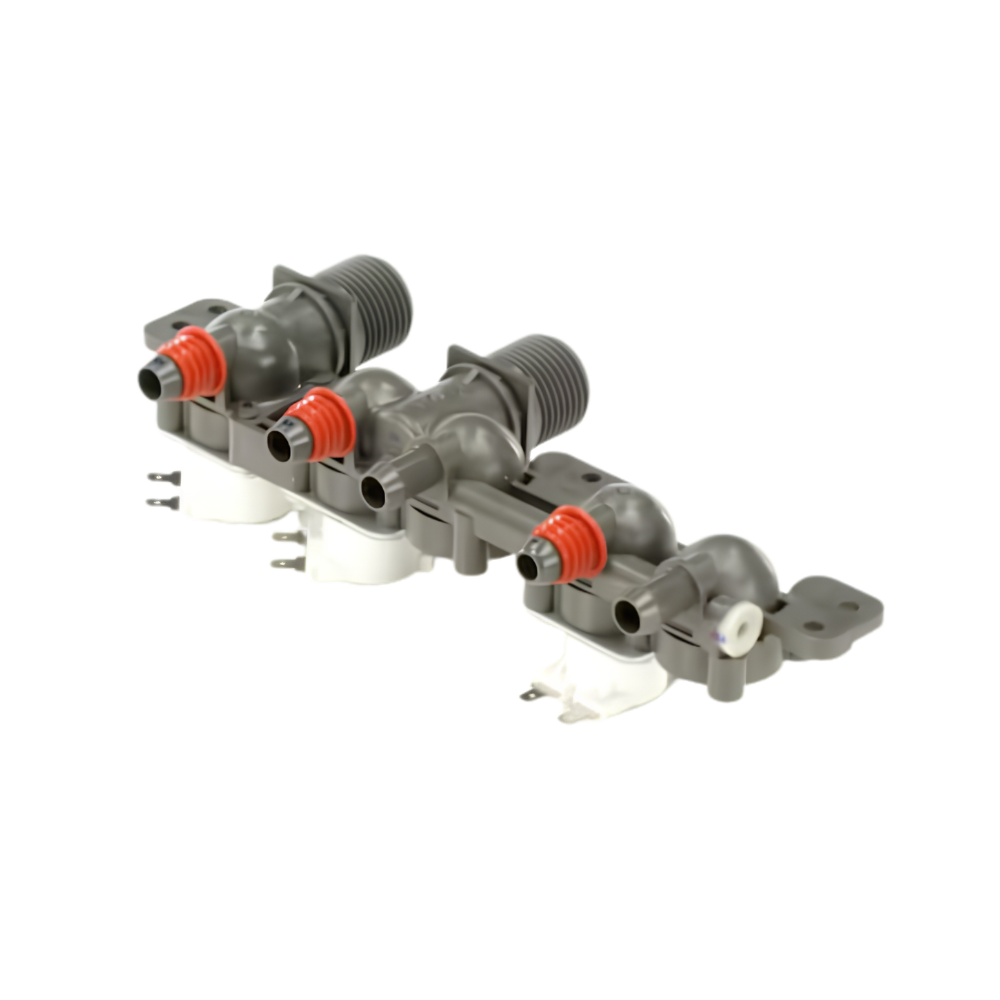

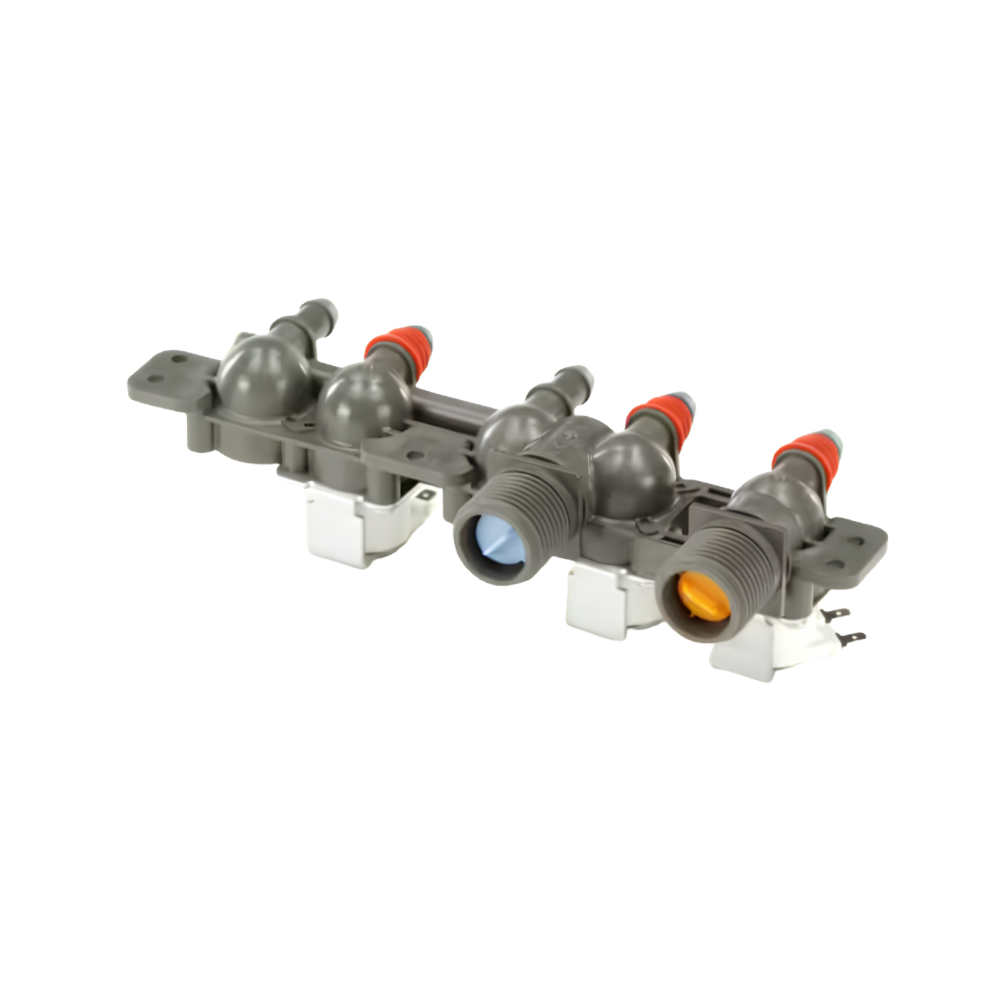

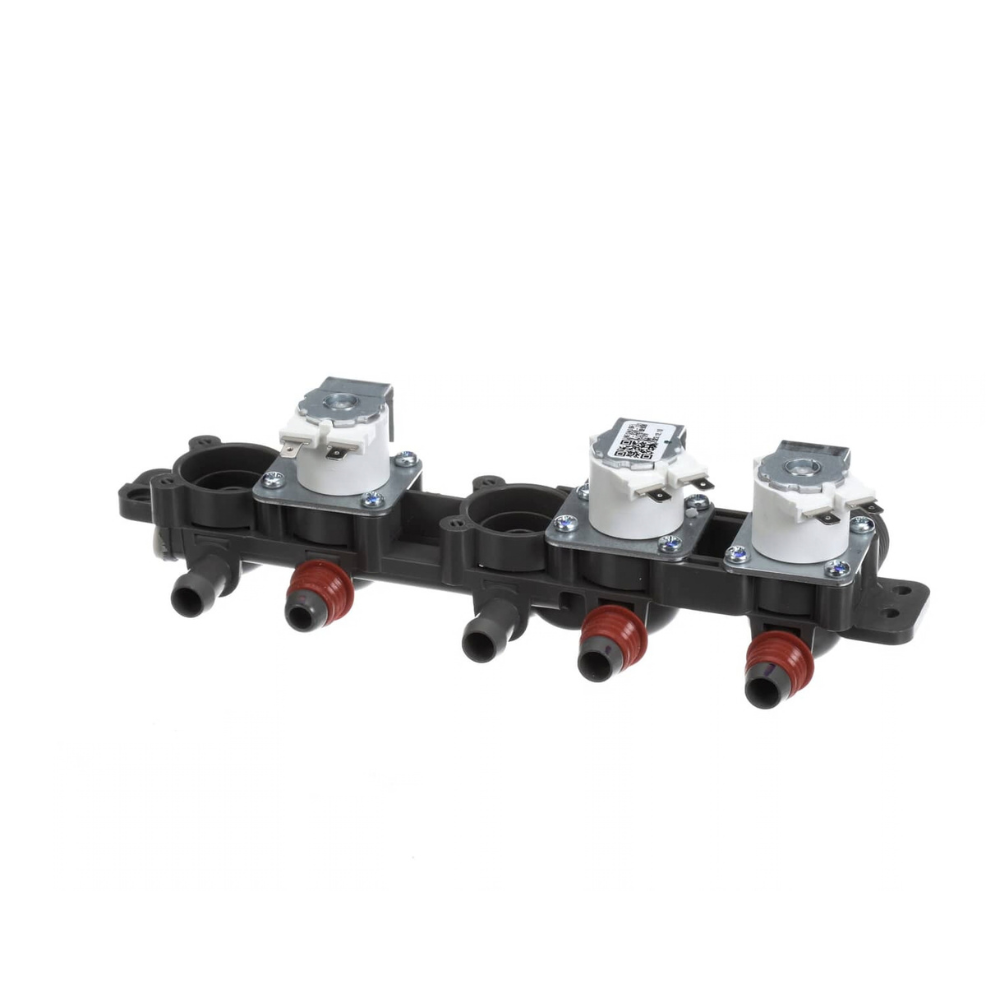

AJU75152606 Genuine OEM LG Washer Water Inlet Valve Assembly
The AJU75152606 is a genuine LG OEM water inlet valve assembly for LG top-load agitator washing machines. This assembly connects to the washer's hot and cold water supply and controls the flow of water into the tub during the fill portion of the wash and rinse cycles — electrical signals from the control system open and close the appropriate water passage, filling the tub to the correct level and shutting off once it's reached.
This electric-powered valve assembly is finished in gray, designed for freestanding installation, and rated for an 8 lb capacity washer. Common causes of failure include mineral buildup or debris restricting flow through the valve, or general electrical wear in the solenoid coils. Symptoms of a failing valve include the washer not filling with water, hose leaks at the connections, the valve not opening fully, or reduced flow rate from internal buildup. Replacing this assembly requires removing the control panel and main top of the washer — a moderate difficulty repair. It directly replaces AP7005965.
Quick Answer
The AJU75152606 Genuine OEM LG Washer Water Inlet Valve Assembly fixes LG top-load agitator washers that won't fill with water, are leaking at the hose connections, or have reduced flow from internal buildup. Gray, electric-powered, 8 lb capacity rating. Replaces AP7005965. Not the same as the similarly-numbered AJU75152602 valve, which is used on different LG WT7000-series models — confirm your exact part number before ordering.
Common Problems This Part Fixes
- Washer not filling with water
- Hose leaks at the valve connections
- Valve not opening fully, restricting water flow
- Reduced flow rate from mineral buildup or debris
- Overflow or filling problems from inconsistent water pressure
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
AJU75152606, ALG53799, AP7005965, EAP16547657, PD00074631, PS16547657
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This water inlet valve assembly is compatible with select LG top-load agitator washing machines, including model numbers such as WT7000CW, WT7005CW, WT6100CW, WT6105CM, WT6105CW, T14A4SEHTW, T1490SEHTW, T15A4SEHT2, T1590SEHTW, T15A4SEHTW, T14A4SEHTC, T1490SEHTC, and T14A4SEHBW.
Note — not the same as AJU75152602: A similarly-numbered valve, AJU75152602, is a separate part used on other LG WT7000-series models (WT7100CW, WT7150CW, WT7300CV, WT7300CW, WT7400CW, WT7400CV, WT7405CV, WT7405CW, WT7800CW, WT7800CV, WT7900HBA, WT7155CW). The two numbers are easy to confuse given how close they are — always confirm the exact part number from your appliance or parts diagram before ordering. Contact our support team with your model number if you're unsure which valve your washer needs.
Key Features
- Genuine LG OEM part — factory-specified solenoid design and flow rate
- Regulates hot and cold water flow into the tub during fill
- Resolves "won't fill," "hose leaks," "valve not opening fully," and "reduced flow" symptoms caused by valve failure
- Electric-powered, gray finish
- Designed for freestanding installation
- Rated for 8 lb capacity washers
- Direct drop-in replacement — matches the original mounting and hose connections
- Replaces AP7005965
- Compatible with LG top-load agitator washing machines
- Genuine OEM replacement — guaranteed fit, materials, and performance
Product Specifications
| Part Number |
AJU75152606 |
| Part Type |
Washer Water Inlet Valve Assembly |
| Condition |
Genuine OEM |
| Brand |
LG |
| Application |
Top-Load Agitator Washing Machines |
| Color |
Gray |
| Power Type |
Electric |
| Installation Type |
Freestanding |
| Capacity Rating |
8 lb |
| Repair Difficulty |
Moderate — requires control panel and main top removal |
| Quantity |
1 valve assembly |
| Compatible Brand |
LG |
Installation Notes
⚠️ Unplug Washer And Shut Off Water Supply Before Starting Disconnect power at the outlet or shut off the circuit breaker, and shut off the water supply before beginning. Wear work gloves. Remove the washer's control panel and main top to access the inlet valve — this is a moderate difficulty repair due to the disassembly involved. Photograph the wiring and hose connections before disconnecting anything. Disconnect the water hoses and wiring connectors from the old valve. Unscrew and remove the old inlet valve assembly. Position the new AJU75152606 in the same location and secure it with screws. Reconnect the water hoses and wiring connectors fully. Reassemble the main top and control panel. Restore the water supply and power, then run a test cycle to confirm the washer fills correctly with no leaking at the hose connections. Tools needed: Phillips screwdriver, pliers, work gloves.
Frequently Asked Questions
My washer isn't filling with water. Is this the right part?
Yes, this is the most direct symptom of a failed water inlet valve. Since this valve is what admits water from your household supply into the washer, a solenoid failure, mineral buildup, or debris can prevent water from entering properly, stopping the wash cycle from proceeding.
Is this the same as AJU75152602?
No, these are two separate LG valve part numbers used on different washer model series, despite the similar numbering. Always confirm the exact part number from your washer's parts diagram or the sticker on your old valve rather than assuming based on a close number match.
Is this a difficult repair?
It's a moderate difficulty repair, since it requires removing the washer's control panel and main top to access the valve. Basic hand tools are sufficient, but budget more time than you would for a simpler part swap.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by LG to factory specifications — guaranteed fit, materials, and performance. It matches the original solenoid design, flow rate, and connection type of the water inlet valve originally installed in your washer.
