Choice W10515057 Refrigerator LED Light & Cover Replaces WPW10515057

Description

Choice Refrigerator Replacement Part

Choice W10515057 Refrigerator LED Light & Cover Replaces WPW10515057

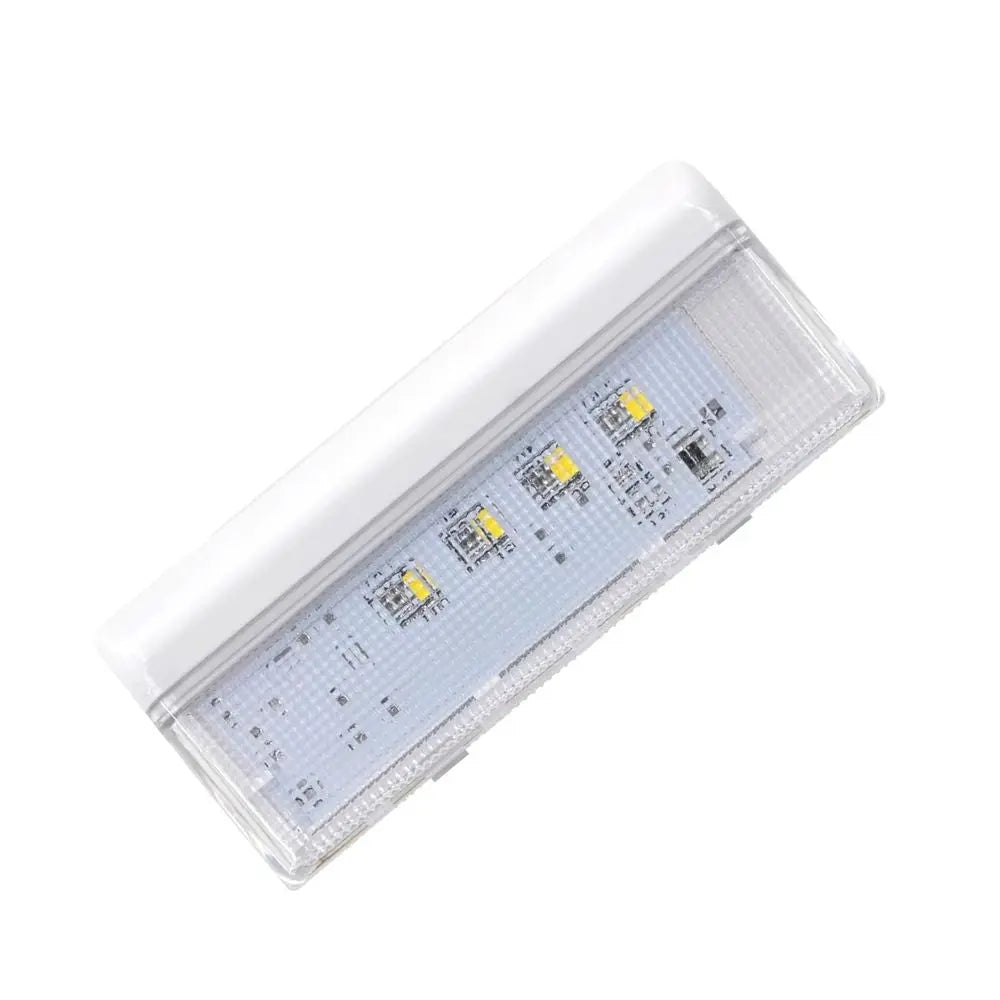

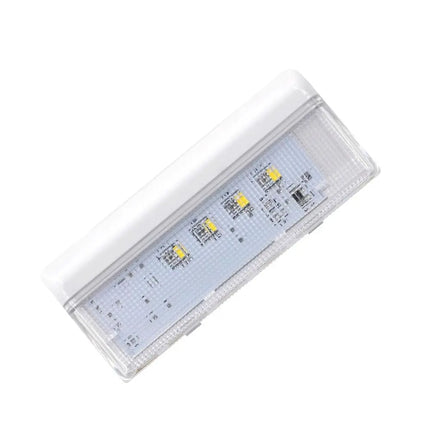

Aftermarket 1-plug LED light module with tapered lens/cover for select Whirlpool-family side-by-side refrigerators.

Product Overview

The Choice W10515057 Refrigerator LED Light & Cover is an aftermarket replacement for Whirlpool WPW10515057. The assembly combines the LED light module with its tapered lens/cover to restore interior refrigerator illumination.

This part is commonly used in select Whirlpool, Maytag, KitchenAid, Kenmore, and related side-by-side refrigerators.

Quick Answer

W10515057 / WPW10515057 is the 1-plug LED light and tapered lens/cover assembly. If your refrigerator uses a similar LED with 2 electrical plugs, verify the model before ordering because the related WPW10515058 configuration is different.

Common Problems This Part May Fix

  • Refrigerator interior light does not turn on
  • LED light flickers or flashes
  • Interior lighting is dim or intermittent
  • Existing LED lens/cover is damaged
  • One compartment light causes other linked LEDs to flicker

Replaces and Cross-References

WPW10515057, W10515057, W10398007, AP6022533, AWP51164, EAP11755866, OEM18067608, PD00031142, PS11755866

Cross-reference numbers are provided for identification. Choice is an aftermarket replacement brand and is not manufactured by Whirlpool Corporation.

Compatibility

Fits select Whirlpool, Maytag, KitchenAid, Kenmore, IKEA, and related refrigerator models. Verified examples include:

WRS325FDAD02
WRS322FDAB00
WRS322FDAM04
WRS331FDDB00
WRS335FDDW01
WRS342FIAB04
WRS537SIAM00
KSF22C4CYY01
MSF25D4MDE03
ISF25D2XBM01
106.41159212
106.51124211

Important: This is only a partial compatibility list. Verify the complete refrigerator model number and the connector configuration before ordering.

Key Features

  • Quality Choice aftermarket replacement
  • Replaces Whirlpool WPW10515057
  • LED light module with tapered lens/cover
  • 1-plug electrical configuration
  • White bezel / cover design
  • Direct plug-in replacement on compatible models

Product Specifications

Choice Part Number W10515057CM
Replaces OEM Number WPW10515057
Part Type Refrigerator LED Light & Cover Assembly
Connector 1 electrical plug / 2-pin style connection
Lens Style Tapered lens/cover
Color White bezel
Condition New
Part Quality Aftermarket Replacement

Installation Notes

  1. Disconnect refrigerator power before servicing.
  2. Locate the failed LED module and gently release the lens/bezel retaining tabs.
  3. Disconnect the existing electrical plug without pulling on the wires.
  4. Compare the connector and mounting shape with the replacement before installation.
  5. Connect the replacement LED module and snap the assembly securely into place.
  6. Restore power and confirm normal illumination.

Diagnostic note: On some Whirlpool-family refrigerators, multiple LED modules are connected in the lighting circuit. One failed module can cause other lights to flicker or remain off. Verify the failed module before replacing parts.

Frequently Asked Questions

Does this include the LED light and cover?

Yes. This listing is for the W10515057-style LED light module with its tapered lens/cover assembly.

Does this replace WPW10515057?

Yes. This Choice part is designed as an aftermarket replacement for WPW10515057 and earlier W10515057/W10398007 references.

What is the difference between WPW10515057 and WPW10515058?

WPW10515057 uses the 1-plug configuration. WPW10515058 is a different related LED configuration with 2 electrical plugs. Verify your refrigerator model and original connector before ordering.

Is this a Genuine Whirlpool OEM part?

No. This is a new Choice aftermarket replacement designed to replace the listed OEM part numbers.

Shop With Confidence

Verify the complete refrigerator model number before ordering. Our compatibility team can help confirm whether W10515057 / WPW10515057 is the correct LED module for your appliance.

Choice Replacement LED Light + Cover 1-Plug Configuration Compatibility Support
Product form

Choice W10515057 Refrigerator LED Light & Cover Replaces WPW10515057

Free Pickup in In Stock Parts-O-Matic - WB Store 1820 Featherstone Road Woodbridge, VA 22191 Usually ready in 1 hour
Online Shipped Price $32.00 List Price $21.65You Save: $10.35Delivered to your address
Store Walk-In
Discounted Price $17.53Walk-In Savings: $4.12In-store purchase only — not valid for online checkout
✓ IN STOCK
Ships Today if ordered within --:--:--
Free Pickup in our Store • Usually ready in 1 hour
Pickup Store: Parts-O-Matic — Woodbridge, VA
  • Shipped today? Order within: Oct 16, 2026 14:00:00 -0400
