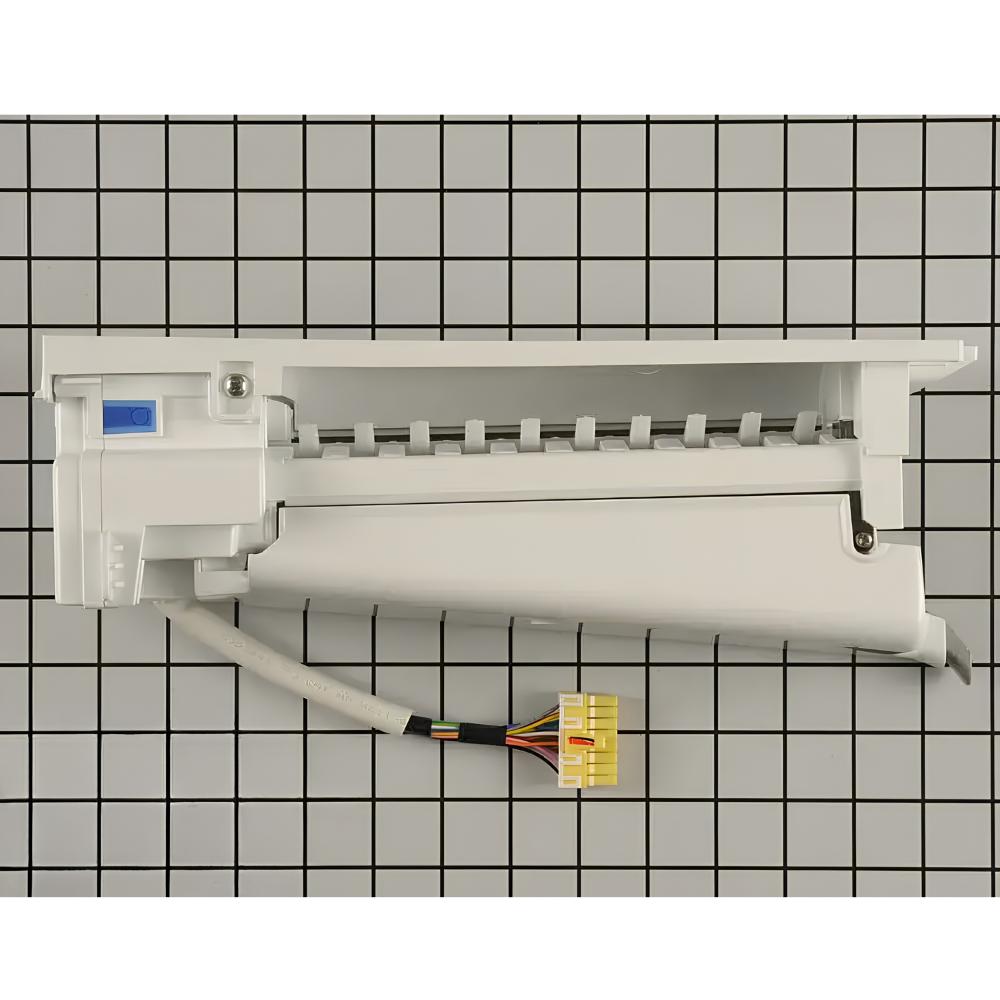

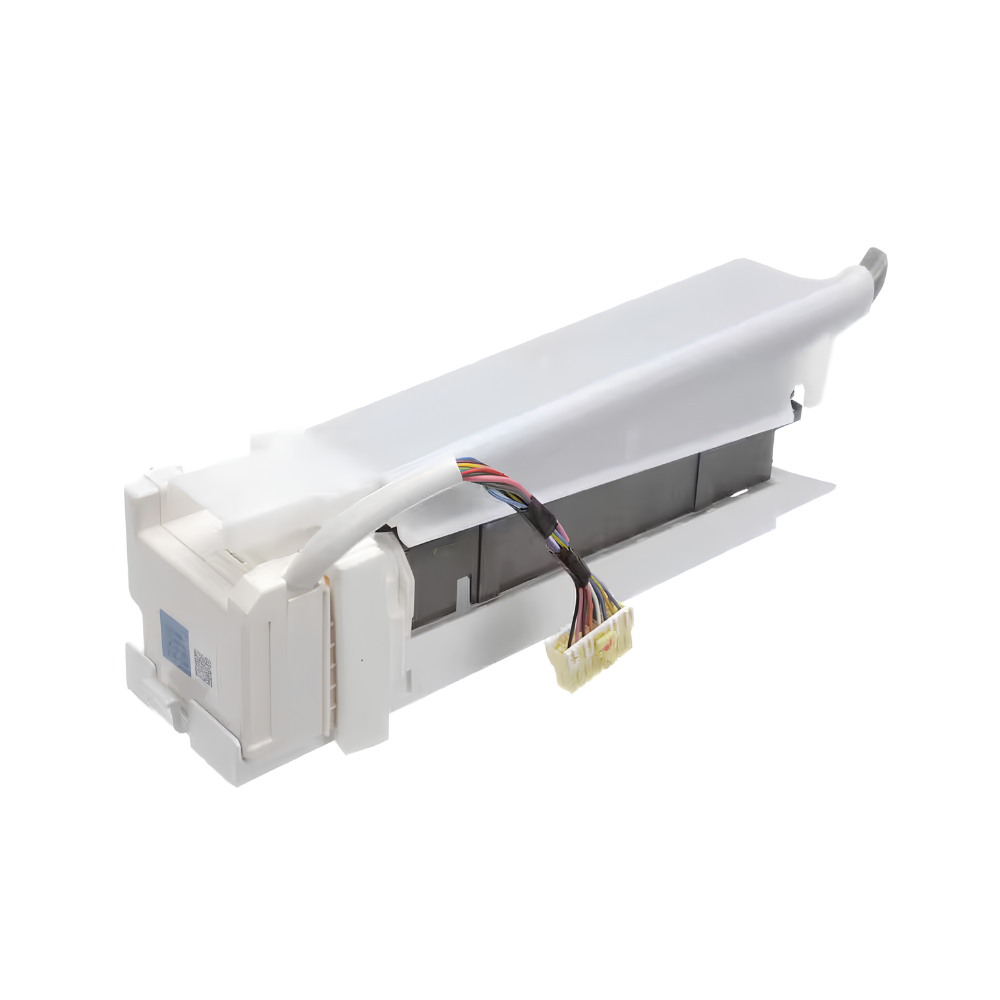

Genuine OEM DA97-15217D Refrigerator Ice Maker Assembly
The Genuine OEM Samsung DA97-15217D is the complete ice maker assembly for select Samsung refrigerators. The ice maker fills its trays with water, freezes it, and drops the cubes into the storage bin, using sensors to monitor the ice level and start new production when needed. When it fails, the refrigerator may stop making ice, make small or misshapen cubes, or jam.
This is the original Samsung part, not an aftermarket equivalent. It replaces several earlier Samsung ice maker numbers, so the new assembly may be listed under a different number than your old one. Check your model number before ordering.
Quick Answer
The Genuine OEM DA97-15217D Ice Maker Assembly replaces the complete ice maker on a compatible Samsung refrigerator when it has stopped working. Replaces DA97-15217A, DA97-15217B and DA97-12317A. Classic symptoms: ice production stops, cubes are small or misshapen, or the ice maker jams. Check for frost buildup around the ejector arm first.
Common Problems This Part Fixes
- Ice production stops unexpectedly
- Small or misshapen ice cubes
- Ice maker jamming
- Water leaking inside the ice compartment
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This ice maker assembly replaces or supersedes the following part numbers:
DA97-15217D, DA97-12317A, DA97-12317B, DA97-15217A, DA97-15217B, DA97-15217E, 4546148, DA97-15335A, DA97-15217A-00, AP6261445, ASM806832, EAP12115595, OEM18784344, PD00037355, PS12115595
Samsung sells ice makers under similar numbers for different refrigerators, so the last letter and the number family matter. If your old ice maker shows a different number, contact our support team and we'll check whether it matches.
Compatibility
This ice maker assembly is listed for Samsung refrigerators, with roughly 100 models listed by retailers, including these examples:
- Samsung RF28HMEDBSR/AA, RF28HFEDBSR/AA, RF25HMEDBSR/AA
- Samsung RF263BEAESR/AA, RF263TEAESG, RF265BEAESR/AA
- Samsung RF26J7500SR/AA, RF28K9070SR/AA, RF28R7201SR
Note: The models above are a small sample, not a full list. Check your full model number against your parts diagram, or contact our support team to verify fit before ordering.
Key Features
- Genuine OEM Samsung part, not an aftermarket equivalent
- Complete ice maker assembly, sold as one unit
- Fills the trays, freezes the water and drops the cubes into the bin
- Replaces several earlier Samsung ice maker numbers
Product Specifications
| Part Number |
DA97-15217D |
| OEM Part Number |
DA97-15217D |
| Part Type |
Refrigerator Ice Maker Assembly |
| Condition |
Genuine OEM |
| Manufacturer |
Samsung |
| Quantity |
1 Assembly |
| Application |
Select Samsung Refrigerators |
Installation Notes
⚠️ Unplug The Refrigerator Before Installing Unplug the refrigerator before you begin. Remove the screws at the top of the old assembly and detach it from the freezer wall, then unplug the wiring harnesses. Position the new assembly, aligning the mounting holes, and fasten it with the original screws. Reconnect the harnesses, plug the refrigerator back in, and hold the test/reset button for 3 seconds to start the ice maker. Allow time for the first ice to be made.
Frequently Asked Questions
My ice maker stopped making ice. Is this the part I need?
It can be, if the ice maker itself has failed. Check first for frost buildup that could block the ejector arm, and check the water filter, the fill tube and the seals. If those are fine, replacing the assembly is the repair.
Is this an OEM or aftermarket part?
This is a genuine OEM part from Samsung, not an aftermarket equivalent.
Does the last letter of the part number matter?
Yes. Samsung ice makers with similar numbers can differ by revision or by refrigerator type, so match the full part number and your model number, or contact our support team and we'll check for you.
Will this fit my refrigerator?
It is listed for roughly 100 Samsung models, but the model list above is only a sample. Check your full model number against your parts diagram, or contact our support team and we'll verify it before you order.
