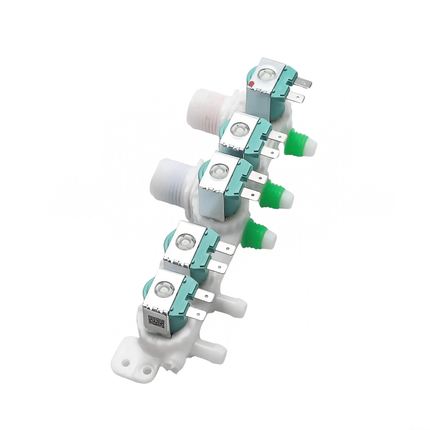

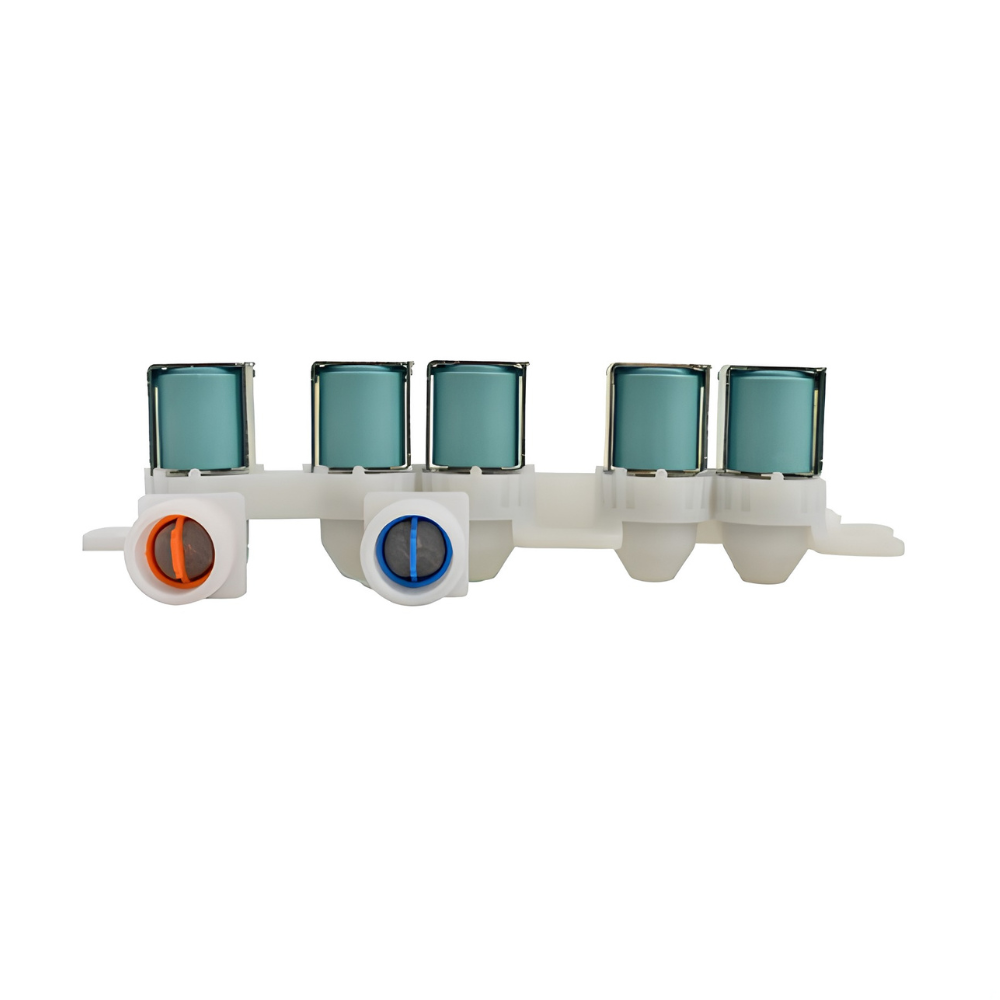

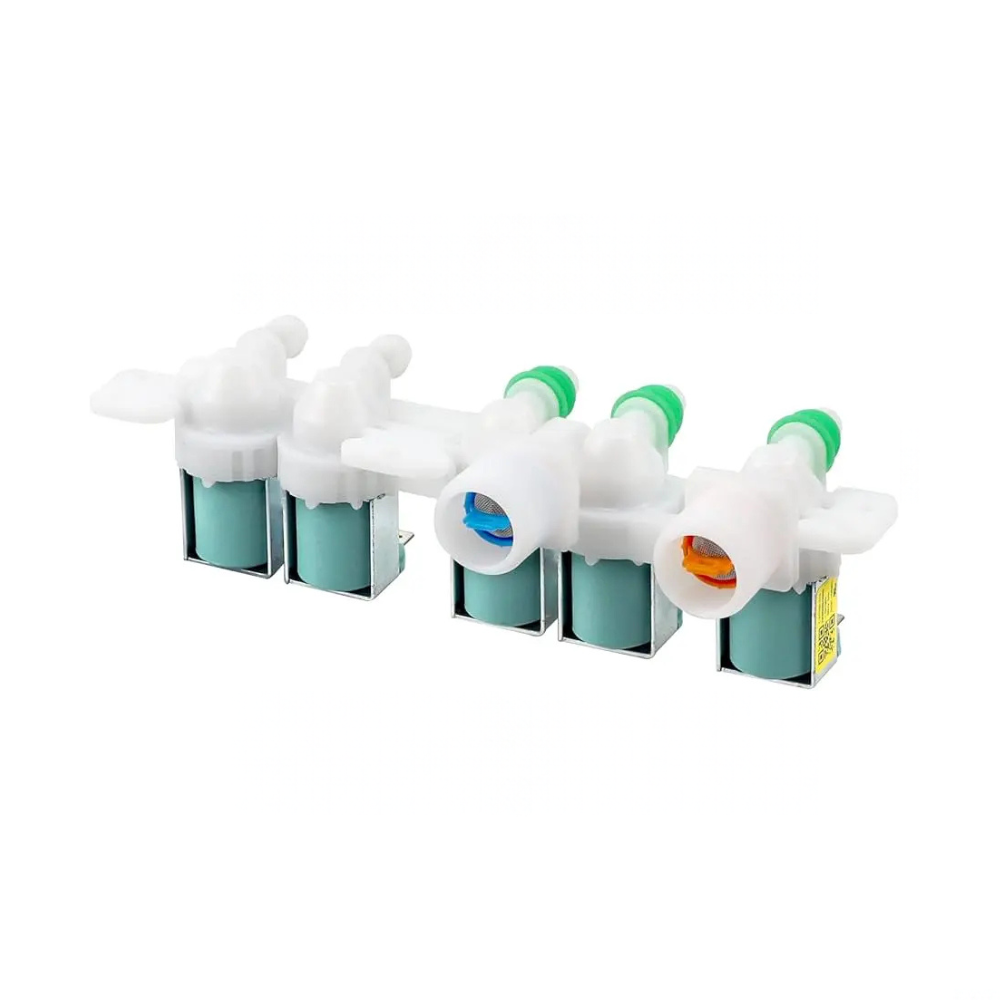

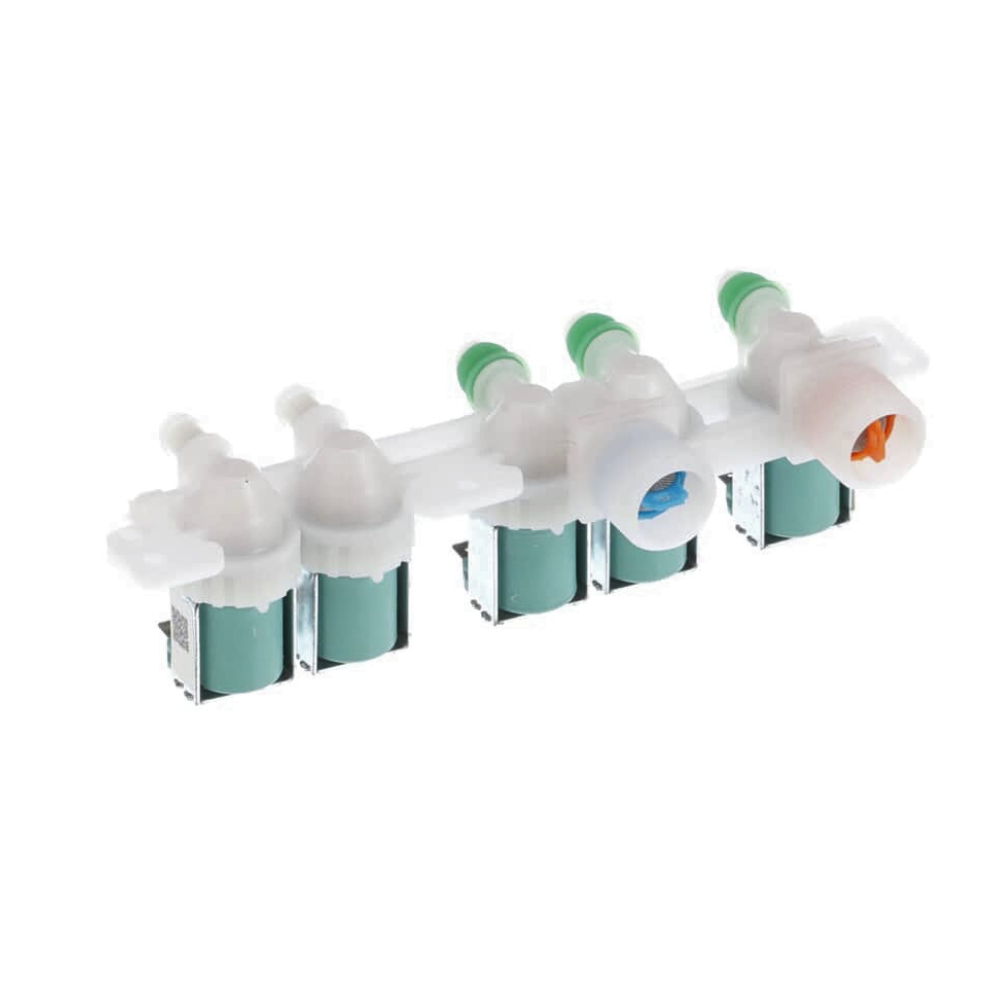

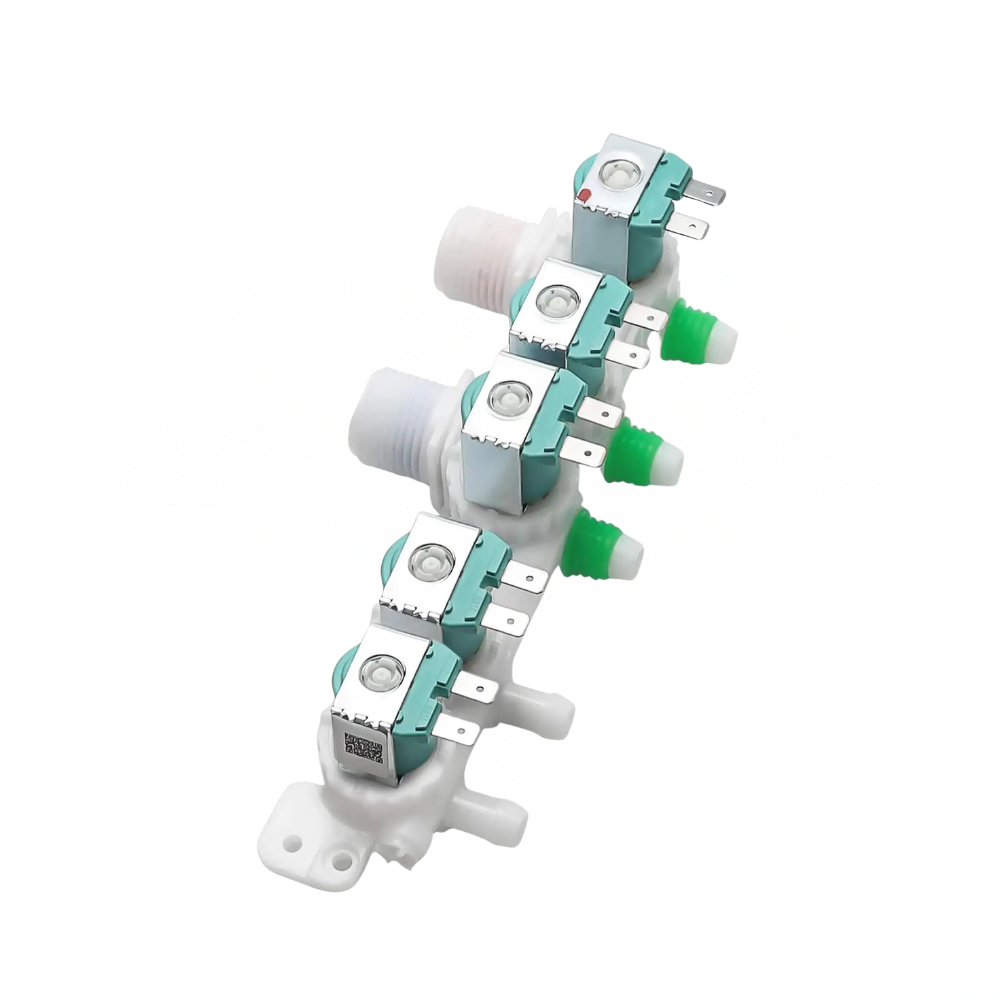

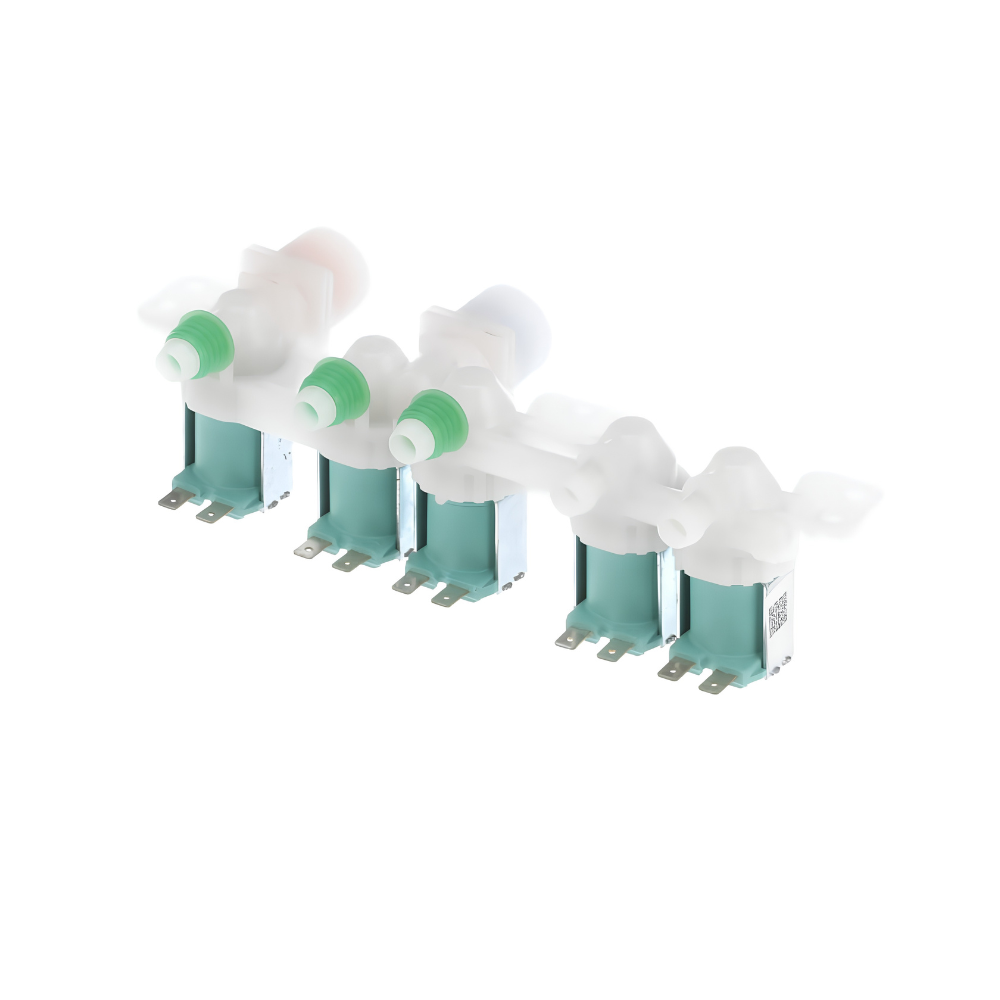

Genuine OEM DC97-15459G Washer Water Inlet Valve
The Genuine OEM Samsung DC97-15459G is the 5-way water inlet valve assembly for select Samsung washers. The solenoid-operated valve controls the flow of hot and cold water into the washer. When it clogs or fails, the washer may fill slowly or not at all, or it may leak.
This is the original Samsung part, not an aftermarket equivalent. It is sold individually and does not include wire harnesses or securing screws. Check your model number before ordering, because Samsung sells similar valves with different suffixes.
Quick Answer
The Genuine OEM DC97-15459G Water Inlet Valve replaces the inlet valve on a compatible Samsung washer when it has failed. Classic symptoms: the washer won't fill or fills slowly, has low water pressure, or leaks.
Common Problems This Part Fixes
- Washer not filling with water, or filling slowly
- Low water pressure in the washer
- Leaking from the valve
- Washer struggling to start a cycle because of a clogged or faulty valve
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This water inlet valve is listed under the following part number:
DC97-15459G replaces 3276197, AP5623056, ASM1220342, EAP4220861, PD00007887, PS4220861
If your old valve shows a different number, contact our support team and we'll check whether it matches.
Compatibility
This water inlet valve is listed for Samsung washers, including these examples:
- Samsung WA45H7200AW, WA45H7200AP, WA48H7400AW, WA48H7400AP
- Samsung WA50F9A7DSW, WA50K8600AV, WA52J8700AP, WA52M7750AV
- Samsung WA54M8750AV, WA56H9000AP, WA456DRHDSU
Note: The models above are a sample of the roughly 40 that retailers list, not a full list. Samsung also sells similar valves under other part numbers, such as DC97-15459D and DC97-15459H. Check your full model number against your parts diagram, or contact our support team to verify fit before ordering.
Key Features
- Genuine OEM Samsung part, not an aftermarket equivalent
- 5-way solenoid valve that controls hot and cold water into the washer
- Sold individually, without wire harnesses or securing screws
Product Specifications
| Part Number |
DC97-15459G |
| OEM Part Number |
DC97-15459G |
| Part Type |
Washer Water Inlet Valve (5-Way Solenoid) |
| Condition |
Genuine OEM |
| Manufacturer |
Samsung |
| Quantity |
1 Valve |
| Application |
Select Samsung Washers |
Installation Notes
⚠️ Disconnect Power And Water Before Installing Unplug the washer and turn off the water supply before you begin, and wear work gloves. Pull the washer out from the wall and drain the hoses into a bucket. Detach the hot and cold hoses, remove the screws holding the valve bracket, and disconnect the wires from the valve's five terminals, noting where each goes. Fit the new valve, reconnect the wires and hoses (hand-tighten, then add about two-thirds of a turn with pliers), turn the water on and check for leaks, then plug in the washer and run a test cycle.
Frequently Asked Questions
My washer won't fill or fills slowly. Is this the part I need?
It can be. Check that both water supplies are on and the hose screens are clear first, since a blockage causes the same symptom. If those are fine, the inlet valve may be clogged or faulty.
Is this an OEM or aftermarket part?
This is a genuine OEM part from Samsung, not an aftermarket equivalent.
Does it include the wiring and screws?
No. The valve is sold individually, so reuse the wire connectors, hoses and screws from your old valve.
Will this fit my washer?
It is listed for about 40 Samsung models, but the model list above is only a sample, and similar valves with other suffixes exist. Check your full model number against your parts diagram, or contact our support team and we'll verify it before you order.
