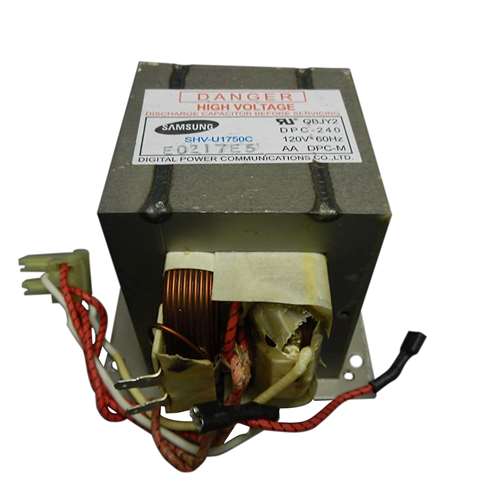

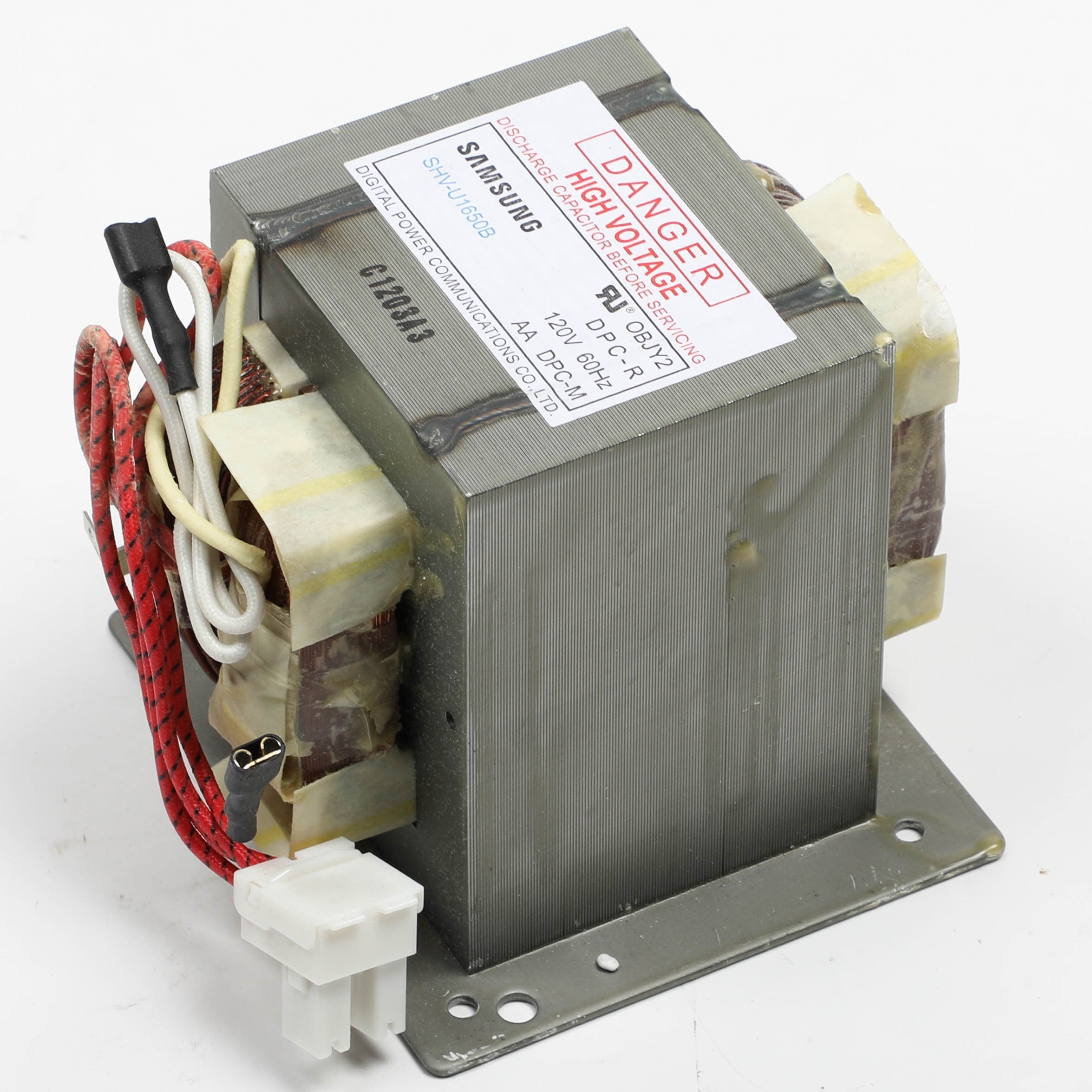

DE26-00122B Microwave High Voltage Transformer – Compatible with Samsung and Kenmore Microwaves
Product Description
Restore powerful, consistent heating performance with the DE26-00122B Microwave High Voltage Transformer. This Genuine OEM replacement converts standard household voltage into high voltage required by the magnetron to generate microwave energy. A failed transformer can cause no heating, humming sounds, or tripped circuit breakers. Replacing it ensures safe and efficient microwave operation, just like when the unit was new.
Replaces Part Numbers
DE26-00122B, AP4579971, DE26-00143C, PD00035265, 2078060, PS4223529.
Compatibility
This Genuine OEM high-voltage transformer fits select Samsung and Kenmore microwave models.
Example compatible models include (but are not limited to): Samsung ME16H702SES, ME18H704SFS, and Kenmore 401.85043310.
Always verify your microwave’s model number before ordering. Contact our support team if you’re unsure.
✅ Key Features
-
⚡ Genuine OEM Replacement – Factory-approved transformer ensures safe, reliable performance
-
🔋 Restores Full Heating Power – Supplies high voltage to the magnetron for proper cooking function
-
💪 Heavy-Duty Design – Built to handle continuous high-voltage load
-
🛠️ Direct-Fit Installation – Pre-mounted terminals for plug-in replacement
-
🛡️ Fixes Common Issues – Solves no-heat, humming, or tripping breaker problems
📐 Product Specification
-
Part Number: DE26-00122B
-
Component Type: Microwave High-Voltage Transformer
-
Material: Copper-wound transformer with steel core
-
Input Voltage: 120V AC
-
Mounting: Bolt-on chassis installation
-
Compliance: Genuine OEM certified
🛠️ Installation Notes
Tools Needed: Phillips screwdriver, insulated pliers, multimeter
⚠️ Safety First: Microwaves contain lethal high voltage even when unplugged. Always discharge the capacitor before servicing or contact a qualified technician.
Steps:
-
Unplug the microwave and remove the outer cover.
-
Discharge the high-voltage capacitor using insulated tools.
-
Disconnect the wiring harness from the old transformer.
-
Remove mounting bolts and lift out the old transformer.
-
Install the new DE26-00122B transformer and reconnect all wiring.
-
Reassemble the unit, restore power, and test heating performance.
⏱️ Time Required: 25–35 minutes
