EXP694 Dryer Repair Kit Replaces DC97-16782A, 6602-001655, DC93-00634A

Description

EXP694 Dryer Repair Kit Replaces DC97-16782A, 6602-001655, DC93-00634A

The EXP694 Dryer Repair Kit is a complete drum system rebuild solution designed to restore smooth, quiet, and efficient dryer operation. This kit includes the most common wear components found inside your dryer: drum belt, idler pulley, and drum support rollers.

Over time, these parts wear down together, causing squeaking, grinding, drum slippage, or complete failure to spin. Replacing all components at once ensures proper alignment, eliminates noise, and prevents repeat breakdowns — making this the most effective long-term repair solution.

Quick Answer

The EXP694 Dryer Repair Kit fixes dryers that won’t spin, make loud squeaking or grinding noises, or stop tumbling. It replaces the belt, rollers, and idler pulley to restore smooth and quiet drum operation.

Note: Includes four rollers (each with shaft and two tri-rings), one idler pulley, and one belt. Replace all four rollers for even wear. Inspect the drum and felt seal (e.g., DC97-07618A) for wear. Clean lint from the drum and cabinet to prevent overheating.

Common Problems This Part Fixes

  • Dryer drum not spinning or slipping
  • Loud squeaking, grinding, or thumping noises
  • Uneven or slow drum rotation
  • Dryer stopping mid-cycle
  • Excessive vibration or instability
  • Worn belt, rollers, or idler pulley components

Replaces Part Numbers

This repair kit replaces the following common drum system components:

  • Drum Roller: DC97-16782A, AP5325135, DC97-16782C, DC97-16782D, 2027851, DC97-07523A, DC97-07523B, PS4221885, WPW10177428, AP6016361, W10177428, 35001136, DC97-07523A, PS11749648

  • Idler Pulley: DC93-00634A, AP6038887, DC96-00882C, DC61-01230B, DC96-00882B, PS11771601, 12002777, AP4010261, 1401171, 35001083, 35001098, 35001276, AH2004052, DC61-01215A, DC96-00882B, EA2004052, PS2004052

  • Drum Belt: 6602-001655, AP4373659, 1935594, 6602-001314, PS4133825, WPW10205415, AP6017004, W10205415, 35001137, 6602-001314, PS11750299

If your part number is not listed above, contact our support team before ordering and we will verify compatibility.

Compatibility

This repair kit is compatible with select dryers from the following brands:

  • Samsung dryers (gas and electric models)
  • Kenmore / Sears dryers (select models built on Samsung platform)

Always verify your appliance model number before ordering. Contact our support team if you're unsure.

Key Features

  • Complete drum repair kit including belt, rollers, and idler pulley
  • OEM-equivalent fit, performance, and durability
  • Eliminates noise and restores smooth drum rotation
  • Prevents repeat repairs by replacing all wear components together
  • Cost-effective all-in-one repair solution
  • DIY-friendly installation with basic tools

Product Specifications

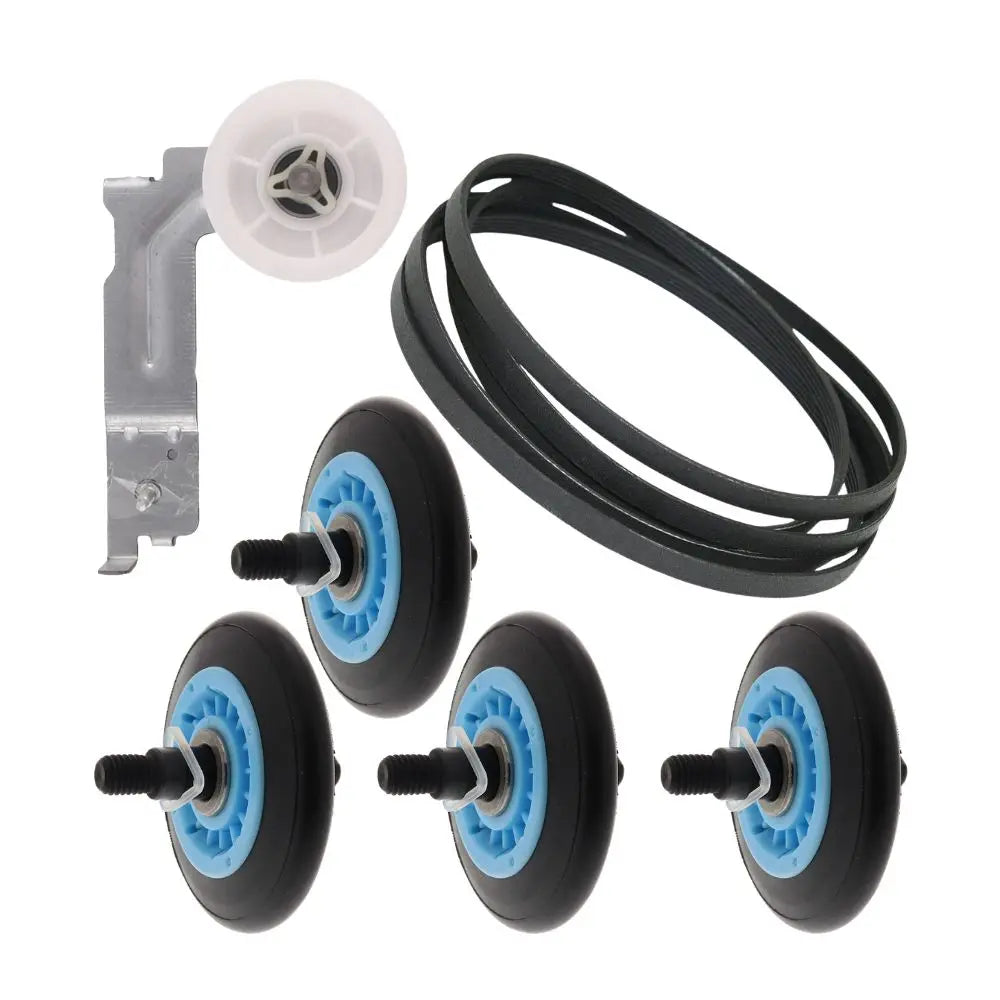

Includes 4 drum rollers (DC97-16782A, ~3-1/4" diameter x 1-1/8" width, blue/black plastic/rubber, metal shaft, self-lubricating bushing with ball bearing, each with shaft and two tri-rings), 1 idler pulley (DC93-00634A, metal/plastic), 1 drum belt (6602-001655, 92" long, 5 ribs, neoprene), kit dimensions ~10"L x 6"W x 4"H.

Part Type Dryer Repair Kit
Includes Belt, Rollers, Idler Pulley
Application Dryer Drum System
Condition Aftermarket Replacement
Compatible Brands Samsung, Kenmore

Installation Notes

⚠️ Safety First — Unplug Dryer Before Starting Disconnect power before servicing. Remove dryer panels, release belt tension, and replace worn components. Ensure proper alignment of the belt and rollers before reassembly. For best results, replace all components included in this kit at the same time.

Frequently Asked Questions

Should I replace all parts at once?

Yes. The belt, rollers, and pulley wear together. Replacing all components ensures smooth operation and prevents future breakdowns.

Will this fix dryer noise?

Yes. This kit resolves most squeaking, grinding, and thumping noises caused by worn drum components.

Is this an OEM part?

This is a high-quality aftermarket repair kit built to OEM-equivalent standards for performance and durability.

Shop With Confidence

A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.

✓ Fast US Shipping ✓ Quality Parts ✓ Compatibility Support ✓ Secure Checkout
