XPARTCO XP8767 Dryer Thermostat Set – Replaces DC47-00018A, DC96-00887A, DC47-00016A, DC32-00007A – Compatible with Samsung Dryers
Product Description
Restore safe and reliable heating performance with the XPARTCO XP8767 Dryer Thermostat Set. This electric dryer Thermostat kit is a replacement parts for specific Samsung, Whirlpool, Maytag, Amana dryer models. It plays a role in the safety and efficiency of the dryer's operation by monitoring and regulating the temperature within the dryer. This thermostat acts as a safety device, cutting off the heat source if the internal temperature exceeds safe levels, preventing potential overheating and fire hazards.
Replaces Part Numbers
DC47-00018A, DC96-00887A, DC47-00016A, DC32-00007A
Compatibility
This replacement thermostat set fits select Samsung, Whirlpool, Amana electric dryers.
Example compatible models include (but are not limited to): Samsung DV42H5000EW/A3, DV45H7000EW/A2, and DV48H7400EW/A2.
Always verify your dryer’s model number before ordering. Contact our support team if you’re unsure.
✅ Key Features
-
🔄 Aftermarket Replacement – Designed to match Samsung dryer temperature control performance
-
🔥 Complete Set – Includes high-limit thermostat, thermal fuse, heating element thermostat, and thermistor
-
💰 Cost-Effective Solution – Replaces multiple OEM parts in one affordable kit
-
🛠️ DIY Installation – Easy installation with basic tools
-
🛡️ Fixes Common Issues – Resolves dryer not heating, overheating, or shutting off mid-cycle
📐 Product Specification

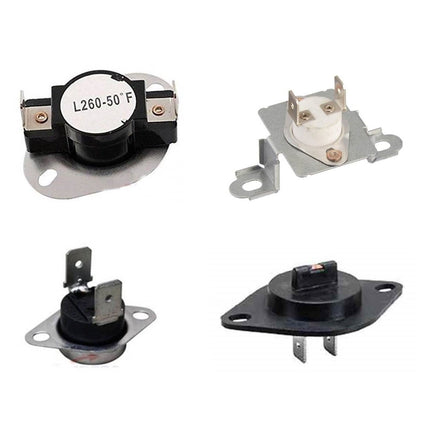

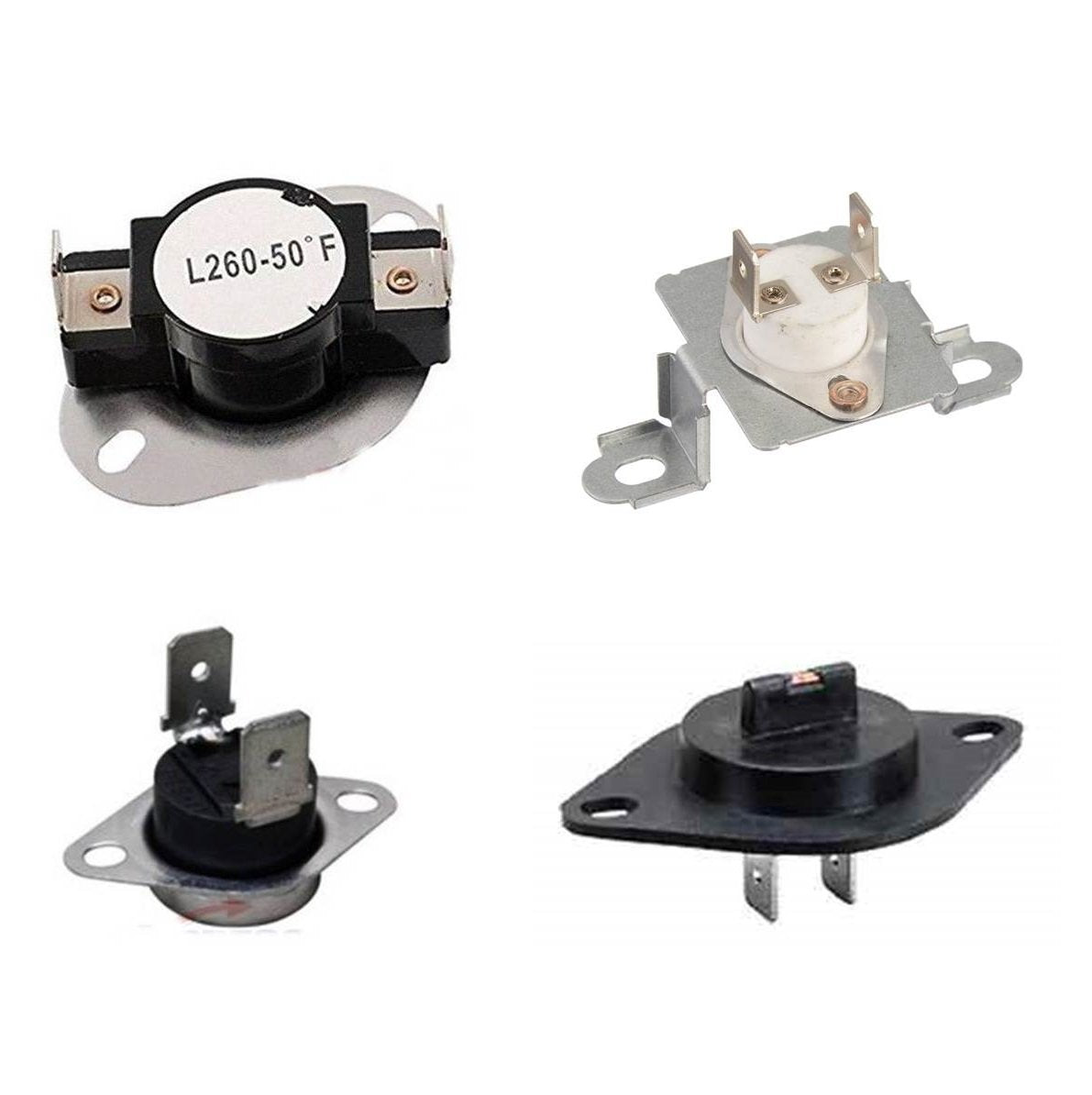

Thermostat Set is Combination of Following Parts
-

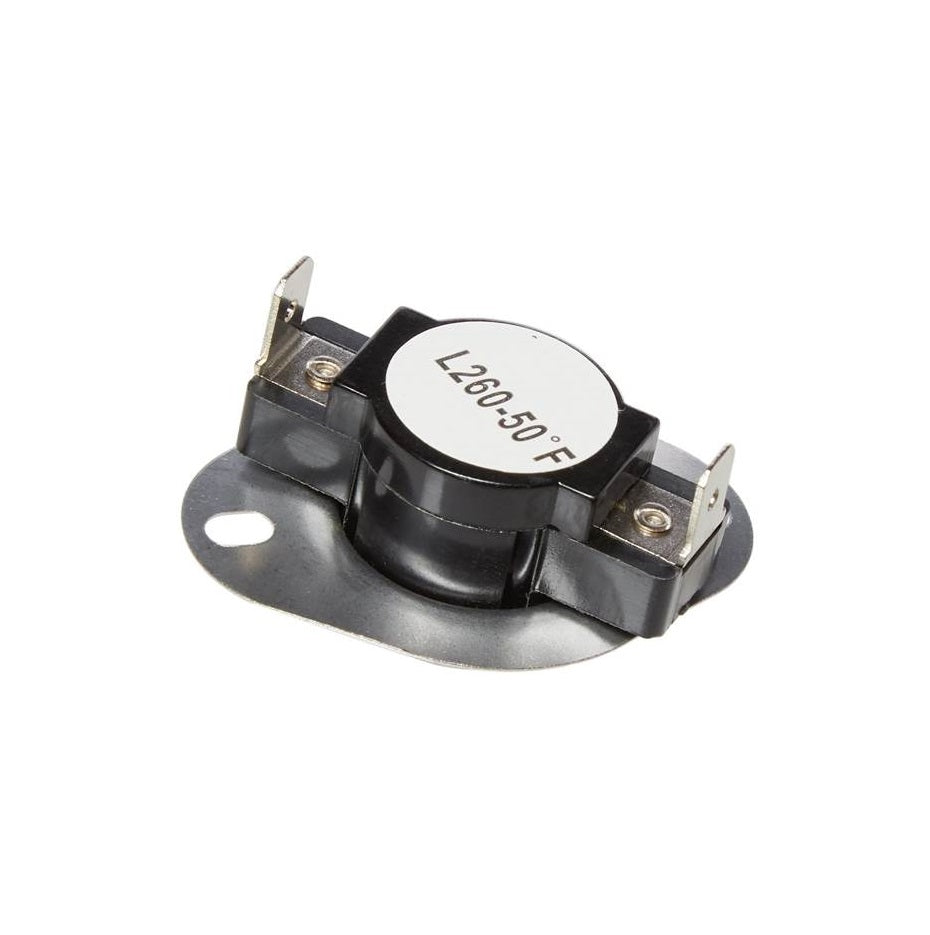

DC47-00018A Dryer Hi Limit Thermostat Dryer high-limit thermostat, L260-50F. Replaces Parts Numbers: DC47-00018A, AP4201898, PS4205217, 35001092, WP35001092, PD00004704, EAP11741822, AP6008682, PS11741822.
-

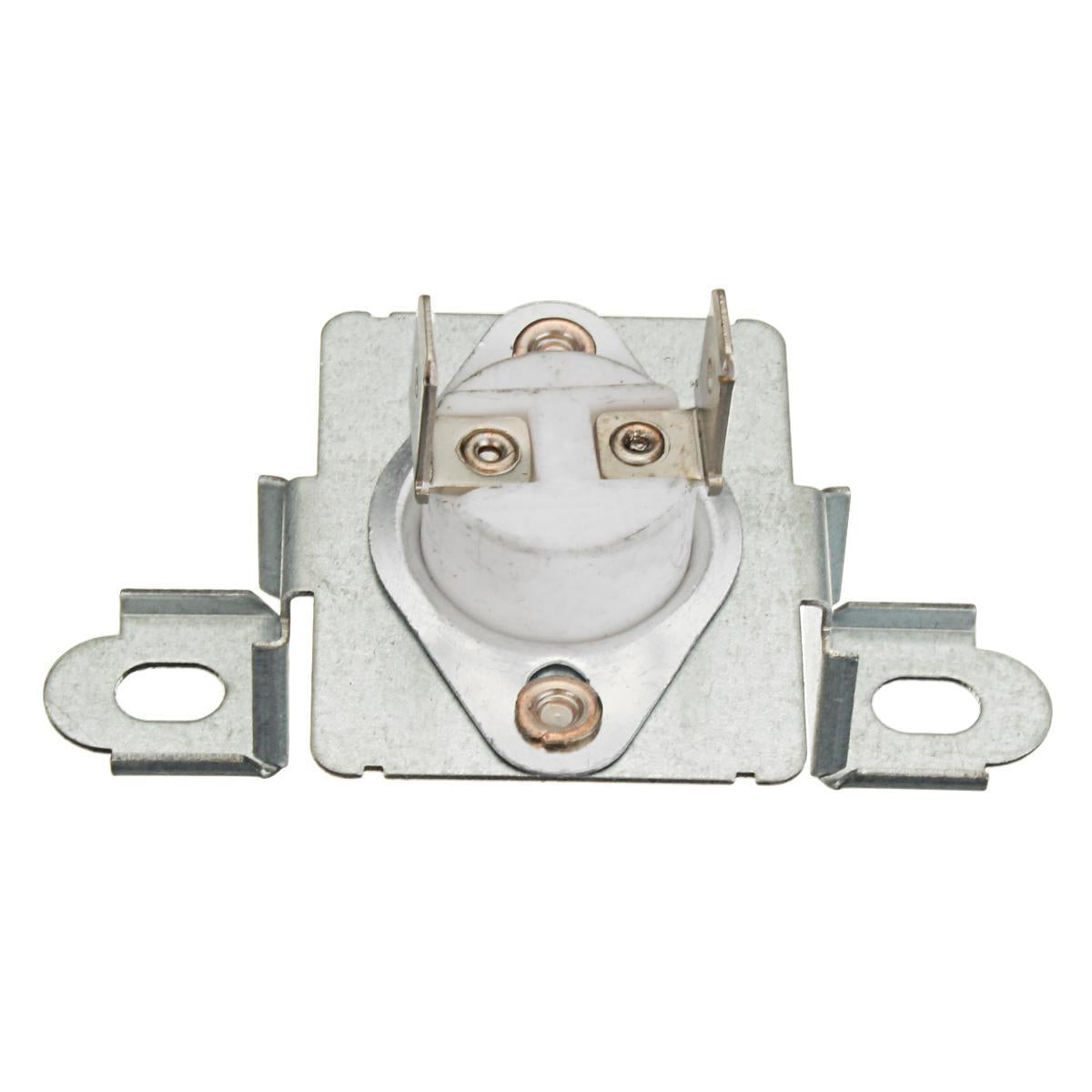

DC96-00887C Dryer Thermal Cut Off The fuse is not re-settable and will need to be replaced if blown. If the dryer does not heat, the thermal fuse may be blown. Replaces Part Numbers: DC96-00887C, AP5966894, PS4276292, DC96-00887A, PD00035400, AP4207819, EAP4216838, PS4216838, 2074129, WP35001193, 35001193, AP6008689, PS1174182.
-

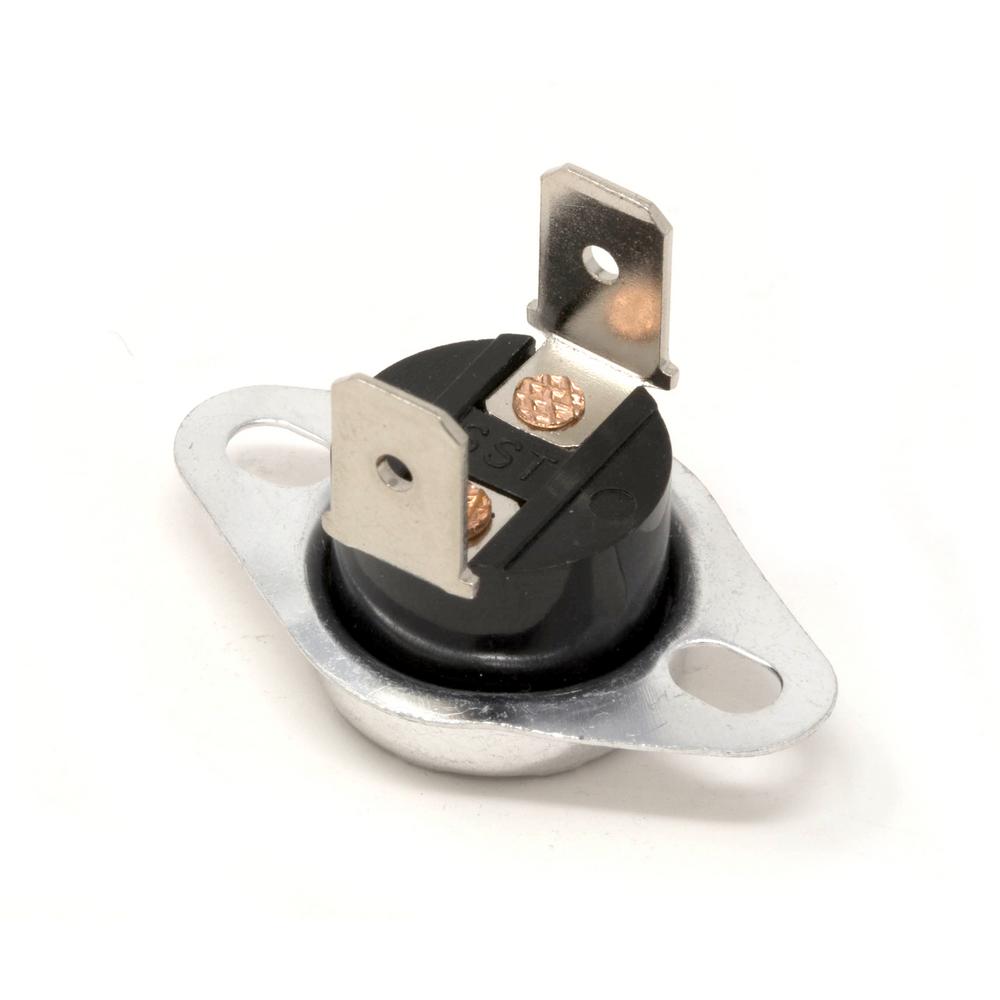

DC47-00016A Dryer Thermostat Replaces Part Number: DC47-00016A, PD00003747, EAP11741821, WP35001087, 35001087, PS4205213, 1122480, AP4201894, AP6008681, PS11741821
-

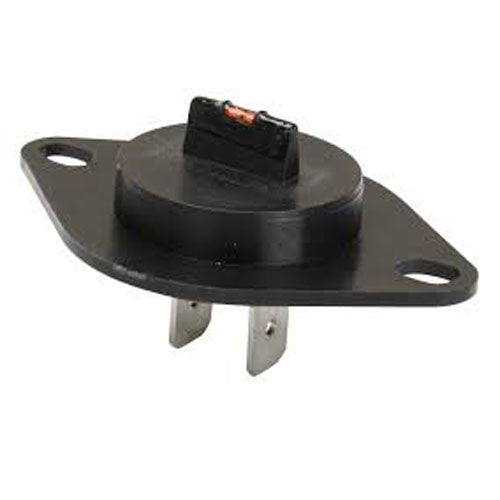

DC32-00007A Dryer Thermistor: Dryers Replacement Thermistor Replaces Part Numbers: DC32-00007A, PS4204984, AP4201716, AP4201716, 2068429 35001191, AP4045224, 1185513, AH2038482, PD00003059, 1185513, EAP11741828, EA2038482, PS2038482.
-
Material: Heat-resistant metal, durable plastic connectors
-
Mounting: Direct-fit replacement on heater housing and blower housing
-
Operating Conditions: Designed for residential electric dryers
-
Compliance: Built to OEM-equivalent standards (not OEM)
🛠️ Installation Notes
Tools Needed: Phillips screwdriver, nut driver
⚠️ Safety First: Always unplug the dryer before performing any repairs to prevent electrical shock.
Steps:
- Disconnect power and remove the rear access panel.
- Locate thermostats, thermistor, and fuse on the heater housing and blower housing.
- Disconnect wires and remove screws securing old components.
- Install the new components from the XPARTCO XP8767 set in the same locations.
- Reconnect wiring, reinstall rear panel, and restore power.
- Run a test cycle to confirm proper heat regulation.
⏱️ Time Required: 25–30 minutes
