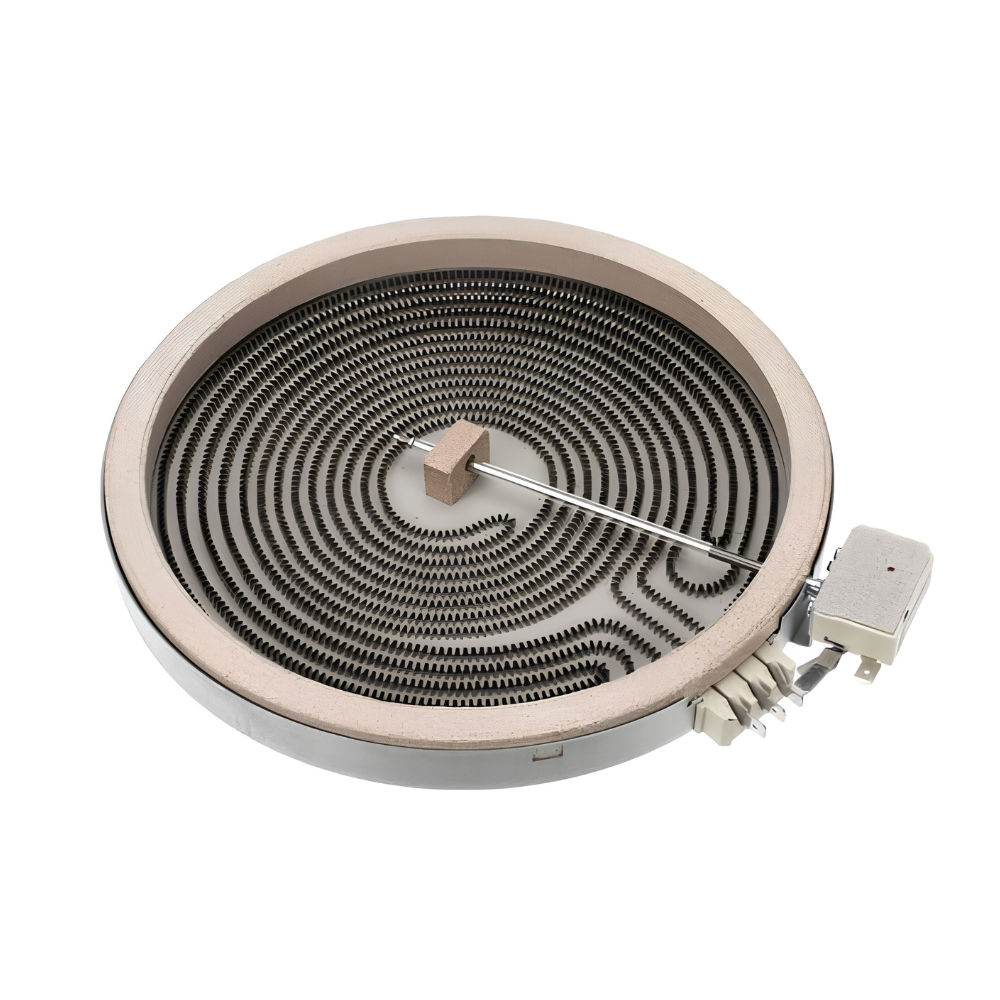

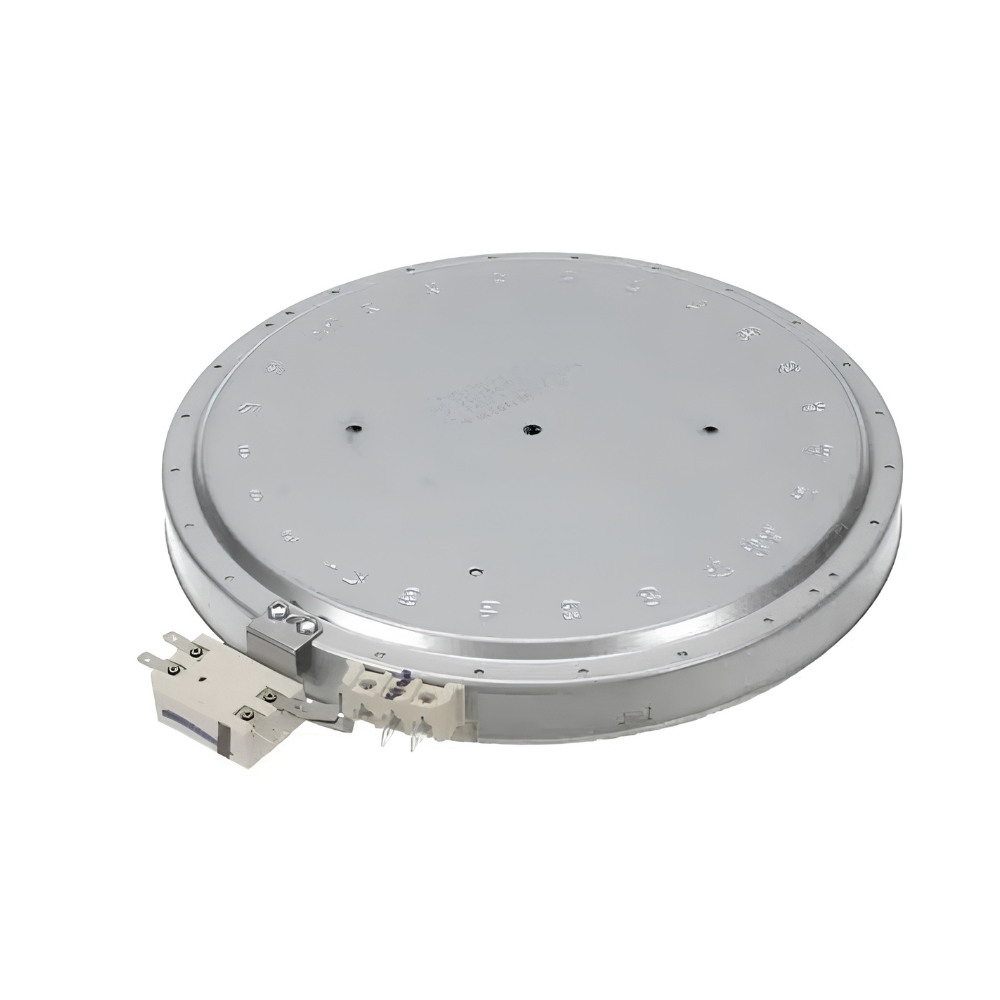

The Genuine OEM LG MEE64286201 is a dual radiant surface element for LG electric ranges with a glass cooktop. A dual element has an inner and an outer heating zone: the inner zone runs by itself for small pans, and both zones run together for larger cookware. This element is rated 3200/1400W at 240V.
When a radiant element fails, the burner may not heat at all, heat only in the center, or heat unevenly across the pan. If one burner is dead while the others work, the element itself is the most likely cause, though a worn infinite switch or loose wiring can look the same. This is the original LG part.
Quick Answer
The Genuine OEM MEE64286201 Dual Surface Element fixes an LG electric range whose cooktop burner won't heat, only heats in the center zone, or heats unevenly. Rated 3200/1400W, 240V, with dual inner and outer zones. Classic symptom: one cooktop burner stays cold or glows only partially while the other burners work normally.
Common Problems This Part Fixes
- Surface burner does not heat at all
- Only the inner zone heats, or the outer zone won't turn on
- Uneven or patchy glow across the element
- Burner takes unusually long to heat up
- Visible damage or a broken coil on the element
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This surface element directly replaces the following part numbers:
MEE64286201, MEE62385201, MEE50408702, MEE62385206, 1555707, 2674427, 4984723, ALG55829, AP5254462, AP5683233, AP7178808, EAP16662929, EAP3535360, EAP7795472, EAP16662929, PD00088865, PS16662929

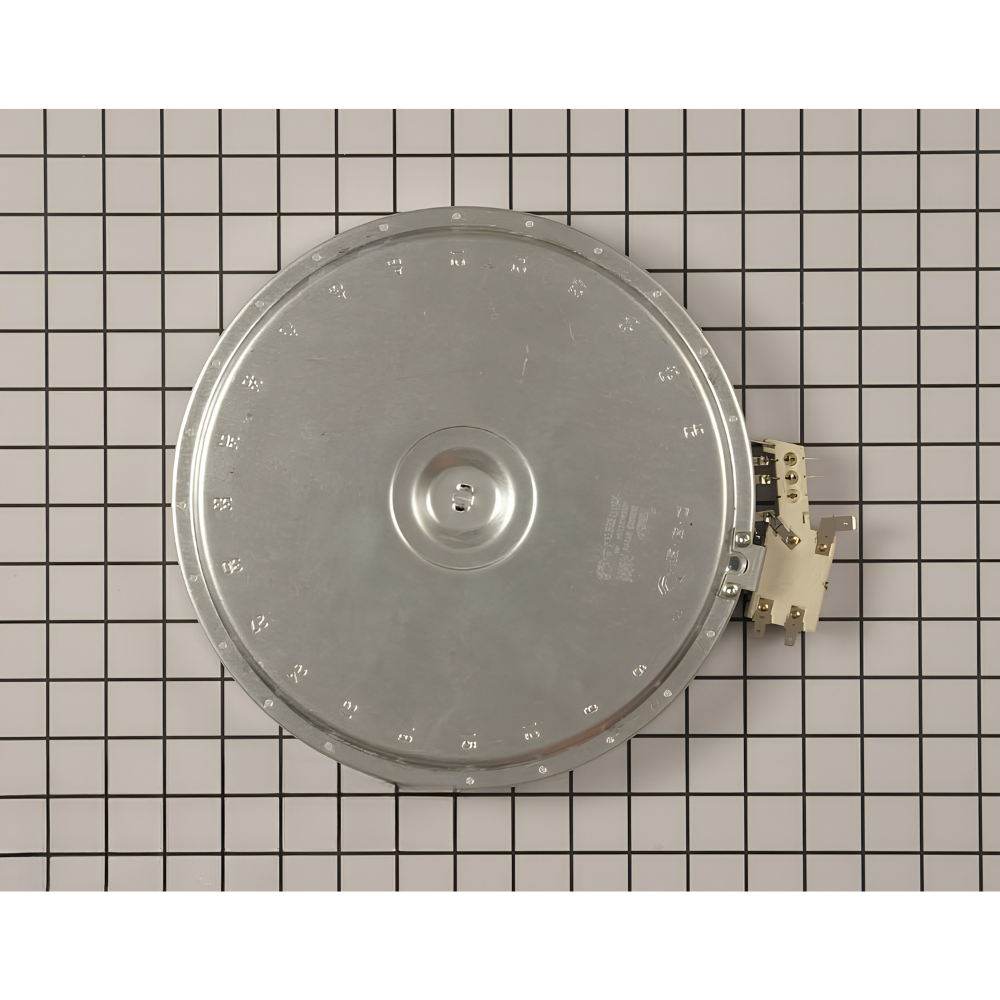

MEE62385201 is the LG number stamped on the element itself (MEE62385201/06) in our reference photo of this part. Confirm against your range's parts diagram, or contact our support team, if your model calls out a different number.
Compatibility
This dual surface element is for LG electric ranges with a radiant glass cooktop, including this reported fit:
- LG LREL6323D.FB2LLGA
- Other LG electric ranges with dual radiant surface elements
Note: Radiant elements differ by burner position and size, and we could not confirm a full model list for this number. The model above is a single reported fit. Check your model number and which burner position you are replacing against your parts diagram, or contact our support team to verify fit before ordering.
Key Features
- Genuine OEM LG dual radiant surface element
- Dual-zone design: inner zone alone or inner and outer zones together
- Rated 3200/1400W at 240V
- Limiter switch attached to the element
- Restores heat to a dead or partially heating cooktop burner
Product Specifications
| Part Number |
MEE64286201 |
| OEM Part Number |
MEE64286201 |
| Part Type |
Range Dual Radiant Surface Element |
| Condition |
Genuine OEM |
| Wattage |
3200W / 1400W (Dual Zone) |
| Voltage |
240V AC |
| Application |
LG Electric Ranges |
Installation Notes
⚠️ Disconnect Power and Let the Cooktop Cool Switch off the range's circuit breaker or unplug the range before beginning, and make sure the cooktop is completely cool, as radiant elements stay hot for a long time. Wear work gloves. Access to the element depends on your model, so follow its service guide to reach the element from the cooktop or underneath. Note the position of each wire terminal and the limiter switch before disconnecting anything, then install the new element in the same position and reconnect the wires. Handle the glass cooktop carefully, and confirm the element sits flat against the underside of the glass.
Frequently Asked Questions
One burner on my LG range won't heat. Is this the part I need?
If the other burners work and only this one is dead, a failed element is a likely cause. A faulty infinite switch or a loose terminal can look the same, so check continuity on the element and the wiring before replacing it.
What does "dual" mean on a surface element?
A dual element has an inner and an outer heating zone. The inner zone heats alone for small pans, and both zones run together for larger cookware. This element is rated 3200/1400W.
The element is stamped MEE62385201. Is that the same part?
MEE62385201 is the LG number stamped on the element in our reference photo of this part, and we list it as a replaced number. If your range's parts diagram calls out a different number, contact our support team and we'll verify before you order.
Will this fit my range?
It is for LG electric ranges with dual radiant elements, but fit depends on the burner position. Check your model number and the burner you are replacing against your parts diagram, or contact our support team and we'll verify it before you order.
