MWCDF-095-2Kit Microwave Capacitor, Diode & Fuse Kit – Universal High-Voltage Repair Kit
Product Description
Restore proper microwave heating and electrical safety with the MWCDF-095-Kit Microwave Capacitor, Diode & Fuse Kit. This high-quality aftermarket repair kit includes the three most common high-voltage components required to fix no-heat and power-related microwave issues: a high-voltage capacitor, high-voltage diode, and high-voltage fuse. Failed components in the HV circuit can cause the microwave to run without heating, blow fuses, or shut down completely. Replacing the full kit helps ensure reliable heating and safe operation.
This Kit Includes Following Parts:
-

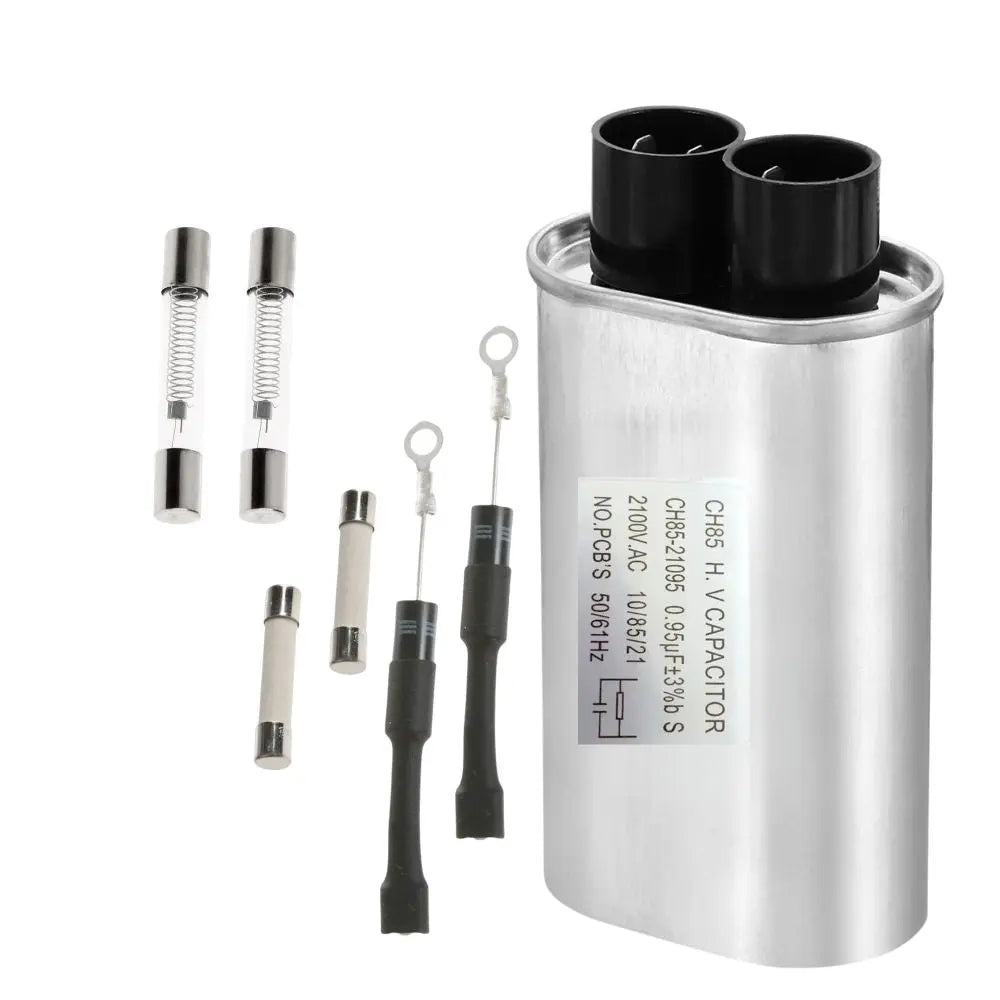

1 Capacitor
-
2 universal Diode (EXPHV10)
-
2 Ceramic Fuse (20 amp) 6.35 x 32 mm
-

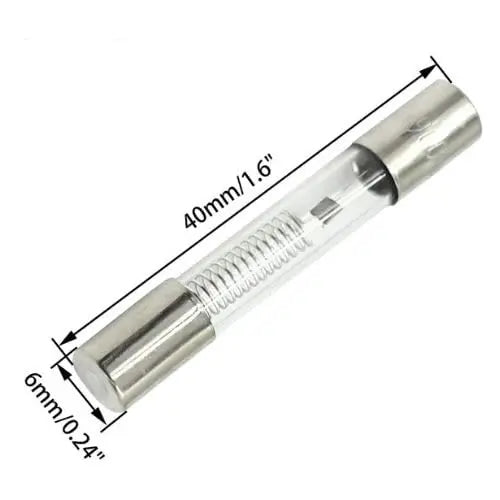

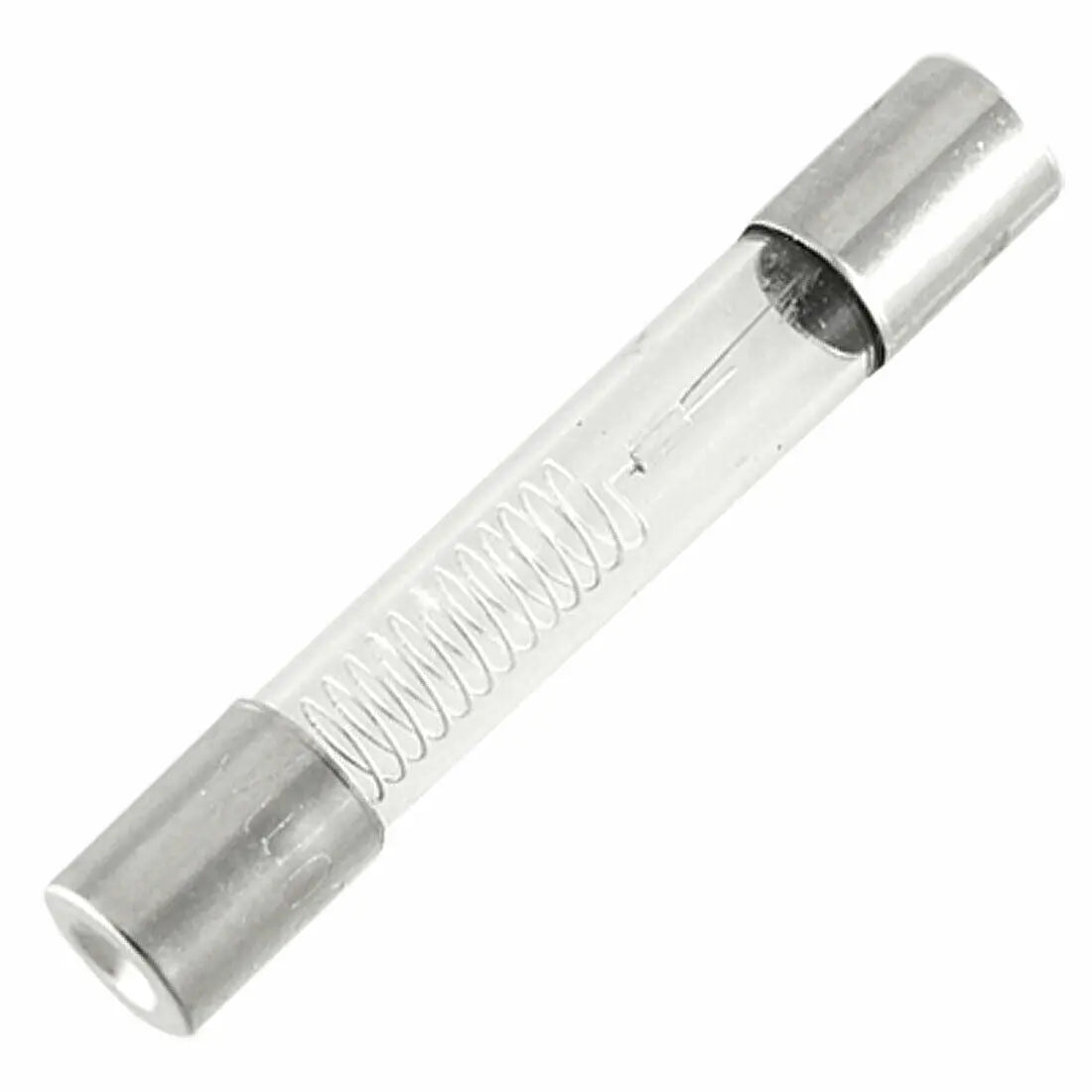

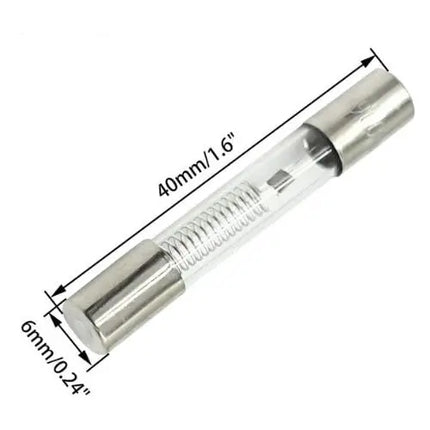

2 5Kv Fuse (0.9A) 6x40mm
Replaces Part Numbers
Capacitor Replaces Part Numbers: TJ13QBP21095, 13QBP0300, 13QBP21095, AP5633423, RC-QZA234WRE0, RC-QZB011MRE0, RCQZA331WRZZ, 5304513458, PD00065299, EAP12365444, 4584979, AP6301645, PS12365444, 00631397, 631397, PD00044249, EAP10057840, 4161979, AP5950362, PS10057840, WB27X11031, PD00040188, EAP2339855, 1474116, AP4362390, PS2339855, WB27X10073, PD00045875, EAP239187, 769853, AP2025984, PS239187, WB27X11011, PD00087136, EAP2345628, 1474103, AP4368101, PS2345628, 2501-001016, 2028385, AP4033712, PS4130923, 8206562, PD00074258, EAP1486840, 1200936, AP3890709, PS1486840, 5304528930, 5304464253, AP7017693, PS2203382, WB27X10009, 254534, AH239117, EA239117, AP2025928, PS239117, WP815073, AP6011690, PS11744888, 2501-000260, AP4033659, PS4130923 and more
Compatibility
This universal microwave high-voltage repair kit is compatible with many GE, Whirlpool, Samsung, LG, Frigidaire, Panasonic, Sharp, and Kenmore microwave ovens that use a 0.95 µF high-voltage capacitor, standard microwave HV diode, and HV fuse.
Commonly used in countertop, over-the-range, and built-in microwave models.
Always verify capacitor rating and fuse specifications before ordering.
Contact our support team if you’re unsure.
✅ Key Features
-
🔄 Aftermarket Replacement Kit – Built to OEM-equivalent electrical specifications
-
⚡ Complete HV Circuit Repair – Includes capacitor, diode, and fuse
-
🔥 Fixes No-Heat Issues – Restores proper magnetron power delivery
-
🛡️ Improves Electrical Safety – Protects microwave from overload and failure
-
💰 Cost-Effective Solution – Avoids expensive magnetron replacement
📐 Product Specification
-
Kit Name: MWC-095-Kit
-
Component Type: Microwave High-Voltage Repair Kit
-
Capacitor Rating: 2100 VAC, 0.95 µF
-
Diode Type: Microwave high-voltage diode
-
Fuse Type: Microwave high-voltage fuse
-
Application: Magnetron high-voltage power circuit
-
Quality Level: Aftermarket replacement (not OEM)
🛠️ Installation Notes
Tools Needed: Phillips screwdriver, insulated pliers
⚠️ Safety First:
Microwaves contain EXTREMELY HIGH VOLTAGE, even when unplugged. Always discharge the high-voltage capacitor before servicing. Professional installation is strongly recommended.
Basic Steps:
-
Unplug the microwave and remove the outer cabinet.
-
Safely discharge the existing high-voltage capacitor.
-
Remove the old capacitor, diode, and fuse.
-
Install the new components from the MWCDF-095-Kit.
-
Reassemble the cabinet and restore power.
-
Test microwave heating operation.
⏱️ Time Required: 25–35 minutes
📦 Shop With Confidence
Restore microwave heating safely and efficiently — Add to Cart Now for a complete, budget-friendly repair solution!
