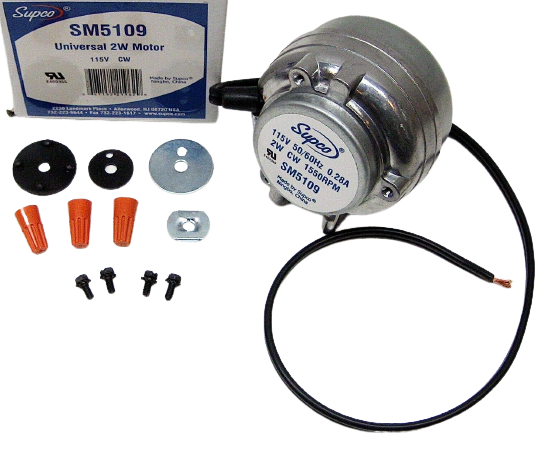

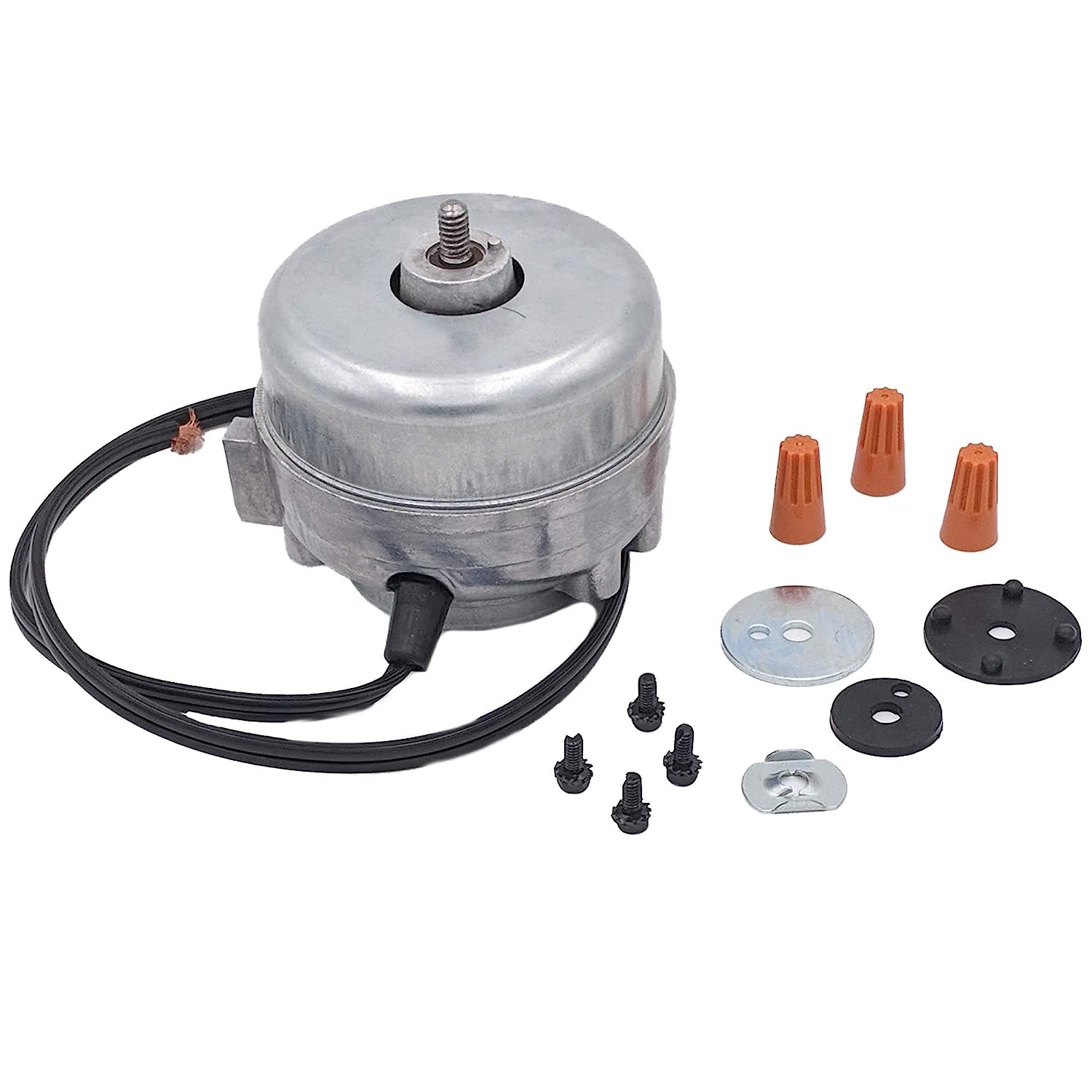

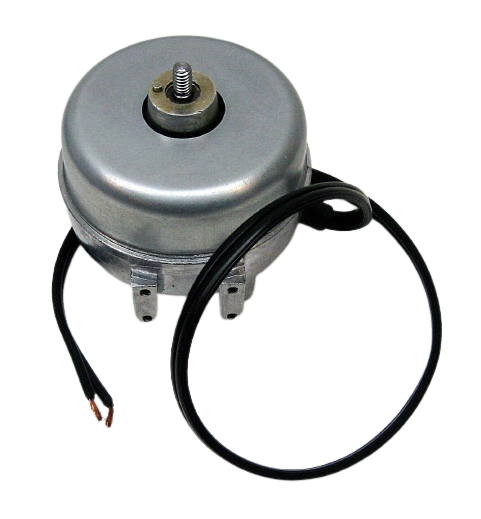

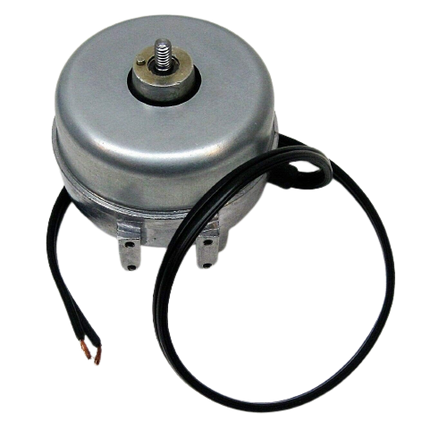

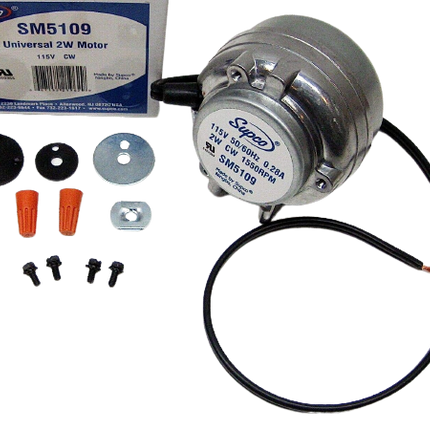

Supco SM5109 Refrigerator Condenser Fan Motor
Universal condenser motor for commercial & domestic refrigeration equipment.
Features
- Fits Whirlpool® built refrigerators
- See Cross Reference tab for additional numbers
- Universal condenser motor
Specifications:
| Shaft Length: |
½" |
| Shaft Diameter: |
¼" Threaded |
| RPM: |
1550 |
| Hertz: |
50/60Hz |
| Amps: |
.28A |
| Voltage: |
120V |
| Watts: |
2W |
| Rotation: |
CW |
Replaces Part Numbers:
833697, 10884507, 61002038, WP61002038, 12001314, 14210089, 14251476, 14273186, 21012-1, 27515-1, 28056-12, 28056-14, 28056-16, 28056-3, 28056-5, 28056-7, 28056-9, 311168, 46000833697, 52186-9, 54503-2, 56804, 61001016, 61001562, 67560-10, 67560-3, 67560-5, 67560-8, 68445-3, 68445-7, 68481-2, 68481-4, 833697VP, 99989708, A0287801, AH395284, B0540006, B0547205, B0552001, B0552604, B5603504, B5646301, C7584001, C8766901, C8891701, D7584002, EA395284, R0150002, R0950211, Y0054175, Y0056804, Y0312499, Y61001016, WX4X990, AP3120994, PS395284, W10822259, 4387244, 2166191, 2176336, 2183437, 2188534, 2188537, 4255028, AP5985148, PS11723170..
This is an aftermarket part that can be used as a replacement for the OEM part.
