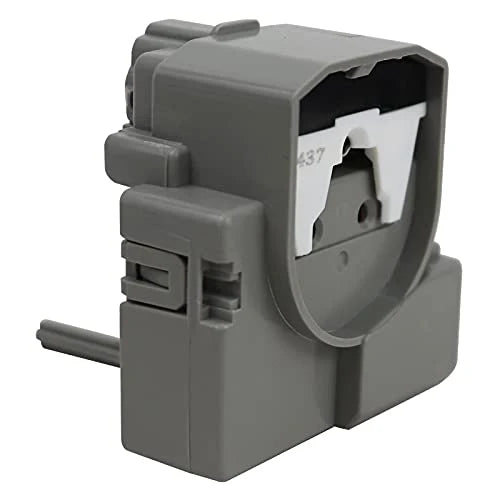

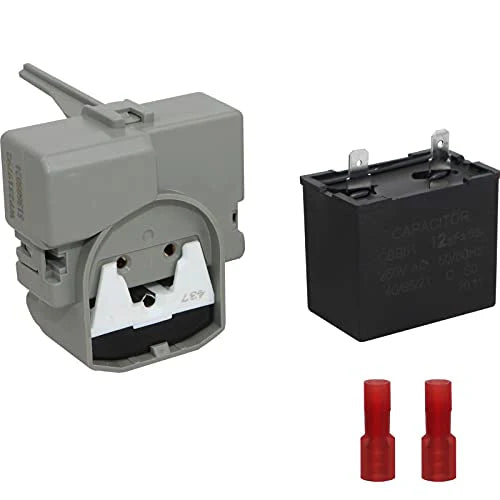

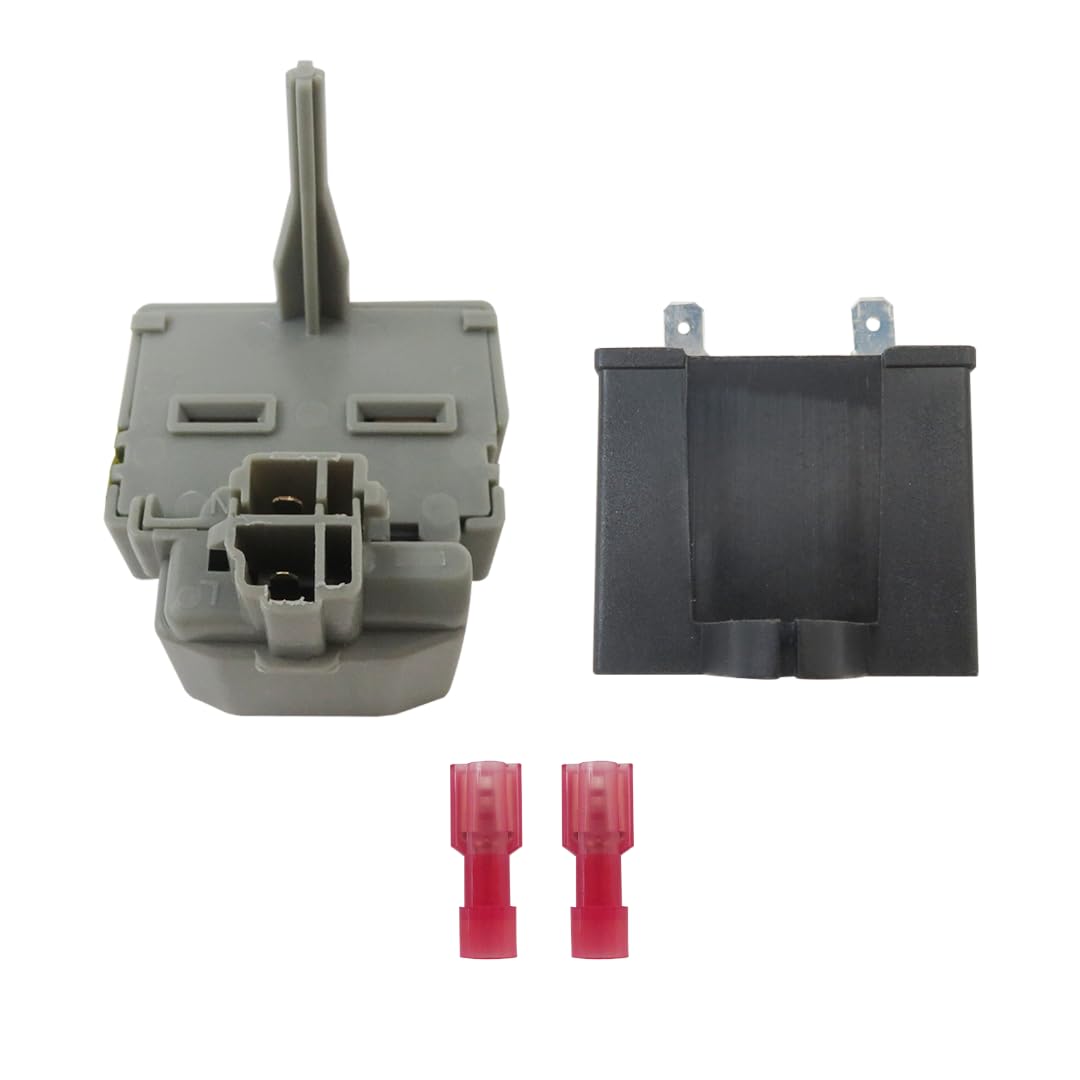

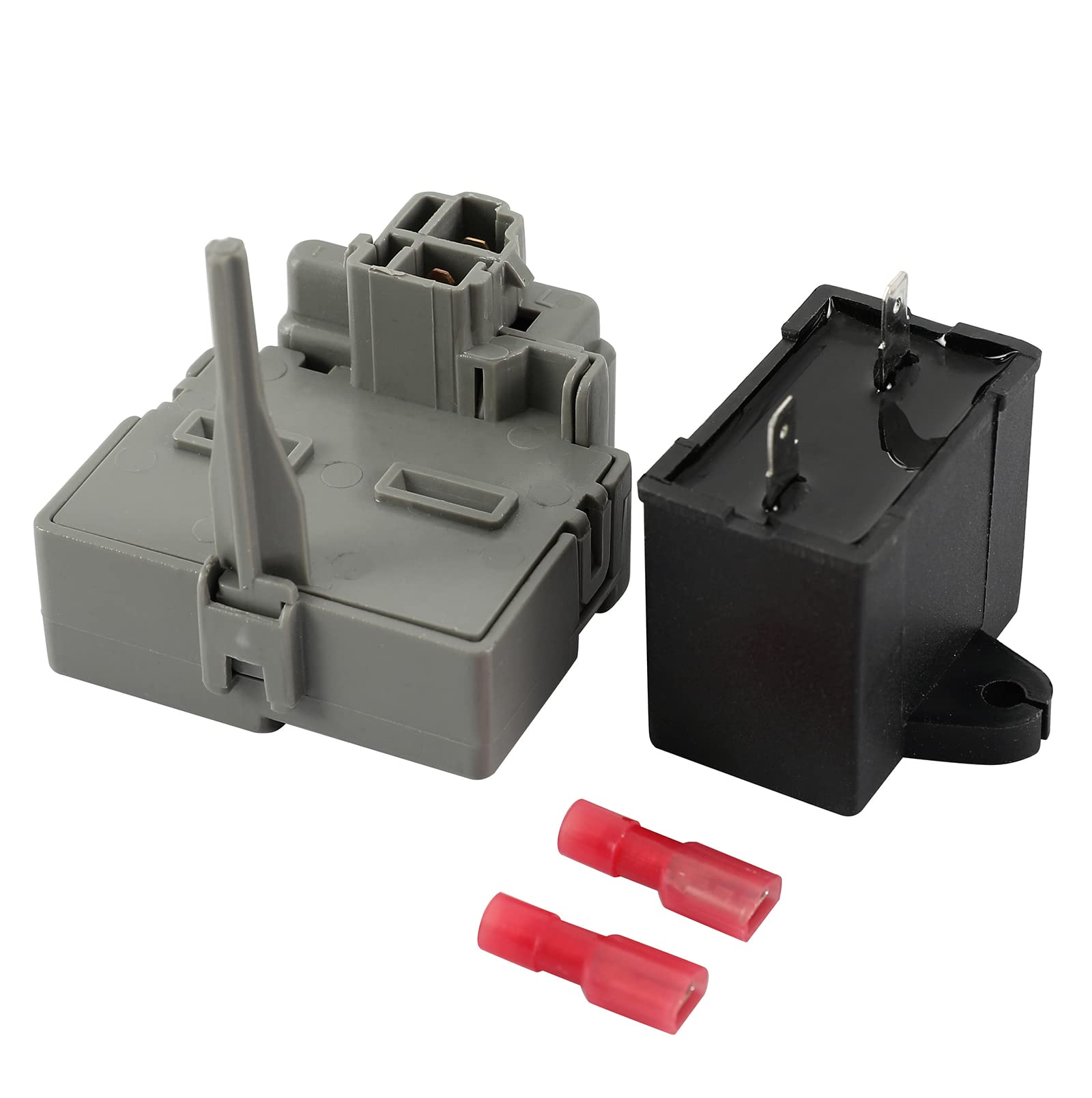

XPARTCO W10189190 Refrigerator Compressor Overload, Start Relay and run capacitor – Compatible with Whirlpool, Kenmore, Maytag, and Amana Refrigerators
Product Description
Fix refrigerator cooling issues with the XPARTCO W10189190 Refrigerator Compressor Overload, Start Relay and run Capacitor. This high-quality replacement helps start the compressor and protects it from overheating. A faulty relay or overload can cause clicking sounds, failure to start, or cooling loss. Replacing it with this reliable and affordable replacement restores proper compressor function and cooling performance.
Relay & Overload Replaces Part Numbers
WPW10189190, W10189190, 10097201, 14200214, 14203585, 1481748, 18516-3, 2-35154-010, 2255554, 2319793, 4344041, 4357156, 61002047, 61002971, 65529-1, 68001457, 68001622, W10197427, Y0303053, Y0313053, AP6016586, PS11749877, WPW10197428, W10128791, W10128795, W10197428, 1547199, AP6016830, PS11750123, WP2319792, 2319792, 1195945, 2255198, PS11740412, AP6007299, 297237702, 241527803, 2026081, 241527801, 297237800, 5304492394, 7297237800, AH3502347, EA3502347, AP5306469, PS3502347, 241941003, 1512917, 297237701, 7241941003, PD00002938, EAP11749877, AH2358826, EA2358826, AP4393217, PS2358826.
Run Capacitor Replaces Part Numbers:
WPW10662129, 2169373, W10662129, 09100136, 09100156, 09100173, 1100804, 1114291, 1118576, 1118581, 14201635, 14224144, 2169136, 2169383, 2188516, 2264017, 3281880, 4312484, 4356442, 4356601, 4356995, 4357055, 4357094, 4390503, 4390930, 60001028, 65889-2, 65889-6, 68001280, 69001105, 8199858, 945508, 999532, C8931601, C8931602, C8931607, R0213143, R0213187, R0651012, R0660030, R0950186, R9800532, W10590083, W10658690, WPW10662129VP, Y09100136, Y09100156, Y09100173, PD00004989, EAP11757023, PS11757023, AP6023677.
Compatibility
This replacement relay and overload kit is compatible with select Whirlpool, Kenmore, Maytag, and Amana refrigerators.
Example compatible models include (but are not limited to): Whirlpool WRF560SEYM04, Amana ARS9168AW, and Kenmore 106.56532400.
Always verify your refrigerator’s model number before ordering. Contact our support team if you’re unsure.
✅ Key Features
-
🔄 Aftermarket Replacement – Compatible with Whirlpool-brand refrigerators
-
❄️ Reliable Performance – Ensures smooth compressor start-up and consistent cooling
-
💰 Affordable Solution – Quality alternative at a lower cost than OEM parts
-
🛠️ Easy Installation – Includes both overload protector and start relay
-
🛡️ Fixes Common Issues – Solves compressor not running, clicking, or no-cool problems
📐 Product Specification
-
Part Number: W10189190
-
Component Type: Compressor Overload, Start Relay and Capacitor Assembly
-
Material: Heat-resistant plastic housing with copper terminals
-
Mounting: Direct-fit replacement on compressor terminals
-
Operating Conditions: Designed for standard household refrigerator use
-
Compliance: Built to OEM-equivalent quality standards (not OEM)
🛠️ Installation Notes
Tools Needed: Flathead screwdriver, needle-nose pliers
⚠️ Safety First: Always unplug the refrigerator before performing repairs to prevent electrical shock.
Steps:
-
Unplug the refrigerator and move it away from the wall.
-
Remove the lower rear access panel to access the compressor.
-
Detach the old relay and overload from the compressor terminals.
-
Install the new XPARTCO W10189190 relay and overload assembly.
-
Replace the access panel and restore power.
-
Confirm the compressor starts smoothly and cooling resumes.
⏱️ Time Required: 10–15 minutes
