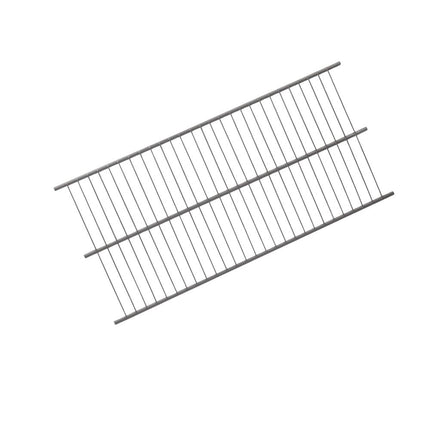

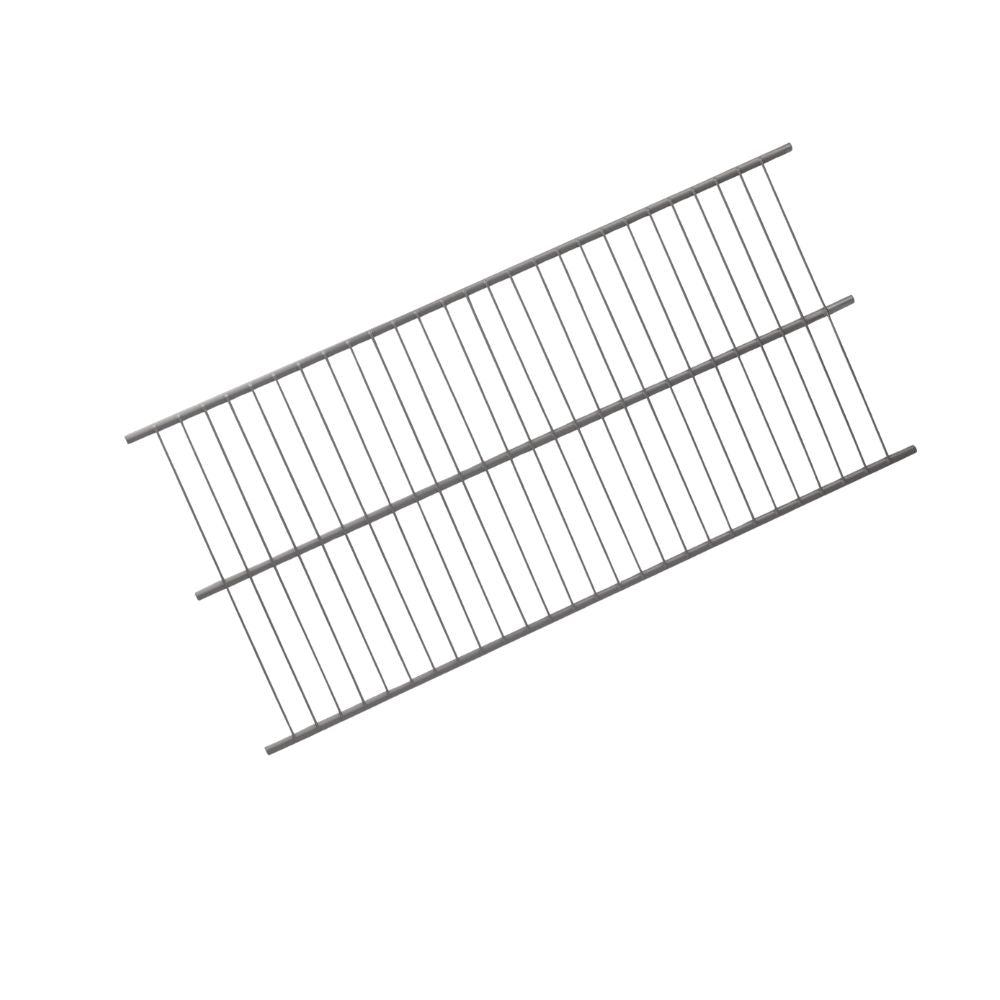

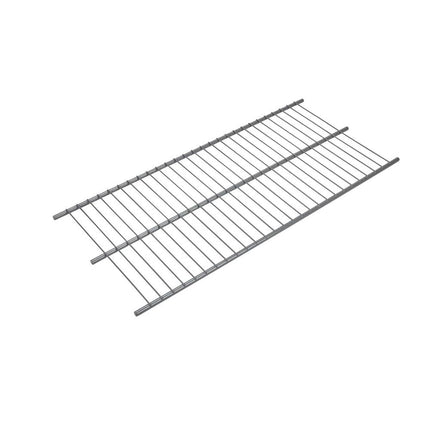

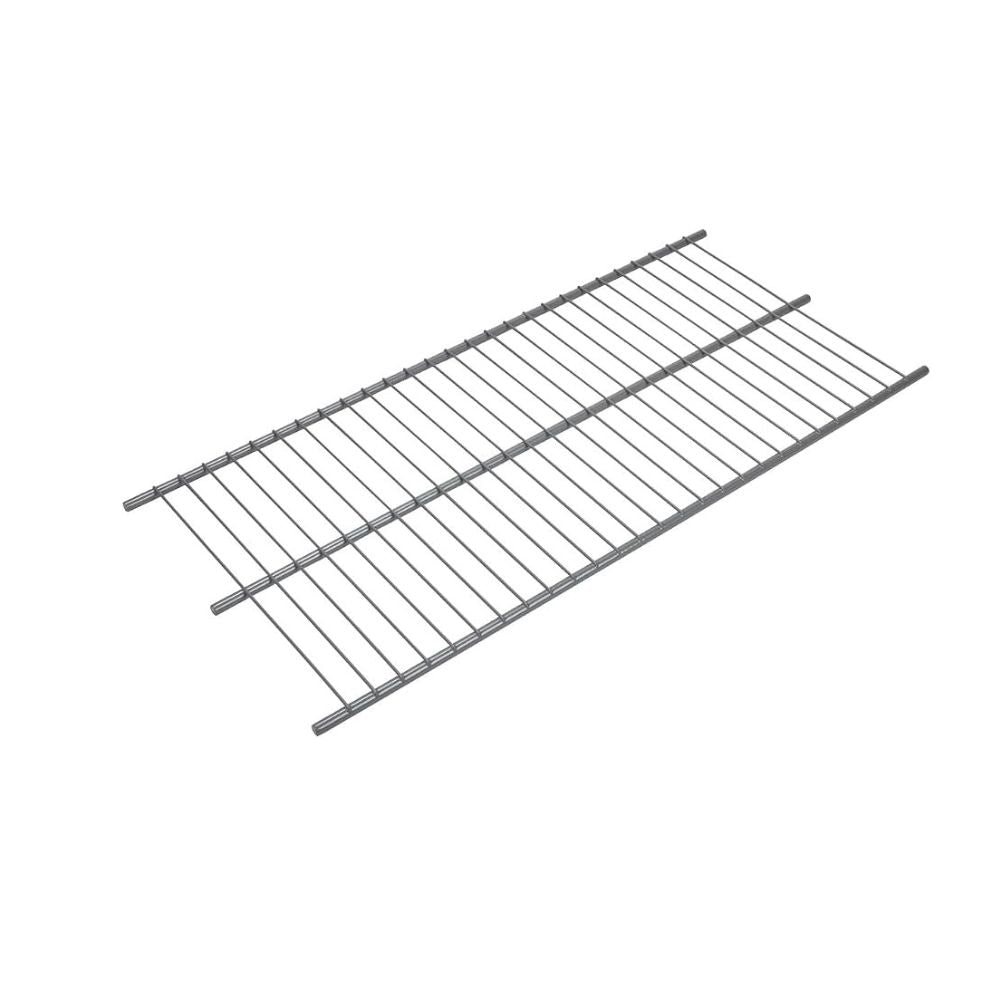

W10838313 Genuine OEM Whirlpool Freezer Wire Shelf (Lower)
The W10838313 is a genuine Whirlpool OEM wire shelf that sits at the floor of the freezer section on Whirlpool upright freezers. This is the lowermost shelf in the compartment, sliding into grooves molded into the freezer's interior walls to provide a sturdy, ventilated surface for storing frozen goods. Unlike a solid shelf, the open wire construction lets cold air circulate freely around whatever is stored on it, which helps maintain even freezing throughout the compartment.

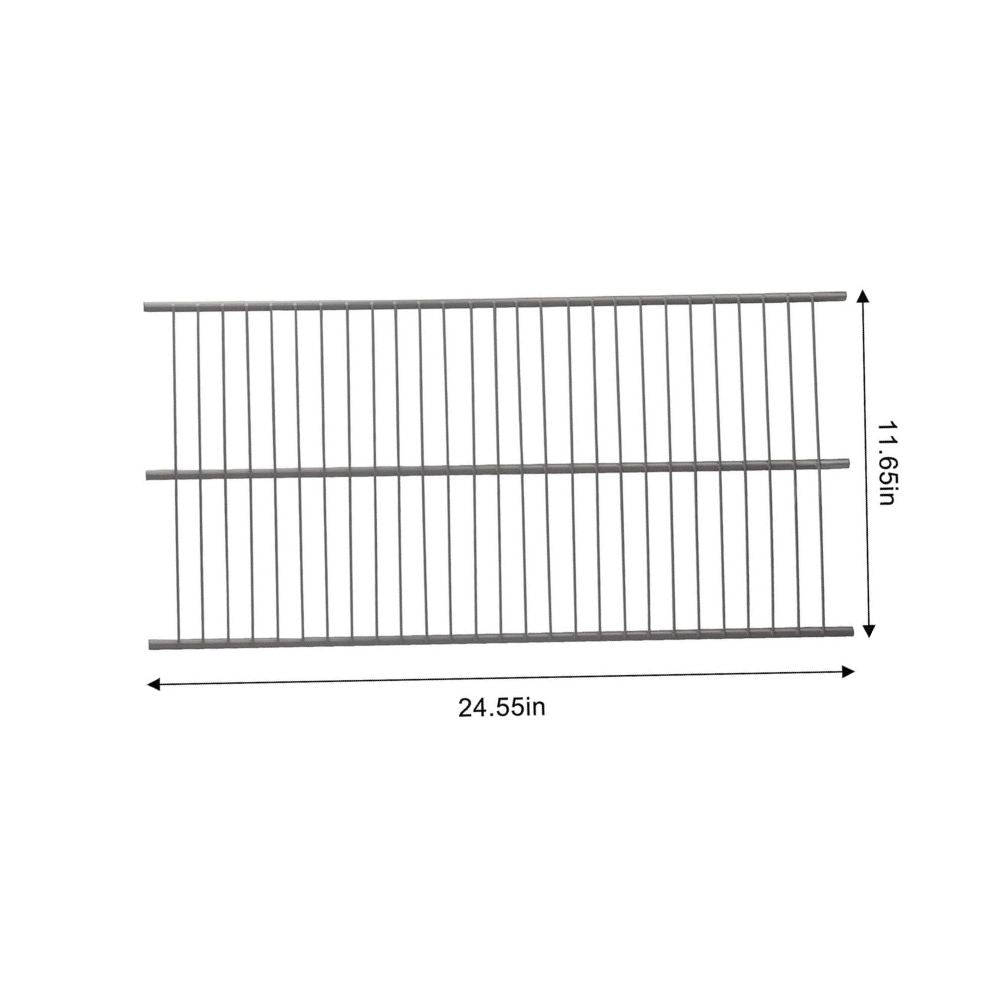

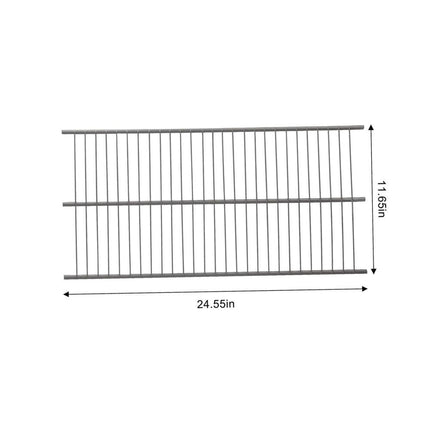

Measuring approximately 12" x 25" (11.65"W x 24.55"L), this shelf is made of coated wire with a white finish. Over years of loading and unloading groceries, the wire can weaken, bend, or separate from its retaining clips, and constant weight can eventually cause sagging or wobbling. A worn shelf typically shows up as wobbling under load, difficulty locking securely into its groove position, or wires that have visibly pulled loose from their retention brackets. It directly replaces AP5988764, W10581579, 4363361, PS11727969, and W10837264.
Quick Answer
The W10838313 Genuine OEM Whirlpool Freezer Wire Shelf (Lower) fixes Whirlpool upright freezers with a bottom shelf that wobbles, sags, won't lock securely into place, or has wires separating from the retaining clips. Approximately 12" x 25" (11.65"W x 24.55"L). Replaces AP5988764, W10581579, 4363361, PS11727969, W10837264. This is the lower shelf — the upper shelf for the same freezers is a separate, wider part, W10838310 (15.75"W). Double-check which shelf you need before ordering.
Common Problems This Part Fixes
- Shelf wobbling or sagging under the weight of stored food
- Inability to securely lock the shelf into its groove position
- Wires separating or pulling loose from the retaining brackets
- Visibly bent, weakened, or broken wire sections
- Shelf that no longer sits level, causing items to slide or tip
- Missing or broken original shelf needing straightforward replacement
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This freezer wire shelf directly replaces the following OEM and cross-reference part numbers:
W10838313, W10837264, W10581579, 4363361, AP5988764, AWP41859, EAP11727969, PD00031016, PS11727969
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This lower wire shelf is compatible with select Whirlpool upright freezers, and also fits select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore upright freezers, including model numbers such as WZF34X16DW, WZF34X18DW, and GAFZ30FDGB.
Note — lower shelf, not upper: This is the lower wire shelf. The upper shelf used on the same freezers is a separate, wider part — W10838310 (15.75"W, replacing AP5988763, W10581578, 4363360, PS11727968, EAP11727968). Customers have ordered the wrong one by mistake since the two look similar at a glance — measure your existing shelf or confirm which position (upper or lower) has failed before ordering. Contact our support team with your model number if you're unsure which shelf you need.
Key Features
- Genuine Whirlpool OEM part — factory-specified wire gauge and coating
- Open wire construction allows cold air to circulate freely around stored items
- Resolves "wobbling," "sagging," "won't lock in place," and "wires separating from clips" symptoms caused by shelf wear
- Slides directly into existing grooves molded into the freezer's interior walls
- Approximately 12" x 25" (11.65"W x 24.55"L)
- No tools required — simple slide-out, slide-in replacement
- Replaces W10837264, W10581579, 4363361, AP5988764, and PS11727969
- Compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore upright freezers
- Genuine OEM replacement — guaranteed fit, materials, and performance
Product Specifications
| Part Number |
W10838313 |
| Part Type |
Freezer Wire Shelf — Lower |
| Condition |
Genuine OEM |
| Brand |
Whirlpool |
| Application |
Upright Freezers |
| Position |
Lower (floor of freezer compartment) |
| Dimensions |
Approx. 12"W x 25"L (11.65"W x 24.55"L) |
| Material |
Coated wire |
| Color |
White |
| Companion Part |
W10838310 (upper shelf, 15.75"W, sold separately) |
| Repair Difficulty |
Very Easy — no tools required |
| Quantity |
1 wire shelf |
| Compatible Brands |
Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore |
Installation Notes
This is one of the simplest repairs in the freezer — no tools, no wiring, nothing to disconnect. Open the freezer door and remove any food from the affected shelf position. Slide the old shelf forward and out along its grooves until it clears the cabinet. Line up the new W10838313 shelf with the same grooves at the bottom of the freezer compartment, and slide it in until it seats fully at the back. Close the door and confirm the shelf sits level and locks securely before reloading it with food.
Frequently Asked Questions
How do I know if I need the upper or lower shelf?
Check which position in your freezer has the wobbling, sagging, or damaged shelf — this W10838313 listing is specifically the lower shelf that sits at the floor of the freezer compartment. The upper shelf is a separate part, W10838310, and it's noticeably wider (15.75" versus this shelf's narrower width). If you're not certain, measure your existing shelf before ordering, since customers have accidentally ordered the wrong position in the past.
Do I need any tools to install this?
No. This is a tool-free repair — slide the old shelf out along its grooves, then slide the new one in until it seats. It's one of the easiest parts to replace in the entire freezer.
My shelf wobbles but isn't broken. Is it still worth replacing?
If the wobble is due to weakened or bent wires rather than just needing to be reseated in its grooves, replacement is the more reliable fix. Try removing the shelf and reseating it fully first — if it still wobbles or won't lock securely after that, the wire has likely weakened enough that a new shelf is the better long-term solution.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by Whirlpool to factory specifications — guaranteed fit, materials, and performance. It matches the original dimensions, wire gauge, and coating of the lower freezer shelf originally installed in your Whirlpool, Maytag, KitchenAid, or related upright freezer.
