Product Description

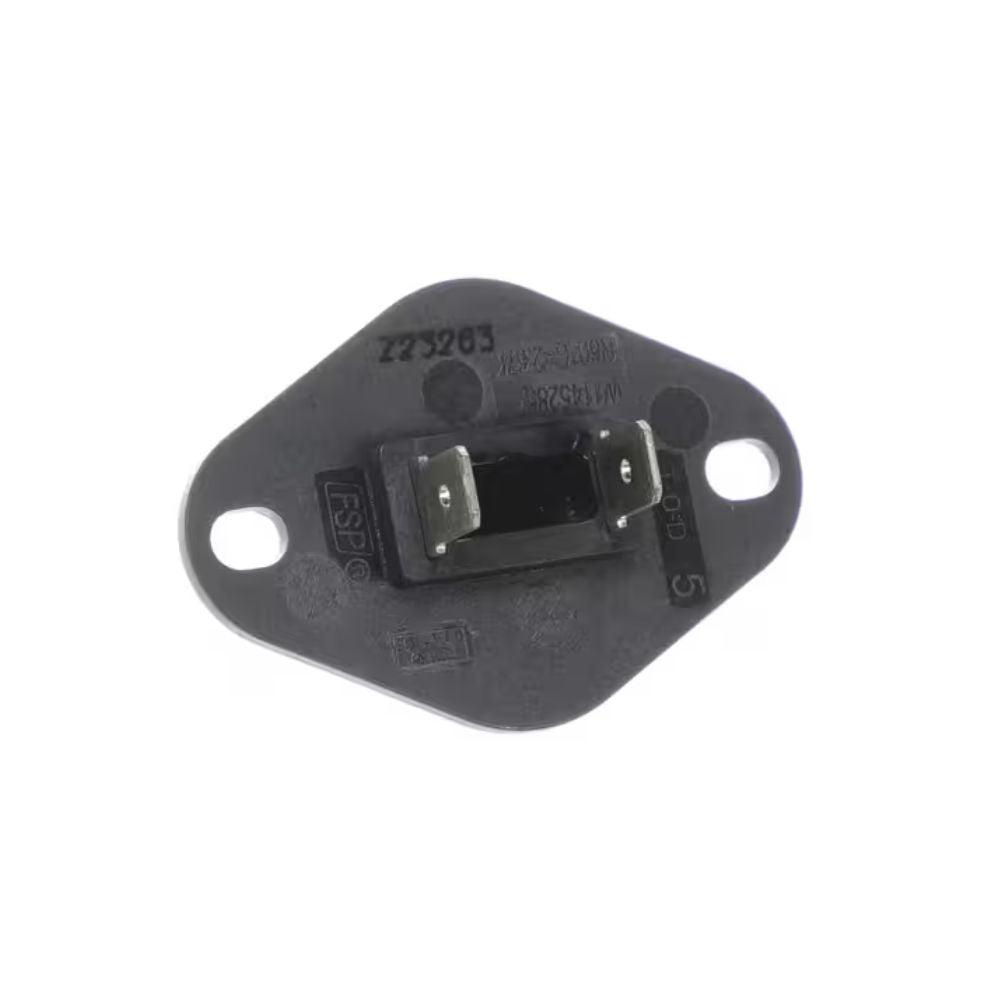

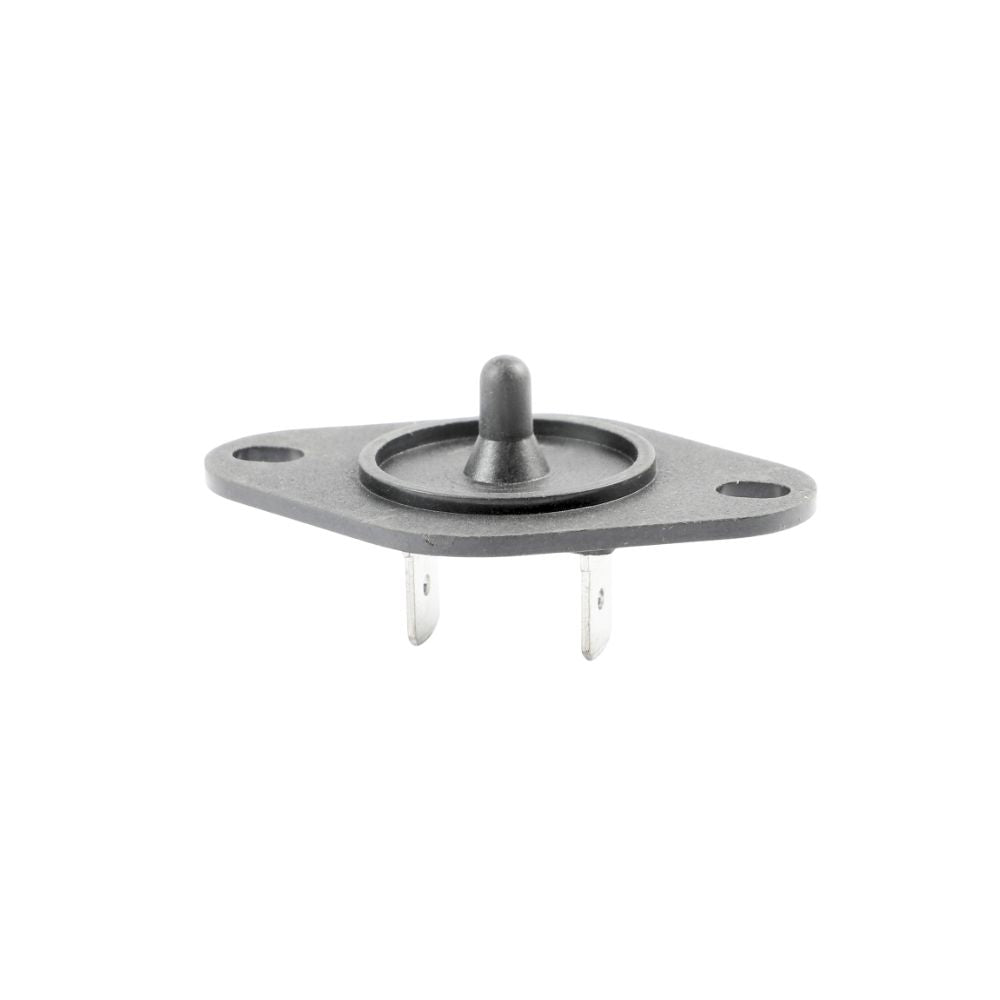

The W11683629 Dryer Genuine OEM Thermistor monitors air temperature inside the dryer and sends temperature information to the electronic control system. The control uses this signal to cycle the heat source and maintain the correct operating temperature during the drying cycle.
This is a Genuine OEM replacement part manufactured to the original equipment specifications for fit, electrical response, and dependable operation. Replacing a failed thermistor can help restore accurate temperature control, normal cycle times, and consistent drying results.
Quick Answer
W11683629 is a Genuine OEM dryer thermistor. It senses dryer air temperature and communicates with the control board so the appliance can regulate heating. Replace it when testing or diagnosis confirms an open, shorted, damaged, or inaccurate temperature sensor.
Common Problems This Part Fixes
- Dryer overheats or runs hotter than normal
- Clothes remain damp after a complete cycle
- Drying cycles take too long
- Heat cycles on and off incorrectly
- Dryer stops before clothes are dry
- Temperature-sensor or heating-related error codes
Replaces Part Number
The product title identifies the following part number:
W11683629, W11452857, AP7216892, AWP1400864, PS17216463.Ā
No additional replacement or cross-reference number was included in the supplied product title.
Compatibility
Designed for select dryer models that specify Genuine OEM part number W11683629. Appliance parts can look similar while using different resistance ranges, connectors, mounting positions, or control logic.
Always verify the complete dryer model number and the required part number before ordering. The model-number label is commonly located around the door opening, on the cabinet frame, or on the rear identification plate.
Key Features
- Genuine OEM manufacturer-approved component
- Monitors dryer operating temperature
- Sends temperature feedback to the control system
- Helps regulate heating and cycle performance
- Built to original fit and electrical specifications
- Direct replacement when W11683629 is specified
Product Specifications
| Part Number |
W11683629 |
| Part Type |
Dryer Thermistor / Temperature Sensor |
| Condition |
New |
| Quality |
Genuine OEM |
| Application |
Clothes Dryer |
| Primary Function |
Measures air temperature for the dryer control system |
| Package Quantity |
1 Thermistor |
Troubleshooting Guide
- Disconnect the dryer from electrical power before opening or servicing the cabinet.
- Inspect the exhaust vent, lint path, and blower area. Restricted airflow can produce symptoms similar to a failed thermistor.
- Inspect the thermistor body, terminals, connector, and wire harness for damage, corrosion, loose connections, or heat discoloration.
- Disconnect the thermistor and test resistance with a multimeter. Compare the reading with the dryer service information for the measured temperature.
- Warm or cool the sensor carefully. Resistance should change smoothly as temperature changes; an open circuit, short circuit, or unstable reading can indicate failure.
- Check the heater circuit, thermal devices, moisture-sensing system, and control board when the thermistor tests within specification.
Safety: Do not bypass a thermistor or protective temperature device. Installation and diagnosis should be performed by a qualified person when you are not comfortable servicing electrical appliances.
When Should You Replace This Part?
- The thermistor is open, shorted, or outside the specified resistance range
- The sensor reading does not change correctly with temperature
- The housing or connector is cracked, burned, or physically damaged
- A service diagnostic identifies W11683629 as the failed component
- Airflow and related heating components have been checked and the thermistor fails testing
Shop With Confidence
Purchase the correct Genuine OEM replacement part for dependable fit and performance. Verify your dryer model number before ordering, and contact our parts team when compatibility assistance is needed.
