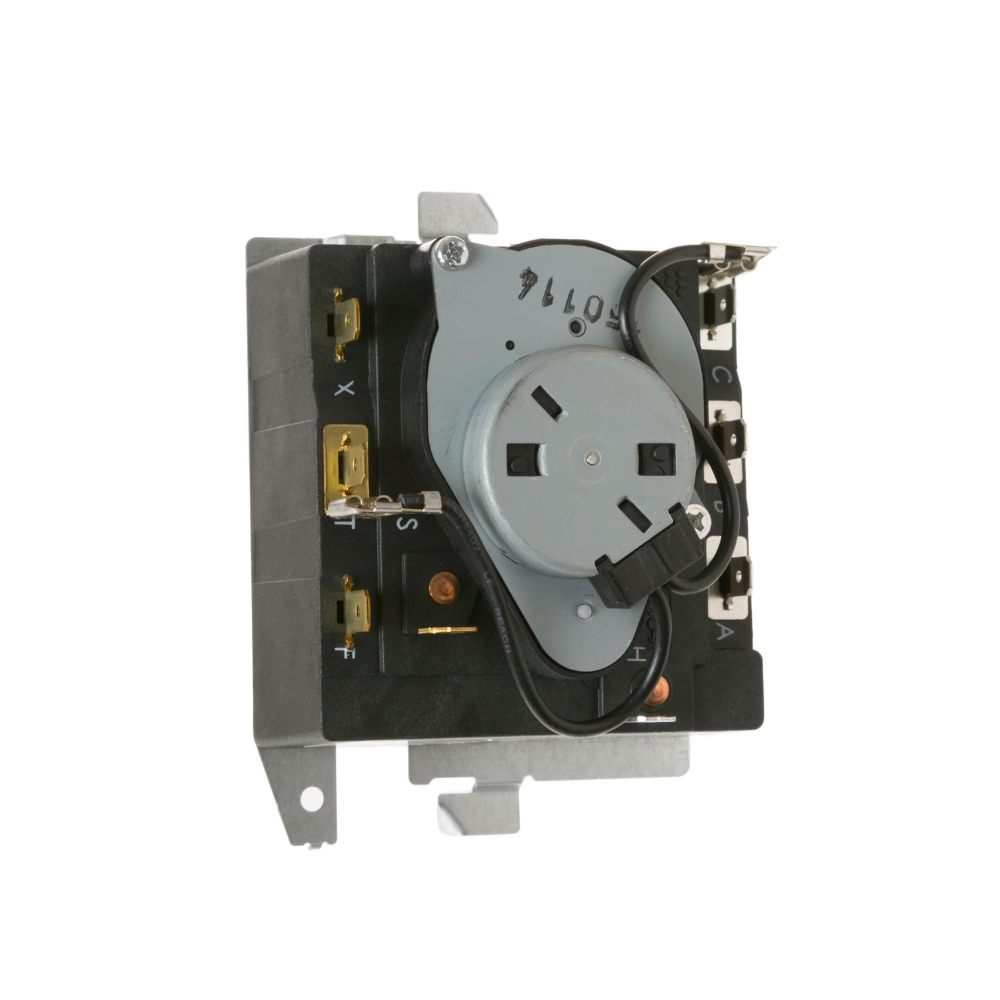

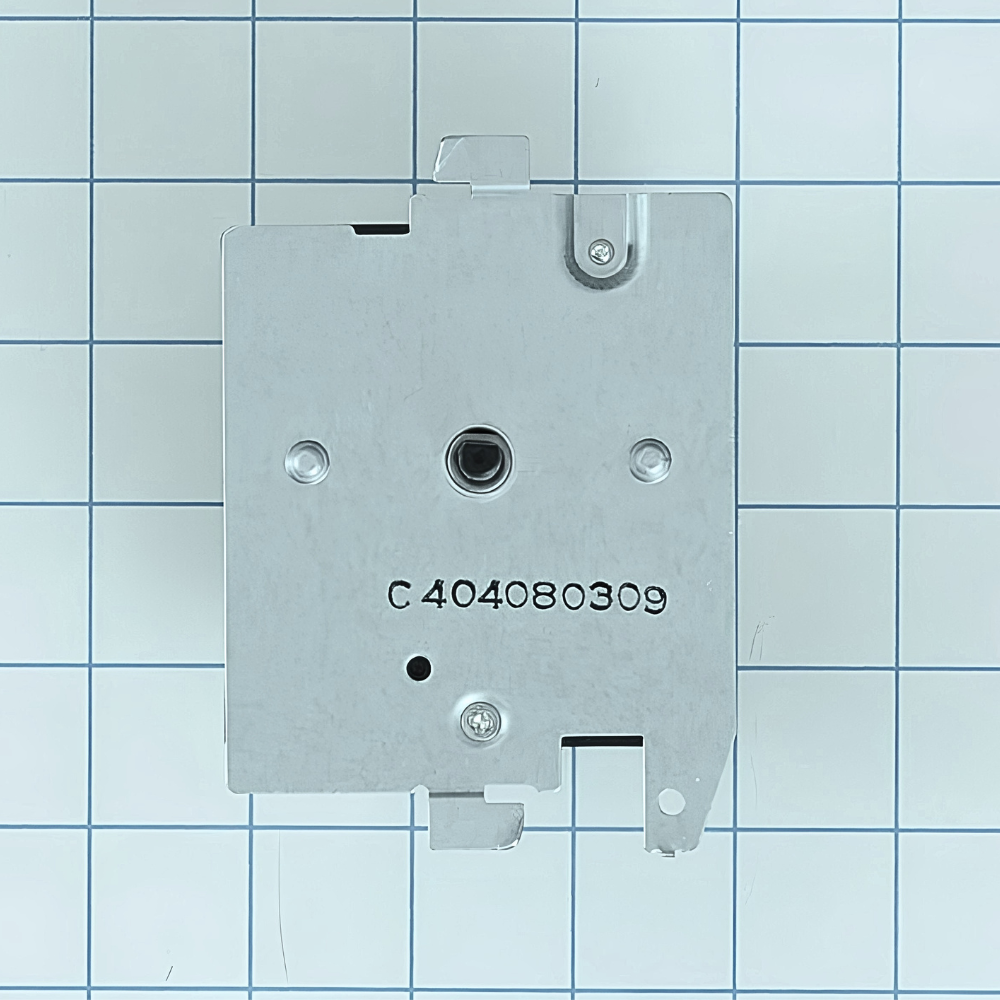

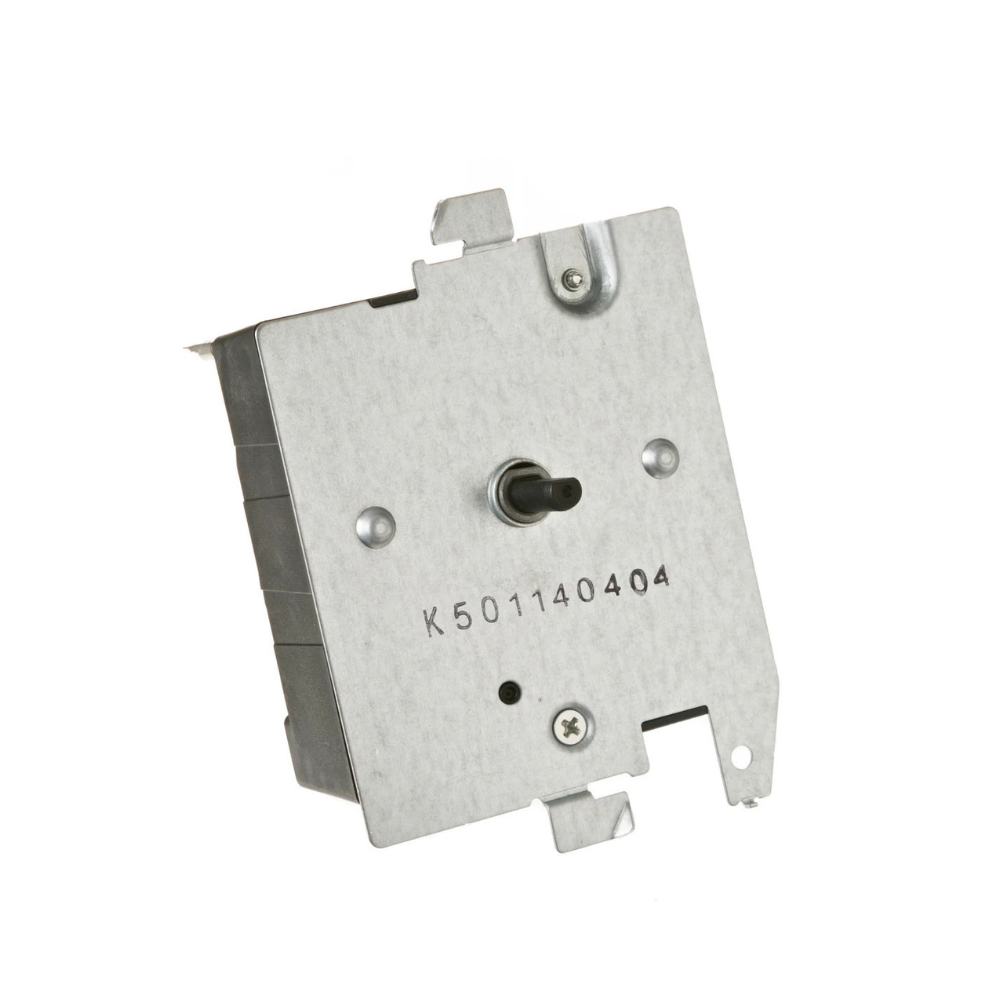

WE04X20416 Dryer Genuine OEM Timer
The WE04X20416 is a genuine GE OEM dryer timer with a plastic shaft for GE electric and gas dryers, and also fits select Hotpoint, RCA, and Kenmore models. This timer regulates the flow of electricity to the heating element and the motor, controlling the duration of the drying cycle and ensuring clothes are dried for the correct amount of time based on the selected cycle.
Measures approximately 3"H x 2"W x 4.5"D. Common causes of a bad timer include electrical failures, wear and tear from frequent use, or internal mechanical issues. Symptoms of a failing timer include the dryer not starting or stopping at the correct times, running continuously without advancing through the cycle, inconsistent drying results, or no clicking sound heard from the timer during operation. It directly replaces AP5805478, WE4M366, 3276207, and PS9491768.
Quick Answer
The WE04X20416 Dryer Genuine OEM Timer fixes GE, Hotpoint, RCA, and Kenmore electric and gas dryers that won't start or stop at the correct times, run continuously without advancing, dry inconsistently, or make no clicking sound during operation. Timer with plastic shaft, ~3"H x 2"W x 4.5"D. Replaces AP5805478, WE4M366, 3276207, PS9491768. Not the same as our WE04X20415 listing — these are separate GE timer part numbers used on different models.
Common Problems This Part Fixes
- Dryer not starting or stopping at the correct times
- Dryer running continuously without advancing through cycles
- Inconsistent drying results
- No clicking sound from the timer during operation
- Timer switch difficult to turn, affecting drying performance
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dryer timer directly replaces the following OEM and cross-reference part numbers:

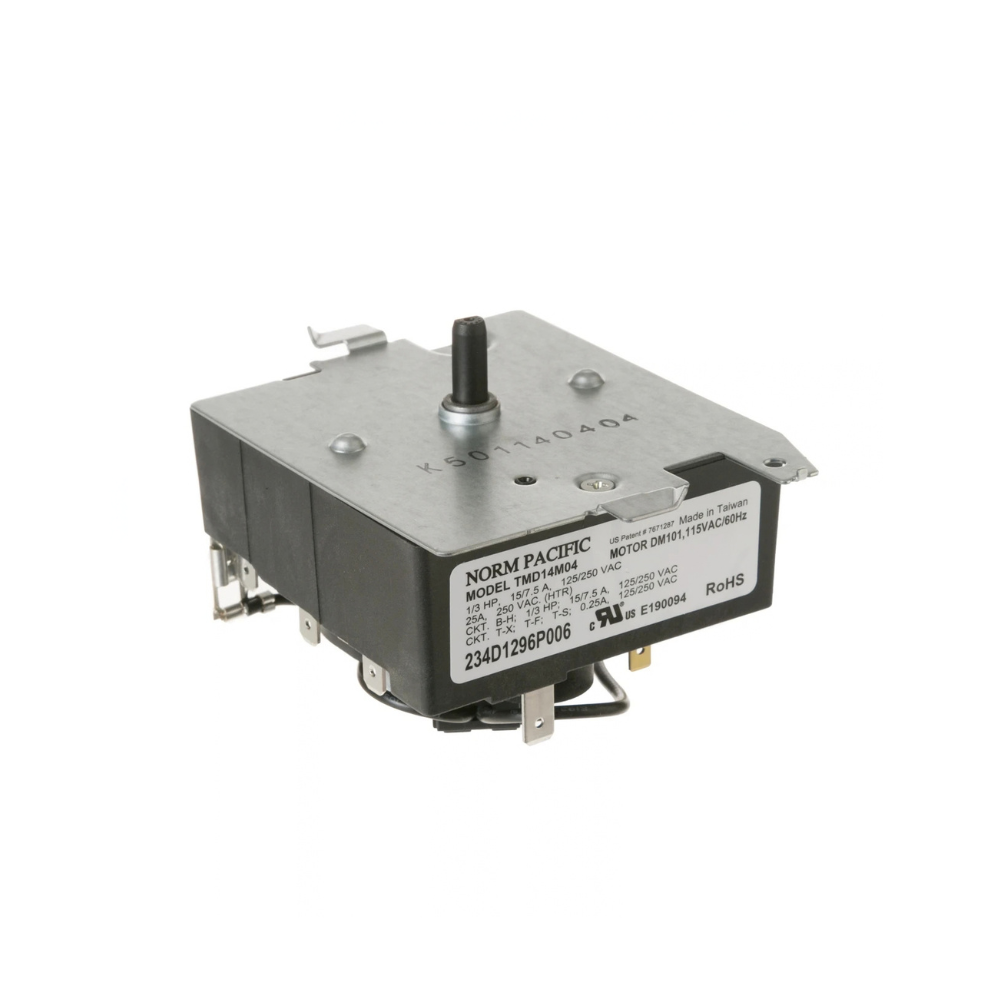

WE04X20416 replaces WE4M366, 3276207, MODEL TMD14M04, 234D1296P006, AGE25838, AP5805478, EAP9491768, PD00025358, PS9491768
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This dryer timer is compatible with select GE electric and gas dryers, and also fits select Hotpoint, RCA, and Kenmore dryers built on the GE platform.
Note — not the same as WE04X20415: Our WE04X20415 listing is a separate GE timer used on different models. GE has used a large number of similarly-numbered timers across its dryer lineup, and these are not interchangeable. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which timer your dryer needs.
Key Features
- Genuine GE OEM part — factory-specified timing mechanism and plastic shaft
- Regulates electricity flow to the heating element and motor to control cycle duration
- Resolves "won't start/stop correctly," "runs continuously," and "inconsistent drying" symptoms
- Approximately 3"H x 2"W x 4.5"D
- Durable plastic shaft construction
- Direct drop-in replacement matching the original mounting and terminal layout
- Replaces AP5805478, WE4M366, 3276207, and PS9491768
- Compatible with GE, Hotpoint, RCA, and Kenmore electric and gas dryers
- Genuine OEM replacement — guaranteed fit, materials, and performance
Product Specifications
| Part Number |
WE04X20416 |
| Part Type |
Dryer Timer with Plastic Shaft |
| Condition |
Genuine OEM |
| Brand |
GE |
| Dimensions |
Approx. 3"H x 2"W x 4.5"D |
| Shaft Material |
Plastic |
| Controls |
Heating element and motor electricity flow, cycle duration |
| Repair Difficulty |
Easy to Moderate |
| Quantity |
1 dryer timer |
| Compatible Brands |
GE, Hotpoint, RCA, Kenmore |
Installation Notes
⚠️ Unplug Dryer Before Starting — Inspect The Plastic Shaft For Wear Unplug your dryer and shut off the power source before beginning. Wear work gloves. Remove the cabinet by removing the screws from the back of the unit. Locate the control timer at the back side of the top panel. Photograph the wiring before disconnecting anything. Disconnect all of the wiring harnesses connected to the old timer. Remove the timer from the top panel by unscrewing its mounting screws. Inspect the plastic shaft for wear or damage before installing the new timer, since a worn shaft can affect how freely the knob turns even after the internal timer mechanism is replaced. Install the new WE04X20416, reconnecting all wiring harnesses fully and making sure every connection is tight and secure before closing the cabinet. Reassemble the cabinet and secure its screws. Restore power and run a short test cycle to confirm the dryer starts, runs, and stops correctly. Tools needed: Phillips screwdriver, work gloves.
Frequently Asked Questions
My dryer runs continuously and won't advance through the cycle. Is this the part I need?
Yes, this is a documented symptom of a failing timer. If the internal mechanism has worn out or jammed, the timer can fail to advance through the cycle stages correctly, leaving the dryer running past when it should stop or stall partway through.
The timer knob is hard to turn. Will this new timer fix that?
It should help, but check the condition of the plastic shaft as well. One customer replaced this timer after being unable to turn the switch freely, which was affecting their clothes drying properly — the new timer worked well, but they specifically recommended also picking up the matching replacement knob, since a worn shaft or knob can still cause turning difficulty even with a new timer installed.
Is this the same as your WE04X20415 listing?
No, these are separate GE timer part numbers used on different dryer models, despite the similar numbering. Always confirm your exact part number from your dryer's parts diagram or the sticker on your old timer before ordering.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It matches the original timing mechanism, plastic shaft, and terminal layout of the timer originally installed in your dryer.
