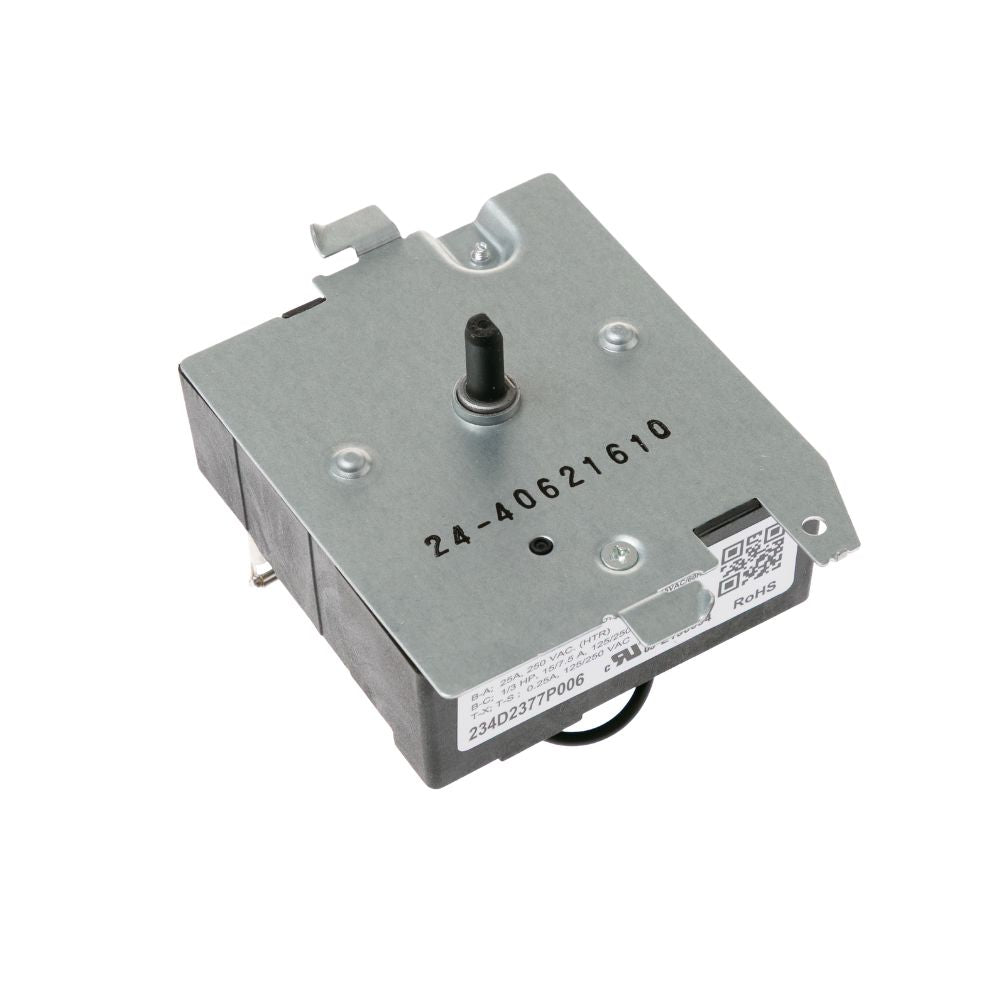

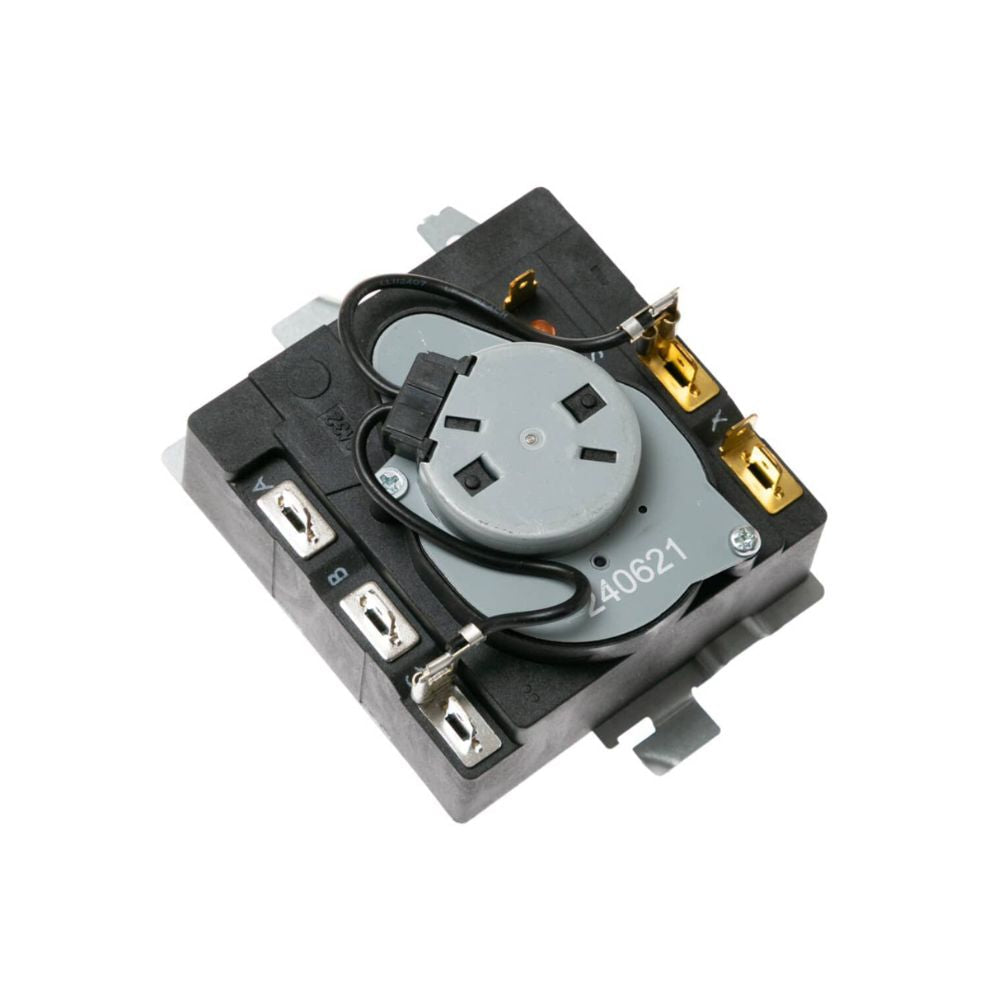

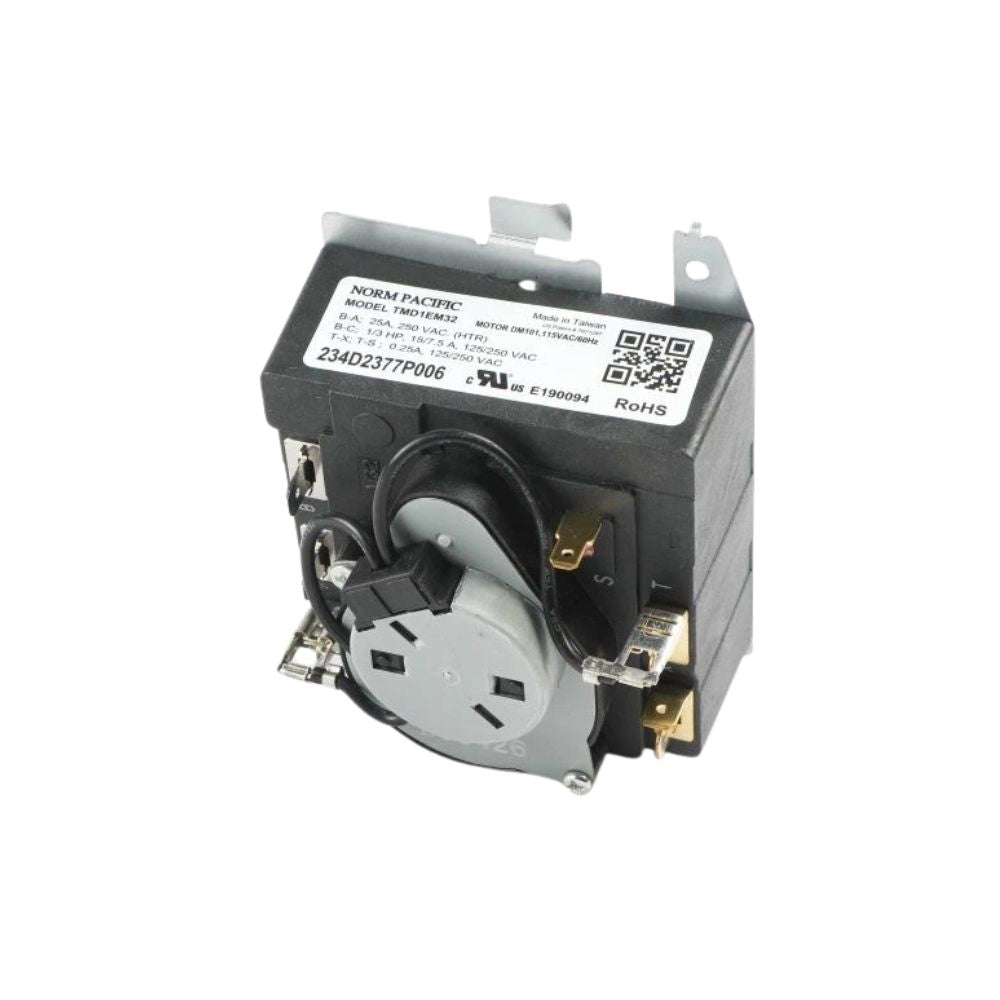

WE04X36457 Genuine OEM GE Dryer Timer
The WE04X36457 is a genuine GE OEM electromechanical timer for GE electric and gas dryers. This timer is the sequencing control behind the dryer's operating cycle, using an internal motor-driven mechanism to advance the dryer through each stage — tumbling, heating, and cool-down — at the correct intervals for the selected cycle length.
Over time, the timer's internal gears or contacts can wear out or jam. A failing timer produces a range of symptoms depending on which function is affected: the dryer may not advance through the cycle, may not shut off when it should, may not start at all, or may run with no heat if the timer's contacts controlling the heat circuit are affected. This part carries the updated designation EAPX36457X1, which fits both old and new production serials. It directly replaces CKDX36457X, TMD1EM32, 234D2377P006, AP7243859, PS17873930, FIX17873930, E190094, 250426, and 19-50425501.
Quick Answer
The WE04X36457 Genuine OEM GE Dryer Timer fixes GE electric and gas dryers that won't advance through the cycle, won't shut off, won't start, or run with no heat. Replaces CKDX36457X, TMD1EM32, 234D2377P006, AP7243859, PS17873930, FIX17873930, E190094, 250426, 19-50425501. GE uses many similarly-numbered WE04X-prefix timers across different dryer models — always confirm your exact part number or model before ordering, since these timers are not interchangeable across models.
Common Problems This Part Fixes
- Timer won't advance — dryer stays stuck at one point in the cycle
- Dryer won't shut off, keeps running after the cycle should have ended
- Dryer won't start at all
- Dryer runs with no heat or insufficient heat
- Unusual noise from the timer area during operation
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dryer timer directly replaces the following OEM and cross-reference part numbers:
WE04X36457, 19-50425501, 234D2377P006, 250426, E190094, FIX17873930, TMD1EM32, AGE143241, AP7243859, PD00092132, PS17873930.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This dryer timer is compatible with select GE electric and gas dryers, including model numbers GTD38EASW0WS, GTD38GASW0WS, GTX38EASW0WS, and GTX38GASW0WS.
Note: GE uses a large number of similarly-numbered WE04X-prefix timers across its dryer lineup, including WE04X20089, WE04X24549, WE04X24550, WE04X25280, WE04X25586, and WE04X20415, each fitting a different set of models. These are not interchangeable with this WE04X36457 timer. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
- Genuine GE OEM part — factory-specified timing mechanism and terminal layout
- Electromechanical timer sequences tumbling, heating, and cool-down through the cycle
- Resolves "won't advance," "won't shut off," "won't start," and "no heat" symptoms caused by timer failure
- Updated designation EAPX36457X1 fits both old and new production serials
- Direct drop-in replacement matching the original mounting and terminal layout
- Replaces CKDX36457X, TMD1EM32, 234D2377P006, AP7243859, PS17873930, FIX17873930, E190094, 250426, and 19-50425501
- Compatible with GE electric and gas dryers
- Genuine OEM replacement — guaranteed fit, materials, and performance
Product Specifications
| Part Number |
WE04X36457 |
| Alternate/Updated Designation |
EAPX36457X1 |
| Part Type |
Dryer Timer (Electromechanical) |
| Condition |
Genuine OEM |
| Brand |
GE |
| Controls |
Tumbling, heating, and cool-down sequencing |
| Repair Difficulty |
Easy to Moderate |
| Quantity |
1 dryer timer |
| Compatible Brand |
GE |
Installation Notes
⚠️ Unplug Dryer Before Starting — Photograph Wiring Before Disconnecting Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Access the timer through the control console or back panel depending on your model. Photograph each wire's terminal position before disconnecting anything, since a dryer timer typically has multiple wires and mixing them up can cause a malfunction after reinstallation. Remove the mounting screws or clips securing the old timer, then disconnect its wiring. Install the new WE04X36457 in the same position, reconnecting each wire to its original terminal exactly as photographed. Secure the timer in its mounting position and reassemble the console or panel. Restore power and run a full test cycle to confirm the dryer advances properly through tumbling, heating, and shutoff at the correct times. Tools needed: Phillips screwdriver or nut driver (model-dependent), work gloves.
Frequently Asked Questions
My dryer won't shut off and keeps running. Is this the timer?
Yes, this is a well-documented symptom of a failing timer. If the internal gear motor or contacts jam, the timer can fail to advance to the "off" position at the end of the cycle, leaving the dryer running continuously past when it should have stopped.
My old part number doesn't say WE04X36457. Is this still the right timer?
If your old timer's part number is CKDX36457X, TMD1EM32, or 234D2377P006, or one of the other numbers listed in our cross-reference section, yes — this WE04X36457 timer, also designated EAPX36457X1, is the current replacement and fits both older and newer production serials.
There are so many similar-looking GE timer part numbers. How do I make sure I order the right one?
GE has released many timers with very similar WE04X-prefix numbers for different dryer models, and they are not interchangeable despite the resemblance. The safest approach is to match your dryer's full model number against this listing's compatibility, or check the exact part number printed on your old timer, rather than relying on how similar the numbers look.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It matches the original timing mechanism and terminal layout of the timer designed for your dryer.
