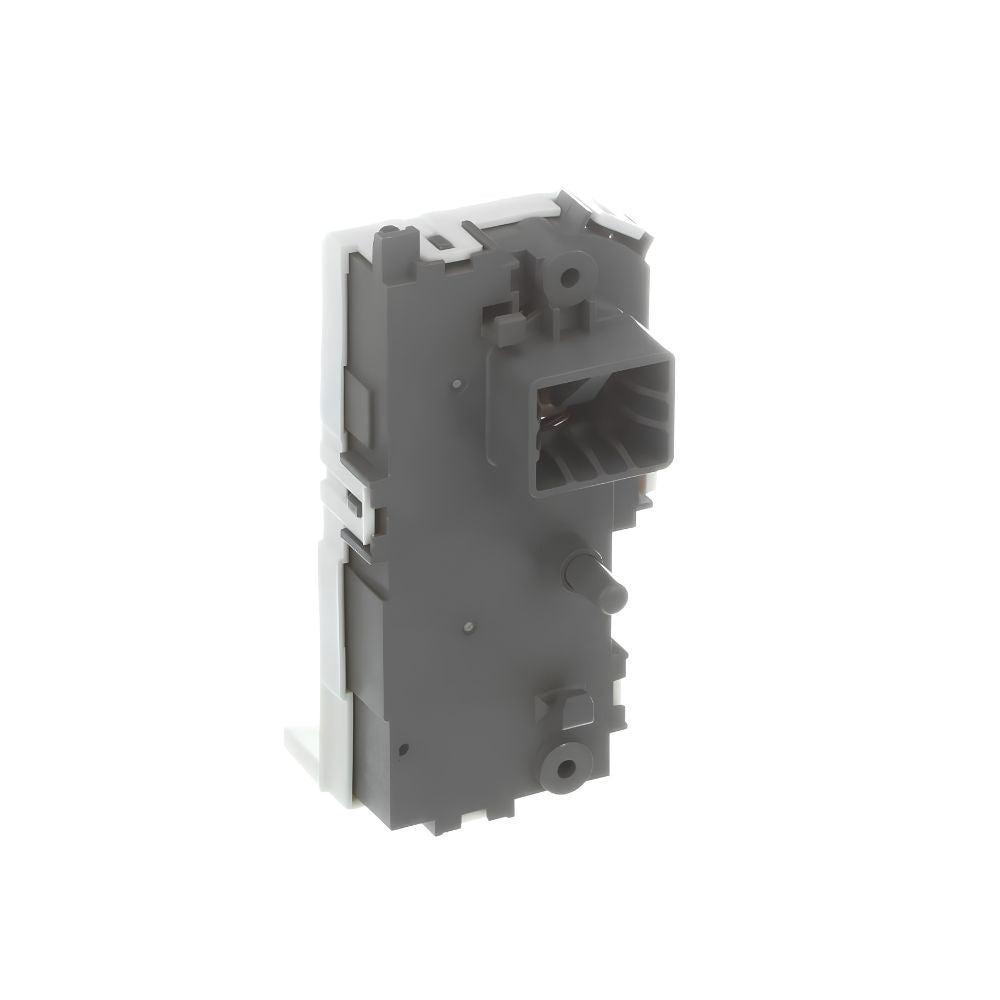

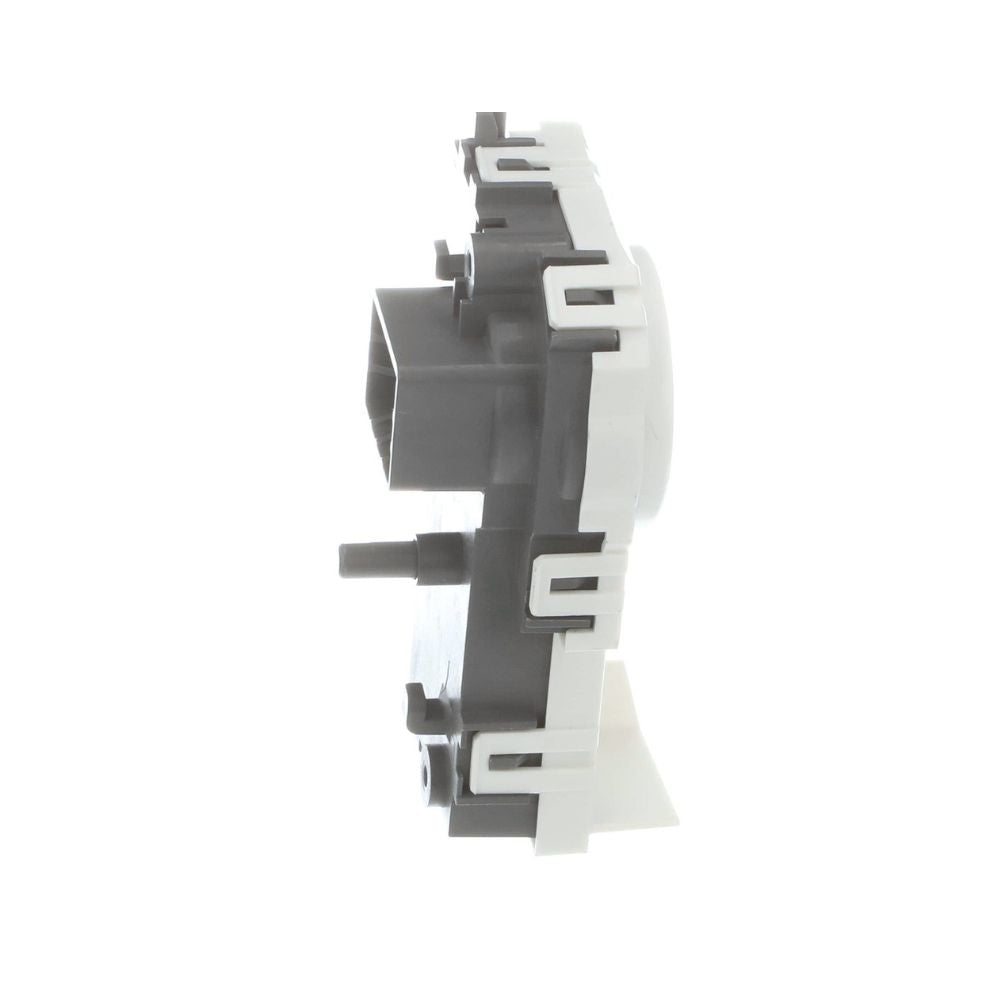

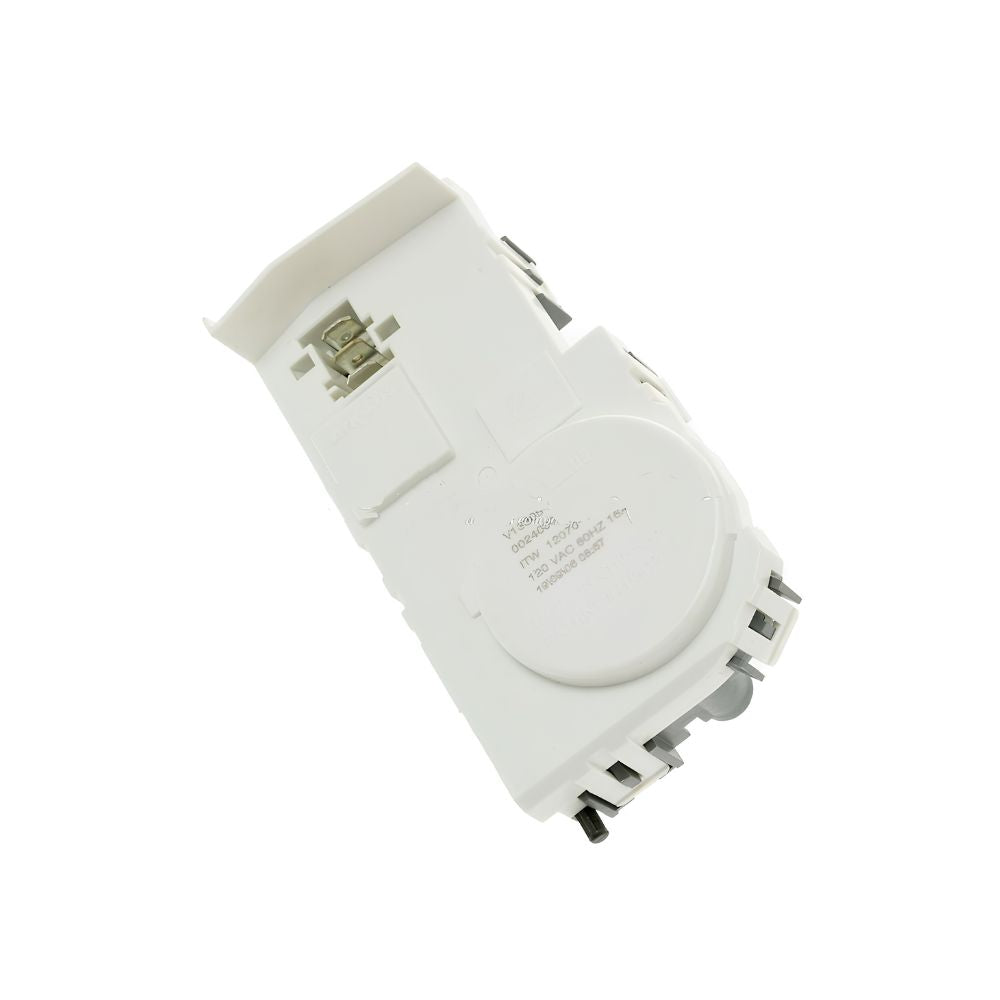

WH01X29528 Genuine OEM GE Washer Door Lock
The WH01X29528 is a genuine GE OEM door lock assembly for GE front-load washers and select GE Ultrafast 2-in-1 combo washer/dryers. This is a safety mechanism, not just a switch: when the door closes, the lock engages automatically and secures the door shut for the full length of the cycle, only releasing once the control confirms it's safe to open. This prevents the door from being opened mid-cycle, which would otherwise let water and detergent spill out and create both a mess and a safety hazard.
Rated 120VAC, 60Hz, 16A. Over time, the door lock can fail from physical damage or ordinary wear, and when it does, the symptoms can be wide-ranging: a washer that won't start because the control never confirms the door is locked, a cycle that stops partway through, a door that won't unlock at the end of a cycle, or in some cases excessive noise and shaking during operation since the lock also plays a role in keeping the door assembly seated correctly. It directly replaces AP6985313, EAP12749276, 4958749, PS12749276, PD00060769, ITW 12070-71, V13305, and 0024000128GE. As a genuine OEM part, the WH01X29528 is manufactured by GE to factory specifications — guaranteed fit, materials, and performance.
Quick Answer
The WH01X29528 Genuine OEM GE Washer Door Lock fixes GE front-load washers and GE Ultrafast combo washer/dryers where the door won't lock, the washer won't start, the door pops open or unlocks unexpectedly during the cycle, or the cycle stops partway through. 120VAC, 60Hz, 16A. Replaces AP6985313, EAP12749276, 4958749, PS12749276, PD00060769, ITW 12070-71, V13305, 0024000128GE. Before replacing, try a power reset — unplug the washer for 30 seconds and plug it back in — or hold Start/Pause for 15 seconds to command the control to release the lock; either can resolve a door stuck locked without needing a new part.
Common Problems This Part Fixes
- Washer won't start because the door lock never confirms as locked
- Door lock fails to engage, or the door pops open after locking
- Door unlocks unexpectedly during the wash cycle
- Cycle stops or interrupts partway through
- Door won't unlock at the end of a completed cycle
- Excessive noise or shaking during operation related to a loose door seal
- Error code related to the door lock displayed on the control panel
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer door lock directly replaces the following OEM and cross-reference part numbers:
WH01X29528, 4958749, AP6985313, PS12749276, EAP12749276, PD00060769, ITW 12070-71, V13305, AGE26402, PD00060769, 0024000128GE
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This door lock is compatible with select GE front-load washers and GE Ultrafast 2-in-1 combo washer/dryers, including model numbers such as:
- GFW510SCN0WW, GFW510SCN1WW, GFW510SCN2WW, GFW510SCN3WW, GFW510SCN4WW, GFW510SCN5WW
- GFW550SPN0DG, GFW550SPN2DG, GFW550SSN1WW
- GFW650SPN1SN, GFW650SPN2SN, GFW650SSN2WW, GFW650SSN3WW
- GFW655SSV0WW, GFW655SPV0WW
- GFW850SPN0DG, GFW850SPN0RS, GFW850SPN1DG, GFW850SPN1RS, GFW850SPN2DG, GFW850SPN2RS, GFW850SPN3DG, GFW850SPN3RS, GFW850SPN4RS, GFW850SPN5RS, GFW850SSN0WW, GFW850SSN1WW, GFW850SSN2WW, GFW850SSN3WW, GFW850SSN4WW, GFW850SSN5WW
- PFQ97HSPV0DS (GE Ultrafast 2-in-1 combo washer/dryer)
- PFW870SPV0RS, PFW870SSV0WW
- PFW950SPT0DS, PFW950SPT1DS, PFW950SPT2DS
Note: Always verify your full model number before ordering, since GE uses several different door lock assemblies across its front-load washer lineup. Contact our support team with your model number if you're unsure.
Key Features
- Genuine GE OEM part — factory-specified locking mechanism and switch design
- Safety lock that secures the door shut for the full length of the wash cycle
- Resolves "won't lock," "won't start," "door pops open," and "cycle interruptions" symptoms caused by lock failure
- Rated 120VAC, 60Hz, 16A
- Direct drop-in replacement — matches the original mounting and harness connector
- Replaces AP6985313, EAP12749276, 4958749, PS12749276, PD00060769, ITW 12070-71, V13305, and 0024000128GE
- Compatible with GE front-load washers and GE Ultrafast 2-in-1 combo washer/dryers
- Genuine OEM replacement — guaranteed fit, materials, and performance
Product Specifications
| Part Number |
WH01X29528 |
| Part Type |
Washer Door Lock Assembly |
| Condition |
Genuine OEM |
| Brand |
GE |
| Application |
Front-Load Washers, GE Ultrafast Combo Washer/Dryers |
| Voltage |
120VAC |
| Frequency |
60 Hz |
| Current Rating |
16A |
| Function |
Locks the door shut during the wash cycle; releases when the control confirms it's safe |
| Quantity |
1 door lock assembly |
| Compatible Brand |
GE |
Installation Notes
⚠️ Unplug Washer Before Starting — Try A Power Reset First If The Door Is Stuck Locked Before replacing the part, try the simplest fixes first. Unplug the washer, wait 30 seconds, and plug it back in to let the control fully reboot — a simple power reset can release an operational lock and clear the problem without any disassembly. If that doesn't work, try holding the Start/Pause or Power button for 15 seconds to command the control to unlock the door; this doesn't always succeed but is quick to try before opening up the washer. If the door is still locked and you need physical access, never work on the appliance while it's connected to power. Once you've confirmed replacement is necessary, disconnect power at the outlet or shut off the circuit breaker. Wear work gloves. Access is typically from the front, working around the door boot/gasket to reach the lock assembly mounted to the front panel. Photograph the wiring harness connector and mounting position before disconnecting anything. Disconnect the harness connector from the old lock, remove its mounting screws, and pull it free. Install the new WH01X29528 in the same position, secure the mounting screws, and reconnect the harness connector fully. Reseat the door boot/gasket if it was disturbed, restore power, and run a test cycle to confirm the door locks, stays locked through the cycle, and releases normally at the end. Tools needed: Phillips screwdriver, work gloves.
Frequently Asked Questions
My washer's door is stuck locked. Do I need to replace this part right away?
Not necessarily — try the simple resets first. Unplug the washer for 30 seconds and plug it back in to let the control fully reboot, which can release an operational lock on its own. If that doesn't work, try holding the Start/Pause or Power button for 15 seconds, which commands the control to release the lock electronically. These steps resolve many stuck-door situations without needing to replace the lock assembly at all.
My washer won't start. Is that this part?
It's a strong possibility. The control won't begin a cycle until it receives confirmation that the door is locked, so if this lock has failed and isn't sending that signal, the washer will simply refuse to start even though everything else appears normal. Try the power reset steps above first, then check for a door lock-related error code on the display before assuming the part has failed.
I already replaced this lock once and it failed again. What should I check?
If a newly replaced lock fails again relatively quickly, it's worth having the washer's control board checked, since a board that's sending incorrect signals to the lock can cause repeat failures that look like the lock itself is bad. It's also worth confirming the door boot/gasket is seated correctly, since a misaligned door can put uneven stress on the lock mechanism.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It includes the same locking mechanism, switch design, and harness connector as the door lock originally installed in your GE front-load washer or Ultrafast combo washer/dryer.
