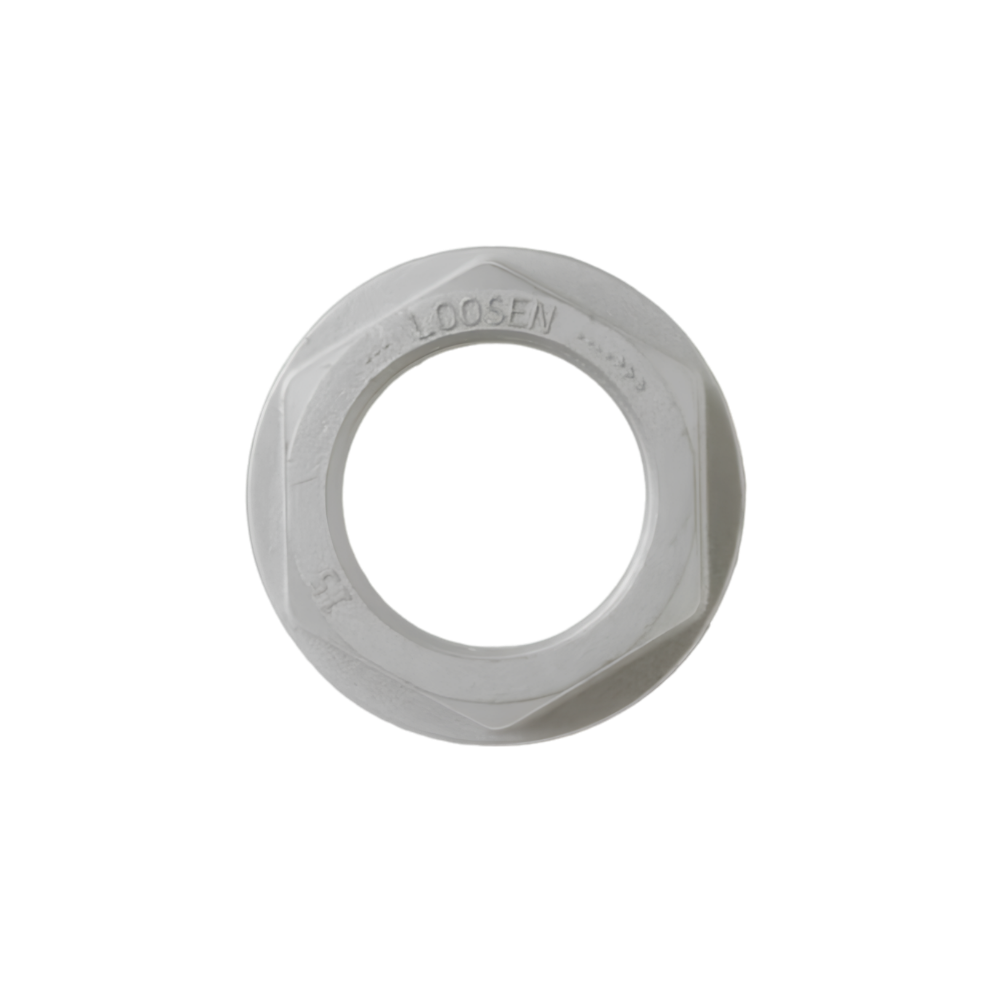

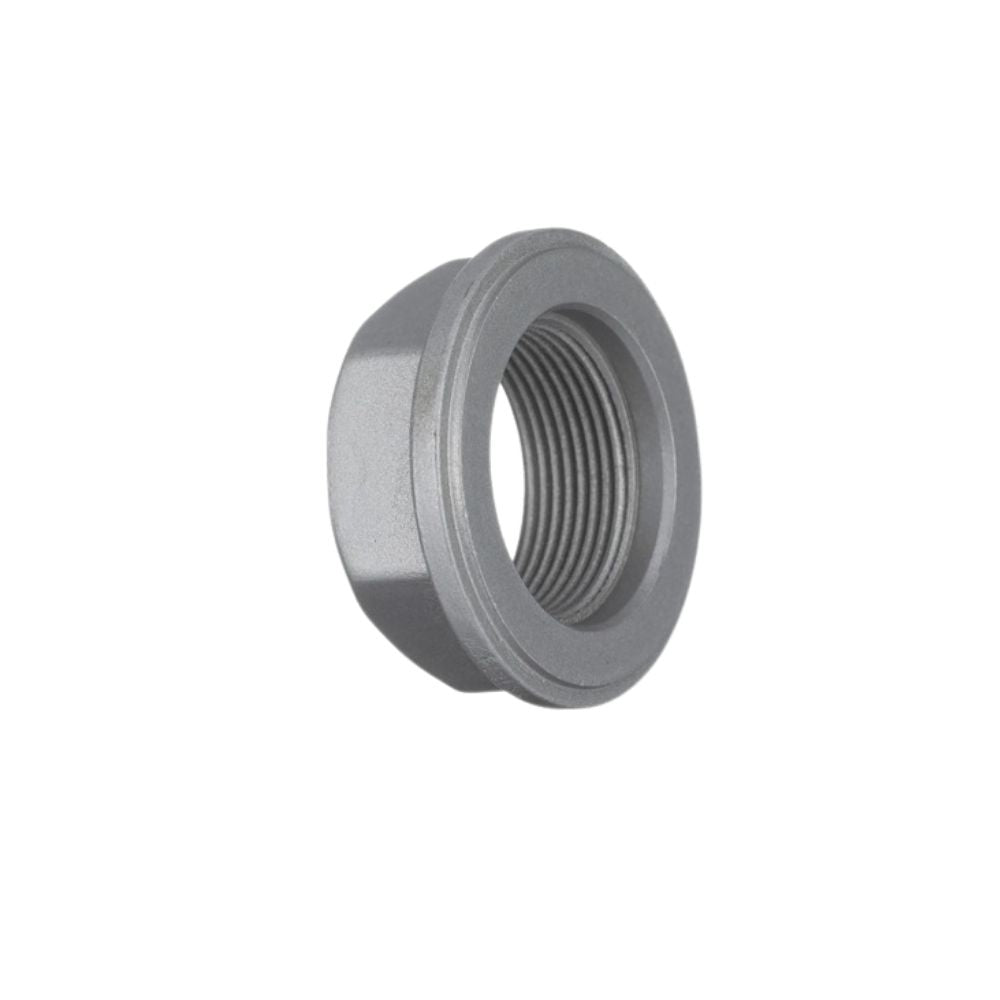

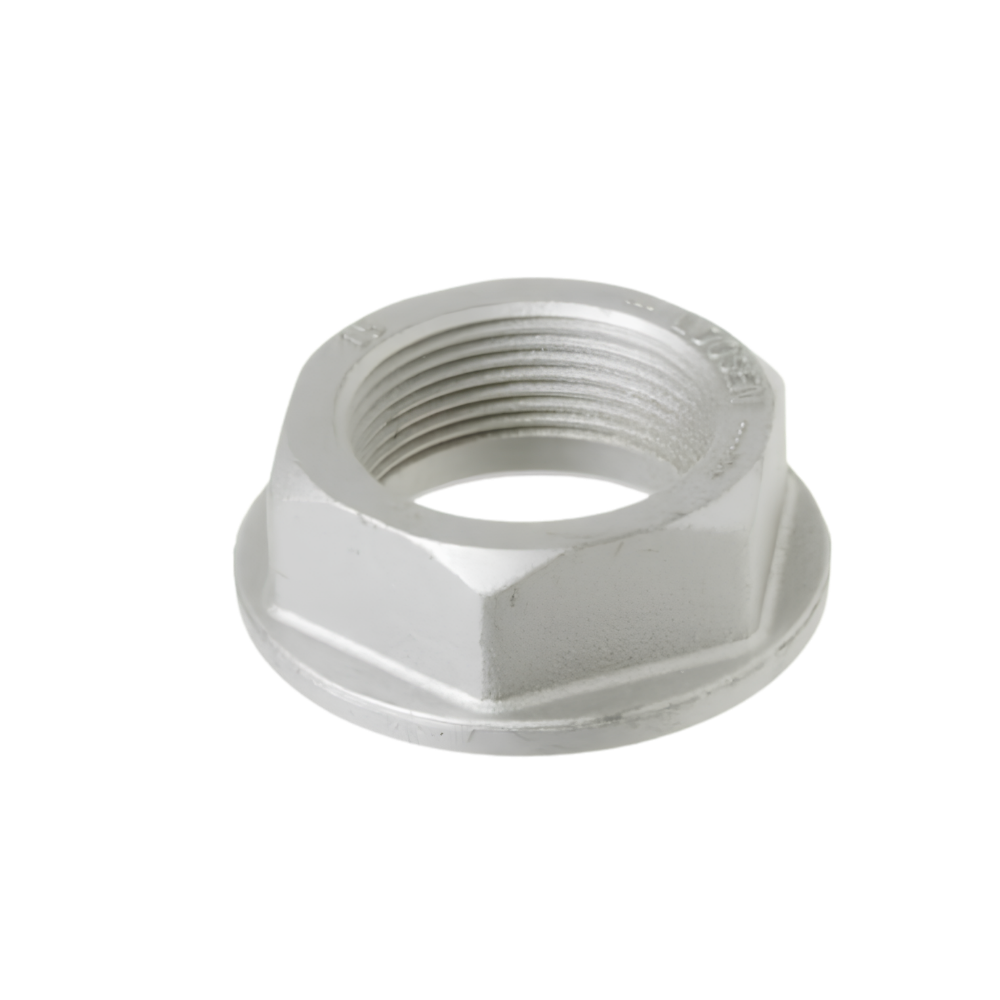

WH02X10363 Genuine OEM GE Washer Hub Nut
The WH02X10363 is a genuine GE OEM hub nut for GE, Hotpoint, and select RCA and Kenmore top-load washers. This nut is what secures the wash basket to the transmission's drive spline, holding the entire tub assembly firmly attached to the drive system. Every time the washer agitates or spins, this single nut is what keeps the basket properly seated and aligned rather than shifting or working loose under that repeated mechanical load.
Over years of use, or from overloading the washer with oversized loads, this nut can loosen or wear enough that the basket no longer sits securely. A failed or loose hub nut typically shows up as a basket that wobbles or feels loose, unusual noise during agitation or spin, or in more advanced cases, a basket that isn't properly engaging with the drive system at all. It directly replaces AP5793681, 3029784, and PS8757009.
Quick Answer
The WH02X10363 Genuine OEM GE Washer Hub Nut fixes GE, Hotpoint, RCA, and Kenmore top-load washers with a wobbling or loose-feeling basket, unusual noise during agitation or spin, or a basket that isn't securely engaging with the drive system. Replaces AP5793681, 3029784, PS8757009. This nut requires a very specific torque — GE's own guidance calls for a 90 ft-lb torque-limiting extension and a 1-5/16" (33mm) impact socket. Using a standard impact wrench without the torque limiter can damage both the new nut and the transmission.
Common Problems This Part Fixes
- Wash basket that wobbles or feels loose
- Unusual noise during agitation or spin
- Basket that isn't properly engaging with the drive system
- Missing or broken hub nut
- Basket instability that worsens with larger or unbalanced loads
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer hub nut directly replaces the following OEM and cross-reference part numbers:
WH02X10363, 3029784, AGE1396433, AP5793681, EAP8757009, PD00046649, PS8757009.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This hub nut is compatible with select GE top-load washers, and also fits select Hotpoint, RCA, Haier, Monogram, Café, and Kenmore washers built on the GE platform, including model numbers such as GHWN8350D0WS and GTW465ASN2WW.
Note: Always verify your full model number before ordering, since GE uses different hub nut sizes and thread designs across its washer lineup. Contact our support team with your model number if you're unsure.
Key Features
- Genuine GE OEM part — factory-specified thread and torque rating
- Secures the wash basket to the transmission drive spline
- Resolves "wobbling basket," "loose feel," and "unusual noise during agitation or spin" symptoms

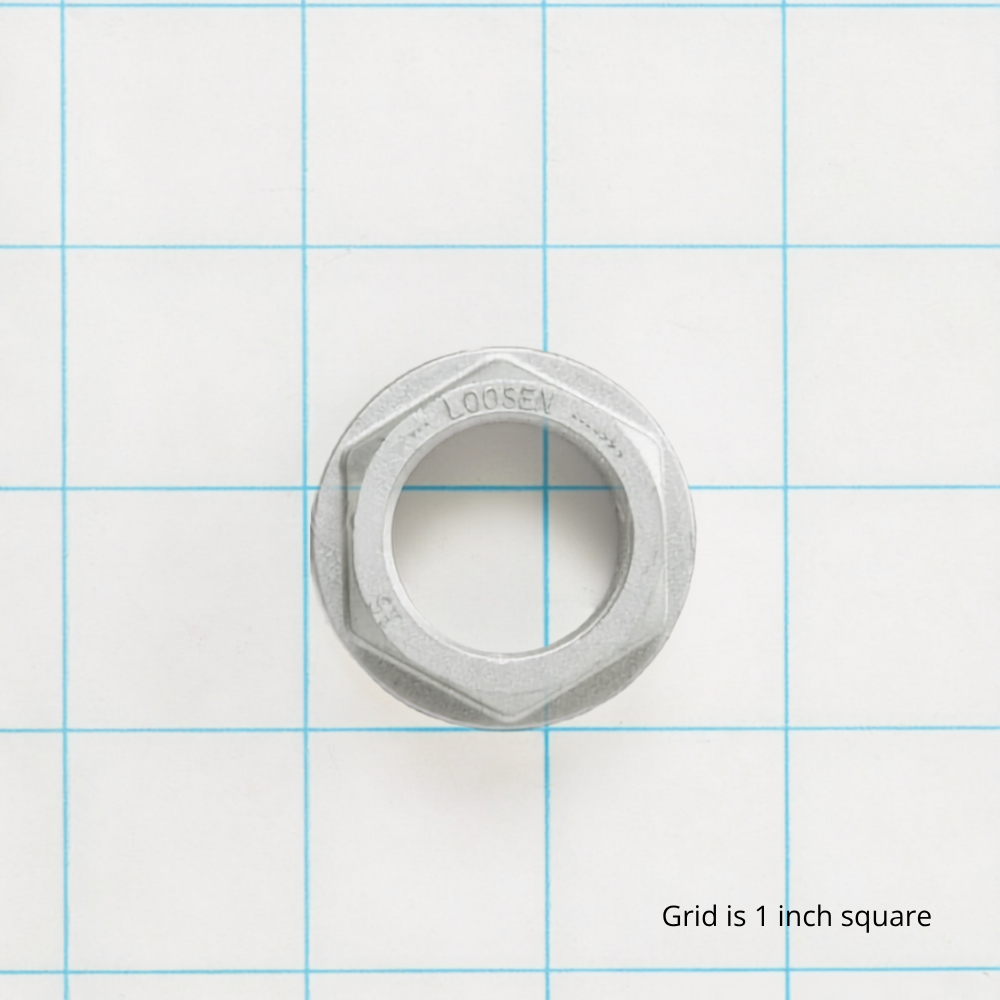

- 1-5/16" (33mm) nut size
- Direct drop-in replacement — matches the original thread and fit
- Replaces AP5793681, 3029784, and PS8757009
- Compatible with GE, Hotpoint, RCA, Haier, Monogram, Café, and Kenmore top-load washers
- Genuine OEM replacement — guaranteed fit, materials, and performance
Product Specifications
| Part Number |
WH02X10363 |
| Part Type |
Washer Hub Nut |
| Condition |
Genuine OEM |
| Brand |
GE |
| Application |
Top-Load Washers |
| Size |
1-5/16" (33mm) |
| Function |
Secures the wash basket to the transmission drive spline |
| Required Torque |
90 ft-lb (torque-limiting extension required) |
| Thread Direction |
Reverse-threaded — tightens counter-clockwise |
| Repair Difficulty |
Moderate to Hard — specialized tools required |
| Quantity |
1 hub nut |
| Compatible Brands |
GE, Hotpoint, RCA, Haier, Monogram, Café, Kenmore |
Installation Notes
⚠️ Critical — Correct Torque Tool Required, And This Nut Threads Counter-Clockwise Unplug the washer before beginning. Wear work gloves and safety glasses. Remove the fabric softener dispenser to access the agitator/auger assembly. Use a screwdriver to puncture through the inner shaft of the auger, then twist clockwise until the auger releases — this step can be difficult, and you'll need to hold the basket steady to keep it from rotating while you work. Lift the auger out. Remove the 11mm bolt underneath, then lift out the base assembly to expose the hub nut. Per GE's own guidance, removing and installing this nut requires a 90 ft-lb torque-limiting extension (GE part WX05X10028) along with a 1-5/16" (33mm) impact socket (GE part WX05X10022). Using a standard impact wrench without the torque limiter risks over-torquing, which can damage both the new nut and the washer's transmission. Unthread the old 33mm hub nut — this can also be difficult, so be patient and keep the basket from rotating. To install the new WH02X10363, thread it on going counter-clockwise, since this nut is reverse-threaded — the opposite direction of a standard nut. Align the base with the spline shaft, set it into position, and reassemble in reverse order: reinstall the 11mm bolt, reinstall the auger, and reattach the fabric softener dispenser. Restore power and run a test cycle to confirm the basket is stable with no wobble or unusual noise. Tools needed: impact driver or wrench with 90 ft-lb torque-limiting extension, 1-5/16" (33mm) deep well or impact socket, 3/8" to 1/2" adapter, 11mm socket, Phillips screwdriver, work gloves, safety glasses.
Frequently Asked Questions
Do I really need a special torque tool, or can I use a regular impact wrench?
GE's own manufacturer guidance is explicit on this point: a 90 ft-lb torque-limiting extension must be used when removing or installing this hub nut to prevent damage to the nut and the transmission from over-torquing. A standard impact wrench alone can apply far more force than this nut and the transmission are designed to handle, so skipping the torque limiter risks turning a simple nut replacement into a much larger and more expensive transmission repair.
Which direction does this nut turn to tighten?
This nut is reverse-threaded, meaning it tightens by turning counter-clockwise — the opposite of a standard nut. This is an easy detail to miss if you're not expecting it, and turning it the wrong direction won't seat it correctly. Keep this in mind both when removing the old nut and installing the new one.
My basket feels wobbly. Is this definitely the hub nut?
It's a strong possibility, especially if the wobble has developed gradually or worsened after washing unusually large or unbalanced loads. Since this nut is what holds the entire basket assembly firmly attached to the transmission's drive spline, a loosened or worn nut directly translates into a basket that no longer sits securely.
Is this an OEM or aftermarket part?
This is a genuine OEM part, manufactured by GE to factory specifications — guaranteed fit, materials, and performance. It matches the original thread design, size, and torque rating of the hub nut originally installed in your washer.
